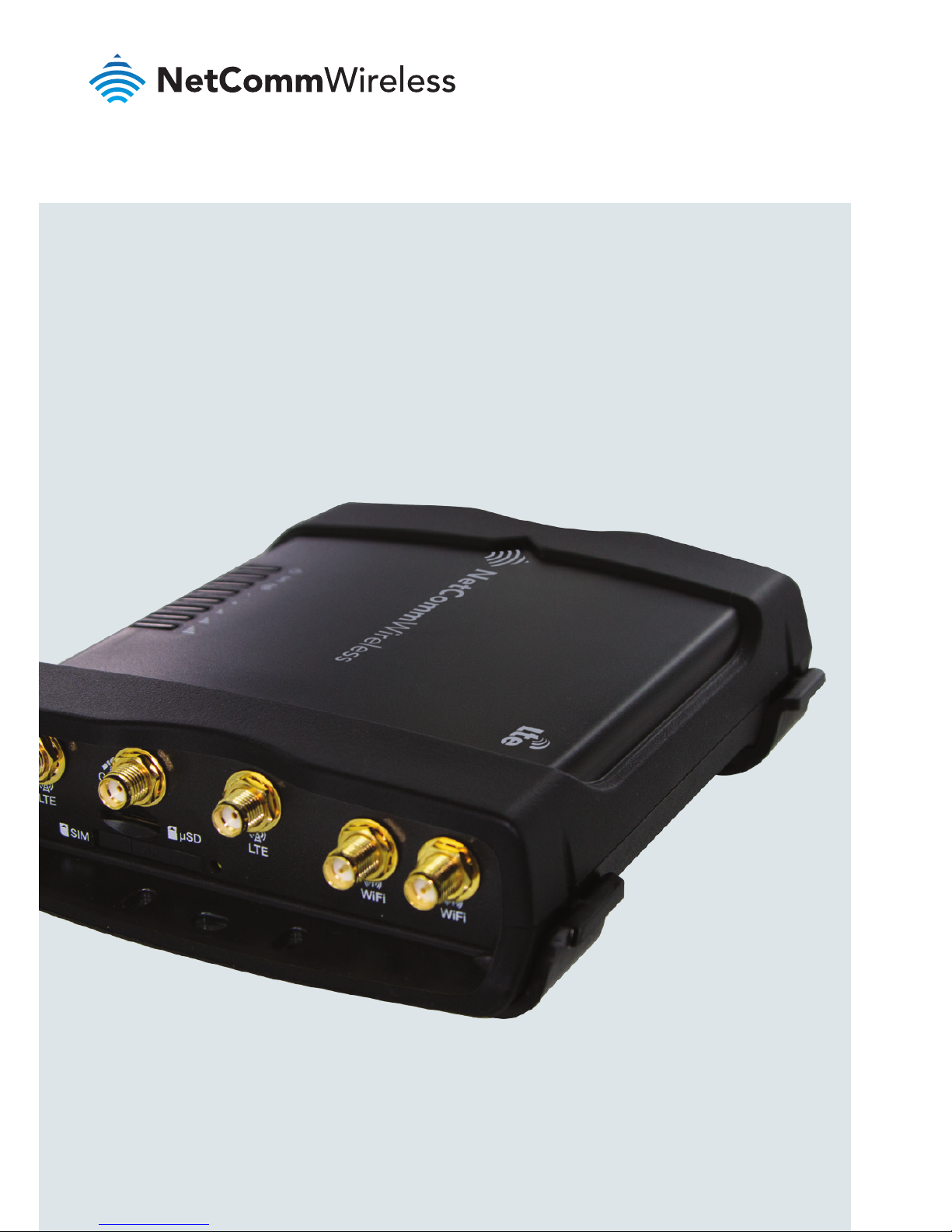

NetComm NTC-140W Series Manuale utente
Quick Start Guide
4G WiFi M2M Router
NTC-140W Series
| Wireless M2M
2
Quick start guide
This quick start guide is designed to get you up and running quickly with your new
NTC-140W Series router. More advanced set up instructions can be found in the
user guide which can be downloaded from
www.netcommwireless.com/product/m2m/ntc-140w
or found on the Help tab of the device’s user interface.
Package contents
All NTC-140W packages include:
1 x NetComm Wireless NTC-140W Series router
2 x LTE antennas
2 x WiFi antennas
1 x 1.5m Black Ethernet cable 8P8C
1 x DIN rail mounting bracket
1 x Quick start guide
1 x Power supply with interchangeable heads
1 x WiFi security card
| Wireless M2M
3
NTC-140W Series - 4G WiFi M2M Router
+
-
i
I/O
GPS
USB LAN LAN/WAN
WiFi
LTE
SIM
µSD LTE
WiFi

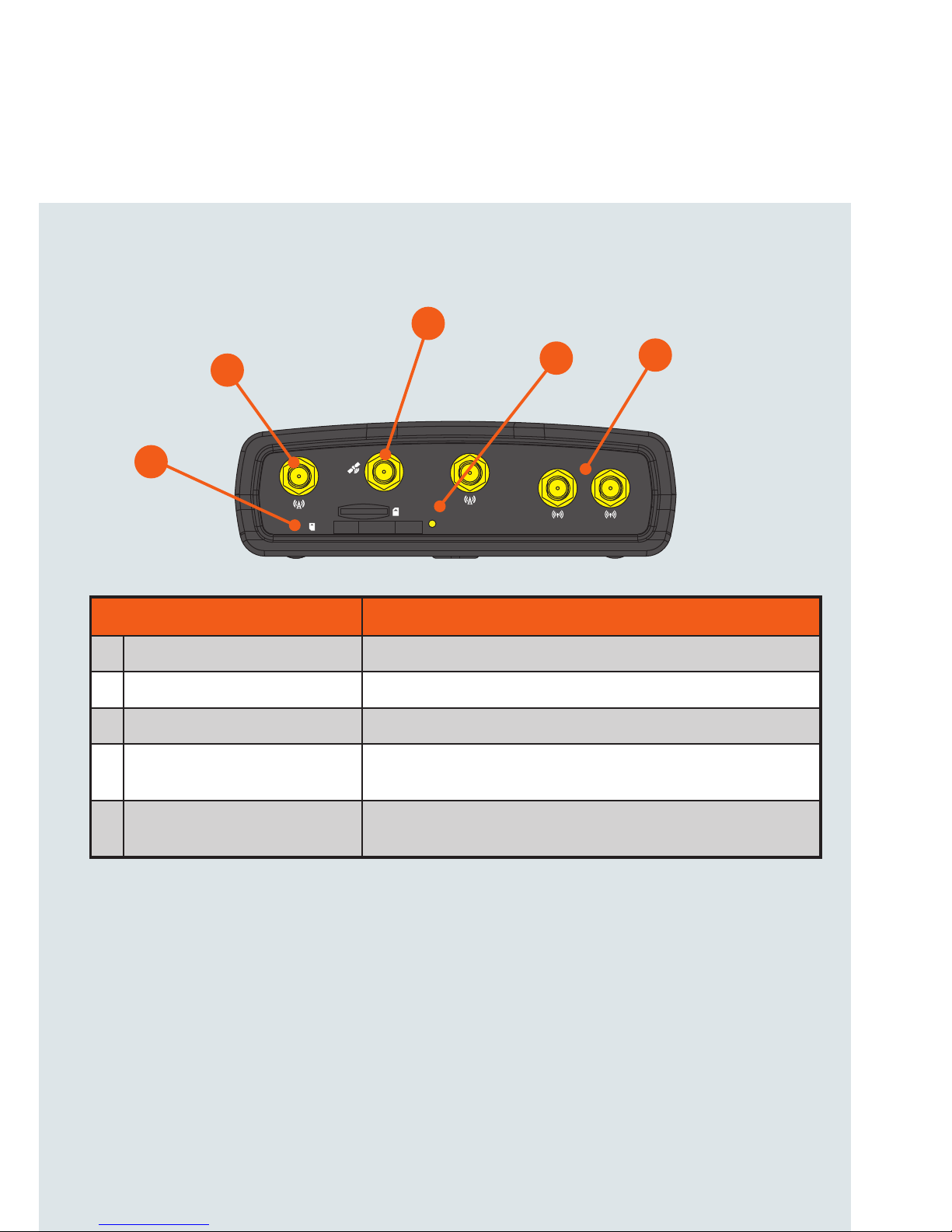

Device overview
ITEM DESCRIPTION
1SIM card slot Insert SIM card here.
2LTE antenna connectors SMA female connectors for LTE antennas.
3GPS antenna connector SMA female connector for GPS antenna.
4MicroSD card slot Insert a MicroSD card here to provide additional storage
(Optional).
5WiFi antenna connectors Reverse polarity SMA female connectors for
WiFi antennas.
3
2
1
5
4
| Wireless M2M
4

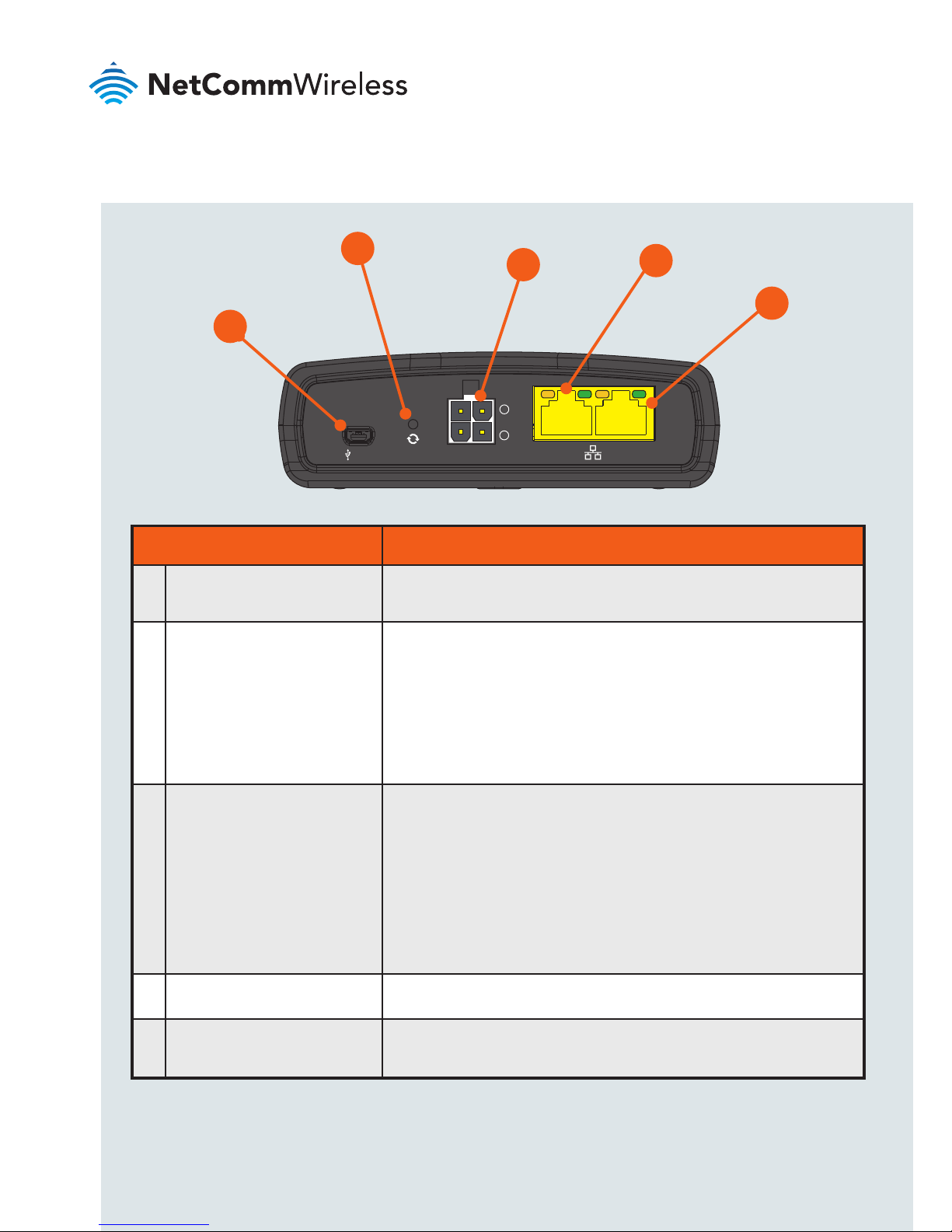

ITEM DESCRIPTION
1Micro USB 2.0 OTG port Provides connectivity for optional external storage or a USB
Ethernet dongle. Supplies up to 0.5A to connected device.
2Reset button Press and hold for less than 5 seconds to reboot to
normal mode.
Press and hold for 5 to 15 seconds to reboot to
recovery mode.
Press and hold for 15 to 20 seconds to reset the router to
factory default settings.
3Molex Mini-Fit™
Jr. 2 x 2 receptacle
Connect the provided power supply here. The Molex
receptacle provides:
• Power (+)
• Ground (-)
• I/O terminal
• (i) ignition input detection terminal.
4LAN port LAN port for wired Ethernet clients.
5LAN/WAN port LAN or WAN port for wired Ethernet clients or to bridge
another network connection.
+
-
i
I/O
GPS
USB LAN LAN/WAN
WiFi
LTE
SIM
µSD LTE
WiFi
1
2
5
34
| Wireless M2M
5
NTC-140W Series - 4G WiFi M2M Router

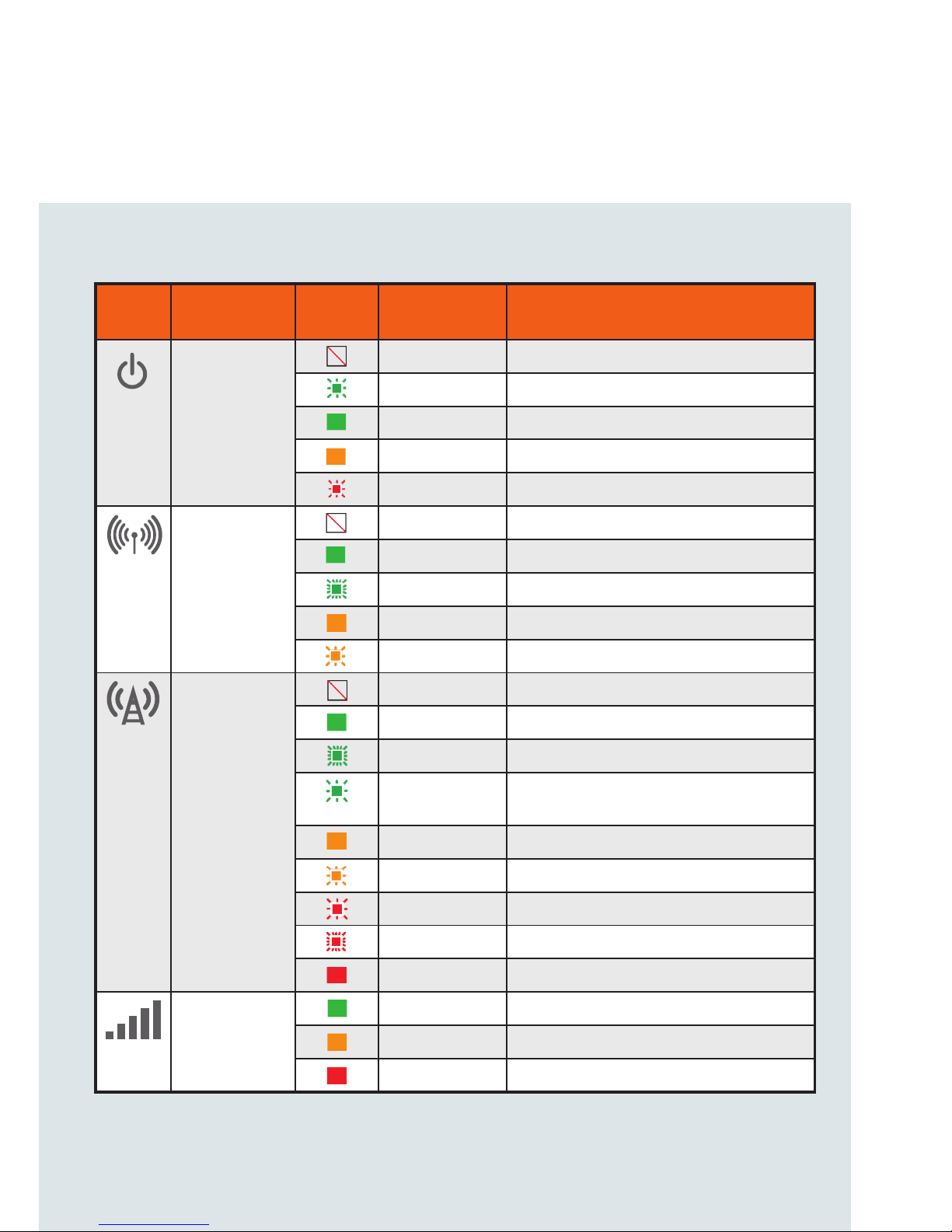

Overview of LED indicators
LED
ICON
NAME
COLOR
STATE DESCRIPTION
Power Off Power off
Double ash Powering up
On Power on
On Power on in recovery mode
Slow ashing Hardware error
WiFi Off Radio Off
On WiFi Access Point mode
Blinking1Trafc via WiFi
On WiFi connected in client mode
Blinking1Trafc via WiFi in client mode
Network Off Radio Off
On Connected via WWAN
Blinking1Trafc via WWAN
Slow ashing
(2s on, 2s off) Connecting PDP
On Registering network
Slow ashing Registering network
Slow ashing SIM PIN locked
Fast ashing SIM PUK locked
On Can’t connect
Signal
strength
On LTE signal
On WCDMA signal
On GSM signal
1 The term “blinking” means that the LED may pulse, with the intervals that the LED is on and off
not being equal. The term “ashing” means that the LED turns on and off at equal intervals.
| Wireless M2M
6
+
-
i
I/O
GPS
USB LAN LAN/WAN
WiFi
LTE
SIM
µSD LTE
WiFi

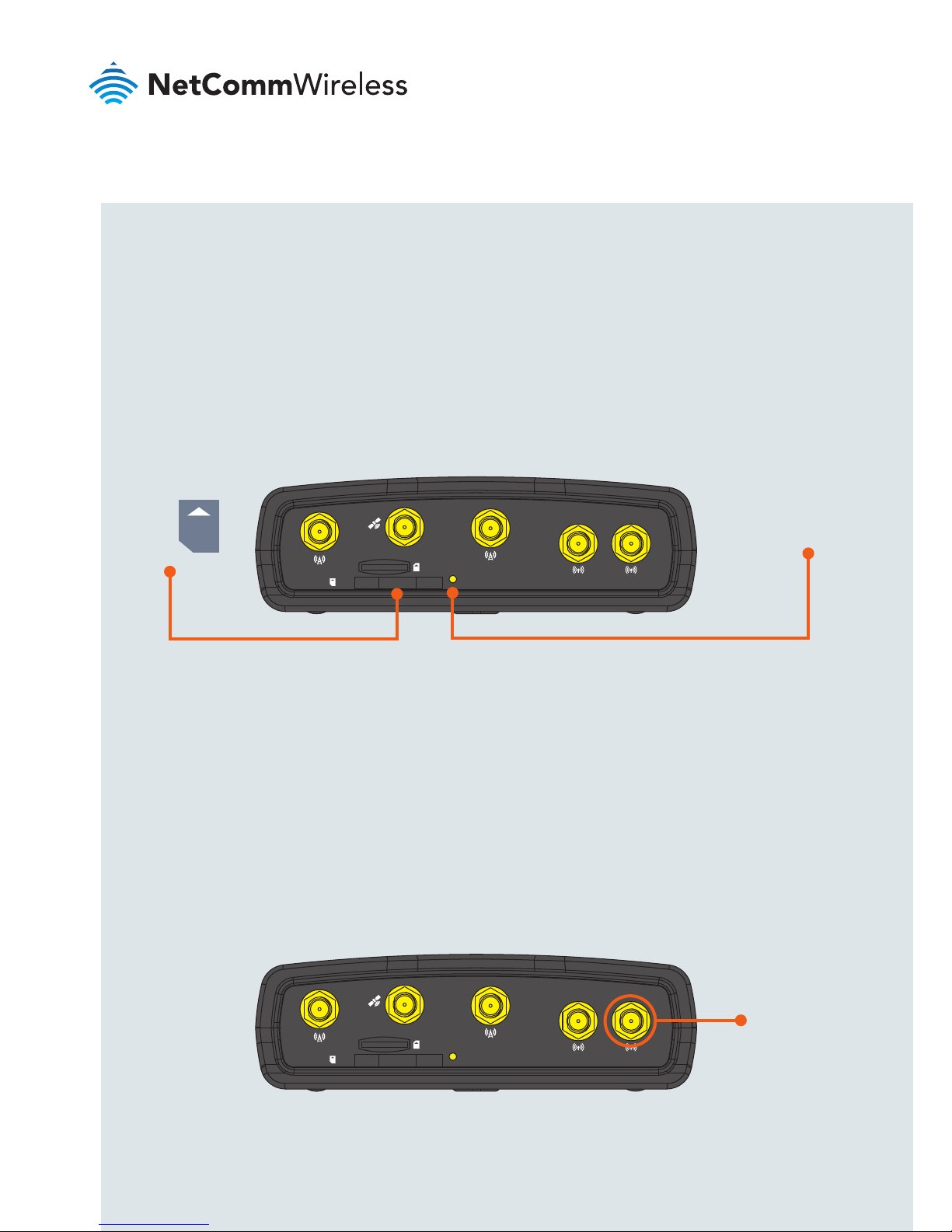

Installing your device
Step 1: Insert the SIM card
Using a paper clip, press the SIM Eject button to eject the SIM card tray. Place the
SIM card in the tray and then insert the loaded tray into the SIM slot with the gold
side facing up, as shown below.
Insert
SIM
Card
Press the SIM
Eject Button
Step 2: Attach the antennas
The NTC-140W Series router is shipped with caps on the LTE, WiFi and GPS
antenna sockets. To attach the supplied antennas, rst remove the socket caps
from the antenna sockets then screw the antennas onto the sockets by turning
them in a clockwise direction. Please refer to the Device overview section for the
antenna socket layout. If you have purchased a GPS antenna, remove the socket
cap from the GPS antenna socket and attach the antenna to the socket in the
same manner.
+
-
i
I/O
GPS
USB LAN LAN/WAN
WiFi
LTE
SIM
µSD LTE
WiFi
Remove caps
then screw
antennas on
| Wireless M2M
7
NTC-140W Series - 4G WiFi M2M Router
Step 3: Connect the power and Ethernet cables
Connect the included power supply to the Molex Mini-Fit™ Jr. 2 x 2 receptacle
and then connect it to mains power. The green power LED on the router lights up
when a power source is connected.
Attach the supplied Black Ethernet cable 8P8C to the LAN Ethernet port on your
router and the other end to your computer.
Step 4: Access the router’s web interface
In your web browser’s address bar enter http://192.168.1.1/ or http://my.router/.
The login page is displayed.
There are two system management accounts (Root Manager and Admin) with
different management capabilities.
Root Manager account
Grants full privileges such as rmware upgrades, device conguration, backup
and restore, and reset to factory default settings. To access the Root Manager
account, use these login details.
http://192.168.1.1
Username root
Password admin
Admin account
Allows updates to general settings. To access the Admin account, use these
login details.
http://192.168.1.1
Username admin
Password admin
Enter the username and password for the admin or root manager account and
click Log in. The Status page is displayed.
| Wireless M2M
8

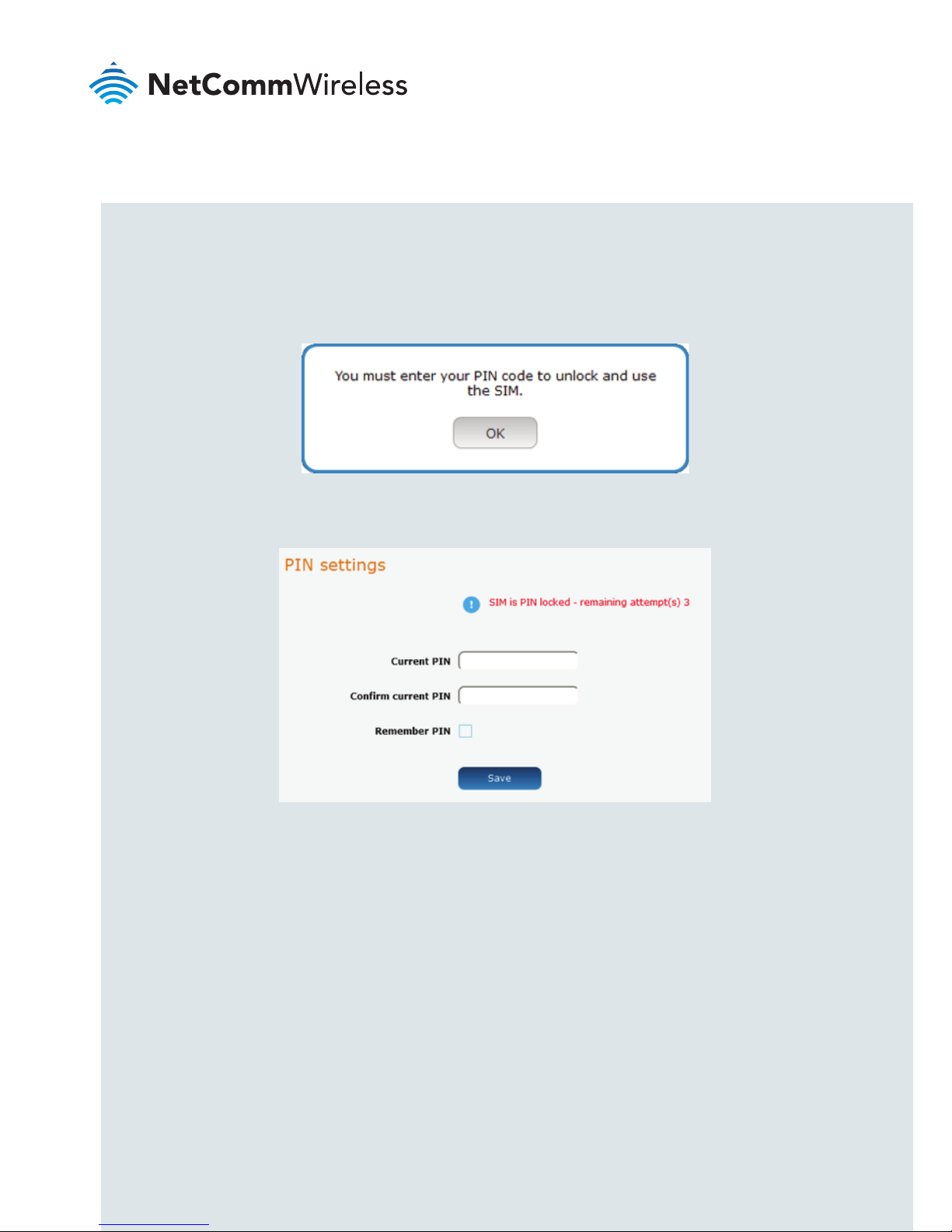

Step 5: Unlock the SIM card
If the inserted SIM card is PIN locked, a pop-up window is displayed informing you
that you must unlock the SIM before use.
Click the OK button. The SIM Security page is displayed.
In the Current PIN eld, enter the SIM PIN and then enter it again in the Conrm
current PIN eld. If you do not want to enter the PIN code each time the SIM
is inserted, select the Remember PIN option. Click the Save button. After a
moment, the router displays “Success! The SIM unlock was successful”.
| Wireless M2M
9
NTC-140W Series - 4G WiFi M2M Router

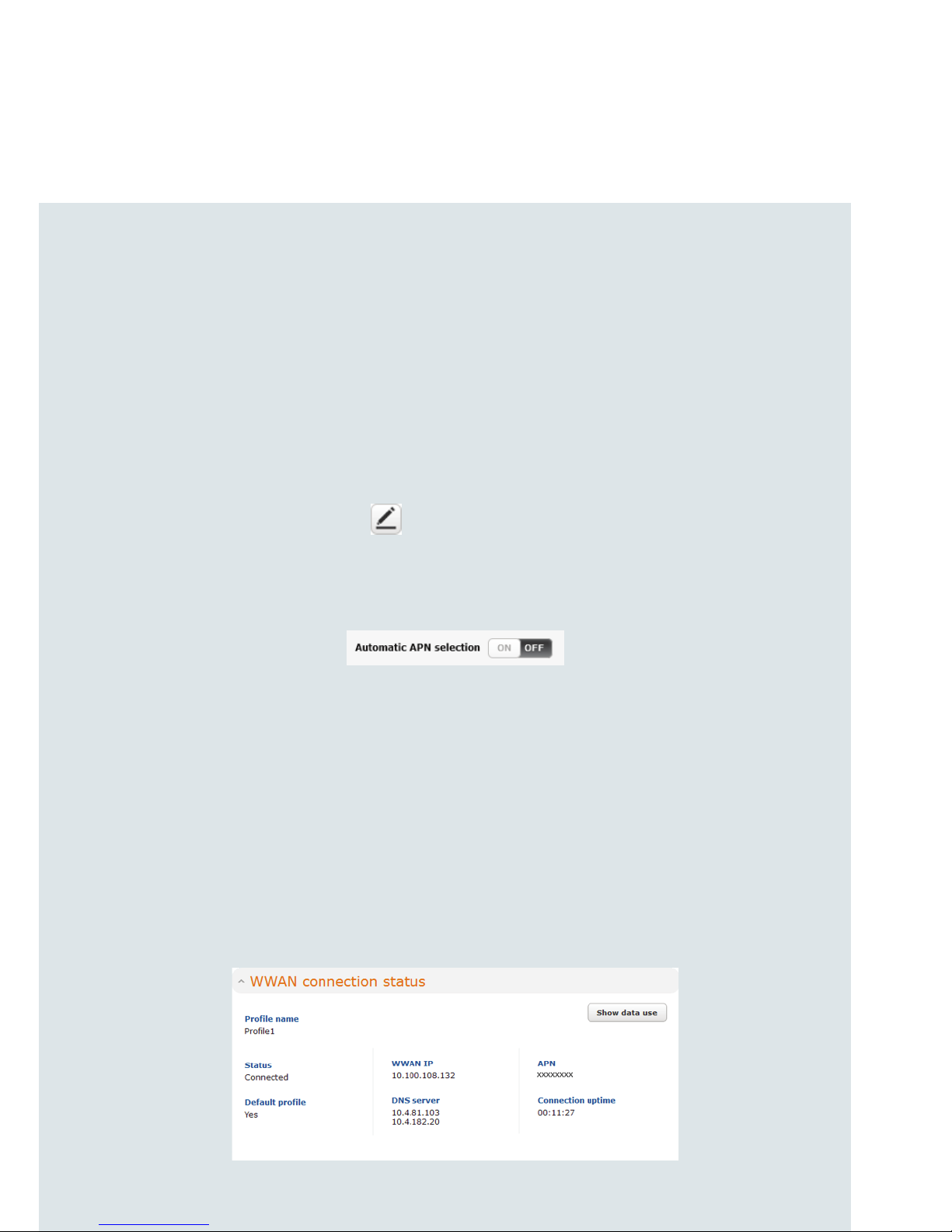

Step 6: Connect to the Internet
If the SIM Status is OK, the NTC-140W Series router automatically attempts to
connect to the Internet by detecting the correct APN and connection details.
If automatic conguration was unsuccessful, you must manually enter the
connection details.
To manually congure the connection prole:
The connection prole is now congured.
Verifying the connection status
Click on the Status menu item from the top menu bar. The Status page is
displayed. The mobile broadband connection is established successfully if the
Status eld in the WWAN connection status section displays Connected.
1. From the top menu bar, select the Networking option.
2. Next to Prole1, click the button. The Data connection prole settings
screen is displayed.
3. Ensure that the Automatic APN selection toggle key is set to the
OFF position.
4. In the APN eld, enter the APN name that your carrier requires for mobile
broadband connection. If required, enter the Username and Password in
the Username and Password elds. Click the Save button.
| Wireless M2M
10
Wireless LAN connection
The NTC-140W Series router can operate in Access Point or Client Mode. The
NTC-140W Series router has the Wireless LAN enabled and operates in Access
Point mode by default.
Access Point Mode
The WiFi Network Name (SSID) and WiFi Security Key are unique for your device
and are printed on the back of your NTC-140W Series router. The credentials are
also printed on the Wireless Security Card.
Wireless Security Card
Keep this card in a secure place for easy access
to your NetComm Wireless M2M device
Wireless Network Name (SSID) NetComm 1234
Wireless Security Key ABCDE12345
IMEI 123456789123456789
Follow these steps to connect your client device to the Internet over the wireless
network:
1. Turn on the wireless radio on your client device.
2. Open the wireless network manager on your client device and connect to the
Wireless Network Name (SSID) printed on the Wireless security card.
3. When prompted for your wireless security settings, enter the Wireless Security
Key. Wait a few seconds for the connection to be established.
Client Mode
To use your NTC-140W router in Client Mode, you must rst change the Wireless
mode on the web user interface. To set wireless client mode:
1. From the top menu bar, select the Networking option.
2. Select Wireless settings on the left, then the Wireless mode sub-menu item
3. Select the Client option and then click the Save button.
For further detail on using Wireless client mode, refer to the product user guide.
