NetComm NB16DG Manuale utente
NetCommWireless
QUICK START GUIDE
NetComm
Wireless
NB16DG
N600 Dual Band WiFi Gigabit
Modem Router
NetComm
Wireless
THANKS FOR PURCHASING
NETCOMM WIRELESS
This quick start guide is designed to get you up and running quickly with your new
router. More advanced set up instructions can be found in the user manual which can be
downloaded from www.netcommwireless.com
SET UP YOUR ROUTER
1. Take the supplied power adapter and attach to the Power socket on the rear of the router.
Connect to your wall socket and power on your router by ensuring the ON/OFF button on
the rear of your router is on.
ON/OFF WPS/RESET
2. For use with ADSL, attach the supplied phone cable to the ADSL port on the rear of your
router. Connect the other end to the phone line that supplies your ADSL Internet.
ON/OFF WPS/RESET
Connecting via an Ethernet cable
1. Connect the yellow Ethernet cable provided to one of the yellow LAN ports on the
back of the NB16DG.
ON/OFF
WPS/RESET
2. Connect the other end of the yellow Ethernet cable to your computer.
Connecting via WiFi
1. Ensure WiFi is enabled on your device (computer/laptop/smart phone/gaming console).
2. Scan for wireless networks in your area and connect to the network name that matches
the Wireless network name found on the Wireless Security Card (included in the box).
3. When prompted for your wireless security settings, enter the Wireless security key listed
on your Wireless Security Card (included in the box).
N600 Dual Band WiFi Gigabit Modem Router- NB16DG

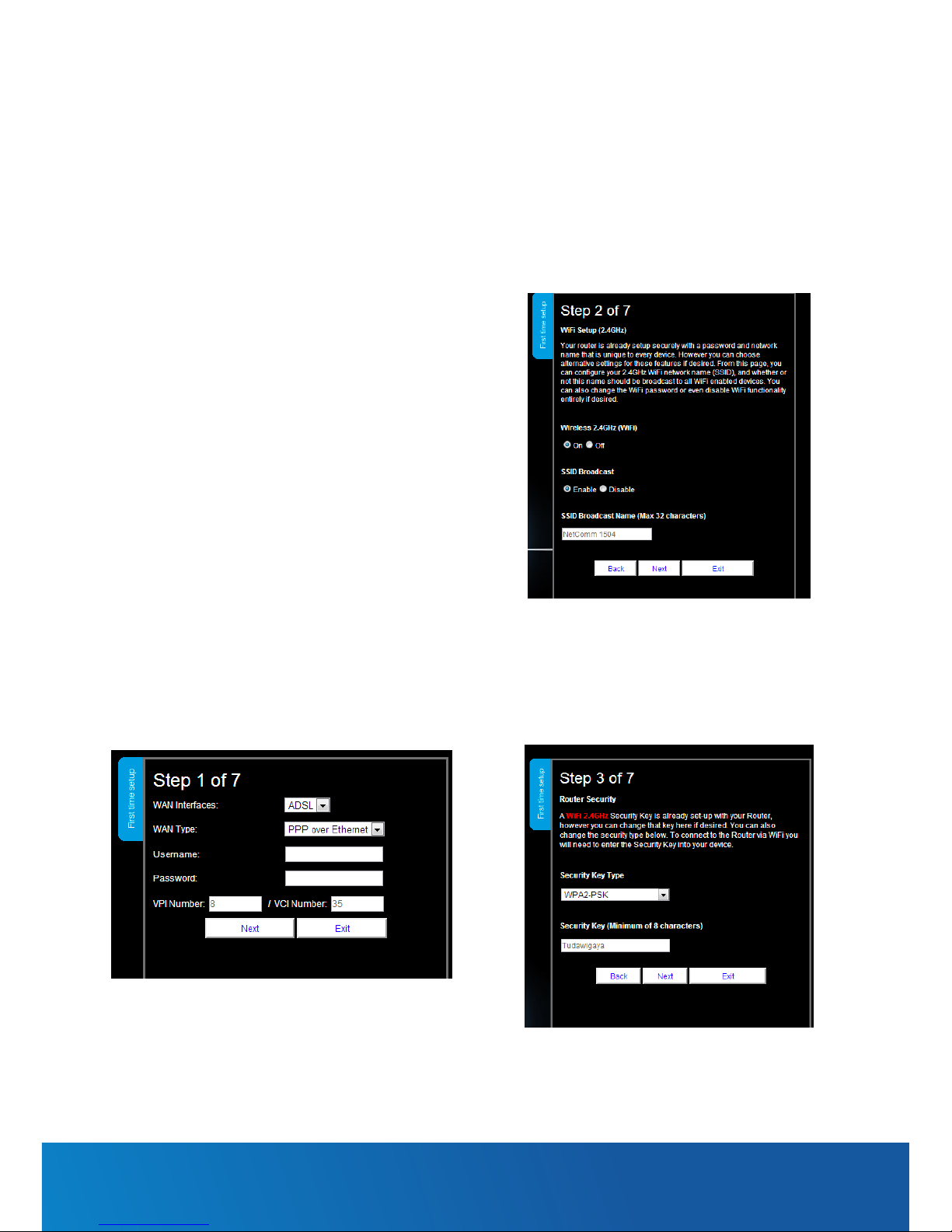

CONNECTING THE ROUTER TO THE INTERNET
1. After establishing a connection using
the previous steps, open your Web
browser and type http://192.168.20.1
into the address bar at the top of the web
browser window and press Enter.
2. Enter admin into both the username and
password elds and click Login.
3. The First-Time Setup Wizard should
then be displayed. Click on the Yes, Let’s
get started with the wizard button to
congure you NetComm Router.
4. Select your chosen connection type. You
can select from:
- ADSL, WAN
ADSL:
Select the ADSL connection type and enter
the username/password as supplied by your
ADSL provider, click Next.
WAN:
Select the Ethernet WAN type and enter
details as supplied by your Internet service
provider. After selecting the appropriate
connection type and entering the required
details, click Next.
5. Select to enable or disable your wireless
network, show or hide your wireless
network (Hide SSID) or change the
wireless network name (SSID). After
making the appropriate changes, click
Next. (If you do not want to change the
default settings, simply click Next)
6. Select the wireless security and wireless
security key you would like to use on your
wireless network and click Next.
(If you do not want to change the default
settings, simply click Next)
NetComm
Wireless
QSG-00031 rev 2
7. Repeat the steps above for the 5GHz
WiFi setup
8. Enter the username and password you
would like to use when logging into the
web based user interface. Conrm the
new password by entering it in a second
time in the Retype Password eld and
Click Next. (If you do not want to change
the default settings, simply click Next)
Review your selected settings and click
Finish. If you would like to change any of
the settings, click Back until you reach
the required page and adjust your settings
accordingly. Click Next until you reach the
summary page again.
The NetComm Wireless Router will now
attempt to connect using the details
you have entered. This can take up to 2
minutes. If the connection attempt was
successful, the Internet Connection LED
on the front of the unit will then be lit.
