NETGEAR XAV1301v1/XAVB1301v1 Manuale utente

350 East Plumeria Drive

San Jose, CA 95134

USA

September 2011

202-10850-01

v1.0

Powerline AV 200 Mini

Adapter XAV1301

User Manual

Powerline AV 200 Mini Adapter XAV1301

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated

into any language in any form or by any means without the written permission of NETGEAR, Inc.

Technical Support

Thank you for choosing NETGEAR. To register your product, get the latest product updates, get support online, or

for more information about the topics covered in this manual, visit the Support website at

http://support.netgear.com .

Phone (US & Canada only): 1-888-NETGEAR

Phone (Other Countries): Check the list of phone numbers at

http://support.netgear.com/app/answers/detail/a_id/984

Trademarks

NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of

NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change

without notice. Other brand and product names are registered trademarks or trademarks of their respective

Statement of Conditions

To improve internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes

to the products described in this document without notice. NETGEAR does not assume any liability that may occur

due to the use, or application of, the product(s) or circuit layout(s) described herein.

Contents

Chapter 1 Getting Started

Hardware Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Powerline Adapter in a Home Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Powerline Network Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Use the Security Button to Set the Encryption Key . . . . . . . . . . . . . . . . . . .8

Chapter 2 Powerline Utility

Install the Powerline Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Powerline Utility Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Security Icon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Change the Name of a Powerline Device. . . . . . . . . . . . . . . . . . . . . . . . . .13

Turn LEDs Off or On. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Set the Powerline Encryption Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Reset a Device to Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Add a Device to a Powerline Network . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Device List with Column-Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

About . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Chapter 3 Troubleshooting

Basic Functioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

If You Do Not See All Your Devices with the Powerline Utility. . . . . . . . . .20

Appendix A Supplementary Information

Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Appendix B Notification of Compliance

1. Getting Started

This chapter describes your Powerline AV 200 Mini Adapter XAV1301, and how your adapters

can fit into a home network. For more information about the topics covered in this manual, visit

the Support website at http://support.netgear.com.

This chapter includes the following sections:

• Hardware Features

• Powerline Adapter in a Home Network

• Powerline Network Security

• Use the Security Button to Set the Encryption Key

Getting Started

Powerline AV 200 Mini Adapter XAV1301

Hardware Features

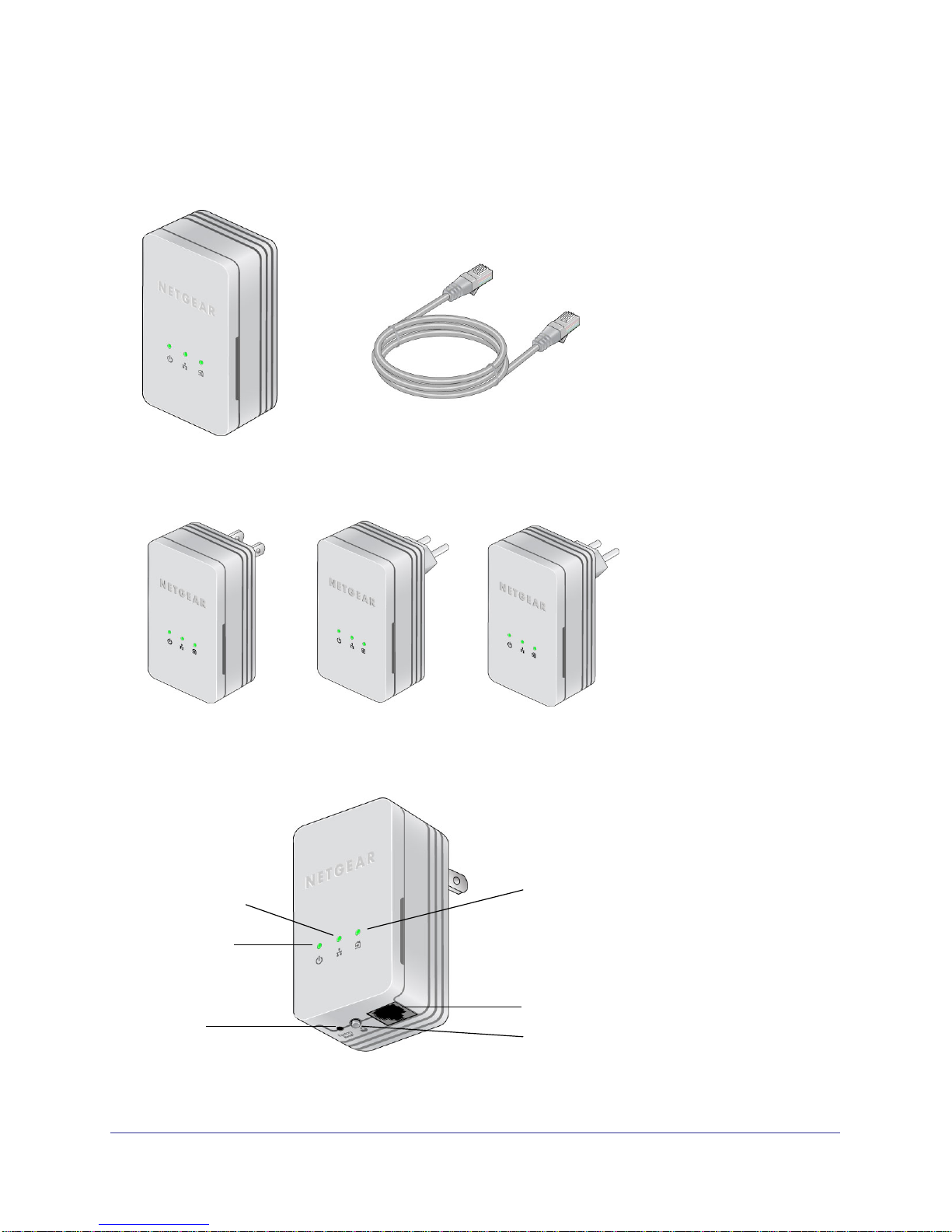

The package includes a Powerline AV 200 Mini Adapter XAV1301 and an Ethernet cable.

Powerline AV 200

Mini Adapter XAV1301

Ethernet cable

Figure 1. Package contents (North America)

Depending on where you purchased your adapter, it might look like one of these:

United States France Germany

Figure 2. Adapters in different regions

Ethernet port

Power LED

Ethernet LED Powerline LED

Factory Security button

Reset

button

Figure 3. Adapter LEDs, buttons, and Ethernet port

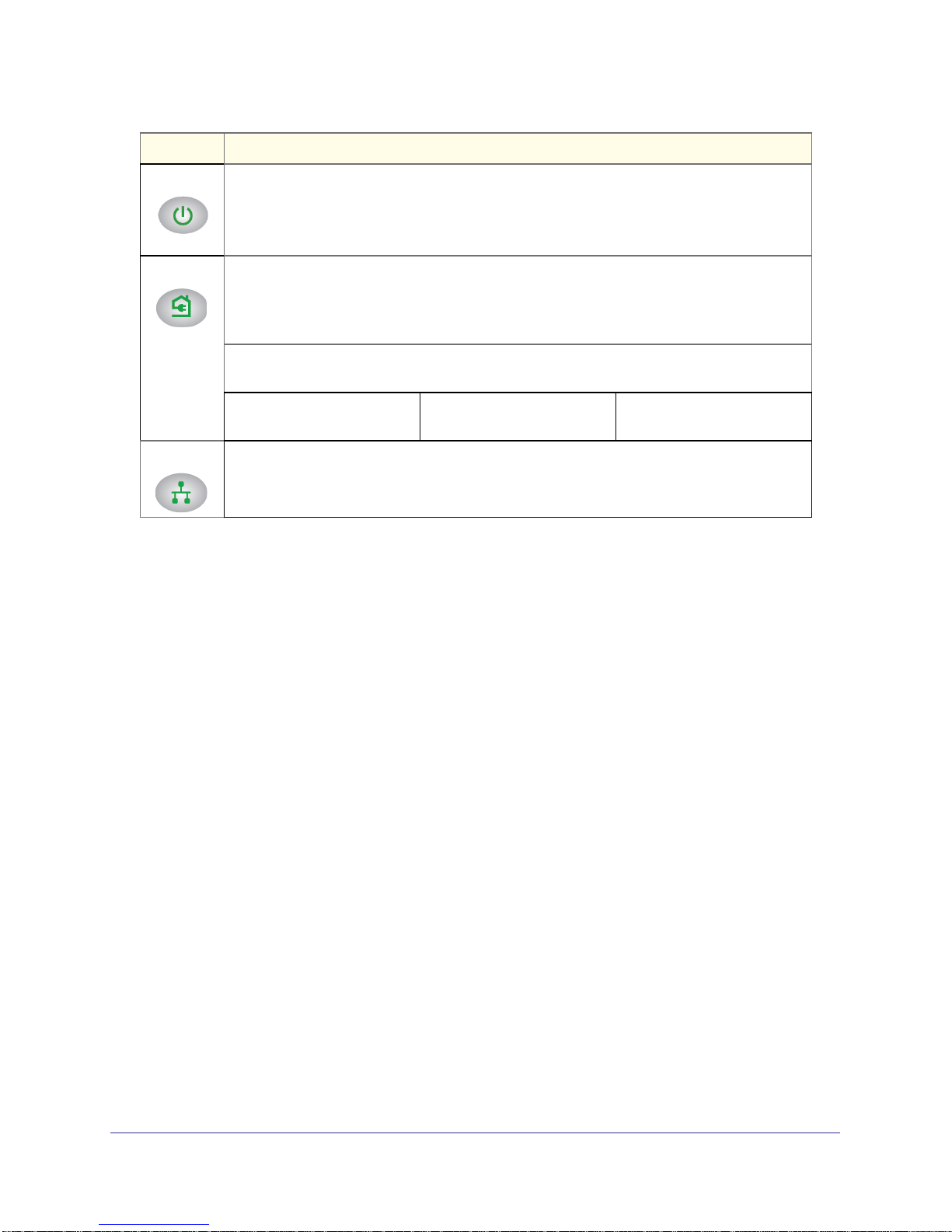

LED Description

Power • Solid green. The electrical power is on.

• Blinking green. The adapter is restarting or setting up security.

• Amber.Power saving mode.

• Off. There is no electrical power.

Powerline • Solid. The adapter is connected to a Powerline network.

• Blinking. The adapter is sending or receiving data.

• Off. The adapter has not found any other compatible Powerline devices using the same

encryption key.

The Pick A Plug feature lets you pick the electrical outlet with the strongest link rate, indicated

by the color displayed by the LED:

Green: (Best)

Link rate > 80 Mbps Amber: (Better)

Link rate > 50 and < 80 Mbps Red: (Good)

Link rate < 50 Mbps

Ethernet • Solid. The Ethernet port is linked, but there is no activity.

• Blinking. There is traffic on the Ethernet port.

• Off. There is no Ethernet connection.

Getting Started

Powerline AV 200 Mini Adapter XAV1301

Buttons

Two buttons are located on the side of the adapter:

• Security. After you plug in your new AV adapters, press the Security button for 2

seconds on both of the AV adapters. Both buttons must be pressed within 2 minutes.

The Security button does not work in power saving mode. The unit enters power saving

mode if the Ethernet port is idle (not linked) for more than 10 minutes.

• Reset. Press the Reset button for 1 second, then release to return the Powerline adapter

to its factory default settings.

Ethernet Port

Plug one end of the Ethernet cable that comes with the Powerline AV 200 Mini Adapter

XAV1301 into this port and the other end either into your router, or into the computer or other

peripheral devices.

Powerline Adapter Label

The product label shows unique details specific to your adapter. The product label is located

on the back of the adapter. The label contains the following information.

• Model number

• MAC address

• Device password

• Serial number

Getting Started

Powerline AV 200 Mini Adapter XAV1301

Powerline Adapter in a Home Network

You can use Powerline AV 200 Mini Adapters to extend your Ethernet network anywhere in

your home using your existing electrical power lines.

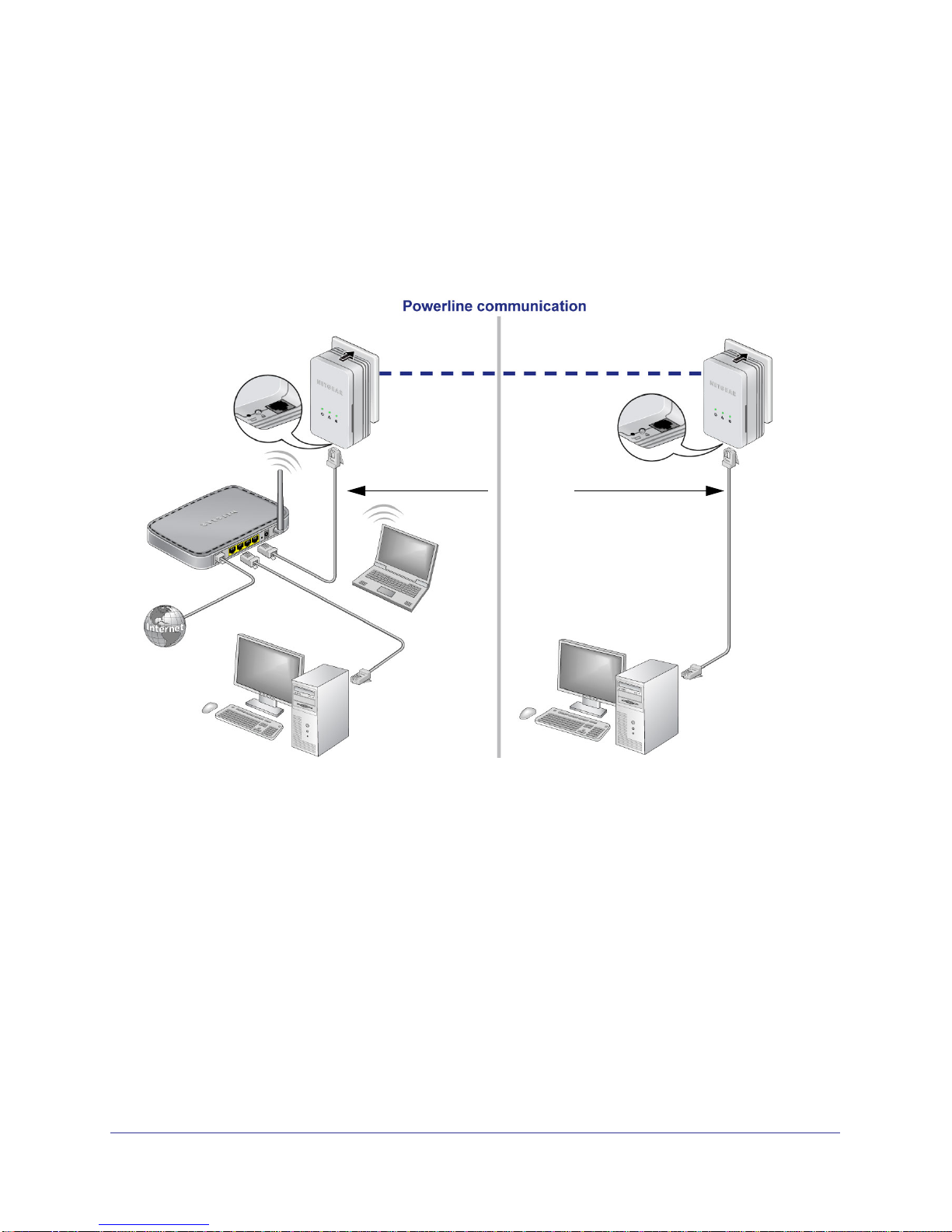

Here, an Ethernet cable connects the

router to the Powerline network. In another room, an Ethernet cable connects

a computer to the Powerline network.

Ethernet

Figure 4. Powerline network with two Powerline adapters

For best performance, plan the location of your Powerline devices (to make a Powerline

network, you need at least two Powerline devices):

• Use an electrical outlet that is not controlled by a wall switch to avoid someone

unknowingly turning off the power to the outlet.

• Do not plug in Powerline products to a power strip, extension cord, or surge protector as

this might prevent them from working correctly, or reduce the network performance.

• Avoid plugging Powerline products into electrical outlets located near an appliance that

uses a lot of power, such as a washer or dryer, or a refrigerator. This could potentially

prevent the adapters from working correctly, or reduce network performance.

Different Powerline adapter models can share the network. All Powerline NETGEAR AV

products (models XAV101, XAV1004, XAV2001, XAV2501, and XAVN2001) are compatible.

Getting Started

Powerline AV 200 Mini Adapter XAV1301

To set up your Powerline network:

1. Make sure that your home router is up and running and that Ethernet wired connections

are working.

2. Install the first Powerline adapter based on the installation instructions that came in the

package.

3. Install the second Powerline adapter, which finds the adapter you just installed. The two

Powerline devices form a Powerline network.

4. Install any additional Powerline adapters that you plan to use.

5. Test to make sure that the computer or peripheral can access the Powerline network.

For example, on a computer, use the Internet. Another way to test this is to install the

Powerline Utility and use it to view all devices on the Powerline network.

6. NETGEAR recommends that you secure your Powerline network from unauthorized access,

especially in settings such as apartment buildings. See Powerline Network Security .

Powerline Network Security

A Powerline network consists of two or more Powerline adapters using the same network

encryption key. Securing your network protects the information you send over the Powerline

network from unwanted access. If you do not set up security on your network, anyone nearby

with a Powerline network can potentially use his or her connection to gain access to your

network and information you send over the Internet. This is especially relevant in settings

such as apartment buildings, office buildings, dorm rooms, and other populated areas.

There are two ways to secure your Powerline network.

• Use the Security button to automatically generate a random encryption key.

• Use the Powerline Utility to specify an encryption key for your Powerline network. If you

already have a Powerline network, you need to use the Powerline Utility, which is located

on your Resource CD. See Chapter 2, Powerline Utility.

• To return the Powerline AV 200 Mini Adapter to its factory default settings, press its

Factory Reset button for 1 second, then release.

Use the Security Button to Set the Encryption Key

An adapter can generate a private key only once. If you want to replace a private key, first

reset the adapters to their factory settings. To do this either press the Reset button for 1

second, then release; or use the Powerline Utility factory defaults feature (see Reset a

Device to Factory Settings on page 15).

You can use the security button to change the default encryption key and set a private

encryption key instead. The default encryption key is HomePlugAV.

To set the encryption key:

1. Verify that all the Powerline adapters to be configured are plugged in.

Getting Started

Powerline AV 200 Mini Adapter XAV1301

CAUTION:

Do not press the Security button on the Powerline adapter until installation

is complete and all adapters on your network are plugged in and

communicating with each other. Pressing the Security button too soon can

temporarily disable Powerline communication. If this should occur, reset

the Powerline adapter to its factory default settings (press the Reset

button for 1 second, then release).

2. Press the Security button for 2 seconds.

• The Power LED starts blinking after you release the button.

• The adapter automatically creates a new, randomly generated network encryption key

that each Powerline adapter on the network will use.

At this point, the other adapters in your network cannot communicate with each other.

3. Within 2 minutes of pressing the Security button on the first adapter, press the security

button on the second adapter for 2 seconds.

In order to pair the devices, you need to press both buttons within 2 minutes.

This securely configures your Powerline network with the same network encryption key.

4. If your network has more than two adapters, press the Security button on the next adapter

for 2 seconds, then push the Security button on any additional adapters in your network for

2 seconds. The adapters retain security settings even if they are unplugged.

2. Powerline Utility

This chapter explains how to install and use the Powerline Utility. The Powerline Utility works

with many Powerline AV products. NETGEAR Powerline models XAV1004, XAV2001, and

XAVN2001 are compatible and can share the same Powerline network.

You can use the Powerline Utility to access a local Powerline device that is connected to your

computer with an Ethernet cable and also to access remote Powerline devices. Remote devices

are on the Powerline network, but are not directly cabled to the computer on which you are using

the Powerline Utility.

You can use the NETGEAR Powerline Utility to:

• Change the name of a Powerline device

• Turn LEDs on or off

• Set encryption keys

• Restore a device to default configuration settings

This chapter includes the following sections:

• Install the Powerline Utility

• Powerline Utility Screen

• Change the Name of a Powerline Device

• Turn LEDs Off or On

• Set the Powerline Encryption Key

• Reset a Device to Factory Settings

• Add a Device to a Powerline Network

• Device List with Column-Type

• About

Altri manuali per XAV1301v1/XAVB1301v1

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali NETGEAR Adattatore

NETGEAR

NETGEAR WN121T - RangeMax Next Wireless-N USB 2.0... Manuale utente

NETGEAR

NETGEAR TA612V Manuale utente

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuale utente

NETGEAR

NETGEAR XAVB2101 Manuale utente

NETGEAR

NETGEAR MCA1001 - MoCA Coax-Ethernet Adapter Manuale utente

NETGEAR

NETGEAR WNDA3100v2 - RangeMax Dual Band Wireless-N USB 2.0... Manuale operativo

NETGEAR

NETGEAR A6150 Manuale utente

NETGEAR

NETGEAR WNDA3100v2 - RangeMax Dual Band Wireless-N USB 2.0... Manuale utente

NETGEAR

NETGEAR WN111v2 - RangeMax Next Wireless USB 2.0... Manuale utente

NETGEAR

NETGEAR XETB1001 - 85 MBit/s Powerline Network... Manuale utente

NETGEAR

NETGEAR WG111v1 - 54 Mbps Wireless USB 2.0 Adapter Manuale utente

NETGEAR

NETGEAR Wg111v2 - Usb Wifi Card Includes Driver Cd Manuale utente

NETGEAR

NETGEAR XA601 - Powerline USB Adapter Manuale utente

NETGEAR

NETGEAR WG111T - 108 Mbps Wireless USB 2.0 Adapter Manuale utente

NETGEAR

NETGEAR ProSafe AX745 Manuale utente

NETGEAR

NETGEAR WN121T - RangeMax Next Wireless-N USB 2.0... Manuale utente

NETGEAR

NETGEAR MA111 Manuale utente

NETGEAR

NETGEAR HA501 - 802.11a Wireless 32-Bit Card Bus... Manuale utente

NETGEAR

NETGEAR WNDA3100v3 Manuale utente

NETGEAR

NETGEAR EA101 Manuale utente

NETGEAR

NETGEAR FA511 - 32-bit CardBus PC Card Mobile Manuale utente

NETGEAR

NETGEAR MA 101 Manuale utente

NETGEAR

NETGEAR XAV2001 - Powerline AV Ethernet Adapter Manuale utente

NETGEAR

NETGEAR WNA3100 - Wireless-N 300 USB Adapter Manuale utente

Manuali Adattatore popolari di altre marche

PCB Piezotronics

PCB Piezotronics 090B274 Manuale utente

Auvidea

Auvidea J20 Manuale del prodotto

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuale utente

Akribis

Akribis ITF-21-BISS-MIT Manuale utente

Tenda

Tenda W54U Manuale utente

ROHO

ROHO AGILITY Manuale utente

PROLiNK

PROLiNK WN2001 Manuale utente

Hawking

Hawking HUF2 Manuale utente

Airlink101

Airlink101 AWLC4030 Manuale utente

Philips

Philips SWA4554S/10 Manuale utente

JVC

JVC TS-C9D2B Manuale di istruzioni

D-Link

D-Link DWA-121 Manuale utente

Philips

Philips SWA2037 Manuale utente

Basalte

Basalte 0610-20 Manuale utente

Yealink

Yealink EHS40 Manuale utente

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuale utente

RCA

RCA AH57R Manuale utente

Koolatron

Koolatron AC16 Manuale utente
