Installation

N300 WiFi Range Extender

Model WN3100RP

Getting Started

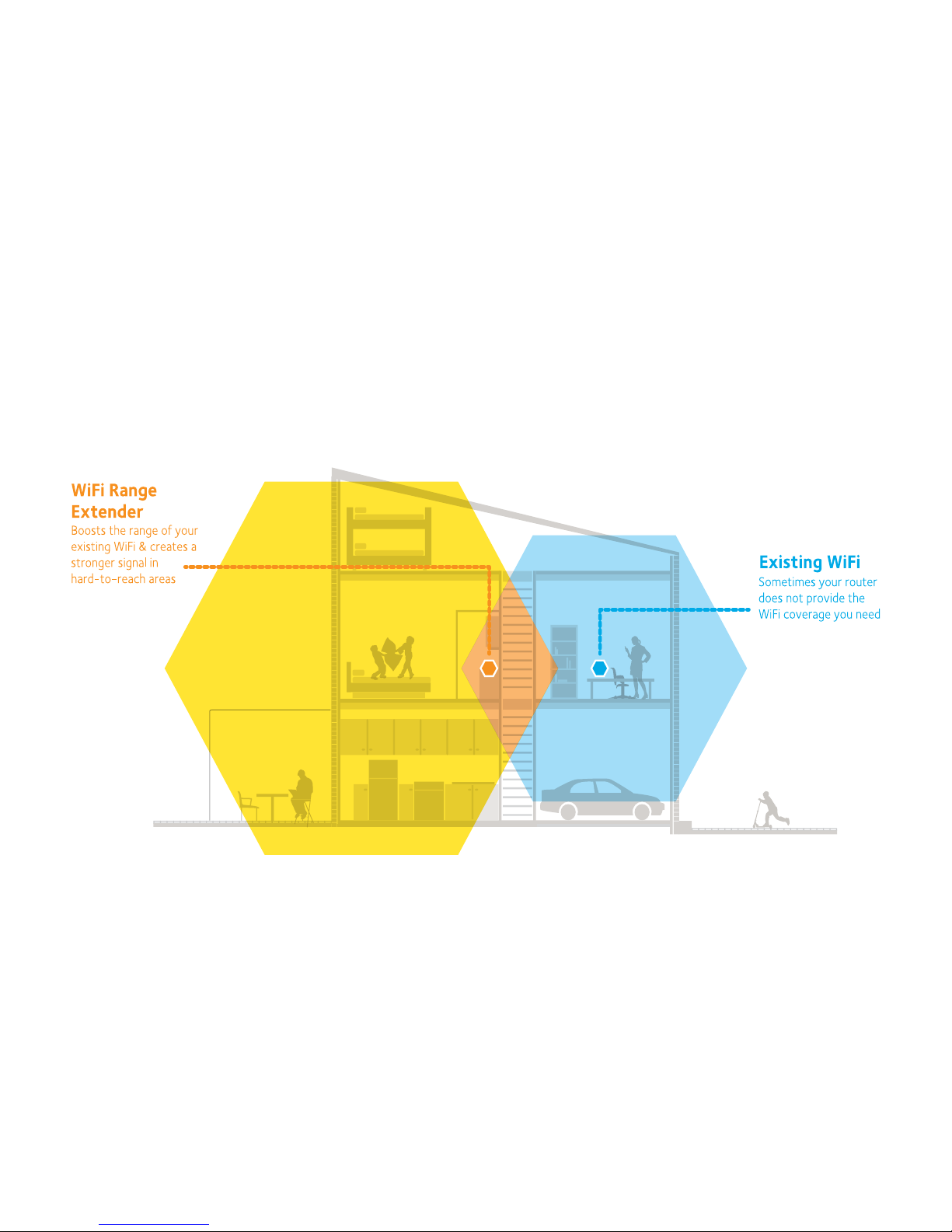

The NETGEAR WiFi Range Extender increases the distance of a WiFi

network by boosting the existing WiFi signal and enhancing the overall

signal quality over long distances. An extender repeats the signals from an

existing WiFi router or access point.

Meet Your Extender

Before you install your extender, familiarize yourself with its LEDs,

buttons, and port.

Front and Right Side Panels

Router

Arrow

LED

Client

Arrow

LED

Router Link

LED

Client Link

LED

Power LED

WPS LED

Pass-through

power socket

(varies by region)

Ethernet port

Rear and Le Side Panels

Factory Reset

button

WPS

button

Device On/O

switch

Product label

Power connector

(varies by region)

LED Descriptions

Router Link

LED

This LED indicates the connection between the extender and

the router or access point.

Solid green. Best connection.

Solid amber. Good connection.

Solid red. Poor connection.

O. No connection.

Client Link LED This LED indicates the connection between the extender and

a computer or WiFi device.

Solid green. Best connection.

Solid amber. Good connection.

Solid red. Poor connection.

O. No connection.

Power LED Solid amber. The extender is booting.

Solid green. The extender is powered on.

O. The extender is powered o.

WPS LED Solid green. WiFi security is enabled (WPA or WPA2).

Blinking green. A WPS connection is in progress.

O. WiFi security is not enabled.

Note: If the Router Arrow LED or Client Arrow LED

blinks, see Find the Best Location on page 13. If no arrow LEDs light, the

extender is in a good location.

Install the WiFi Extender

Place the extender, apply power, and connect it to your WiFi network.

Place the Extender and Apply Power

1. Place your extender in the same room as your WiFi router.

Proximity to the WiFi router is required only during the initial setup

process.

2. Plug the extender into an electrical outlet.

The Power LED lights green. If the Power LED does not light,

slide the Device On/O switch on the side of the extender to the On

position.

Connect to an Existing WiFi Network

To extend the range of your WiFi network, you must connect the extender

to your existing WiFi network. You can do this in one of two ways:

• Connect with WPS. For more information, see Connect with WPS on

page 7.

• Connect with web browser setup. For more information, see

Connect with Web Browser Setup on page 9.

Connect with WPS

Wi-Fi Protected Setup (WPS) lets you join a secure WiFi network without

typing the network name and password.

Note: WPS does not support WEP network security. If you are using WEP

security, follow the instructions in Connect with Web Browser Setup on

page 9.

1. Press the WPS button on the side panel of the extender.

The WPS LED blinks.

2. Within two minutes, press the WPS button on your router or access

point.

The WPS LED on the extender lights solid green, the Router Link LED

lights, and the extender connects to your existing WiFi network.

If the Router Link LED does not light, try again. If it still does not light,

see Connect with Web Browser Setup on page 9.

3. Find the new extender network name on your computer or WiFi

device.

The extender’s wireless network name (SSID) changes to your existing

WiFi network name, with _EXT at the end of the name, for example:

• Existing WiFi network name. MyNetworkName

• New extended network name. MyNetworkName_EXT

4. Connect your computer or WiFi devices to the new extended WiFi

network.

Use the same WiFi password that you use for your WiFi router.

5. Unplug the extender and move it to a new location closer to the area

with a poor WiFi signal.

The location that you choose must be within the range of your

existing WiFi router network.

6. Plug the extender into an electrical outlet.

The Power LED lights green. If the Power LED does not light,

slide the Device On/O switch on the side of the extender to the On

position.

7. Use the Router Link LED on the front panel to help you choose a spot

where the extender-to-router connection is optimal.

Connect with Web Browser Setup

1. Use a WiFi network manager on a computer or WiFi device to ﬁnd and

connect to the NETGEAR_EXT (SSID) WiFi network.

Aer the connection with the computer or WiFi device is established,

the Client Link LED lights.

2. Open a web browser window from the same computer or WiFi device.

The browser takes you directly to the NETGEAR genie web browser

setup. If you are not automatically directed to NETGEAR genie, launch

a web browser and enter www.mywiﬁext.net in the address ﬁeld.

Enter admin for the user name and password for the password.

The extender searches for WiFi networks in your area and displays a

list.

3. Select a WiFi network to extend and click the Continue button.

The following screen displays:

4. Type the network password (also called passphrase or security key) in

the Password ﬁeld and click the Continue button.

The following screen displays:
