NETGEAR FS108 - ProSafe 10/100 Desktop Switch Manuale utente

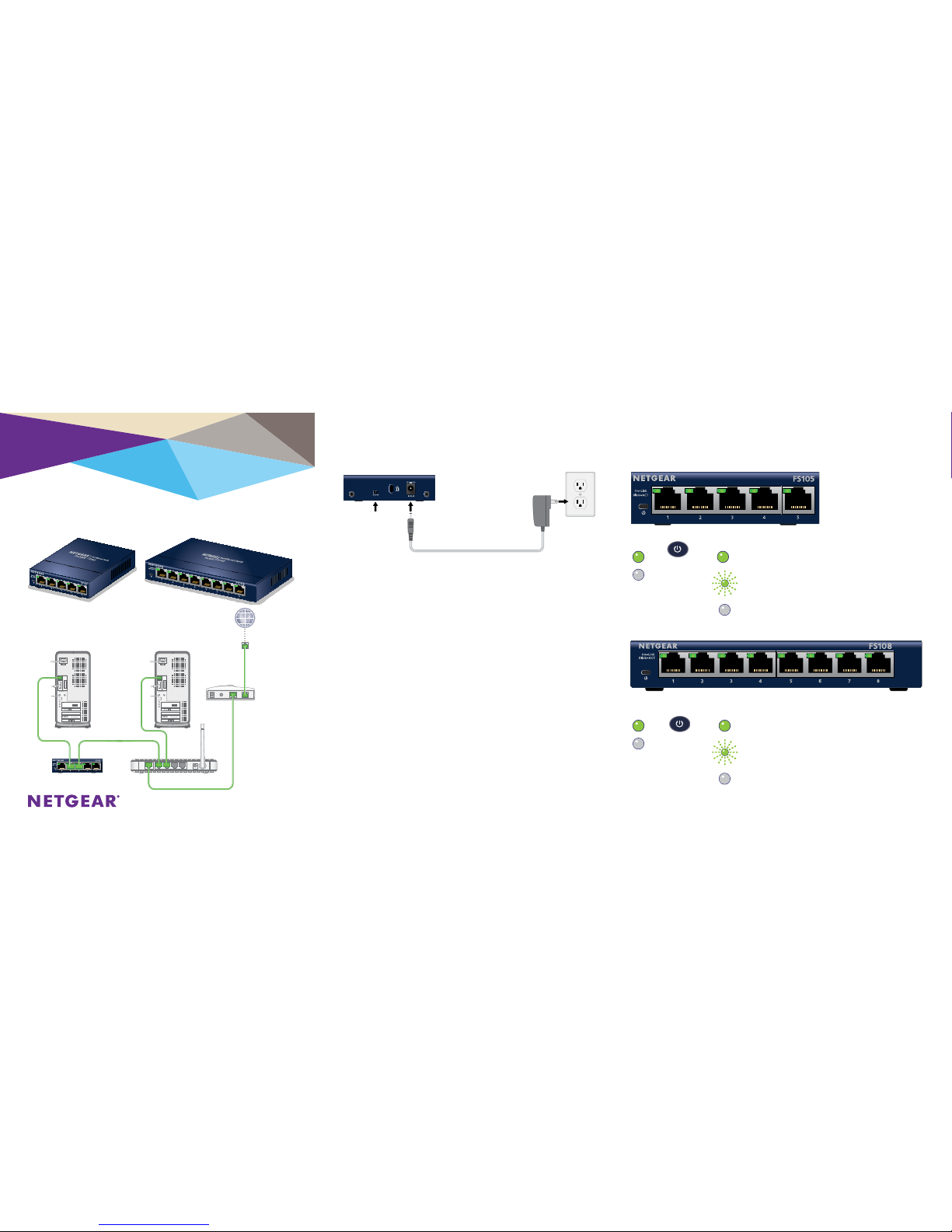

Installation

Step 1. Connect the equipment.

ProSAFE 5 Port and 8 port 10/100 Switch

FS105 v3 FS108 v3

Step 2. Connect to power and power on. Step 3. Check the status.

Power LED Port LEDs

On 10/100 Mbps link

O

Activity (blinking)

No link (o)

FS105 v3 Optional router

Optional modem

Computer Server

Internet

Note: Move the OFF/ON switch to the ON

position to provide power to the device.

OFF/ON switch

Power LED Port LEDs

On 10/100 Mbps link

O

Activity (blinking)

No link (o)

June 2014

NETGEAR, Inc.

350 East Plumeria Drive

San Jose, CA 95134, USA

NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered

trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries.

FS105 v3 Speciﬁcations

Speciﬁcation Description

Network interface RJ-45 connector for 10BASE-T or

100BASE-TX

Network cable Category 5 (Cat 5) or better Ethernet cable

Ports 5

Power adapter 12V @ 0.5 A DC input

Power consumption 1W max.

Weight 0.26 kg (0.57 lb)

Dimensions (W x D x H) 100 mm x 94 mm x 27 mm

3.9 in. x 3.7 in. x 1.1 in.

Operating temperature 0–40°C (32–104°F)

Operating humidity 10%–90% relative humidity,

noncondensing

Electromagnetic compliance CE Class B, FCC Class B,

Safety agency approvals CE mark, CB

Support

Thank you for selecting NETGEAR products.

Aer installing your device, locate the serial number on the label of your

product and use it to register your product at https://my.netgear.com.

You must register your product before you can use NETGEAR telephone

support. NETGEAR recommends registering your product through the NETGEAR

website. For product updates and web support, visit

http://support.netgear.com.

NETGEAR recommends that you use only the ocial NETGEAR support

resources.

For the current EU Declaration of Conformity, visit

http://support.netgear.com/app/answers/detail/a_id/11621/.

For regulatory compliance information, visit

http://www.netgear.com/about/regulatory/.

See the regulatory compliance document before connecting the power supply.

FS108 v3 Speciﬁcations

Speciﬁcation Description

Network interface RJ-45 connector for 10BASE-T, or

100BASE-TX

Network cable Category 5 (Cat 5) or better Ethernet cable

Ports 8

Power adapter 12V @ 0.5 A DC input

Power consumption 1.1W max.

Weight 0.5 kg (1.11 lb)

Dimensions (W x D x H) 158 mm x 101 mm x 27 mm

6.2 in. x 4 in. x 1.1 in.

Operating temperature 0–40°C (32–104°F)

Operating humidity 10%–90% relative humidity,

noncondensing

Electromagnetic compliance CE Class B, FCC Class B,

Safety agency approvals CE mark, CB
