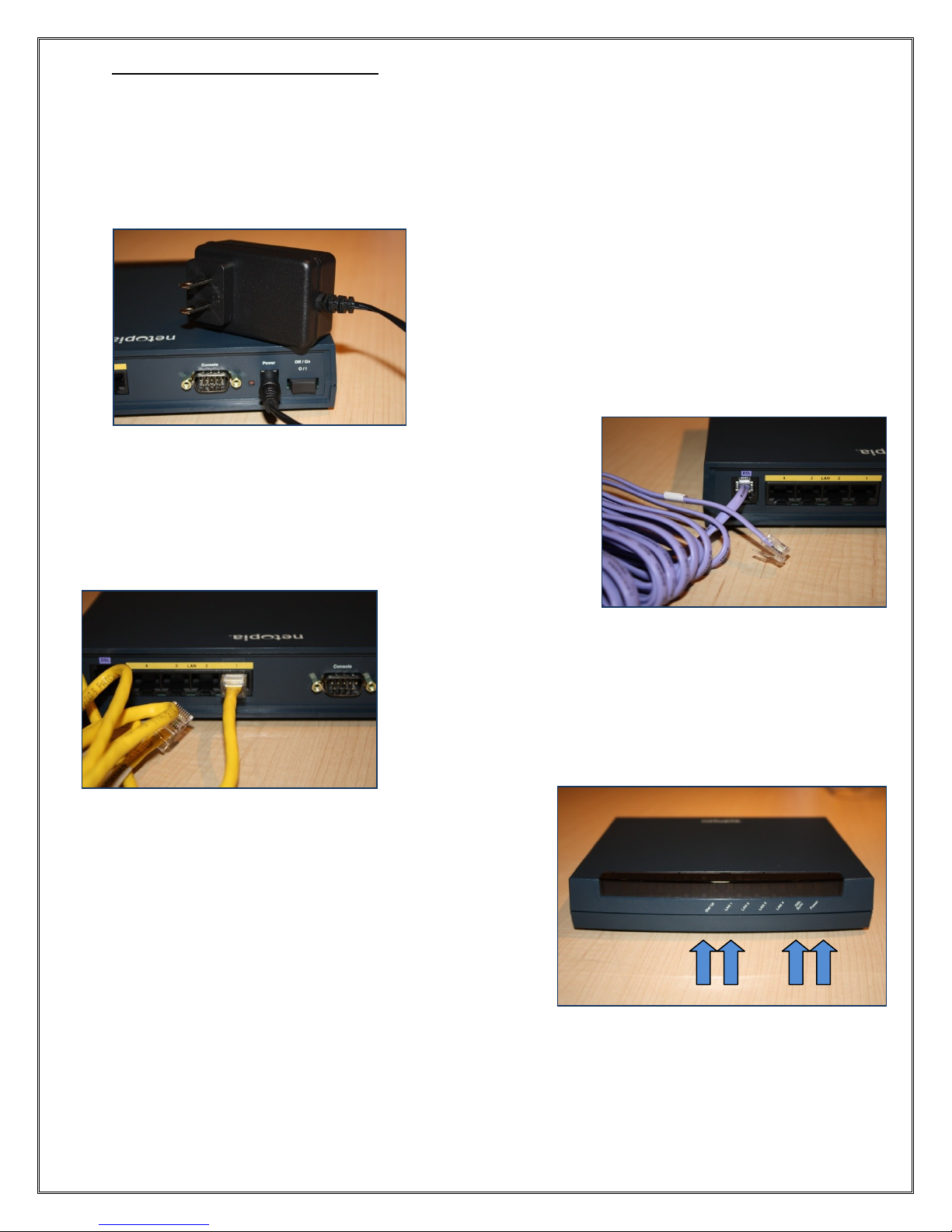

Installing Your Netopia Router

Netopia 3346N-ENT 4 Port Router

1. Remove from the shipping carton

a. Netopia Router

b. Lavender RJ-11 Telephone Cable

c. Yellow RJ-45 Ethernet Cable

d. Power Supply

2. Connect the power supply to the power jack on the

routers back panel.

3. Insert the other end of the power supply into an

appropriate electrical outlet.

4. Insert one end of the lavender RJ-11 telephone cable

into the DSL port on the routers back panel

5. Insert the other end of the lavender RJ-11 telephone

cable into the wall jack that supports your DSL.

6. Insert one end of the yellow RJ-45 Ethernet cable into the

LAN 1 port on the routers back panel

7. Insert the other end of the yellow RJ-45 Ethernet cable into

the network port on the back of your computer or POS

machine.

8. The power light on the front of the router will

light solid green when the unit has power

9. The DSL SYNC light will flash green when

connecting with the DSLam. Solid green when

connected to the DSLam. Flashes green when

DSL traffic is running over the router.

10. LAN 1,2,3,4 will be solid green when

connected to each port on the LAN. Flash

green when there is activity on each port.

2

1

2

3

Netopia 3366C-ENT with Dial Back Up

1. Remove from the shipping carton

a. Netopia Router

b. Lavender RJ-11 Telephone Cable

c. Yellow RJ-45 Ethernet Cable

d. Power Supply

2. Insert one end of the lavender RJ-11 telephone cable into

the DSL port on the routers back panel

3. Insert the other end of the lavender RJ-11 telephone cable

into the wall jack that supports your DSL.

4. Insert one end of the yellow RJ-45 Ethernet cable into

the LAN 1 port on the routers back panel

5. Insert the other end of the yellow RJ-45 Ethernet cable

into the network port on the back of your computer or

POS machine

1. The power light on the front of the router will

light solid green when the unit has power

2. The DSL SYNC light will flash green when connecting

with the DSLam. Solid green when connected to the

DSLam. Flashes green when DSL traffic is running

over the router.

3. LAN 1,2,3,4 will be solid green when connected to

each port on the LAN. Flash green when there is activity on each port.

4. The Dial up light will flash green when dialing. . Solid green when connected to the internet.

Flashes green when Dial Up traffic is running over the router.

2

1

2

3

4

2
