Netopia 3346N-ENT Manuale utente

Netopia™ 3346-ENT

ADSL Router

Getting Started Guide

AKING

ROADBAND

ORK

™

This manual and any associated artwork, software, and product designs are copyrighted with

part, without the prior written consent of Netopia, Inc. Under the law, copying includes

translation to another language or format.

Netopia and Cayman are registered trademarks, and “Making Broadband Work” is a

Netopia, Inc.

6001 Shellmound Street, 4th Floor

Emeryville, CA 94608

U.S.A.

Part Number

For additional copies of this electronic manual, order Netopia part number 6161151-00-01

Contents 3

Chapter 1 — Introduction..........................................................1-5

Overview ....................................................................... 1-5

Features and Capabilities............................................... 1-5

How to Use this Guide.................................................... 1-6

Chapter 2 — Making the Physical Connections..........................2-1

Find a Location.............................................................. 2-1

What You Need.............................................................. 2-1

Important Safety Instructions ......................................... 2-2

Identify the Connectors and Attach the Cables ................. 2-3

Netopia 3346-ENT ADSL Router Status Lights.................. 2-5

Chapter 3 — Connecting to Your Local Area Network.................3-1

Readying Computers on Your Local Network..................... 3-1

Connecting to an Ethernet Network ................................. 3-2

Chapter 4 — Sharing the Connection.........................................4-1

Conﬁguring TCP/IP on Windows-based Computers............ 4-1

Dynamic conﬁguration (recommended)................... 4-1

Static conﬁguration (optional)................................ 4-3

Conﬁguring TCP/IP on Macintosh Computers ................... 4-4

Dynamic conﬁguration (recommended)................... 4-5

Static conﬁguration (optional)................................ 4-5

Chapter 5 — Telnet-Based Management....................................5-1

Connecting through a Telnet Session............................... 5-2

Conﬁguring Telnet software ................................... 5-2

Navigating through the Telnet Screens............................. 5-3

Chapter 6 — Easy Setup ...........................................................6-1

Easy Setup Telnet Screens ............................................. 6-1

Accessing the Easy Setup Telnet screens............... 6-1

Quick Easy Setup Connection Path.................................. 6-2

1. DSL Line Conﬁguration ..................................... 6-4

2. Easy Setup Proﬁle ............................................ 6-5

CCoo

oonn

nntt

ttee

eenn

nntt

ttss

4 Getting Started Guide

3. IP Easy Setup .................................................. 6-6

4. Easy Setup Security Conﬁguration ..................... 6-8

Appendix A — Technical Speciﬁcations and Safety Information ..A-1

Description.................................................................... A-1

Power requirements ............................................. A-1

Environment ........................................................ A-1

Software and protocols......................................... A-1

Agency approvals........................................................... A-2

Regulatory notices ............................................... A-2

Manufacturer’s Declaration of Conformance .................... A-3

Important Safety Instructions ......................................... A-4

FCC Part 68 Information................................................. A-5

Electrical Safety Advisory ............................................... A-6

Introduction 1-5

CChh

hhaa

aapp

pptt

ttee

eerr

rr 11

IIIInn

nntt

ttrr

rroo

oodd

dduu

uucc

cctt

ttiiiioo

oonn

Overview

The Netopia 3346-ENT ADSL Router is a full-featured, stand-alone DSL router for connecting diverse local area

networks (LANs) to the Internet and other remote networks. The Netopia 3346-ENT ADSL Router uses a high

performance ADSL line to provide your whole network with a high-speed connection to the outside world.

This section covers the following topics:

•

“Features and Capabilities” on page 1-5

•

“How to Use this Guide” on page 1-6

Features and Capabilities

The Netopia 3346-ENT ADSL Router provides the following features:

•

ADSL WAN interface supports asymmetric data rates from 32 Kbps to 8 Mbps downstream and 32 Kbps to

800 Kbps upstream over an RJ-11 interface

•

ADSL WAN interface supports ADSL Annex A (POTS, T1.413, G.992.1, G.992.2)

•

Interoperable with all major ADSL DSLAM vendors

•

LAN interface: four port 10/100BaseTX Ethernet switch with Auto-crossover support, RJ-45

•

Support for up to 8 ATM (AAL5) PVCs

•

Bridged or routed Ethernet encapsulation, LLC/SNAP and VC Multiplexing (RFC 1483/RFC 2684)

•

1.610 OAM F5 Loopback

•

ATM QoS: UBR, CBR

•

Point-to-Point Protocol (PAP/CHAP authentication)

•

PPP over Ethernet Gateway

•

PPP over ATM Gateway: LLC and VC Multiplexing

•

PPP over Ethernet pass-through

•

Transparent bridging option

•

Support for IP routing for Internet connectivity

•

Numbered or unnumbered WAN interface

•

Support for Ethernet LANs with up to eight Ethernet IP subnets

1-6 Getting Started Guide

•

NAT/NAPT, Multi-NAT, and DHCP (client, server, and relay) for security and convenience

•

DNS proxy

•

IP Multicast Forwarding, IGMP V1, V2

•

RIP1 and RIP2, static routes

•

IP QoS: TOS bit prioritization

•

VPN Pass-through for PPTP and IPSec

•

Built-in VPN gateway features offer support for up to 15 PPTP or IPSec VPN tunnels

•

IPSec implementation supports DES or 3DES encryption, MD5 or SHA1 encapsulation, and manual or IKE

keying

•

Built-in ﬁrewall protects LAN resources from Internet intruders

•

Backup Default Gateway feature with an external router enables high-availability solutions

•

Menu-driven or CLI interfaces via Telnet

•

Easy Setup with menu-driven interface

•

Tiered Access, 2 levels of conﬁguration access

•

Conﬁguration Management, up to 3 backup conﬁgurations

•

TFTP download/upload of new ﬁrmware and conﬁguration ﬁles

•

System diagnostics and logs

•

SNMP V1 and V2 (read/write access)

•

Management utilities: ICMP ping, trace route, Telnet client, and Syslog client

•

Status lights (LEDs) for easy monitoring and troubleshooting

•

Wall-mountable, Bookshelf (Side-stackable), or Desktop-stackable design for efﬁcient space usage

How to Use this Guide

In addition to the documentation contained in the accompanying

Firmware User’s Guide

, this guide is designed

to get you up and running and connected to your local area network and the Internet. It is intended to be viewed

on-line, using the powerful features of the Adobe Acrobat Reader. The information display has been deliberately

designed to present the maximum information in the minimum space on your screen. You can keep this

document open while you perform any of the procedures described, and ﬁnd useful information about the

procedure you are performing.

You can also print out all of the manual, or individual sections, if you prefer to work from hard copy rather than

on-line documentation. The pages are formatted to print on standard 8 1/2 by 11 inch paper. We recommend

that you print on 3-hole punched paper, so that you can put the pages in a binder for future reference.

This guide is organized into chapters describing the Netopia 3346-ENT’s advanced features. You may want to

read each chapter’s introductory section to familiarize yourself with the various features available.

Use the guide’s table of contents and index to locate informational topics.

Making the Physical Connections 2-1

CChh

hhaa

aapp

pptt

ttee

eerr

rr 22

MMaa

aakk

kkiiiinn

nngg

gg tt

tthh

hhee

ee PP

PPhh

hhyy

yyss

ssiiiicc

ccaa

aallll CC

CCoo

oonn

nnnn

nnee

eecc

cctt

ttiiiioo

oonn

nnss

This section tells you how to make the physical connections to your Netopia 3346-ENT ADSL Router. This

section covers the following topics:

•

“Find a Location” on page 2-1

•

“What You Need” on page 2-1

•

“Identify the Connectors and Attach the Cables” on page 2-3

•

“Netopia 3346-ENT ADSL Router Status Lights” on page 2-5

Find a Location

When choosing a location for the Netopia ADSL Router, consider:

•

Available space and ease of installation

•

Physical layout of the building and how to best use the physical space available for connecting your Netopia

ADSL Router to the LAN

•

Available wiring and jacks

•

Distance from the point of installation to the next device (length of cable or wall wiring)

•

Ease of access to the front of the unit for conﬁguration and monitoring

•

Ease of access to the back of the unit for checking and changing cables

•

Cable length and network size limitations when expanding networks

For small networks, install the Netopia 3346-ENT near one of the LANs. For large networks, you can install the

Netopia 3346-ENT in a wiring closet or a central network administration site.

WhatYou Need

Locate all items that you need for the installation.

Included in your router package are:

•

The Netopia 3346-ENT ADSL Router

•

A power adapter and cord

•

One Category 5 Ethernet cable

•

One DSL WAN (or Line) cable

•

The Netopia CD containing software and documentation

2-2 Getting Started Guide

You will need:

•

A Windows–based PC or a Macintosh computer with Ethernet connectivity for conﬁguring the Netopia

3346-ENT. This may be built-in Ethernet or an add-on card, with TCP/IP installed and conﬁgured. See

“Sharing the Connection” on page 4-1.

•

A DSL wall outlet wired for a connection to a telephone carrier who supports Asymmetric Digital Subscriber

Line (ADSL) connections.

Important Safety Instructions

CAUTION: Depending on the power supply provided with the product, either the direct plug-in power supply

blades, power supply cord plug or the appliance coupler serves as the main power disconnect. It is

important that the direct plug-in power supply, socket-outlet or appliance coupler be located so it is readily

accessible.

CAUTION (North America Only): For use only with a CSA Certiﬁed or UL Listed Limited Power Source or

Class 2 power supply, rated 12Vdc, 1.5A.

CAUTION (Europe Only): For use only with a GS approved Limited Power Source, rated 12Vdc, 1.5A.

TELECOMMUNICATION INSTALLATION CAUTIONS

When using your telephone equipment, basic safety precautions should always be followed to reduce the

risk of ﬁre, electric shock and injury to persons, including the following:

1. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink or laundry

tub, in a wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote

risk of electrical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

SAVE THESE INSTRUCTIONS

Making the Physical Connections 2-3

Identify the Connectors and Attach the Cables

Identify the connectors and switches on the back panel and attach the necessary Netopia Router cables.

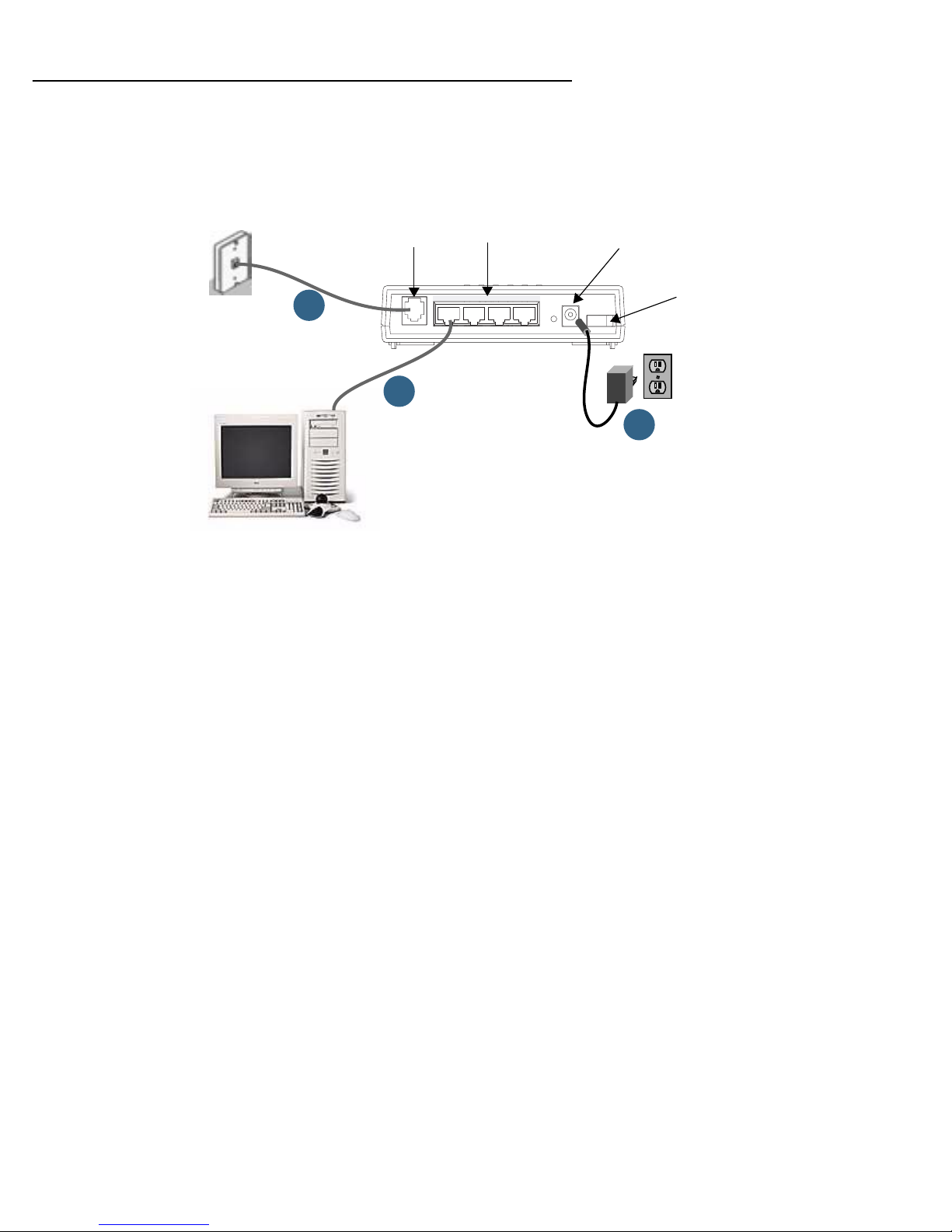

Connect your computer, DSL line, and power source as shown.

1. For a direct computer to router Ethernet connection, use the standard Ethernet cable included with your

router.

2. Use the supplied DSL line cable to connect the router to your DSL wall outlet.

3. Connect the supplied power brick to a power outlet and the connector end to the router.

You should now have: the power adapter plugged in; the Ethernet cable connected between the router and your

computer; and the DSL cable connected between the router and the DSL wall outlet.

DSL 10/100BT LAN DC Power

Power Off / On

LAN

DSL

3Power Switch

2-4 Getting Started Guide

Netopia 3346-ENT back panel

Port Description

DSL port An RJ-48 jack labeled DSL for your ADSL connection.

Ethernet ports Four RJ-45 10/100Base-T Ethernet jacks. You can use one of these to conﬁgure the

Netopia 3346-ENT. You can either connect your computer directly to an Ethernet port

using the supplied Category 5 Ethernet cable, or connect both your computer and the

Netopia 3346-ENT to an existing LAN environment. The Ethernet ports are auto-sensing,

eliminating the need for a crossover cable.

Power port A DC power adapter cable connection.

Power switch An On/Off rocker switch for power.

DSL port

Ethernet

Power Off / On

LAN

DSL

Power switch

ports Power port

Altri manuali per 3346N-ENT

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Netopia Router di rete

Netopia

Netopia 3366-ENT Manuale utente

Netopia

Netopia R310 Scheda informativa del prodotto

Netopia

Netopia 4522 Manuale di istruzioni

Netopia

Netopia 4553 Scheda informativa del prodotto

Netopia

Netopia TP4-CU Manuale utente

Netopia

Netopia 4753 2A4NA Manuale di istruzioni

Netopia

Netopia 3341-ENT Manuale utente

Netopia

Netopia Router PN Series Manuale utente

Netopia

Netopia 4652 Manuale utente

Netopia

Netopia R6100 Manuale utente

Netopia

Netopia R2020 Scheda informativa del prodotto

Netopia

Netopia 4622-XL Manuale utente

Netopia

Netopia R9100 Scheda informativa del prodotto

Netopia

Netopia 3341-ENT Manuale utente

Netopia

Netopia R5000 Scheda informativa del prodotto

Netopia

Netopia R7200 Scheda informativa del prodotto

Netopia

Netopia 4522 T1 Manuale utente

Netopia

Netopia 4686-XL Manuale utente

Netopia

Netopia R910 Scheda informativa del prodotto

Netopia

Netopia 3381-ENT Manuale di istruzioni

Netopia

Netopia 3346N-ENT Manuale utente

Netopia

Netopia 435 Manuale utente

Netopia

Netopia 4741 2A4NA Manuale di istruzioni

Netopia

Netopia Firmware 4000-Series Guida rapida

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
