Netopia 4522 T1 Manuale utente

Netopia

™

4522 T1 Router

Getting Started Guide

AKING

ROADBAND

ORK

™

This manual and any associated artwork, software, and product designs are copyrighted with

part, without the prior written consent of Netopia, Inc. Under the law, copying includes

translation to another language or format.

Netopia is a registered trademark, and “Making Broadband Work” is a trademark of Netopia,

Netopia, Inc.

2470 Mariner Square Loop

Alameda, CA 94501-1010

U.S.A.

Part Number

For additional copies of this electronic manual, order Netopia part number 6180032-00-01.

Contents 3

Chapter 1 — Introduction..........................................................1-1

Overview ....................................................................... 1-1

Features and Capabilities ............................................... 1-1

How to Use this Guide.................................................... 1-2

Chapter 2 — Making the Physical Connections..........................2-1

Find a Location .............................................................. 2-1

What You Need .............................................................. 2-1

Important Safety Instructions ......................................... 2-2

Identify the Connectors and Attach the Cables ................. 2-3

Netopia 4522 T1 Router Status Lights ............................ 2-5

Chapter 3 — Connecting to Your Local Area Network .................3-1

Readying Computers on Your Local Network..................... 3-1

Connecting to an Ethernet Network ................................. 3-2

Chapter 4 — Sharing the Connection.........................................4-1

Conﬁguring TCP/IP on Windows-based Computers............ 4-1

Dynamic conﬁguration (recommended)................... 4-2

Static conﬁguration (optional)................................ 4-3

Conﬁguring TCP/IP on Macintosh Computers ................... 4-5

Dynamic conﬁguration (recommended)................... 4-5

Static conﬁguration (optional)................................ 4-6

Chapter 5 — Console-Based Management .................................5-1

Connecting through a Telnet Session............................... 5-2

Conﬁguring Telnet software ................................... 5-3

Connecting a Console Cable to Your Router ..................... 5-3

Navigating through the Console Screens.......................... 5-4

Chapter 6 — Easy Setup ...........................................................6-1

Easy Setup Console Screens .......................................... 6-1

Accessing the Easy Setup console screens ............ 6-1

Quick Easy Setup Connection Path.................................. 6-3

T1 Line Conﬁguration............................................ 6-6

CCoo

oonn

nntt

ttee

eenn

nntt

ttss

4 Getting Started Guide

Easy Setup Proﬁle ................................................ 6-8

IP Easy Setup ...................................................... 6-9

Easy Setup Security Conﬁguration ....................... 6-11

Appendix A — Technical Speciﬁcations and Safety Information ..A-1

Description.................................................................... A-1

Power requirements ............................................. A-1

Environment ........................................................ A-1

Software and protocols......................................... A-1

Agency Approvals........................................................... A-1

Regulatory notices ............................................... A-2

Important safety instructions ................................ A-4

Limited Warranty and Limitation of Remedies-Revised January 2002

Introduction 1-1

CChh

hhaa

aapp

pptt

ttee

eerr

rr 11

IIIInn

nntt

ttrr

rroo

oodd

dduu

uucc

cctt

ttiiiioo

oonn

Overview

The Netopia 4522 T1 Router is a full-featured, stand-alone T1 router for connecting diverse local area networks

(LANs) to the Internet and other remote networks. The Netopia 4522 T1 Router uses a high performance T1

line to provide your whole network with a high-speed connection to the outside world.

This section covers the following topics:

■

“Features and Capabilities” on page 1-1

■

“How to Use this Guide” on page 1-2

Features and Capabilities

The Netopia 4522 T1 Router provides the following features:

■

Integrated T1 CSU/DSU for fractional or full T1 data service

■

Permanent connection to the Internet or remote sites at up to T1 speeds (1.54 Mbps)

■

Wire-speed routing (up to 1.54 Mbps) for all packet sizes

■

Supports all major T1 deployment models, including ATM, HDLC, Frame Relay, PPP, and PPP over Frame

Relay

■

DS0 auto-detection for channelized T1 deployments

■

A single 10/100BaseT Ethernet port connects easily to an existing LAN environment

■

Business-class routing features, such as RIP1, RIP2, static routes, and support for multiple subnets on the

LAN

■

Network Address Translation (NAT), NAPT, and MultiNAT for ﬂexible use of IP addresses and server hosting

■

DHCP client, server, and relay agent for scalable deployment and private IP address management

■

Various QoS parameters, including ATM: UBR and CBR; IP: TOS bit prioritization

■

High availability solutions via LAN connected back-up default gateway router or dial-back via a modem

connected to the console port

■

Built-in ﬁrewall, packet ﬁltering on source/destination address, service, and protocol; up to 255 rules in up

to 8 ﬁlter sets

■

IPSec VPN Gateway, supporting DES, 3DES encryption, along with IKE or manual key management

■

PPTP VPN Gateway, supporting client or server termination

■

Up to 15 IPSec or PPTP VPN security associations (tunnels)

■

Menu-driven interface via Telnet

1-2 Getting Started Guide

■

Easy Setup with menu-driven interface

■

Console Tiered Access, 2 levels of conﬁguration access

■

Conﬁguration Management, up to 3 backup conﬁgurations

■

System diagnostics and logs

■

SNMP V1 and V2

■

TFTP or X-Modem download/upload of new ﬁrmware and conﬁguration ﬁles

■

Utilities: ICMP ping, trace route, Telnet client, and Syslog client

■

LEDs: power, WAN, and Ethernet; link, status, and activity indications for easy monitoring and

troubleshooting

■

Wall-mountable, bookshelf (side-stackable), or desktop-stackable design for efﬁcient space usage

■

Command-line interface

How to Use this Guide

In addition to the documentation contained in the accompanying

Firmware User’s Guide

, this guide is designed

to get you up and running and connected to your local area network and the Internet. It is intended to be viewed

on-line, using the powerful features of the Adobe Acrobat Reader. The information display has been deliberately

designed to present the maximum information in the minimum space on your screen. You can keep this

document open while you perform any of the procedures described, and ﬁnd useful information about the

procedure you are performing.

You can also print out all of the manual, or individual sections, if you prefer to work from hard copy rather than

on-line documentation. The pages are formatted to print on standard 8 1/2 by 11 inch paper. We recommend

that you print on 3-hole punched paper, so that you can put the pages in a binder for future reference.

This guide is organized into chapters describing the Netopia 4522’s advanced features. You may want to read

each chapter’s introductory section to familiarize yourself with the various features available.

Making the Physical Connections 2-1

CChh

hhaa

aapp

pptt

ttee

eerr

rr 22

MMaa

aakk

kkiiiinn

nngg

gg tt

tthh

hhee

ee PP

PPhh

hhyy

yyss

ssiiiicc

ccaa

aallll CC

CCoo

oonn

nnnn

nnee

eecc

cctt

ttiiiioo

oonn

nnss

This section tells you how to make the physical connections to your Netopia 4522 T1 Router. This section

covers the following topics:

■

“Find a Location” on page 2-1

■

“What You Need” on page 2-1

■

“Identify the Connectors and Attach the Cables” on page 2-3

■

“Netopia 4522 T1 Router Status Lights” on page 2-5

Find a Location

When choosing a location for the Netopia T1 Router, consider:

■

Available space and ease of installation

■

Physical layout of the building and how to best use the physical space available for connecting your Netopia

T1 Router to the LAN

■

Available wiring and jacks

■

Distance from the point of installation to the next device (length of cable or wall wiring)

■

Ease of access to the front of the unit for conﬁguration and monitoring

■

Ease of access to the back of the unit for checking and changing cables

■

Cable length and network size limitations when expanding networks

For small networks, install the Netopia 4522 near one of the LANs. For large networks, you can install the

Netopia 4522 in a wiring closet or a central network administration site.

What You Need

Locate all items that you need for the installation.

Included in your router package are:

■

The Netopia 4522 T1 Router

■

A power adapter and cord with a mini-DIN8 connector

■

One Category 5 Ethernet cable

■

One Category 5 WAN (or Line) cable

■

A DB-9 to DB-9 console cable

■

The Netopia CD containing software and documentation

2-2 Getting Started Guide

You will need:

■

A Windows–based PC or a Macintosh computer with Ethernet connectivity for conﬁguring the Netopia 4522.

This may be built-in Ethernet or an add-on card, with TCP/IP installed and conﬁgured. See “Sharing the

Connection” on page 4-1.

■

A T1 wall outlet wired for a connection to a telephone carrier who supports T1 connections.

Important Safety Instructions

CAUTION: Depending on the power supply provided with the product, either the direct plug-in power supply

blades, power supply cord plug or the appliance coupler serves as the main power disconnect. It is

important that the direct plug-in power supply, socket-outlet or appliance coupler be located so it is readily

accessible.

CAUTION (North America Only): For use only with a CSA Certiﬁed or UL Listed Limited Power Source or

Class 2 power supply, rated 12Vdc, 1.5A.

TELECOMMUNICATION INSTALLATION CAUTIONS

When using your telephone equipment, basic safety precautions should always be followed to reduce the

risk of ﬁre, electric shock and injury to persons, including the following:

1. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink or laundry

tub, in a wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote

risk of electrical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

SAVE THESE INSTRUCTIONS

Making the Physical Connections 2-3

Identify the Connectors and Attach the Cables

Identify the connectors and switches on the back panel and attach the necessary Netopia Router cables.

The ﬁgure below displays the back of the Netopia 4522 T1 Router.

Power

10/100

Ethernet

WAN

2T1

1 Ethernet Power

1 Computer

1 Netopia Router

Console

Connect your computer, T1

line, and power source as

shown.

1. For a direct computer to

router Ethernet connection,

use a crossover cable (not

included), or connect through

a hub or switch with a

standard Ethernet cable.

2. Use the supplied line

cable to connect the router

to your T1 wall outlet.

3. Connect the supplied

power brick to a power outlet

and the mini-DIN8 connector

end to the router.

2-4 Getting Started Guide

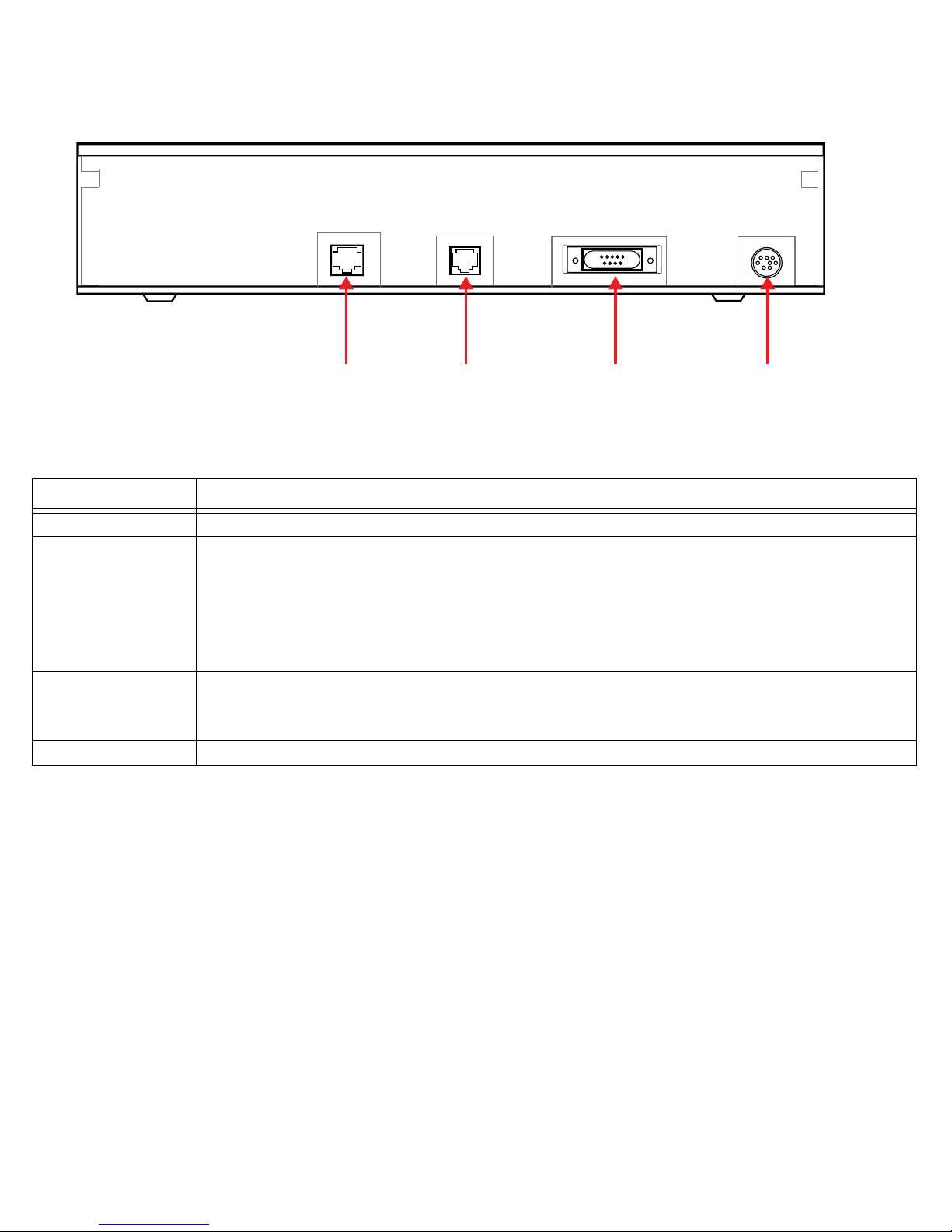

Netopia 4522 back panel

1. Connect the mini-DIN8 connector from the power adapter to the power port, and plug the other end into an

electrical outlet.

2. Connect one end of the Category 5 cable to the T1 port, and the other end to your T1 wall outlet.

3. Connect the Ethernet cable to the Ethernet port on the router and the other end to your computer.

You should now have: the power adapter plugged in; the Ethernet cable connected between the router and

your computer; and the T1 cable connected between the router and the T1 wall outlet.

Port Description

T1 WAN port An RJ-48 jack labeled WAN for your T1 connection.

Ethernet port RJ-45 10/100Base-T Ethernet jack. You will use this to conﬁgure the Netopia 4522. For

a new installation, use an Ethernet connection. Alternatively, you can use the console

connection to run console-based management using a direct serial connection. You can

either connect your computer directly to the Ethernet port using a crossover Ethernet

cable (not supplied), or connect both your computer and the Netopia 4522 to an existing

LAN environment.

Console port A DB-9 console port for a direct serial connection to the console screens. You can use

this if you are an experienced user. See “Connecting a Console Cable to Your Router” on

page 5-3.

Power port A mini-DIN8 power adapter cable connection.

WAN 10/100 Console Power

T1 port Ethernet port Console port Power port

Ethernet

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Netopia Router di rete

Netopia

Netopia 4522 Manuale di istruzioni

Netopia

Netopia 3341-ENT Manuale utente

Netopia

Netopia 3346N-ENT Manuale utente

Netopia

Netopia 3356-ENT Manuale utente

Netopia

Netopia 3346-ENT Manuale utente

Netopia

Netopia R310 Scheda informativa del prodotto

Netopia

Netopia 3346-ENT Manuale utente

Netopia

Netopia 45413 Manuale utente

Netopia

Netopia 4622-XL Manuale utente

Netopia

Netopia 4553 Scheda informativa del prodotto

Netopia

Netopia 4652 Manuale utente

Netopia

Netopia 4541 Scheda informativa del prodotto

Netopia

Netopia Routers R-Series Manuale utente

Netopia

Netopia 4686-XL Manuale utente

Netopia

Netopia 3381-ENT Manuale utente

Netopia

Netopia 4622 T1 Manuale utente

Netopia

Netopia Firmware 4000-Series Guida rapida

Netopia

Netopia 3341-ENT Manuale di istruzioni

Netopia

Netopia 3366-ENT Manuale utente

Netopia

Netopia 435 Manuale utente

Netopia

Netopia 3347W Manuale utente

Netopia

Netopia TP4-CU Manuale utente

Netopia

Netopia Cayman 3341 Manuale utente

Netopia

Netopia R5100 Scheda informativa del prodotto

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
