Netvox R718PG Manuale utente

Model：R718PG

Wireless Light Sensor

R718PG

User Manual

This document contains proprietary technical information which is the property of

NETVOX Technology. It shall be maintained in strict confidence and shall not be

disclosed to other parties, in whole or in part, without written permission of NETVOX

Technology. The specifications are subject to change without prior notice

Table of Content

1. Introduction.................................................................................................................2

2. Appearance..................................................................................................................2

3. Main Features ............................................................................................................. 3

4. Set up Instruction........................................................................................................4

5. Data Report.................................................................................................................5

6. Installation ..................................................................................................................9

7. Information about Battery Passivation .....................................................................10

8. Important Maintenance Instruction .......................................................................... 11

1. Introduction

The R718PG is a Wireless Light Sensor for Netvox ClassA type devices based on the LoRaWAN

open protocol and is compatible with the LoRaWAN protocol. It can detect illuminance anywhere,

ex. sunlight, outdoor area.

LoRa Wireless Technology:

LoRa is a wireless communication technology dedicated to long distance and low power

consumption. Compared with other communication methods, LoRa spread spectrum modulation

method greatly increases to expand the communication distance. Widely used in long-distance,

low-data wireless communications. For example, automatic meter reading, building automation

equipment, wireless security systems, industrial monitoring. Main features include small size, low

power consumption, transmission distance, anti-interference ability and so on.

LoRaWAN:

LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure

interoperability between devices and gateways from different manufacturers.

2. Appearance

Indicator

Function Key

Light Sensor

3. Main Features

⚫Compatible with LoRaWAN protocol.

⚫Powered by 2 x ER14505 3.6V Lithium AA battery

⚫Illuminance detection

⚫IP rating IP65 / IP67 (optional)

⚫Compatible with LoRaWANTM Class A

⚫Frequency hopping spread spectrum

⚫Configuration parameters can be configured via a third-party software platform, data can be read

and alerts can be set via SMS text and email (optional)

⚫Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne

⚫Improved power management for longer battery life

Battery Life:

⁻Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html

⁻At this website, users can find battery life time for variety models at different configurations.

1. Actual range may vary depending on environment.

2. Battery life is determined by sensor reporting frequency and other variables.

4. Set up Instruction

On/Off

Power on

Insert batteries. (users may need a screwdriver to open)

Turn on

Press and hold the function key for 3 seconds till the green indicator flashes once.

Turn off

(Restore to factory setting)

Press and hold the function key for 5 seconds till green indicator flashes for 20

times.

Power off

Remove Batteries.

Note

1. Remove and insert the battery; the device is at off state by default.

2. On/off interval is suggested to be about 10 seconds to avoid the interference of

capacitor inductance and other energy storage components.

3. At 1st -5th second after power on, the device will be in engineering test mode.

Network Joining

Never joined the network

Turn on the device to search the network to join.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Had joined the network

(not at factory setting)

Turn on the device to search the previous network to join.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Function Key

Press and hold for 5 seconds

Restore to factory setting / Turn off

The green indicator flashes for 20 times: success

The green indicator remains off: fail

Press once

The device is in the network: green indicator flashes once and sends a report

The device is not in the network: green indicator remains off

Sleeping Mode

The device is on and in the

network

Sleeping period: Min Interval.

When the reportchange exceeds setting value or the state changes: send a data report

according to Min Interval.

Low Voltage Warning

Low Voltage

3.2V

5. Data Report

Data report configuration and sending period are as following:

Min Interval

(Unit:second)

Max Interval

(Unit:second)

Reportable Change

Current Change≥

Reportable Change

Current Change＜

Reportable Change

Any number

between 1~65535

Any number

between 1~65535

Can not be 0.

Report

per Min Interval

Report

per Max Interval

The device will immediately send a version packet report along with an uplink packet including illuminance

and battery voltage.

The device sends data in the default configuration before any configuration is done.

Default setting:

MaxTime : Max Interval = 15 min = 900s

MinTime : Min Interval = 15 min = 900s

BatteryChange: 0x01 (0.1V)

IlluminanceChange:0x0032 (50 Lux)

Illuminance detection range:

0 ~ 157000 Lux

Note:

The device report interval will be programmed based on the default firmware which may vary.

The interval between two reports must be the minimum time.

Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver

http://loraresolver.netvoxcloud.com:8888/page/index to resolve uplink data.

Example of Report configuration

FPort：0x07

Bytes

Var(Fix =9 Bytes)

CmdID

DeviceType

NetvoxPayLoadData

CmdID–1 byte

DeviceType–1 byte –Device Type of Device

NetvoxPayLoadData–var bytes (Max=9bytes)

Description

Device

Cmd

Device

Type

NetvoxPayLoadData

Config

ReportReq

R718PG

0x01

0x1E

MinTime

(2bytes

Unit:s)

MaxTime

(2bytes

Unit:s)

BatteryChange

(1byte Unit:0.1v)

Illuminancechange

(4bytes Unit：

1Lux)

Config

ReportRsp

0x81

Status

(0x00_success)

Reserved

(8Bytes,Fixed 0x00)

ReadConfig

ReportReq

0x02

Reserved

(9Bytes,Fixed 0x00)

ReadConfig

ReportRsp

0x82

MinTime

(2bytes

Unit:s)

MaxTime

(2bytes

Unit:s)

BatteryChange

(1byte Unit:0.1v)

Illuminancechange

(4bytes Unit：

1Lux)

(1) Command Configuration:

MinTime = 1min、MaxTime = 1min、BatteryChange = 0.1v、IlluminanceChange = 100 Lux

Downlink：011E003C003C0100000064 003C(Hex) =60 (Dec) , 64(Hex) =100 (Dec)

Response：

811E000000000000000000 （Configuration success）

811E010000000000000000（Configuration failure）

(2) Read Configuration:

Downlink：021E000000000000000000

Response：

821E003C003C0100000064 （Current configuration）

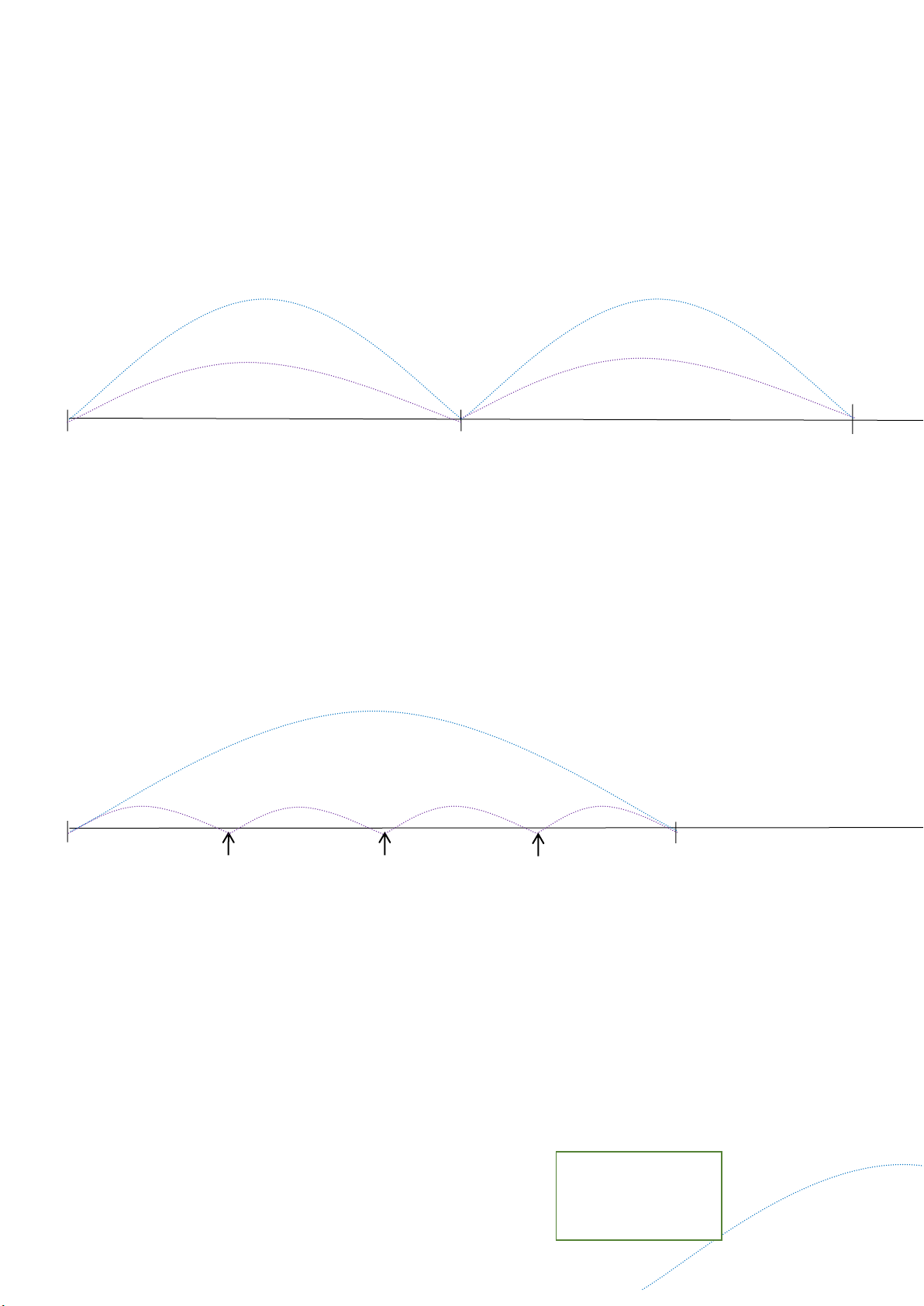

Example for MinTime/MaxTime logic:

Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e.

BatteryVoltageChange=0.1V

MaxTime MaxTime

Sleeping(MinTime) Sleeping(MinTime)

Note: MaxTime=MinTime. Data will only be report according to MaxTime (MinTime) duration

regardless BatteryVoltageChange value.

Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e.

BatteryVoltageChange= 0.1V.

MaxTime

Sleeping(MinTime) sleeping sleeping sleeping

0H 15th M 30th M 45th M 1H

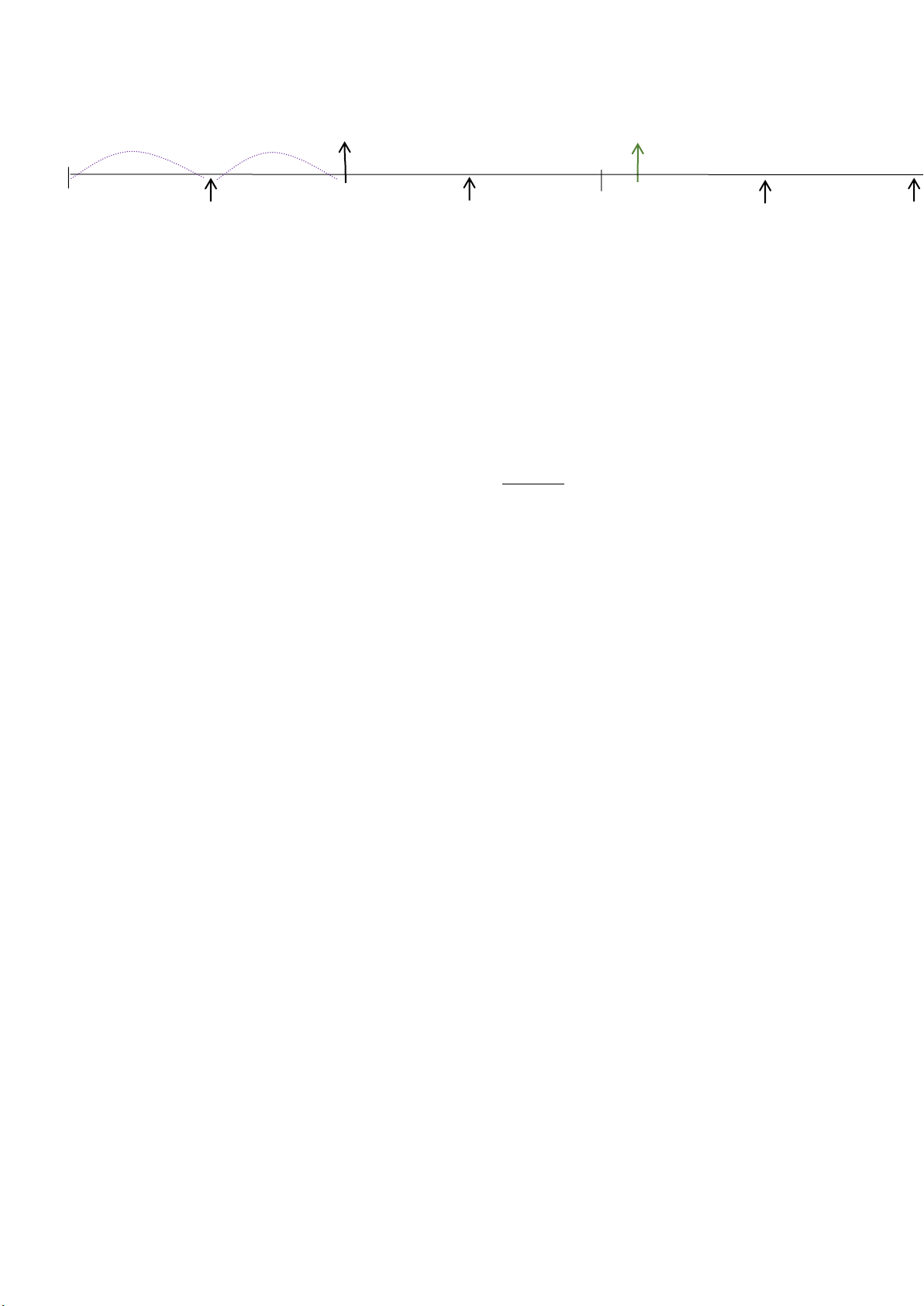

Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e.

BatteryVoltageChange= 0.1V.

MaxTime

Wakes up and

collects data

3.6V

Does not report

Wakes up and

collects data

3.6V

Does not report

Wakes up and

collects data

3.6V

Does not report

Wakes up and

collects data

REPORTS 3.6V

Wakes up and

collects data

REPORT 3.6V

Wakes up and collects data

3.5V |3.5-3.6|=0.1

REPORTS 3.5V

Wakes up and

collects data 3.5V

Does not report

Wake up and collects data

REPORTS 3.6V

Wakes up and collects data

REPORTS 3.6V

Wakes up and collects data

REPORTS 3.6V

Users push the button,

REPORTS 3.5V.

Recalculate MaxTime.

sleeping sleeping ...

0H 15th M 30th M 45th M 1H 1H 10th M 1H 25th M

1H 40th M 1H 55th M 2H 10th M

Note:

1) The device only wakes up and performs data sampling according to MinTime Interval.

When it is sleeping, it does not collect data.

2) The data collected is compared with the last data reported. If the data variation is greater

than the ReportableChange value, the device reports according to MinTime interval. If the

data variation is not greater than the last data reported, the device reports according to

MaxTime interval.

3) We do not recommend to set the MinTime Interval value too low. If the MinTime Interval is

too low, the device wakes up frequently and the battery will be drained soon.

4) Whenever the device sends a report, no matter resulting from data variation, button pushed

or MaxTime interval, another cycle of MinTime/MaxTime calculation is started.

Wakes up and

collects data

REPORTS 3.6V

Wakes up and

collects data

3.5V

Does not report

Wakes up and

collects data

3.5V

Does not report

Wakes up and

collects data

3.5V

Does not report

Wakes up and

collects data

3.6V

Does not report

6. Installation

This product comes with waterproof function. When using it, the back of it can be adsorbed on the

iron surface, or the two ends can be fixed to the wall with screws.

Note:

Please do not disassemble the device unless it is required to replace the batteries.

Do not touch the waterproof gasket, LED indicator light, function keys when replacing the batteries.

Please use suitable screwdriver to tighten the screws (if using an electric screwdriver, it is

recommended to set the torque as 4kgf) to ensure the device is impermeable.

Light Sensor (R718PG) is suitable for the

following scenarios:

⚫Family

⚫School

⚫Storage room

⚫Hospital

⚫Bar

⚫Stairs

⚫Agricultural greenhouse

To detect the illumination value.

1. Light Sensor（R718PG）has a built-in

magnet (see Figure 1 below),When

installed, the back of it can be adsorbed on

the iron surface, or the two ends can be

fixed to the wall with screws (should be

purchased) to secure the unit to a wall or

other surface (see Figure 2 below).

Note

Do not install the device in a metal

shielded box or in an environment with

other electrical equipment around it to

avoid affecting the wireless transmission of

the device.

2. Compare the illumination value detected

by the illumination sensor with the set

illumination value. The detected value

exceeds the set value (default 50 Lux), the

currently detected illumination value is

sent.

Indice

Altri manuali netvox Accessori

netvox

netvox Z808B Manuale utente

netvox

netvox R718EA Manuale utente

netvox

netvox R718PA4 Manuale utente

netvox

netvox R311K Manuale utente

netvox

netvox R718F2 Manuale utente

netvox

netvox ZigBee Z801WLS Manuale utente

netvox

netvox R718PB13 Manuale utente

netvox

netvox R718NL3 Series Manuale utente

netvox

netvox R718N3 Manuale utente

netvox

netvox R718EA Manuale utente

netvox

netvox R718G Manuale utente

netvox

netvox Z713 Manuale utente

netvox

netvox R311D Manuale utente

netvox

netvox R718N3 Manuale utente

netvox

netvox R718DB2 Manuale utente

netvox

netvox R718UBD Series Manuale utente

netvox

netvox R311CB Manuale utente

netvox

netvox R311LA Manuale utente

netvox

netvox R313WA Manuale utente

netvox

netvox ZB11A1 Manuale utente

netvox

netvox R718MA Manuale utente

netvox

netvox R718PE Manuale utente

netvox

netvox R315 Series Manuale utente

netvox

netvox R712 Manuale utente

Manuali Accessori popolari di altre marche

Hillco

Hillco 2810 Manuale utente

Siemens

Siemens QSA2700D Manuale dell'operatore

Contours

Contours ZY024 Manuale utente

Saivod

Saivod VS621 Manuale utente

Virtuox

Virtuox VirtuCLEAN 2.0 Manuale utente

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuale utente

Z-Wave

Z-Wave HSD-200Z Manuale utente

turck

turck FMX-IM-2UPLI63FX Manuale utente

Decagon Devices

Decagon Devices 10HS Manuale utente

UPPAbaby

UPPAbaby Cup Holder Manuale utente

Elko

Elko SmartSensor Leakage Wireless Manuale utente

Grizzly

Grizzly H8371 Manuale utente

Panasonic

Panasonic HG-T Series Manuale utente

IFM Electronic

IFM Electronic Efector 250 Series Guida di riferimento

DigiDesign

DigiDesign 888/24 I/O Manuale utente

PROZIS

PROZIS QUAY Manuale utente

patagonia

patagonia PSI Vest Manuale utente

SFC Energy

SFC Energy EFOY GO! Manuale utente

netvox R718PG Manuale utente

Manuali Accessori popolari di altre marche
