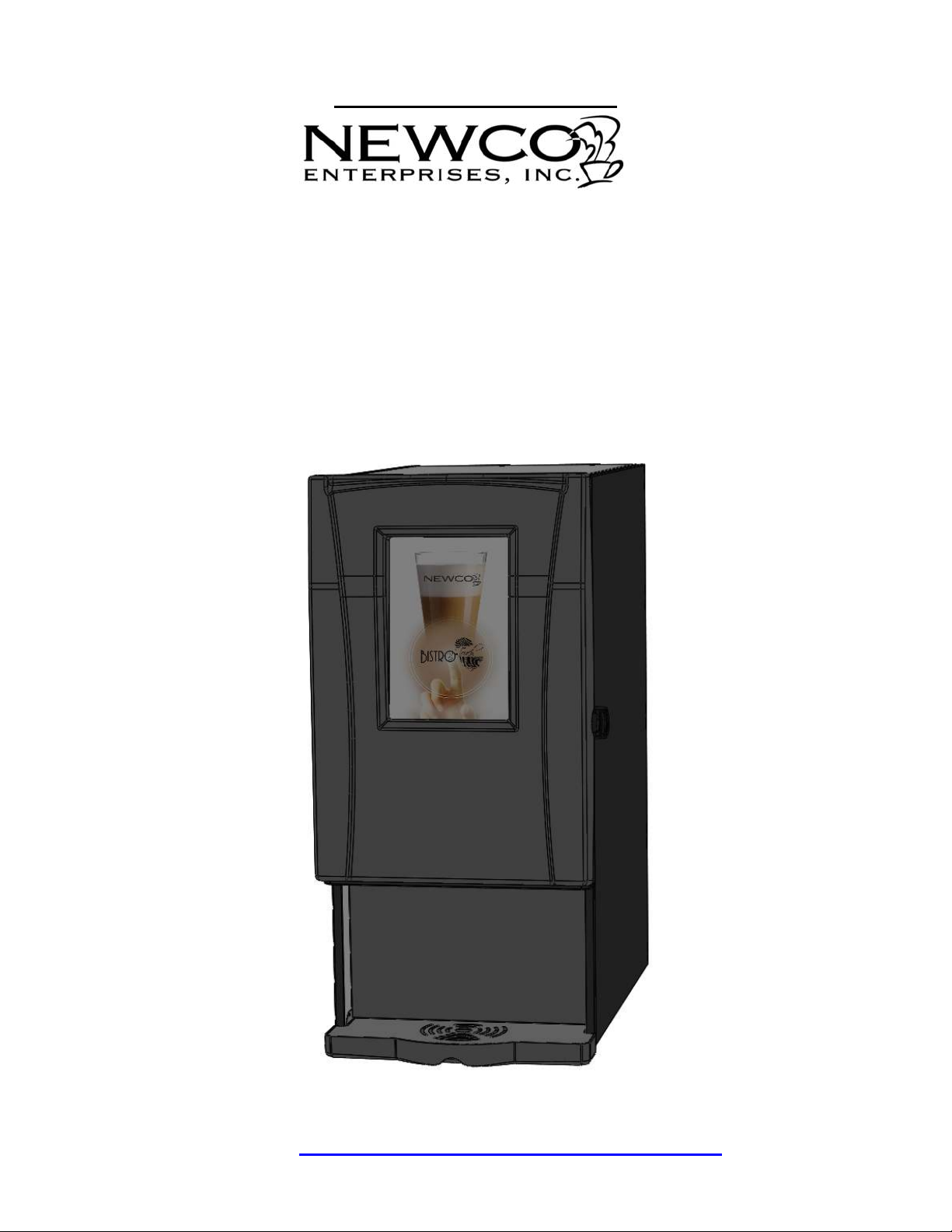

Bistro Touch
Operating Instruction Manual
Model BISTRO-TCH
Including Touchless QR Code Capability
1-8 -325-7867
365 NEW TOWN BLVD ST. CHARLES MO 633 1
WWW.NEWCOCOFFEE.COM
PN. 128142 10-17-18
Date Revised 02/24/22 DB
2
Table of Contents
Introduction
& Newco Product Warranty ................. 4
Machine Dimensions & Specifications .................. 5
Machine Features ........................................................ 6
Plumbing Connections .............................................. 7
Plumber’s Installation Instructions ........................ 7
Electrical Hook-Up ...................................................... 7
Installation Instructions ............................................. 8
Set up instructions ..................................................... 9
Product Installation Procedure ................................ 9
Machine Startup Instructions
................................. 10
Brewing Drinks
.......................................................... 11
Drink Submenu
.......................................................... 12
Programming Instructions ...................................... 13
Custom Logo-Wi-Fi Setup ....................................... 17
Install Custom Logo (Sleep Screen) ..................... 18
Programming --QR Codes ....................................... 21
Daily Cleaning Instructions .................................... 25
Whipper Disassembly .............................................. 26
Cleaning & Sanitizing Instructions ....................... 27
Wiring Diagram .......................................................... 32
3

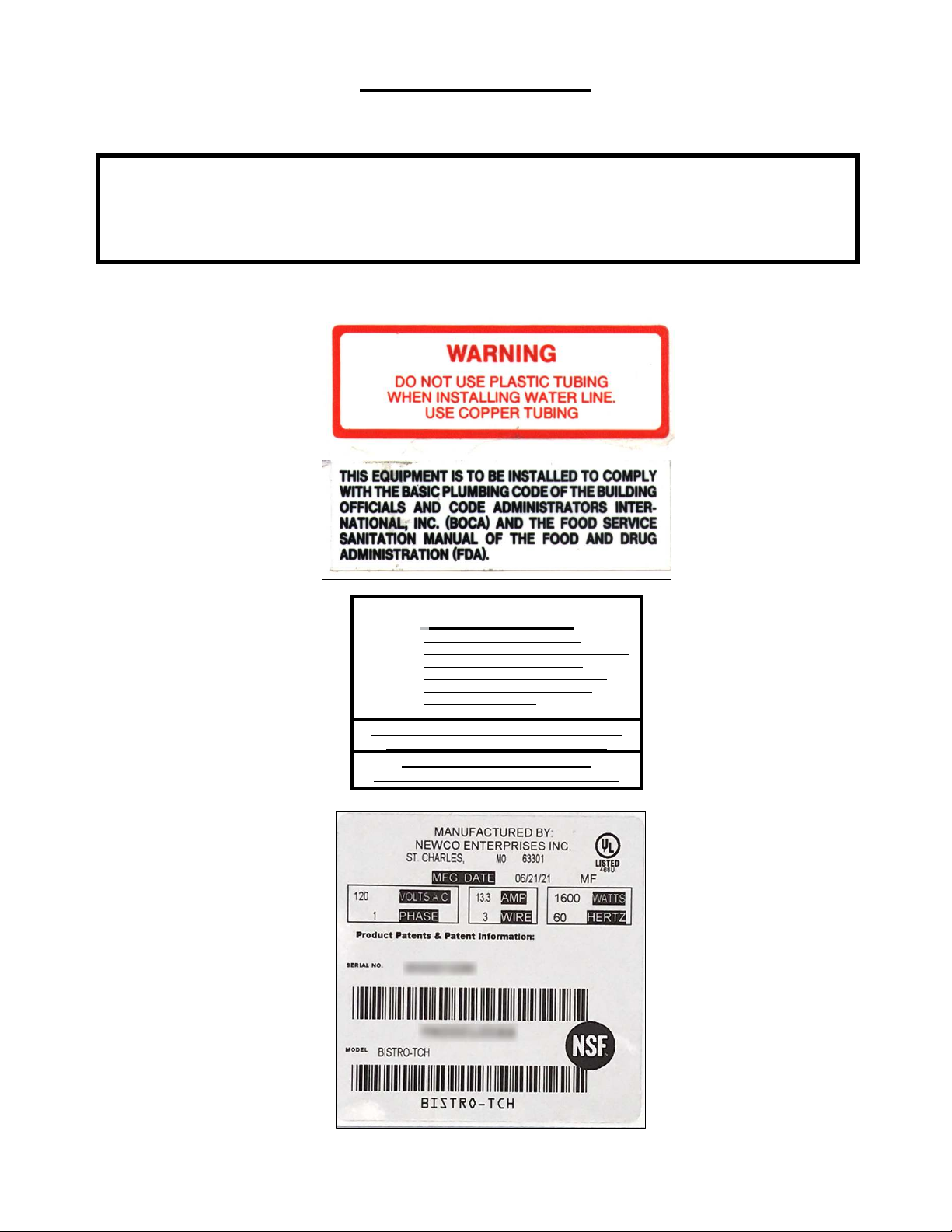

Warning Labels
NOTICE: Read and follow all notices posted on this machine.
Do not damage or destroy these notices as they are for your
protection
! WARNING
DO NOT OVERLOAD CIRCUIT.
ALWAYS ELECTRICALLY ROUND THE
CHASSIS OR ADAPTOR PLU .
DO NOT DEFORM PLU OR CORD.
FOLLOW NATIONAL AND LOCAL
ELECTRICAL CODES.
KEEP COMBUSTIBLES AWAY.
FAILURE TO COMPLY RISKS EQUIPMENT
DAMAGE, FIRE OR SHOCK HAZARD.
READ THE ENTIRE OPERATING
MANUALBEFORE USING THIS PRODUCT
4
Introduction & Newco Product Warranty
WARRANTY
This warranty supersedes all other previous warranties that are currently in manuals.
Newco warrants equipment manufactured by it for 1 year parts and labor.
Accessories, Dispensers, and Display Tablets - 1 Year parts only.
lectronic Circuit and Control Boards- 3 years parts, 1 year labor.
quipment manufactured by others and distributed by Newco-please see
original equipment manufacturers warranty, Newco will follow.
These warranty periods run from the date of sale Newco warrants that the equipment
manufactured by it will be commercially free of defects in material and workmanship
existing at the time of manufacture and appearing within the applicable warranty
period. This warranty does not apply to any equipment, component or part that was not
manufactured by Newco or that, in Newco’s judgment, has been affected by misuse,
neglect, alteration, improper installation or operation, relocation or reinstallation,
improper maintenance or repair, incorrect voltage applied to the unit at any time,
damage or casualty. This warranty does not apply to any equipment failures related to
poor water quality, excessive lime and chlorine and non periodic cleaning and
descaling. Warranty is null and void if muriatic or any other form of hydrochloric acid is
used for cleaning or deliming. In addition, this warranty does not apply to replacement
of items subject to normal use including but not limited to user replaceable parts such
as faucet seat cups, sight gauge tubes, washers, o-rings, tubing, seals and gaskets.
This warranty is conditioned on the Buyer 1) giving Newco prompt notice of any claim
to be made under this warranty by telephone at (800) 556-3926 or by writing to 3650
New Town Blvd, Saint Charles, MO 63301; 2) if requested by Newco, shipping the
defective equipment prepaid to an authorized Newco service location; and 3) receiving
prior authorization from Newco that the defective equipment is under warranty.
THE FORE OIN WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER
WARRANTY, WRITTEN OR ORAL, EXPRESS OR IMPLIED, INCLUDIN , BUT NOT
LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of
Newco are not authorized to make modifications to this warranty or to make additional
warranties that are binding on Newco. Accordingly, statements by such individuals,
whether oral or written, do not constitute warranties and should not be relied upon.
If Newco determines in its sole discretion that the equipment does not conform to the
warranty, Newco, at its exclusive option while the equipment is under warranty, shall
either 1) provide at no charge replacement parts and/or labor (during the applicable
parts and labor warranty periods specified above) to repair the defective components,
provided that this repair is done by a Newco Authorized Service Representative; or 2)
shall replace the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY A AINST NEWCO FOR THE BREACH OF ANY OBLI ATION
ARISIN OUT OF THE SALE OF THIS EQUIPMENT, WHETHER DERIVED FROM
WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT NEWCO’S SOLE OPTION AS
SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
5

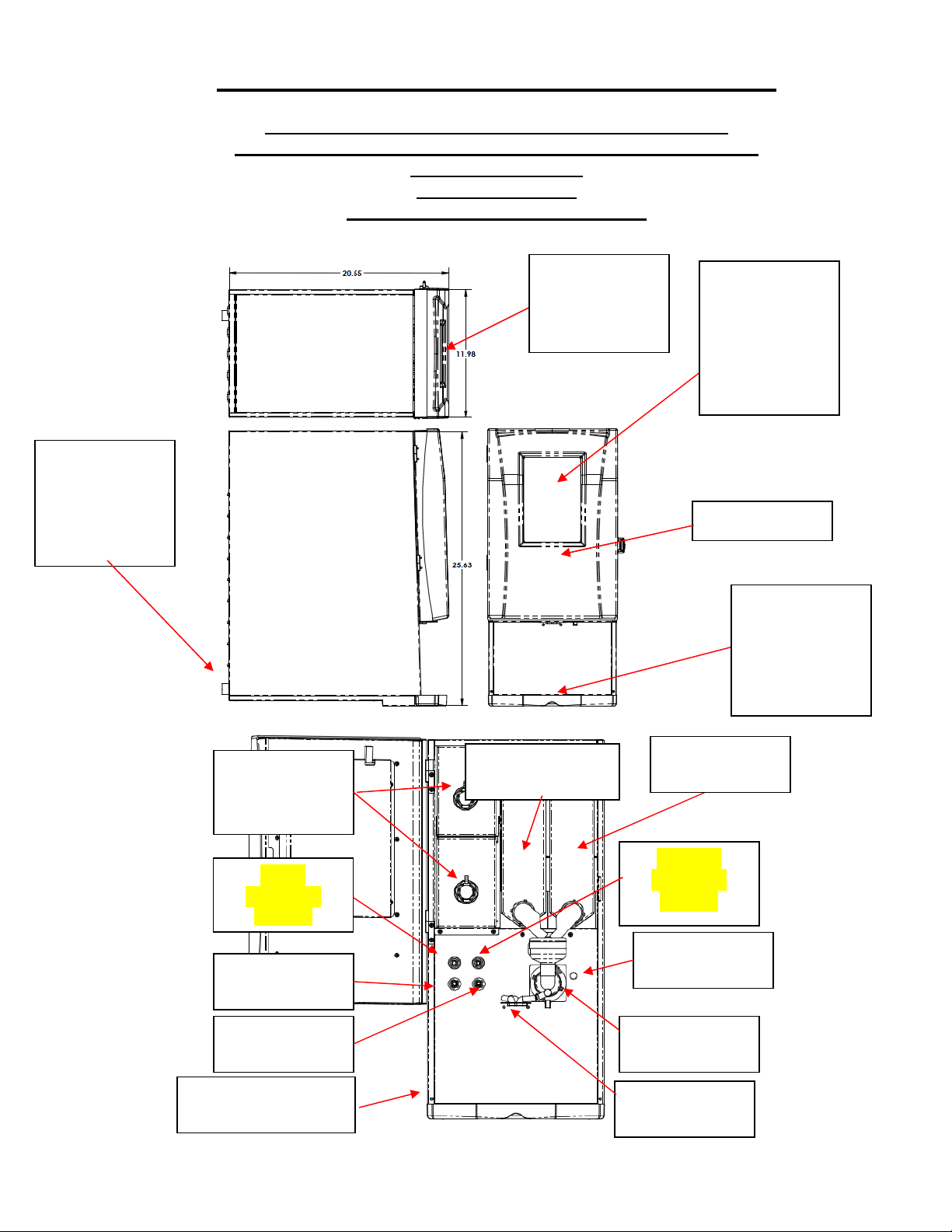

Machine Dimensions & Specifications
12 VAC-16 W HEATER-15A USA POWER SUPPLY
12 VAC-14 W HEATER-15A CANADIAN POWER SUPPLY
1/2 GALLON TANK
6-2 OZ CUP SIZE
TEMPERATURE RANGE 14 -2 5F
DRIP TRAY
&
DRIP TRAY
GRATE
WATER
INLET
&
POWER
SWITCH
PRODUCT
SELECTION
SWITCH
PAD
&
DISPLAY
PRODUCT
DISPENSE
AREA
(CUP)
6 5/8”
HOT WATER
OUTLET
COFFEE
OUTLET
RINSE
BUTTON
WHIPPER
CHA BER
DISPENSE
NOZZLES
LIQUID
COFFEE
BIBS
CHOCOLATE
CANISTE
EG
COFFEE
INLET
DECAF
COFFEE
INLET
MILK
CANISTE
QR READER
ON/OFF POWER
SWITCH (REAR)
L
6
Machine Features
TOUCH SCREEN OPERATION
CUSTOMIZED LOGO SCREEN
DECAF BUTTON SWITCHES TO DECAF BIB
WHIPPER RINSE BUTTON
AUTOMATIC POWDER LEVEL RESET
PRE-PROGRAMMED DRINK RECIPES
6-8-1 -12-16-2 OUNCE DRINK CHOICES
CUP SELECTION MENU
INDEPENDENT POWDER HOPPER COUNTDOWN &
RESET
CUSTOM CALL FOR SERVICE NUMBER
POWER SAVE & POWER DOWN OPTION
WATER FILTER MONITORING OPTIONS
PUSH & HOLD HOT WATER BUTTON
DUMP VALVE DELIVERY FOR POWDERS
4 LB HOPPER SIZE
SEMI-AUTOMATIC CLEANING CYCLE
QR READER CAPABILITY
CUSTOM DRINK / BLEND NAMES
ABILITY TO TURN ON/OFF DRINK SIZE, STRENGTH
7
Plumbing Connections
Plumber’s Installation Instructions
CAUTION: Disconnect Power to machine before proceeding with plumbing
installation.
1) Attach water line to water filter, rear of machine.
2) Flush water line before installing machine. Machine should be connected to
COLD WATER LINE ONLY.
3) Water pressure should be at least 40 lbs. For less than a 25 ft run, use 1/4"
copper tubing and connect to 1/2" or larger water line. For longer runs, use 3/8"
copper tubing & connect to 1/2" or larger water line and provide an adapter
fitting for connection to the brewer. A dedicated water line is necessary for
this machine. Minimum flow rate is 1GPM.
4) If installed with saddle valve, the valve should have a minimum of 1/8" porthole
for up to 25 ft run, and 5/16" porthole for over 25 ft runs.
5) Manufacturer recommends connecting to copper tubing.
Electrical Hook-Up
WARNING
The Machine must be disconnected from the power source until specified in
Installation Instructions.
Determine the available on-site electrical requirements
Refer to Data Plate on the Machine, and local/national electrical codes to
determine circuit requirements.
CAUTION – Improper electrical installation will damage electronic components.
8
Installation Instructions
WARNING: - Read and follow installation instructions before
plugging or wiring in machine to electrical circuit. Warranty will
be void if machine is connected to any voltage other than that
specified on the nameplate serial tag.
Machine must be on a flat and level surface. Plug or wire in machine
to appropriate voltage as noted on the brewer serial tag. Serial tag
is located on inside of machine.
Brew water temperature is factory set at 18 o F
Areas of high altitude will require lowering this temperature to
prevent boiling. This chart should be used as a guide when
readjusting the brew water temperature.
Altitude
(Feet)
Boiling point of
water o F o C
Recommended water
temperature o F o C
-1 213.8 1 1. 2 93.3
-5 212.9 1 .5 2 93.3
212. 1 . 2 93.3
5 211.1 99.5 2 93.3
1 21 .2 99. 2 93.3
15 2 9.3 98.5 2 93.3
2 2 8.4 98. 2 93.3
25 2 7.4 97.4 2 93.3
3 2 6.5 96.9 199 92.8
35 2 5.6 96.4 198 92.2
4 2 4.7 95.9 197 91.7
45 2 3.8 95.4 196 91.1
5 2 2.9 94.9 195 9 .6
55 2 1.9 94.4 195 9 .6
6 2 1. 93.9 194 9 .
65 2 .1 93.4 193 89.4
7 199.2 92.9 192 88.9
75 198.3 92.4 191 88.3
8 197.4 91.9 19 87.8
85 196.5 91.4 189 87.2
9 195.5 9 .8 188 86.7
95 194.6 9 .3 187 86.1
1 193.7 89.8 186 85.6
9
Set up instructions
This machine is intended to brew a 6-20 ounces single serving of coffee and / or
powdered hot drinks into a cup. This machine will also dispense hot water for allied
beverage use. It is intended for indoor use only on a sturdy counter or shelf.
Fill and install ingredient hoppers with nozzles turned up, Chocolate on left and Milk
on right. Make sure “button” on bottom of hopper is seated in slot in sheet metal.
Slight manual rotation of the auger gear may be necessary to seat hopper in correct
location.
Rotate dispense nozzles down into whipper bowl.

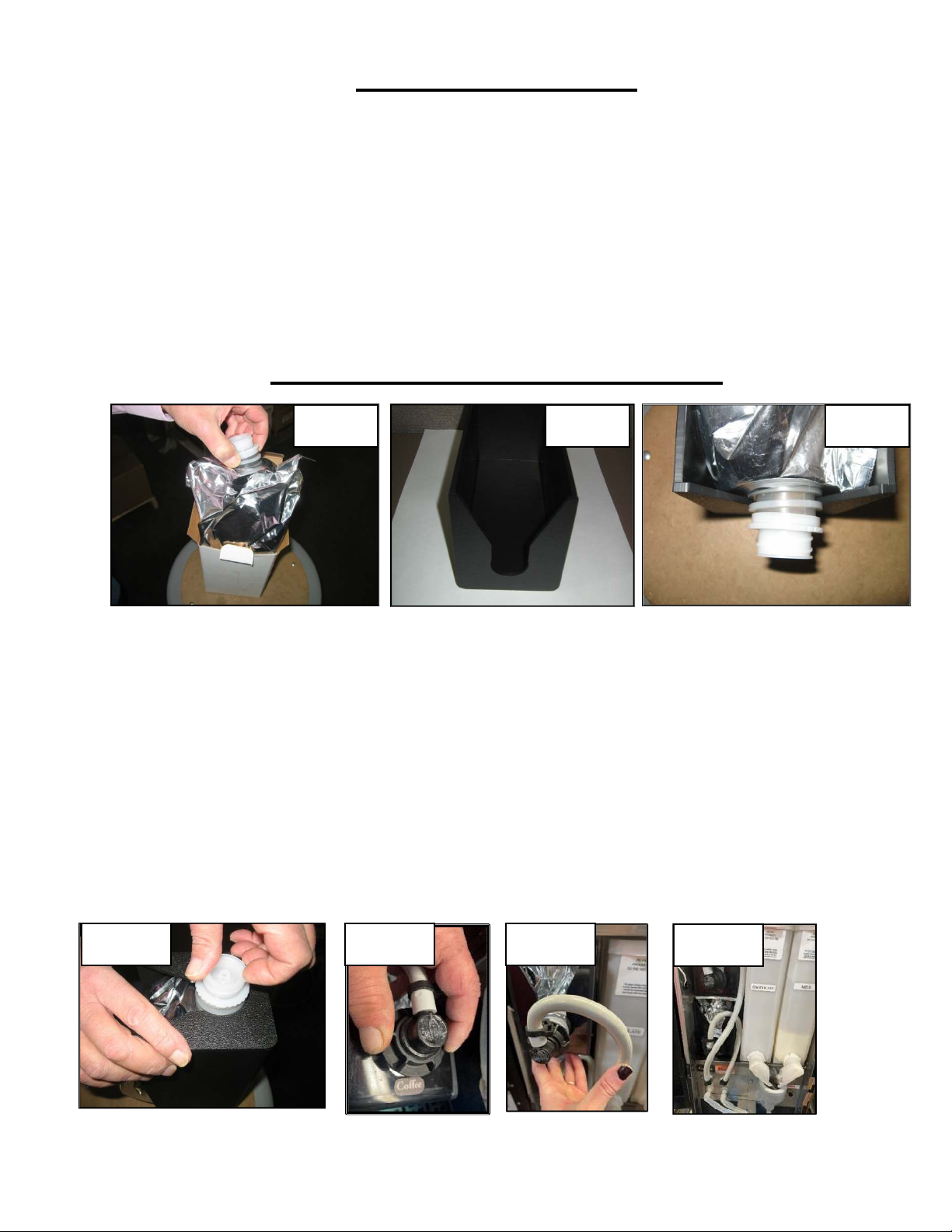

Product Installation Procedure
Open product box and remove the BIB product Fig. 1. Place in
Coffee BIB Tray, Fig. 2, (Newco PN 121929) as shown in Fig. 3
Remove the plastic insert from the BIB fitment as shown in Fig. 4
Using finger and thumb only to prevent over-tightening, thread the
BIB connector on to the BIB fitment until seated as shown in Fig. 5
Place the product in the storage compartment as shown in Fig’s. 6
& 7
Position tubing as shown in Fig. 7
NOTE COFFEE BIB IS LH CONNECTOR AND DECAF BIB IS RH CONNECTOR
SEE PAGE 5
Fig. 1
Fig. 5
Fig. 4
Fig. 2 Fig. 3
Fig. 6 Fig. 7
10
Fill
a
n
d
install
4lb
hoppers
with
nozzles
tu
r
ned
up,
Chocolate
on
left
and
Milk
on
right.
Make sure “button” on bottom of hopper is seated in slot in sheet metal. Slight
manual
rotation of the auger gear may be necessary to seat hopper in correct location.
Rotate dispense nozzles down into whipper bowl.
Ensure
that
there
is
a
proper
water
supply
connected
to
the
machine

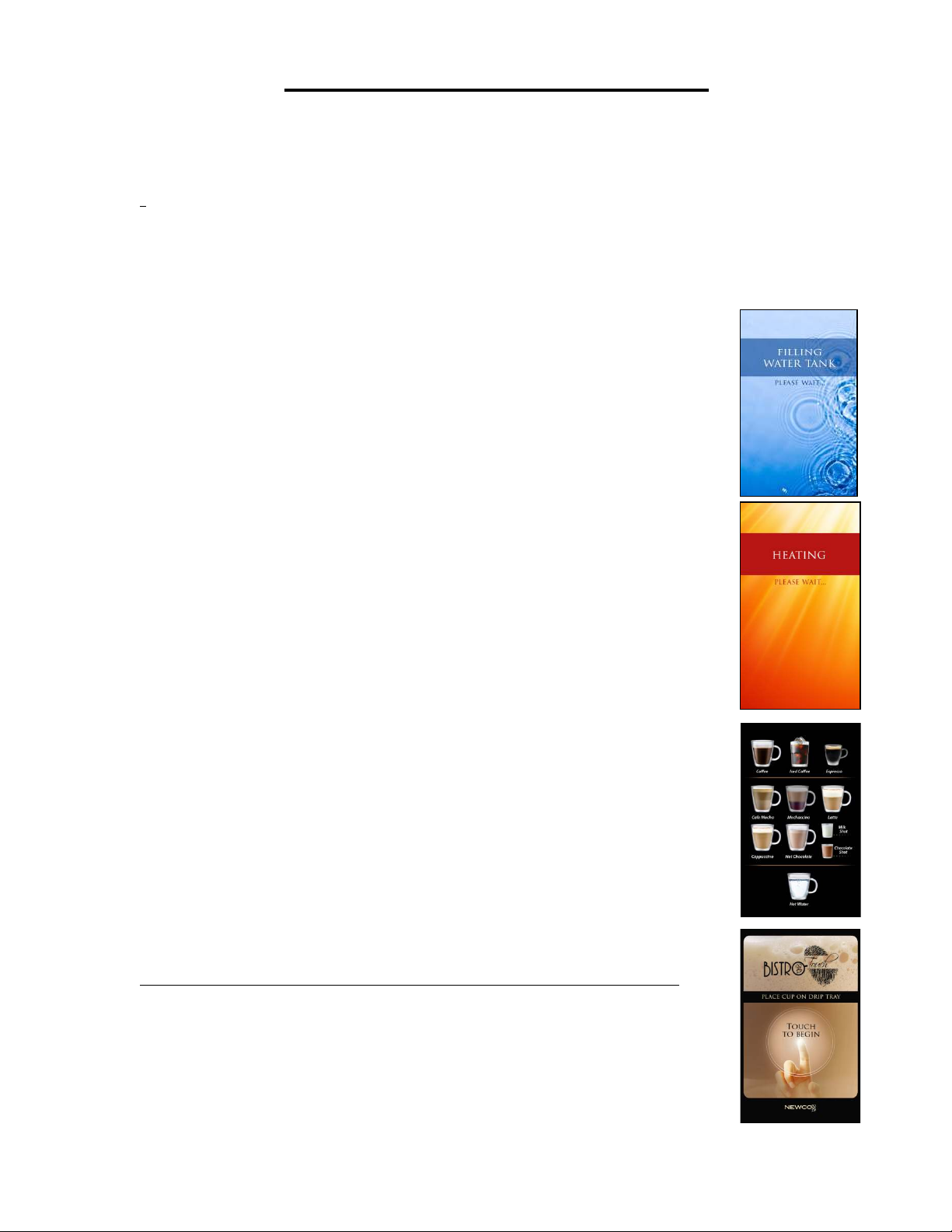

and water is turned on. Ensure that the machine is plugged into a
proper power outlet and there is power supplied to the machine. Turn
machine power switch on, machine should start filling, will shut off
when full. The Touch Screen Display will indicate when the machine is
filling.
Heater
will
turn
on
when
water
in
t
ank
is
at
probe
level
and
will
di
s
play
Heating: Please Wait. The heating process can take 10-15 minutes
before the machine is ready to brew.
When
machine
temperature
reaches
brew
temp,
display
will
change
to the Drink Instruction Screen. The machine is now ready for
operation.
Place
an
empty
cup
in
the
b
r
ewing
a
r
ea,
open
the
powdered
hopper
door, and depress the “Rinse” button next to the whipper bowl until the
water runs clear
Machine Startup Instructions
4
Touching the Start Screen will bring up the Drink Selection Menu
Indice
Altri manuali Newco Sistema di fermentazione
Newco
Newco KB-APF Guida all'installazione
Newco
Newco LCD-TCH Manuale di istruzioni
Newco
Newco KB Series Guida all'installazione
Newco
Newco CX-TOUCH Manuale utente
Newco
Newco CX-3 Manuale utente
Newco
Newco 767377 Guida
Newco
Newco CX-TOUCH Manuale utente
Newco
Newco DB2A Istruzioni per l'installazione
Newco
Newco BISTRO TOUCH LARGE CAPACITY Manuale utente
Newco
Newco KK airpot Manuale utente
Manuali Sistema di fermentazione popolari di altre marche
Curtis
Curtis ThermoPro G4 Series Manuale utente
Animo
Animo ComBi CB5 Manuale utente
MoreBeer
MoreBeer BrewSculpture Manuale utente
Keurig Hot
Keurig Hot Commercial Series Manuale utente
Keg King
Keg King KEGMASTER XL Manuale utente
Blichmann Engineering
Blichmann Engineering BrewEasy Compact TC Istruzioni per l'installazione
