Nexgrill 960-0009 Manuale utente
Owner’s Manual
72 in. Hobby Work Station with Mobile Tool Storage
Model No.960-0009
Customer Service Department:
Nexgrill Industries Inc.
280 Machlin Court
City of Industry, CA 91789 USA
Tel: (909) 598-8799 Fax: (909) 598-7699
Office Hours: 8 a.m. – 5 p.m. P.S.T.
http://www.nexgrill.net

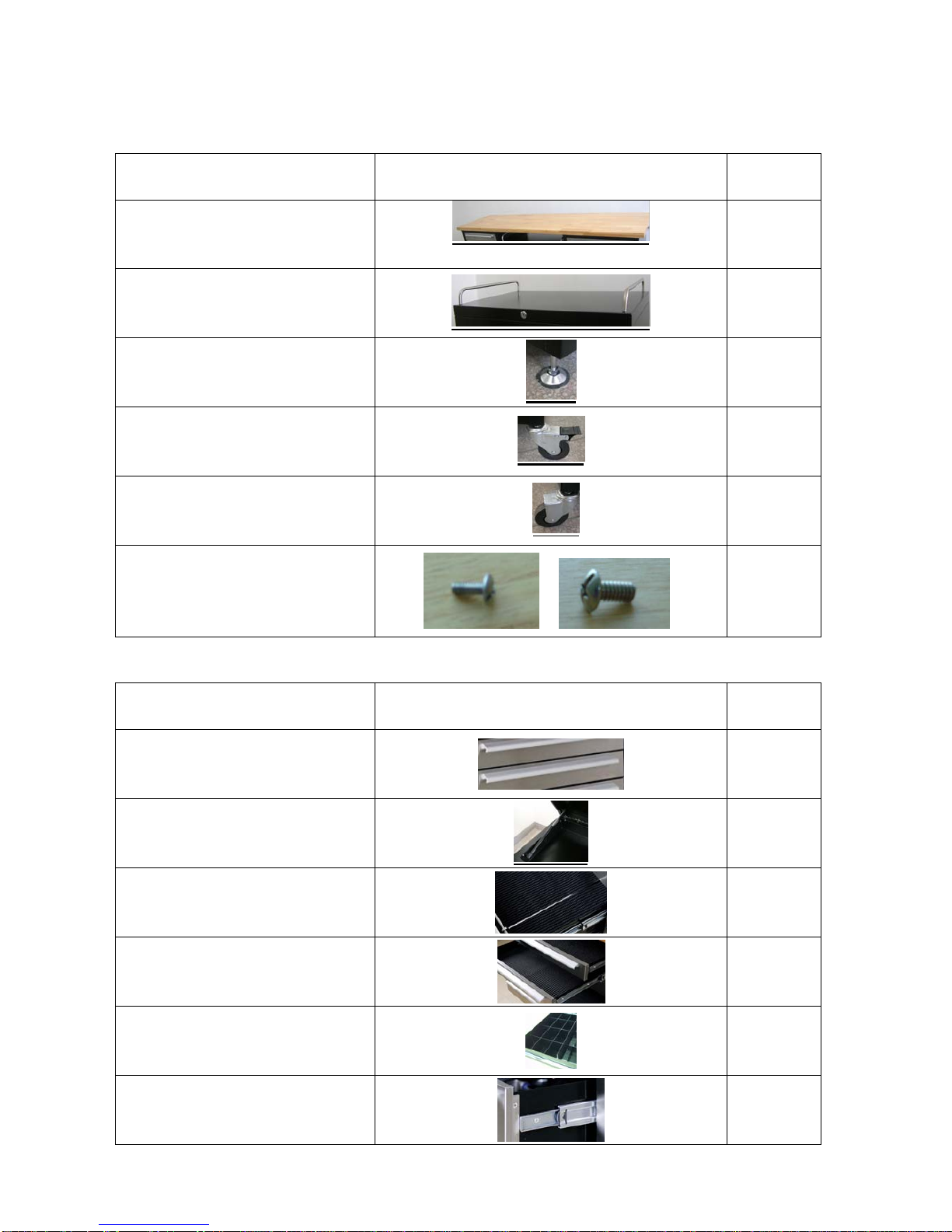

Parts List
Parts Name Quantity
1. Solid Birch Wood Top
Bar code: HW0501BG00NW500 1
2. Handle, Mobile Tool Storage
Bar Code: HD0902AZ00NR490
2
3. Adjustable Leveling Feet
Bar Code:SC1105CE14NC115
8
4. Caster with Brake
Bar Code: HW0805ZZ00ND075
2
5. Caster without Brake
Bar Code: HW0805ZZ00ND075
2
6. Hardware (5/32” & 3/16”)
Bar Code A: SC1505AA14NC000
Bar Code B: SC1505AA14NC000
12
Features
Name Quantity
a. Aluminum Handle, Drawer
Bar Code: HD0105AZ00NR400
12
b. Hydraulic Lift
Bar Code: HW3101AZ00NL000
2
c. Adjustable Filing Rod
Bar Code: HW1401AA00NR360
2
d. Liner, Drawer
Bar Code: HW3701ZZ00NL444
14
e. Removable Divider(two modes)
Bar Code A:HW3601CD11NL438
Bar Code B: HW3602CD11NL405
3 Drawer
Sets
f. Ball Bearing Glides
Bar Code: HW0407ZZ00NL015
30
1
Assembly Instruction

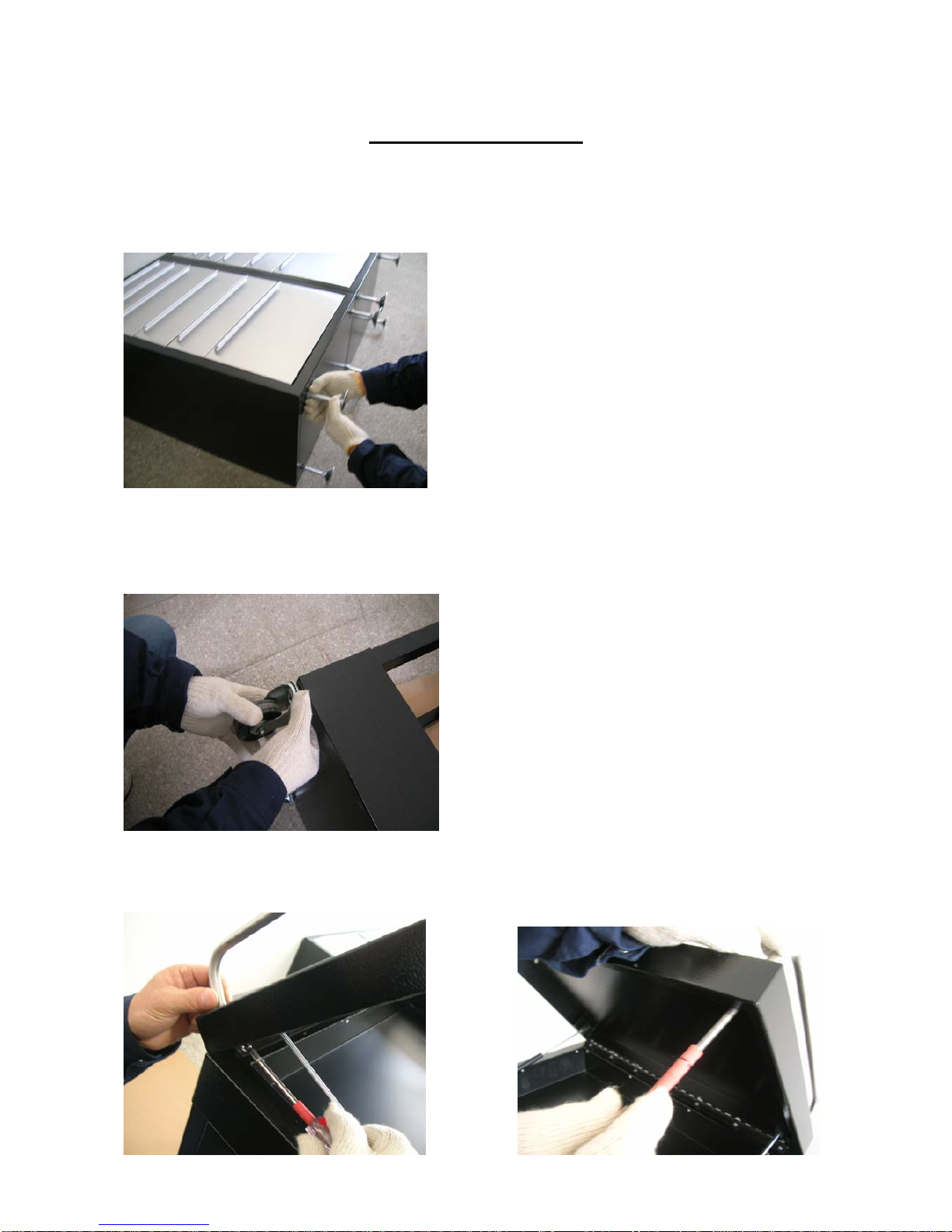

1. Adjustable Leveling Feet Installation:
a. Lay the file cabinets on their back and screw in the adjustable leveling feet.
2．Mobile Tool Storage Assembly Instructions:
a. Screw in four wheels to the cart (2 caters with brake on the left side).
b. The handles have the necessary screws already inserted in the handles.
Unscrew these screws, line up the handle with the holes on the side of top lid,
insert the screws from the inside of the lid, and firmly tighten the screws.
2

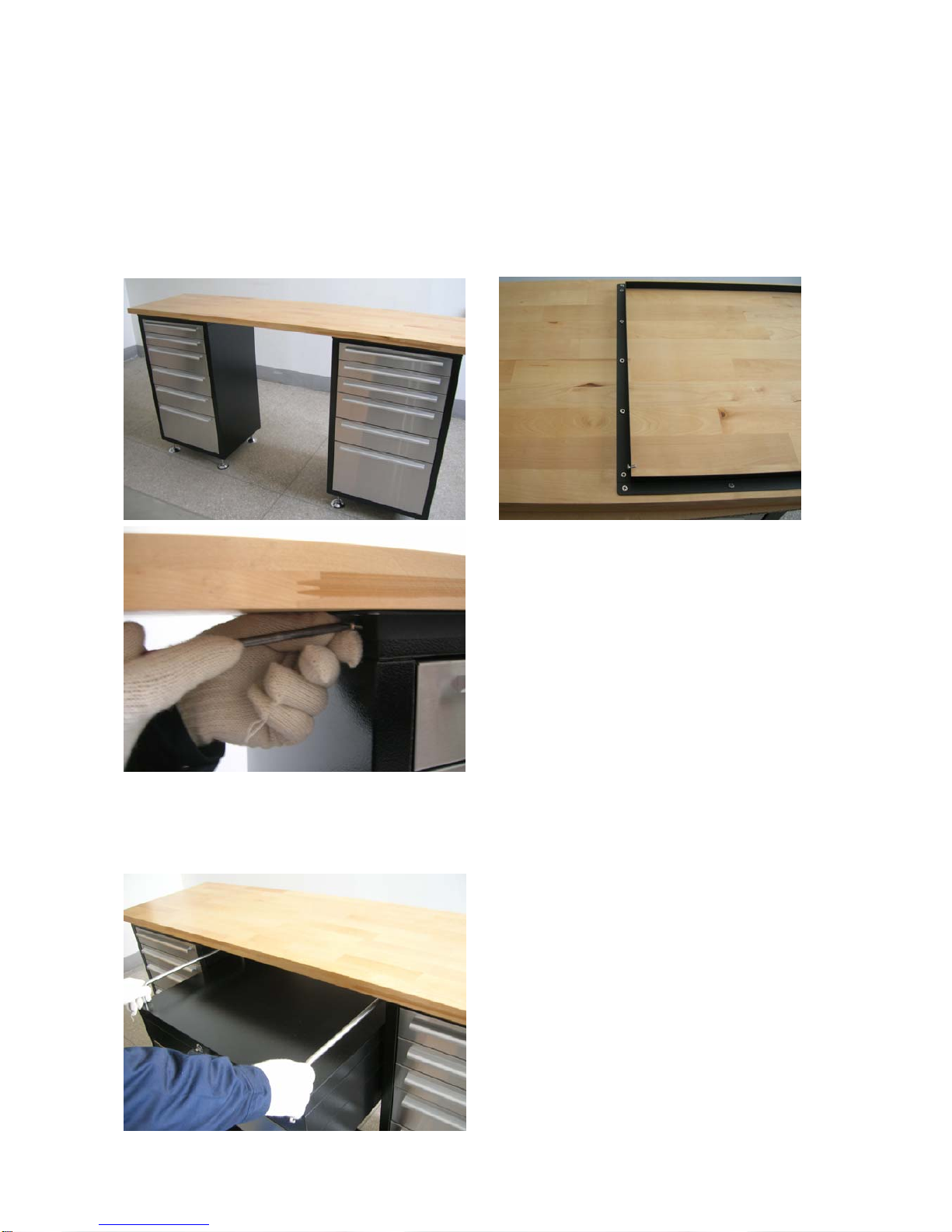

3．Wood Top Installation:
a. There are eight (8) anchor screws are already inserted near the tops of the
cabinets with two (2) on each side. Unscrew these eight (8) screws.
b. Place the wood top on the two file cabinets. Two stainless steel frames on the
bottom of wood top will fit around the tops of cabinets.
c. Line up the holes on the stainless steel frame and the side of file cabinet, insert
the screws and firmly tighten them.
4. Roll the mobile tool storage in place to complete the installation.
3

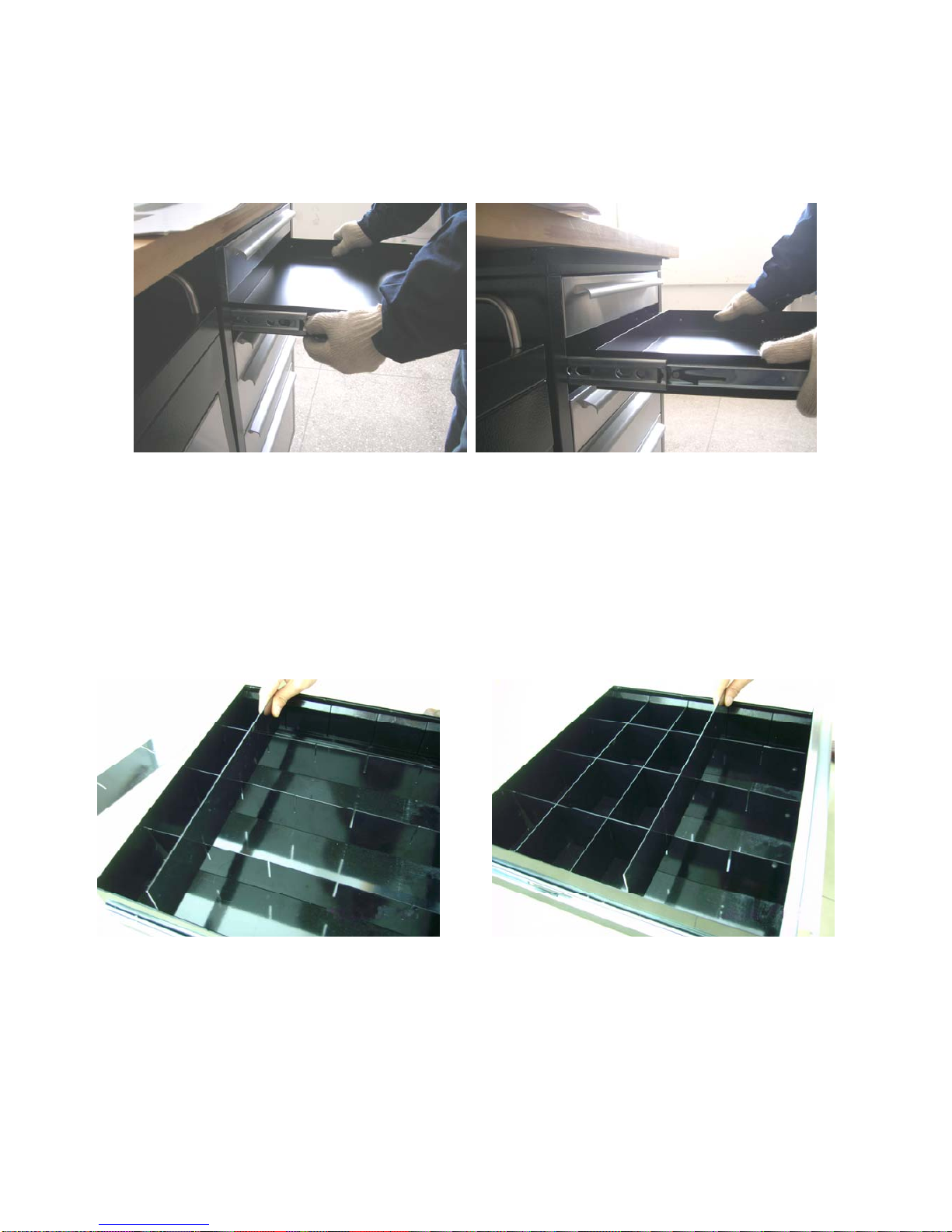

-How to remove the drawer?
Slide the drawer fully out. Note the black plastic levers on both sides of the drawer.
Depress the levers and slide the drawer out.
-Drawer Dividers are designed so they may be used in any of the five (5)
mid-sized drawers in the two cabinets. There are enough dividers to fully divide
three drawers or partially divide more of them.
