Next Level Racing FLIGHT SIMULATOR LITE Manuale utente

Video Instruction: bit.ly/nlrbuild

INSTRUCTION MANUAL

TAKE IT TO THE SKIES

*ELECTRONICS NOT INCLUDED

2 3

support@nextlevelracing.com Video Instruction: bit.ly/nlrbuild

YOUR

FLIGHT SIM

JOURNEY

STARTS

HERE

We know you’re eager to start ﬂying! Take your time with the

instructions and follow this guide to assemble your product.

You’ll be setting yourself up for success with following the

instruction booklet to fully optimize your product.

TAKE RACING

TO THE NEXT LEVEL®

NEXTLEVELRACING.COM

@nextlevelracingOcial

@next_level_racing

@nextlvlracing

Next Level Racing

support@nextlevelracing.com

ASSEMBLY

VIDEO

bit.ly/nlrbuild

4 5

support@nextlevelracing.com Video Instruction: bit.ly/nlrbuild

WARNING

• Please do not use power tools for assembly as over tightening can damage your frame.

• Do not adjust the hubs while user is sitting in cockpit. Make sure user is out of the cockpit before adjusting.

• Make sure the hubs are tightened fully before using the cockpit. (spin the hub clockwise to ensure it is fully tight)

• Make sure strap on wheel bar is tight when adjusting the hubs otherwise the wheel will fall when hubs are open.

If you require any support with

your product please contact our friendly team at:

support@nextlevelracing.com

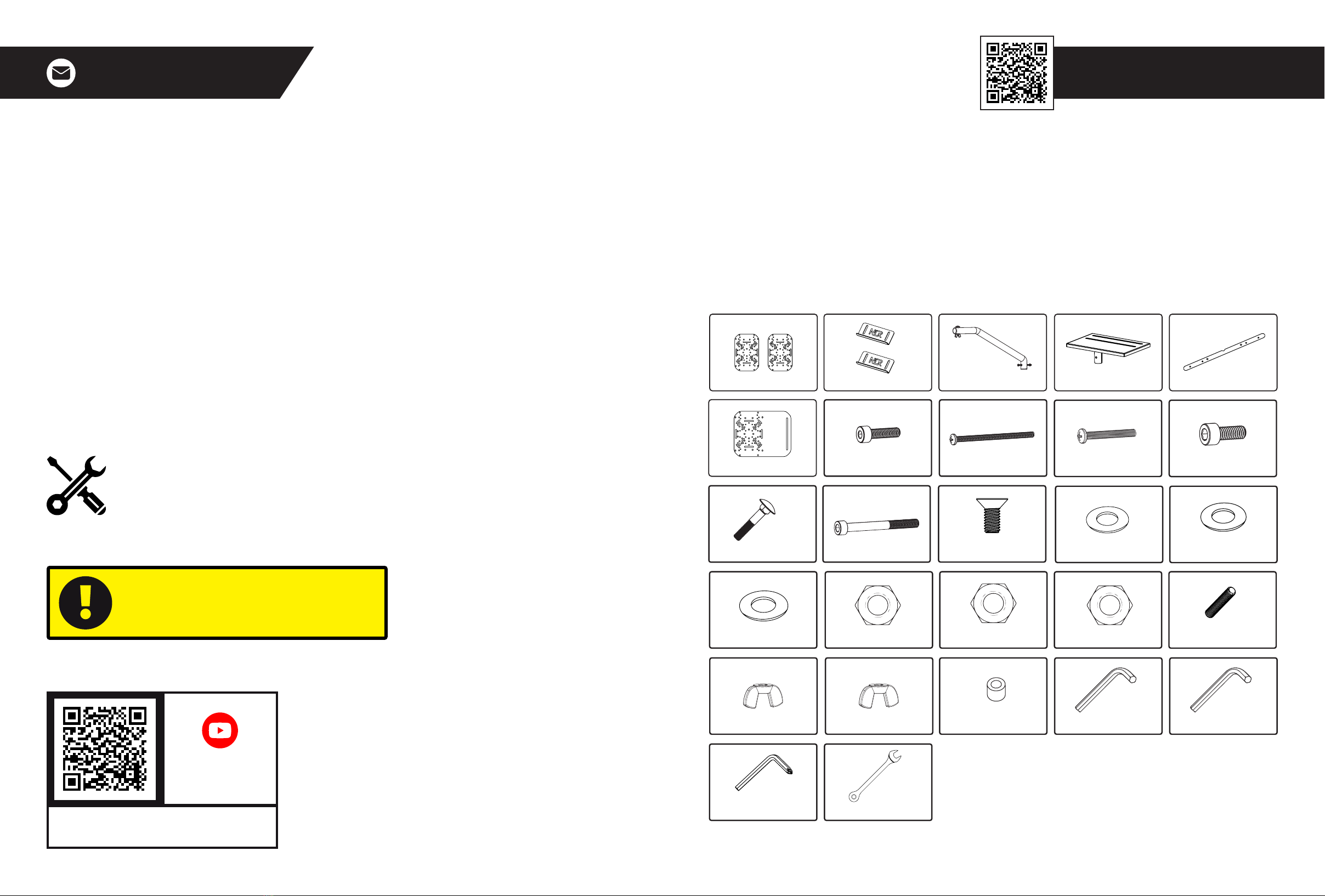

PRE-FLIGHT

CHECKS IN THE

BOX

WARNING

CHOKING HAZARD - Small parts not for children under 3 years

or any individuals who have a tendency to place inedible objects

in their mouths.

ASSEMBLY

VIDEO

bit.ly/nlrbuild

14 X M6 WASHERS

4 X M5 WASHER

14 X M4 WASHERS

2 X ADJUSTER PLATE 1 X TPR ADAPTER

1 X LARGE MOUSE PLATE

2 X FLIGHT PLATES 2 X KEYBOARD BRACKET 1 X SUPPORT ARM

14 X M4 15MM

1 x M4 ALLEN KEY 1 x M3 ALLEN KEY

1 x M6 ALLEN KEY

PHILLIPS HEAD

12 X 10MM NYLON

SPACERS

1 X M6 SQUARE NECK BOLT

1 X M5 WINGNUT 1 X M6 WINGNUT

1 X M5 60MM

2 X M6 COUNTERSUNK

16 X M6 30MM FULLY

THREADED STUD

4 X M5 NUTS

14 X M6 15MM

4 X M5 30MM

1 X WRENCH

12 X M6 X 60MM

10 X M4 NUTS 28 X M6 FLANGE NUTS

6 7

support@nextlevelracing.com Video Instruction: bit.ly/nlrbuild

0.0

Pull to open

and adjust seat

Keep ﬁngers away from internal hub

while closing to avoid pinching.

Close hub

to lock

DO NOT adjust hubs when

user is in the cockpit

Rotate clockwise to

tighten & anti-clockwise

to loosen

Make sure the hubs are tightened fully

before using the cockpit. (spin the hub

clockwise to ensure it is fully tight)

Do not adjust the hubs while user is

sitting in cockpit, Make sure user is out

of the cockpit before adjusting.

Please ensure you install strap

when using cockpit

PRODUCT WARNINGS

8 9

support@nextlevelracing.com Video Instruction: bit.ly/nlrbuild

5.0 Remove the pre-installed bolts from the pedal clamps. Align the clamps with the chair and

pedal frame.

1.0 Install the head rest to the back rest as shown and secure with a nut, bolt and washer from

plastic bag. 1.1 Fasten the latch in place to secure the backrest. 4.0 Open the red latch on the steering clamp, rotate the pole into the clamp then close the clamp.

2.0 Install the back leg into the chair frame as shown and adjust to your desired height. Install a

nut, bolt and washer from plastic bag to lock it in place.

3.0

Remove the pre-installed bolt and nut from the plastic hub, then install the steering bar into the plastic

hub securing with the bolt and nut previously removed in this step.

6.0 Re-install bolts from step 5.0.

Repeat on

other side

PARTS

2 X M5 30MM BOLT

2 X M5 NUT

2 X M5 WASHER

PARTS

NIL

PARTS

2 X M5 30MM BOLT

2 X M5 NUT

2 X M5 WASHER

PARTS

NIL

PARTS

NIL

PARTS

NIL

1.0

1.1

Note: Open chair frame

to the same width as the

back leg

10 11

support@nextlevelracing.com Video Instruction: bit.ly/nlrbuild

10.0 Install M6 studs to the ﬂight plate then using the nylon spacers between the ﬂight plate and

wheel plate secure with washers and nuts.

10.1 (optional) Bolt keyboard bracket on top of the wheel plate then bolt the other keyboard

bracket underneath the wheel plate.

7.0 Remove the pre-installed nut and bolt from the hub then install the adjuster plate. Re-install

the nut and bolt previously removed.

8.0 Install large mouse/throttle plate using the nylon spacers between the mouse/throttle plate

and adjuster plate securing with washers and nuts.

9.0 Attach the optional support bar under the mouse plate using M5 60mm bolt and wing nut.

THROTTLE PLATE

MOUSE PLATE

10.1

10.0

PARTS

NIL

PARTS

8 X M6 30MM FULLY THREADED STUD

8 X 10MM NYLON SPACER

8 X M6 FLANGE NUT

PARTS

1 X M5 60MM BOLT

1 X M5 WING NUT

YOKE

SETUP

KEYBOARD

SETUP

PARTS

10.0 YOKE SETUP

3 X M6 30MM FULLY THREADED STUD

3 X 10MM NYLON SPACER

3 X M6 FLANGE NUT

PARTS

10.1 KEYBOARD SETUP

2 X M6 CONTERSUNK BOLT

2 X M6 15MM BOLT

4 X M6 FLANGE NUT

12 13

support@nextlevelracing.com Video Instruction: bit.ly/nlrbuild

TIPS: For pedal angle adjustment. Push pins to release end bar. Remove, rotate and re-install.

TIPS: Unlock and loosen hubs then fold chair over the pedals.

TIPS: Loosen steering strap, undo locking hook then fold forward.

LOOSEN HUB ON

BOTH SIDES

HOW TO FOLD

SCAN

If you have installed the strengthening tube

please remove before folding

PARTS

NIL

PARTS

NIL

PARTS

NIL

11.0 Cockpit adjustability shown above.

ANGLE

DISTANCE

HEIGHT

DISTANCE

ANGLE

PARTS

NIL

YOUR COCKPIT IS NOW COMPLETE!

14 15

support@nextlevelracing.com Video Instruction: bit.ly/nlrbuild

01 Install 2 studs to the top outside holes (a) then install 2 studs to the bottom as shown (b).

02 Using the studs on the bottom of the TPR adapter place through the slotted hole on the

rudder plate securing the adapter with nuts.

THUSTMASTER® TPR

RUDDERS INSTALLATION

PARTS

4 X M6 30MM FULLY THREADED STUD

PARTS

2 X M6 WASHER

2 X M6 FLANGE NUT

03 Line up your TPR rudders with the TPR adapter studs.

04 Secure with included nuts.

PARTS

NIL

PARTS

2 X M6 WASHER

2 X M6 FLANGE NUT

16 17

support@nextlevelracing.com Video Instruction: bit.ly/nlrbuild

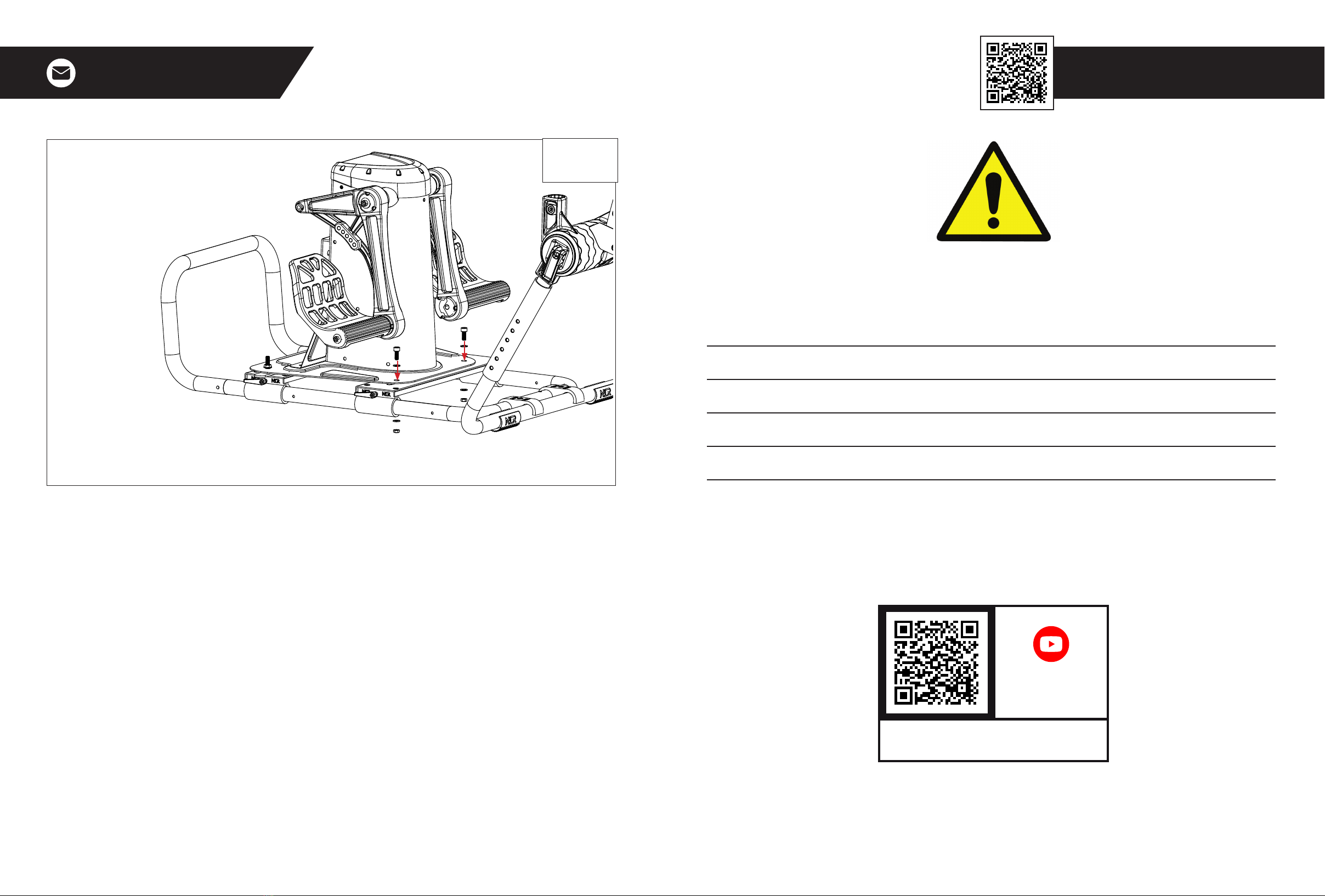

05 Align rudder plate with the holes on the TPR rudders then secure.

PARTS

2 X M6 15MM BOLT

4 X M6 WASHER

2 X M6 FLANGE NUT

WARNING

Do not use power tools for assembly as over tightening can damage your frame.

Do not adjust the hubs while user is sitting in cockpit. Make sure user is out of the cockpit before adjusting

Make sure the hubs are tightened fully before using the cockpit (spin the hub clockwise to ensure it is fully tight)

Make sure strap on wheel bar is tight when adjusting the hubs otherwise the wheel will fall when hubs are open.

ASSISTANCE

ASSEMBLY

VIDEO

bit.ly/nlrbuild

If you require further support with your product please

contact our friendly team at: support@nextlevelracing.com

18 19

support@nextlevelracing.com Video Instruction: bit.ly/nlrbuild

NOTES NOTES
