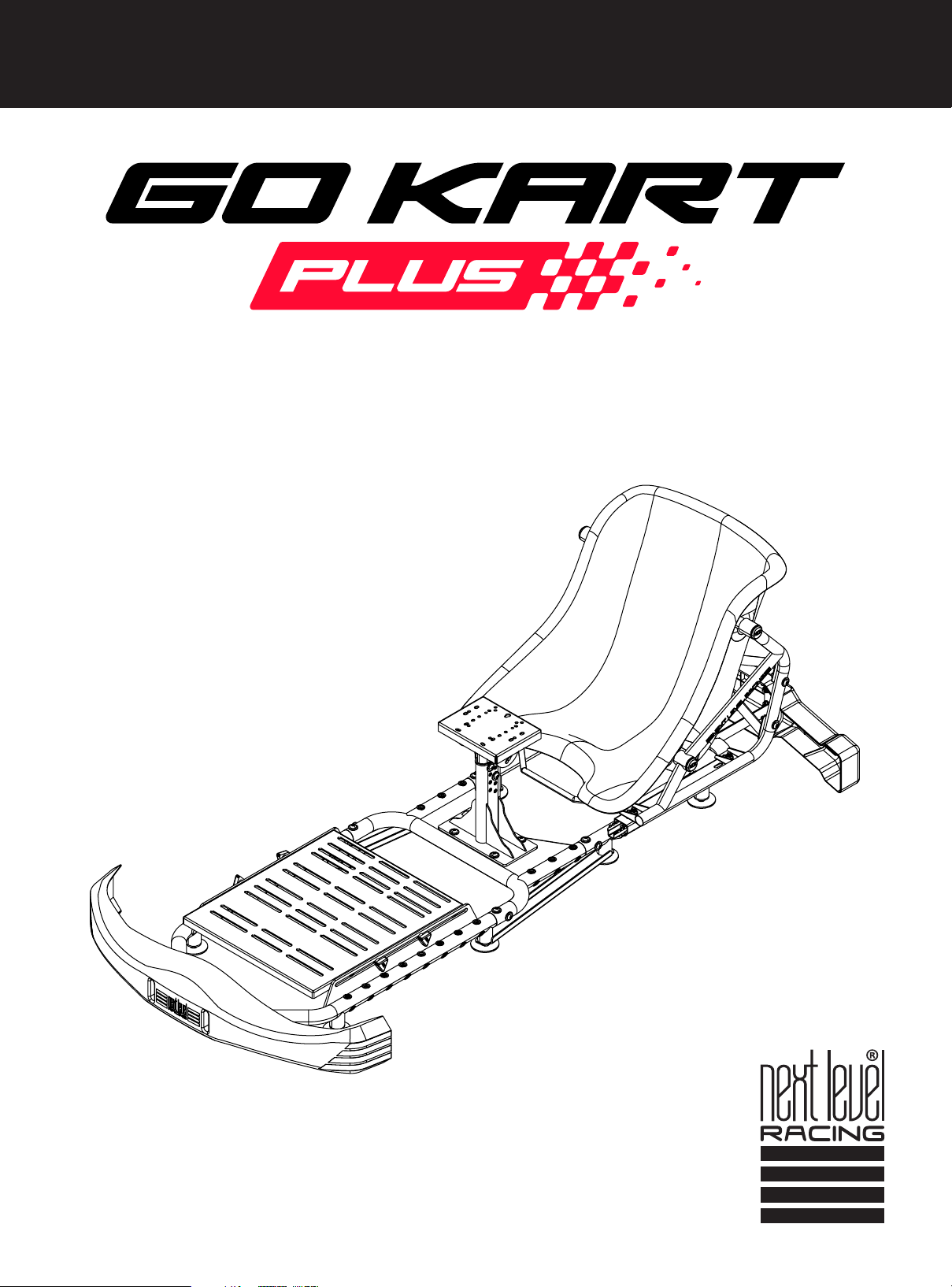

Next Level Racing GO KART PLUS Manuale utente

Video Instruction: bit.ly/nlrbuild

TAKE RACING TO THE NEXT LEVEL

INSTRUCTION MANUAL

support@nextlevelracing.com

YOUR

SIM RACING

JOURNEY

STARTS

HERE

We know you’re eager to start racing! Take your time with the

instructions and follow this guide to assemble your product.

You’ll be setting yourself up for success by following the

instruction booklet to fully optimize your product.

@nextlevelracingOcial

@next_level_racing

@nextlvlracing

Next Level Racing

support@nextlevelracing.com

ASSEMBLY

VIDEO

bit.ly/nlrbuild

Video Instruction: bit.ly/nlrbuild

TAKE RACING

TO THE NEXT LEVEL

NEXTLEVELRACING.COM

support@nextlevelracing.com

WARNING & ASSEMBLY TIPS

• Please do not use power tools for assembly as over tightening can damage your frame.

• Do not force parts together.

• Avoid cross threading threaded items.

• If in doubt consult the installation video (see QR code below or contact us at support@nextlevelracing.com)

• Hand wash Seat Cover separately in cold water only.

PRE-RACE

CHECKS

WARNING

CHOKING HAZARD - Small parts not for children under 3 years

or any individuals who have a tendency to place inedible objects

in their mouths.

If you require any support with

your product please contact our friendly team at:

support@nextlevelracing.com

ASSEMBLY

VIDEO

bit.ly/nlrbuild

Video Instruction: bit.ly/nlrbuild

NOTE: Some Items Come with Rust Resistant Coating

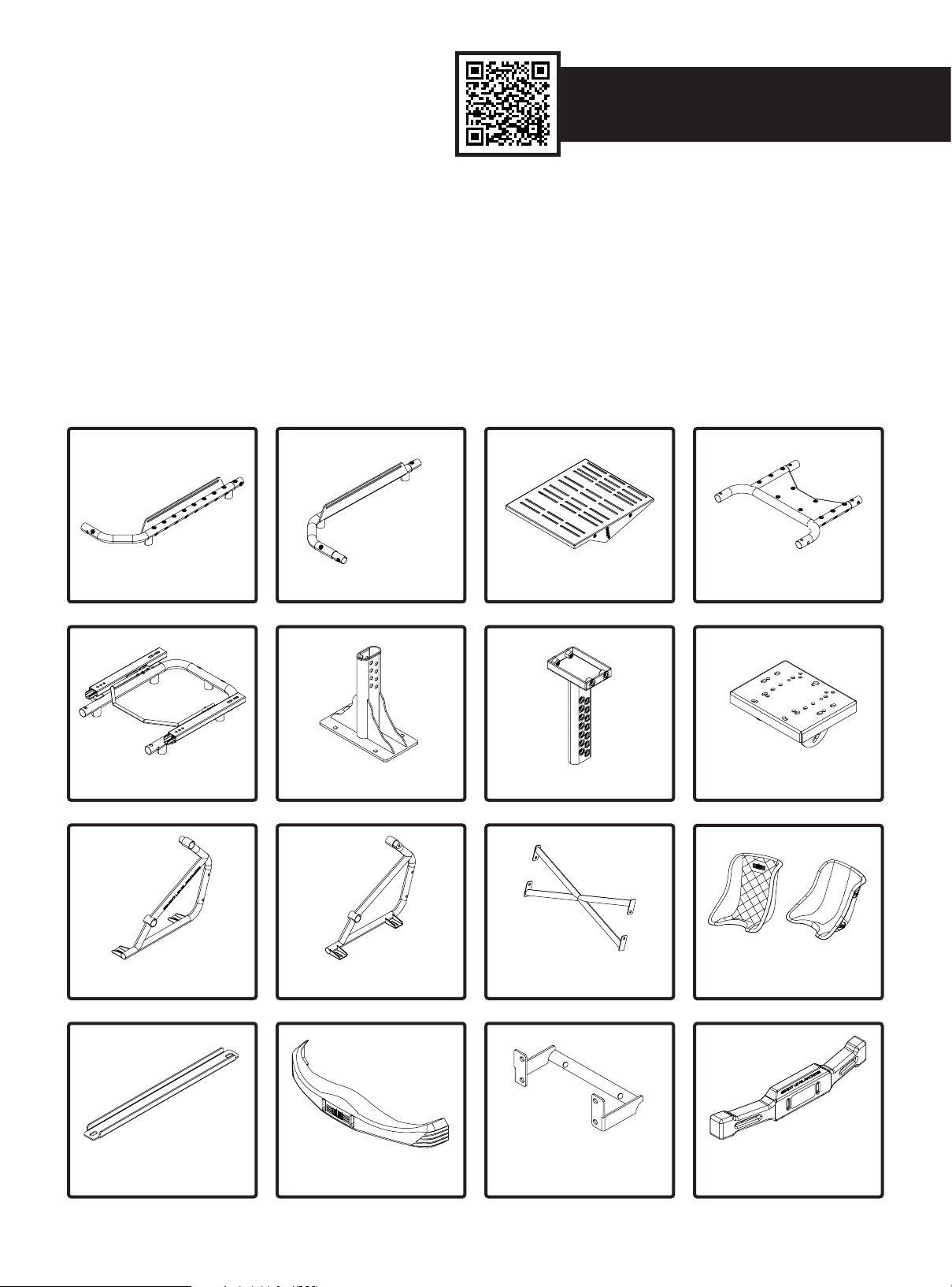

IN THE

BOX

1 x LEFT PEDAL FRAME

1 x RIGHT SEAT FRAME

1 x CENTRE POLE BASE1 x REAR FRAME

1 x RIGHT PEDAL FRAME

1 x SEAT CROSS BRACE

1 x CENTRE POLE 1 x WHEEL PLATE

1 x PEDAL PLATE

1 x GO KART SEAT

1 X SEAT COVER

2 x FRAME BRACE

1 x CENTRE FRAME

1 x LEFT SEAT FRAME

1 x FRONT BUMPER

*NOT TO SCALE

1 x FRONT BUMPER MOUNT 1 x REAR BUMPER

support@nextlevelracing.com

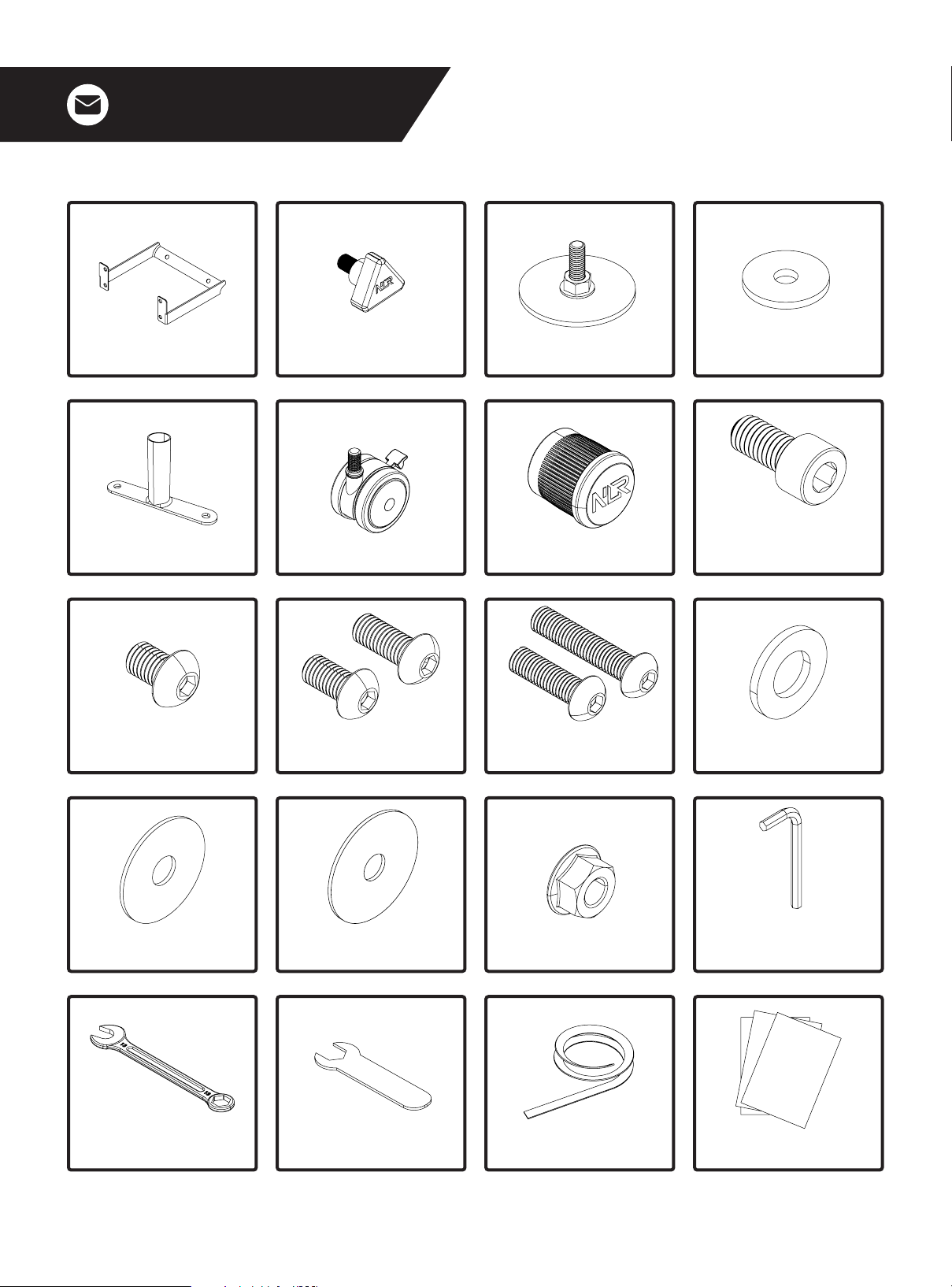

1 x BUTTKICKER MOUNT

30 x M8 16mm BOLTS

10 x M8 20mm BOLTS

8 x VELCRO TIES 3 x STICKER SHEETS

8 x CASTOR WHEEL

9 x FLAT FEET

2 x M8 30mm BOLTS

4 x M8 40mm BOLTS

1 x M10 ALLEN KEY

1 x M8 ALLEN KEY

1 x M6 ALLEN KEY

1 x REAR BUMPER MOUNT

2 x M8 12mm BOLTS 44 x M8 Ø20mm WASHERS

3 x M8 Ø30mm WASHERS 3 x M8 Ø35mm WASHERS

1 x 13mm SPANNER

4 x M8 KNOBS

8 x M8 20mm SOCKET HEAD BOLTS

1 x M10 20mm SOCKET HEAD BOLTS

4 x END CAPS

5 x FOOT SPACER

17 x M8 FLANGE NUT

1 x 14mm WRENCH

NOTE: Some Items Come with Rust Resistant Coating.

Video Instruction: bit.ly/nlrbuild

MOUNTING LOCATIONS

WHEEL PLATE

PRODUCT LEGEND:

*NOT TO SCALE*

MOZA R5 / R9 / R16 / R21 Simucube (with bottom mounting bracket)

Fanatec DD1 / DD2 / CSL DD / DD Pro Simagic Alpha

Logitech G Pro / G25 / G27 / G29 / G902 / G923 Nintendo Mario Kart

Thrustmaster T-818 / T500 RS / TGT / TSPC / TX SimXperience Accuforce Pro

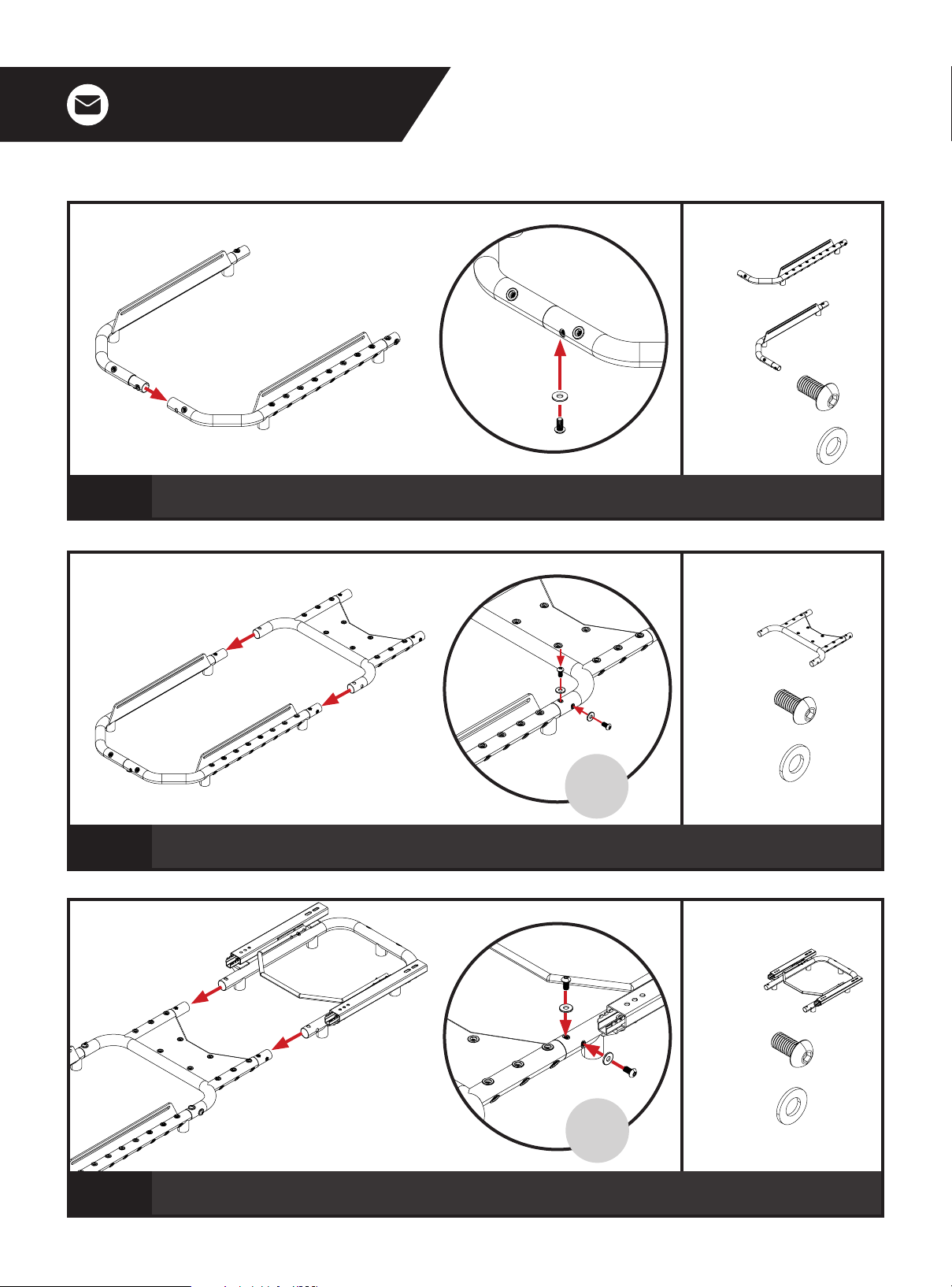

PARTS:

•• 1 x Left Pedal Frame

•• 1 x Right Pedal Frame

•• 1 x M8 16mm Bolt

•• 1 x M8 Ø20mm Washer

PARTS:

•• 1 x Centre Frame

•• 4 x M8 16mm Bolts

•• 4 x M8 Ø20mm Washers

PARTS:

•• 1 x Rear Frame

•• 4 x M8 16mm Bolts

•• 4 x M8 Ø20mm Washers

support@nextlevelracing.com

A) Align the nut inserts on the Centre Frame with the mounting holes on the Rear Frame.

B) Bolt through and secure with 4 x M8 Bolts and Washers.

02 A) Align the nut inserts on the Right and Left Pedal Frames with the mounting holes on the Centre

Frame. B) Bolt through and secure with 4 x M8 Bolts and Washers.

A) Align the nut inserts on the Right Pedal Frame with the mounting holes on the Left Pedal Frame.

B) Bolt through to the nut insert on the underside of frame and secure with 1 x M8 Bolt and Washer.

A) B)

Repeat

on Other

Side

Repeat

on Other

Side

PARTS:

•• 1 x Pedal Plate

•• 4 x M8 Knobs

PARTS:

•• 1 x Centre Pole Base

•• 4 x M8 16mm Bolts

•• 4 x M8 Ø20mm vWashers

PARTS:

•• 9 x Flat Feet or 8 x Castor Wheels

•• 2 x Frame Braces

•• 5 x Foot Spacers

Video Instruction: bit.ly/nlrbuild

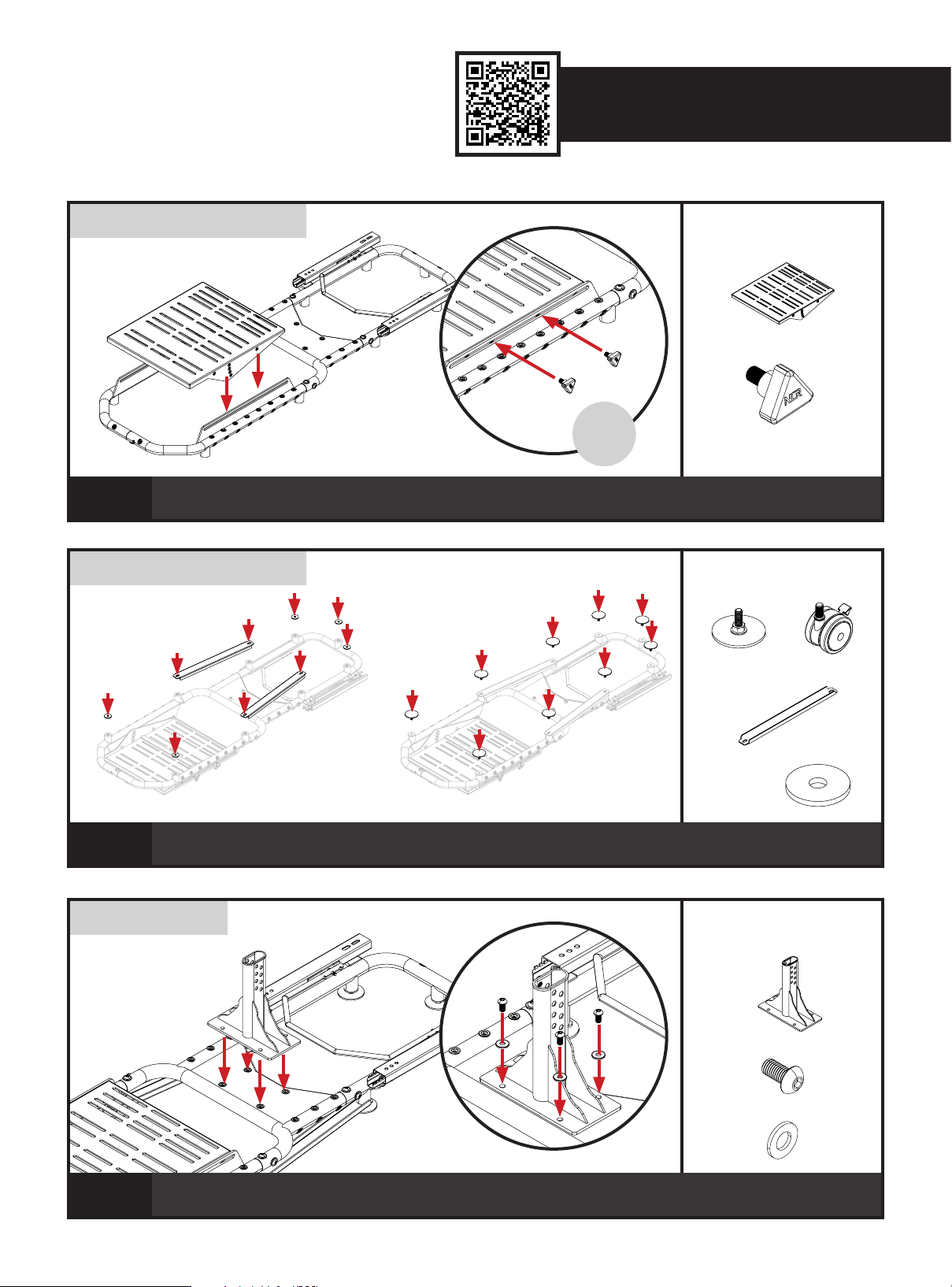

05 Flip the assembly upside down. A) Align 5 x Foot Spacers and 2 x Frame Braces with the footing mounts on the

bottom of the cockpit. B) Install 9 x Flat Feet or 8 x Castor Wheels into the mounting points.

A) Align the mounting holes on the Centre Pole Base with the nut inserts on the Centre Frame.

B) Bolt through and secure with 4 x M8 Bolts and Washers.

A) Align the nut inserts on the Pedal Plate with the slots on the Right and Left Pedal Frames.

B) Bolt through and secure with 4 x NLR Knobs.

NOTE: Flip the assembly upside down for easy installation.

If using Castor Wheels, leave middle rear mount empty.

NOTE: If using Load Cell Pedals, replace M8 Knobs with

M8 20mm Bolts and Washers supplied.

NOTE: Flip the assembly back

upright.

Repeat

on Other

Side

PARTS:

•• 1 x Centre Pole

•• 4 x M8 16mm Bolts

•• 4 x M8 Ø20mm Washers

•• Tip: If using high force feedback

wheelbase it is recommended to

use additional spare M8 16mm bolts

on Centre Pole (2x extra on each

side).

PARTS:

•• 1 x Wheel Plate

•• 4 x M8 16mm Bolts

•• 4 x M8 Ø20mm Washers

PARTS:

•• 1 x Go - Kart Seat

•• 1 x Left Seat Frame

•• 1 x Right Seat Frame

•• 2 x M8 30mm Bolts

•• 2 x M8 12mm Bolts

•• 4 x M8 Ø20mm Washers

•• 2 x M8 Ø30mm Washers

•• 2 x M8 Ø35mm Washers

support@nextlevelracing.com

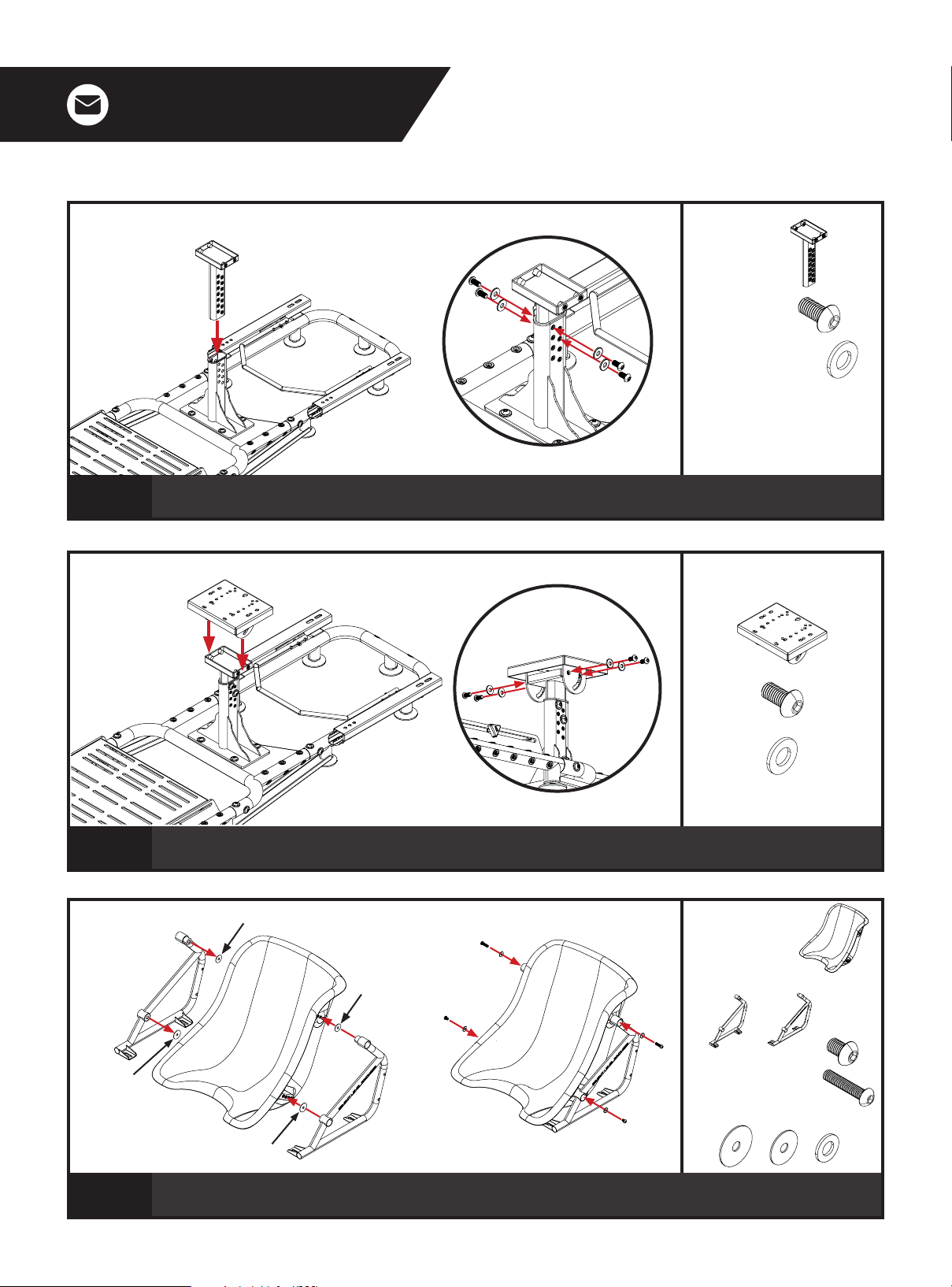

A) Align the nut inserts on the Centre Pole with the holes on the Centre Pole Base.

B) Bolt through and secure with 4 x M8 Bolts and Washers.

08 A) Align the mounting holes on the Wheel Plate with the nut inserts on the Centre Pole.

B) Bolt through and secure with 4 x M8 Bolts and Washers.

09 A) Align the mounting holes on the Left and Right Seat Frames with the nut inserts on the Go Kart Seat. Align 2 x Ø30mm and 2 x Ø35mm washers

in between Seat Frames and Seat. B) Bolt through and secure with 4 x M8 Bolts and Ø20mm Washers. (2 x 30mm Bolts for the upper mounts and 2

x 12mm Bolts for the lower mounts).

A) B)

M8 Ø30mm Washers

M8 Ø35mm Washers
