Nibe F110 Manuale utente
4XLFN JXLGH
1DYLJDWLRQ 2N EXWWRQ FRQILUPVHOHFW
%DFN EXWWRQ EDFNXQGRH[LW
8SGRZQ EXWWRQV
PRYHLQFUHDVHUHGXFH
A detailed explanation of the button functions can be found on page
10.
How to scroll through menus and make different settings is described
on page 14.
,QFUHDVH KRW ZDWHU YROXPH
WUXH
RII
;
;
To temporarily increase the amount of hot water, first press the down
button to mark menu 2 (water droplet) and then press the OK button
twice. Read more about the settings on page 21.
In event of disturbances in comfort
If a disturbance in comfort of any type occurs there are some measures
that can be taken before you need to contact your installer. See page
34 for instructions.
Table of Contents
21 Important information
2Installation data
3Safety information
4Serial number
5Contact information
7F110 – An excellent choice
82 The heating installation – the heart of the house
9Heat pump function
10Contact with F110
17Maintenance of F110
203 F110 – at your service
20Set the ventilation
21Set the hot water capacity
25Get information
28Adjust the heat pump
324 Disturbances in comfort
32Info-menu
32Manage alarm
34Troubleshooting
365 Technical data
376 Glossary
39Index
1NIBE™ F110Table of Contents |
1 Important information
Installation data
F110Product
Serial number
Installation date
Installer
Accessories
✔
SetDe-
fault
set-
tings
NameNo.
70%Fan (fan speed, normal
mode) Exhaust air fan in-
stallation
5.1.5
Serial number must always be given
Certification that the installation is carried out according to instructions
in NIBE's installer manual and applicable regulations.
_________________________Signed__________________Date
NIBE™ F110Chapter 1 | Important information2
Safety information
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
Rights to make any design or technical modifications
are reserved.
©NIBE 2014.
NOTE
If the supply cable is damaged, only NIBE, its service
representative or similar authorised person may re-
place it to prevent any danger and damage.
Symbols
NOTE
This symbol indicates danger to machine or person.
Caution
This symbol indicates important information about what you should
observe when maintaining your installation.
TIP
This symbol indicates tips on how to facilitate using the product.
3NIBE™ F110Chapter 1 | Important information
Marking
F110 is CE marked and fulfils IP21.
The CE marking means that NIBE ensures that the product meets all regu-
lations that are placed on it based on relevant EU directives. The CE mark
is obligatory for most products sold in the EU, regardless where they are
made.
IP21 means that the product can be touched by hand, that objects with a
diameter larger than or equivalent to 12.5 mm cannot penetrate and cause
damage and that the product is protected against vertically falling drops.
Serial number

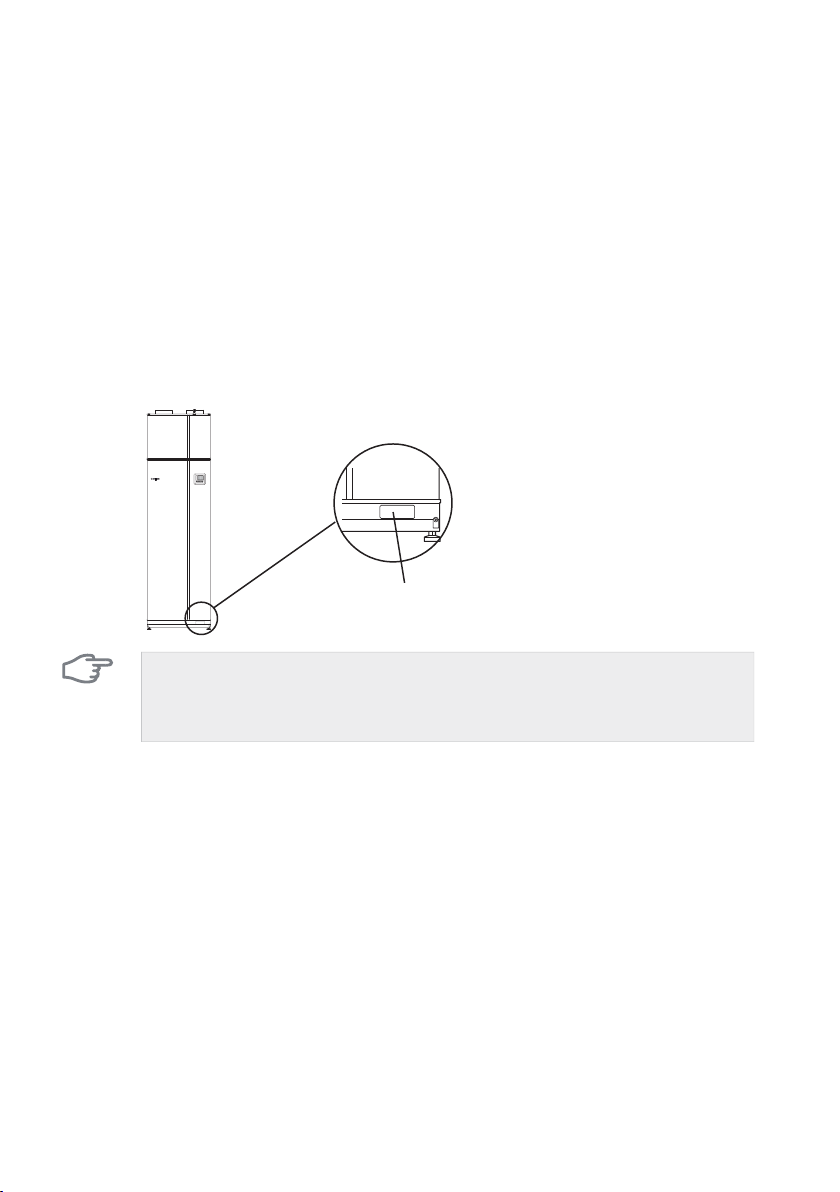

The serial number can be found at the bottom right of the front cover.
6HULDO QXPEHU
Caution
Always give the product's serial number (14 digits) when reporting a
fault.
NIBE™ F110Chapter 1 | Important information4
Contact information
KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT
Tel: +43 (0)7662 8963-0 Fax: +43 (0)7662 8963-44 E-mail: mail@knv.at
www.knv.at
NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 FlurlingenCH
www.nibe.ch
Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad
Jizerou
CZ
www.nibe.cz
NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE
www.nibe.de
Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7,
6920 Videbæk
DK
www.volundvt.dk
NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI
NIBE Energy Systems France Sarl, Zone industrielle RD 28, 01600
Reyrieux
FR
www.nibe.fr
NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way,
Chesterfield S41 9QG
GB
www.nibe.co.uk
NIBE Energietechniek B.V., Postbus 634, NL 4900 AP OosterhoutNL
www.nibenl.nl
ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vol-
lebekk, 0516 Oslo
NO
beenergysystems.no
5NIBE™ F110Chapter 1 | Important information
NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL
Tel: 085 662 84 90 Fax: 085 662 84 14 E-mail: sekretariat@biawar.com.pl
www.biawar.com.pl
© "EVAN" 17, per. Boynovskiy, Nizhny NovgorodRU
NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE
www.nibe.se
For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu
for more information.
NIBE™ F110Chapter 1 | Important information6
F110 – An excellent choice
F110 is part of a new generation of heat pumps, which have been intro-
duced to supply your home with inexpensive and environmentally friendly
hot water. Hot water production is safe and economical with integrated
water heater, immersion heater and control system.
F110 is equipped with a control computer to give you good comfort, good
economy and safe operation. Information about status, operating time
and all temperatures in the heat pump are shown on the clear display.
Excellent properties for F110:
႑EU directive
Conventional incandescent bulbs were phased out of the market several
years ago. This also now applies to electric water heaters.
Heat pump water heaters are one way of satisfying the new EU directive
and F110 has been developed specifically to fulfil that directive.
F110 consumes approx. 1/3 of the power of an equivalent conventional
electrical water heater. This gives great savings and therefore F110 pays
for itself quickly.
႑Integrated water heater
There is a water heater integrated in the heat pump, which is insulated
with environmentally friendly cellular plastic for minimal heat loss.
႑Scheduling hot water and ventilation
Hot water and ventilation can be scheduled for each day of the week
or for longer periods (vacation).
႑Display with user instructions
The heat pump has a display with easy-to-understand menus that facil-
itate setting a comfortable hot water level.
႑Simple troubleshooting
In the event of a fault, the heat pump display shows what happened.
7NIBE™ F110Chapter 1 | Important information
2 The heating installation – the
heart of the house
Tappvarmvat
t
Köldmedium
Luft
Förångare
Kondensor 80 °C
22 °C0 °C
5 °C0 °C
55 °C45 °C
Expansionsventil Kompressor
LEK
A
D
F
B
C
E
G
$LU
5HIULJHUDQW
(YDSRUDWRU
&RQGHQVHU
([SDQVLRQ YDOYH &RPSUHVVRU
+HDW VRXUFH
'RPHVWLF KRW ZDWHU
The temperatures are only examples and may vary between different installations and
time of year.
