Night Owl VDP2 Series Manuale utente

VDP2 SERIES

Support.NightOwlSP.com

24/7

SUPPORT

English

Español / Français

USER’S MANUAL

VDP2 Series

DVR Component Model #: DVR-VDP2-81

Firmware Version: 20210201

Camera Component Model #: CM-DP2BK-B

Thank you for choosing Night Owl Security

By purchasing a Night Owl product, you receive a one (1) year warranty covering manufacturing

defects in material and workmanship. In addition to warranty and technical support benets, you

have access to our vast library of free instructional How to Videos. For all Support Videos, go to www.

youtube.com/nightowlsp to access Night Owl’s YouTube page.

Camera Compatibility

Night Owl’s VDP2 Series DVRs are compatible with the following cameras:

VDP2

CM-DP2L-BU

CM-TA2L-BU

CM-C2OXL-BU

CM-DP2BK-B

NOTE: Not all features will work with all compatible cameras. You must use preferred cam-

eras to access all features.

This system is designed to work with CL2 UL Rated cabling or better. If the camera’s video quality,

either day or night, is degraded, you may need to change the cable run from the camera to the DVR.

Please see the warranty section of this manual for exclusions and additional details. Not all features

and capabilities are shared across all models. You may see features which are not applicable. Addition-

ally, this manual contains screen images that may not exactly match those on your TV/Monitor/Smart

Device.

THIS MANUAL WAS ACCURATE AT THE TIME IT WAS COMPLETED. DUE TO OUR ONGOING EFFORT

TO CONSTANTLY IMPROVE OUR PRODUCTS, FUNCTIONS MAY HAVE BEEN ADDED OR CHANGED.

System Requirements

Please be sure that your PC/MAC® complies with the following specications:

• PC Operating System: Windows®10 and above

• MAC Operating System: MAC OS X®10.9 and above

• Please be sure that your mobile device complies with the following specications:

• Android™: 8.0 and above

• iOS®:12.4 and above

Table of Contents

iii

Table of Contents

FCC Warnings. . . . . . . . . . . . . iv

Safety Instructions . . . . . . . . . . 1

Initial Setup . . . . . . . . . . . . . 2

Step 1. Verify Your Package Contents . . . . . 2

Step 2. Download the Night Owl Protect App and Create

Your Account . . . . . . . . . . 5

Step 3. Connect Your System . . . . . . . 6

Step 4. Set Up Your DVR . . . . . . . . 7

Connected to the Internet . . . . . . 7

Disconnected from the Internet . . . . 10

Step 5. Install the Cameras . . . . . . . . 14

Live View . . . . . . . . . . . . . . 16

View Live (All Channels) . . . . . . . . . 16

Right-Click Menu From Live View . . . . . . 17

Light Menu. . . . . . . . . . . . . 18

Facial Capture Menu . . . . . . . . . . 19

Event Playback . . . . . . . . . . . 20

Backing Up / Exporting Videos . . . . 23

Formatting a USB Flash Drive or External Hard Drive . 23

Video Backup . . . . . . . . . . . . 25

Main Menu . . . . . . . . . . . . . 28

Menu Screen . . . . . . . . . . . . 28

General Menu . . . . . . . . . . . . 29

Display . . . . . . . . . . . 29

Network . . . . . . . . . . . 30

Cameras Menu . . . . . . . . . . . 31

Advanced . . . . . . . . . . . 31

Adjustments . . . . . . . . . . 32

Record Menu . . . . . . . . . . . . 34

Event Settings . . . . . . . . . 34

Scheduling . . . . . . . . . . 38

Device Menu . . . . . . . . . . . . 39

HDD . . . . . . . . . . . . 39

System Menu . . . . . . . . . . . . 40

General . . . . . . . . . . . 40

Info . . . . . . . . . . . . 42

Log . . . . . . . . . . . . 43

Advanced Menu . . . . . . . . . . . 44

Maintain . . . . . . . . . . . 44

Events . . . . . . . . . . . 45

Auto Upgrade . . . . . . . . . 46

Glossary . . . . . . . . . . . . . . 47

Warranty . . . . . . . . . . . . . . 48

Troubleshooting . . . . . . . . . . . 50

User Information . . . . . . . . . . 52

FCC Warnings

FCC

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi-

tions: (1) this device may not cause harmful interference and (2) this device must accept any interfer-

ence received, including interference that may cause undesired operation.

FCC Compliance Statement

These limits are designed to provide reasonable protection against frequency interference in residen-

tial installation. This equipment generates, uses and can radiate radio frequency energy and if not

installed or used in accordance with the instructions, may cause harmful interference to radio commu-

nication. However, there is no guarantee that interference will not occur in television reception, which

can be determined by turning the equipment off and on. The user is encouraged to try and correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

The Federal Communications Commission warns the user that changes or modications

to the unit not expressly approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

Safety Instructions

Use the provided power adapter.

Do not use this product with a power source that applies more than the specied voltage.

Never insert metal into the DVR case or its openings.

Inserting metal into the DVR case may cause electric shock.

Do not operate in wet or dusty areas.

Avoid placing the DVR in areas such as a damp basement or dusty attic.

Do not expose the DVR to rain or use near water.

If the DVR accidentally gets wet, unplug it and contact technical support immediately.

Keep product surfaces clean and dry.

To clean the outside case of the DVR, use a lightly dampened cloth. Do not use cleaning solutions or

solvents.

Do not install near any heat sources.

Do not install the DVR near any heat sources such as stoves, heat registers, radiators, or electronics

(including ampliers) that produce heat.

Unplug the DVR when moving it.

Make sure that the DVR is unplugged before you move it. When moving this device, be sure to handle

it with care.

Make sure there is good air circulation around the DVR.

This DVR uses an internal hard drive, that generates heat during operation for video storage. Do not

block the vents on the DVR as these vents reduce the generated heat while the system is running.

Place this product in a well-ventilated area.

Do not attempt to remove the top cover.

If you observe any abnormal operation, unplug the DVR immediately and contact technical support. Do

not attempt to open the DVR to diagnose the cause of the problem. Removing the cover will void your

warranty.

Handle the DVR carefully.

If you drop the DVR on any hard surface, it may damage the device. If the DVR doesn’t work properly

due to physical damage, contact an authorized dealer for repair.

It is recommended to use your DVR with an uninterruptible power supply (UPS).

Connecting your DVR and cameras to a UPS allows continuous operation even during power outages.

The run-time duration will depend on the rating of the UPS used.

CAUTION

You may be subjected to severe electrical shock if you remove the cover of the DVR.

Initial Setup

Night Owl strongly recommends that you complete the following sections in the order

that they are listed to quickly and easily set up your system:

• Step 1. Verify Your Package Contents

• Step 2. Download the Night Owl Protect App and Create Your Account

• Step 3. Connect Your System

• Step 4. Set Up Your DVR

• Step 5. Install the Cameras

Step 1. Verify Your Package Contents

Before you begin to install your system, ensure you can identify all of the parts listed in

this section. Images may vary slightly based on your model number.

USB

Mouse (x1)

6 ft. HDMI (x1) 6 ft. Ethernet (x1)

Power Splitter(s)

(1 per 4 cameras)

Monitor Router

Mounting

Hardware

60 ft. Video/Power Cables

(1 cable per camera)

DVR Power

Adapter (x1)

Camera Power

Adapter(s)

(1 per 4 cameras)

Camera(s)DVR

RESET LAN1 LAN2 LAN3 LAN4 WAN

Items Not Included

NOTE: For best results use Night Owl accessories. Third party accessories or products under

a different brand may not work as well.

NOTE: Internet access is

STRONGLY recommended

for this initial setup. A TV

or monitor with a minimum

1080p HD resolution and

an HDMI input is required

for the initial setup.

FRONT VIEW

REAR VIEW

1 2 3

DVR Component Description

1. Video In: Connect your BNC wired cameras to one of these ports.

NOTE: The DVR automatically detects the camera. Before turning the DVR on, make

sure the cameras are connected to the DVR and a power source.

2. HDMI (Recommended): Connect your TV or monitor to this HDMI port using an HDMI

cable.

3. USB Ports: Connect a USB mouse or a USB ash drive to this USB port for video backup.

NOTE: DO NOT CONNECT two USB mice or two USB ash drives to the DVR.

4. LAN (Strongly Recommended): Connect your DVR to the Internet using an Ethernet cable.

5. Power Input: Connect the DVR power adapter to this port to power the DVR.

NOTE: Connect and test all cameras locally before you install in their nal location to

ensure that all components function properly.

Mouse Description

Live Viewing:

Double-click the left button on any camera view in split-screen mode to bring it to full

screen display. Double-click again to return to split-screen mode. Right-click to show the

Tool Bar at the bottom of the screen. Left click on the Tool Bar or Menu to access the

device’s features.

In Setup:

Left-click to make a selection. Right-click to cancel setup or return to the previous

screen.

To Enter Values:

Move the cursor to a blank eld and click the mouse. A virtual keyboard will appear

which supports numbers, letters, and symbols. The Shift function will access symbols in

addition to upper case letters.

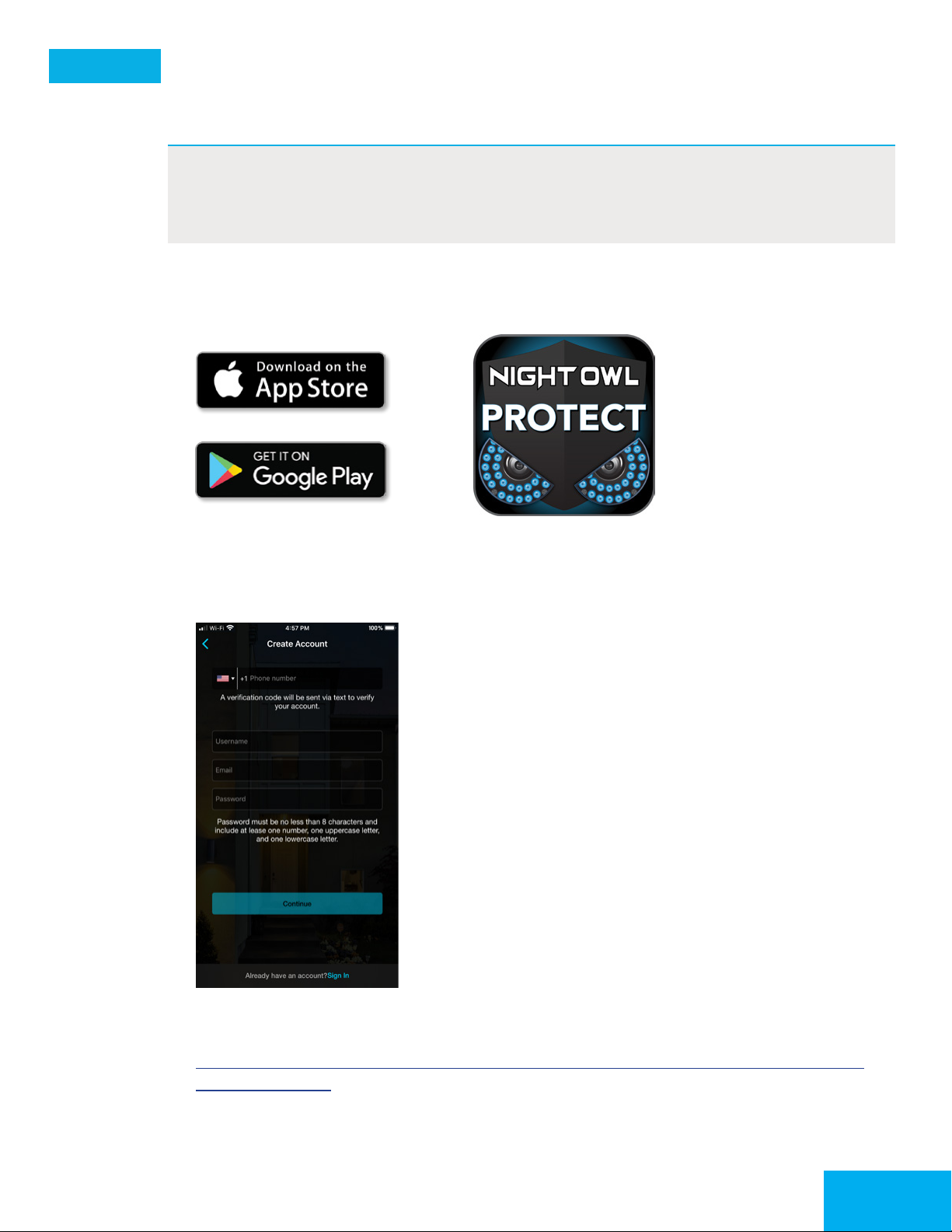

Step 2. Download the Night Owl Protect App and Create Your

Account

IMPORTANT: Night Owl STRONGLY recommends that you create an account via the

Night Owl Protect App. This app is the preferred method for password

resets since you cannot reset your password from the DVR. You can choose

not to use the app later if you wish.

1. Download the Night Owl Protect App from the Apple App or Google Play Store. If you

already have a Night Owl Protect account and connected device, proceed to Step 3 –

Connect Your System.

2. Follow the prompts on the Night Owl Protect App to create your account. For security

purposes, a verication code will be sent to your phone to verify the account being

created.

3. Finish creating your account and create a personal PIN number that you will enter upon

each login to the app. For more information on the Night Owl Protect App, click here:

https://support.nightowlsp.com/hc/en-us/articles/360044127354-Night-Owl-Protect-

Mobile-App-CMS

4. When nished, proceed to Step 3 – Connect Your System to begin connecting the

components of your system.

Step 3. Connect Your System

Connect the red female power leads of the video / power

cables to the male power splitter ends.

POWER SPLITTER

CONNECTORS

POWER CABLE

CONNECTORS

Plug one end of the included HDMI cable into the

HDMI port on the back of the DVR.

HDMI

Connect the power splitter to the camera power

adapter and plug the adapter into a surge

protector or Uninterruptible Power Supply (UPS).

CAMERA POWER

ADAPTER

POWER

SPLITTER

SURGE PROTECTOR

(NOT INCLUDED)

Plug the other end of the Ethernet cable into a port

on the back of your router or modem.

ETHERNET

ROUTER

(NOT INCLUDED)

RESET LAN1 LAN2 LAN3 LAN4WAN

Plug the other end of the HDMI cable into the back

of your TV or Monitor.

HDMI

NOTE: To view cameras, TV or Monitor must be

tuned to the same input the HDMI is plugged into.

STOP: BEFORE installing, connect and test each

camera locally to confirm they function properly.

PWR

HDD

Connect the end of the camera’s cable to the end

of a video / power cable labeled TO CAMERA ONLY.

VIDEO / POWER CABLEFROM CAMERA

To CAMERA

To C

Plug the USB mouse into the USB port on the back

of the DVR.

USB

Plug one end of the included Ethernet cable into

the LAN port on the back of the DVR.

ETHERNET

NOTE: Night Owl recommends connecting to the

Internet for the best user experience.

SURGE PROTECTOR

(NOT INCLUDED)

Plug the DVR power adapter into a surge

protector or Uninterruptible Power Supply (UPS).

Some systems beep upon booting up.

NOTE: Make sure the UPS or

surge protector is switched ON.

Connect the video / power cable labeled TO

DVR ONLY to an open video input on the DVR.

NOTE: Make sure you twist

and lock BNC connectors.

Connect the DVR power adapter to the Power Input

on the rear of the DVR.

POWER

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Night Owl Sistema di sicurezza

Night Owl

Night Owl Poseidon 85 Manuale utente

Night Owl

Night Owl C50XFR Series Manuale utente

Night Owl

Night Owl FS84500 Manuale utente

Night Owl

Night Owl HAWK-74250 Manuale utente

Night Owl

Night Owl K-16 Series Manuale utente

Night Owl

Night Owl THD Series Manuale utente

Night Owl

Night Owl 16 Channel H.264 Video Security Kit Manuale utente

Night Owl

Night Owl WNVR-NC Series Manuale utente

Night Owl

Night Owl AHD10 Series Manuale utente

Night Owl

Night Owl NONB-44500 Manuale utente

Night Owl

Night Owl FS-8500 Manuale utente

Night Owl

Night Owl WNVR201 Series Manuale utente

Night Owl

Night Owl WG4 Series Manuale utente

Night Owl

Night Owl CAM-4PK-DM724 Manuale utente

Night Owl

Night Owl PRO Series 8CH Manuale utente

Night Owl

Night Owl CAM-WNVR2P-IN Manuale utente

Night Owl

Night Owl HDA SERIES Manuale utente

Night Owl

Night Owl AHD7-882 Manuale utente

Night Owl

Night Owl H2THD Manuale utente

Night Owl

Night Owl THD301 Series Manuale utente

Night Owl

Night Owl Tiger-4500 Manuale utente

Night Owl

Night Owl S44245NHD Manuale utente

Night Owl

Night Owl CAM-OV600-365 Manuale utente

Night Owl

Night Owl PRO Series 16CH Manuale utente

Manuali Sistema di sicurezza popolari di altre marche

Inner Range

Inner Range Concept 2000 Manuale utente

Climax

Climax Mobile Lite R32 Istruzioni per il montaggio

CADDX

CADDX NX-6 Manuale utente

FBII

FBII XL-31 Series Manuale utente

Johnson Controls

Johnson Controls PENN Connected PC10 Manuale utente

Aeotec

Aeotec Siren Gen5 Manuale utente

Blaupunkt

Blaupunkt SA 2700 Manuale utente

IDEAL

IDEAL Accenta Manuale del proprietario

AJAX

AJAX DoubleButton Manuale utente

Swann

Swann SW-P-MC2 Manuale utente

Ecolink

Ecolink Siren+Chime Manuale utente

Digital Monitoring Products

Digital Monitoring Products XR150 Manuale utente

EDM

EDM Solution 6+6 Wireless-AE Manuale utente

Highway Safety Group

Highway Safety Group EA401 Manuale utente

Siren

Siren LED GSM Manuale utente

Detection Systems

Detection Systems 7090i Istruzioni per il montaggio

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuale utente

Siemens

Siemens FDM273 Manuale utente
