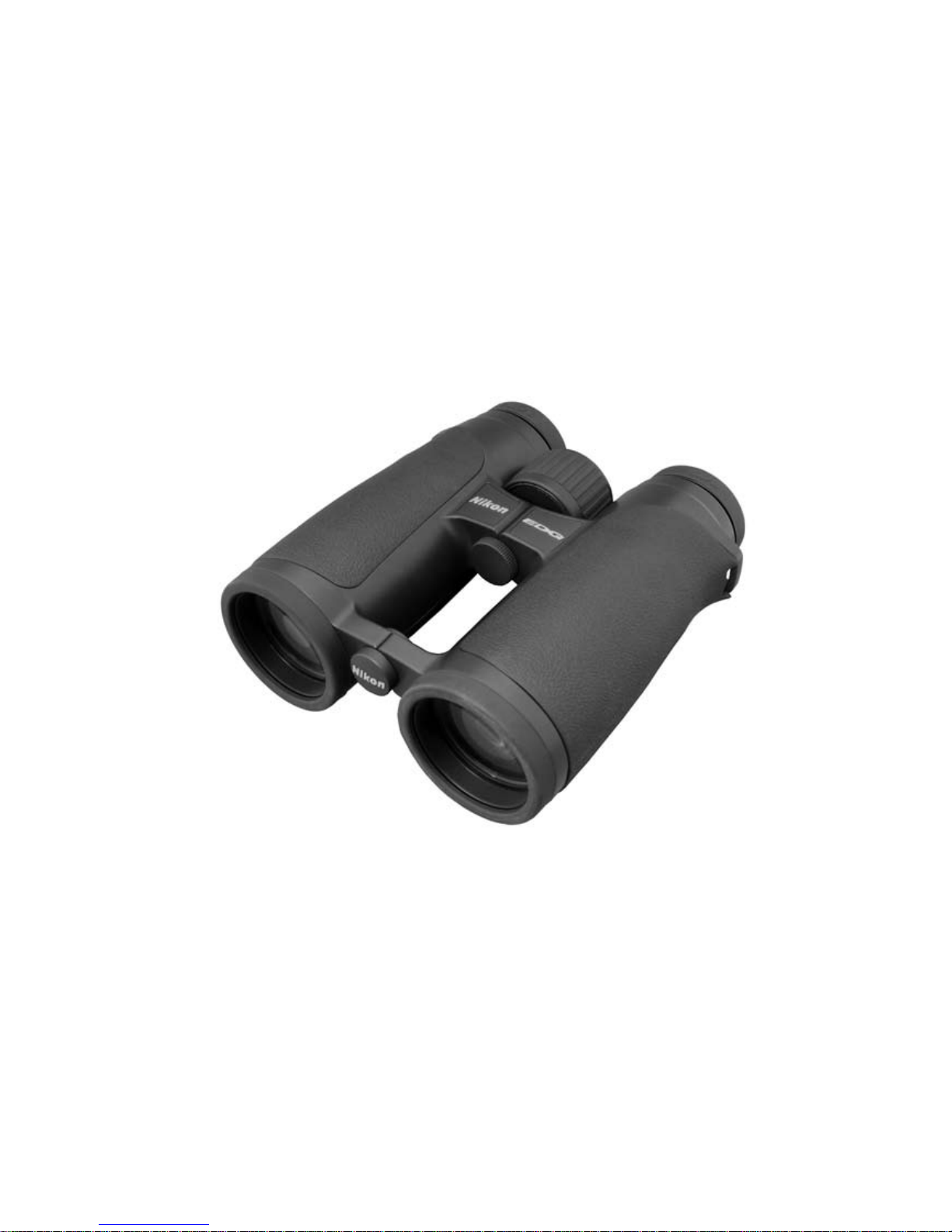

Nikon EDG 10x32 Manuale utente

Index

Precautions ........................................................... 4-6

Operation precautions .............................. 6-8

Composition ................................................. 9

Nomenclature ....................................... 10-11

Interpupillary adjustment ............................ 12

Focusing ring .............................................. 13

Diopter Adjustment ................................14-15

Adjusting the length of the eyecups ...... 16-17

Eyecaps ................................................ 18-19

Strap ..................................................... 20-21

Objective caps ........................................... 22

Specifications ............................................ 23

Thank you for purchasing the Nikon

binoculars.

Strictly observe the following

guidelines in order to use the

equipment properly and avoid

potentially dangerous accidents

1 Before using the product,

thoroughly read the “SAFETY

PRECAUTIONS” and the

instructions accompanying the

product on correct use.

2 Keep these instructions within

easy reach for reference.

3 Some of the “SAFETY

PRECAUTIONS”, “OPERATION

PRECAUTIONS” and

“OPERATION” described here

may not refer to the product you

purchased.

In order to protect you and third

parties from possible injury and/

or property damage or loss,

you are kindly requested to pay

close attention to all instructions,

warnings and cautions regarding

the use and care of this product.

Precautions

English

• Specifications and design are subject to change without notice.

• No reproduction in any form of this manual, in whole or in part

(except for brief quotation in critical articles or reviews), may be

made without written authorization from NIKON VISION CO.,

LTD.

Precautions

OPERATION PRECAUTIONS

The items contained in this section

alert you to the fact that any

improper use ignoring the contents

described herein may negatively

affect product performance and

functionality.

WARNING

This indication alerts you to the

fact that any improper use ignoring

the contents described herein can

result in potential death or serious

injury.

CAUTION

This indication alerts you to the

fact that any improper use ignoring

the contents described herein can

result in potential injury or may

cause only a material loss.

Never look at the sun directly while

using binoculars.

Doing so may seriously damage the

eyes. (Fig. 1)

CAUTION!

• Do not leave the binoculars in an

unstable place. They may fall and

cause injury.

• Do not look through the binoculars

while walking. You may walk into

something and get hurt. (Fig. 2)

• Do not swing the binoculars by their

straps. They may hit someone and

cause injury. (Fig. 3)

• The soft case, strap, and external

materials utilized on binoculars and

rubber eyecups may deteriorate

due to aging and stain clothes. To

prevent this, check their condition

before each use, and consult with

the shop where you bought them if

such deterioration is found.

WARNING!

Fig. 1

Fig. 2

Fig. 3

• If you use the rubber eyecups for a

long period of time, you may suffer

skin inflammation. If you develop

any symptoms, consult a doctor

immediately.

• Be careful not to pinch your finger

when adjusting interpupillary

distance or diopter. Be particularly

careful if you let small children use

the binoculars. (Fig. 4)

• Do not leave the polyethylene bag

used for packaging within small

children’s reach. Children may put it

on their mouths and suffocate.

(Fig. 5)

• Be careful that small children do

not inadvertently swallow the cap or

eyecup. If it does happen, consult a

doctor immediately.

• Do not disassemble the binoculars.

Repairs should only be performed by

a trained engineer.

(Fig. 6)

CAUTION!Fig. 4

Fig. 5

Fig. 6

OPERATION AND CONTROLS

1. Do not open the right and left

binocular tubes beyond their

limits. Also be careful not to

rotate the diopter ring, focusing

ring beyond their limits. (Fig. 7)

2. Avoid rain, water splashes,

sand and mud. (Fig. 8) With

waterproof binoculars, though

some rain or splashed water will

do no harm, wipe the water off as

soon as possible.

3. Always protect binoculars from

shock. If you cannot obtain a

normal image after dropping or

getting the binoculars wet, take

them immediately to the shop

where you purchased them.

(Fig. 9)

4. When exposed to sudden

temperature changes, water

condensation may occur on lens

surfaces. In this case, thoroughly

dry the binoculars at room

temperature.

Operation Precautions

Fig.7

Fig.9

Fig.8

STORAGE

5. Water condensation or mold may

occur on lens surfaces because

of high humidity. Therefore, store

the binoculars in a cool, dry place.

After use on a rainy day or at

night, thoroughly dry them at room

temperature, then store in a cool,

dry place.

6. For lengthy storage, keep

binoculars in a plastic bag or an

airtight container with a desiccant. If

this is not possible, store in a clean,

well-ventilated place, separate from

the case, as they are easily affected

by moisture. (Fig. 10)

7. Do not leave the binoculars in a car

on a hot or sunny day, or near heat

generating equipment. This may

damage or negatively affect them.

(Fig. 11)

Operation Precautions

Fig.10

Fig.11

MAINTENANCE & STORAGE

8. After having removed dust with a blower, clean the body surface using

a soft, clean cloth. After use at the seaside, lightly soak a soft, clean

cloth with water and wipe off salt that may be on the body surface.

Then wipe the body surface with a dry cloth. Do not use benzene,

thinner, or other organic agents. (Fig. 12)

9. When removing dust on the lens surface, use a soft oil-free brush.

10.When removing stains or smudges like fingerprints, from the lens

surfaces, wipe the lenses very gently with a soft clean cotton cloth or

quality oil-free lens tissue. Use a small quantity of pure alcohol (not

denatured) to wipe stubborn smudges. Do not use velvet cloth or

ordinary tissue, as it may scratch the lens surface. Once the cloth has

been used for cleaning the body, it should not be used again for the

lens surface. (Fig. 13)

11.Remove dust trapped in the focusing unit, diopter adjustment unit, or

other rotating parts with a soft brush.

(Fig. 14)

Fig.12

Fig.13

Fig.14

Binoculars (BT)

Strap x1 (SAY)

Eyepiece cap x1

(∅42; 7x: ECC, 8x: ECB, 10x: ECA)

(∅32: ECD)

Objective caps x2 (integral to binoculars)

(∅42: OBP, ∅32: OBQ)

Horn-shaped rubber eyecups and caps x2 each

Composition

(∅42; 7x: ACL, 8x: ACK, 10x: ACJ)

(∅32: ACP) (∅42: EBY, ∅32: ECK)

Case

(∅42: CCT, ∅32: CCW)

①

③

⑨

⑤

⑥

②②

⑧

⑦

③

④

Nomenclature
