Upgrading the COOLPIX775 Firmware

—Macintosh —

Thank you for choosing a Nikon product. This guide describes how to upgrade the

camera firmware for the COOLPIX775.

Get ready

To upgrade the firmware for the COOLPIX775, you will need:

•A COOLPIX775 digital camera

•A UC-E2 USB cable OR a CompactFlash card reader

•One of the following power sources:

—An EH-21 AC adapter / battery charger

—A fully-charged EN-EL1 rechargeable battery

—A fresh 2CR5 (DL245) battery

•A Nikon-approved CompactFlash memory card that has been formatted in the COOLPIX775

•The

Nikon Guide to Digital

Photography for the

COOLPIX775

Check the current firmware version for the COOLPIX775

Turn the mode dial to (playback mode).

file:///K|/775fw14MAC.html (1 of 7) [6/23/2010 10:14:01 AM]

Untitled Document

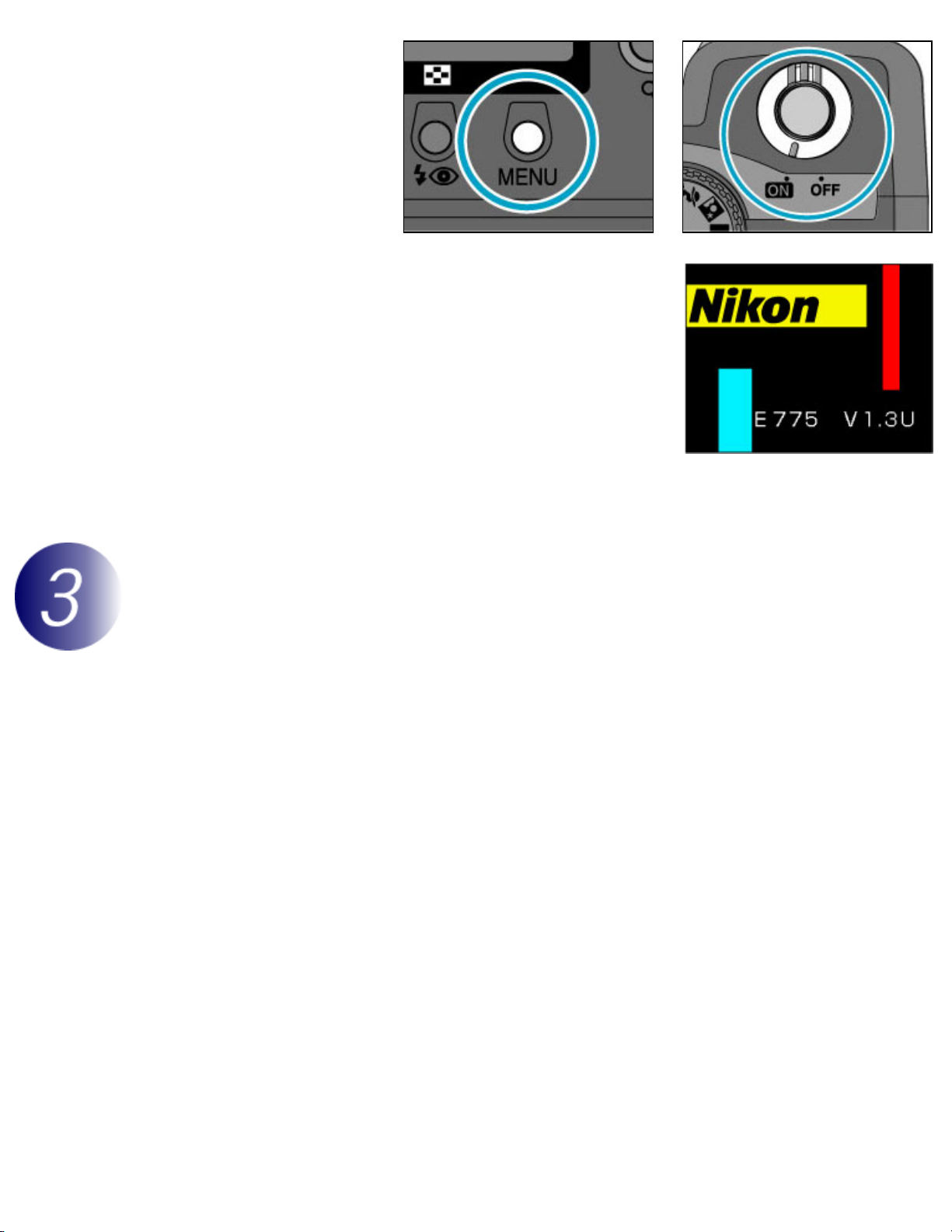

Press and hold the

MENU button while

turning the camera on.

“E775 V”will be displayed in the monitor, followed by the

version number of the current camera firmware.

If the monitor shows “E775 V1.3U,”the current camera

firmware is version 1.3. This upgrade can be used with

firmware versions 1.3 or earlier.

Turn the camera off.

Download and extract the new firmware

Download “CP775fw14.sit”

Click the Download link (above) to download the file. Once download is complete, the file

“CP775fw14.sit”will be created automatically. This file will then be automatically extracted to create

the folder “E775 Update.”If extraction is successful, the folder “E775 Update”will contain the following

files and folders:

firmware: Folder containing camera firmware

firmware.

bin: Camera firmware (in “firmware”folder)

file:///K|/775fw14MAC.html (2 of 7) [6/23/2010 10:14:01 AM]

Untitled Document

Copy the firmware to the memory card

The firmware can be copied to the camera memory card either by connecting the computer directly to

the COOLPIX775 using the USB cable, or by removing the memory card from the camera and inserting it

in a CompactFlash card reader.

Direct USB Connection

Turn the camera off and insert the formatted memory card into the COOLPIX775.

For information on formatting memory cards, see the

Nikon

Guide to Digital

Photography with the

COOLPIX775

Turn the camera off and connect the USB cable as shown below.

file:///K|/775fw14MAC.html (3 of 7) [6/23/2010 10:14:01 AM]

Untitled Document

UC-E2 USB cable

Turn the camera on.

If Nikon View has been installed on the computer, Nikon Transfer will start automatically and

display the message, “There is no selected transfer image in the camera or on the card.”Click

OK to exit Nikon Transfer.

Copy the firmware to the memory card.

1. Copy the firmware to the untitled volume corresponding to the camera.

When the camera is connected and turned on, an untitled volume will appear on the

desktop. Copy the “firmware”folder from the “E775 Update”folder to this untitled volume.

In Mac OS X, untitled volumes are labeled “NO_NAME”

2. When copying is complete, check the contents of the untitled volume.

Open the “firmware”folder on the untitled volume and confirm that it contains the file

“firmware.bin.”

Disconnect the camera.

For information on disconnecting the camera, see the

Nikon

Guide to Digital

Photography for the

COOLPIX775

file:///K|/775fw14MAC.html (4 of 7) [6/23/2010 10:14:01 AM]

Untitled Document

CompactFlash Card Reader

Connect the card reader to the computer.

For more information, see the documentation provided with the card reader.

Insert the formatted memory card into the card reader.

If Nikon View has been installed on the computer, Nikon Transfer will start automatically and

display the message, “There is no selected transfer image in the camera or on the card.”Click

OK to exit Nikon Transfer.

Copy the firmware to the memory card.

1. Copy the firmware to the untitled volume corresponding to the memory card.

When the memory card is inserted, an untitled volume will appear on the desktop. Copy the

“firmware”folder from the “E775 Update”folder to this untitled volume.

In Mac OS X, untitled volumes are labeled “NO_NAME”

2. When copying is complete, check the contents of the untitled volume.

Open the “firmware”folder on the untitled volume and confirm that it contains the file

“firmware.bin.”

file:///K|/775fw14MAC.html (5 of 7) [6/23/2010 10:14:01 AM]

Untitled Document

3. Remove the memory card.

Drag the untitled volume into the Trash and remove the memory card from the card reader.

Disconnect the card reader.

For more information, see the documentation provided with the card reader.

Update the camera firmware

Should any of the following occur during the update, the COOLPIX775 could become inoperable:

•The memory card is removed from the camera

•The camera is turned off

•The AC adapter is unplugged or disconnected

•The battery is removed

•The camera is subjected to powerful electromagnetic noise

If you are not confident that you can perform the update successfully, the update can be performed by

a Nikon service representative.

Insert the memory card containing the firmware into the COOLPIX775.

Rotate the mode dial

to and turn the

camera on.

A firmware update

dialog will be displayed

in the camera monitor.

Highlight Yes and press

the multi selector to the

right.

file:///K|/775fw14MAC.html (6 of 7) [6/23/2010 10:14:01 AM]

Untitled Document

The message as shown at right will be displayed while the

update is in progress.

The message as shown at right will be displayed when the

update is complete. The monitor will go dark briefly before the

message is displayed; this does not indicate a malfunction.

Confirm that the update was completed successfully.

1. Turn the camera off.

2. Check the camera firmware version as described in Step

2, “Check the current firmware version for the

COOLPIX775.”

3. If “E775 V1.4U”is displayed in the monitor, the update

was successful.

If the update was not successful, contact a Nikon service representative.

Format the memory card.

•Insert the memory card used to update the camera firmware.

•For information on formatting memory cards, see the

Nikon

Guide to Digital

Photography with the

COOLPIX775

This completes the firmware update.
