If the machine has been used until the Red light illuminates on the battery level indicator on the machine, a full recharge of the batteries (10-12 hours) will be required. Failure to carry out this this

procedure may cause damage to the batteries. Charging the batteries after every use is recommended.

PLEASE ENSURE RED SOCKET IS LEFT DISCONNECTED AFTER RECHARGE IF THE MACHINE IS NOT TO BE USED ON A DAILY BASIS

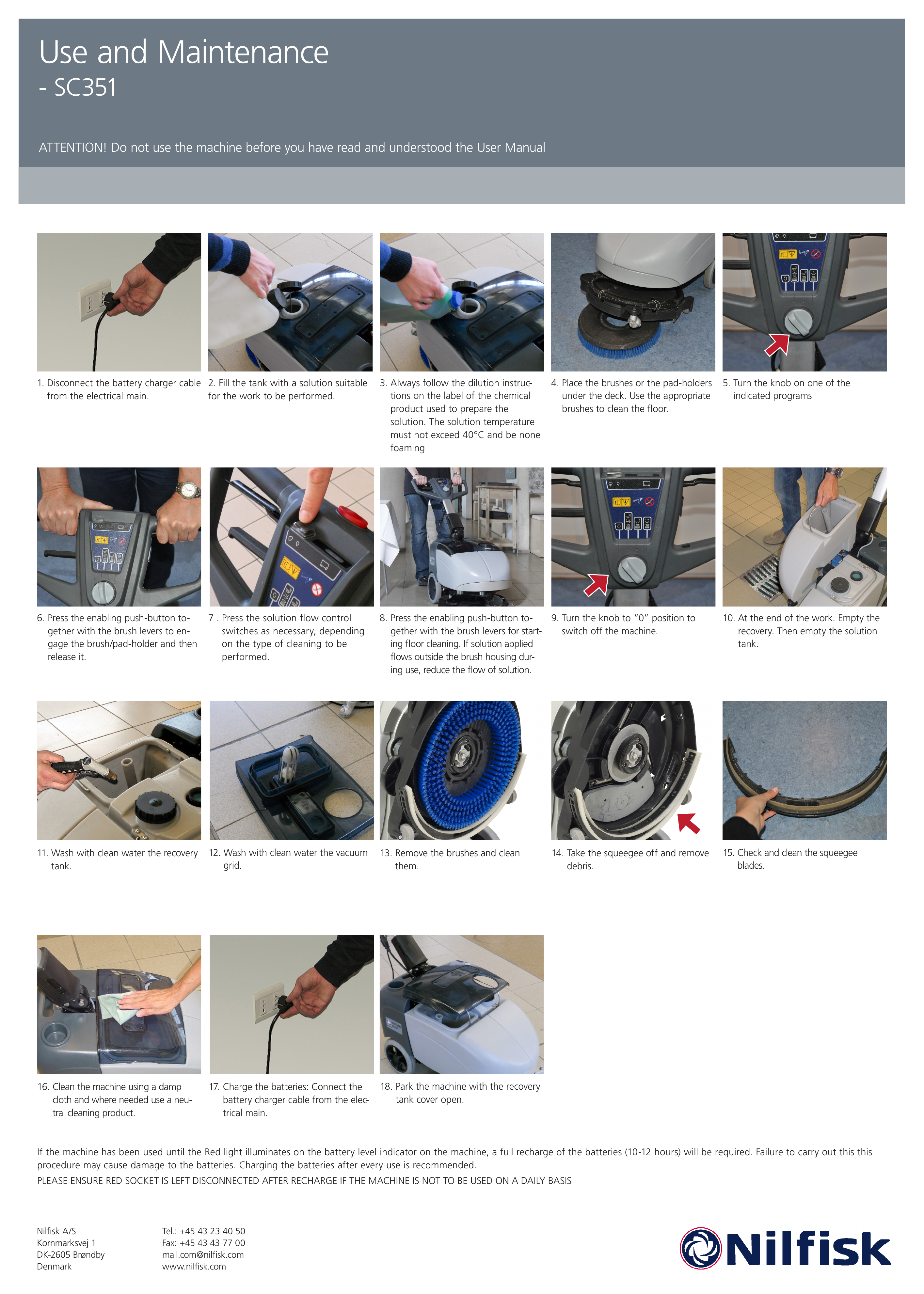

Use and Maintenance

- SC351

ATTENTION! Do not use the machine before you have read and understood the User Manual

3. Always follow the dilution instruc-

tions on the label of the chemical

product used to prepare the

solution. The solution temperature

must not exceed 40°C and be none

foaming

2. Fill the tank with a solution suitable

for the work to be performed.

4. Place the brushes or the pad-holders

under the deck. Use the appropriate

brushes to clean the ﬂoor.

5. Turn the knob on one of the

indicated programs

1. Disconnect the battery charger cable

from the electrical main.

18. Park the machine with the recovery

tank cover open.

16. Clean the machine using a damp

cloth and where needed use a neu-

tral cleaning product.

17. Charge the batteries: Connect the

battery charger cable from the elec-

trical main.

13. Remove the brushes and clean

them.

11. Wash with clean water the recovery

tank.

12. Wash with clean water the vacuum

grid.

14. Take the squeegee off and remove

debris.

15. Check and clean the squeegee

blades.

8. Press the enabling push-button to-

gether with the brush levers for start-

ing ﬂoor cleaning. If solution applied

ﬂows outside the brush housing dur-

ing use, reduce the ﬂow of solution.

6. Press the enabling push-button to-

gether with the brush levers to en-

gage the brush/pad-holder and then

release it.

7 . Press the solution ﬂow control

switches as necessary, depending

on the type of cleaning to be

performed.

9. Turn the knob to “0” position to

switch off the machine.

10. At the end of the work. Empty the

recovery. Then empty the solution

tank.

All manuals and user guides at all-guides.com

Nilﬁsk A/S

Kornmarksvej 1

DK-2605 Brøndby

Denmark

Tel.: +45 43 23 40 50

Fax: +45 43 43 77 00

mail.com@nilﬁsk.com

www.nilﬁsk.com

The machine

doesn’t work

as it should?

The suction

doesn’t work

as it should?

The machine

doesn’t clean

as it should?

The brush

don’t work as they

should?

Troubleshooting

- SC351

ATTENTION! Do not use the machine before you have read and understood the Instructions for use manual

1Check if the fuse has triggered. 2Check if there are external materials

avoiding brush rotating.

1Check if the power cable is correctly

connected.

2Check if the battery is charged. 3Check if the fuse isn’t burnt out. 4Check if the programs selector is

damaged or has the right function

selected.

1Check if the suction hose is

correctly installed and cleaned.

2Open the recovery tank and check

if the vacuum grid and gasket are

cleaned.

3Check if squeegee blades are dam-

aged or dirty.

4Check if the fuse isn’t burnt out.

1Check if the programs selector has

the right function selected.

2Check if the solution valve is dirty/

clogged.

3Check if the solution reduction

ﬁtting is dirty/clogged.

4 Check brush/pad condition
