ENGLISH Models:

Basic, STD1, STD2, STD3

VP 600

’’

Service Manual

VP600_Service_Manual_version_1.0_Jan_2015

Preface 3

Safety Issues 4

Technical specifications 5

Construction 9

Parts 17

Diagrams 18

Notes 19

VP600_Service_Manual_version_1.0_Jan_2015

Preface

In this manual you will find the essentials you need to know when repairing the wet and

dry vacuum cleaners in the VP600 series. When carrying out repairs, make sure you

have a suitable workbench or the like with the necessary water and power supply

available.

 If you determine an error in operation, be sure to refer the customer to the user

manual.

A fault in the equipment can have a number of causes. The chapter ”service / repair”

will help you here. Use the illustrated spare parts lists for your repairs. These show you

the location of the individual parts and the sequence in which they are assembled.

 Always refer to the technical service bulletin information sheets. Also known as

TSB’s

These will tell you about any technical modifications made after publication of this

service manual.

 Only use original Nilfisk-Advance spare parts

It is under no circumstances legal to provide this service manual and any technical

service bulletin that might be released to third party without a written approval from the

Global Product Management group, located at

Sognevej 25, 2605 Brøndby, Denmark

VP600_Service_Manual_version_1.0_Jan_2015

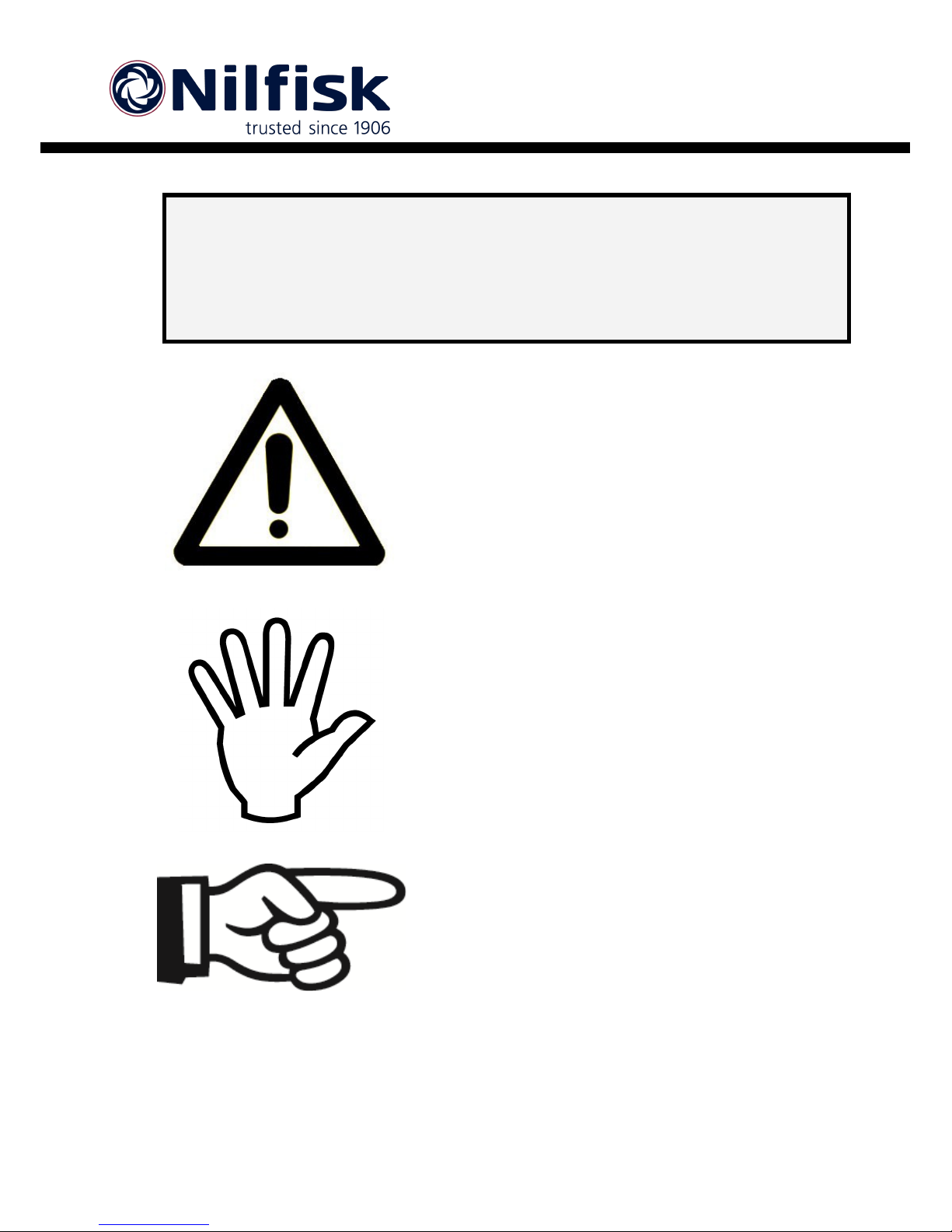

Safety Issues

To be performed by a skilled or instructed person only !

Disconnect the vacuum cleaner from the power supply before

starting the work!

Safety instructions marked with this symbol in

this manual must be observed to prevent

danger to persons.

This symbol is used to mark safety

instructions that must be observed to prevent

damage to the equipment and degradation of

performance.

This symbol indicates tips and instructions to

simplify work and to ensure safe operation.

VP600_Service_Manual_version_1.0_Jan_2015

Technical specifications

Technical specification for the VP600 EU variants

Master Description VP600 BASIC EU VP600 STD-2 EU VP600 STD-3 EU

Item number 107412036 41600803 41600804

Energy Rating AAA

kWh/annum 23 15 15

Dust pick up hard floor DBB

Dust pick up carpet na EE

Emission AAA

Standard Features

Motors 111

Voltage 220 - 240v 220 - 240v 220 - 240v

Power(W)* 800w 350/ 800w 350/ 800w

Weight, machine only (Kg) 778

Container size (l) 10 10 10

Net filling (l) 888

Motor lifetime (hours) 1000 1000 1000

Cable length (m)** 10 15 10

Cable type Fixed Detachable Re-winder

Hose & Cable Storage Yes Yes Yes

Hose length (m) 1,9 1,9 1,9

Hose/tube diameter (mm) 32mm 32mm 32mm

Sound power level (LO/HI) (dB) 71 66/ 71 66/ 71

Sound pressure (LO/HI) (dB) 54 47/54 47/54

2-speed No Yes Yes

Sack-filter Yes Yes Yes

H13 Exhaust Yes Yes Yes

Nozzle Hard floor Yes No No

Nozzle Combination No Yes Yes

Crevice nozzle Yes Yes Yes

Brush nozzle Yes Yes Yes

Tube, Aluminium – 2 pcs 500mm Yes No No

Telescopic Tube – Aluminium No Yes Yes

VP600_Service_Manual_version_1.0_Jan_2015

Technical specifications

Technical specification for the VP600 UK variants

Master Description VP600 Basic UK VP600 STD2 UK VP600 STD3 UK

Item number 107412037 41600805 107412045

Energy Rating AAA

kWh/annum 23 15 15

Dust pick up hard floor DBB

Dust pick up carpet na EE

Emission AAA

Standard Features

Motors 111

Voltage 220-240v 220-240v 220-240v

Power(W)* 800w 350/800w 350/ 800w

Weight, Machine only (Kg) 778

Container size (l) 10 10 10

Net filling (l) 888

Motor lifetime (hours) 1000 1000 1000

Cable length (m)** 10 10 8

Cable type Fixed Detachable Re-winder

Hose & Cable Storage Yes Yes Yes

Hose length (m) 1,9 1,9 1,9

Hose/tube diameter (mm) 32mm 32mm 32mm

Sound power level (LO/HI) (dB) 71 66/ 71 66/ 71

Sound pressure (LO/HI) (dB) 54 47/54 47/54

2-speed No Yes Yes

Sack-filter Yes Yes Yes

H13 Exhaust Yes Yes Yes

Nozzle Hard floor Yes No No

Nozzle Combination No Yes Yes

Crevice nozzle Yes Yes Yes

Brush nozzle Yes Yes Yes

Tube, Aluminium – 2 pcs 500mm Yes No No

Telescopic Tube – Aluminium No Yes Yes

VP600_Service_Manual_version_1.0_Jan_2015

Technical specifications

Technical specification for the VP600 AU / NZ and US variants

Master Description VP600 STD1 Aus/Nz VP600 STD3 Aus/Nz VP600 STD2 US

Item number 107412039 107412047 107412042

Energy Rating na na na

kWh/annum na na na

Dust pick up hard floor na na na

Dust pick up carpet na na na

Emission na na na

Standard Features

Motors 111

Voltage 220-240 220-240 120v

Power(W)* 350/ 800w 350/ 800w 350/ 800w

Weight, Machine only (Kg) 787

Container size (l) 10 10 10

Net filling (l) 888

Motor lifetime (hours) 1000 1000 1000

Cable length (m)** 10 10 10

Cable type Detachable Re-winder Detachable

Hose & Cable Storage Yes Yes Yes

Hose length (m) 1,9 1,9 1,9

Hose/tube diameter (mm) 32mm 32mm 32mm

Sound power level (LO/HI) (dB) 66/ 71 66/ 71 66/ 71

Sound pressure (LO/HI) (dB) 47/54 47/54 47/54

2-speed Yes Yes Yes

Sack-filter Yes Yes Yes

H13 Exhaust Yes Yes Yes

Nozzle Hard floor Yes No No

Nozzle Combination No Yes Yes

Crevice nozzle Yes Yes Yes

Brush nozzle Yes Yes Yes

Tube, Aluminium – 2 pcs 500mm Yes No No

Telescopic Tube – Aluminium No Yes Yes

VP600_Service_Manual_version_1.0_Jan_2015

Technical specifications

Technical specification for the VP600 JP and CN variants

Master Description VP600 STD2 CN VP600 STD3 JP

Item number 107412043 107412046

Energy Rating na na

kWh/annum na na

Dust pick up hard floor na na

Dust pick up carpet na na

Emission na na

Standard Features

Motors 11

Voltage 220-240 100v

Power(W)* 350/ 800w 350/ 800w

Weight Machine only (Kg) 78

Container size (l) 10 10

Net filling (l) 88

Motor lifetime (hours) 1000 1000

Cable length (m)** 15 7,5

Cable type Detachable Re-winder

Hose & Cable Storage Yes Yes

Hose length (m) 1,9 1,9

Hose/tube diameter (mm) 32 32mm

Sound power level (LO/HI) (dB) 66/71 66/ 71

Sound pressure (LO/HI) (dB) 47/54 47/54

2-speed Yes Yes

Sack-filter Yes Yes

H13 Exhaust Yes Yes

Nozzle Hard floor No No

Nozzle Combination Yes Yes

Crevice nozzle Yes Yes

Brush nozzle Yes Yes

Tube, Aluminium – 2 pcs 500mm No No

Telescopic Tube – Aluminium Yes Yes

VP600_Service_Manual_version_1.0_Jan_2015

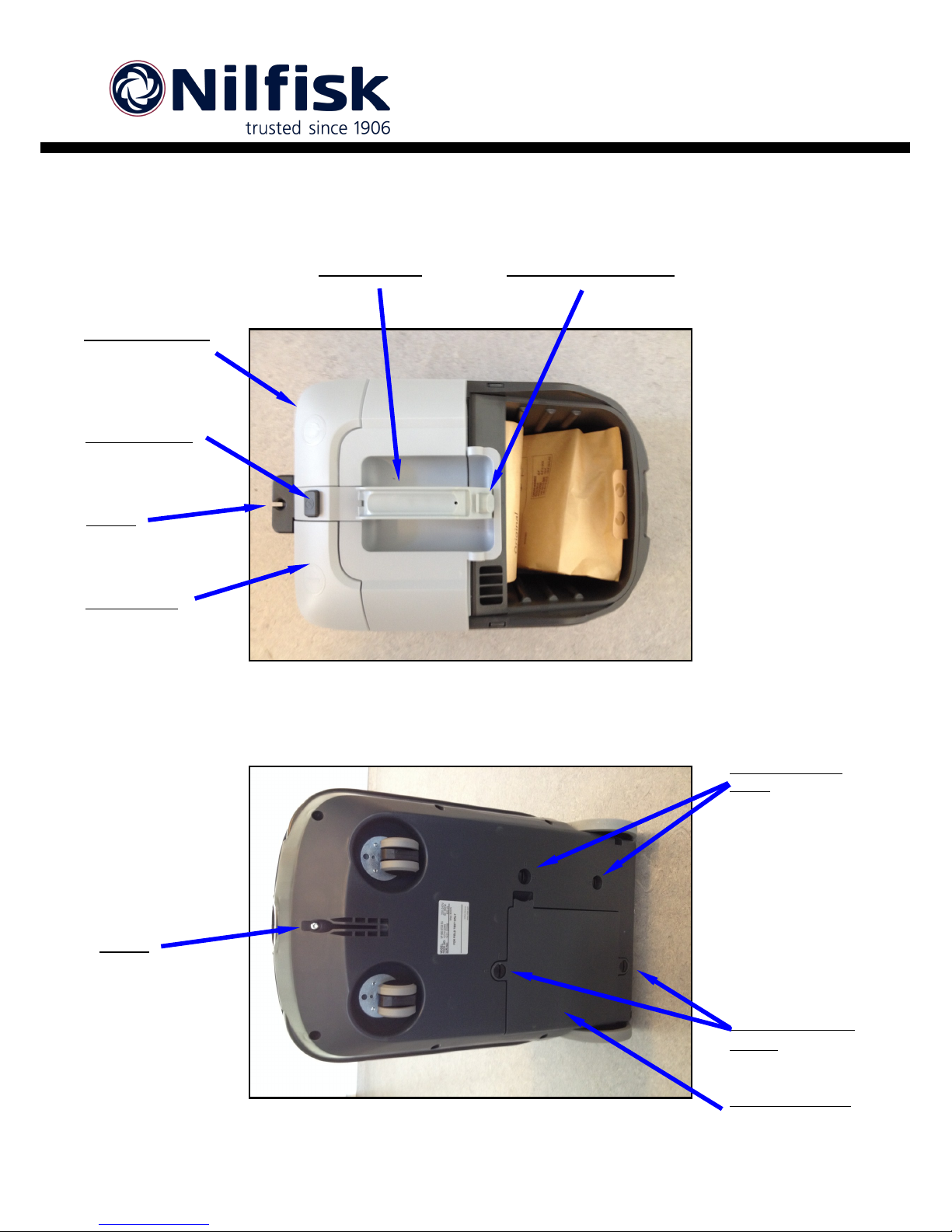

Construction

VP600 - Top and bottom

Power cord module

Power bottom lid

Dual speed botton

Parking

Carrying handle Release button for handle

Parking

Lock for Power cord

module

Lock for Motor/filter

module

Motor/filter module

VP600_Service_Manual_version_1.0_Jan_2015

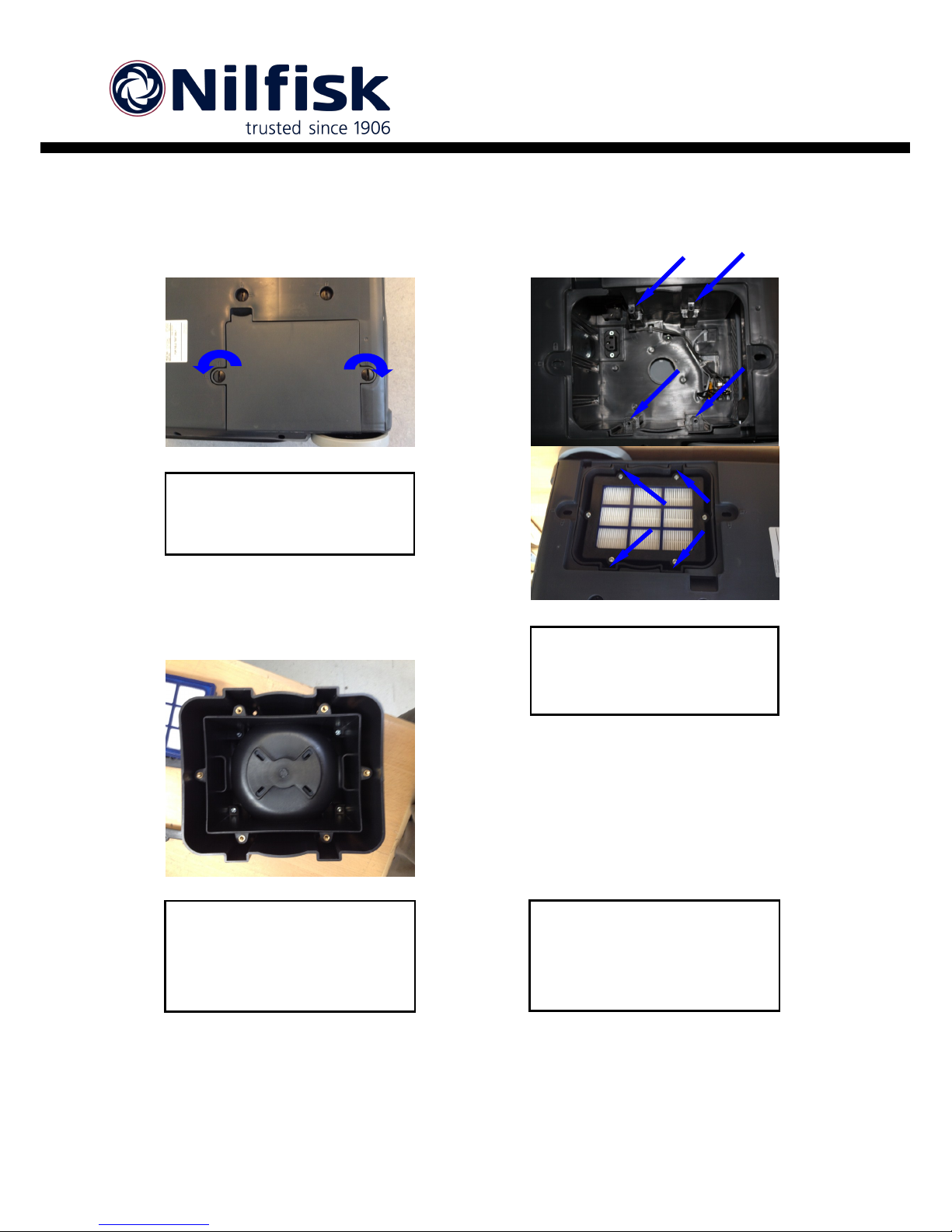

Service / Repair

VP600 - Motor/filter module change

Step 3

Take out the complete motor module

and replace it with a new module.

Here shown without a HEPA filter.

Please refer to the spare part list for

part numbers.

Step 1

Turn lock to unlock the lid.

Step 2

Unscrew the four screws (Torx 20)

below the filter screws.

Step 4

Fasten the module in reverse order.
