Operating

instructions

POSEIDON PE/DE

Printed in Hungary

Instruktionsbog ................................................. 3 - 15

User manual ..................................................... 16 - 28

Betriebsanleitung .............................................. 29 - 41

Manuel d‘instructions ........................................ 42 - 54

Manuale di istruzioni ......................................... 55 - 68

Manual de instrucciones ................................... 69 - 82

Үхειριδιο οδηуιων.............................................. 83 - 96

Manual de Instruções ....................................... 97 - 110

Руководство..................................................... 111 - 124

Instrukcja obsługi .............................................. 125 - 138

Návod k obsluze ............................................... 139 - 151

Üzemeltetési útmutató ...................................... 152 - 164

Návod na používanie ........................................ 165 - 177

Gebruikershandleiding...................................... 178 - 194

POSEIDON PE/DE

Original Instructions

Contents

Symbols

1 Important safety notes

2 Description

3 Before starting the

pressure washer

4 Operation and use

5 After using the pressure

washer

6 Maintenance

7 Troubleshooting

8 Further information

...............................................................................................17

2.1 Intended use...........................................................................19

2.2 Operating elements ................................................................19

3.1 Setting up the pressure washer..............................................20

4.1 Connections ...........................................................................20

4.2 Start the pressure washer ......................................................21

4.3 Using detergents ....................................................................22

5.1 Switching off the pressure washer .........................................23

5.2 Disconnecting supply lines.....................................................23

5.3 Storing the cleaner (frost-free) ...............................................23

6.1 Maintenance plan...................................................................24

6.2 Maintenance work ..................................................................24

...............................................................................................26

8.1 Recycling the pressure washer ..............................................27

8.2 Guarantee ..............................................................................27

8.3 Technical data ........................................................................28

8.4 Declaration of Conformity.......................................................28

POSEIDON PE/DE

Original Instructions

Symbols Before starting

up your high-

pressure washer

for the ﬁrst time,

this instruction

manual must be

read through carefully. Save the

instructions for later use.

Safety instructions

marked with this

symbol must be

observed to

prevent danger

to persons.

This symbol is used

to mark safety

instructions

that must be

observed to prevent

damage to the machine and its

performance.

This symbol

indicates tips

and instructions to

simplify work and to

ensure a safe operation.



Before using the high-pressure

washer, be sure to also read the

enclosed operating instructions

and keep them within reach at

all times.

The high-pressure washer

may only be used by persons

instructed in its use and

who have been expressly

authorised to do so.

General

Use of the high-pressure

washer is subject to the

applicable local regulations.

In addition to the operating

instructions and the binding

accident prevention regulations

in the country of use, the

generally recognised rules

for safe working must also be

observed.

Any method of use endangering

the safety of persons or

equipment is forbidden.

Before use

Before use, check that the high-

pressure cleaner is in a safe

and proper condition.

Operate the pressure washer

only in an upright position!

Important notes:

Do not connect the pressure

washer directly to the public

drinking water mains (observe

DIN 1988 and EN 1717).

A connection is permitted,

however:

• brieﬂy to a pipe interrupter

with moving section

• with a free outlet

Water may also be drawn from

an open container or from

a well or surface water not

intended for the drinking water

supply. Please use suction set

for this. Ensure that neither dirty

water nor liquids containing

solvents are sucked in.

Please observe the regulations

and provisions applicable in

your country. Before putting

the high-pressure washer into

service, carry out a visual check

of all the major components.

High-pressure jets can be

dangerous if misused. The

jet must not be directed at

persons, animals, live electrical

equipment or the pressure

washer itself.

During operation of the washer,

recoil forces are produced at

the spray lance and, when

the lance is held at an angle,

a torque is also created. The

lance must therefore be held

ﬁrmly in both hands.

Risk of injury!

Do not direct the jet towards

yourself or towards other

persons in order to clean

clothes or footwear.

Do not use the washer when

other people without protective

1 Important safety notes

POSEIDON PE/DE

Original Instructions

clothing are in the working

area. Check that cleaning

will not result in dangerous

substances (e.g. asbestos, oil)

being washed off the object to

be cleaned and harming the

environment.

Do not clean delicate parts

made of rubber, fabric, etc. with

the round jet. Hold the nozzle

at a distance of at least 15 cm

when cleaning with the high-

pressure ﬂat jet.

Although extremely easy to

operate, children should not

be allowed to use the pressure

washer.

Do not use the high-pressure

hose for lifting loads.

Do not continue to use the

washer if the quick coupling

or high-pressure hose is

damaged.

Never use the machine in areas

where there is danger of ﬁre

or explosion. When using the

pressure washer, stand at least

1 m from buildings, etc.

Ensure an adequate air

circulation. Do not cover

the washer or operate it in

inadequately ventilated rooms!

The exhaust fumes are

dangerous!

Store the pressure washer

where it will not be exposed to

frost!

Never operate the pressure

washer without water. Even

brief shortages of water result

in severe damage to the pump

seals.

Maintenace and repair

CAUTION!

Before cleaning and servicing

the high pressure washer,

always remove the ignition

plug cable ﬁrst.

Carry out only the maintenance

operations described in the

operating instructions.

Use only original Nilﬁsk-ALTO

spare parts. Do not make any

technical modiﬁcations to the

high pressure washer.

CAUTION!

High pressure hoses, ﬁttings

and couplings are important

for the safety of the washer.

Use only high pressure parts

approved by the manufacturer!

CAUTION!

Failure to observe these

instructions can endanger your

safety.

Please contact the Nilﬁsk-

ALTO service department or an

authorised specialist work-shop

for all other maintenance or

repair work!

Testing

The machine satisﬁes IEC/EN

60335-2-79 standards.

The high pressure washer

should be examined as needed

or at least once a year by a

technician to make sure that it

is fail-safe.

Our service technicians are at

your disposal for assistance

and advice.

Safety device

The high pressure pump is

equipped with a safety valve

that redirects the by-pass

pressure back to the suction

side of the pump.

The safety device is set and

sealed at the factory and must

not be adjusted.

POSEIDON PE/DE

Original Instructions

2 Description

2.1 Intended use This high pressure washer has

been designed for professional

use in

- agriculture

- transport industry

- construction industry

etc.

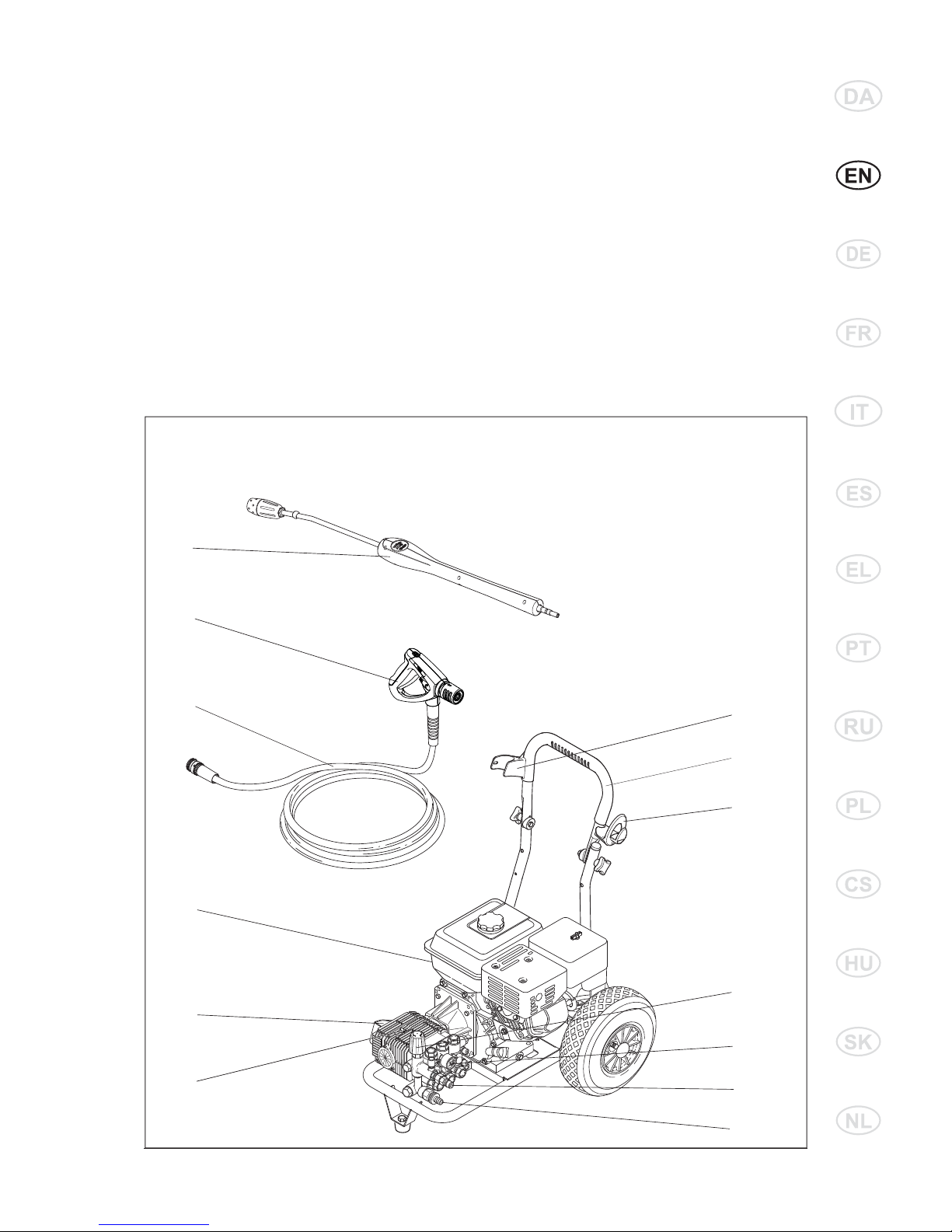

2.2 Operating elements

1 Start/stop switch

2 Lance

3 Holder for lance

4 Holder for high pressure hose

5 High pressure hose

6 Spray gun

7 Water connection and water

inlet ﬁlter

8 Connection for high pressure

hose

9 Pressure gauge

10 Oil level gauge

11 Regulation of water volume

12 Filling of oil

13 Detachable handle

POSEIDON PE/DE

Original Instructions

3 Before starting the pressure washer

3.1 Setting up the pressure

washer

1. Before using the pressure

washer for the ﬁrst time,

check it carefully to detect

any faults or damage.

2. In the event of any damage

contact your Nilﬁsk-ALTO

dealer immediately.

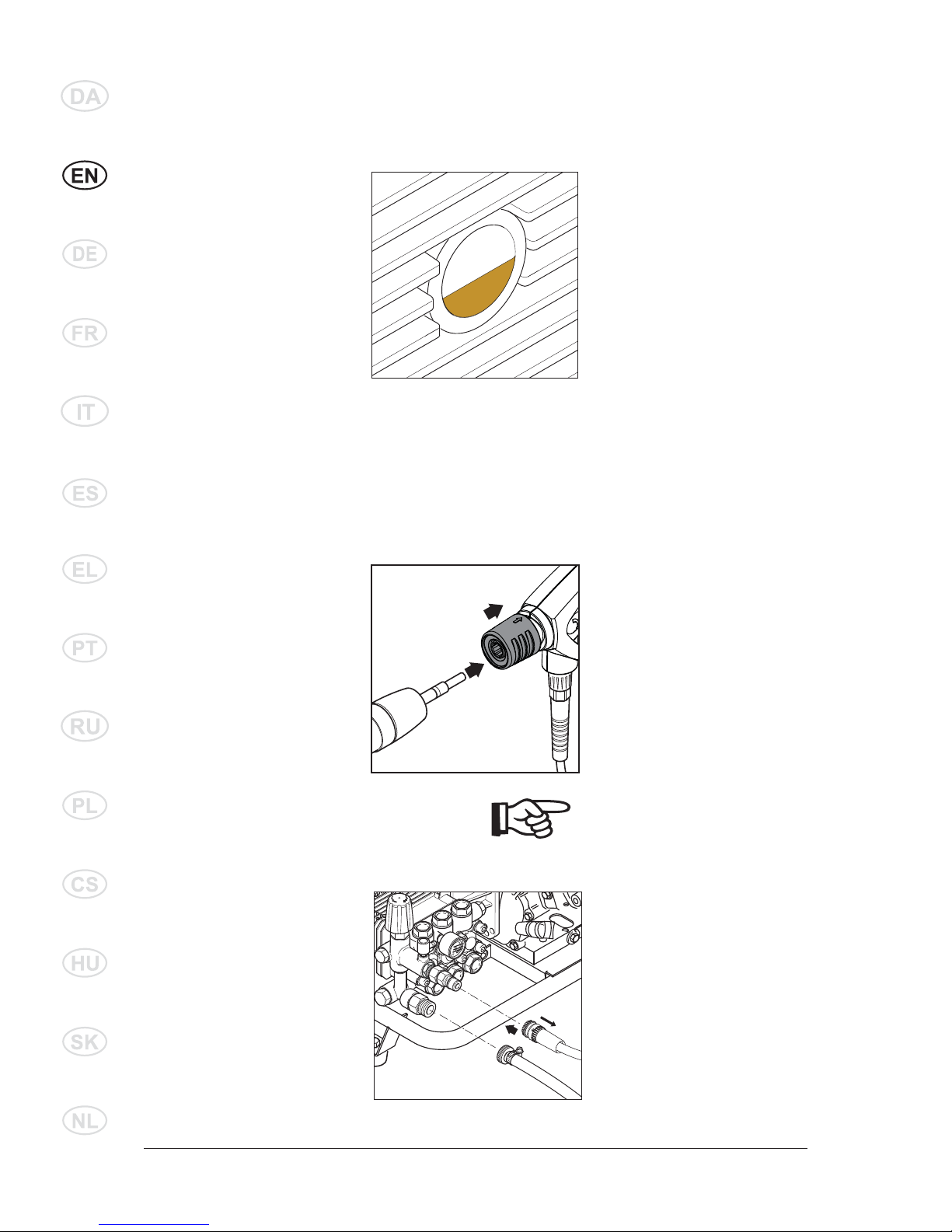

3. Check whether the oil level

is in the middle of the oil

inspection glass. This also

applies to machines with

gear.

4 Operation and use

4.1 Connections

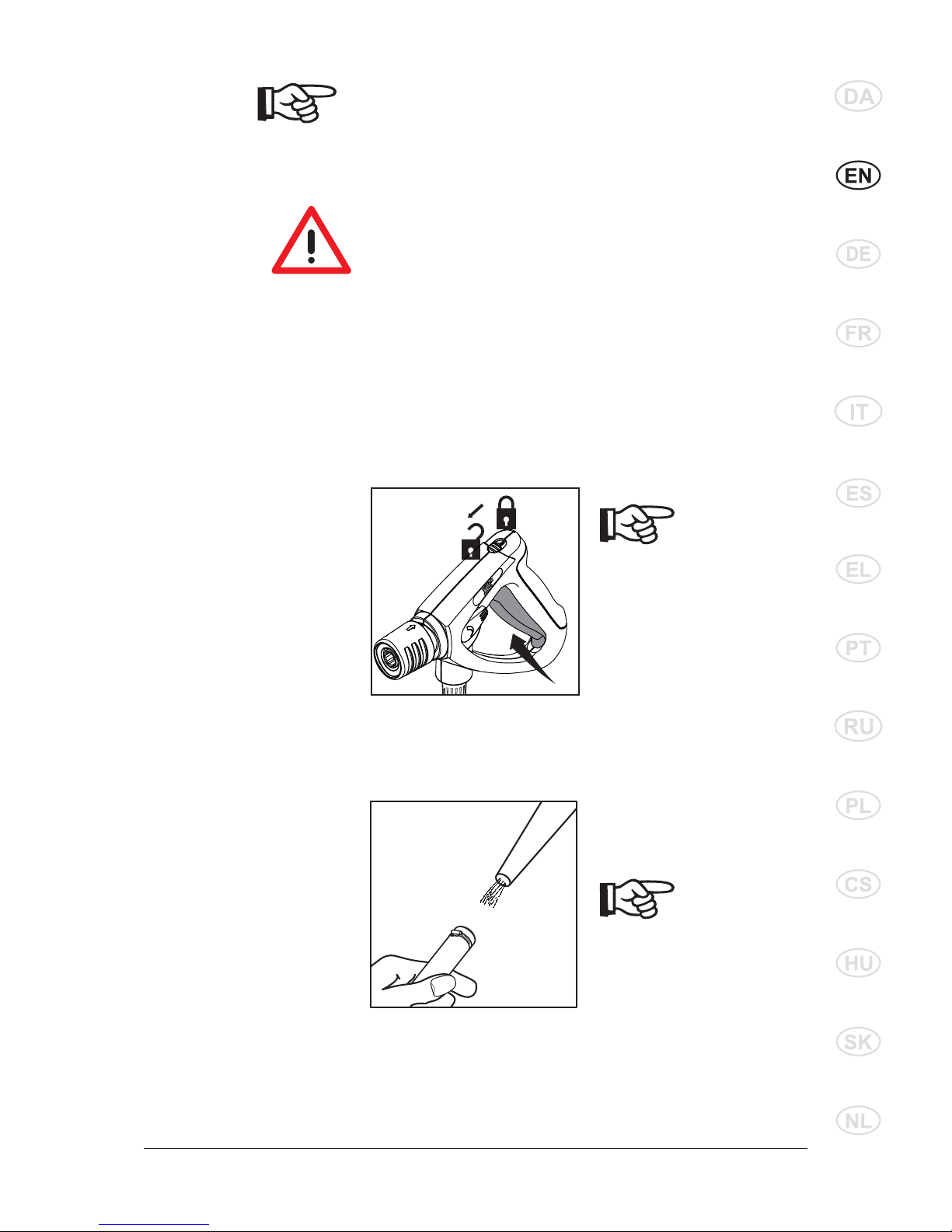

4.1.1 Connecting the lance to

the spray gun

1. Pull the blue quick-release

grip (A) of the spray handle

backwards.

2. Insert the nipple of the spray

lance (B) into the quick-

release connection and

release it.

3. Pull forward the spray lance

or any other accessory to

ensure correct mounting

before starting the machine.

NOTE!

Always remove any dirt from

the nipple before connecting

the lanse to the spray gun.

4.1.2 Connecting the high

pressure hose and the

water hose

1. Connect the high pressure

hose to the high pressure

inlet by means of the quick

coupling. Use max. 50 m

extension hose.

2. Before connecting the water

hose to the washer, rinse the

water hose brieﬂy to prevent

sand and other dirt from

entering into the washer.

3. Open the tap.

(continued -->)

POSEIDON PE/DE

Original Instructions

NOTE!

See chapter 8.3 for required

quantity of water and water

pressure.

In the case of poor water quality

(sand, etc.), we recommend

that a ﬁne water ﬁlter is ﬁtted in

the water inlet.

4.1.3 Fuelling WARNING!

Always shut off the engine

and let it cool for at least two

minutes before fuelling.

Avoid spilling fuel.

If you do spill fuel when fuelling,

do not start the engine before

the spilled fuel has evaporated.

If the washer is on a trailer, any

fuel spills must be wiped up

before the machine is started.

Never expose the machine

to an open ﬂame. Smoking is

prohibited during fuelling. Also

read the operating manual for

the fuel engine.

Note: Never operate the

machine in a closed room; the

exhaust fumes are dangerous.

Follow the safety instructions

in chapter 1!

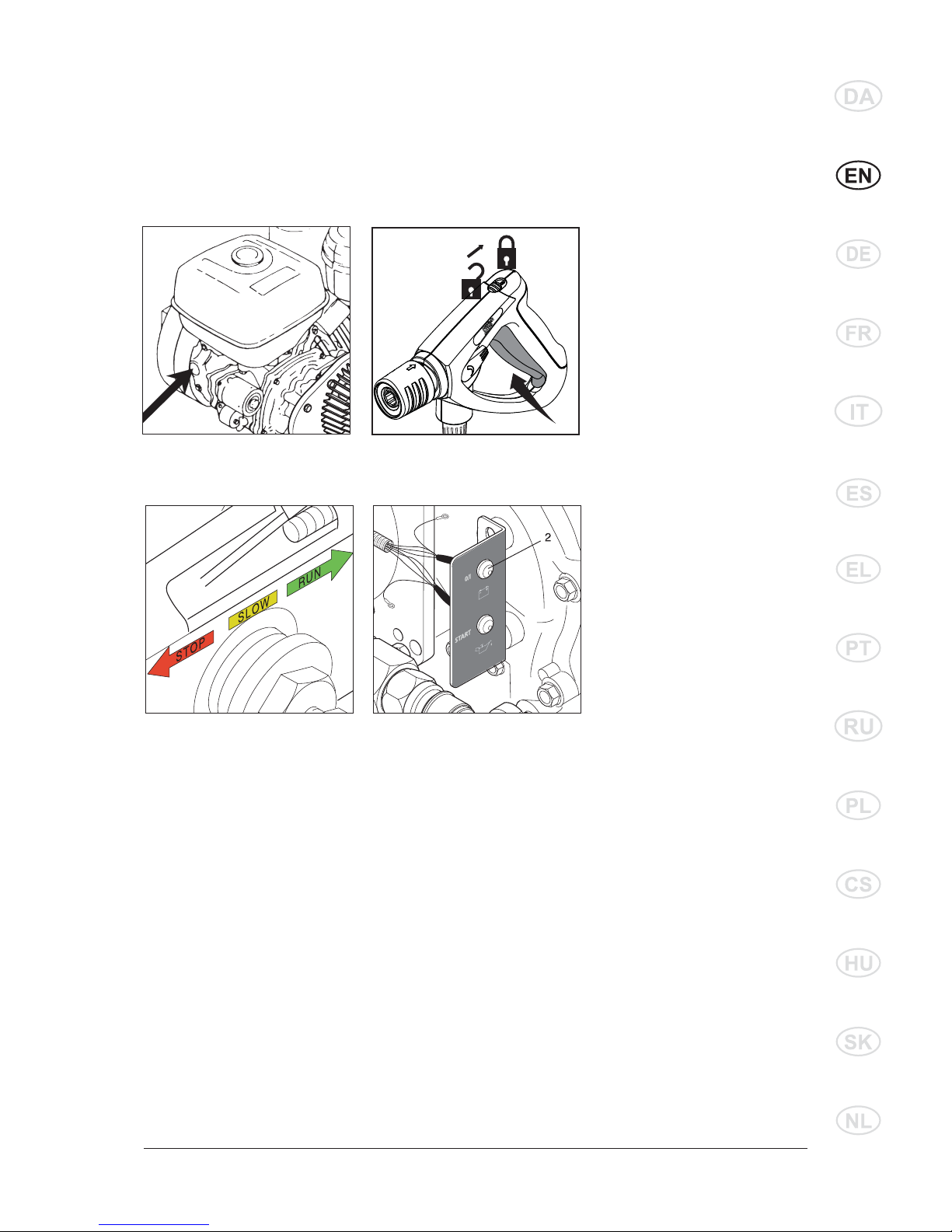

4.2 Start the washer

4.2.1 Switching on the

washer when it is

connected to a water

supply

2. Unlock the spray gun and

activate it.

3. Lock the safety catch even

during short pauses.

NOTE!

Activate the spray

gun several times

at short intervals to vent the

system.

If it requires too much power to

start the engine, it can be

facilitated by removing the

spray lance and activate the

spray gun during startup.

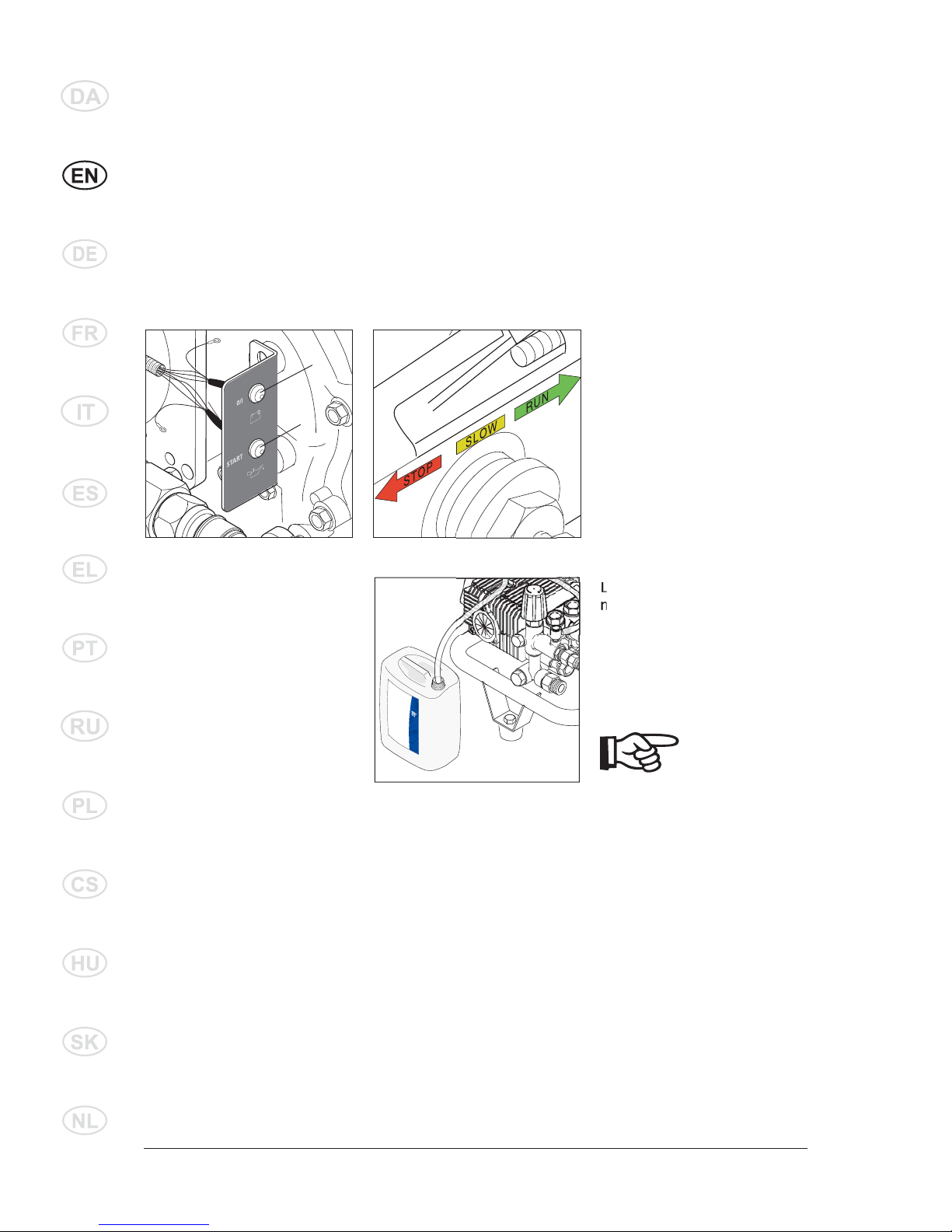

4.2.2 Switching on the

washer when it is

connected to open

tanks (suction mode)

1. Before connecting the suction

hose to the washer, ﬁll the

hose with water.

2. Start the washer.

3. Unlock the spray gun and

activate it.

4. When using this machine in

suction mode, ﬁrst ensure

that the system has been

bled of air by letting the

machine run without spray

lance mounted until all air

has escaped.

During work

breaks of more

than three minutes,

switch off the washer.

NOTE!

For automatic suction from a

tank, watercourse or similar

supply, the inlet hose must be

ﬁlled with water before you

start. The suction height

(continued -->)

1. Start the engine. (See the

operating manual for the fuel

engine.)

POSEIDON PE/DE

Original Instructions

depends on the water

temperature. Max. suction

height (see section 8.3

Technical Data) is reached with

cold water (up to 8°C). With

70°C/60°C warm water, the

machine must be under or at

the water level.

4.2.3 Start POSEIDON PE + oil light indicators will turn

on.

2. Move the throttle lever to

SLOW or RUN position.

3. Push the start button until

the machine starts. Now the

charging + oil light indicators

will turn off. If not, stop the

machine immediately and

contact Nilﬁsk-ALTO service

department.

4. The machine can be started

by means of the starter rope

if the battery has gone ﬂat.

See manual from Yanmar.

4.3 Using detergents Detergent can be added by

means of the detergent injector.

1. Dilute detergent according

to the manufacturer's

instructions.

2. Set the pressure to the

lowest setting on the lance.

CAUTION!

Never allow

detergent to dry

on the surface to be cleaned

as this may cause damage.





1. Switch on the ignition by

pushing the ON/OFF button

of the machine. The charging

If the water being suctioned

contains particles, a suction

ﬁlter must be mounted on the

end of the hose.

In case of risk of running sands,

a sand ﬁlter must be attached.

POSEIDON PE/DE

Original Instructions

5 After using the washer

5.1 Stop the pressure

washer

1. Stop the engine.

2. Close the tap.

3. Operate the spray gun until

the wasser is depressurized.

4. Lock the safety catch.

Switching off POSEIDON DE

1. Stop the washer by moving

the throttle lever to STOP

position.

2. Switch off the ignition by

pushing the ON/OFF button.

The light indicators will now

turn off.

5.2 Disconnecting supply

lines

1. Shut the fuel cock.

2. Remove the water hose from

the washer.

5.3 Storing the washer

(frost-protected)

1. Store the pressure washer in

a dry room without danger of

frost.

IMPORTANT!

If the high-pressure washer

is stored in a room with

temperatures around or

below 0°C, anti-freeze should

be drawn into the pump

beforehand:

1. Remove the water inlet hose

from the washer.

2. Remove the lance.

3. Start the washer and stop it

again after max. one minute.



4. Connect the suction hose

to the water inlet of the

washer and place it in a tank

containing anti-freeze.

5. Start the washer.

6. Hold the spray gun over the

tank containing anti-freeze

and activate it to start suction

of anti-freeze.

7. During suction operate the

spray gun two or three times.

8. Lift the suction hose from the

tank containing anti-freeze

and activate the spray gun to

pump out the remaining anti-

freeze.

9. Stop the washer.

Altri manuali per Poseidon PE

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Nilfisk-ALTO Idropulitrice

Nilfisk-ALTO

Nilfisk-ALTO Powerspeed Vario Plus Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO MC 5M Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO E 130.1 Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO POSEIDON 2-21 Guida all'installazione

Nilfisk-ALTO

Nilfisk-ALTO NEPTUNE NEPTUNE 1 Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO NEPTUNE NEPTUNE 2 Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO NEPTUNE 4 FA Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO Multi-User Pressure Washer System Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO SOLAR BOOSTER EH Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO SOLAR BOOSTER GH Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO NEPTUNE NEPTUNE 1 Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO NEPTUNE 4 FA Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO C 120.2 Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO C 105.5 Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO POSEIDON 3 Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO POSEIDON 4 Series Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO POSEIDON 5 Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO CONTRACTOR MASTER Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO POSEIDON 5-54 DE Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO POSEIDON 2-19 X Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO POSEIDON 4 Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO POSEIDON 2-29 Istruzioni operative

Nilfisk-ALTO

Nilfisk-ALTO POSEIDON 3 Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO POSEIDON 2-19 X Manuale utente

Manuali Idropulitrice popolari di altre marche

Shark

Shark RG-232637 Manuale utente

Shakti Technology

Shakti Technology S3 Manuale utente

Kärcher

Kärcher K 4 Pure Manuale utente

Porter-Cable

Porter-Cable D25806-025-2 Manuale utente

REM POWER

REM POWER HDEm 662 Manuale utente

Landa

Landa HS-3000 Manuale utente

Craftsman

Craftsman 580.752270 Manuale utente

HIKOKI

HIKOKI AW 100 Manuale utente

Delco

Delco DC 1302 Manuale utente

Kärcher

Kärcher K 3 Full Control Manuale utente

BIEMMEDUE

BIEMMEDUE 120/10 - 170/13 Manuale utente

ARKSEN

ARKSEN 014-HG-14141-HR Manuale utente

Black & Decker

Black & Decker PW1700SPX Manuale utente

Kärcher

Kärcher 595 - SPARE Guida

Kranzle

Kranzle B 10 200 Manuale utente

Stihl

Stihl RE 90 Manuale utente

Husky

Husky HU80911 Manuale utente

PowR-Quip

PowR-Quip PQ-2600 Manuale utente
