Nokia 206 Dual SIM Manuale utente

Check the repair

policy before

performing any

mechanical repair

on Service Level

1&2!

Service Manual for L1 and L2

Nokia 206 Dual SIM/2060,

Nokia 206

RM-872, RM-873

Key features

S40 Operating system

Dual SIM Easy SWAP (RM-872)

Big and bright screen

Powerful battery

2G Connections with background GPRS

Version 1.0

Exploded view Disassembly steps Assembly hints

Service devices Product controls and interfaces Solder components

Service concept

More More More

Service Manual Level 1 and 2

Nokia 206 Dual SIM/2060, Nokia 206

RM-872, RM-873

Version 1.0

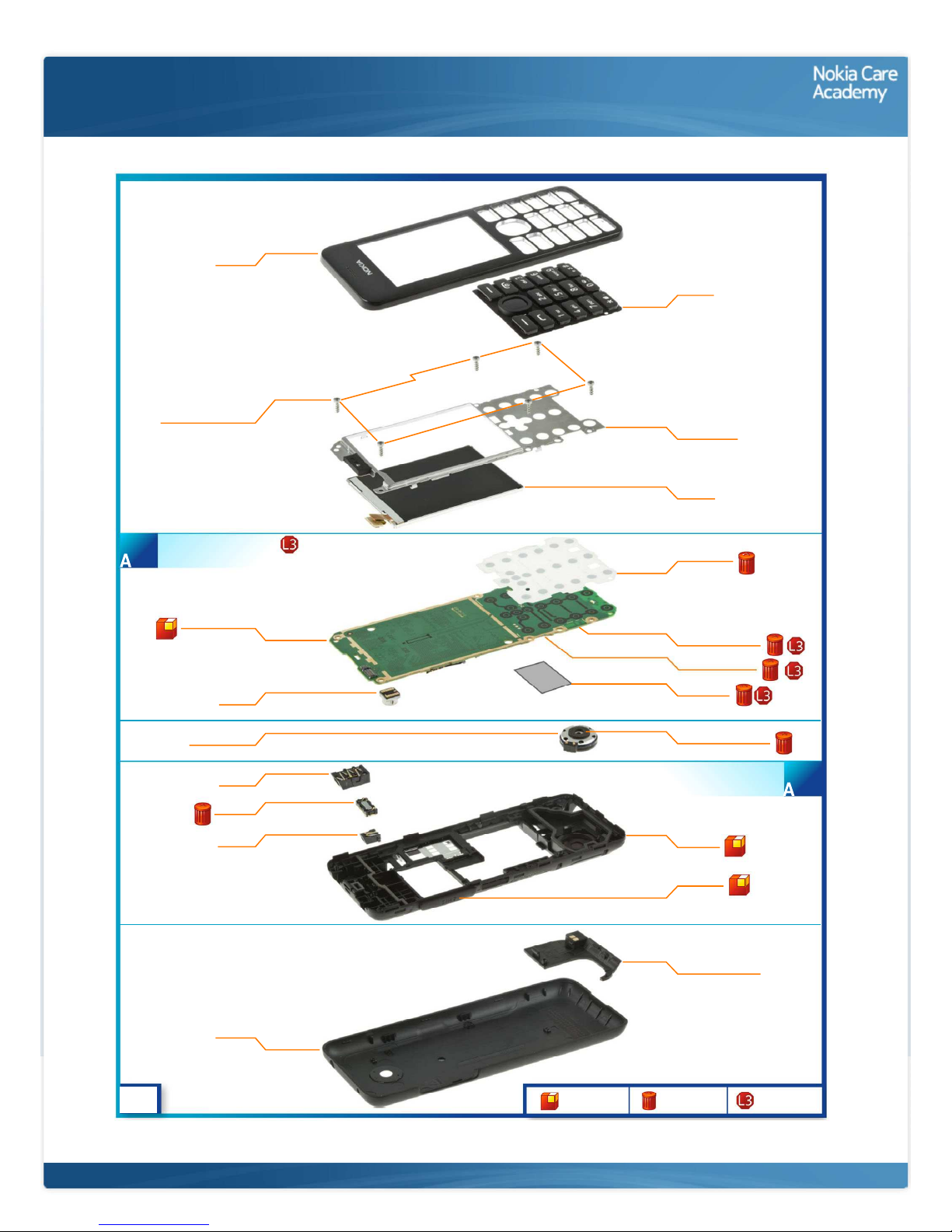

Exploded view

LIGHT SWAP PWB

I0007

B-COVER

I0020

A-COVER

I0001

CAMERA

I0006

AV JACK

I0012

EARPIECE

I0014

DC JACK

I0013

3 IN 1 SPEAKER

I0018

KEYMAT

I0002

DOMESHEET

I0008

SIM DOOR

I0016

*Only in dual SIM variant (RM-873)

UI SHIELDING

I0004

DISPLAY

I0005

TYPE LABEL

I0011

GASKET ON SPEAKER

I0019

D-COVER

I0015

ANTENNA MODULE

I0017

BB SHIELDING LID

I0009

FEM SHIELDING LID

I0010

SCREW TORX+ SIZE 6

M1.6 x 4.5

I0003

LIGHT SWAP PACKAGE

(I0006 - I0011)

D-COVER ASSEMBLY

(I0012 - I0016) 2

v1.0 Only available

as assembly

Not reuseable

after removal

Repair/swap

only in level 3

Service Manual Level 1 and 2

Nokia 206 Dual SIM/2060, Nokia 206

RM-872, RM-873

Version 1.0

Disassembly steps

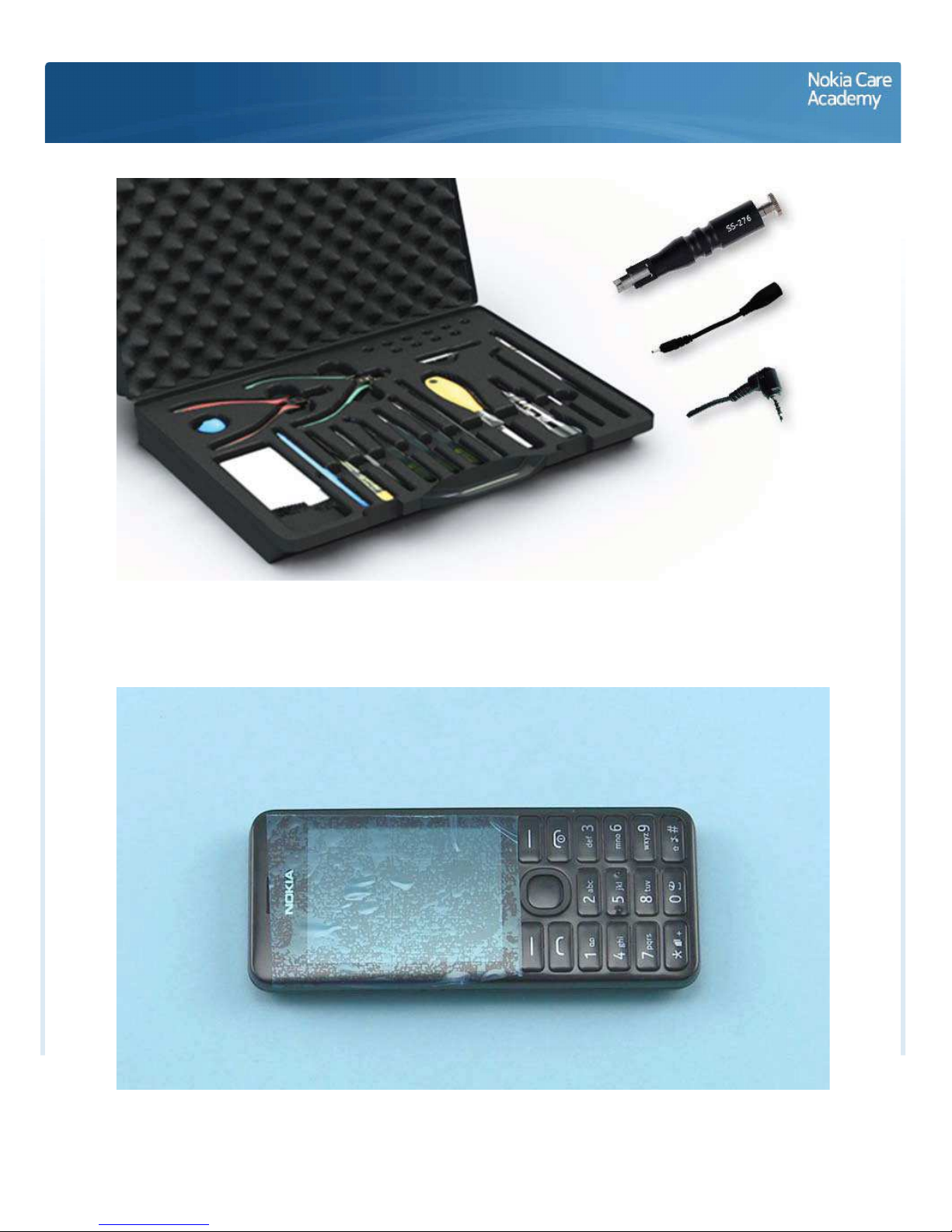

For disassembling you need the Nokia Standard toolkit version 2. You will also need an AV plug, a DC plug

and the camera removal tool SS-276.

Note that the disassembly instructions are made witht the dual SIM variant (RM-872).

Protect the A-COVER with protective film.

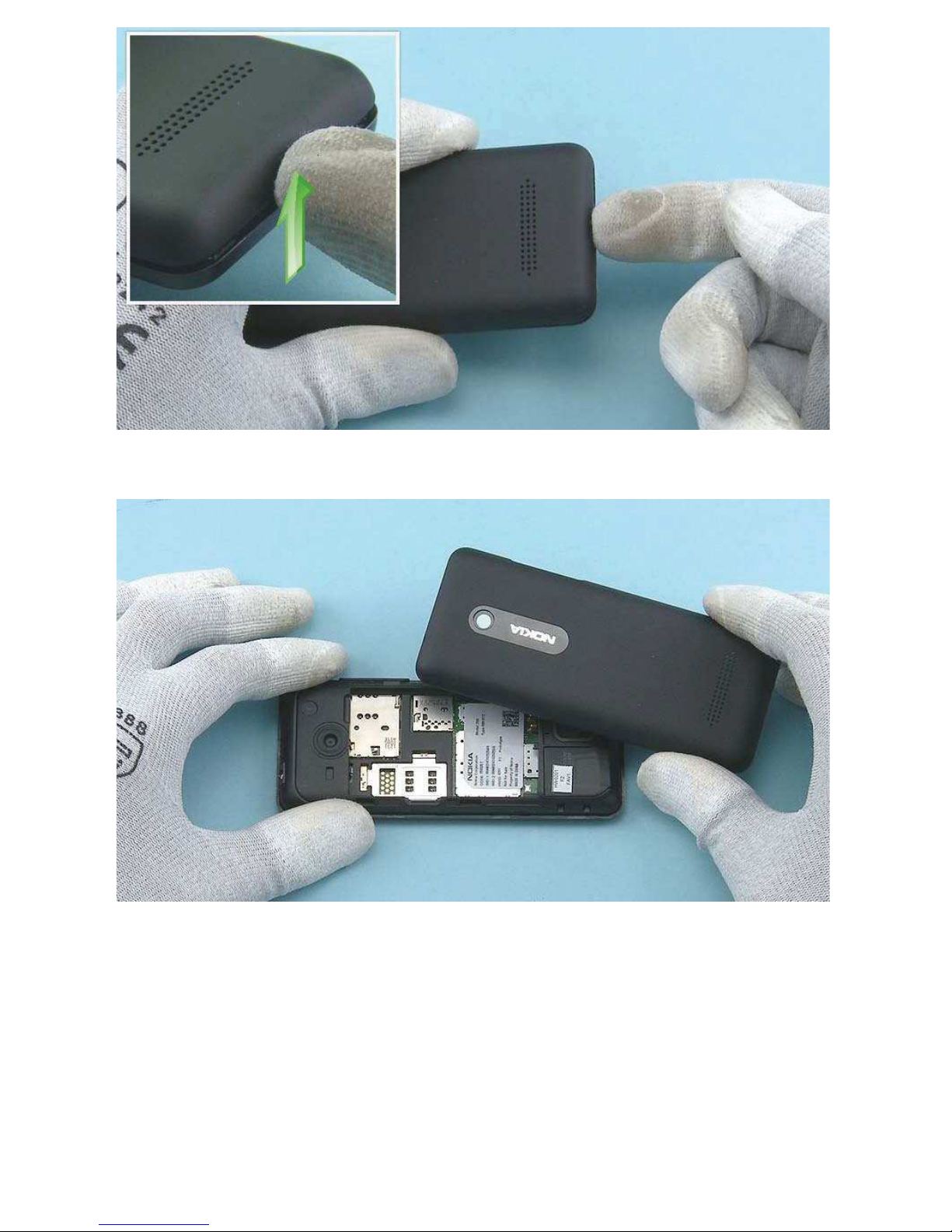

Release the B-COVER by using the release notch on the bottom of the device.

Remove the B-COVER.

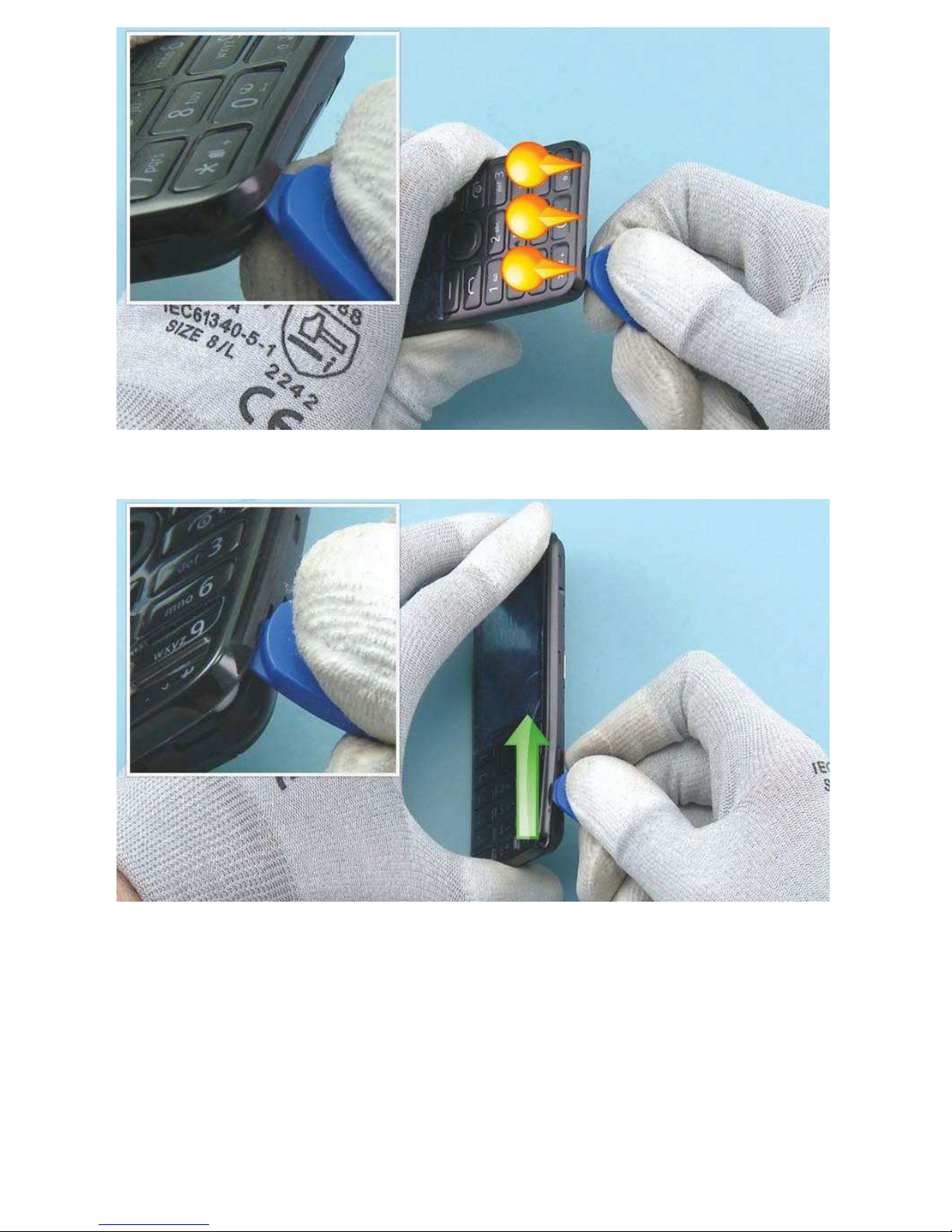

To remove the A-COVER, first release the clips from the bottom of the device with the SRT-6.

Then release the clips from the right side by sliding the SRT-6 along the side.

Then release the clips from the left side by sliding the SRT-6 along the side.

Then release the top side.

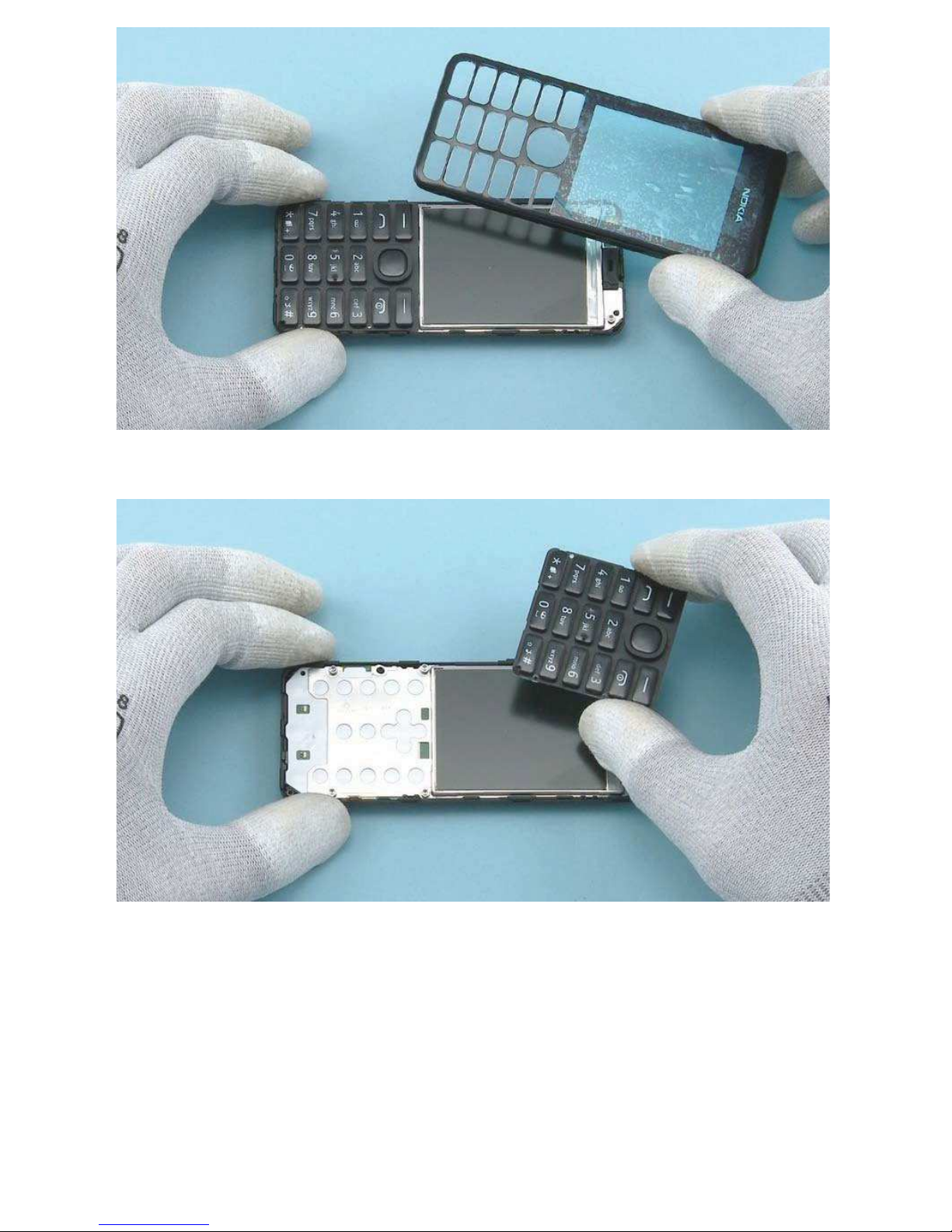

Remove the A-COVER.

Remove the KEYMAT.

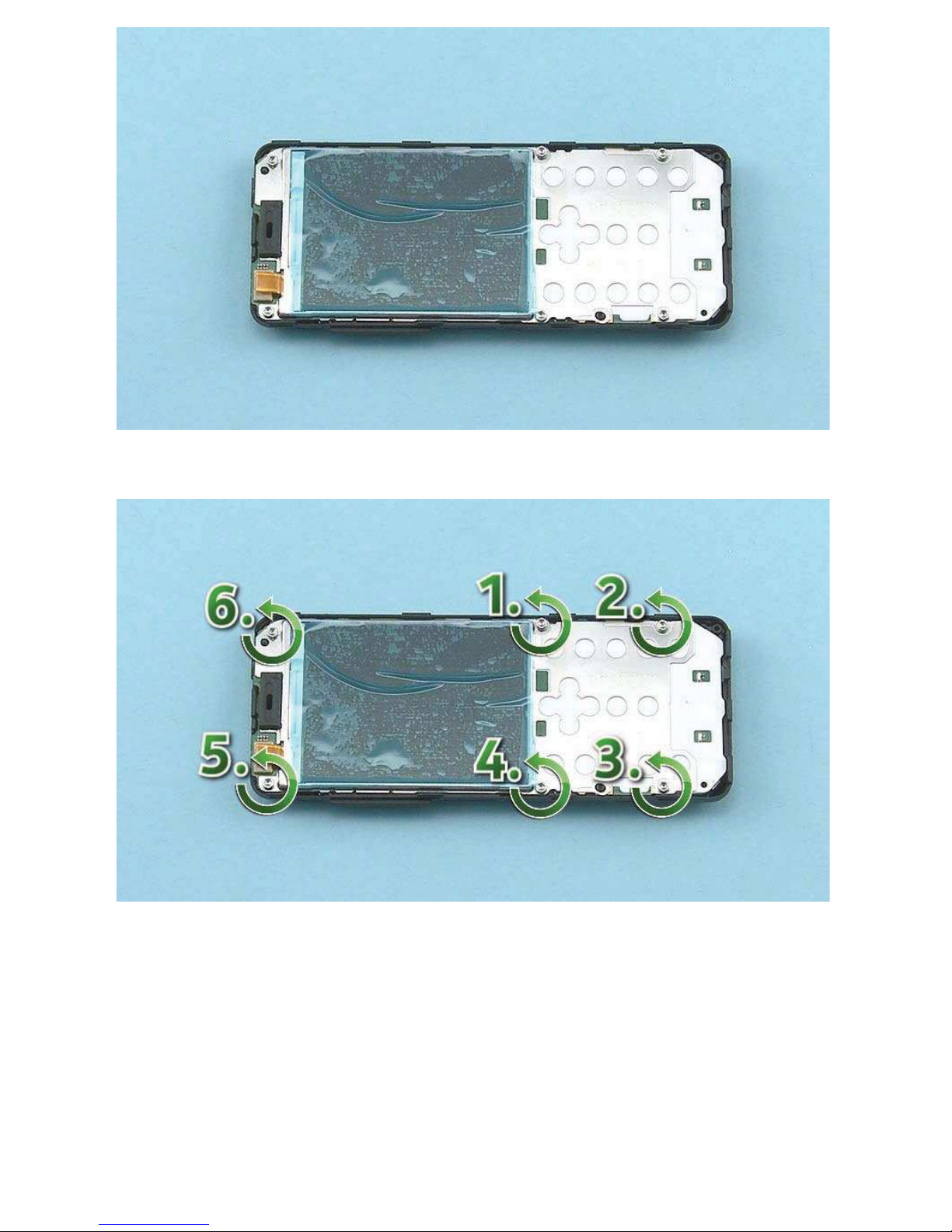

Protect the DISPLAY with protective film.

Unscrew the six Torx+ size 6 screws in the order shown.

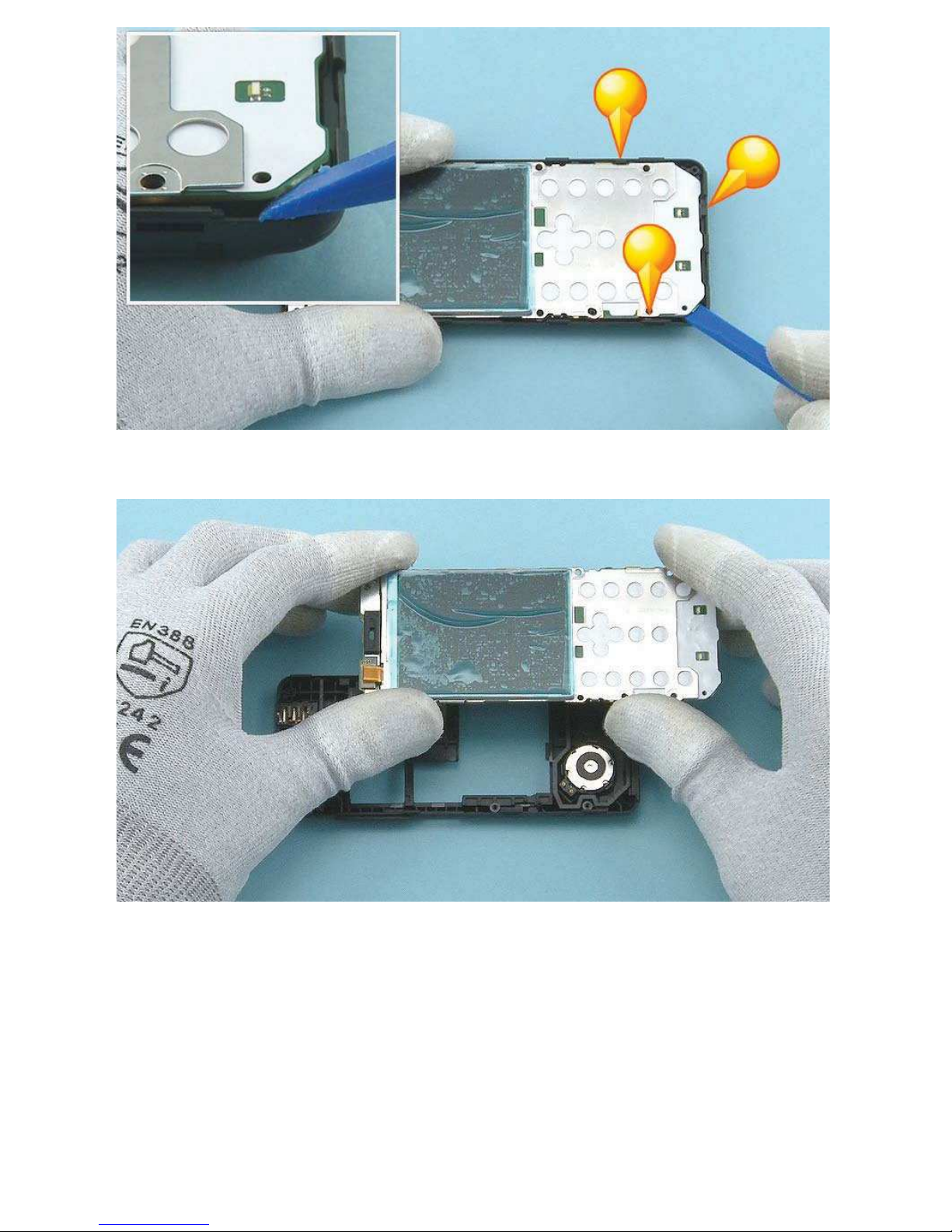

To remove the ENGINE BOARD, release the three shown clips with the SS-93.

Lift up and remove the ENGINE BOARD.

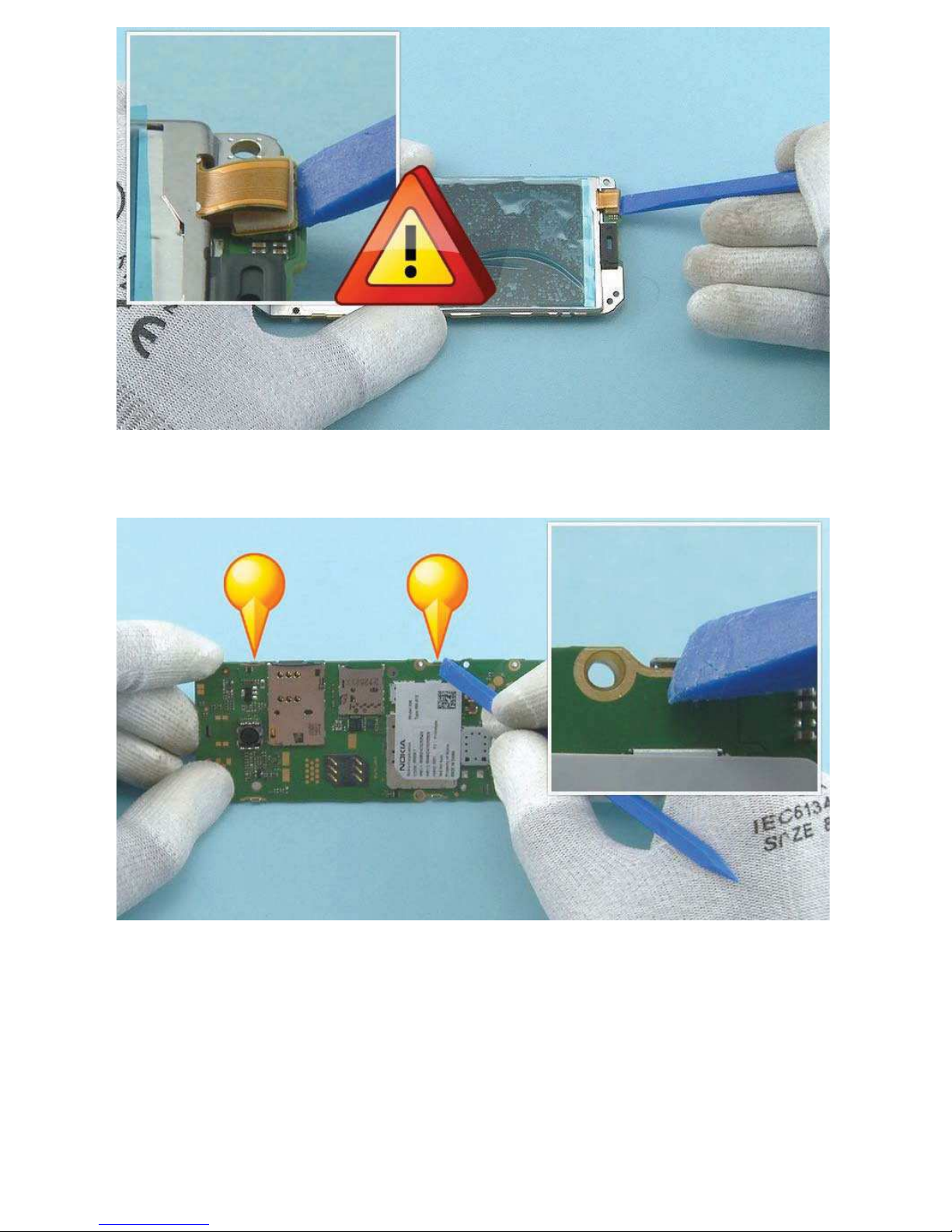

Open the DISPLAY connector with the SS-93. Be careful not to damage the connector or any

components nearby.

To remove the UI SHIELDING, release the two clips from the shown side.
