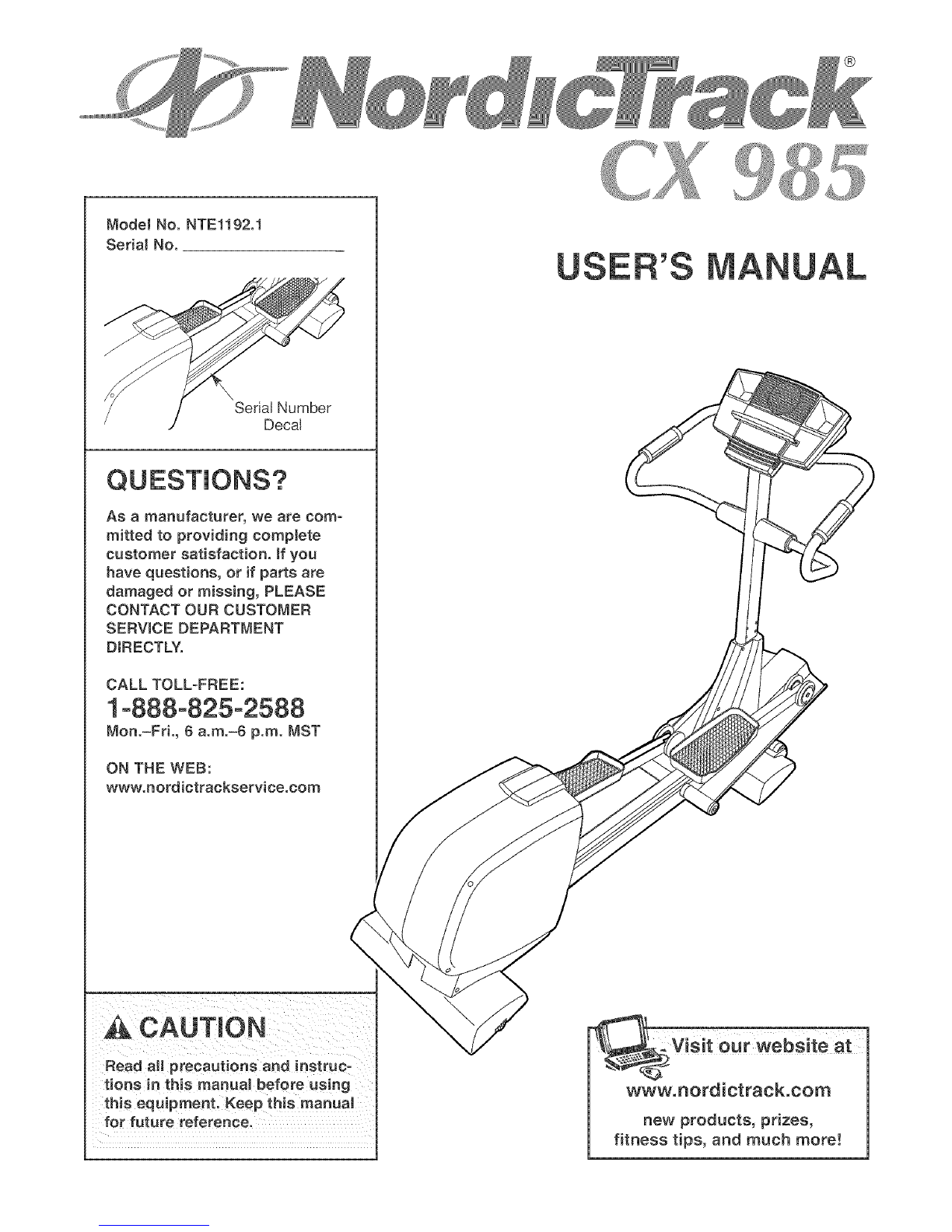

NordicTrack CX 985 NTE1192.1 Manuale utente

ModelNo.NTE1192.1

SerialNo.

SerialNumber

Decal

QUESTIONS?

As a manufacturer, we are corn =

rnitted to providing complete

customer satisfaction. If you

have questions, or if parts are

damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1°888°825°2588

Mon.=Fri., 6 a.rn.=6 p.m. MST

ON THE WEB:

www.nordictrackservice.corn

USER'S

A CAUTION

Read aH precautions and instruc-

tions in this manual before using

this equipment. Keep this rnanuaJ

for future reference, new products, prizes,

fitness tips, and much more!

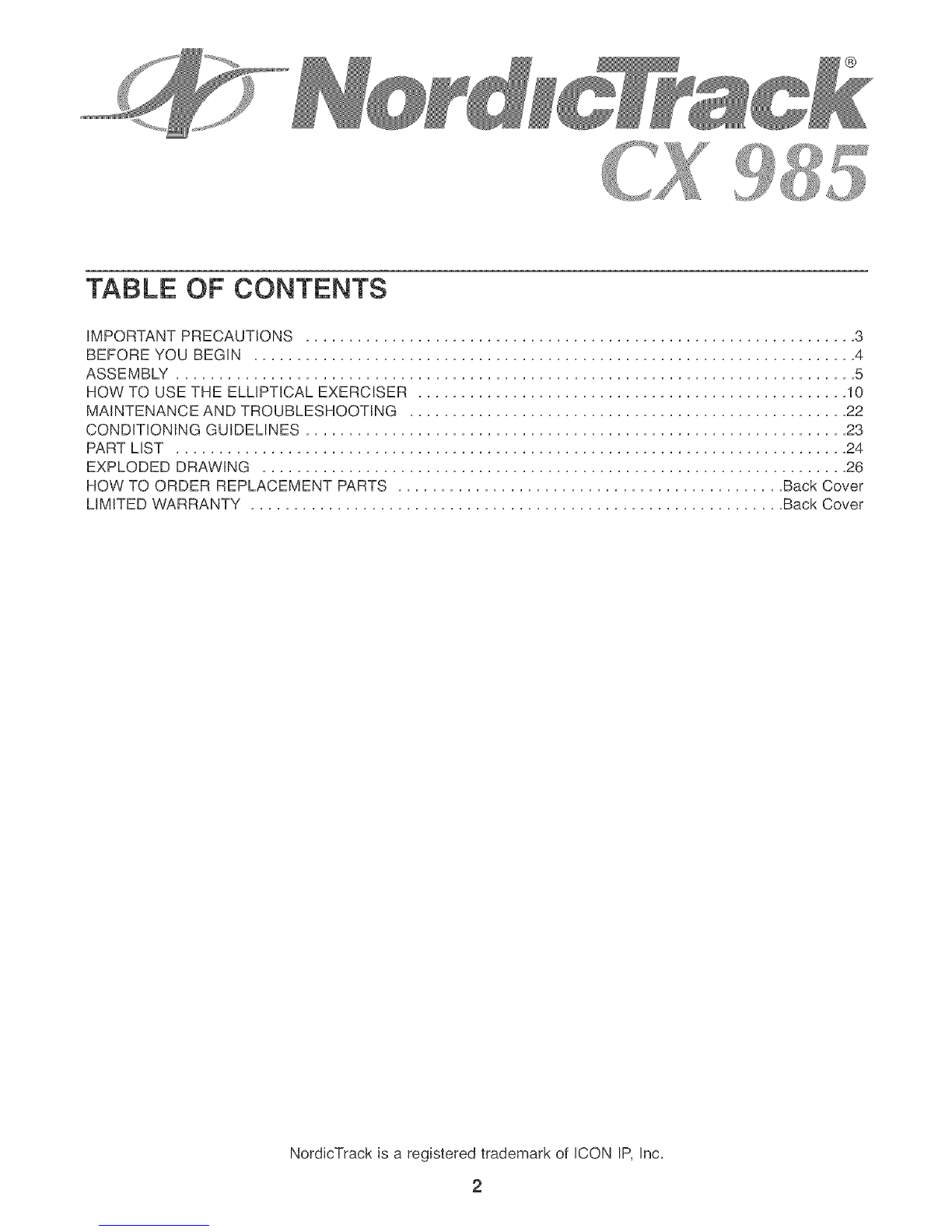

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS ................................................................ 3

BEFORE YOU BEGIN ...................................................................... 4

ASSEMBLY ............................................................................... 5

HOW TO USE THE ELLIPTICAL EXERCISER .................................................. 10

MAINTENANCE AND TROUBLESHOOTING ................................................... 22

CONDITIONING GUIDELINES ............................................................... 23

PART LIST .............................................................................. 24

EXPLODED DRAWING .................................................................... 26

HOW TO ORDER REPLACEMENT PARTS ............................................. Back Cover

LIMITED WARRANTY .............................................................. Back Cover

NordicTrack is a registered trademark of ICON IP, Inc,

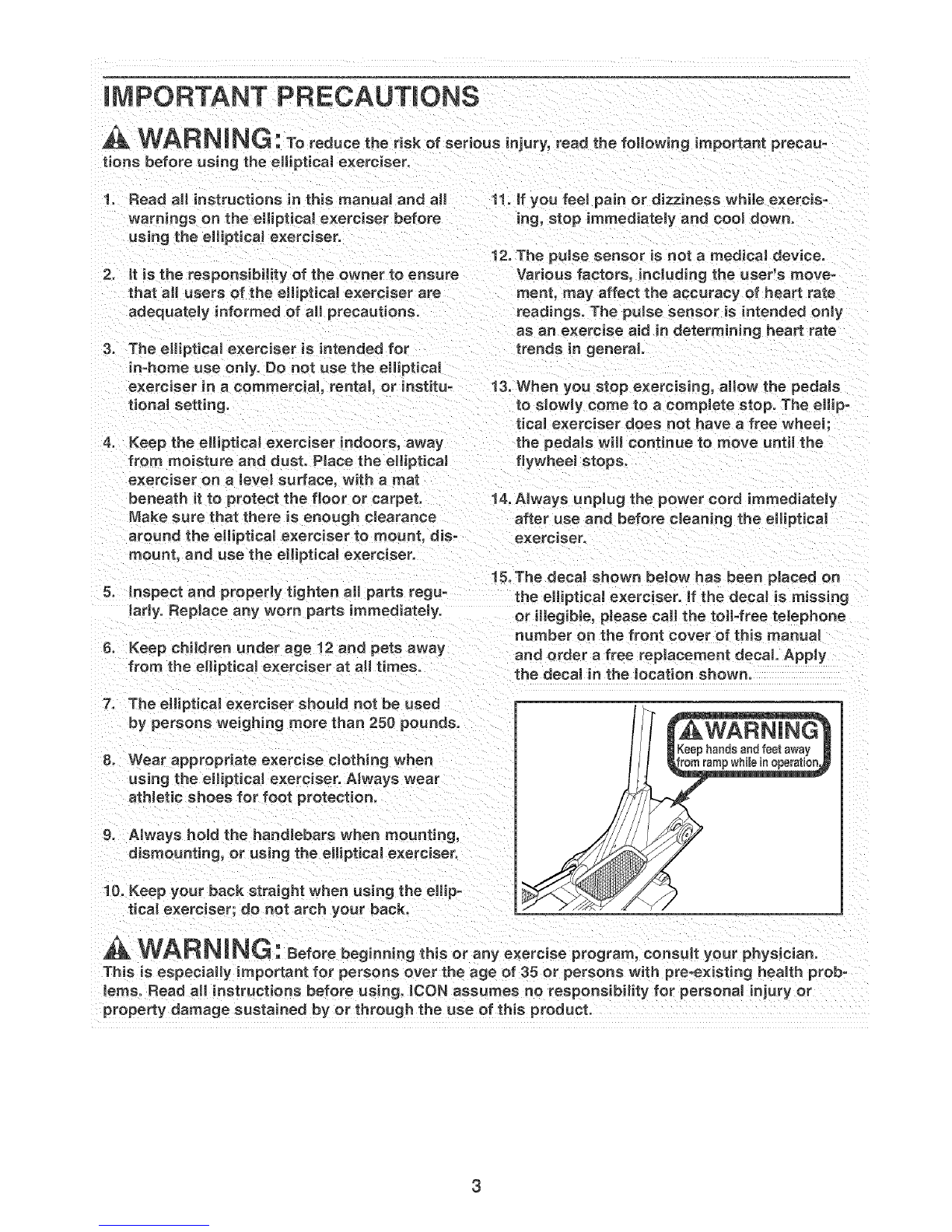

_WARNING: Toreducethe.ekofso.ousinjury,reedthefo,owingimportantprecau-

tionsbefore using the elliptical exerciser.

1. Reed sJl instructions in this msnusJ end sJl

warnings on the elliptical exerciser before

using the eJiiptiesl exerciser.

It is the responsibility of the owner to ensure

that ell users of the elliptical exerciser are

adequately informed of sH precautions.

3. The elJiptiesJ exerciser is intended for

in-home use only. Do not use the elliptical

exerciser in s eommereisJ, rental, or instituo

tionsl setting.

11. If you feel pain or dizziness while exerciso

ing, stop immedisteJy end cool down.

12. The pulse sensor is not s medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended onJy

as sn exercise aid in determining heart rate

trends in general

13. When you stop exercising, show the pedals

to slowly come to s complete stop. The eJHpo

ticai exerciser does not have s free wheel;

4. Keep the elliptiesJ exerciser indoors, sway the pedals will continue to move until the

from moisture end dust. PJaee the elliptical flywheeJ stops.

exerciser on s level surface, with a met

beneath it to protect the floor or carpet.

Make sure that there is enough clearance

around the elliptical exerciser to mount, dis-

mount, end use the elliptical exerciser.

5. inspect snd properly tighten sit parts regu-

larly. Fieplsce any worn parts immediately.

6. Keep chiJdren under age 12 and pets sway

from the elliptical exerciser st sJJtimes.

14. Always unplug the power cord immediately

after use end before cleaning the elliptical

exerciser,

15.The deesJ shown beJow has been placed on

the elliptical exerciser, if the decal is missing

or illegible, please ceil the toil-free telephone

number on the front cover of this manual

snd order afree replacement decal Apply

the decal in the location shown.

7. The elliptical exerciser should not be used

by persons weighing more than 250 pounds.

8. Wear appropriate exercise clothing when

using the eIHptiesl exerciser. ARways wear

athletic shoes for foot protection.

9. Always hoJd the handlebars when mounting,

dismounting, or using the elliptical exerciser.

10. Keep your back straight when using the ellip-

tical exerciser: do not arch your back.

A WAR NING: Beforebeginningth_sorshyexerciseprogram,consultyourphysician.

This is especially important for persons over the age of 35 or persons with pre-existing heaJtb probo

lame. Bead alJ instructions before using, iCON assumes no responsibility for persons1 injury or

property damage sustained by or through the use of this product.

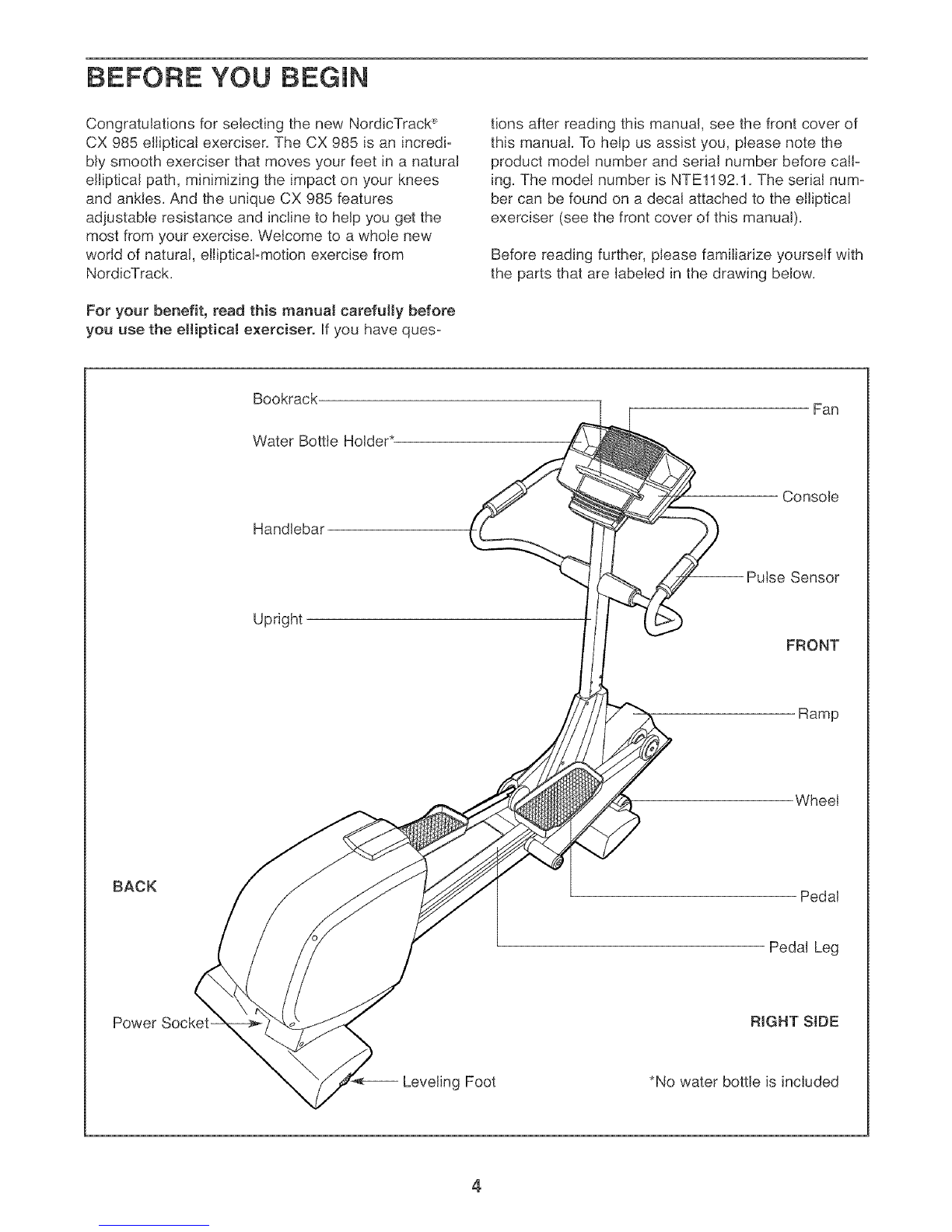

BEFORE YOU BEGIN

Congratulations for selecting the new NordicTrack _'

CX 985 elliptical exerciser. The CX 985 is an incredi-

bly smooth exerciser that moves your feet in a natural

elliptical path, minimizing the impact on your knees

and ankles. And the unique CX 985 features

adjustable resistance and incline to help you get the

most from your exercise. Welcome to a whole new

world of natural, elliptical-motion exercise from

NordicTrack.

For your benefit, read this manual carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, see the front cover of

this manual. To help us assist you, please note the

product model number and serial number before call-

ing. The model number is NTEl192.1. The serial num-

ber can be found on a decal attached to the elliptical

exerciser (see the front cover of this manual).

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Bookrack

Water Bottle Holder*

Fan

Handlebar

Console

Upright

-- Pulse Sensor

FRONT

Ramp

Wheel

BACK Pedal

Pedal Leg

Power Socket- RIGHT StDE

Leveling Foot *No water bottle is included

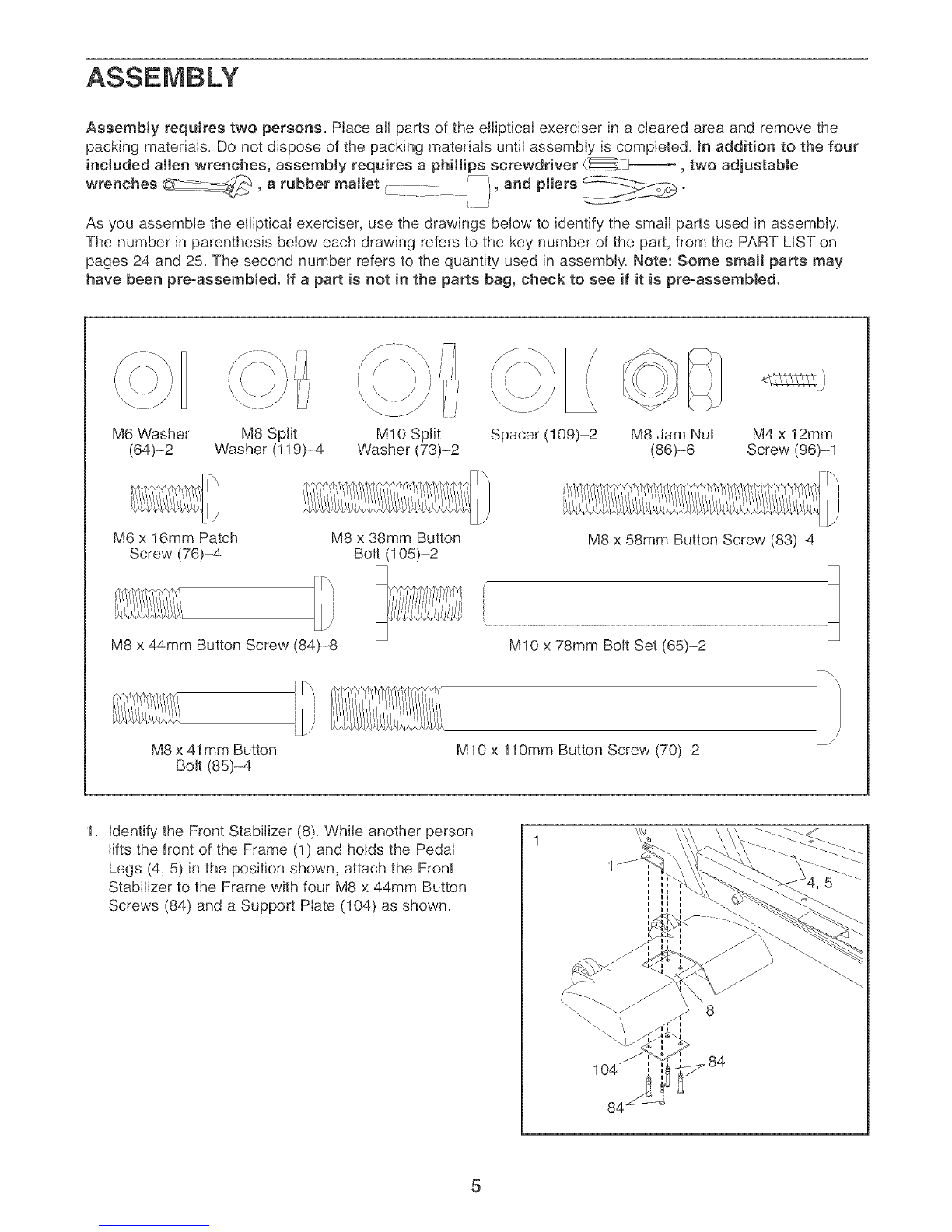

AssembJy requires two persons. PJace aJlparts of the elJipticaJ exerciser Jna cleared area and remove the

packing materiaJs. Do not dispose of the packing materiaJs until assembly is completed. Jnaddition to the four

included allen wrenches, assembly requires a phillips screwdriver _._ _, two adjustabJe

wrenches o__, a rubber mallet • I_, and pJiers

,....... },

As you assemble the elliptical exerciser, use the drawings below to identify the smalJ parts used in assembJy.

The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on

pages 24 and 25. The second number refers to the quantity used in assembJy. Note: Some small parts may

have been preoassembJed, tf a part is not in the parts bag, check to see if it is preoassembJed.

M6 Washer M8 Split MIO Split Spacer (109)-2 M8 Jam Nut M4 x 12mm

(64)-2 Washer (119)-4 Washer (73)-2 (86)-6 Screw (96)-1

M6 x 16mm Patch

Screw (76)-4 M8 x 38mm Button

Bolt (105)-2 M8 x 58mm Button Screw (83)-4

M8 x 44mm Button Screw (84)-8

M8 x 41mm Button

Bolt (85)-4

MIO x 78mm Bolt Set (65)-2

MIO x 110mm Button Screw (70)-2

Identify the Front StabiJizer (8). While another person

lifts the front of the Frame (1) and holds the Pedal

Legs (4, 5) in the position shown, attach the Front

Stabilizer to the Frame with four M8 x 44mm Button

Screws (84) and a Support Plate (104) as shown.

2. 2

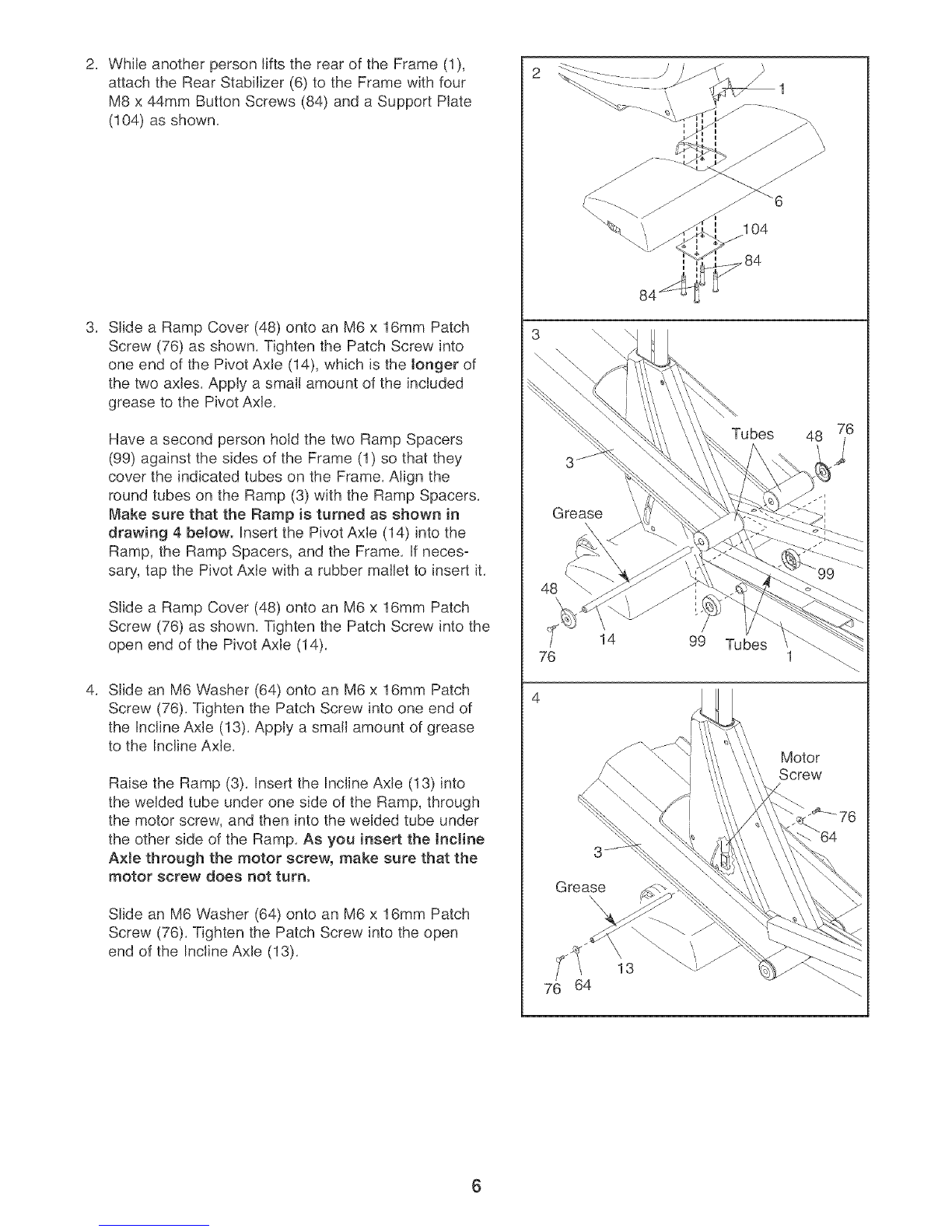

While another person lifts the rear of the Frame (1),

attach the Rear Stabilizer (6) to the Frame with four

M8 x 44mm Button Screws (84) and a Support Plate

(104) as shown.

Slide a Ramp Cover (48) onto an M6 x 16mm Patch

Screw (76) as shown. Tighten the Patch Screw into

one end of the Pivot Axle (14), which is the longer of

the two axles. Apply a small amount of the included

grease to the Pivot Axle.

Have a second person hold the two Ramp Spacers

(99) against the sides of the Frame (1) so that they

cover the indicated tubes on the Frame. Align the

round tubes on the Ramp (3) with the Ramp Spacers.

Make sure that the Ramp is turned as shown in

drawing 4 below. Insert the Pivot Axle (14) into the

Ramp, the Ramp Spacers, and the Frame. If neces-

sary, tap the Pivot Axle with a rubber mallet to insert it.

Slide a Ramp Cover (48) onto an M6 x 16mm Patch

Screw (76) as shown. Tighten the Patch Screw into the

open end of the Pivot Axle (14).

Slide an M6 Washer (64) onto an M6 x 16mm Patch

Screw (76). Tighten the Patch Screw into one end of

the Incline Axle (13). Apply a small amount of grease

to the Incline Axle.

Raise the Ramp (3). Insert the Incline Axle (13) into

the welded tube under one side of the Ramp, through

the motor screw, and then into the welded tube under

the other side of the Ramp. As you insert the Incline

A×Je through the motor screw, make sure that the

motor screw does not turn.

Slide an M6 Washer (64) onto an M6 x 16mm Patch

Screw (76). Tighten the Patch Screw into the open

end of the Incline Axle (13).

\ 104

'\\

Grease

76 14 99 Tubes 1

Motor

Screw

Grease

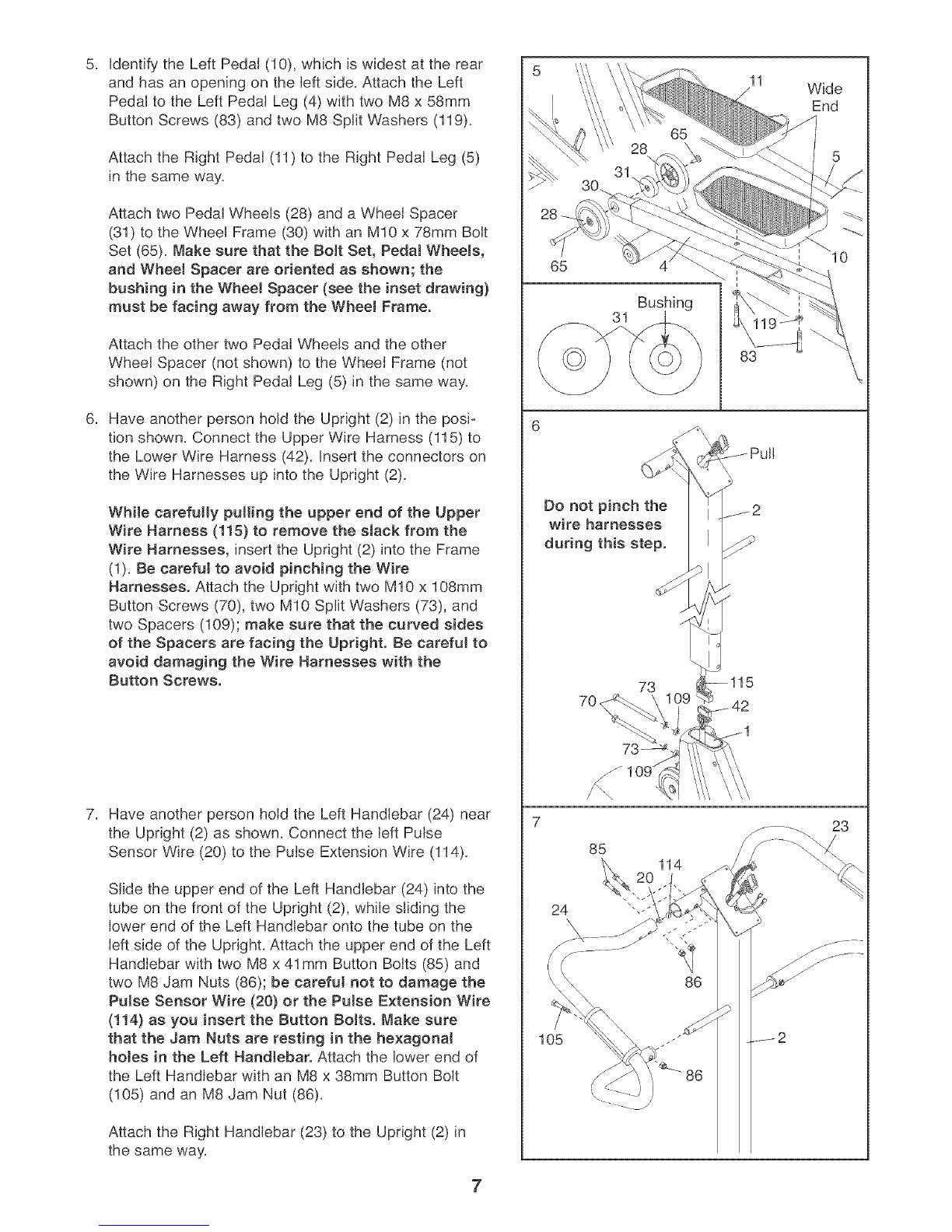

Identify the Left Pedal (10), which is widest at the rear

and has an opening on the left side. Attach the Left

Pedal to the Left Pedal Leg (4) with two M8 x 58mm

Button Screws (83) and two M8 Split Washers (119).

Attach the Right Pedal (11) to the Right Pedal Leg (5)

in the same way.

Attach two Pedal Wheels (28) and a Wheel Spacer

(31) to the Wheel Frame (30) with an M10 x 78mm Bolt

Set (65). Make sure that the Bott Set, Pedal Wheets,

and Wheel Spacer are oriented as shown; the

bushing in the WheeJ Spacer (see the inset drawing)

must be facing away from the WheeJ Frame.

Attach the other two Pedal Wheels and the other

Wheel Spacer (not shown) to the Wheel Frame (not

shown) on the Right Pedal Leg (5) in the same way.

Have another person hold the Upright (2) in the posi=

tion shown. Connect the Upper Wire Harness (115) to

the Lower Wire Harness (42). Insert the connectors on

the Wire Harnesses up into the Upright (2).

While carefully pulling the upper end of the Upper

Wire Harness (115) to remove the stack from the

Wire Harnesses, insert the Upright (2) into the Frame

(1). Be careful to avoid pinching the Wire

Harnesses. Attach the Upright with two M10 x 108mm

Button Screws (70), two M10 Split Washers (73), and

two Spacers (109); make sure that the curved sides

of the Spacers are facing the Upright. Be careful to

avoid damaging the Wire Harnesses with the

Button Screws.

Have another person hold the Left Handlebar (24) near

the Upright (2) as shown. Connect the left Pulse

Sensor Wire (20) to the Pulse Extension Wire (114).

Slide the upper end of the Left Handlebar (24) into the

tube on the front of the Upright (2), while sliding the

lower end of the Left Handlebar onto the tube on the

left side of the Upright. Attach the upper end of the Left

Handlebar with two M8 x 41 mm Button Bolts (85) and

two M8 Jam Nuts (86); be careful not to damage the

Pulse Sensor Wire (20) or the Pulse Extension Wire

(114) as you insert the Button Bolts. Make sure

that the Jam Nuts are resting in the he×agonal

holes in the Left HandJebar. Attach the lower end of

the Left Handlebar with an M8 x 38mm Button Bolt

(105) and an M8 Jam Nut (86).

Attach the Right Handlebar (23) to the Upright (2) in

the same way.

11 Wide

End

Bushing

Do not pinch the

wire harnesses

during this step.

85 114

105

8, 8

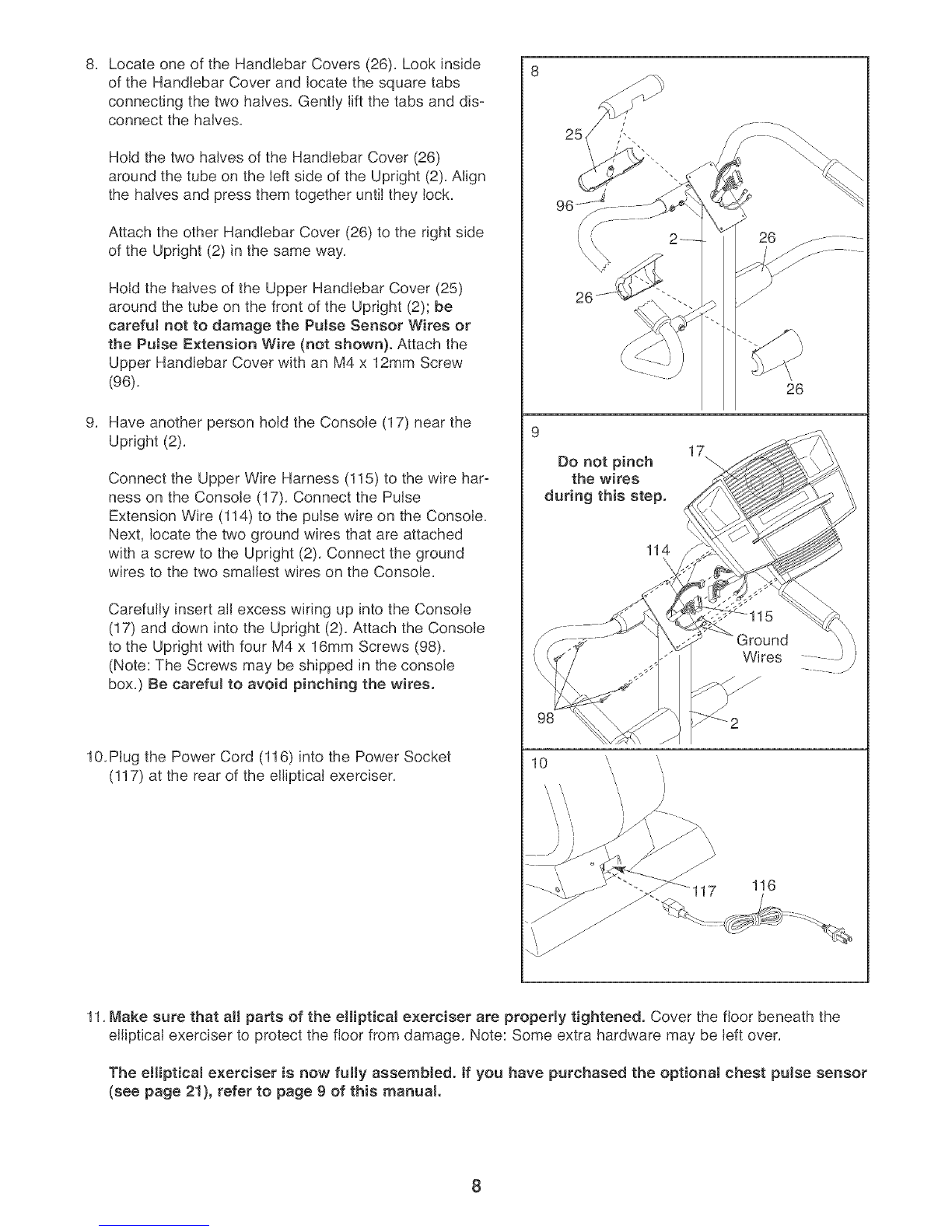

LocateoneoftheHandlebarCovers(26),Lookinside

oftheHandlebarCoverandlocatethesquaretabs

connectingthetwohalves,Gentlyliftthetabsanddis-

connectthehalves,

HoldthetwohalvesoftheHandlebarCover(26)

aroundthetubeontheleftsideoftheUpright(2),Align

thehalvesandpressthemtogetheruntiltheylock,

AttachtheotherHandlebarCover(26)totherightside

oftheUpright(2)inthesameway,

HoldthehalvesoftheUpperHandlebarCover(25)

aroundthetubeonthefrontoftheUpright(2);be

carefulnotto damagethePulse Sensor Wires or

the Putse Extension WEre (not shown). Attach the

Upper Handlebar Cover with an M4 x 12mm Screw

(96),

Have another person hold the Console (17) near the

Upright (2),

Connect the Upper Wire Harness (115) to the wire har-

ness on the Console (17), Connect the Pulse

Extension Wire (114) to the pulse wire on the Console,

Next, locate the two ground wires that are attached

with a screw to the Upright (2) Connect the ground

wires to the two smallest wires on the Console,

Carefully insert all excess wiring up into the Console

(17) and down into the Upright (2) Attach the Console

to the Upright with four M4 x 16mm Screws (98),

(Note: The Screws may be shipped in the console

box,) Be careful to avoid pinching the wires.

10, Plug the Power Cord (116) into the Power Socket

(117) at the rear of the elliptical exerciser,

26 /..........

/...........

Do not pinch

the wires

during this step.

114

Wires .........J )

11, Make sure that all pa_s of the elliptical exerciser are properly tightened. Cover the floor beneath the

elliptical exerciser to protect the floor from damage, Note: Some extra hardware may be left over,

The elliptical exerciser is now fuJly assembled, tf you have purchased the optional chest pulse sensor

(see page 21), refer to page 9 of this manual

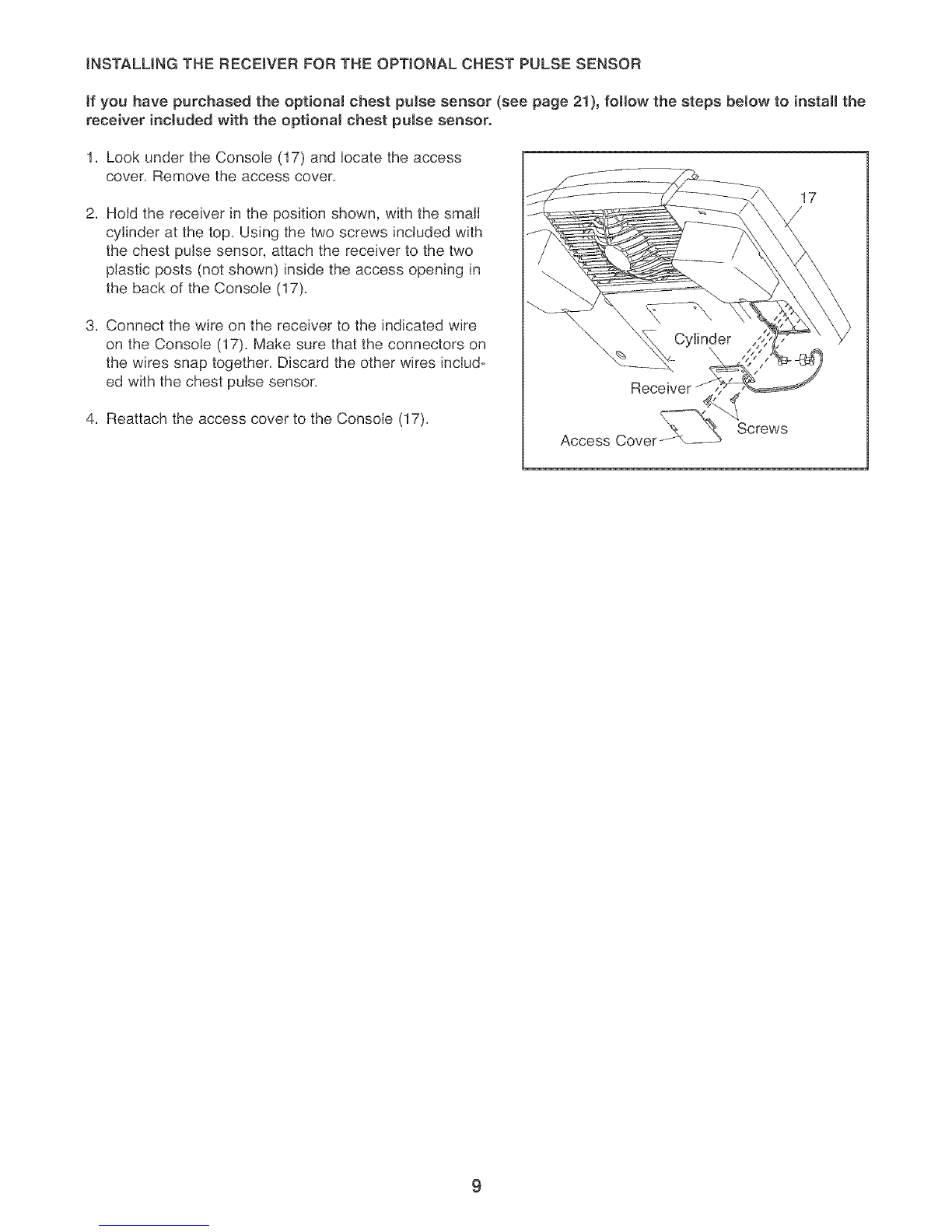

INSTALLINGTHE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR

tf you have purchased the optionaJ chest puJse sensor (see page 21), fotlow the steps below to install the

receiver included with the optional chest pulse sensor.

1. Look under the Console (17) and locate the access

cover. Remove the access cover.

2. Hold the receiver in the position shown, with the small

cylinder at the top. Using the two screws included with

the chest pulse sensor, attach the receiver to the two

plastic posts (not shown) inside the access opening in

the back of the Console (17).

3. Connect the wire on the receiver to the indicated wire

on the Console (17). Make sure that the connectors on

the wires snap together. Discard the other wires includ-

ed with the chest pulse sensor.

4. Reattach the access cover to the Console (17). Access Cover Screws

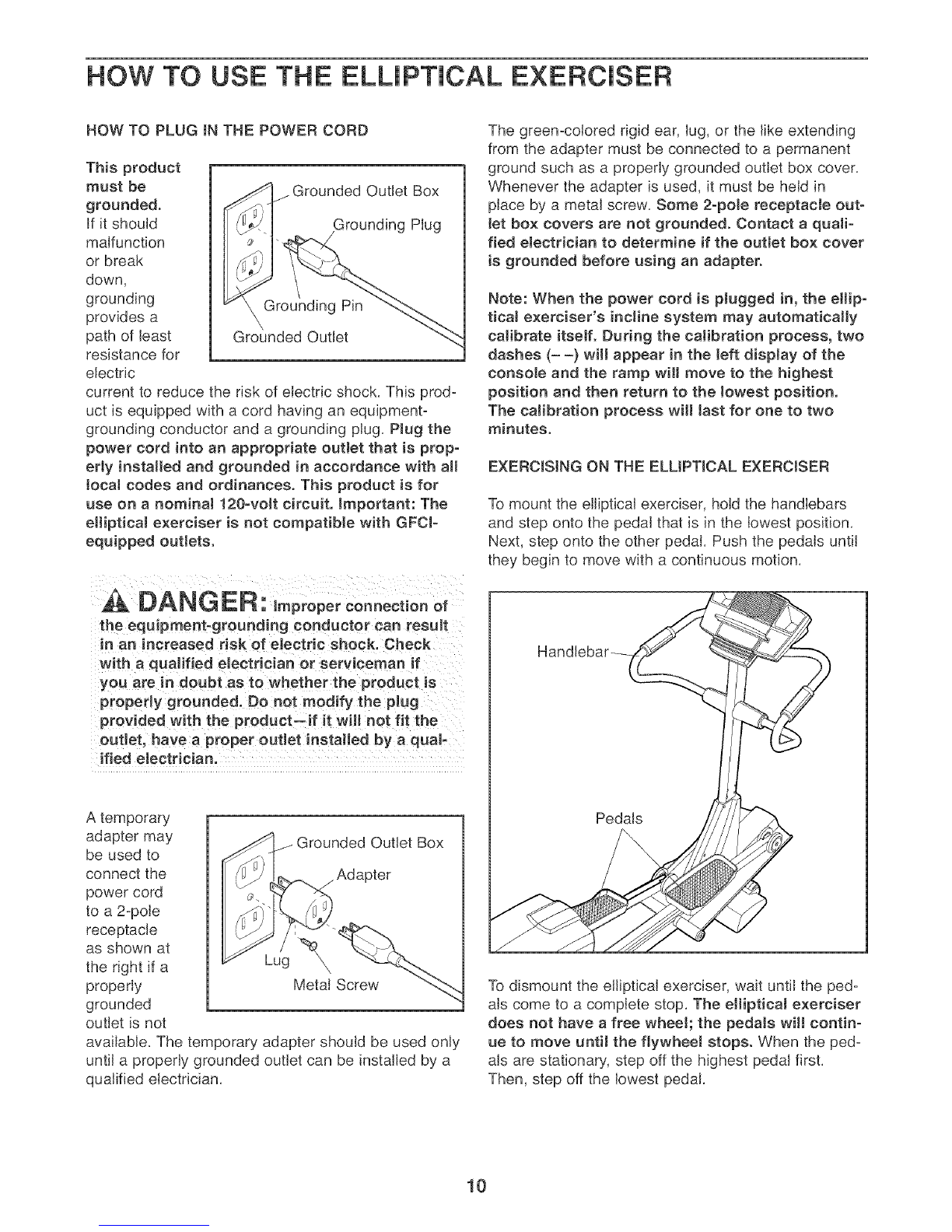

HOW TO USE THE ELLiPTiCAL EXERCISER

HOW TO PLUG tN THE POWER CORD

This product

must be

grounded.

If it should

malfunction

or break

down,

grounding

provides a

path of least

resistance for

electric

Outlet Box

Grounding Plug

Grounding Pin

Grounded Outlet

current to reduce the risk of electric shock. This prod-

uct is equipped with a cord having an equipment-

grounding conductor and a grounding plug. Plug the

power cord into an appropriate outlet that is prop=

edy installed and grounded in accordance with all

tocaJ codes and ordinances. This product is for

use on a nominaJ 120=volt circuit. Important: The

eHipticaJ exerciser is not compatible with GFCl-

equipped outlets.

DANG ER: Improperconnectionof

the equipment-grounding conductor can result

in an increased risk of eJeetric shock. Check

with a qualified eJectrician or serviceman if

you are in doubt as to whether the product is

properly grounded. Do not modify the plug

provided with the product--if it will not fit the

outlet, have a proper outlet installed by a qual-

ified electNcian.

A temporary

adapter may Outlet Box

be used to

connect the

power cord

to a 2=pole

receptacle

as shown at

the right if a Lug

properly Metal Screw

grounded

outlet is not

available. The temporary adapter should be used only

until a properly grounded outlet can be installed by a

qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used, it must be held in

place by a metal screw. Some 2-pote receptacle out-

tet box covers are not grounded. Contact a quali-

fied electrician to determine if the outJet box cover

is grounded before using an adapter.

Note: When the power cord is pJugged in, the chip=

tical exerciser's incline system may automatically

caJibrate itseff. During the caJibration process, two

dashes (- -) will appear in the left dispJay of the

console and the ramp will move to the highest

position and then return to the lowest position.

The calibration process will last for one to two

minutes.

EXERCISING ON THE ELUPTICAL EXERCISER

To mount the elliptical exerciser, hold the handlebars

and step onto the pedal that is in the lowest position.

Next, step onto the other pedal. Push the pedals until

they begin to move with a continuous motion.

man_

To dismount the elliptical exerciser, wait until the ped=

als come to a complete stop. The elliptical exerciser

does not have a free wheel; the pedaJs will contin=

ue to move until the flywheel stops. When the ped-

als are stationary, step off the highest pedal first.

Then, step off the lowest pedal.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali NordicTrack Ellittica

NordicTrack

NordicTrack AudioStrider 990 PRO NTEL09109.0 Manuale utente

NordicTrack

NordicTrack Elite 12.7 Manuale utente

NordicTrack

NordicTrack Audiostrider 900 Elliptical Manuale utente

NordicTrack

NordicTrack E 12.0 Elliptical Manuale utente

NordicTrack

NordicTrack Xlt 1200 Elliptcal Manuale utente

NordicTrack

NordicTrack Cx985 Elliptical Manuale utente

NordicTrack

NordicTrack E4.1 Elliptical Guida all'installazione

NordicTrack

NordicTrack spacesaver se 9i Manuale utente

NordicTrack

NordicTrack E4.0 Elliptical Manuale

NordicTrack

NordicTrack E7.0 Elliptical Manuale utente

NordicTrack

NordicTrack Vgr 940 Manuale operativo e di manutenzione

NordicTrack

NordicTrack A.C.T. COMMERCIAL NTEVEL13016.0 Manuale utente

NordicTrack

NordicTrack E5 si 831.23855.0 Manuale utente

NordicTrack

NordicTrack Xlt 1200 Elliptcal Manuale del sistema

NordicTrack

NordicTrack E 11.6 NTEVEL99813.0 Manuale utente

NordicTrack

NordicTrack E7.0 Elliptical Guida all'installazione

NordicTrack

NordicTrack E7 SV Front Drive Manuale utente

NordicTrack

NordicTrack Mtn740 Stepper Manuale utente

NordicTrack

NordicTrack E 9.9 Elliptical Manuale utente

NordicTrack

NordicTrack Xlt 1200 Elliptcal Guida utente

NordicTrack

NordicTrack C 1750 Pro Treadmill Manuale utente

NordicTrack

NordicTrack E 8.0 Elliptical Manuale utente

NordicTrack

NordicTrack E 7.2 Elliptical Manuale utente

NordicTrack

NordicTrack E7 SV Front Drive Manuale utente

Manuali Ellittica popolari di altre marche

Weslo

Weslo Momentum 4.0 Elliptical Manuale operativo e di manutenzione

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuale utente

Torque Fitness

Torque Fitness XPLLP Manuale utente

Octane Fitness

Octane Fitness PRO3700C Manuale utente

Xterra

Xterra FS5.8e Manuale utente

Bodyguard

Bodyguard E-40 Manuale utente

Bonn Germany

Bonn Germany Concept 2.2 Manuale utente

Precor

Precor Resolute RSL 620 Manuale utente

Vision Fitness

Vision Fitness X6600iNetTV Manuale utente

Matrix

Matrix MX-A5x Manuale utente

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuale utente

Sears

Sears FREE SPIRIT C249 30737 0 Manuale utente

True

True FS-64 Manuale utente

Sport-thieme

Sport-thieme ST 310 Manuale utente

VIRTUFIT

VIRTUFIT CTR 1.1 Manuale utente

Kettler

Kettler GIRO C 1 Manuale utente

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuale utente

Reebok

Reebok 1000 Zx Elliptical Manuale utente
