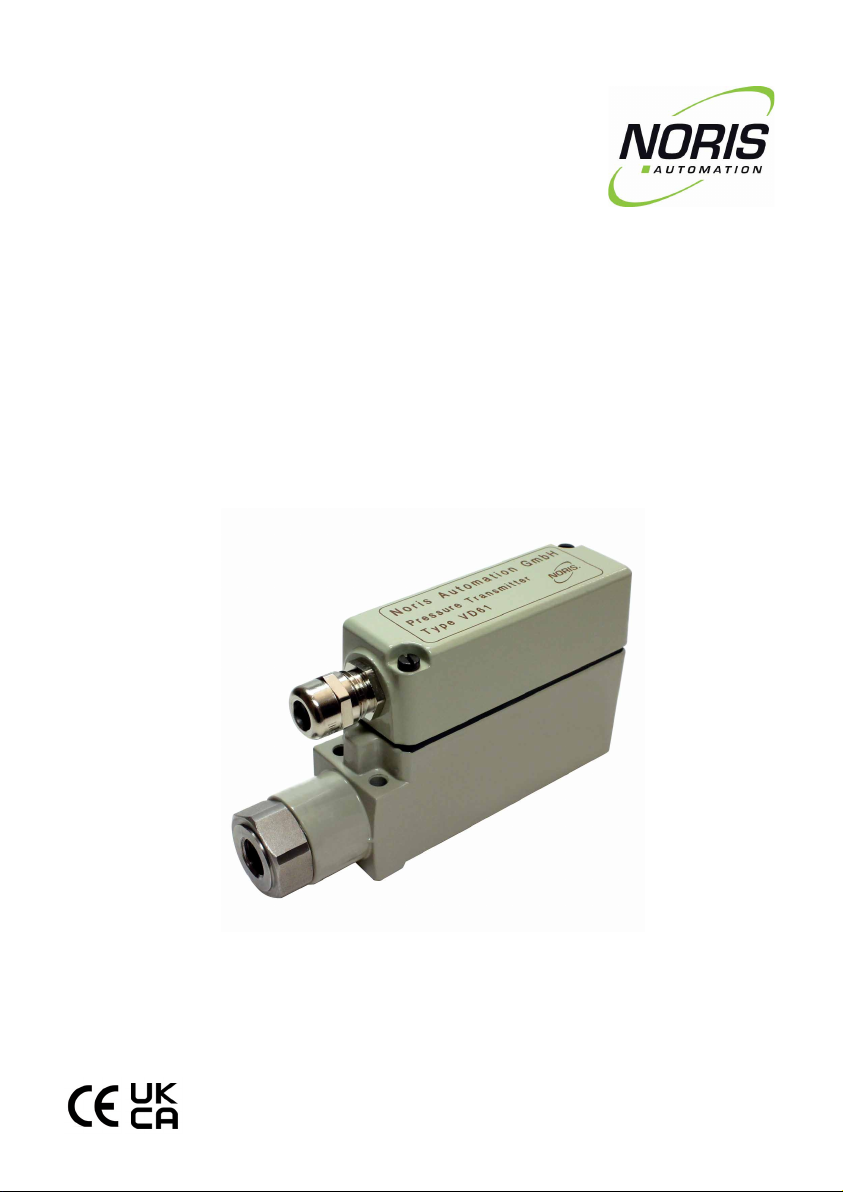

NORIS VD61 Manuale utente

Instruction Manual

VD61

NAN-KD-0031-EN_V01.01 | 05/05/2021

| Issue NORIS Automation GmbH

2/ 23 Instruction Manual VD61

Issue

Information on issue

Document ID NAN-KD-0031-EN

Issue V01.01

Date April 2021

NORIS Automation GmbH Table of contents

Instruction Manual VD61 iii

Table of contents

1General information 4

2General information on this instruction manual 6

2.1 Scope of validity 6

2.2 Subject of the instruction manual 6

2.3 Use of safety and warning notes 6

2.4 Scope of delivery 7

2.5 Accessories and spare parts 7

3Product description 8

3.1 Safety notes 8

3.2 Scope of application 9

3.3 Measuring principle 9

3.4 Type code 9

4Technical data 10

5Installation and commissioning 13

5.1 Tools and equipment 13

5.2 Dimensions 14

5.3 Installation 16

5.4 Electrical connection 18

6Maintenance 20

7De-installation and disposal 21

8Troubleshooting 22

9Service 23

1| General information NORIS Automation GmbH

4/ 23 Instruction Manual VD61

General information

Use for intended purpose

 ▪ Theproductmayonlybeusedfortheapplicationsspecifiedinthis

document and in the technical documentation. Transportation with due

care and attention, correct storage and installation as well as careful

use and maintenance during operation of the product must be ensured

to guarantee trouble-free and safe operation.

 ▪ Theproductmustbeusedatalltimesinagreementwiththetechnical

specifications. In particular, compliance with the ambient conditions

recommended in the technical documentation must be ensured.

Installation, assembly, repair and maintenance work

 ▪ Observetherelevantnationalregulationsandobservetheapplicable

standards and directives for special applications.

 ▪ Installation,assembly,repairandmaintenanceworkmustbecarried

out exactly according to the installation and maintenance instructions

applicable to the individual products in order to guarantee their func-

tional reliability and avoid installation errors and damage.

 ▪ Installation,assembly,repairandmaintenanceworkmustonlybeper-

formed by qualified and authorised technical personnel in accordance

with the relevant documentation, especially the safety and warning in-

formation contained therein.

 ▪ Makesurethatnoexcessparts(screws,tools,etc)areleftbehindin

or on products after performing installation, assembly, repair or main-

tenance work. Non-compliance with this requirement may cause mal-

functions and/or damage to the products or the system.

 ▪ Makesureafunctiontestiscarriedoutoncompletionofinstallation,

assembly, repair and maintenance work to ensure trouble-free opera-

tion of the products.

Suitable tools and equipment

Onlysuitabletoolsandequipment,especiallymaterialsprovidedbyNO-

RIS, are to be used for installation, assembly, repair and maintenance

work. Damaged products or components are to be replaced only by genu-

ineNORIScomponentsorparts.NORISshallacceptnoliabilitywhatsoev-

er for any damage incurred as the result of using unauthorised spare parts.

This will invalidate the warranty. Keep the operating instructions in a place

that is accessible to all users at any time.

Modification of products

NORISshallacceptnoliabilitywhatsoeverifunauthorisedmodifications

have been made to the products. This will also invalidate the warranty.

Therefore, consult our technical staff before undertaking any modifications.

NORIS Automation GmbH General information | 1

Instruction Manual VD61 5/ 23

Shipping, appropriate storage and packaging

Products that are sent in for repair must be appropriately packaged to pre-

ventdamage(fromimpacts,moisture,staticcharge,etc).Makesurethat

products and all spare parts are stored correctly. Refer to the correspond-

ing technical information for further information.

Disclaimer

We review the contents of our technical documentation at regular intervals

to ensure it agrees with our products. Nevertheless, variations cannot be

completelyruledout.NORISthereforecannotguaranteecompleteagree-

ment of the documentation contents with the hardware and software.

Changes and corrections will be included in subsequent issues of the tech-

nical documentation.

2| General information on this instruction manual NORIS Automation GmbH

6/ 23 Instruction Manual VD61

General information on this instruction

manual

Scope of validity

This instruction manual applies to the sensors listed below:

Sensor type Product revision

VD61 A

Important information on the use of this instruction manual

and supplementary information

In addition to the information in this instruction manual, refer also to the in-

formation in the customer drawing for installation, commissioning and oper-

ation.

Subject of the instruction manual

The subject of this instruction manual is the installation, commissioning,

operation and maintenance of pressure transmitter series VD61. Further-

more, this instruction manual also contains important troubleshooting infor-

mation.

Use of safety and warning notes

Warning about the type and source of immediate danger that

leads to death or serious injuries when disregarding the given

precautions.

Warning about the type and source of danger that may possibly

lead to death or serious injuries when disregarding the given

precautions.

Warning about the type and source of danger that may lead to

minor injuries when disregarding the given precautions.

Warning about the type and source of danger that may lead to

material damages when disregarding the given precautions.

2.1

2.2

2.3

DANGER

WARNING

CAUTION

NOTICE

NORIS Automation GmbH General information on this instruction manual | 2

Instruction Manual VD61 7/ 23

Scope of delivery

Pressure transmitters type series VD61 are delivered without accessories.

Accessories have to be ordered separately.

Accessories and spare parts

Available accessories

Adapter with G½ male

thread

Attenuator with G½ male thread

Pos. Description Drawing no. Order no.

01 Adapter with G½ male thread 59.201 522004

02 Attenuator K6 for heavy oil 59.201 522001

03 Attenuator K7 for light oil 59.201 522002

04 Attenuator K8 for air/water 59.201 522003

Available spare parts

There are no additional spare parts available for pressure transmitters type

series VD61.

2.4

2.5

3| Product description NORIS Automation GmbH

8/ 23 Instruction Manual VD61

Product description

Safety notes

Select the appropriate pressure transmitter with regard to scale

range, performance, medium-contacting parts and specific

measurement conditions prior to installing and starting the in-

strument

Otherwisethetransmittercandbedamaged.

Observe the relevant national regulations and observe the ap-

plicable standards and directives for special applications (e.g.

with dangerous media such as acetylene, flammable gases or

liquids and toxic gases or liquids and with refrigeration plants

or compressors).

If you do not observe the appropriate regulations, serious injuries

and/or damage can occur!

Open pressure connections only after the system is without

pressure!

Please make sure that the pressure transmitter is only used

within the overload threshold limit all the time!

Observe the ambient and working conditions outlined in „Tech-

nical data”.

Observe the technical data for the use of the pressure transmit-

ter in connection with aggressive / corrosive media and for the

avoidance of mechanical hazards. Open circuit before removing

connector / cover.

Ensure that the pressure transmitter is only operated in accord-

ance with the provisions i.e. as described in the following in-

structions.

Do not interfere with or change the pressure transmitter in any

other way than described in these operating instructions.

Remove the pressure transmitter from service and mark it to

prevent it from being used again accidentally, if it becomes

damaged or unsafe for operation.

Otherwiseseriousinjuriesmayoccurandthetransmittercanbe

damaged.

Take precautions with regard to remaining media in removed

pressure transmitter.

Remaining media in the pressure port may be hazardous or toxic!

3.1

NOTICE

CAUTION

NORIS Automation GmbH Product description | 3

Instruction Manual VD61 9/ 23

Scope of application

Series VD61 pressure transmitters are mainly used in: Shipbuilding indus-

try, transport technology, machinery and equipment. They measure the

pressure of liquid or gaseous media.

Caution: An unsuitable pressure medium can damage or even

destroy the pressure sensor!

Therefore, please check whether the pressure medium is suitable

for the medium-contacting parts of the pressure sensor before in-

stallation and use. For further information please read the technical

data.

Measuring principle

The pressure prevailing within the application is transformed into a stand-

ardised electrical signal through the deflection of the diaphragm, which

acts on the sensor element with the power supply fed to the transmitter.

This electric signal changes in proportion to the pressure and can be eval-

uated correspondingly.

Type code

Type code structure

VD 6 1 -15 Example: VD61-15

Construction type 6

Signal output

Measuring range

Type code VD61-…

Construction

type

6Construction type 6

Signal output 14 … 20 mA

Measuring

range

-_ _ _ See table "'Measuring range' [}11]"

VD 6 1 -300 Example: VD61-300

3.2

NOTICE

3.3

3.4

4| Technical data NORIS Automation GmbH

10 / 23 Instruction Manual VD61

Technical data

Electrical connection

Supply voltage 8 ... 30 VDC

Current limitation Power supply by energy-limited electrical circuit

in accordance with 9.3 of UL/EN/IEC 61010-1

or LPS in accordance with UL/EN/IEC 60950-1

or Class 2 in accordance with UL1310/UL1585

(NECorCEC)(thepowersupplymustalsobe

suitable for operation at an altitude above 2000

m,ifusedintheseheights)

Reverse voltage protec-

tion

X1+ against X1-

Electrical connection Connecting terminal for max. 1.5 mm²

Pressure connection G¼femalethread(adapterforG½malethread

available,seeaccessories)

Signal acquisition

Standard measuring

range

See measuring range table

Electrical output

Outputsignalandmaxi-

mum permissible load

4...20mA,2-wire,RA≤(UB-8V)/0.02A

Accuracy ≤±1%oftherange(includingnon-linearity,

hysteresis, zero point and final value deviation

(IEC6198-2))

Non-linearity ≤±0.5%ofrange

Non-repeatability ≤0.1%ofrange

Long-term drift ≤±0.1%ofrange(underreferenceconditions)

Transient response Transient recovery time < 4 ms;

turn on-time < 15 ms

Environmental influences

Operatingtemperature Permissible measured medium temperature:

-30 ... +100 °C

Permissible ambient temperature:

-30 ... +100 °C

Storage temperature -30 ... +100 °C

Vibration resistance IEC60068-2-6:10g(resonance)

Shock resistance IEC60068-2-27:500g(mechanical)

Protection class IP64 according to EN 60529

Indice

Manuali Trasmettitore popolari di altre marche

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuale del proprietario

Honeywell

Honeywell 5816WMBR Manuale utente

Kamstrup

Kamstrup READy MTU Istruzioni operative

Omega

Omega ZW Series Manuale utente

ABB

ABB Field 264H Guida

Alinco

Alinco DJ-V17T Manuale utente

Dejero

Dejero EnGo 3x Manuale utente

Rosemount

Rosemount 4600 Manuale utente

Speaka Professional

Speaka Professional 2342740 Manuale utente

trubomat

trubomat GAB 1000 Manuale utente

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuale utente

Rondish

Rondish UT-11 Manuale utente

MG 10JRE Manuale utente

Burkert

Burkert 8177 Manuale utente

Firetide

Firetide HotPort 3203 Manuale

Tele Radio

Tele Radio T9-02 Manuale utente

Rotronic

Rotronic HygroFlex HF3 Series Manuale utente

Jamara

Jamara FCX6 Pro Tel Manuale utente
