Novexx Solutions AP 5.4 Manuale utente

06/15 Rev. 6.01-01 USER MANUAL

AP5.4 – AP5.6

Commissioning and Operation

Installation ..................................................... 2

Unpacking the printer ................................ 2

Setting up the printer ................................. 3

Scope of delivery ....................................... 4

Assembly ................................................... 5

Connecting the printer ............................... 6

Main operating steps ..................................... 7

Configuring the data interface ................... 7

(De)activating the internal rewinder .......... 7

(De)activating the dispensing edge ........... 9

Setting the dispenser ................................ 9

Operating in offline mode ........................ 10

Online operation ...................................... 11

Creating a print job .................................. 12

Transferring a print job ............................ 13

Using SD cards ....................................... 15

Setting the real-time clock ....................... 16

06/15 Rev. 6.01-01 USER MANUAL Commissioning and Operation

AP5.4 – AP5.6

Installation

Unpacking the printer

[1] AP 5.4 in the original packaging.

1. Remove all loose objects from the shipping box.

2. Carefully lift the printer out of the box together with the styrofoam packaging.

Have a second person hold the box tightly.

3. Remove the styrofoam and plastic film from the printer.

Store the original packaging for possible shipping at a later date!

4. Place the printer on a flat surface.

To carry the printer, reach below the baseplate at the front and rear.

5. Open the front cover. Remove the foamed shipping lock from the printhead.

6. Check that the shipment is complete, see Scope of delivery on page 4.

[2] Shipping lock at the printhead.

CAUTION!

To avoid damage to the printer, observe the following:

Do not lift the printer using the plastic components on the front and rear.

To lift the printer, do not reach below the front hood.

06/15 Rev. 6.01-01 USER MANUAL Commissioning and Operation

AP5.4 – AP5.6

Setting up the printer

The setup location of the printer must match the following requirements:

• The location must be in an enclosed room.

• The ambient conditions must match the values given in the Technical Specifica-

tions .

• The printer must stand secure against tilting on an even surface.

• The power supply socket for the printer must be readily accessible, in order that

the mains connector can be pulled in an emergency case.

• Possibility to lay all connection cables without producing any tripping hazard.

• Enough space for the operator, both, in front (operation panel) and sideways of

the printer.

WARNING!

Lethal hazard from mains power, if any liquid gets into the printer!

Protect the printer from liquid penetration!

CAUTION!

The printer and printing materials will be damaged by moisture and wetness!

Only operate the printer in enclosed room, in which the ambient conditions match

the values given in the Technical Specifications .

06/15 Rev. 6.01-01 USER MANUAL Commissioning and Operation

AP5.4 – AP5.6

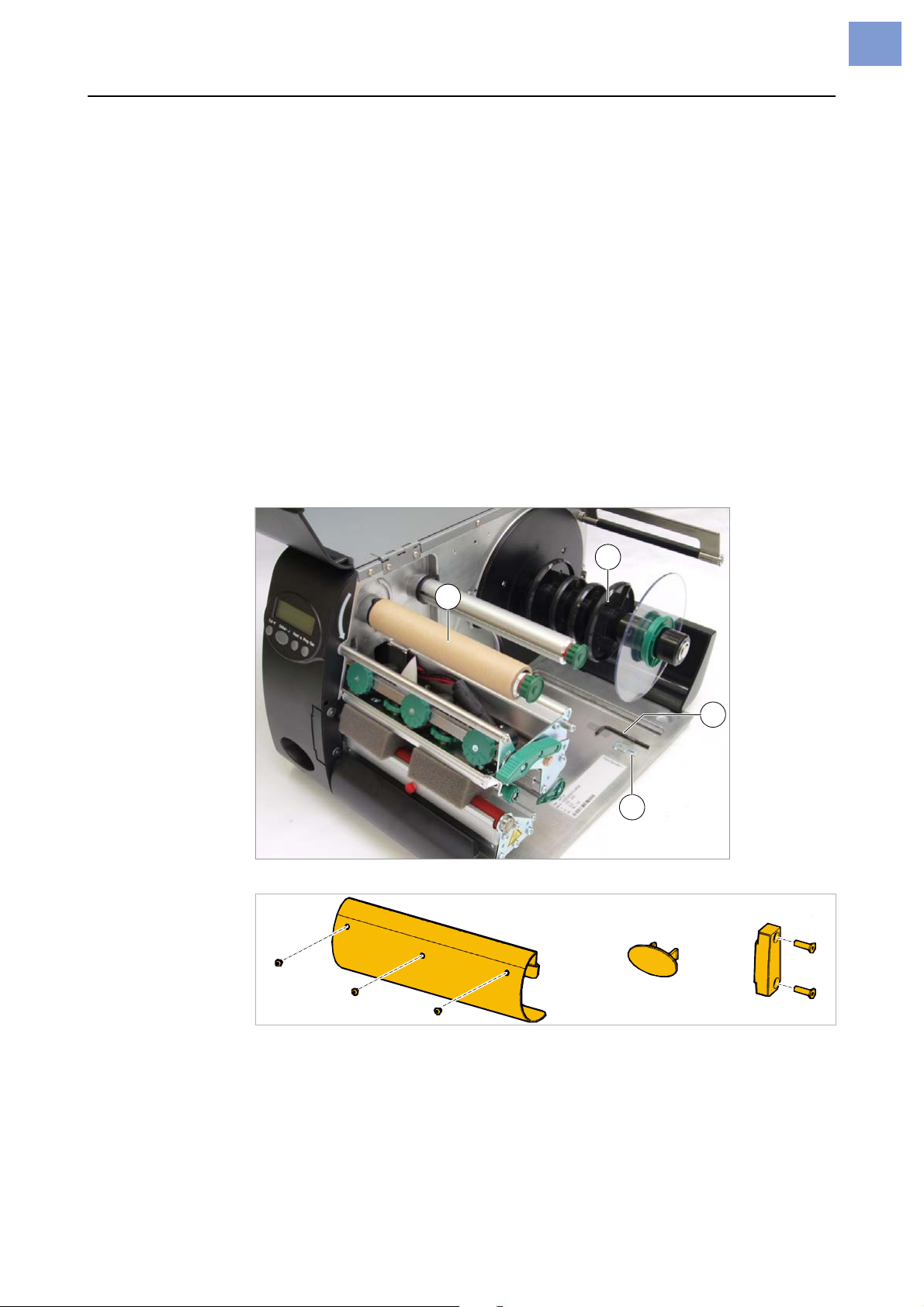

Scope of delivery

• Printer AP 5.4/5.6 including 2 pairs of core adapters [3B] and one paper core [3A]

for rewinding thermotransfer ribbon.

• Mains power cable

• Documentation CD

Contains detailed operating manual for printer as well as Windows drivers and

Servicing manual.

• Instructions (multilingual)

• Torx screwdriver [3C] size 10 (fastened to baseplate using adhesive tape)

• Support hooks [2D] for optional cutter (fastened to baseplate using adhesive tape)

• Cover for the mounting flange for peripheral devices with two fixing bolts [4C]

• AP 5.4/5.6 basic only:

Cover for the connector for peripheral devices [4B]

• AP 5.4/5.6 basic dispenser and AP 5.4/5.6 peripheral dispenser only:

Baffle plate with fixing screws [4A]

[3] AP 5.6 “peripheral” in delivered state.

[4] Separately delivered parts.

06/15 Rev. 6.01-01 USER MANUAL Commissioning and Operation

AP5.4 – AP5.6

Assembly

Housing parts

[5] Assembly of the separately shipped housing parts.

1. Press the cover for the pheripheral connector [5A] into the housing opening, until

it is flush with the housing.

2. Scew the mounting flange cover [5B] onto the mounting flange. Use the screw-

driver that came with the printer.

Baffle plate

[6] Mounting the baffle plate.

The baffle plate [6F] can be mounted instead of the dispensing edge in order to rewind

the printed material inside the printer. Assembling the baffle plate:

1. Remove the tear-off edge [6A]. To do so, turn out the thumb screw [6B].

2. Remove the front side bottom housing part [6C]. To do so, turn out the screw [6D].

3. Turn in the screws [6E] that came with the baffle plate some rotations. Hang the

baffle plate [6F] with the buttonhole openings on the rear side of the plate onto the

screws. Tighten the screws.

Cutter If you have ordered an AP 5.4/5.6 peripheral with cutter, the cutter will be shipped sep-

arately.

For instructions on how to assemble the cutter, see manual Cutter 2000 , “Fastening,

Setting Up, Servicing”.

06/15 Rev. 6.01-01 USER MANUAL Commissioning and Operation

AP5.4 – AP5.6

Connecting the printer

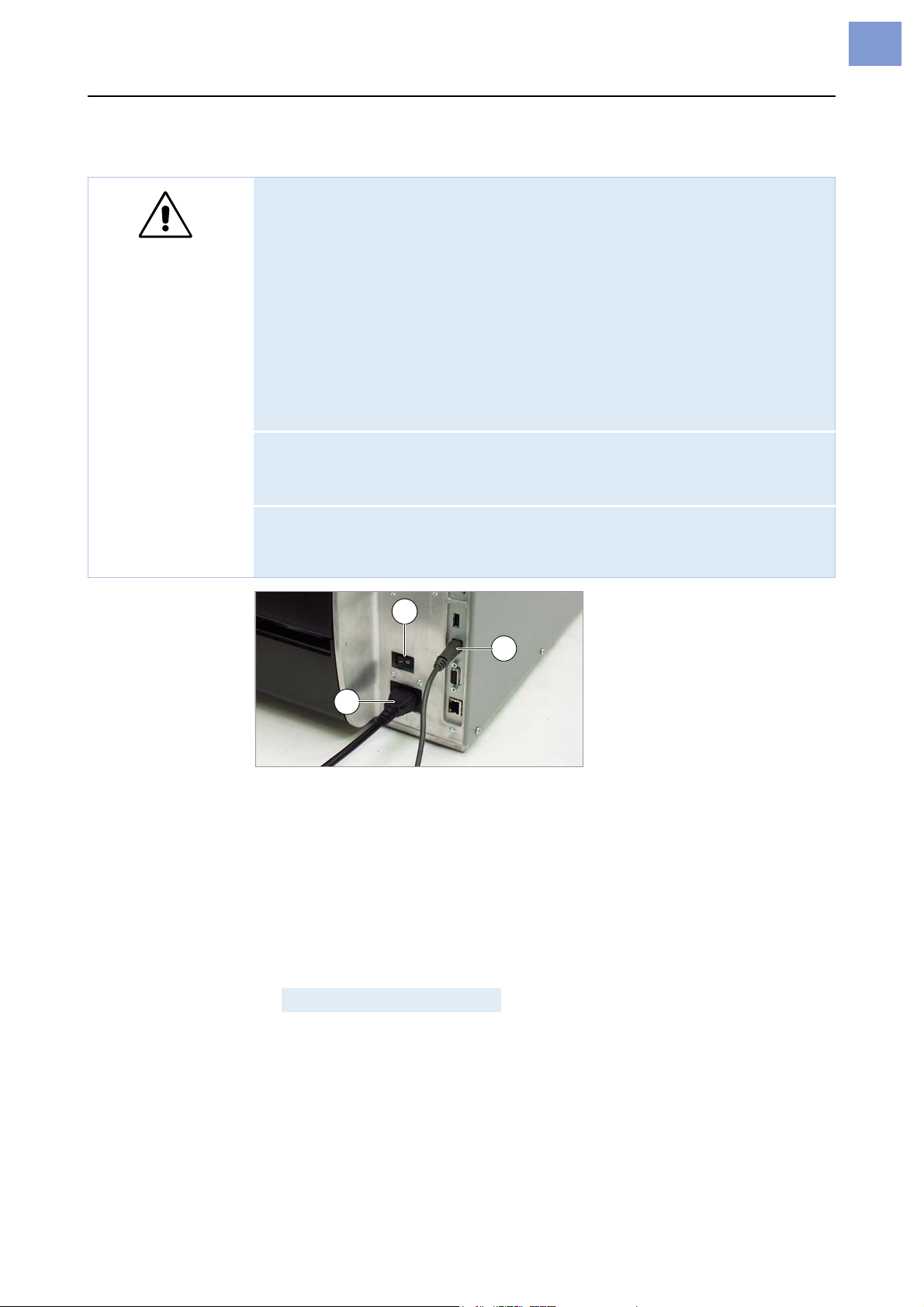

[7] Rear side of AP 5.6.

1. Make sure that the printer is switched off (mains switch [7C] at “0” position).

2. Connect the mains cable [7A] to the mains connector at the printer.

3. Connect the mains cable into a mains socket.

4. Connect the printer and computer or printer and network using suitable data cable

(example: USB cable to USB (device) port [7B] of printer and to USB port of host

computers).

5. Turn on the unit using the mains power switch (position “1”).

As soon as the printer is ready, the following appears:

If SYSTEM PARAMETERS > Turn-on mode is set to “Online”, the printer switches di-

rectly into online mode after turning on the printer!

WARNING!

This unit operates at mains voltage! Contacting electrically live components can

cause potentially lethal electrical shocks and burns.

Make sure that the machine has been switched off before connecting the mains

cable.

Only operate the printer at the mains voltage given on the type plate.

Only connect the printer to a properly installed mains socket with protective

earth.

When installing the mains cable, ensure the following:

a) Nobody can stumble over the cable

b) Mains plug can be pulled in case of emergency

In case of danger, the printer can only be disconnected from the power supply by

removing the power plug from the power supply.

Make sure that the power supply socket for the printer is readily accessible.

Risk of stumbling over cables.

Lay the power supply cable, data cables and compressed air hoses (if applica-

ble) in a way that nobody can stumble over it.

OFFLINE 0 JOBS

06/15 Rev. 6.01-01 USER MANUAL Commissioning and Operation

AP5.4 – AP5.6

Main operating steps

Switching on/off

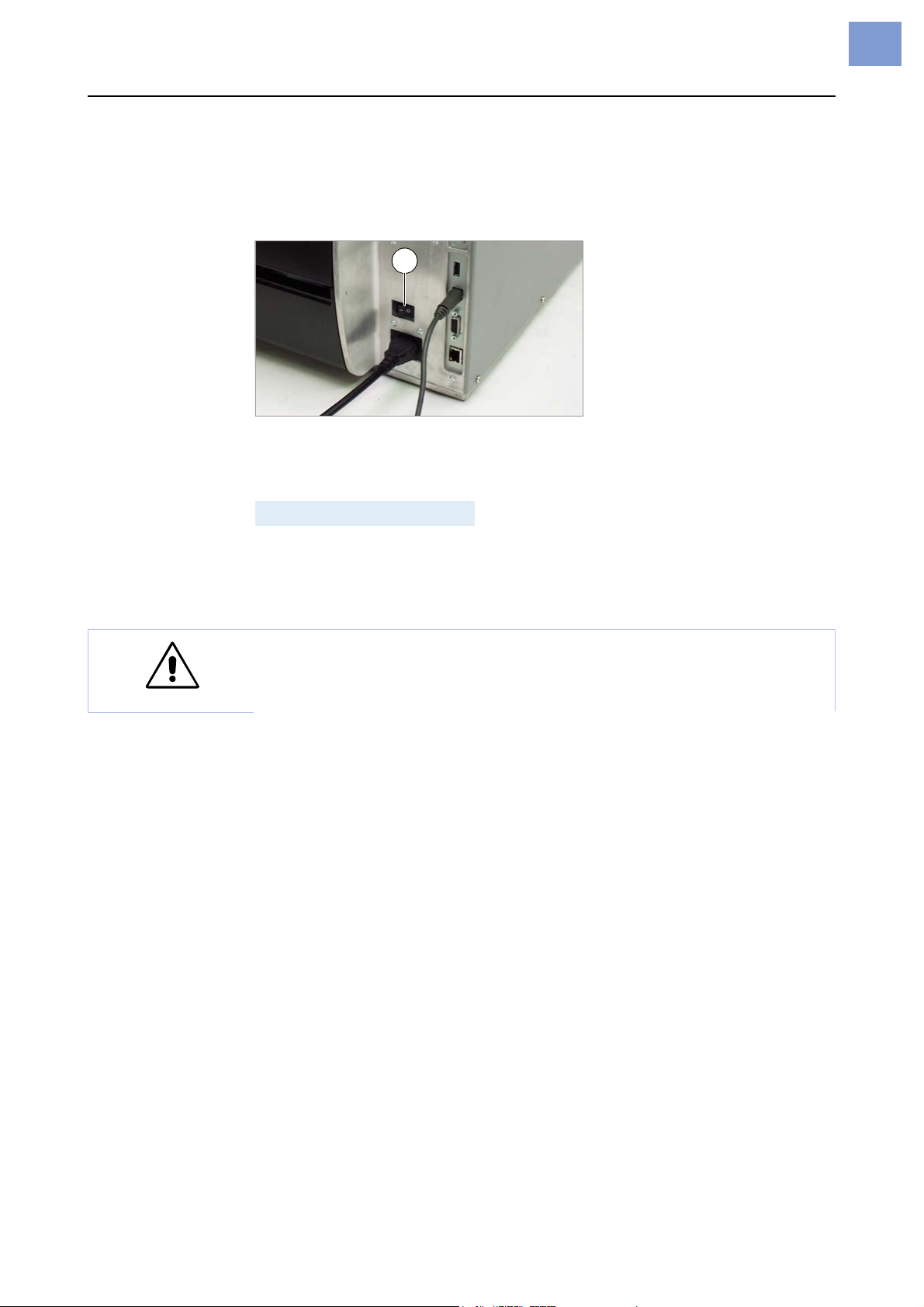

[8] Rear side of the AP 5.6.

Switch on the printer by the mains switch (position „I“).

Display, if the printer is ready:

With unchanged factory settings, the printer starts in offline mode.

If the printer is supposed to start in online mode:

Set SYSTEM PARAMETER > Turn-on mode to „Online“.

Configuring the data interface

The AP 5.4/5.6 has been pre-configured at our factory for data transmission through

the USB port. Alternatively, printer data can also be transmitted via RS232, RS422/

485 (only with optional I/O board), USB or Ethernet port.

Choosing the port: INTERFACE PARA > EASYPLUGINTERPR > Interface

Configuring the port:

• RS232 (COM1): INTERFACE PARA > COM1 PORT > …

• RS232/422/485 (COM3): INTERFACE PARA > COM3 PORT > …

• Ethernet: INTERFACE PARA > NETWORK PARAM. > …

We recommend that your network administrator configures the network set-

tings.

• USB: no configuration required

For more information on how to set the parameters, see topic section “Info Printouts

and Parameters”, Operating the Parameter Menu .

The order numbers for network and data cables are given in topic section

Accessories .

For more information on how to use the Ethernet port, see topic section “Advanced

Applications”, chapter Data Transmission with Ethernet on page 18.

OFFLINE 0 JOBS

CAUTION!

Switching the printer off and on again without a pause can cause malfunctioning.

Wait at least 20 seconds between switching the printer off and on again.

06/15 Rev. 6.01-01 USER MANUAL Commissioning and Operation

AP5.4 – AP5.6

(De)activating the internal rewinder

Only applies to AP 5.4/5.6 dispensers with baffle plate installed.

Activate Ensure that material has been inserted before you activate the rewinding function,

otherwise a fault message will appear!

For information on inserting material, see topic section “Setup”, chapter Inserting La-

bel Material on page 6.

Set

1. SYSTEM PARAMETER > Periph. device to “Intern Rewinder”.

Do not confuse this with “Rewinder” because this setting activates the external

rewinder (additional device)!

After being activated, the system checks the direction of rotation of the rewinder.

“Facing outside” is set by default.

2. If required, press the cut/feed button to change the direction of rotation.

3. Press the ENTER button to confirm your selection.

The printer restarts. Afterwards, an additional menu REWINDER PARA can be

opened from the main menu, and this contains the Rewind direction parameter. Using

this parameter, you can change the direction of rotation.

During the initialisation, the printer attempts to tighten the label strip.

Deactivate Set SYSTEM PARAMETER > Perip. device to “None”.

Possible fault The following error message may appear briefly after activating the internal rewinder:

Possible causes include:

• No material has been inserted or end of material has not been fastened to rewind-

er. Fasten end of material to rewinder and press Online button.

• The material strip is sagging in front of the rewinder. Press the Online button.

Modifying main

initialisation

After this, the printer is ready for the first job. As soon as a job is received, the rewinder

controller calculates the main initialisation values for the rewinding process on the ba-

sis of the given material width and printing speed. These values are suitable for a wide

range of applications.

However, these settings may cause too much printer offset in certain special applica-

tions. In these cases, the main initialisation values will have to be modified. Such ap-

plications include printing on:

• Very narrow labels

• Very coarse backing paper

• Very thick backing paper compared to the label

• Labels stuck on the backing paper

• Backing paper perforated along label contour

Only qualified service technicians are permitted to edit the main initialisation val-

ues!

Rewinder direct.

Facing outside

Status 5004

Rewinder mat. tear

06/15 Rev. 6.01-01 USER MANUAL Commissioning and Operation

AP5.4 – AP5.6

(De)activating the dispensing edge

Only applies to AP 5.4/5.6 dispensers with dispensing edge installed!

Activating Set

SYSTEM PARAMETER > Periph. device to “Dispenser”.

The printer restarts. Afterwards, an additional menu DISPENSER PARA can be accessed

that contains all of the parameters required for dispensing mode:

For more on the listed parameters, see Info Printouts and Parameters .

Deactivating Set

SYSTEM PARAMETER > Periph. device to “None”.

Setting the dispenser

Application A The label should be dispensed to that a narrow strip still sticks to the backing paper

above the dispensing edge. After manually removing the dispensed label, the next la-

bel is printed and dispensed.

Set

DISPENSER PARA > Dispenseposition to -6.0 mm (for strong adhesives, this may have

to be reduced to -8.0 mm).

Set

DISPENSER PARA > Start source to “Light barrier”.

Application B The label should be printed and dispensed after receiving a signal from the connected

foot switch.

Set

SYSTEM PARAMETER > External signal to “Singlestart”.

Set

DISPENSER PARA > Dispenseposition to -6.0 mm (for strong adhesives, this may have

to be reduced to -8.0 mm).

Set

DISPENSER PARA > Start source to “Foot switch”.

Label length

< 40 mm

If very short labels are to be printed (PRINT PARAMETERS > Material length is set to <

40 mm), the printer is automatically initialised for the material before printing.

For more information, see the parameter description DISPENSER PARA > Calibration mode

under Info Printouts and Parameters .

Parameters Possible settings

Dispenser mode True 1:1 mode (default), Batch mode, Normal 1:1 mode

Dispensing position Configurable in millimetres (default: 0.0 mm)

Display mode Remaining qty. in job (default), dispenser counter

Dispense counter Quantity presetting (default = 0)

Application mode Safe mode (default), immediate mode

Start source Foot switch, light sensor (default)

[Tab. 1] Parameters in DISPENSER PARA menu.

06/15 Rev. 6.01-01 USER MANUAL Commissioning and Operation

AP5.4 – AP5.6

Operating in offline mode

• Changing from offline to online mode:

• Switching into online mode when print job is stopped

• Slow material and ribbon feed:

• Material is reversing below the printhead:

• Reset

• Opening the parameter menu

• Feeding material to next punch or while button is pressed:

• Setting the label length automatically:

For more information, see topic section “Setup”, chapter Setting the label length

automatically .

OFFLINE x JOBS ONLINE x JOBS

OFFLINE x JOBS

Stopped xx

ONLINE x JOBS

Stopped xx

OFFLINE x JOBS OFFLINE x JOBS

feeding...

OFFLINE x JOBS OFFLINE x JOBS

feeding...

OFFLINE x JOBS OFFLINE x JOBS

OFFLINE x JOBS PRINT INFO

OFFLINE x JOBS OFFLINE x JOBS

feeding...

OFFLINE x JOBS OFFLINE x JOBS

Man Calibrate

Online

Feed

Online

Cut Online

Cut Online Feed

Prog

Feed

Feed Prog

Altri manuali per AP 5.4

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Novexx Solutions Stampante

Novexx Solutions

Novexx Solutions TTX 50 Series Manuale utente

Novexx Solutions

Novexx Solutions 64- series Guida alla risoluzione dei problemi

Novexx Solutions

Novexx Solutions 64- series Manuale utente

Novexx Solutions

Novexx Solutions Label Maxx C Manuale utente

Novexx Solutions

Novexx Solutions TTX 350 Ocelot Manuale utente

Novexx Solutions

Novexx Solutions TTX 50 Series Manuale utente

Novexx Solutions

Novexx Solutions ALX 73 Series Manuale utente

Novexx Solutions

Novexx Solutions ALX 92 Series Manuale utente

Novexx Solutions

Novexx Solutions ALX 92 Series Manuale utente

Novexx Solutions

Novexx Solutions U-RX Manuale utente

Novexx Solutions

Novexx Solutions ALX 73 Series Manuale utente

Novexx Solutions

Novexx Solutions 64- series Manuale utente

Novexx Solutions

Novexx Solutions AP 5.4 Manuale utente

Novexx Solutions

Novexx Solutions LA-BO Manuale utente

Novexx Solutions

Novexx Solutions ALX 73 Series Manuale utente

Novexx Solutions

Novexx Solutions ALX 73 Series Manuale utente

Novexx Solutions

Novexx Solutions ALX 73 Series Manuale utente

Novexx Solutions

Novexx Solutions ALX 92 Series Manuale utente

Novexx Solutions

Novexx Solutions ALS 104 Manuale utente

Novexx Solutions

Novexx Solutions AP 5.4 Manuale utente

Novexx Solutions

Novexx Solutions ALS 30 Series Manuale utente

Novexx Solutions

Novexx Solutions LA-BO Manuale utente

Novexx Solutions

Novexx Solutions ALX 73 Series Manuale utente

Novexx Solutions

Novexx Solutions ALX 73 Series Manuale utente

Manuali Stampante popolari di altre marche

Lexmark

Lexmark 1400 Series Manuale

Canon

Canon i70 Series Manuale utente

Evolis

Evolis Elypso Manuale utente

Kyocera

Kyocera FS-9530DN Manuale utente

Canon

Canon LASER SHOT LBP-1210 Manuale utente

Samsung

Samsung BIXOLON SRP-350plusF Manuale utente

Canon

Canon PIXMA PRO-1 Series Manuale utente

Canon

Canon PIXMA G3560 Guida all'installazione

Dell

Dell Color Laser Printer 2130cn Manuale utente

Tektronix

Tektronix Phaser 840 Manuale utente

Epson

Epson ET-7750 Istruzioni operative

Canon

Canon CLBR 460ps Manuale utente

Eltron

Eltron P210 Guide Manuale utente

Ricoh

Ricoh MD-P1 Manuale utente

Epson

Epson SC-F7100 series Manuale utente

Epson

Epson Stylus C40UX Manuale utente

Canon

Canon imagePASS-A2 Manuale utente

Canon

Canon S820D Manuale utente
