Numatic CT 570 Manuale utente
Original Instructions
CAUTION Read instructions before using the machine.
Warnhinweis
Lesen Sie vor Gebrauch der Maschine das Handbuch.
Attention
Lisez la notice avant d’utiliser la machine.
Waarschuwing
Lees deze instructies voor u de machine gebruikt
Owner Instructions
Bedienerhandbuch
Mode d’emploi
Bedieningshandleiding voor de gebruiker
CT 570
CTD 570
CT 750
CTD 750
CT 900
CTD 900
244014 Page 2 of 32 01/19 (A09)

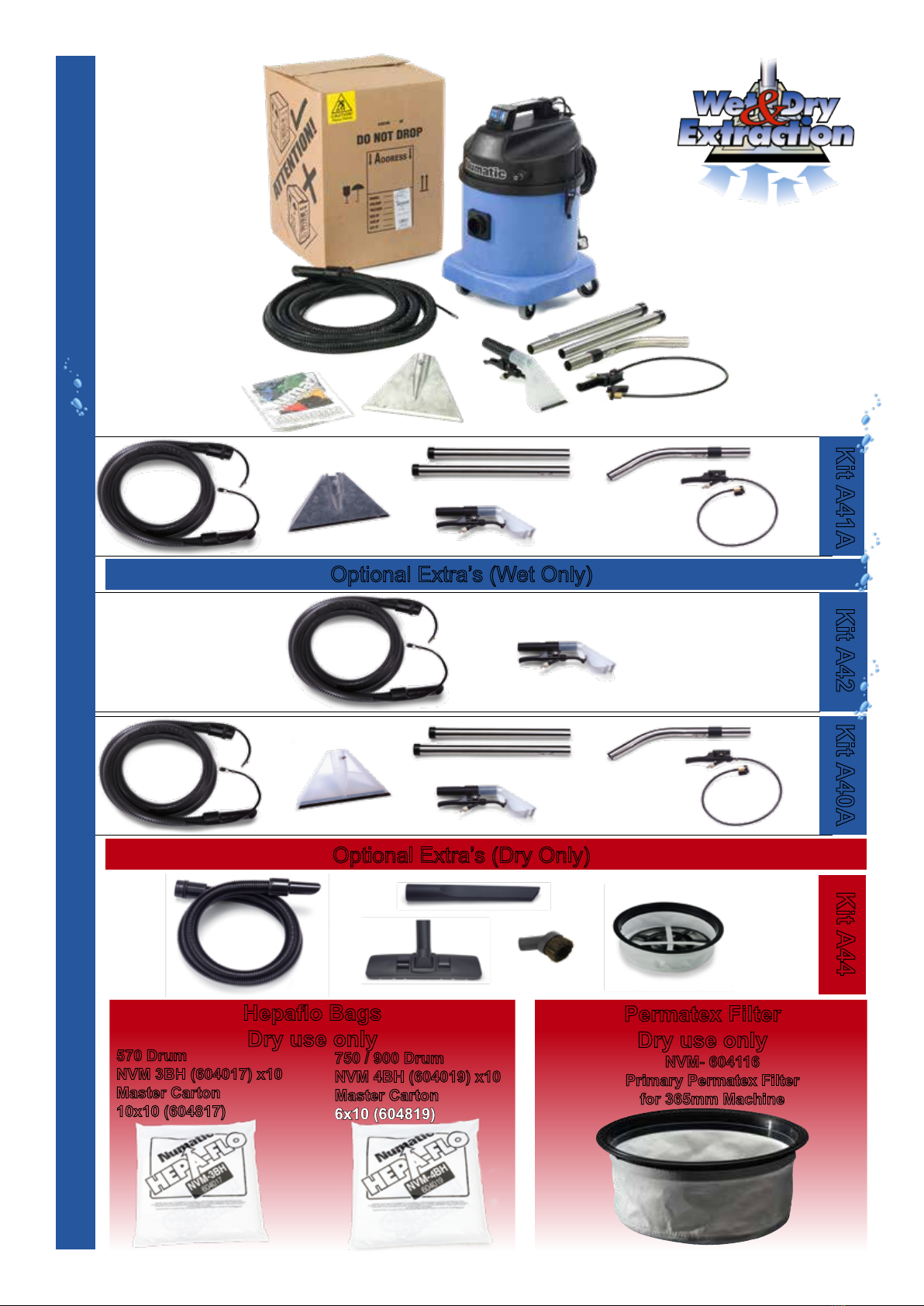

Kit A40AKit A42Kit A41A
Optional Extra’s (Wet Only)
Hepao Bags
Dry use only
570 Drum
NVM 3BH (604017) x10
Master Carton
10x10 (604817)
750 / 900 Drum
NVM 4BH (604019) x10
Master Carton
6x10 (604819)
Permatex Filter
Dry use only
NVM- 604116
Primary Permatex Filter
for 365mm Machine
Optional Extra’s (Dry Only)
Kit A44
Machine, Kits and Bags - Maschine, Kits und Beutel
Machine, kits et sacs - Machine, kits en zakken
244014 Page 3 of 32 01/19 (A09)
CT 900 / CTD 900
X 4
X 4
Handle Assembly - Chassisbaugruppe
Montage de la poignée - Handgreep/trolleysamenstel 900
244014 Page 4 of 32 01/19 (A09)
Wet - Assembling the machine for extraction use --- Montage der Maschine
Montage de la machine --- Machine samenstellen / opbouwen
219847
NuChem 500 mls
12
3
4
5
67
910
11 12 13 14
15 16 17
8
244014 Page 5 of 32 01/19 (A09)
18 19
20
21 22
23
24
25
26
Pump
Pump
Wet - Assembling the machine for extraction use --- Montage der Maschine
Montage de la machine --- Machine samenstellen / opbouwen
244014 Page 6 of 32 01/19 (A09)
Vac
Pump
I
0
I
0
Wet / extraction - Using the machine --- Arbeiten mit der Maschine
Utilisation de la machine --- De machine gebruiken
244014 Page 7 of 32 01/19 (A09)
=
CT 900 / CTD 900
CT 570 / CTD 570
Cleaning the machine --- Reinigung der Maschine
Nettoyage de la machine --- De machine reinigen
244014 Page 8 of 32 01/19 (A09)
21 3
4 5 6
7 8
3
4
2
1
5 6 7
Dry- Assembling the machine --- Montage der Maschine
Montage de la machine --- Machine samenstellen / opbouwen
244014 Page 9 of 32 01/19 (A09)
Motor AirFlo Suction Cleaning
Range
Class
CT 570
CTD 570
1060 W
1060 W x 2
49 L/sec
98 L/sec
2400 mm
2400 mm
26.8m
26.8m
II
Capacity
Dry
Capacity
Wet
Size Weight Sound Pressure (LpA)
Uncertainty (KpA)
CT 570
CTD 570
23 Ltrs
23 Ltrs
15 Ltrs
15 Ltrs
415x415x645 18.98 Kgs
20 Kgs
73.6-79 dB
Data
CT / CTD 570
Motor AirFlo Suction Cleaning
Range
Class
CT 750
CTD 750
1060 W
1060 W x 2
49 L/sec
98 L/sec
2400 mm
2400 mm
26.8m
26.8m
II
Capacity
Dry
Capacity
Wet
Size Weight Sound Pressure (LpA)
Uncertainty (KpA)
CT 750
CTD 750
35 Ltrs
35 Ltrs
25 Ltrs
25 Ltrs
680x550x940 21.4 Kgs
23.9 Kgs
73.6-79 dB
(IEC 60704-2-1)
Data
CT / CTD 750
Motor AirFlo Suction Cleaning
Range
Class
CT 900
CTD 900
1060 W
1060 W x 2
49 L/sec
98 L/sec
2400 mm
2400 mm
26.8m
26.8m
II
Capacity
Dry
Capacity
Wet
Size Weight Sound Pressure (LpA)
Uncertainty (KpA)
CT 900
CTD 900
40 Ltrs
40 Ltrs
32 Ltrs
32 Ltrs
800x490x880 25.28 Kgs
27.78 Kgs
73.6-79 dB
Data
CT / CTD 900
Data
244014 Page 10 of 32 01/19 (A09)
About the machine
Safety Critical Components
Mains lead
HO5VV-F x 10m x 2 x 1.0 mm2
GTSA x 10m x 2 x 1.0 mm2
HO5VV-F x 10m x 3 x 1.5 mm2
Filter Bag
NVM-3 BH >pp< construction 99.6%@0.3µm
NVM-4 BH >pp< construction 99.6%@0.3µm
Filter Permatex
NVM 604116 >pp< construction 96.0%@0.3µm
WEEE Legislation
(Waste, Electrical and Electronic Equipment)
Vacuum cleaner, accessories and packaging should be sorted for environmental-friendly recycling.
Only for EU countries:
Do not dispose of Vacuum cleaner into household waste!
According to the European Directive 2012/19/EU on waste electrical and electronic equipment and
its incorporation into national law.
Vacuum cleaners that are no longer suitable for use must be separately
collected and sent for recovery in an environmental-friendly manner.
Company name and address
Machine Description
WEEE Logo
Class 2 Symbol
Weight (Ready to use)
CE Mark
Voltage / Frequency
Power Rating
Yr / Wk / Serial Number
Ear Protection Safety Footwear Head Protection Safety Gloves Eye Protection Protective Clothing
PPE
Personal protective equipment that may be required for certain operations.
NOTE:
A risk assessment should be conducted to determine which PPE should be worn.
Caution Floorsign
Dust / Allergens Protection Hi Viz Jacket
Rating Label - WEEE - PPE - Safety Critical Components
Splash Proof Rating
