405 Series flame detectors
Instruction Manual
405 Series flame detectors
Instruction Manual
© 2017 Ambest Electronics (Ningbo) Co Ltd. All rights reserved.
All specifications and other information shown were current at the date of publication and subject to change without notice.
Contents
1.
Summary ................................................................................................... 1
2.
Main Features ........................................................................................... 1
3.
Technical parameters .............................................................................. 2
4.
Structure andinstallation ......................................................................... 2
5.
Wiring ......................................................................................................... 3
6.
Package, transportandstorage ............................................................... 4
7.
Test ............................................................................................................. 4
8.
Maintaining ................................................................................................ 4
9.
Appendix.................................................................................................... 5
Website
For more information, including product datasheets and other support material, please view our website at www.numens.com
405 Series flame detectors
Instruction Manual
1
© 2017 Ambest Electronics (Ningbo) Co Ltd. All rights reserved.
All specifications and other information shown were current at the date of publication and subject to change without notice.
1.
Summary
405 series
405 Series flame detectors (short-called the flame detector as follows) provide a new generation of
fire detection capability and technical standards. The flame detectors which adopt a specially
designed pieces of narrow-band infrared sensors and Blind type solar daylight UV sensors can
distinguish the real flame radiation and interference sources effectively and reduce the impact of
environmental factors on detector extremely by means of the built-in 16-bit microprocessor and
proprietary signal algorithm processing. The detector can set 5 different Sensitivity levels in order to
meet more needs in different location. We collected a large number of experimental data through
market research and customers’ feedback. We have made a big improvement based on its existing
in the hardware circuitry and software algorithms.

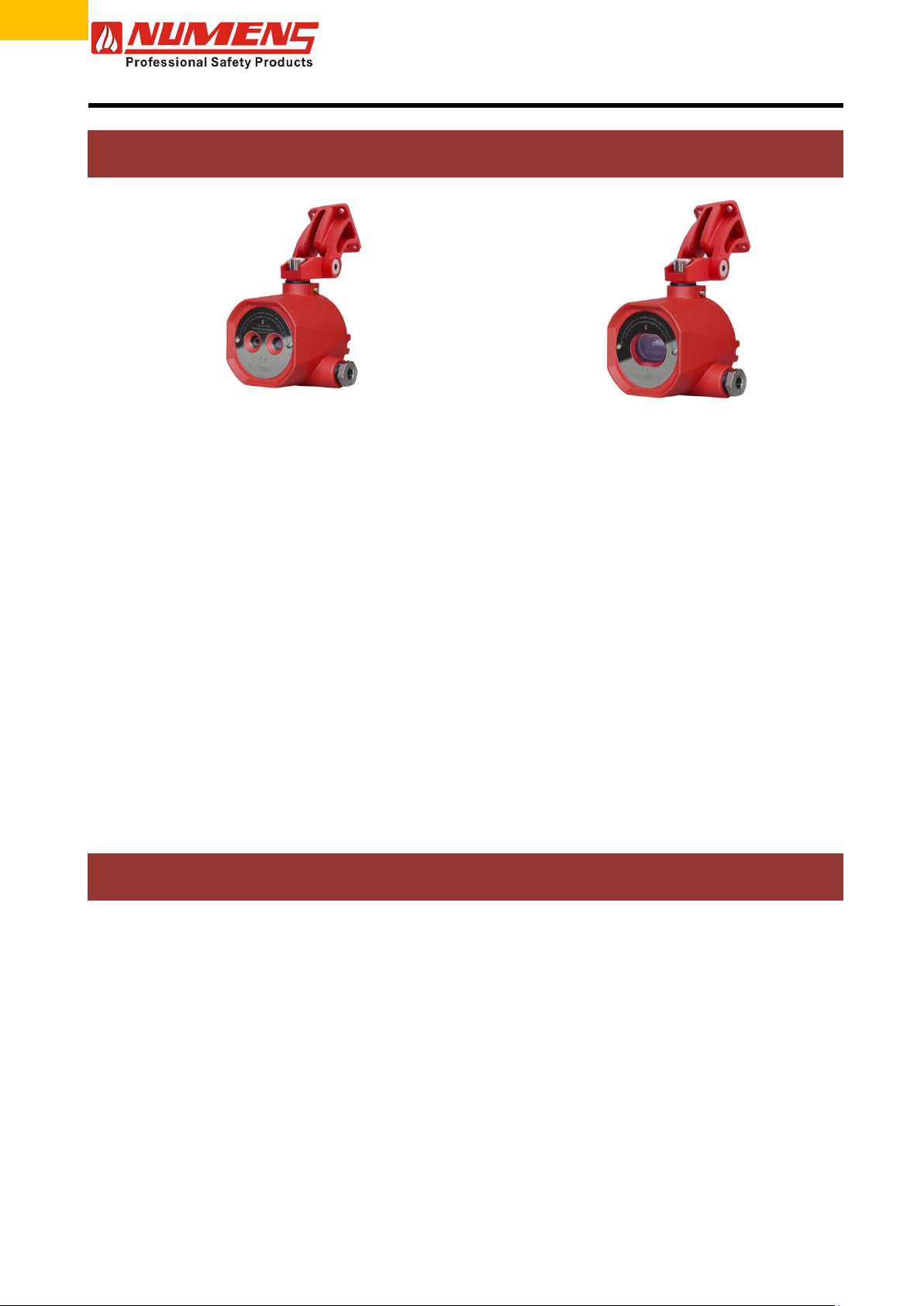

405 Series flame detectors contain the following two kinds:
405/IR2 dual-wavelength Infrared flame detector
405/UV Single UV flame detector
2. Main Features
Built-in16-bit high-speed, low-power, high-performance, high-precision data processing chip. Adopt
narrow-band infrared sensors and patented solar-blind UV sensor.
It has multi-level sensitivity in order to meet more occasions. Also they can detect flam mule earlier.
Detection angle can be able to reach to 120 Degree/UV (110 Degree/IR2).
Detection range can be able to reach to 35m.
The perfect algorithm combines optimally the flame detection and false alarm capabilities. Detector
is fit to a variety of fuels.
Apply to heavy industry applications.
Explosion-proof designs can be used in hazardous area of industrial sites.
Low maintenance cost, easy to update and improve.
IR2
UV
405 Series flame detectors
Instruction Manual
2
© 2017 Ambest Electronics (Ningbo) Co Ltd. All rights reserved.
All specifications and other information shown were current at the date of publication and subject to change without notice.

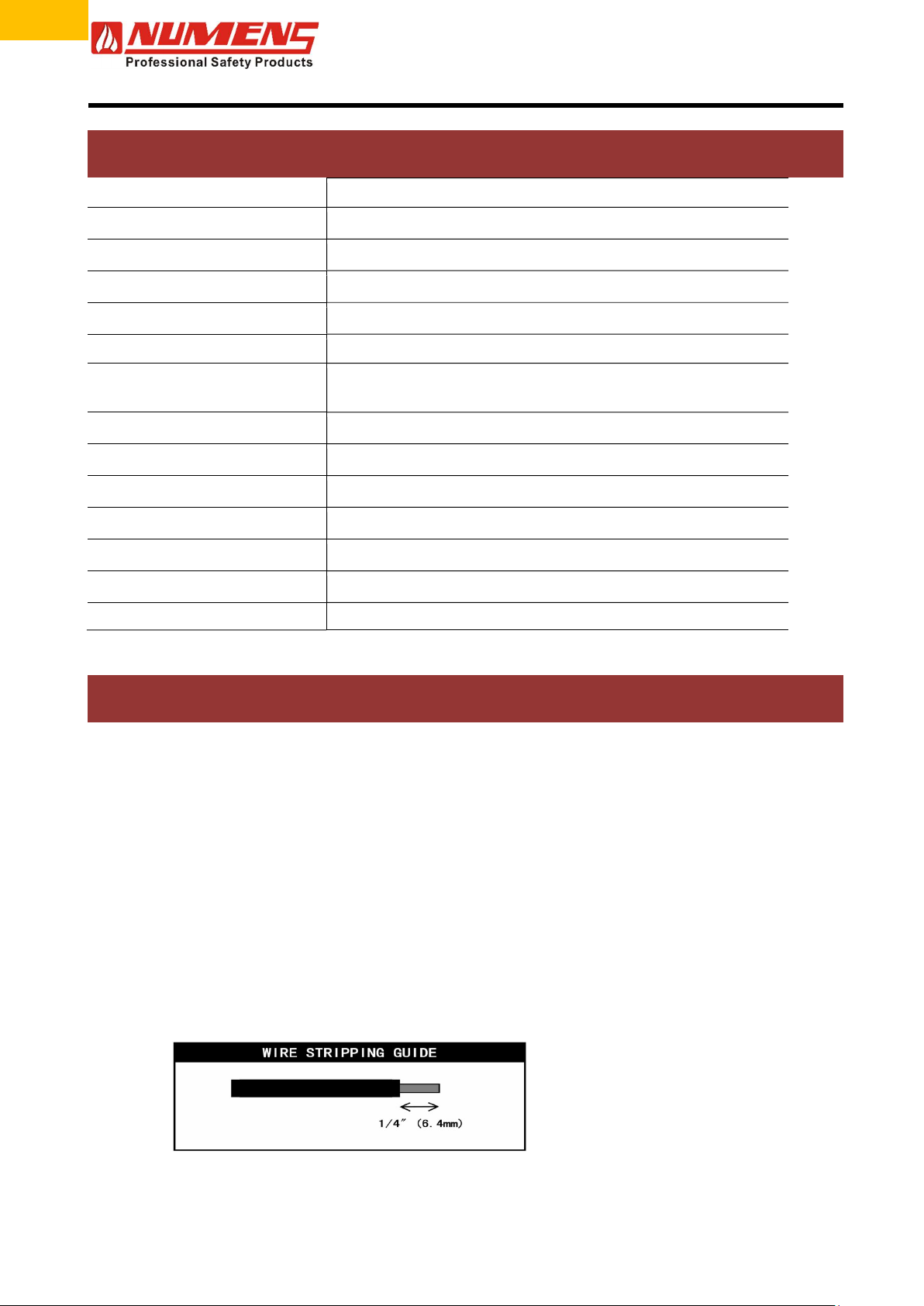

3. Technical parameters
405
Operating voltage: DC24V (range DC18V～30V)
Operating Current: Monitor≤25mA , Alarm≤35mA（relay）
Angle range： 120°/UV(110°/IR2)
Sensitivity level： 1~5 level adjusted
Detection range ≤35m
Output: Delay, Alarm relay, normally open contact output,
2A@30VDC
Operating Temperature: -10°C～55°C
Operating Humidity: 0～95％RH
Storage temperature: -40°C～85°C
Explosion proof level: EX dⅡCT6(Explosion proof)
Protection level： IP66
Weight： 1KG
Housing material: Aluminum alloy, painted surfaces
4. Structure and installation
Caution: Before installing detector, please cut off the power supply of it.
Notice: All wiring must comply with relevant standards and regulations.
Notice: Detectors are installed in Explosion proof areas, the wiring of detector should be connected
by power limit and be controlled. The setting of flame detector is subject to 《automatic fire alarm
design standards》 (GB50116-98).
Check whether the external cable is open circuit, short circuit fault or not.
Install the detector according to the drawing as follows, adjust appropriately the detector view
angle in terms of the scope of protection.
Notice: All connections adopt more than 1.0 square wire, the end of connections cut about 6mm
Isolation jacket, then connect to the terminal blocks of 405 series flame detectors.
Warning: expose lead wire too much or too less may cause wrong connection.
405 Series flame detectors
Instruction Manual
3
© 2017 Ambest Electronics (Ningbo) Co Ltd. All rights reserved.
All specifications and other information shown were current at the date of publication and subject to change without notice.

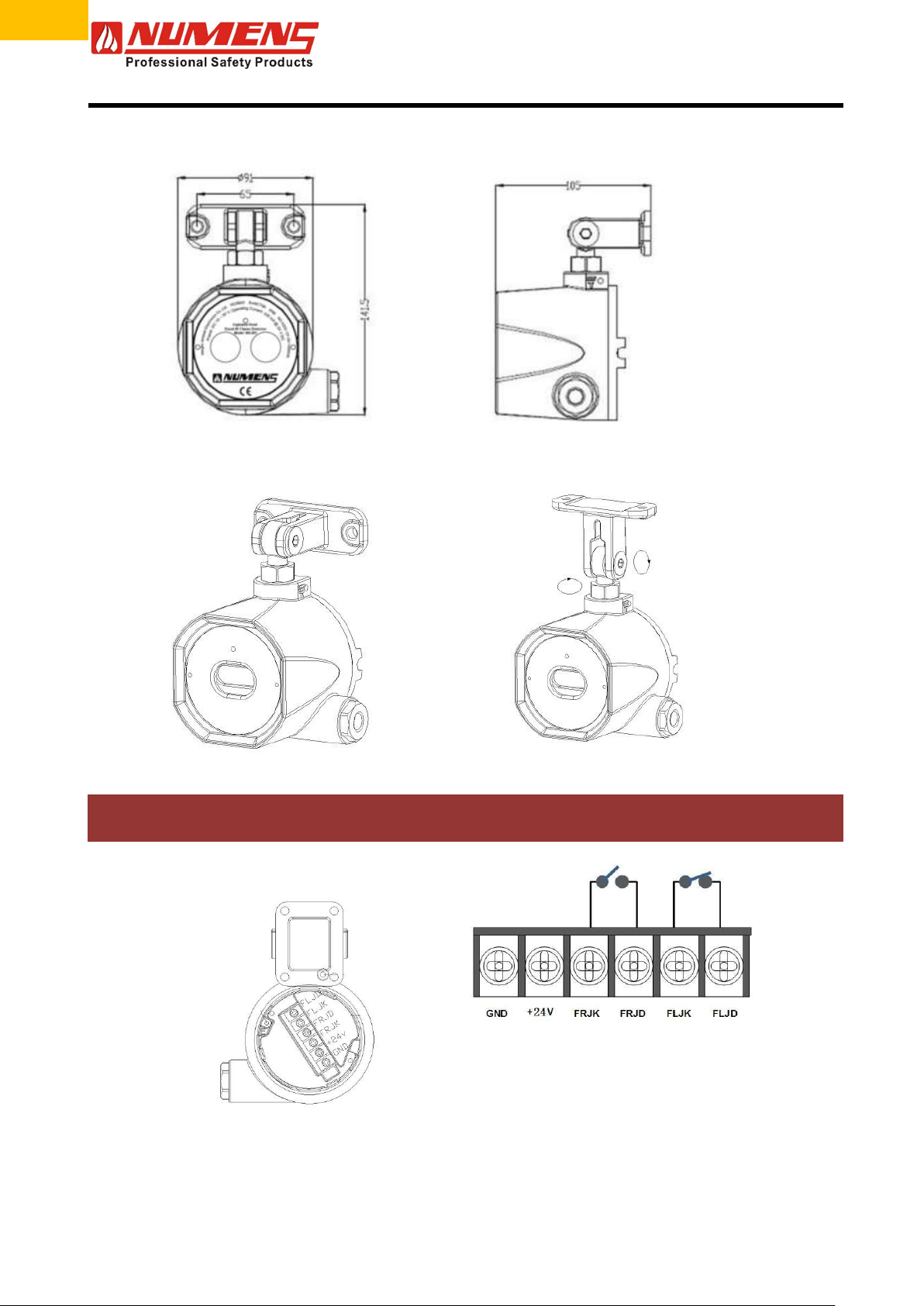

The shape of detector(IR2/UV) as follow:
Installation as follows:
Wall surface mounting Flip down mounting
5. Wiring
FLJD/FLJK ：Normally closed contact output of the fault relay;
FRJD/FRJK ：Normally open contact output of the alarm relay;
GND/+24V ：Dc 24V supply;
405 Series flame detectors
Instruction Manual
4
© 2017 Ambest Electronics (Ningbo) Co Ltd. All rights reserved.
All specifications and other information shown were current at the date of publication and subject to change without notice.
6. Package, transport and storage
The flame detector packages with carton in whose interior fills with damping foam. Flame detectors
can be transported by rail, road or air transport, but should pay attention to handling, prohibit using
the handling tools to hit the upper surface of the box, in order to avoid damaging to the panel of
device.
7. Test
Before testing, announce the related management department that fire detector system is testing
that need to cut off the maintenance area or the systemic logic control functions in order to avoid
unnecessary alarm linkage. The flame detector must be tested after installation and maintenance
each time.
Detector executes initializing setting after powering on, the green lamp is always on, then ends
after 30 seconds. Normal operation, the number of flashes from green light represents the current
sensitivity level.
Before testing, examine whether the LED flashes or not, if not flash, the detector is not powered on
(check the connections), or damaged (return to repair).
Field test tool is alcohol lamp or flame simulator. Simulate fire situation until the detector alarms.
After the test, announce the related management department that the system returns to normal. If
the detector can’t pass these tests, you should be returned to repair.
Note: The flame detector does not have any internal parts which user can debug. Replacing any
components or adjusting circuits are likely to damage the performance of the device without the
manufacturer’s agreement.
8. Maintaining
Important matters: Flame detector must be regular testing and maintenance in accordance with the
national standards and the related regulations. Each detector must be cleaned at least once a year
and be tested and maintained each month.
Before cleaning, announce the related management department that the system of flame detector
will stop working temporarily for maintenance.
Cut off the area which will be maintained or the systemic logic control functions in order to avoid
unnecessary alarm linkage.
Clean dust and impurities on the front of the detector by vacuum suction or compressed air.
If the lens has dirt, use the alcoholic cotton to wipe the lens, prohibit scratching the lens by hard
object.
Follow the above procedure to test the detector after the cleaning of the detectors.
405 Series flame detectors
Instruction Manual
5
© 2017 Ambest Electronics (Ningbo) Co Ltd. All rights reserved.
All specifications and other information shown were current at the date of publication and subject to change without notice.
405 Series flame detectors inside the package one;
Instruction one;
Packing list one;
Accessories a pocket.
Website
For more information, including product datasheets and other support material, please view our website at
www.numens.com.
Contact Us
For sales and specific enquiries, please contact our sales office by telephone or email. Enquiries can also be submitted
through our website.
Numens
9 Xizhao Road, Innovative Industrial Area
Dong Qian Lake, Ningbo
Zhejiang, China 315121
T: +86 574 8281 7218
F: +86 574 8300 1379
