Architectural & Engineering Specifications

March 2004

Ceiling

Fan-Light

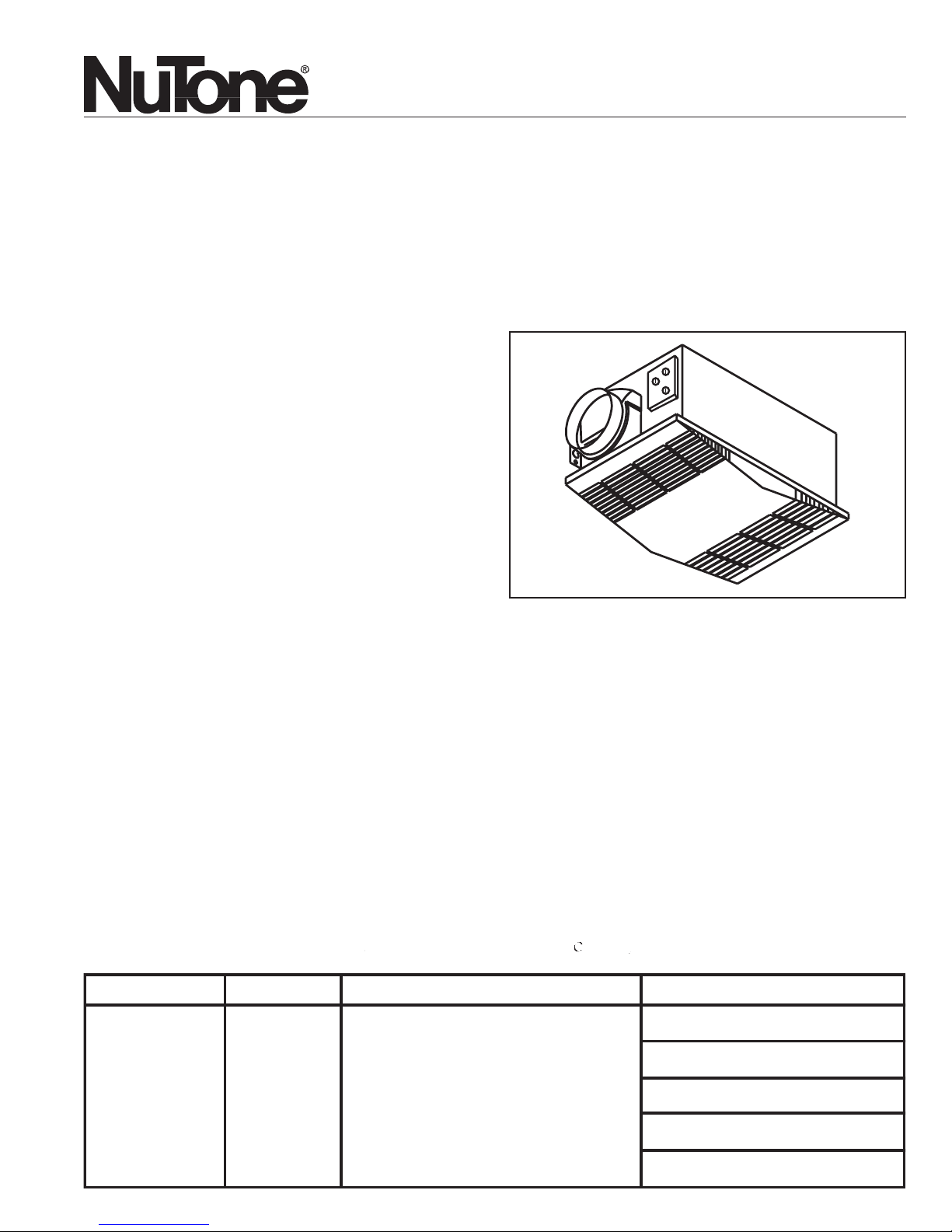

MODEL: 668RP

DESCRIPTION

•Efficient ventilation from quiet blower fan combined

with bright ceiling light.

• Unbreakable light lens snaps on and off for easy

relamping.

•Low profile grille.

•Adjustable hanger bars.

•Plug-in vent fan and light receptacle.

•Duct adapter included with built-in damper. Connects

to 4" round duct.

•For your convenience, NuTone offers a complete line

of accessories to adapt this unit to your construction

requirements.

DESIGN FEATURES

Air Delivery: 70 CFM at 0.1" S.P.

Sound Level: 4.0 Sones.

Dimensions: Housing: 14

⁄

" x 7

⁄

" x 5

⁄

Grille: 16

⁄

" x 9

⁄

Ceiling Extension: 1

⁄

Lamp: 100 watt maximum

(bulb not provided.)

Material & Housing: Cold rolled steel,

galvanized.

Component Data: Grille: White textured polymeric.

Lens: White plastic.

Reflector: Aluminum.

Motor: 115vAC, 60 Hz, thermally protected,

shaded pole.

Impeller: Polymeric, 43⁄4” dia.

electronically balanced.

Duct Size: 4" diameter.

Electrical Rating: 120V, 60Hz, 2.0A.

INSTALLATION

• Adjustable hanger bars attach to 16" or 24" O.C. jousts

in new construction.

• Each unit includes complete Installation Instructions

for both new and existing construction.

• Suitable for use over a tub or shower enclosure when

installed in a GFI protected branch circuit.

• Type IC suitable for use under thermal insulation.

ARCHITECT'S SPECIFICATIONS

Ceiling Fan-Light Combination shall be Model 668RP as

manufactured by NuTone according to listed specifications.

Vent-A-Lite®

NUTONE, INC. / 4820 RED BANK ROAD, CINCINNATI, OHIO 45227

Product specifications subject to change without notice.

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date

CERTIFIED TEST DATA

HVI-2100 CERTIFIED RATINGS comply with new

testing technologies and procedures prescribed by the

Home Ventilating Institute, for off-the-shelf products, as

they are available to consumers. Product performance is

rated at 0.1 in. static pressure, based on tests conducted in

AMCA's state-of-the-art test laboratory. Sones are a

measure of humanly-perceived loudness, based on

laboratory measurements. This NuTone model is listed by

Underwriters' Laboratories Inc.

The air delivery of a ventilating system may be

determined by:

1. Determine the equivalent duct length for each 90 degree

elbow by adding one foot of duct length for each inch of

duct diameter, i.e., a 4 inch diameter duct elbow equals

4 feet equivalent duct length and an 8 inch diameter

duct elbow equals 8 feet equivalent duct length.

2. Add the total straight length of duct and the equivalent

length for each elbow to obtain the total equivalent

duct length.

3. Locate the intersection of the fan performance curve and

the total equivalent duct length curves and draw a

vertical line down to the CFM scale and read the system

air performance.

(NOTE: 3

⁄

" x 10" duct equals 6 inch diameter duct.)

10 050

0.00

0.10

0.20

0.30

0.40

0.50

STATIC PRESSURE–INCHES OF WATER

50 Feet

40 Feet

30 Feet

20 Feet

10 Feet

CFM CUBIC FEET PER MINUTE

75 12525

AIR PERFORMANCE CURVE

(4 In. Duct to 10 Foot Lengths)

STATIC PRESSURE

INCHES OF WATER

CFM

0.05

77 75 72 70 67 64 60 54 47

0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45

LIGHT

SOCKET

REFLECTOR

MOUNTING

SCREW

TYPICAL INSTALLATION

Product specifications subject to change without notice.

NuTone, Inc., 4820 Red Bank Road, Cincinnati, Ohio 45227

Printed in U.S.A.
