Nvidia PCI Express Series Manuale utente

Cinematic Computing for Every User

NVIDIA

GeForce FX

Cinematic Computing for Every User

NVIDIA

GeForce FX

User's ManualUser's Manual

NVIDIA PCI Express SeriesNVIDIA PCI Express Series

Contents

Getting Ready

Driver Installation

Display Modes

Appendices

NVIDIA PCI Express Series User's Manual

Version B

Sep 2004 P/N: W0500895

1 Getting Ready

1 Package Contents

2 Board Layout

4 Features

5 Connections

10 Before Driver Installation

11 Quick Driver Installation -

Windows XP/2000/ME/98

12 Software Settings

12 Display Properties - Overview

14 Display Properties - Screen Settings

15 Display Properties - Advanced

Settings

18 nView Display Mode

23 Direct3D Settings

24 OpenGL Settings

Contents

Getting Ready

Package Contents

General Guide/

Quick Installation

Guide

AV cable

(Optional for TV output)

S-video cable

(Optional for TV output)

Software

NVIDIA Graphics Card

If the TV-OUT connector on

your card looks like this: ,

the following cable is included:

Standard VIVO cable

(Optional)

S-video-AV cable

(Optional)

VIDEO

CARD

VIVO cable with HDTV

support (Optional)

Orange (AV-IN)

White (S-IN)

Red (Pr-Out)

Blue (Pb-Out)

Green

(Y-Out / AV-Out)

Black (S-Out)

Video In

Component

Out

Video Out

DVI to VGA

adapter

(Optional)

Do not have the VIVO cable connected with the AV cable and S-video

cable simultaneously. Connect only the cable for currently desired input

source for the video to be displayed correctly.

Power-split cable

(Optional)

GPU

2 1

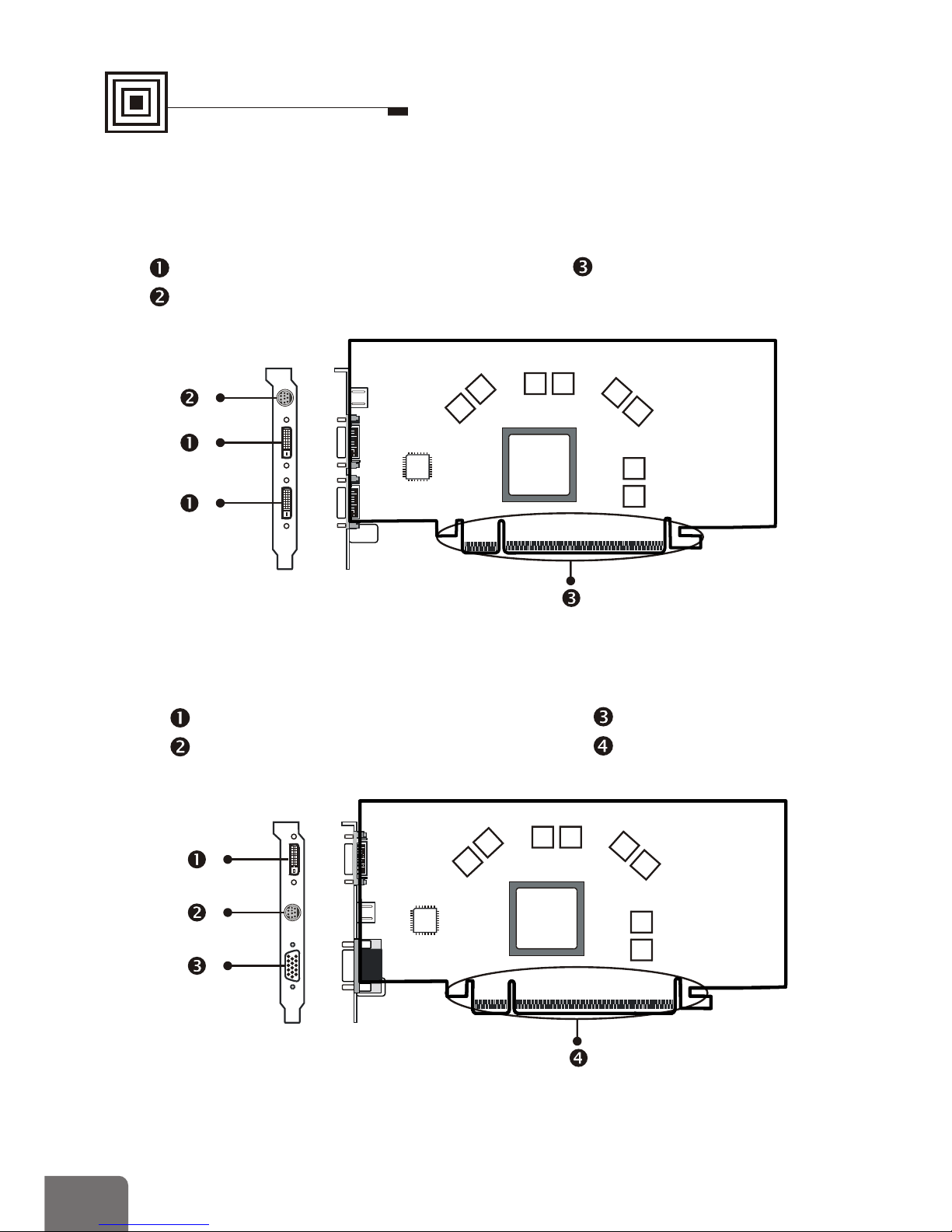

Board Layout

Getting Ready

DVI Connector (Optional)

VIVO / TV Out Connector (Optional)

Bus Connector

Note: The board layout is for your reference only. The graphics card you

purchased may differ from the figures.

TYPE 1

TYPE 2

BIOS

GPU

BIOS

GPU

DVI Connector (Optional)

VIVO / TV Out Connector (Optional)

VGA Connector

Bus Connector

TYPE 3

TYPE 4

TV Out / S-video

VGA Connector

TV Out / Composite

Bus Connector (AGP / PCI Express)

GPU

BIOS

GPU

VIVO / TV Out Connector(Optional)

DVI Connector (Optional)

VGA Connector

Bus Connector

BIOS

GPU

TV Out

VGA Connector

GPU

TYPE 5

Bus Connector (PCI Express)

Imagination

CineFX Engine - Enables stunning, cinematic-quality special effects along with

advanced programmability

Intellisample Technology - Delivers higher image quality through anti-aliasing at

frame rates that rival aliased modes

nView Multi-display Technology - Empower user with maximum flexibility in

display options and control

PCI Express Support - PCI Express is a new Intel bus architecture that doubles

the bandwidth of the AGP 8X bus, delivering over 4GB per second in both

upstream and downstream data transfers.

Microsoft DirectX 9.0 and OpenGL 1.4 /1.5 Optimizations and Support

Video-in / Video-out function support (Optional)

Features

BIOS

GPU

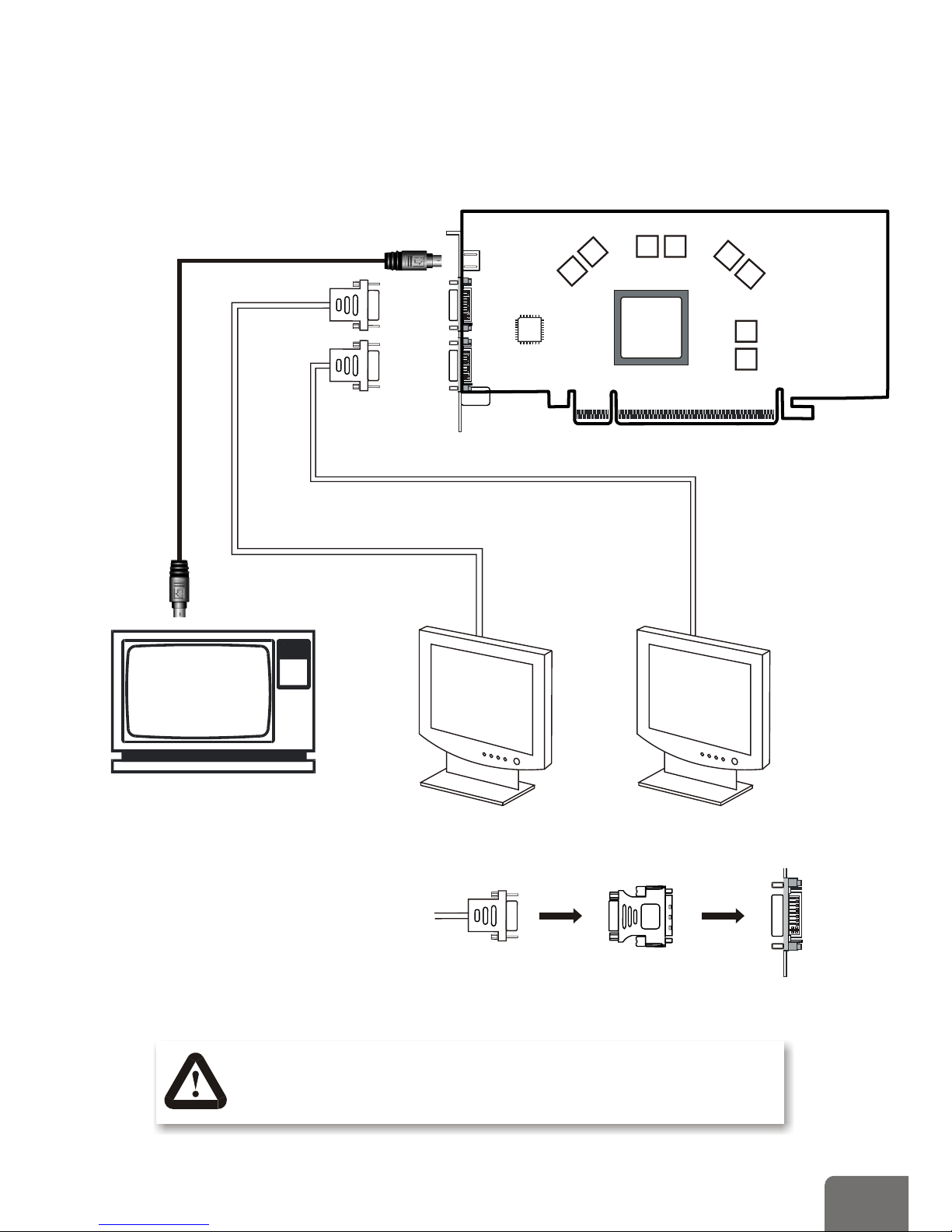

Television

LCD Monitor LCD Monitor

S-Video Cable

DVI Cable

DVI 1

DVI 2

DVI to VGA

adapter

VGA cable

DVI connector

Connecting the VGA cable to the

DVI connector through the DVI to

VGA adapter:

When the DVI to VGA adapter is used on DVI 2 to connect

to a monitor, the TV-out will not function.

Connections Type 1

Connections Type 2

BIOS

GPU

Television CRT Monitor

DVI Cable

S-Video Cable

VGA Cable

LCD Monitor

BIOS

GPU

Connections Type 3

Television LCD Monitor

S-Video Cable

CRT Monitor

DVI Cable

VGA Cable

GPU

Television CRT Monitor Television

VGA Cable

S-Video Cable

AV Cable

Connections Type 4
