OfficeSource 200HMFBK Guida di riferimento rapido

MODEL NO. 200HMFBK

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Model #:200HMFBK

Name:Palma

Descrip�on:High Back Mesh Task Chair

Color:Black

Assembly & Opera�ng Instruc�ons

Please read the instruc�on sheets completely before assembly.

Maximum Weight Load: 275lbs.

Last Updated: 12/2022

MODEL NO. 200HMFBK

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Assembly Notes

Usage Notes

1.After opening the carton, please carefully check for missing parts

and transportation damage and if needed, contact dealer immedi-

ately.

2.Once installed, the gas lift will be difficult to remove. It is not

recommended to remove the lift to avoid damage to other parts of

the chair.

3.Contact dealer if disassembly assistance is needed.

1.Intended for use indoors.

2.Intended for single person use.

3.Do not sit on end of chair to avoid accidental tipping and injury.

4.Do not step or stand on the chair – chair is intended for sitting

only.

5.Use caution when reclining, especially as tension is reduced by

user.

6.Do not lean against product – chair is intended for sitting only.

7.Avoid contact with sharp objects, heavy tools, and hot surfaces.

8.As assembly may loosen overtime, for best user safety, conduct

regular check of nuts and bolts to insure they are always tight and

secure.

9.To clean, wipe with a soft and dry cleaning cloth. If there are

stains on fabric, use a mild detergent to wipe clean and let it air dry.

Last Updated: 12/2022

MODEL NO. 200HMFBK

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

200HMFBK assembly and operating instructions

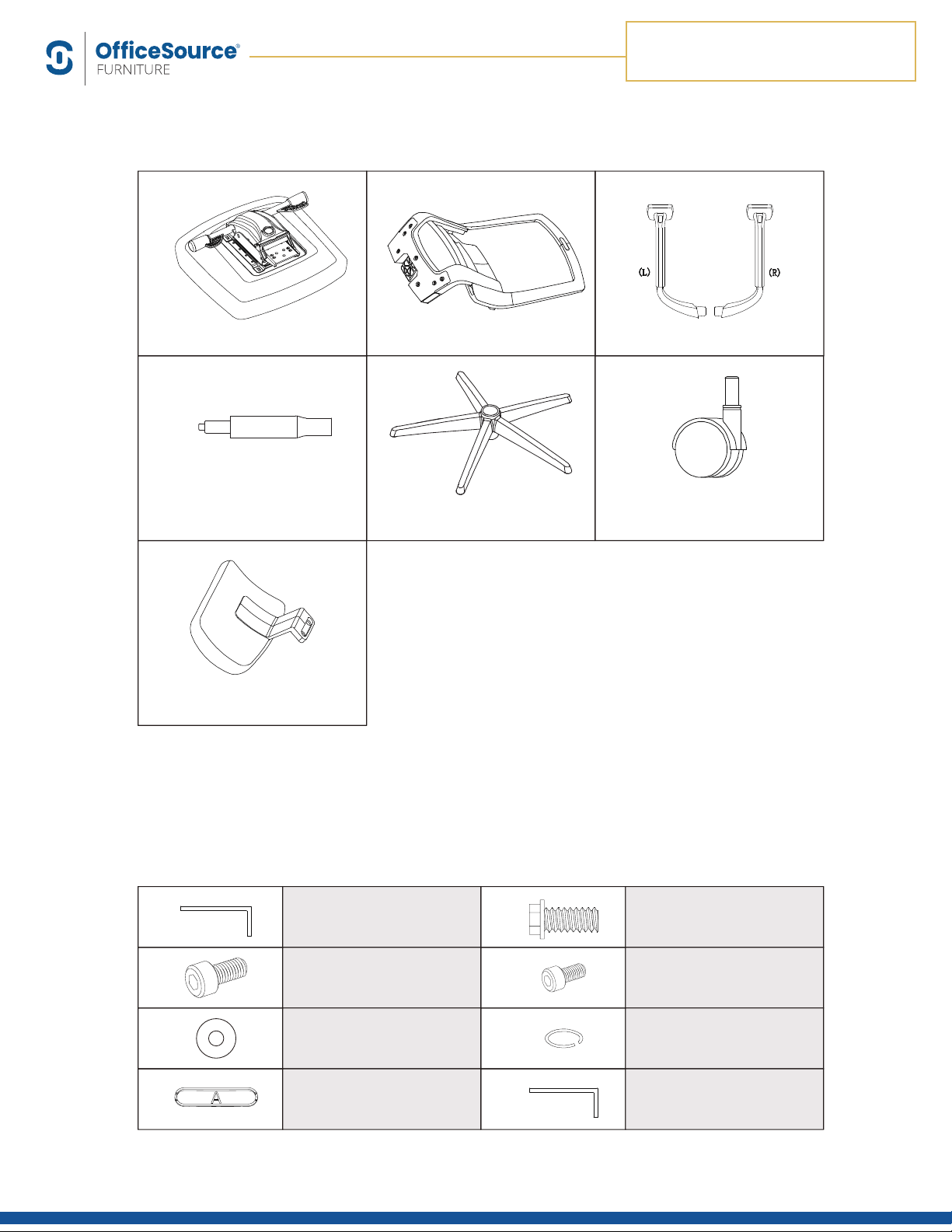

List of screws

M5×1PC M8*20×3PCS

M8*60×2PCS M6*16×2PCS

① ②

③ ④

⑤M8 Ø13*2.3×5PCS

⑥

1PC

⑦

Parts list

Seat with mechanism X1 Back X1

A B

Headrest X1

Nylon Base X1 Casters X5

E F

M8 Ø22*1.5×3PCS

Armrest X1

KGS class 4 gas lift X1

M4×1PC

⑧

Last Updated: 12/2022

MODEL NO. 200HMFBK

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Installation steps

STEP1 STEP2

STEP3 STEP4

F.×5PCS

⑥×3PCS

①

①×1PC

②×3PCS

⑤×3PCS

①×1PC

③×1PC

⑥×1PC

⑧

⑦

④×2PCS

Last Updated: 12/2022

MODEL NO. 200HMFBK

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Headrest / On the top of backrest

To adjust, use both hands, hold

rmly and slide up or down to

desired position.

Seat slider / Function lever located on the left hand side

of the mechanism

Adjust sliding seat so that hips

and knees are at a 90 degrees

angle to reduce fatigue.

Pull up the hand lever for sliding

function and release when

desired position is reached

Last Updated: 12/2022

MODEL NO. 200HMFBK

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Tilt lock / Control rod on the left hand side of mechanism

Tension tilt / Control rod on the right hand side of

mechanism

Tilt lock allows the user to sit in an upright

position for keyboarding, while providing a

comfortable rocking/reclining motion during

work or break.

Rotate forward to engage tilt lock

Rotate backwards to release tilt lock

Tension tilt offers more secure and

comfortable working environment.

Rotate forward to increase tension

Rotate backwards to release tension

Last Updated: 12/2022

MODEL NO. 200HMFBK

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Lumbar support / At the back of the chair

Lumbar support may provide relief of

lower back pain especially during long

working hours.

Pull up or down the lumbar support

using both hands at the same time

3D Armrest / Function switch button under armpad

Armrest may reduce arm and

shoulder fatigue.

Squeeze and lift armrest for height

adjustment

Push armpad for depth adjustment

Rotate armpad for angle adjustment

Last Updated: 12/2022

MODEL NO. 200HMFBK

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Height adjustment / Control rod on the right hand side

of mechanism

Position chair so your feet are at on the

oor, and lower legs are at a 90-degree

angle (or better) relative to upper legs.

To raise the seat,

shift your weight to your feet. Engage

actuator. Chair will rise automatically

To lower seat,

place your full weight on the chair, and

engage actuator lever. When the desired

height is reached, release the actuator

ca. 90°

approximately every 20

minuteschange seat position

Last Updated: 12/2022
