INSTALLATION MANUAL
OG812
Assembly Instructions

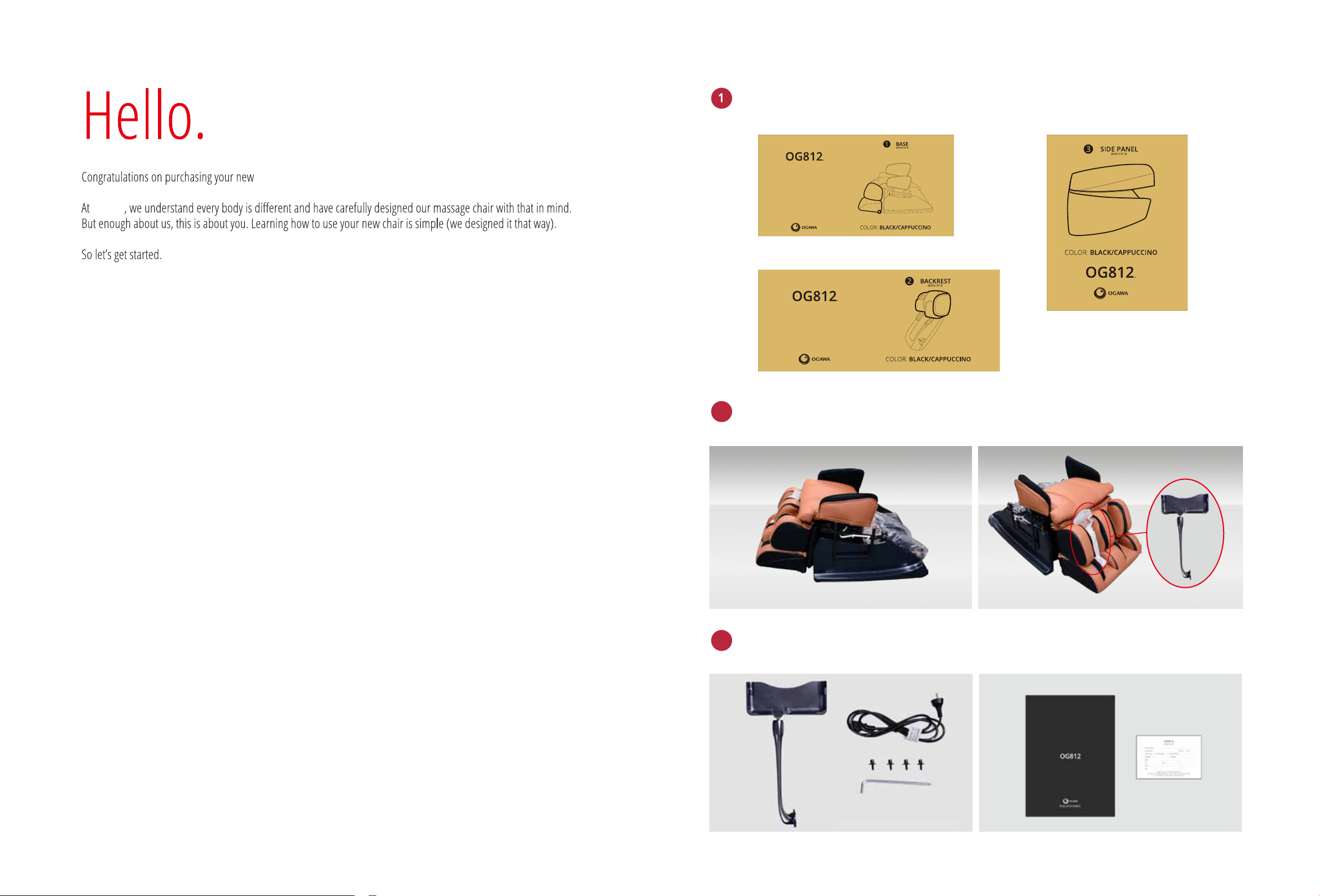

Open box 1 and remove all the packing materials. Then take the base out of the box and get rid of the plastic
bag which covers the base. As pictured below.
Box 2: Backrest
Box 1:The Base
Box 3: Side Boards
OG812 Massage chair arrives in three boxes. The base is packed in box 1, the backrest is packed in box 2, and
the side boards packed in box 3. As pictured below.
Take the tablet holder from the footrest, remove the packing material and set aside. The accessory box include
the power cord, installation manual, warranty card, tablet cover, and arm hardware. As pictured below.
Ogawa OG812
2
3
Ogawa
Remove the cardboard.
Remove the two screw.
Open box 2 and remove packing materials. Take the backrest out of the box and set it on the floor. DO NOT pull
on the air hose. DO NOT pull on the backrest cable. DO NOT pull on the pillow or damage could occur. As
pictured below.
Preferably using two people, carefully set the backrest on the cradle points on the base. With the backrest in a
vertical position, ensure it properly engages to the base.
Caution: DO NOT rest the backrest onto floor while it is vertically otherwise damage to the backrest bracket
maybe occur.
Set the backrest on the cradle points on the base. the backrest properly engages to the base
Cut the cable tie, used for shipping, securing the backrest actuator.
Remove the protective material which wrapped on the head of backrest actuator.
Remove the cotter pin and bolt and set aside. As pictured below.
Remove the three Phillips screws that attach the main PCB cover. Remove cover as shown. This will provide more
clearance when attaching the backrest bracket on step 7.
Remove the protective material.
Remove the cotter pin and bolt
and set aside.
Remove the three Phillips screws. Main PCB box has been removed.
4 6
7
5
Connect the backrest harness.
Push the backrest forward and let it lean on the seat pad.
Use the bolt and cotter pin to attach the backrest and backrest actuator.
Take note of the notch position on the connector.Locate the connecter on the main PCB box.
Attach backrest bracket to reclining actuator.
Push the backrest forward and let it lean on
the seat pad.
Aline the two brackets.
Lock the bolt by cotter pin.
Connect the backrest 4-way air hose connecter. Then line up the air hose against the side board.
Completed connection. Securely attach the connector to the base.
Make sure it locks into place.
Connect the air hose connecter.
Push air-hose toward the front of the chair
so that it is out of the way.
8
9
10
Connect the air hose and then the wire harness to their appropriate connectors. Carefully attach the side
board onto the base. Align and insert the two metal bars on the base into the holes under the metal plate. As
pictured below.
Use two screws to attach the side board and close the zipper. As pictured below.
Connect the air hose and
wire connecters.
Reattach the PCB cover and fold up the backrest until it locks into position.
Open box 3 and remove the two side boards. Locate the two zipper heads at bottom edge of the side board.
Unzip these two zipper heads to both ends. On the side board, there are two metal plates. Locate the hole
under each metal plate. As pictured below.
Unzip these two zipper heads to both ends.
Locate the hole under each metal plate.
11 13
14
12
Remove the protective cloth strips on the backrest pad and attach the backrest pad onto backrest. Attach the
zipper to the backrest pad. Then attach the pillow. As pictured below.
.
Connect the chair to power supply, turn on the power switch. Then you can enjoy your
massage chair.
.
Attach the tablet holder onto right side armrest. Then attach the tablet cover onto the holder. As pictured
below.
Locate the power switch
15 16
17
