Important safety warnings follow.

Be sure to read and observe all

safety warnings in this Handy

Reference.

Warning

Important!

Print media must be able to withstand the

temperature and pressure of the fusing

process.

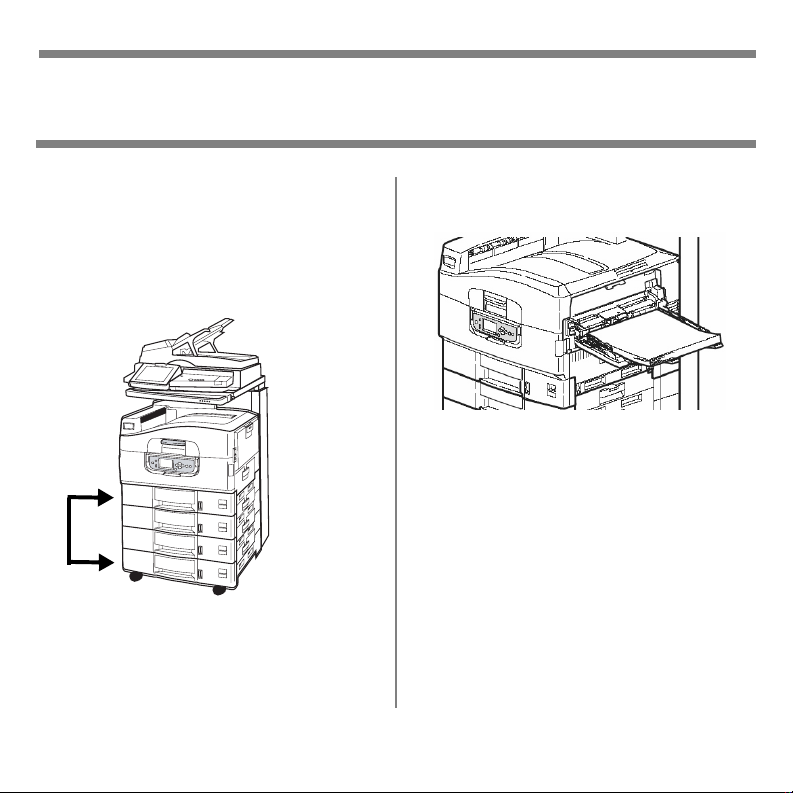

Trays 1-4

See page 8 for more information.

•PrintMedia

> Paper: 17 to 57 lb. US Bond, up

to 12.9" x 18"

Tray 1 Only:

Transparencies

Multi-Purpose (MP) Tray

See pages 11-12 for more information.

•PrintMedia

> paper/cards up to 87 lb. US

Bond, up to 12.9" x 18"

>Labels

> COM-10 envelopes

>Transparencies

> Banners (hand fed).

8.25" to

12.9'' wide by 17" to 47.25" long

• Straight-through side exit path only

(see page 7)

Printing Basics

Print Trays

Exit Paths

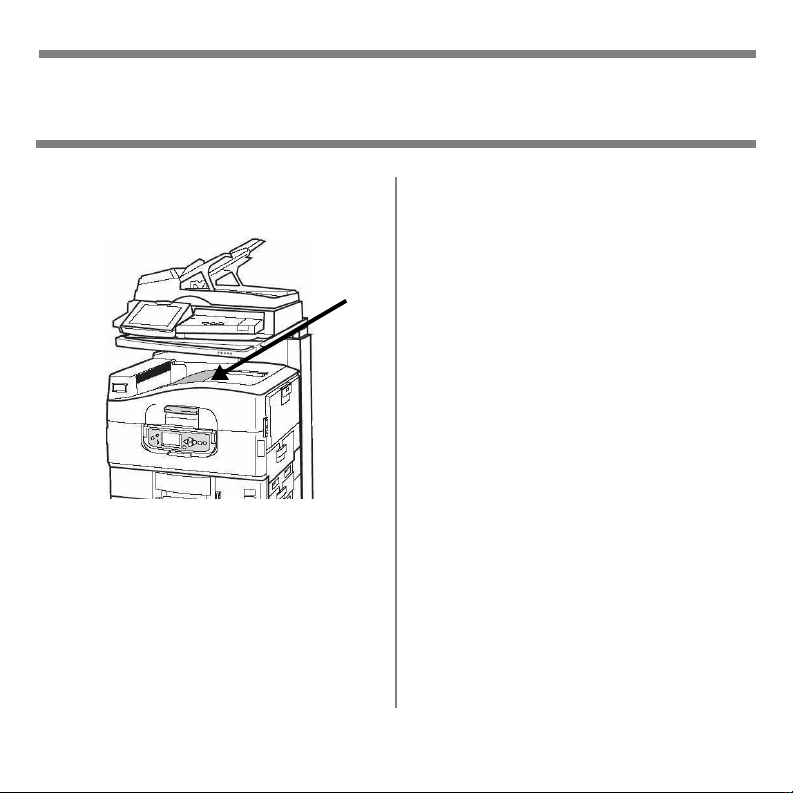

Face Down (Top)

This is the tray that is normally used. The tray holds up to 500 sheets of 20-lb.

(75 g/m

) paper.

Usable for paper up to 57 lb. US Bond

(216 g/m

The Face-Up exit tray (see next page)

must be used for special media or for

papers heavier than 57-lb. US Bond.

Exit Paths

Face Up (Side)

The side (face-up) exit tray provides a

straight-through print path. It holds up

to 250 sheets of 20-lb. (75 g/m

) paper.

Use the straight-through path when

printing transparencies, labels and

heavy card stock (above 57 lb. US Bond

(216 g/m

Always use the side exit when printing

from the MP Tray.

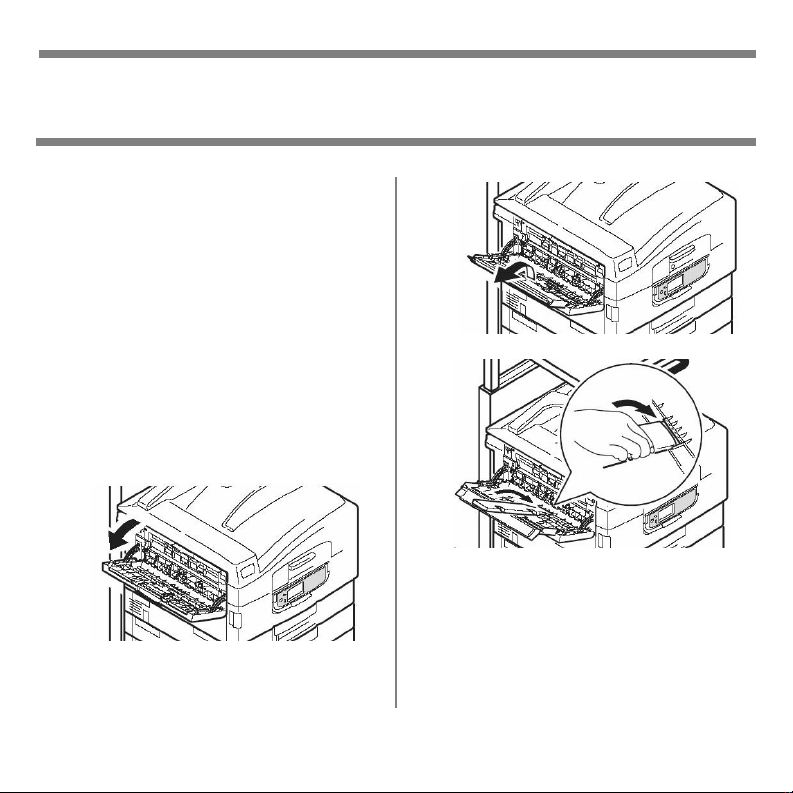

Opening the Face-Up Exit

Tray

Weight Range

Paper: 17 to 57 lb. US Bond (64 to 216 g/m

)

Tray 1 Only: Transparencies 0.10 to 0.11 mm thick

(recommended 3M

CG3720, OKI 52205701)

Standard Sizes:

Paper, plain or glossy: Letter SEF

, Letter LEF*,

Legal-14, Legal-13.5, Legal-13, Tabloid, Executive, A4

SEF, A4 LEF, A5, A6, B4, B5 SEF, B5 LEF

Transparencies (Tray 1 only): Letter or A4 only.

aSEF = short edge feed LEF = long edge feed

Custom Sizes:

Min.: 3.9" x 5.8"' (100 x 148 mm)

Max.: 12.9" x 18" (329 x 457 mm)

Must be defined in driver before printing: see your on-

line User’s Guide.

Capacity:

Paper:Tray 1 = 300 sheets 20-lb. (75 g/m

) paper

Trays 2-4 = 530 sheets 20-lb. (75 g/m

) paper

Transparencies (Tray 1 only): 200 sheets

Loading Print Media

Trays 1-4 Media Specifications

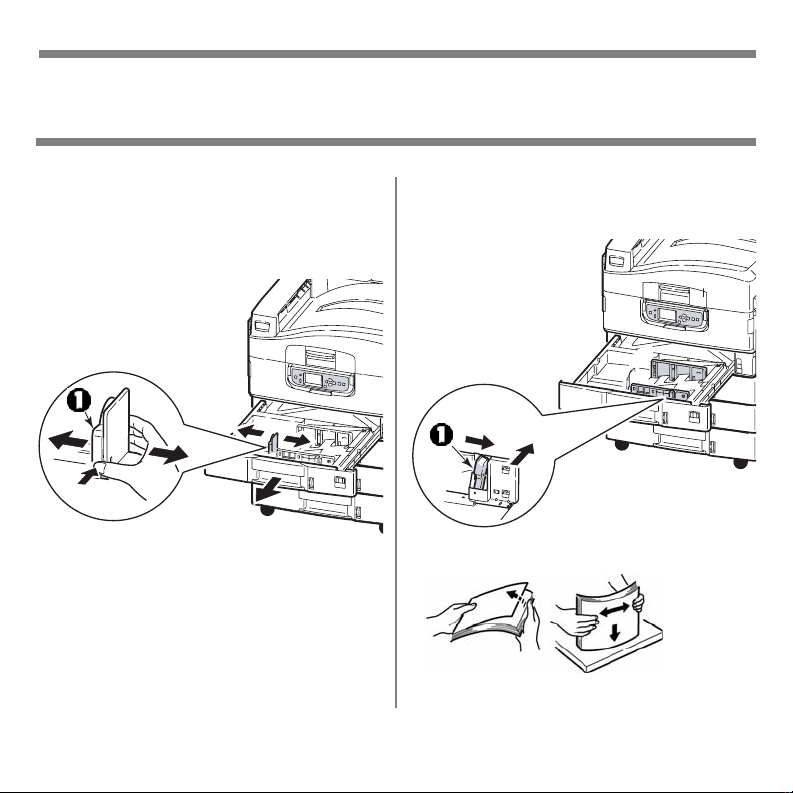

1. Pull out the tray and squeeze the

base of the side paper guide (!) to

adjust it for the size paper you are

using.

2. Push the front/back paper guide

release (1) to the right, then move

the guide forward or backward to fit

the size paper you are using.

3. Fan the paper.

fan_pap

er_F2_1


Loading Print Media

Trays 1-4

Loading Print Media

Loading Trays 1-4

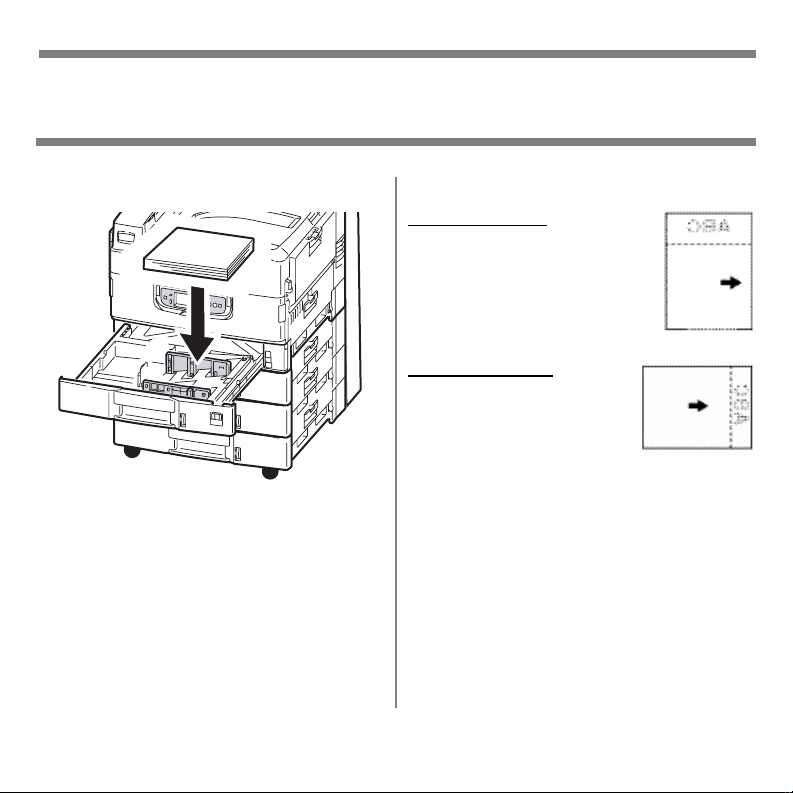

4. Load the paper, print side down:

5. Check that the paper guides are

snug, but not tight, against the

paper.

Note

: For Letterhead stationery:

Long edge feed

—face

down, top toward

the back of the

printer.

Short edge feed

—face

down, top to the

right:
