Memory DIMM
Installation Instructions

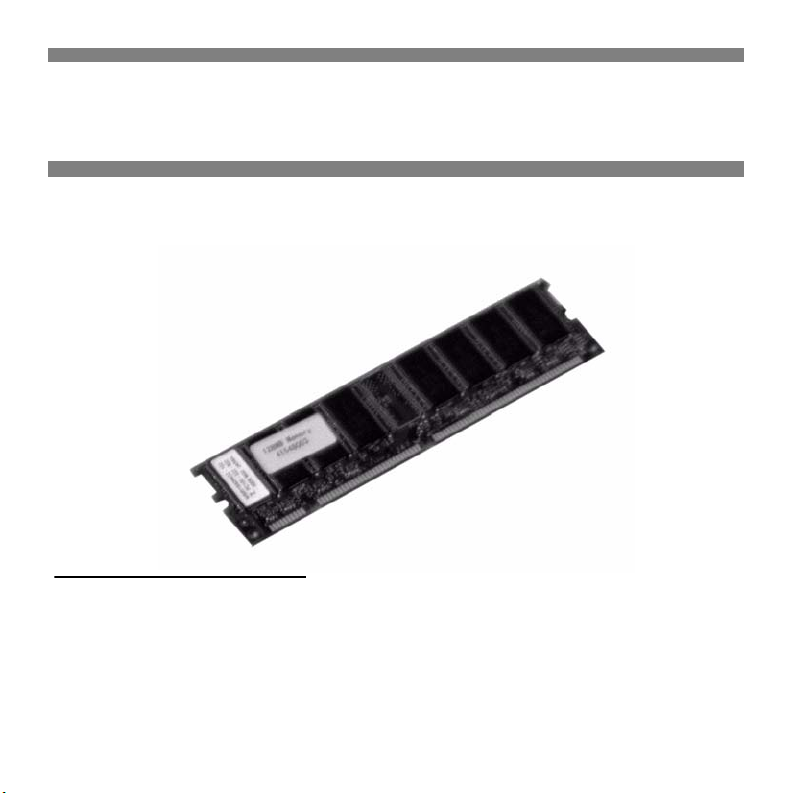

DIMM PART NUMBER
128MB: 70050201
256 MB: 70050301
512 MB: 70050401
58365101.fm Page 0 Friday, June 10, 2005 10:59 AM
1
C9600/9800 Memory DIMM Installation Instructions
59375001
June 2005
Every effort has been made to ensure that the information in this
document is complete, accurate, and up-to-date. Oki Data assumes
no responsibility for the results of errors beyond its control. Oki Data
also cannot guarantee that changes in software and equipment made
by other manufacturers and referred to in this guide will not affect
the applicability of the information in it. Mention of software products
manufactured by other companies does not necessarily constitute
endorsement by Oki Data.
Copyright 2005 by Oki Data Americas, Inc. All rights reserved.
Written and produced by the Oki Data Training & Publications
Department.
For the latest product information, printer drivers, manuals, special
offers, etc., we welcome you to visit our web site:
http://www.okidata.com
OKI is a registered trademark/marque déposée/marca registrada Oki
Electric Industry Company, Ltd. Adobe and PostScript are trademarks
of Adobe Systems, Inc. which may be registered in certain
jurisdictions. Macintosh is a trademark of Apple Computer, Inc.,
registered in the U.S. and other countries. Windows and Windows NT
are either registered trademarks or trademarks of Microsoft
Corporation in the United States and other countries.
58365101.fm Page 1 Friday, June 10, 2005 10:59 AM
2
Getting Started
The printers have two sockets for memory DIMM boards. You can
expand the printer's memory up to 1 GB. To achieve the 1 GB
memory in most models, you will need to replace the DIMM(s)
provided with 512 MB DIMMs. The printer will not acknowledge more
than 1 GB of memory.
Caution!
Circuit boards can be damaged by static electricity and
rough handling. Keep board in packaging until you're ready
to install it. DIMMs are sensitive to static electricity. To
avoid damage, ground yourself before handling DIMMs.
Model Memory Provided
C9600n 256 Mb
C9600 hdn 384 Mb
C9800hn 256 Mb
C9800hdn 512 Mb
58365101.fm Page 2 Friday, June 10, 2005 10:59 AM
3
Prepare the Printer
1. Turn off the printer and unplug the power cord.
2. Detach the interface cable from the printer.
3. Remove and save the thumbscrew at the top and bottom which
hold the control board in place.
58365101.fm Page 3 Friday, June 10, 2005 10:59 AM
4
4. Open the control board cover by pulling out and toward the left.
58365101.fm Page 4 Friday, June 10, 2005 10:59 AM
5
Install the DIMM(s)
1. Locate the DIMM sockets on the control board.
2. Push out the white lock tabs at either end of the DIMM socket.
Caution!
Circuit boards can be damaged by static electricity and
rough handling. To avoid damage, ground yourself (touch
metal) before handling DIMMs.
58365101.fm Page 5 Friday, June 10, 2005 10:59 AM
6
3. Remove the DIMM from its shipping package.
4. Align the DIMM with the narrow strip (1) on its metallic contact
edge toward the front of the control board, then carefully insert
the DIMM in the socket. Press down firmly, until you feel the
board engage the connector, then raise the white tabs to lock
the DIMM in place.
5. Repeat steps 2 through 4 for each DIMM being installed.
58365101.fm Page 6 Friday, June 10, 2005 10:59 AM
Complete the Installation
1. Close the control board cover.
2. Reinstall the thumbscrews at the top and bottom of the board.
3. Reattach the computer interface cable.
4. Plug the power cord into the power outlet and turn on the
printer.
©Oki Data Americas, Inc. 59375001
58365101.fm Page 7 Friday, June 10, 2005 10:59 AM
