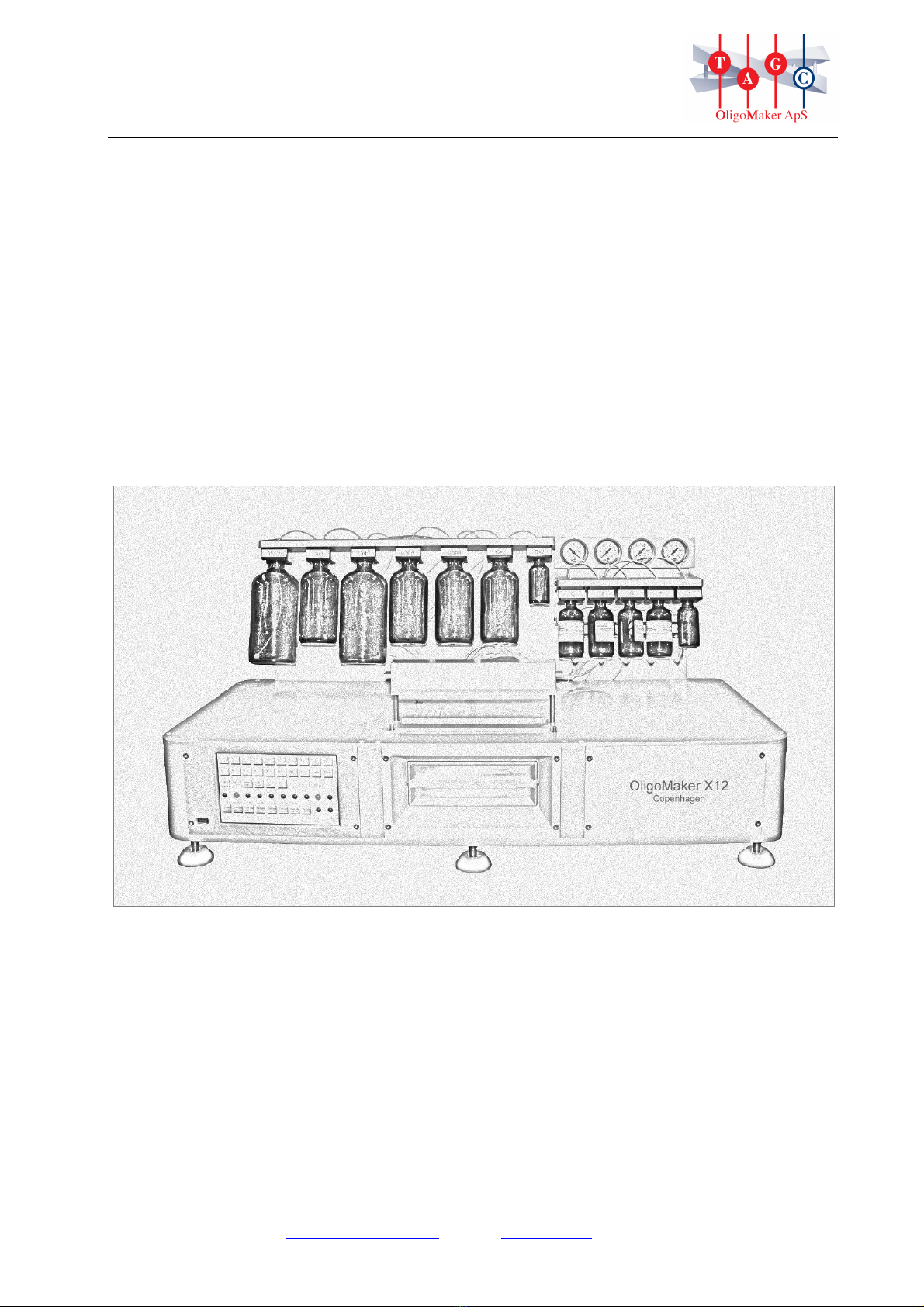

OligoMaker X12 Manuale utente
!
!
! !
!
!
OligoMaker+DNA/RNA+Synthesizer+
OligoMaker+ApS!•!Kong!Georgs!Vej!12!•!DK-2000!Frederiksberg!•!Tel:!+45!321!322!00!!
www.oligomaker.com!•!email:![email protected]! !
p.1
Manual January 2nd, 2019
DNA/RNA Synthesizer
2019
OligoMaker X12
220V/60Hz
!
!
! !
!
!
OligoMaker+DNA/RNA+Synthesizer+
OligoMaker+ApS!•!Kong!Georgs!Vej!12!•!DK-2000!Frederiksberg!•!Tel:!+45!321!322!00!!
www.oligomaker.com!•!email:![email protected]! !
p.2
Content:
1.+INTRODUCTION+................................................................................................................................+3!
2.+SYMBOLS+AND+ABBREVIATIONS+.......................................................................................................+3!
3.+TOUCH+SCREEN+MANUAL+.................................................................................................................+4!
3.1!OPENING!SCREEN!...................................................................................................................................!4!
3.2!MANUAL!CONTROL!.................................................................................................................................!5!
3.3!PRIMING!...............................................................................................................................................!7!
3.4!GET!DATA!.............................................................................................................................................!8!
3.5!SYNTHESIS!.............................................................................................................................................!9!
3.6!DELETE!OLIGO!.....................................................................................................................................!10!
4.+TERMS+............................................................................................................................................+11!
5.+APPLICATION+.................................................................................................................................+11!
6.+SAFETY+...........................................................................................................................................+12!
7.+TRANSPORTATION+.........................................................................................................................+13!
8.+INSTALLATION+................................................................................................................................+13!
8.1!A!QUICK!GUIDE!....................................................................................................................................!14!
9.+SYNTHESIS+START+-+A+USERS+GUIDE+................................................................................................+16!
9.1!CONTROL!OF!COLUMNS!.........................................................................................................................!16!
9.2!CHECK!REAGENTS!.................................................................................................................................!17!
9.3!PRIMING!.............................................................................................................................................!18!
9.4!REAGENT!PRESSURE!AND!VACUUM!TEST!...................................................................................................!18!
9.5!STARTING!THE!BASIC!SYNTHESIS!...............................................................................................................!19!
9.6!END!SYNTHESIS!....................................................................................................................................!19!
9.7!REMOVING!COLUMNS!FROM!THE!REACTION!BLOCK!....................................................................................!19!
10.+SYNTHESIS+PROTOCOL+..................................................................................................................+20!
11.+MAINTENANCE+.............................................................................................................................+25!
12.+SERVICE+........................................................................................................................................+26!
12.1!SERVICE!HOLDER!POSITION!...................................................................................................................!26!
12.2!REMOVING!THE!U-PIN!.........................................................................................................................!27!
12.3!CHANGING!A!VALVE!............................................................................................................................!28!
13.+SPARE+PARTS+................................................................................................................................+29!
14.+DECLARATION+OF+CONFORMITY+...................................................................................................+31!
+
!
!
! !
!
!
OligoMaker+DNA/RNA+Synthesizer+
OligoMaker+ApS!•!Kong!Georgs!Vej!12!•!DK-2000!Frederiksberg!•!Tel:!+45!321!322!00!!
www.oligomaker.com!•!email:![email protected]! !
p.3
!
1. Introduction
This manual is a guide in how to operate the OligoMaker X12.
OligoMaker is produced by OligoMaker ApS, Kong Georgs Vej 12,
DK-2000 Frederiksberg, Denmark - www.oligomaker.com
OligoMaker ApS obtained CE marking in May 2009
This manual must be kept in the laboratory next to the OligoMaker.
The responsible operator or personnel of the OligoMaker must read these instructions
carefully.
2. Symbols and abbreviations
Bottle holders:
T T amidite solution
A dA amidite solution
G dG amidite solution
C dC amidite solution
1 Extra amidite solution
2 Extra amidite solution
3 Extra amidite solution
4 Extra amidite solution
5 Extra amidite solution
6 Extra amidite solution
7 Extra amidite solution
8 Extra amidite solution
9 Extra amidite solution
0 Extra amidite solution
Act Activator solution
Sol Solvent (ex. Acetonitrile)
Deb Deblock solution
Cap A Capping A solution
Cap B Capping B solution
Ox1 Oxidizer (iodine) solution
Ox2 Oxidizer (thio) solution
!
!
! !
!
!
OligoMaker+DNA/RNA+Synthesizer+
OligoMaker+ApS!•!Kong!Georgs!Vej!12!•!DK-2000!Frederiksberg!•!Tel:!+45!321!322!00!!
www.oligomaker.com!•!email:![email protected]! !
p.4
3. Touch screen manual

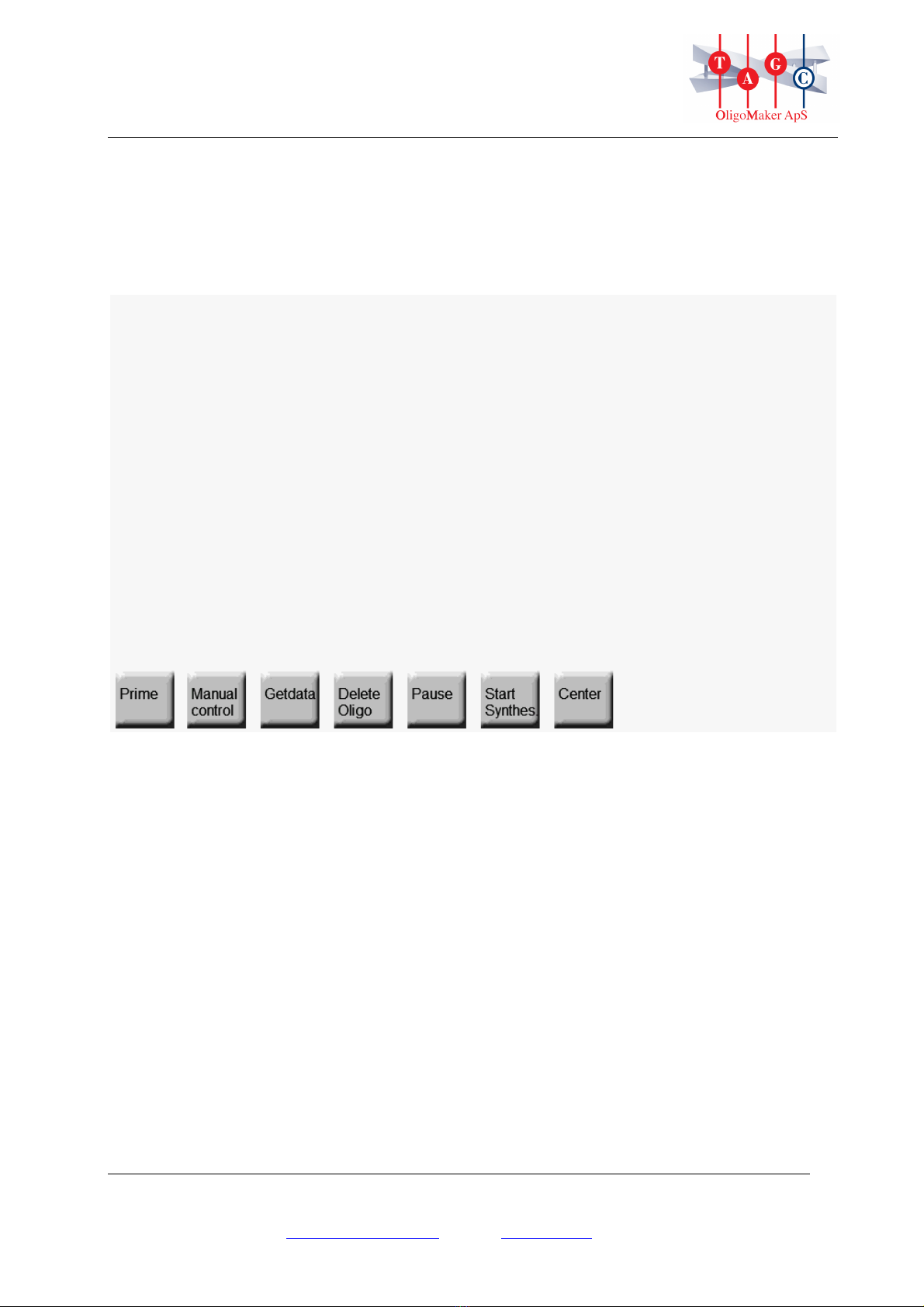

3.1 Opening Screen
!
Prime Opens for Priming (section 3.3)
Manual control Opens for Manual Control (section 3.2)
Get data Imports data (section 3.4)
Delete Oligo Opens for removing single synthesis
Pause Pause in the synthesis
Start Synthesis Start the synthesis
Center Center the Reaction Block
!
!
! !
!
!
OligoMaker+DNA/RNA+Synthesizer+
OligoMaker+ApS!•!Kong!Georgs!Vej!12!•!DK-2000!Frederiksberg!•!Tel:!+45!321!322!00!!
www.oligomaker.com!•!email:![email protected]! !
p.5

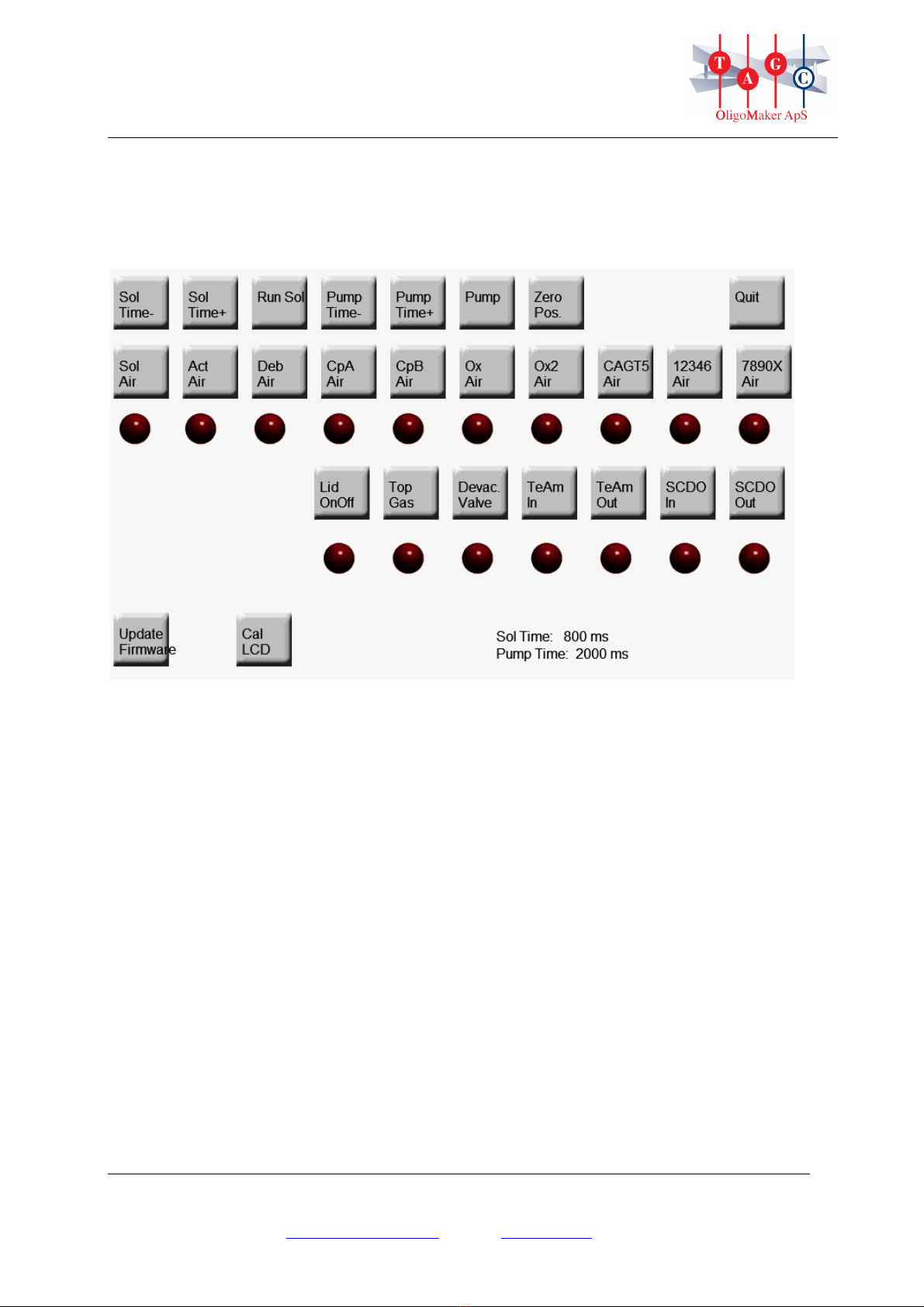

3.2 Manual Control
!
Sol Time-Opening time for acetonitrile valve, here 800 ms. It can be
lowered by pushing the button (-50 ms)
Sol Time+ Opening time can be adjusted higher by pushing the button (+50 ms).
Run Sol A program that fills all the columns with the desired amount of
acetonitrile, following with activating of Pump Run. You can check
whether all columns have been filled with solvent and subsequently sucked
dry. Should be performed prior to every run.
Pump Sucktion time, here 2000 ms. It can be lowered by pushing the button
Time- (-50ms)
Pump Sucktion time can be higher by pushing the button (+50 ms).
Time+
Run Activate the pump.
Pump
Zero Set Reaction Block in center-position
Position
Sol Air Switch On and Off the valve from the nitrogen cylinder to acetonitrile (Sol)
bottle
!
!
! !
!
!
OligoMaker+DNA/RNA+Synthesizer+
OligoMaker+ApS!•!Kong!Georgs!Vej!12!•!DK-2000!Frederiksberg!•!Tel:!+45!321!322!00!!
www.oligomaker.com!•!email:![email protected]! !
p.6
Act Air Switch On and Off the valve from the nitrogen cylinder to activator bottle
Deb Air Switch On and Off the valve from the nitrogen cylinder to Deblock bottle
Cp A Air Switch On and Off the valve from the nitrogen cylinder to Cap A bottle
Cp B Air Switch On and Off the valve from the nitrogen cylinder to Cap B bottle
Ox Air Switch On and Off the valve from the nitrogen cylinder to Oxidizer bottle
Ox2 Air Switch On and Off the valve from the nitrogen cylinder to oxidizer2 bottle
CAGT5 Air Switch On and Off the valve from the nitrogen cylinder to amidite bottles C, A,
G, T and bottle No. 5
12346 Air Switch On and Off the valve from the nitrogen cylinder to amidite bottles No. 1,
2, 3, 4 and No. 6
7890X Air Switch On and Off the valve from the nitrogen cylinder to amidite bottles No. 7,
8, 9, 0 and X
Lid OnOff Power on and off on the lid
Top Gas Opens the valve from the nitrogen cylinder to the space above the reaction
chamber
Devac Opens the drain valve (removes vacuum)
TeAm In Opens for nitrogen cylinder to all bottles of Activator and amidites
TeAm Out Release pressure for bottle Activator and amidites
SCDO In Opens for Acetonitrile, Cap, Deb and Ox reagtens
SCDO Out Release pressure for bottle Acetonitrile, Cap, Deb and Ox reagents
Update For updating the software (instrument)
firmware Comments: In order to use the FTP server, the program must
introduced to OligoMaker through a USB-stick. OligoMaker will
remember the IP address. You can change the log code om12345.log to
your own code on both the program on the FTP-server and the USB-stick.
Cal LCD Calibrating
Quit Back to Opening Screen (Fig. 1)
!
!
! !
!
!
OligoMaker+DNA/RNA+Synthesizer+
OligoMaker+ApS!•!Kong!Georgs!Vej!12!•!DK-2000!Frederiksberg!•!Tel:!+45!321!322!00!!
www.oligomaker.com!•!email:![email protected]! !
p.7

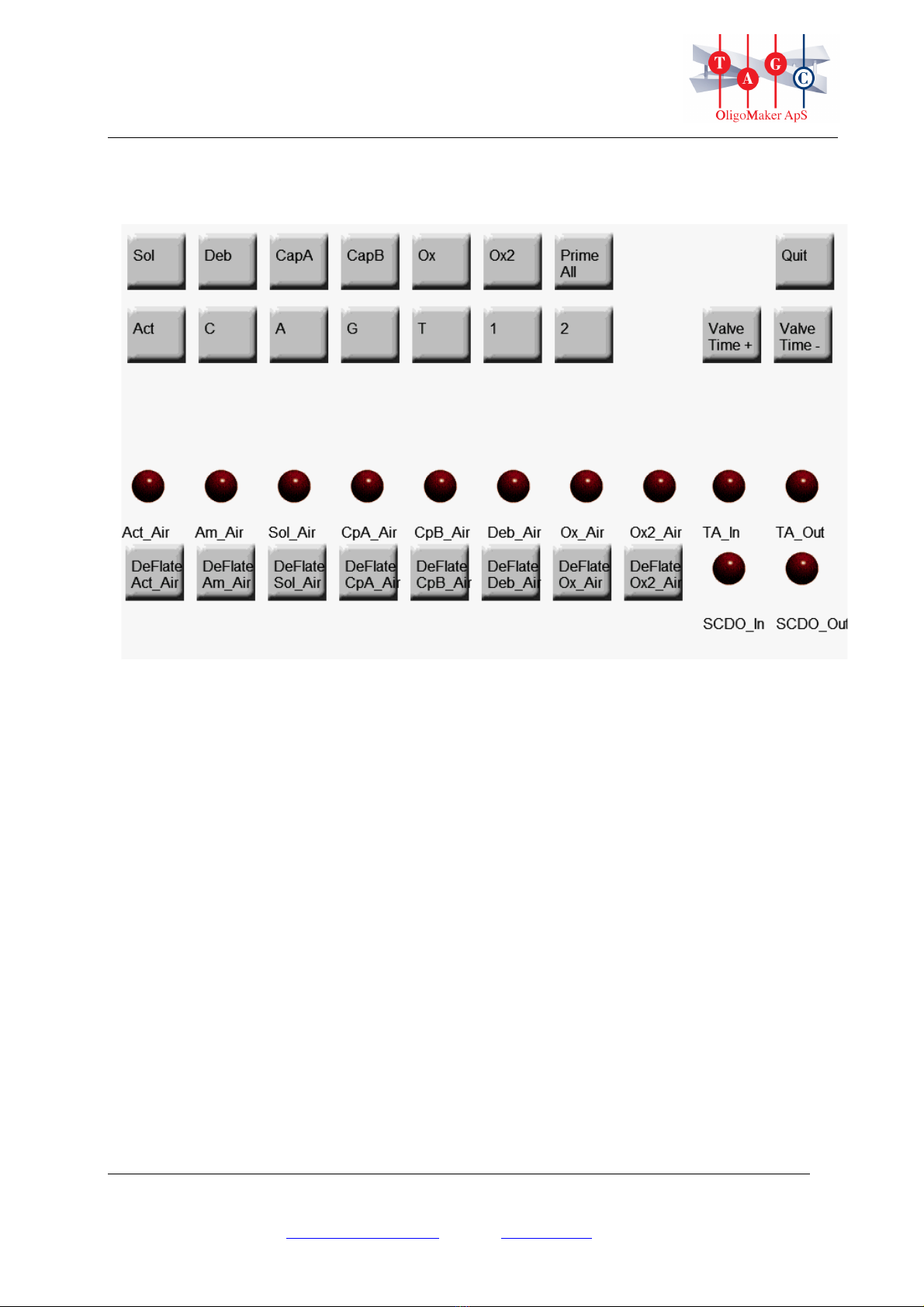

3.3 Priming
!
C Opens dC amidite valve for priming
A Opens dA amidite valve for priming
G Opens dG amidite valve for priming
T Opens T amidite valve for priming
1 to 6 Opens 1 to 6 amidite valves for priming
Act Opens Act valve for priming
Ox Opens Ox valve for priming
CapA Opens Cap A valve for priming
CapB Opens Cap B valve for priming
Deb Opens Deb valve for priming
Sol Opens Acetonitrile valve for priming
ValveTime+ Increase opening time with 5 ms
ValveTime- Decrease opening time with 5 ms
DeFlate Act_Air Release pressure for Act
DeFlate Am_Air Release pressure for all amidites
DeFlate Sol_Air Release pressure for Acetonitrile
DeFlate CpA_Air Release pressure for CapA
DeFlate CpB_Air Release pressure for CapB
DeFlate Deb_Air Release pressure for Deb
DeFlate Ox_Air Release pressure for Ox
DeFlate Ox2_Air Release pressure for Ox2
Quit Back to Main (Fig.1)
!
!
! !
!
!
OligoMaker+DNA/RNA+Synthesizer+
OligoMaker+ApS!•!Kong!Georgs!Vej!12!•!DK-2000!Frederiksberg!•!Tel:!+45!321!322!00!!
www.oligomaker.com!•!email:![email protected]! !
p.8

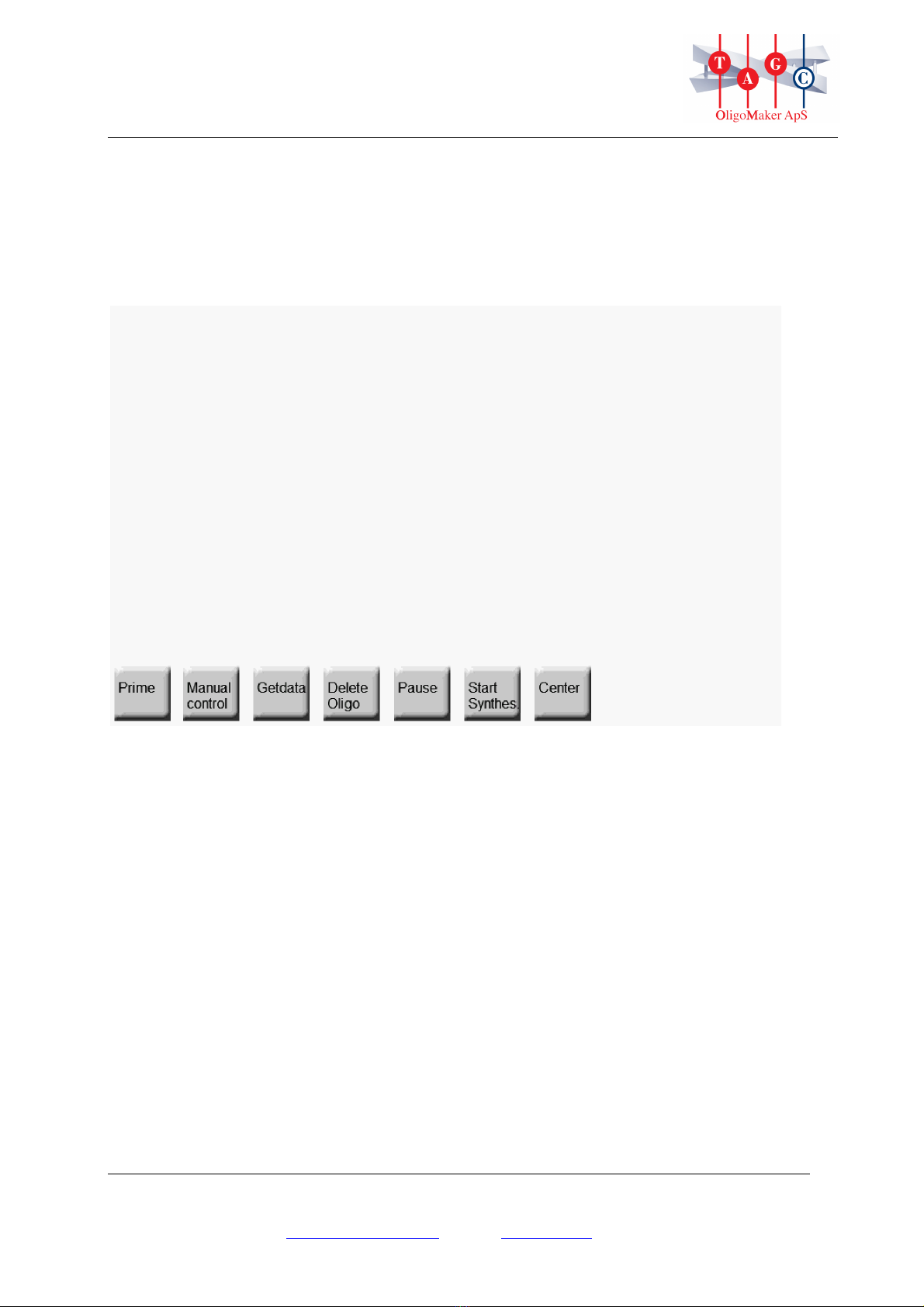

3.4 Get Data
!
!
Get data Imports data
Prime Opens for Priming (section 3.3)
Manual control Opens for Checkpoints (section 3.2)
Delete Oligo Opens for removing single syntheses (section 3.6)
Pause Pause in the synthesis
Start Synthesis Start the synthesis
Center Put the Reaction Block into Center-position
!
!
! !
!
!
OligoMaker+DNA/RNA+Synthesizer+
OligoMaker+ApS!•!Kong!Georgs!Vej!12!•!DK-2000!Frederiksberg!•!Tel:!+45!321!322!00!!
www.oligomaker.com!•!email:![email protected]! !
p.9

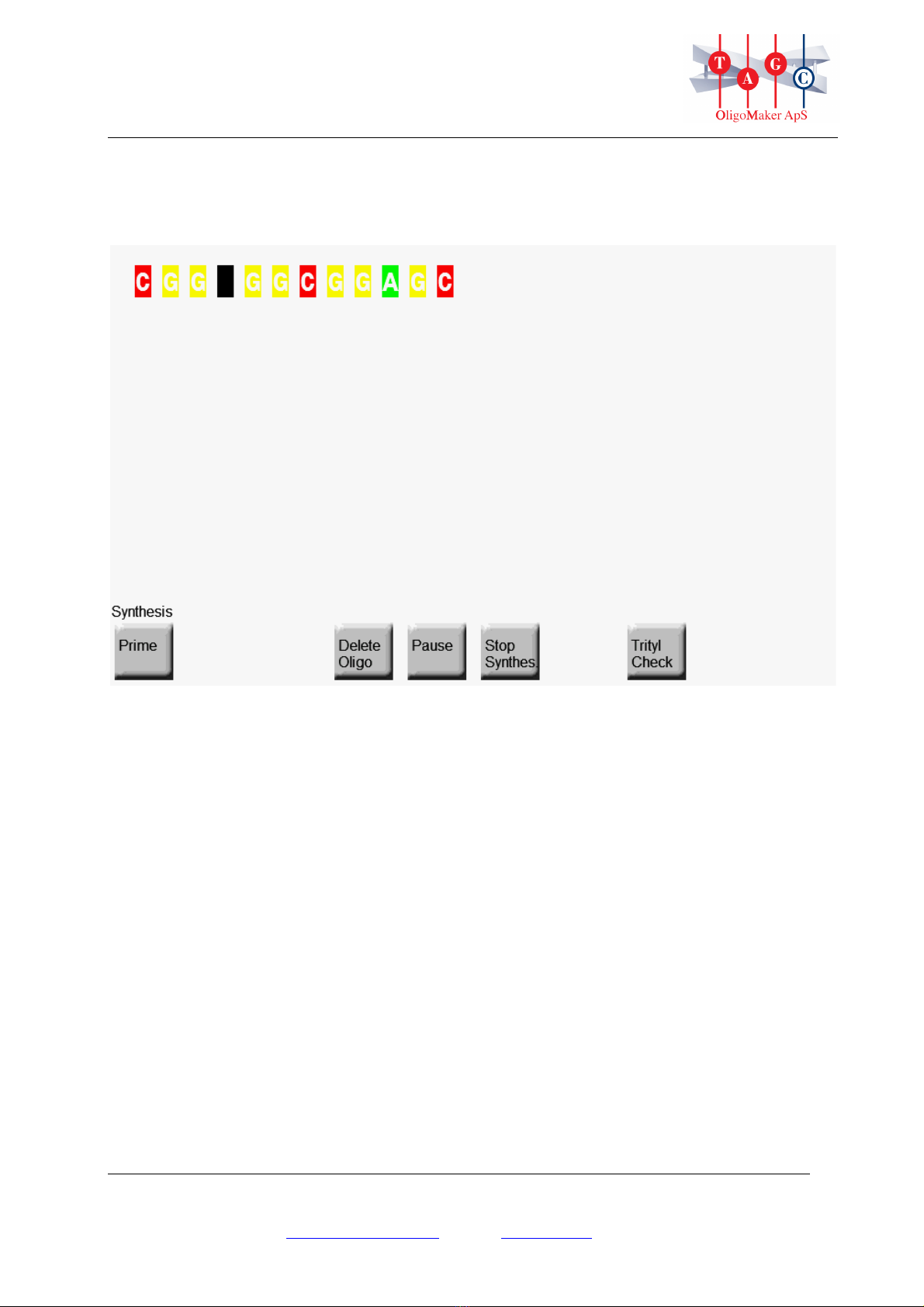

3.5 Synthesis
Prime Opens for Priming (section 3.3)
Stop Synthesis Stops the synthesis
Pause Pause in the synthesis
Delete Oligo Opens for removing single oligos in the synthesis (section 3.6)
Trityl Check The synthesis stops before the Deblock step, insert the holder with
tubes, and collect Deblock reagents. Check colour, and press
continue in order to proceed the synthesis
!
!
! !
!
!
OligoMaker+DNA/RNA+Synthesizer+
OligoMaker+ApS!•!Kong!Georgs!Vej!12!•!DK-2000!Frederiksberg!•!Tel:!+45!321!322!00!!
www.oligomaker.com!•!email:![email protected]! !
p.10

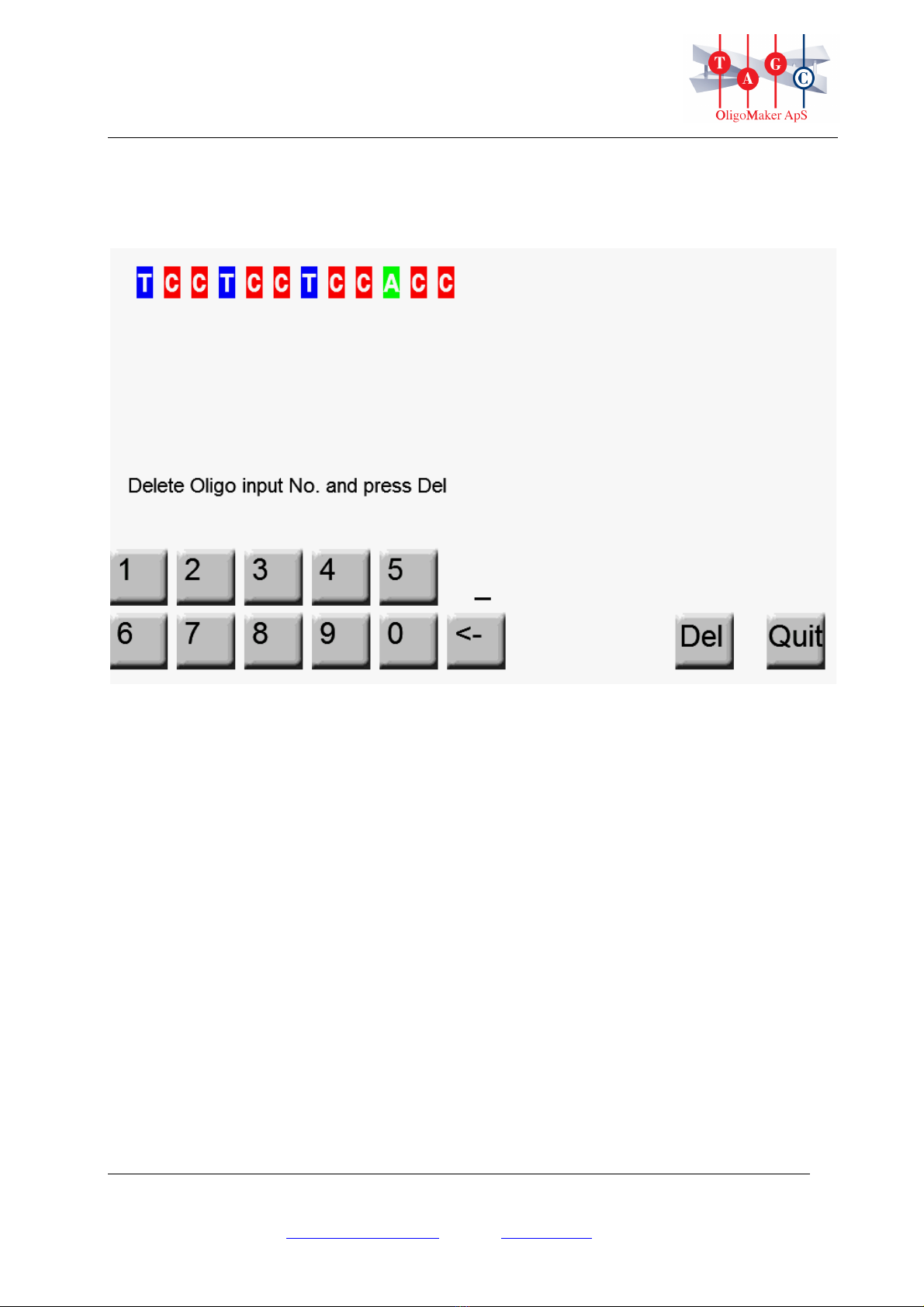

3.6 Delete Oligo
Delete oligo:
1. Enter the location of the oligo by typing the specific number of the oligo
2. Press Del
3. Press Quit - and the synthesis continue.
