Important Information:

- It is the sole responsibility of the customer to check with your local municipal or county by-laws before

ordering this product to confirm it complies with building codes in your area.

- If the product is elevated, any structural and building code requirements are solely the customer's

responsibility, and should be abided by.

- Snow load ratings vary by geographical location. If heavy or wet snowfall occurs, it is advisable to sweep

snow off roof frequently.

- In areas with high or gusty wind conditions, it is advisable to install the structure securely to the ground.

- Have a regular maintenance plan to ensure screws, doors, windows and parts are tightly affixed.

- All structures purchased from Outdoor Living Today are covered for a period of one year for defects in

manufacturing and workmanship. Costs incurred for customer installations are not included.

- Failure to use supplied parts included in this kit could result in poor product performance and may void

your warranty. Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our

written instructions.

Version #1.0

December 4, 2023

In the event of a missing or broken piece, simply call the Outdoor Living Today Customer Support Line

@ 1-888-658-1658 within 30 days of the delivery of your purchase. It is our commitment to you to courier

replacement parts, free of charge, within 10 business days of this notification. Replacement parts will not be

provided free of charge after the 30 day grace period.

Customer agrees to hold Outdoor Living Today and any Authorized Dealers free of any liability for improper

installation, maintenance and repair.

Thank you for purchasing

a 8x4 SpaceSaver /

GardenSaver. Please

take the time to identify

all the parts prior to

assembly.

Stock Code:

84-D-BASE-BEV

8X4 SPACESAVER & 8X4 GARDENSAVER

WITH DOUBLE DOORS

ASSEMBLY MANUAL

Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 2

What to do before my Shed arrives?

Become familiar with this assembly manual and determine if you can•

complete the project yourself or will require a professional contractor.

Clear the construcon area and ensure a clear pathway for delivery when•

the freight company arrives. Remove all debris: roots, grass, rocks, etc.

Excavate the site. Contact your local ulies company to ensure there are•

no gas or electric lines buried in the area before digging.

Decide on the type of foundaon you will be using:•

 Concrete slab, or

 46 inches of crushed gravel with paver stones or 4x4 stringers.

You can ﬁnd the footprint for your shed on Page 3 of your Assembly Manual.

If doing the assembly yourself, have all the necessary tools ready to go and•

in working condion. A list of required tools can be found aer the parts list.

One helper is recommended to assist in construcng your shed.•

It generally takes two people two days to assemble a shed. If you’re hiring

a contractor, their rate should be in line with that duraon of work.

Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 3

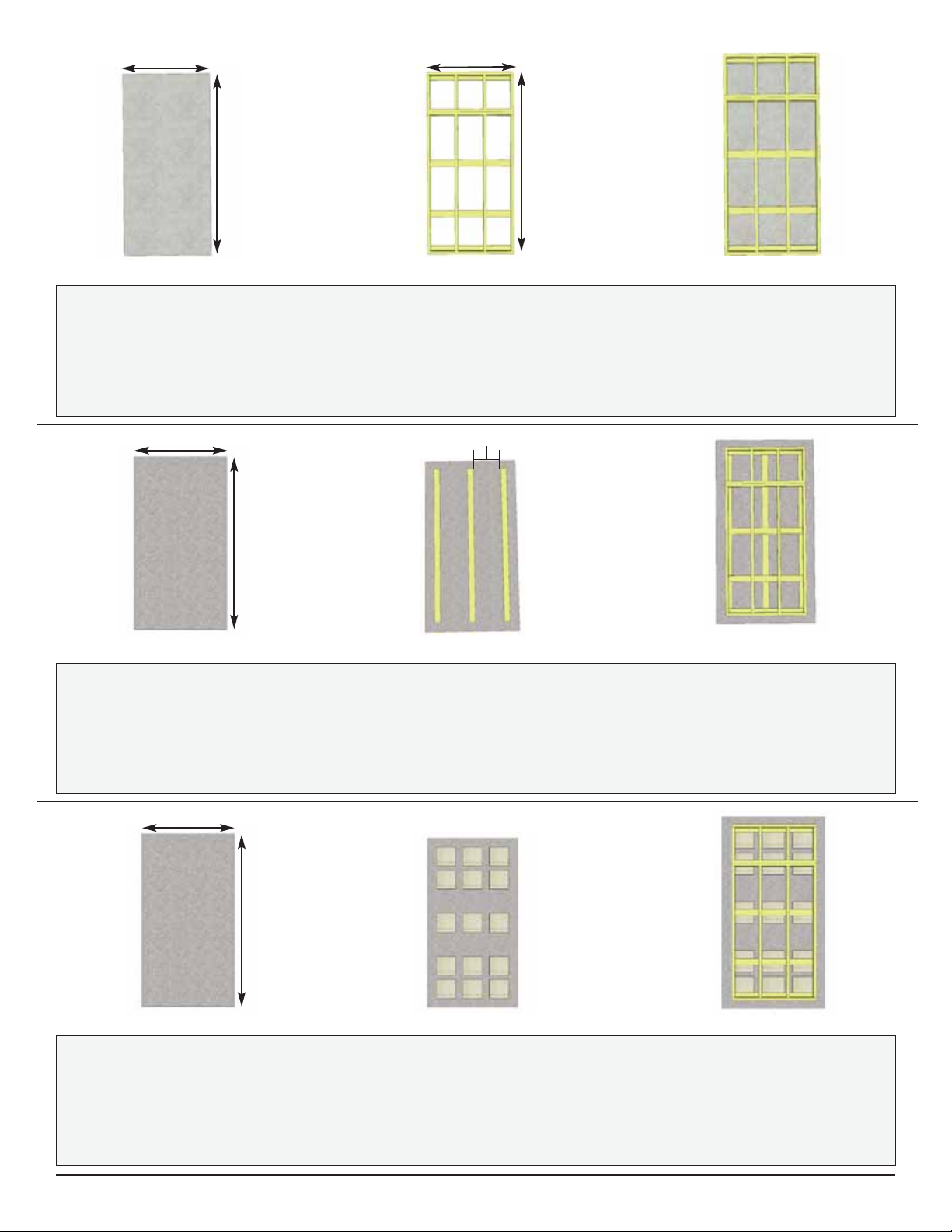

Foundation Types for 8x4 Garden Shed

Concrete Slab Foundation:

- Slab must be at least the same size as assembled floor frame (45 1/2” x 96”) or larger.

- 6” Deep foundation.

- 0.6 Cubic Yards of concrete required.

- A concrete slab will have the longest durability out of your foundation options.

Once level, a concrete slab is the easiest surface to build on.

Gravel with 4x4 Pressure Treated Stringers:

- Excavate at least 6” deep, and 6” wider than floor frame on each side.

- 1.0 Cubic Yards of gravel required, approximately 9 wheelbarrows.

- 3 - 4x4 Pressure Treated Stringers 8’ long required.

- Evenly spaced, with one at each end of floor frame.

Saves money on materials, easy to level and work with.

Gravel with Patio Paver Stones:

- Excavate at least 6” deep, and 6” wider than floor frame on each side.

- 1.0 Cubic Yards of gravel required, approximately 9 wheelbarrows.

- 15 patio pavers (8” x 8” or larger).

- Center patio paver stones underneath floor runners and underneath seams in floor joists.

Patio paver stones are widely available from most landscape stores.

45 1/2”

96”

45 1/2”

96”

6” Deep

57 1/2”

108”

3 - 4”x4”x96”

15 Patio Stones

Floor FrameConcrete Foundation Completed Foundation

17 1/2”

Gravel Foundation Gravel Foundation with treated stringers Completed Foundation

Gravel Foundation Gravel Foundation with Patio Pavers Completed Foundation

57 1/2”

108”

Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 4

Thank you for purchasing our 8x4 SpaceSaver with Double Door.

Please take the time to identify all the parts prior to assembly.

Note: Trim and Skirting pieces are graded with the best face being rough sawn.

Rough sawn cedar is much easier to paint and stain.

Parts List

A. Floor Section

Floors

1 - 45 ½” x 75” - Large Floor Frame (2 Joists unattached)

1 - 45 ½” x 21” - Small Floor Frame (2 Joists ATTACHED)

2 - 1 ½” x 3 ½” x 72” - Floor Joists

5 - 1 ½” x 3 ½” x 45 ½” - Floor Runners

1 - 5/8” x 45 ½” x 75” - Plywood Flooring

1 - 5/8” x 45 ½” x 21” - Plywood Flooring

Steps

A1 - A8

B. Wall Section

Main Wall Panels

4 - 1 ½” x 2 ½” x 45 ½” - Wall Plates

4 - 45 ½” x 75” - Solid Wall Panels

2 - 12” x 73” - Narrow Wall Panels

Header/Wall Extenders

2 - 2” x 3 ½” x 6 ½” - Door Header - (Dado top edge)

1 - 2” x 3 ½” x 78” - Door Header - Long

Dado cut on edge- Aluminum Support Strip Attached

2 - 1½ ” x 3 ½” x 73” - Door Jambs - Vertical

2 - Top Triangular Siding Pc for Angle Wall Extenders

(L/R)

2 - 45 ¼” - Angle Wall Extenders (L/R)

2 - 9” x 45 ½” - Wall Extenders

1 - ¾” x 3 ½” x 70” - Horizontal Wall Cleat

1 - ¾” x 3 ½” x 21” - Horizontal Wall Cleat

B1 - B10

B11 - B22

C. Rafters

6 - 1 ½” x 2 ½” x 54” - Rafters

2 - ½” x 3 ½” x 48” - Front Soffits

2 - ½” x 3 ½” x 48” - Rear Soffits

2 - ¾” x ¾” x 51” - Rafter/Facia Nailing Strips -

C1 - C6

D. Roof Section - CEDAR

2 - Roof Panels - 51” w x 56” d (1 - Left 1- Right)

4 - 5 ½” Wide x 16” to 18” long - Filler Shingles

2 - ½” x 4 ½” x 51 5/8” - Roof Ridge Boards

D1 - D11

D. Roof Section - METAL

6 - ¾” x 3 ½” x 50” - Roof Battens

4 - ¾” x 1 ½” x 21 1/2” - Batten Spacers

2 - ¾” x ¾” x 51” - Rafter/Facia Nailing Cleats

3 - 39” wide x 58 ½” long - Metal Roof Panels

Several Pcs - Foam Enclosures for Metal Roof

Steps

D1 - D13

D. Roof Section - PLYWOOD

1 - ⅝” x 4” x 53 ¾” - Center Plywood for Roof

2 - ⅝” x 48” x 21 ¾” - Small Plywood for Roof

2 - ⅝” x 48” x 32” - Large Plywood for Roof

D1 - D7

E. Misc. Section

Skirting, Trim, Door, Facia & Misc. Parts

6 - ½” x 4 ½” x 45 ¼” - Bottom Skirting

8 - 7/8” x 2 ½” x 36” - Corner Filler Trims

2 - 7/8” x 2 ½” x 10” - Rear Center Corner Filler Trims

2 - ½” x 5 ½” x 79” - Front Corner Trims

2 - ½” x 5 ½” x 88 ¾” - Rear Corner Trims

2 - ½” x 2 ½” x 80” - Side Front Corner Trims

2 - ½” x 2 ½” x 88 ¾” - Side Rear Corner Trims

1 - ½” x 2 ½” x 88 ¾” - Rear Middle Trim

2 - ½” x 3 ½” x 79” - Vertical Door Trims

1 - ½” x 1 ¼” x 64” - Horizontal Door Trim

2 - ½” x 2 ½” x 8 ½” - Horizontal Narrow Wall Trims

1 - 31 ½” x 72” - Full Door

2 - ½” x 4” x 54 1/8” - Side Facia (Angle Cut Ends) -

reverse

4 - ½” x 4” x 50 ½” - Front and Rear Facia

2 - Detail Facia Plates (4” high)

1 - ½” x ½” x 32” - Upper Horizontal Door Stop

4 - ½” x ½” x 36 ¼” - Vertical Door Stops

2 - ½” x ½” x 28 7/8” - Upper Interior Door Trims

4 - ½” x ½” x 35 7/8” - Side Interior Door Trims

1 - 1 ½” x 2 ½” x 6” - Upper Door Stop

1 - ¾” x 2 ½” x 64” - Lower Door Stop /Floor Threshold

1 - x 2 ½” x 70” - Interior Vertical Door Flange

1 - 45 ¼” - Extra Piece of Bevel Wall Siding - Use if wall

panel siding is damaged or to shim floor or door.

For GardenSaver

1 - ½” x 2 ½” x 88 ¼” - Horizontal Door Trim

1 - ½” x 2 ½” x 8 5⁄8” - Front Middle Trim

E1 - E41

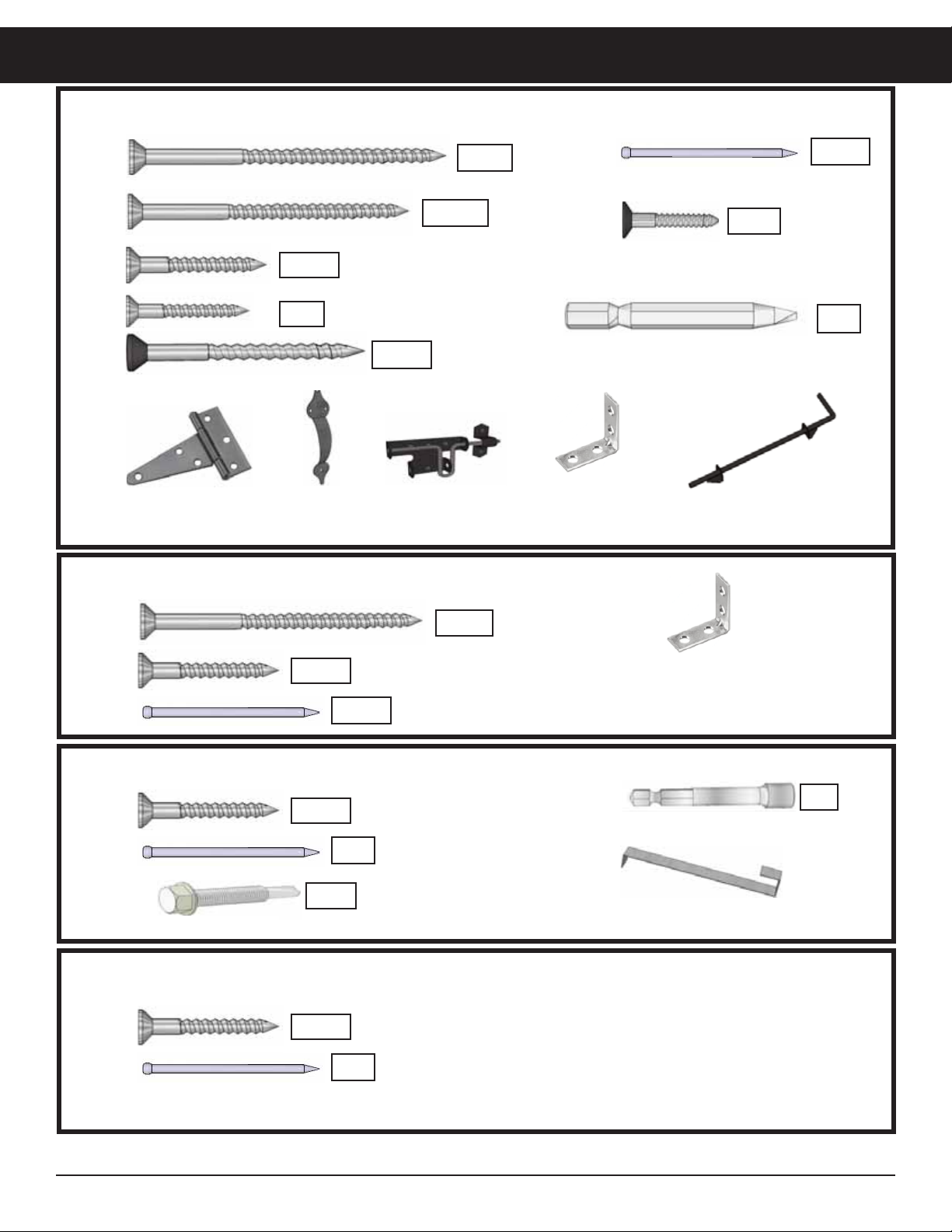

Hardware Kit - BASE KIT (Provided)

Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 5

Cane Bolt

Hardware Kit - METAL ROOF (Provided)

8x4 SPACESAVER - DOUBLE DOOR

T Hinge

x 6 pcs

Door

Handle

Drop Latch 90° Metal

Brackets

x 4 pcs

Square Drive Bit

2 1/2”

1 1/4”

3/4”

2”

1 1/2”

Finishing Nail

x 140

x 90

x 32

x 30

x 250

x 1

Black Headed

3” x 10

x 14

1/4” x 2”

1/4” Nut Driver

Metal Roof Screw Metal Roof Hanger x 3

Hardware Kit - CEDAR ROOF (Provided)

90° Metal

Brackets

x 4 pcs

2 1/2” x 18

1 1/4” x 26

1 1/2” x 16

1 1/4” x 34

1 1/2” x 8

x 1

Hardware Kit - PLYWOOD ROOF (Provided)

1 1/4” x 60

1 1/2” x 8

3/4” x 4

Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 6

GardenSaverSpaceSaver

Assembly Manual shows instructions for the SpaceSaver (Low Front). Assembly

instructions will diverge to note important differences between sheds. When following

assembly steps keep your desired roof slope in mind relative to the doors.

Tools Required (Not Provided)

Safety Equipment Required (Not Provided)

Safety Glasses

Work Gloves

Ladder

Screw Gun/Drill Tape Measure

Hammer Wood Clamp

Level Pliers 1/8” & 3/8” Drill Bits

3/8” Wrench

Utility Knife

Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 7

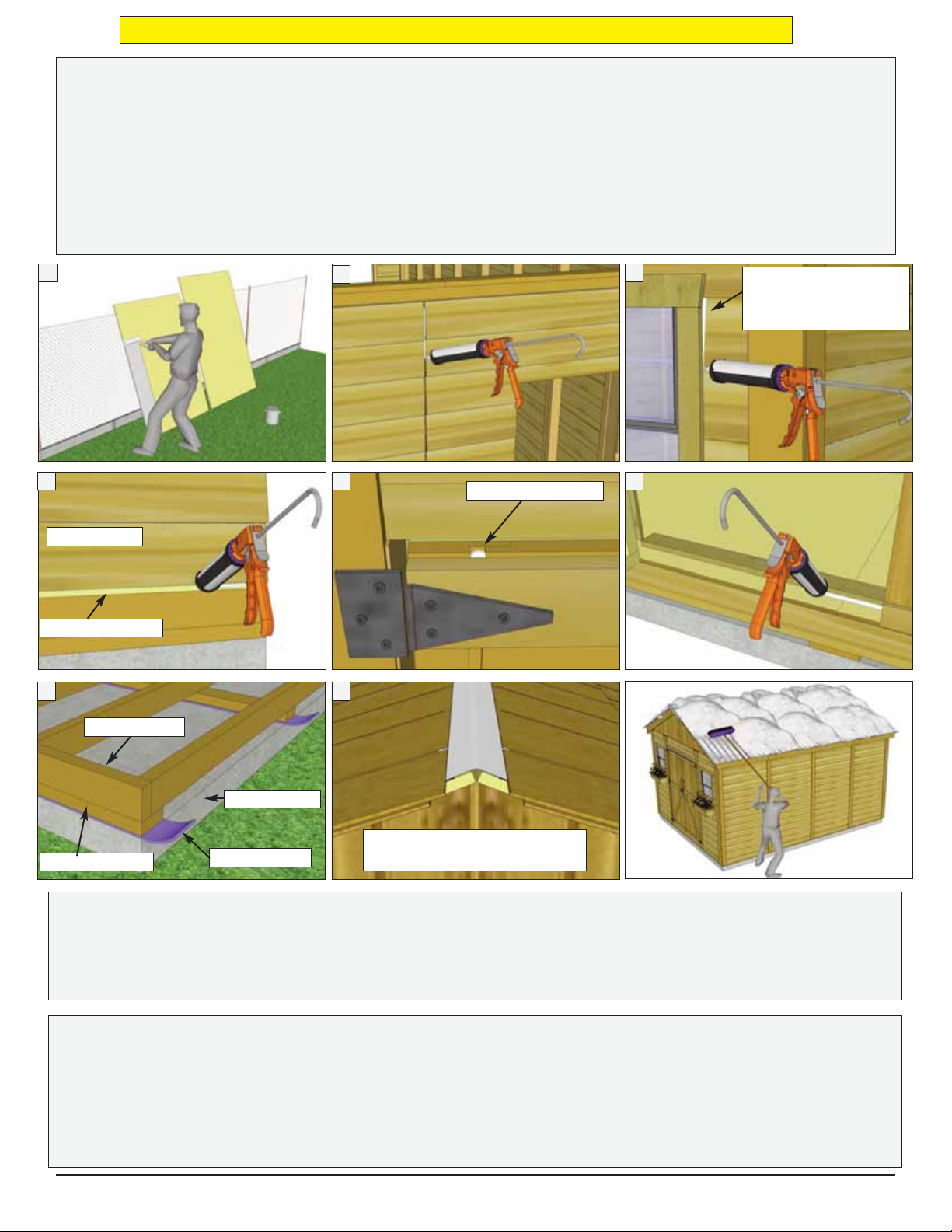

Regular Maintenance & Tips to prolong the life of your shed.

Before/During Assembly:

1.) Paint each face and edge of your plywood floor with a latex exterior paint.

2.) Caulk wall seams if gaps appear.

3.) Caulk around window framing (if applicable).

4.) Caulk perimeter between floor plywood and bottom wall plate.

5.) Caulk channels in lap siding at the top of your door above the trim, just a drop in each channel.

6.) Caulk edge of door threshold (if applicable).

7.) Optional: Install a Sill Gasket between floor runners and foundation.

8.) Optional: Install an 8” strip of roofing paper below Cedar Ridge Caps for Cedar Roof Sheds.

1. 2. 3.

4. 5. 6.

Sill Gasket

Floor Joists

Floor Runner

Foundation

Floor Plywood

Wall Panel

Small gap between

bevel siding and

window trim

Dab of caulking

Strip of roofing paper over

apex of roof panels

Routine Maintenance:

- Routinely check all fasteners are tight (ex. Door Hinges, Nails)

- Brush off dirt from walls.

- Brush off snow from roof regularly.

- Routinely remove needles and leaves from roof.

Painting/Staining

- Your cedar shed, if left untreated, will weather to a silvery grey colour.

- Painting or staining your structure is highly recommended and will prolong the life of your shed.

- You do not need to wait to paint or stain your shed, the wood in your kit has been dried and can be

—stained or painted immediately.

- Consult your local paint store for the best paint or stain for cedar.

- Optional: stain the inside of your shed. (Note: this will remove the fresh cedar smell.)

Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 8

Plywood Floor

Large Floor

Joist Frame

Floor Joists (2)

Floor Runners (5)

Small Floor

Joist Frame

Exploded Floor Section

A. Floor Section

Exploded view of all parts necessary to complete Floor Section. Identify all parts prior to

starting. Note: Floor Footprint is 96” wide x 45 1/2” deep.

Foundation Material

not included.

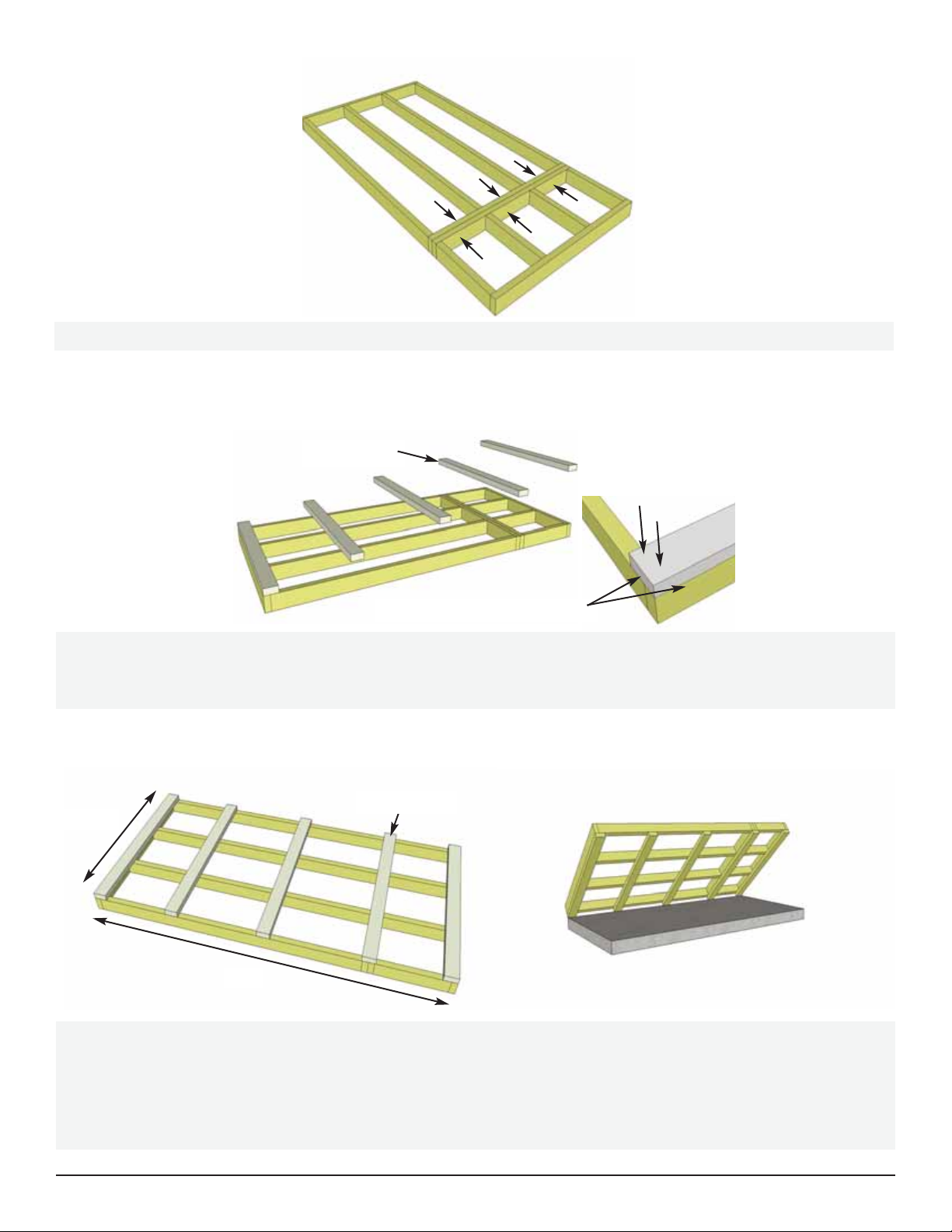

A1. Lay out Large Floor Joist Frame and 2 Floor Joists (1 1/2” x 3 1/2” x 71 7/8”) as illustrated

above. Position Joists equally in Floor Joist Frame. Use Small Floor Joist Frame as a template to

determine joist position. Position Joist so flush with framing.

A2. When correctly positioned, attach each Joist with 4 - 2 1/2” Screws (2 per end). You can

find the Square Drive Bit for the screws in with the Hardware Kit Bag.

Flush

with

framing.

Front of GardenSaver

Door Location. Small Floor

Joist Frame.

You can find the

Square Drive Bit, for

the screws, in the

Hardware Kit Bag.

Floor Section will be installed the same way for both SpaceSaver and

GardenSaver.

Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 9

A3. With Floor Joist Frames positioned together flush, attach with 6 - 2 1/2” Screws.

A4. Position and attach Floor Runners (1 1/2” x 3 1/2” x 45 1/2”) to completed floor frames with

6 - 2 1/2” Screws per Runner. Make sure Runners are flush with outside of floor framing but not

overhanging. Make sure 4th Runner is placed equally over seam where floor frames meet.

4th Runner

96”

45 1/2”

A5. With Floor Runners attached, carefully flip the floor over and place on your foundation.

Caution - you may need 2 people to assist you. Be careful when laying floor down not to bend or twist

floor. Note: The floor will be flipped over and floor runners will sit on your foundation. It is important

to note that having a level foundation is critical. Choosing a foundation will vary between regions.

Typical foundations can be concrete pads or patio stones positioned underneath the floor runners.

Flush with Floor Framing.

Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

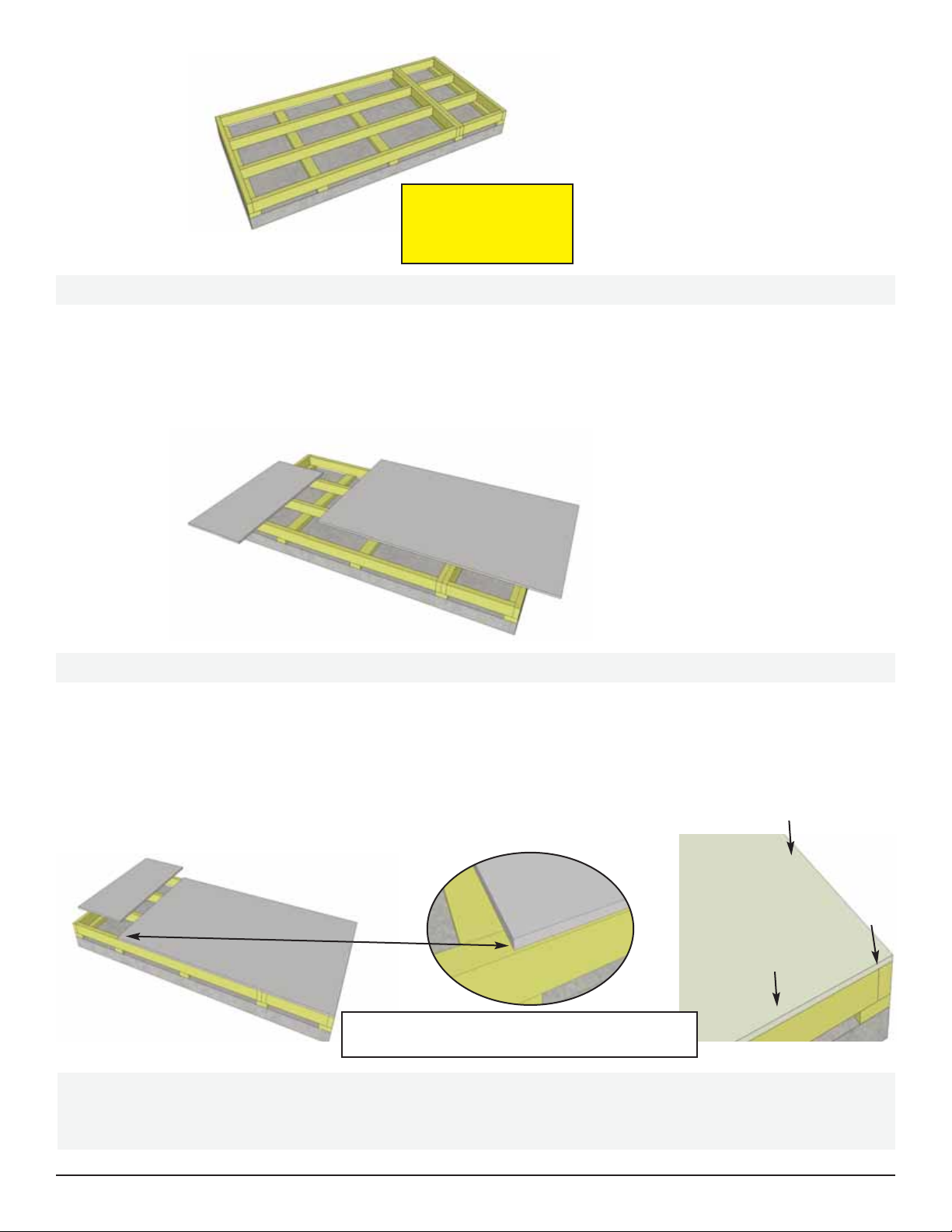

Page 10

A8. Position Plywood so it sits almost flush with outside of floor joist framing (see Note). When

correctly positioned, attach to all floor joists with approximately 24 - 1 1/4” Screws. Use screws

every 16”.

Note: Plywood is cut slightly smaller than

floor framing. Keep plywood seams tight.

A7. Position Plywood Floor pieces (2) on top of completed floor joists.

Front

A6. When in place, level floor completely before proceeding.

Important:

Floor should be

completely level before

moving to next step.

Indice

Altri manuali OLT Casa da giardino

OLT

OLT STU128 Manuale utente

OLT

OLT SunShed Greenhouse 8x12 Manuale utente

OLT

OLT FJ Bevel Manuale utente

OLT

OLT GS84-D-FJ Manuale utente

OLT

OLT CB128-AK-METAL Manuale utente

OLT

OLT SunShed SSGS1216-FJ-Metal Manuale utente

OLT

OLT SunShed Garden Shed SSGS1212-FJ-METAL Manuale utente

OLT

OLT GardenSaver GS84-SLIDER-PLY-AK Manuale utente

OLT

OLT Santa Rosa SR812-FJ-Cedar Manuale utente

OLT

OLT Cabana Shed CB128-FJ-METAL Manuale utente

OLT

OLT SS84-SLIDER-METAL-AK Manuale utente

OLT

OLT SSGS1216-FJ-Ply Manuale utente

OLT

OLT GS84-SLIDER-CEDAR-FJ Manuale utente

OLT

OLT SpaceSaver SS124-SLIDER-METAL-AK Manuale utente

OLT

OLT SunShed SSGS1216-FJ-Cedar Manuale utente

OLT

OLT GardenSaver GS124-SLIDER-METAL-FJ Manuale utente

OLT

OLT 12x8 Cabana Manuale utente

OLT

OLT 8x4 SpaceSaver Garden Shed Bevel Model with Plywood... Manuale utente

OLT

OLT Studio Garden Shed STU128-FJ-Metal Manuale utente

OLT

OLT 12x12 SpaceMaker Garden Shed Manuale utente

OLT

OLT Muskoka Cabin 9x9 Manuale utente

OLT

OLT 12x12 Space Maker Garden Shed with Plywood Roof & AK... Manuale utente

OLT

OLT SS84-SLIDER-Ply-AK Manuale utente

OLT

OLT 8x4 GardenSaver Manuale utente

Manuali Casa da giardino popolari di altre marche

Mercia Garden Products

Mercia Garden Products 0628LOG181-V4 Manuale utente

Lemeks

Lemeks Palmako PA120-5930-6 Manuale dell'installatore

Gartenhaus-King

Gartenhaus-King Valery Manuale utente

Rion

Rion Hobby Gardener Manuale utente

POD

POD Camping 480 Manuale utente

Select

Select ISAAC E9682 Manuale utente

Mercia Garden Products

Mercia Garden Products 01DTSHPWOR1010DDOW-V4 Manuale di istruzioni

Palmako

Palmako Saale Manuale utente

Lemeks

Lemeks Palmako Kira EL16-3623 Manuale dell'installatore

Mercia Garden Products

Mercia Garden Products 0644LOG186-V4 Manuale di istruzioni

Palmako

Palmako Roger FR44-5953-2 Manuale utente

Mercia Garden Products

Mercia Garden Products 03DTSHHP1206HGD4MW-V1 Manuale di istruzioni

WAR-LOCK

WAR-LOCK GARDENSHED Skillion Series Manuale utente

Pergola kits USA

Pergola kits USA PREMIUM VINYL PAVILION Manuale utente

G21

G21 Boston 882 Manuale utente

Lemeks

Lemeks Palmako Grace PM56-4529 Manuale dell'installatore

Mercia Garden Products

Mercia Garden Products 03WES0808-V1 Manuale di istruzioni

Shire

Shire Salcey Manuale utente
