●Thank you for purchasing an Olympus digital camera. Before you start

to use your new camera, please read these instructions carefully to

enjoy optimum performance and a longer service life. Keep this manual

in a safe place for future reference.

●We recommend that you take test shots to get accustomed to your

camera before taking important photographs.

●In the interest of continually improving our products, Olympus reserves

the right to update or modify information contained in this manual.

●The screen and camera illustrations shown in this manual were

produced during the development stages and may differ from the actual

product.

Instruction Manual

Contents

Step 5

Printing

“Direct printing (PictBridge)” (p. 37)

“Print Reservations (DPOF)” (p. 40)

Step 4

How to Use the Camera

“Camera Settings” (p. 3)

Step 3

Shooting and Playing Back Images

“Shooting, Viewing, and Erasing” (p. 14)

Step 2

Preparing the Camera

“Preparing the Camera” (p. 10)

Names of Parts .............................. 6

Preparing the Camera ................. 10

Shooting, Viewing, and Erasing

... 14

Using Shooting Modes................ 20

Using Shooting Functions.......... 23

Menus for Shooting Functions... 27

Menus for Playback, Editing, and

Printing Functions....................... 30

Menus for Other Camera

Settings ........................................ 32

Printing ......................................... 37

Usage Tips ................................... 42

Appendix ...................................... 46

Step 1

Checking the contents of the box

Other accessories not shown: Instruction Manual (this manual), warranty card.

Contents may vary depending on purchase location.

Digital camera

Strap LI-80B Lithium Ion Battery

USB cable ib CD-ROM F-2AC USB-AC adapter

Camera Settings

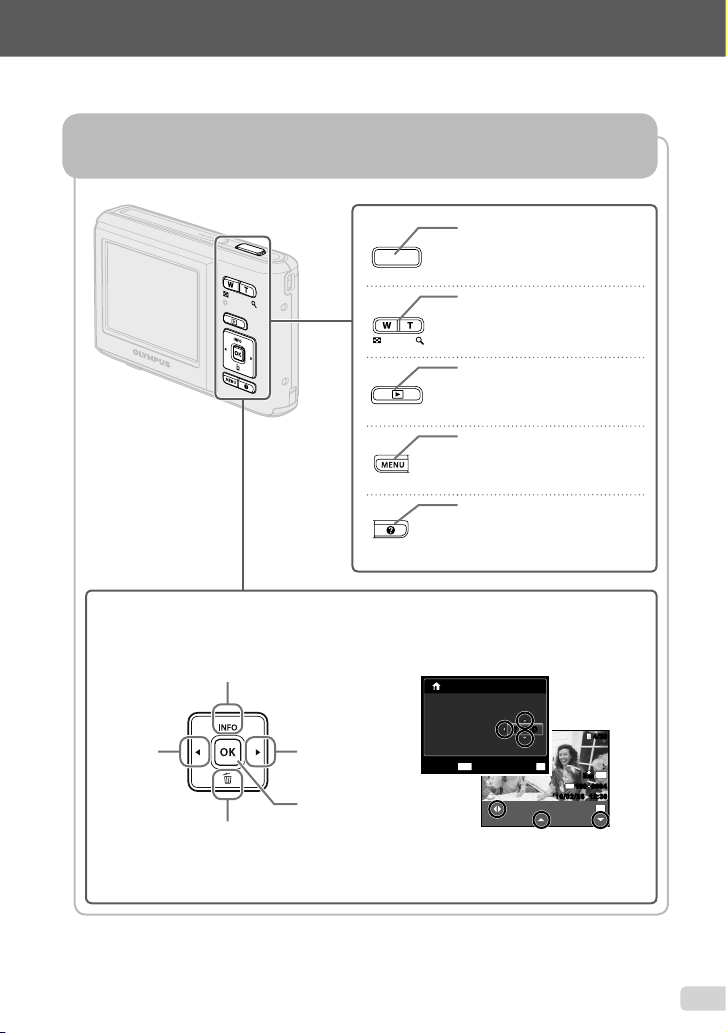

Using the Direct Buttons

Frequently used functions can be accessed using the direct buttons.

Shutter button (p. 14)

Zoom buttons (p. 16)

qbutton (switch between

shooting and playback) (p. 15)

mbutton (p. 4)

Ebutton (menu guide) (p. 19)

Arrow pad

H(left)

G(down) /

Dbutton (erase) (p. 18)

F(up) /

INFO button (change

information display) (p. 16, 19)

I(right)

Hbutton

(p. 12)

The symbols FGHI displayed for image

selections and settings indicate that the arrow

pad is to be used.

ORM

SINGLE PRINT

4/304/30

’10/02/26 12:30’10/02/26 12:30

ORM

12M

FILE

100 0004100 0004

02 26 12 30:..2010

SET

YMDTIME

CANCEL

Y/M/DY/M/D

Using the Menu

Use the menu to change camera settings such as the shooting mode.

Press the mbutton to display the function menu. The function menu can be used to set frequently

used shooting and playback functions such as shooting mode.

PERFECT FIX

EDIT

ERASE

SETUP

SLIDESHOWSLIDESHOW

Use FG to select a menu and press

the Hbutton.

0.00.0

AUTO

ISO

AUTO

ISO

PROGRAM AUTOPROGRAM AUTO

Shooting Playback

Selected option

To select the shooting mode

Use HI to select a shooting mode and press

the Hbutton.

To select the function menu

Use FG to select a menu and use HI to

select a menu option. Press the Hbutton to

set the function menu.

o[SETUP]

Function

Shooting

mode

In the [SETUP] menu, various camera functions can be set,

including shooting and playback functions not displayed in the

function menu, and other settings such as date, time and screen

display.

1Select [SETUP] and then press the H

button.

The [SETUP] menu is displayed.

FINE ZOOM OFF

AF MODE FACE/iESP

SETEXIT

ROFF

ICON GUIDE ON

COMPRESSIONCOMPRESSION NORMALNORMAL

2Press Hto highlight the page tabs. Use

FG to select the desired page tab and

press I.

SETEXIT

BEEP

VIDEO OUT

WORLD TIME

PIXEL MAPPING

sNORMAL

NTSC

POWER SAVE OFF

Page tab

SETEXIT

VIDEO OUT

WORLD TIME

PIXEL MAPPING

sNORMAL

NTSC

POWER SAVE OFF

BEEPBEEP ONON

Submenu 1

3Use FG to select the desired submenu 1

and then press the Hbutton.

SETEXIT

BEEP

VIDEO OUT

WORLD TIME

PIXEL MAPPING

sNORMAL

NTSC

POWER SAVEPOWER SAVE OFFOFF

SET

BEEP

VIDEO OUT

WORLD TIME

PIXEL MAPPING

BACK

NORMAL

NTSC

POWER SAVEPOWER SAVE OFFOFF

POWER SAVE

OFFOFF

Submenu 2

●

4Use FG to select the desired submenu 2

and then press the Hbutton.

Once a setting is selected, the display returns

to the previous screen.

There may be additional operations.

“Menu Settings” (p. 27 to 36)

SETEXIT

BEEP

VIDEO OUT

WORLD TIME

PIXEL MAPPING

sNORMAL

NTSC

POWER SAVEPOWER SAVE ONON

5Press the mbutton to complete the

setting.

Some functions cannot be used in some

shooting modes. In such cases, the

following message is displayed after

setting.

FINE ZOOM OFF

AF MODE FACE/iESP

COMPRESSIONCOMPRESSION NORMALNORMAL

SETEXIT

ROFF

ICON GUIDE ON

CONFLICTING SETTINGS

●

Menu Index

Menus for Shooting Functions

1Shooting mode

P(PROGRAM AUTO)....... p. 14

M(iAUTO).................... p. 20

N(DIS MODE) ............... p. 20

s(SCENE MODE) ...... p. 20

P(MAGIC FILTER) ..... p. 21

~(PANORAMA) ...............p. 22

A(MOVIE) .......................p. 15

2Flash.................................. p. 23

3Macro ................................ p. 23

4Self-timer ........................... p. 24

5Exposure compensation.... p. 24

6White balance.................... p. 25

7ISO .................................... p. 25

8Image size (Still images) ...p. 26

9o(SETUP) X

z(Shooting) / A(Movie)

IMAGE SIZE (Movies) .......p. 27

COMPRESSION (Still images)

....................................... p. 27

1SLIDESHOW..................... p. 30

2PERFECT FIX ................... p. 30

3EDIT .................................. p. 30

4ERASE .............................. p. 30

Menus for Playback, Editing, and Printing Functions

5o(SETUP) Xq(Playback)

PRINT ORDER ..................p. 31

0(Protect) ..................... p. 31

y(Rotate).........................p. 31

R(Add sound to still images)

....................................... p. 31

0.00.0

AUTO

ISO

AUTO

ISO

PROGRAM AUTOPROGRAM AUTO

PERFECT FIX

EDIT

ERASE

SETUP

SLIDESHOWSLIDESHOW

1r(Settings 1)

MEMORY FORMAT/

FORMAT............................ p. 32

BACKUP............................ p. 32

W(Language)................. p. 32

RESET...............................p. 32

USB CONNECTION ..........p. 33

qPOWER ON ................ p. 33

SAVE SETTINGS .............. p. 33

Menus for Other Camera Settings

2s(Settings 2)

BEEP................................. p. 34

PIXEL MAPPING ...............p. 34

s(Monitor) ..................... p. 34

X(Date/time).................. p. 34

WORLD TIME.................... p. 35

VIDEO OUT....................... p. 35

POWER SAVE................... p. 36

FRAME RATE (Movies)..... p. 27

AF MODE .......................... p. 28

FINE ZOOM ...................... p. 28

IS MOVIE MODE............... p. 28

R(Still images).................. p. 29

R(Movies)......................... p. 29

ICON GUIDE ..................... p. 29

FINE ZOOM OFF

AF MODE FACE/iESP

COMPRESSION NORMAL

SETEXIT

ROFF

ICON GUIDE ON

IMAGE SIZE VGA

FRAME RATE 30fps

SETEXIT

IS MOVIE MODE

OFF

SETEXIT

FORMAT

SAVE SETTINGS

BACKUP

ENGLISH

RESET

USB CONNECTION

STORAGE

qPOWER ON NO

SETEXIT

PRINT ORDER

Names of Parts

1Strap eyelet

2Battery/card compartment cover... p. 10

3Self-timer lamp.............................. p. 24

4Flash .............................................p. 23

Camera unit

5Lens ........................................ p. 46, 59

6Microphone ............................. p. 29, 31

7Tripod socket

8Multi-connector ........... p. 11, 12, 35, 37

Attaching the camera strap

Pull the strap tight so that it does not come loose.

1nbutton ........................p. 12, 14

2 qbutton (switch between shooting

and playback)................................ p. 15

3 Monitor ....................................p. 14, 42

4 mbutton................................... p. 4

5 Shutter button ...............................p. 14

6Zoom buttons ................................p. 16

7 Indicator lamp ......................... p. 11, 12

8 Hbutton (OK) ..........................p. 3, 12

9 Arrow pad........................................ p. 3

INFO button (change information

display) .............................p. 16, 19

Dbutton (erase) ....................p. 18

10 Ebutton (menu guide) .................p. 19

Monitor

Shooting mode display

1/1001/100 F3.1F3.1

ORM

0.00.0

AUTO

ISO

AUTO

ISO

0.00.0

AUTO

0:340:34 ONON

VGA

1 2 1 2

1213915

121415

1920

Still image

Movie

1 Battery check ................................ p. 11

2 Shooting mode........................ p. 14, 20

3 Flash .............................................p. 23

Flash standby/ﬂash charge ........... p. 42

4Macro ............................................ p. 23

5 Self-timer....................................... p. 24

6 Exposure compensation ...............p. 24

7 White balance ............................... p. 25

8 ISO................................................ p. 25

9 Image size............................... p. 26, 27

10 [SETUP] menu ............................p. 4, 5

11 Recording with sound (movies)

.................................................... p. 29

12 World time..................................... p. 35

13 Digital image stabilization ........... .p. 28

14 Compression (still images)............ p. 27

15 Number of storable pictures (still

images) .........................................p. 14

Continuous recording length (movies)

....................................................p. 15

16 Current memory ............................p. 48

17 AF target mark .............................. p. 14

18 Camera shake warning ....................... -

19 Aperture value............................... p. 14

20 Shutter speed................................ p. 14

Playback mode display

Normal display

1010

’10/02/26 12:30’10/02/26 12:30

4/30

00:12/00:3400:12/00:34

1 65432 1 4

Still image Movie

Detailed display

1010

4/304/30

1/1000 F3.1 2.0

AUTO

ISO

ORM

FILE

100 0004

’10/02/26 12:30

1/1000 F3.1 2.0

AUTO

ISO

ORM

12M

FILE

100 0004

’10/02/26 12:30

1 6 87 9 11105432

●

1 Battery check ................................ p. 11

2 Print reservation/

number of prints ...................p. 40/p. 39

3 Protect........................................... p. 31

4 Adding sound ..........................p. 29, 31

5 Current memory ............................p. 48

6 Frame number/total number of images

(still images).................................. p. 16

Elapsed time/total recording time

(movies) ........................................p. 17

7 Shooting mode........................ p. 14, 20

8 Shutter speed................................ p. 14

9 Aperture value............................... p. 14

10 ISO................................................ p. 25

11 Exposure compensation ...............p. 24

12 White balance ............................... p. 25

13 Image size............................... p. 26, 27

14 File number ......................................... -

15 Date and time................................ p. 12

16 Compression (still images)............ p. 27

Frame rate (movies)...................... p. 27

17 Macro ............................................ p. 23

18 Flash .............................................p. 23

Preparing the Camera

Insert the battery while sliding the battery

lock knob in the direction of the arrow.

Slide the battery lock knob in the direction

of the arrow to unlock, and then remove the

battery.

Turn off the camera before opening the

battery/card compartment cover.

When using the camera, be sure to close

the battery/card compartment cover.

Insert the card straight until it clicks into

place.

Do not touch the contact area directly.

This camera allows the user to take pictures

using the internal memory even when no

SD/SDHC memory card (sold separately) is

inserted. “Using an SD/SDHC memory card”

(p. 47)

“Number of storable pictures (still images)/

Continuous recording length (movies) in the

internal memory and SD/SDHC memory

cards” (p. 49)

To remove the SD/SDHC memory card

Press the card in until it clicks and comes

out slightly, then grab the card and pull it

out.

Inserting the battery and the

SD/SDHC memory card (sold

separately)

Always use SD/SDHC memory cards with

this camera. Do not insert any other types of

memory card.

Battery/card compartment cover

Battery lock knob

Write-protect switch

Insert the battery by putting in the ▼marked

side ﬁrst, with the Cmark toward the

battery lock knob.

Damage to the battery exterior (scratches,

etc.) may produce heat or an explosion.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Olympus Macchina fotografica digitale

Olympus

Olympus STYLUS TOUGH-6000 Manuale utente

Olympus

Olympus Stylus TG-Tracker Manuale utente

Olympus

Olympus 262032 Manuale utente

Olympus

Olympus SP-620UZ Guida all'installazione

Olympus

Olympus CAMEDIA C-100 Guida all'installazione

Olympus

Olympus 750-GP1 - Stylus 750 7.1 MP 5X Optical Zoom All... Manuale utente

Olympus

Olympus FE 230 - Digital Camera - Compact Manuale utente

Olympus

Olympus C-2000 - Zoom 2.1MP Digital Camera Istruzioni operative

Olympus

Olympus 226705 - Stylus 9000 Digital Camera Istruzioni per il montaggio

Olympus

Olympus SP-510UZ Manuale utente

Olympus

Olympus E-P2 - PEN 12.3 MP Micro Four Thirds Interchangeable Lens Digital... Manuale utente

Olympus

Olympus FE 230 - Digital Camera - Compact Manuale utente

Olympus

Olympus SP-310 Manuale utente

Olympus

Olympus CAMEDIA C-5500 Sport Zoom Manuale utente

Olympus

Olympus Stylus 730 Manuale utente

Olympus

Olympus VH-210 Manuale utente

Olympus

Olympus CAMEDIA C-740 Ultra Zoom Guida all'installazione

Olympus

Olympus E-M5Mark II Manuale utente

Olympus

Olympus C-2020ZOOM - CAMEDIA - Digital Camera Guida all'installazione

Olympus

Olympus XZ-1 Istruzioni per il montaggio

Olympus

Olympus FE-140 X-725 Guida all'installazione

Olympus

Olympus TG-1 Manuale utente

Olympus

Olympus C-50 - Camedia 5MP Digital Camera Manuale utente

Olympus

Olympus OM-40 Program Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
