Olympus CAMEDIA C-2 ZOOM Guida all'installazione

C-2 Zoom

D-520 ZOOM

C-220 ZOOM

ENGLISH

FRANÇAIS

DEUTSCH

ESPAÑOL

2En

CONTENTS/TABLE DES MATIÉRES/INHALT/CONTENIDO/

ENGLISH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

FRANÇAIS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

DEUTSCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

CONTENTS

GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

MENU FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

SHOOTING BASICS . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

SELECTING THE IMAGE QUALITY (RECORD MODE) 23

PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

PRINT SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

DOWNLOADING PICTURES TO A COMPUTER . . . . . 31

OPTIONAL ACCESSORIES . . . . . . . . . . . . . . . . . . . . . 33

ERROR CODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

These instructions are only for quick reference. For more details

on the functions described here, refer to the “Reference Manual”

on CD-ROM.

En 3

For customers in Europe

For customers in North and South America

For customers in USA

Declaration of Conformity

Model Number : C-2 Zoom/D-520 ZOOM/C-220 ZOOM

Trade Name : OLYMPUS

Responsible Party : Olympus America Inc.

Address : 2 Corporate Center Drive, Melville, New York

11747-3157 U.S.A.

Telephone Number: 631-844-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to

the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference

that may cause undesired operation.

For customers in Canada

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Trademarks

• IBM is a registered trademark of International Business Machines Corporation.

• Microsoft and Windows are registered trademarks of Microsoft Corporation.

• Macintosh is a trademark of Apple Computer Inc.

• All other company and product names are registered trademarks and/or

trademarks of their respective owners.

• The standards for camera file systems referred to in this manual are the “Design

Rule for Camera File System/DCF” standards stipulated by the Japan Electronics

and Information Technology Industries Association (JEITA).

“CE” mark indicates that this product complies with the European

requirements for safety, health, environment and customer

protection. “CE” mark cameras are intended for sales in Europe.

4En

GETTING STARTED

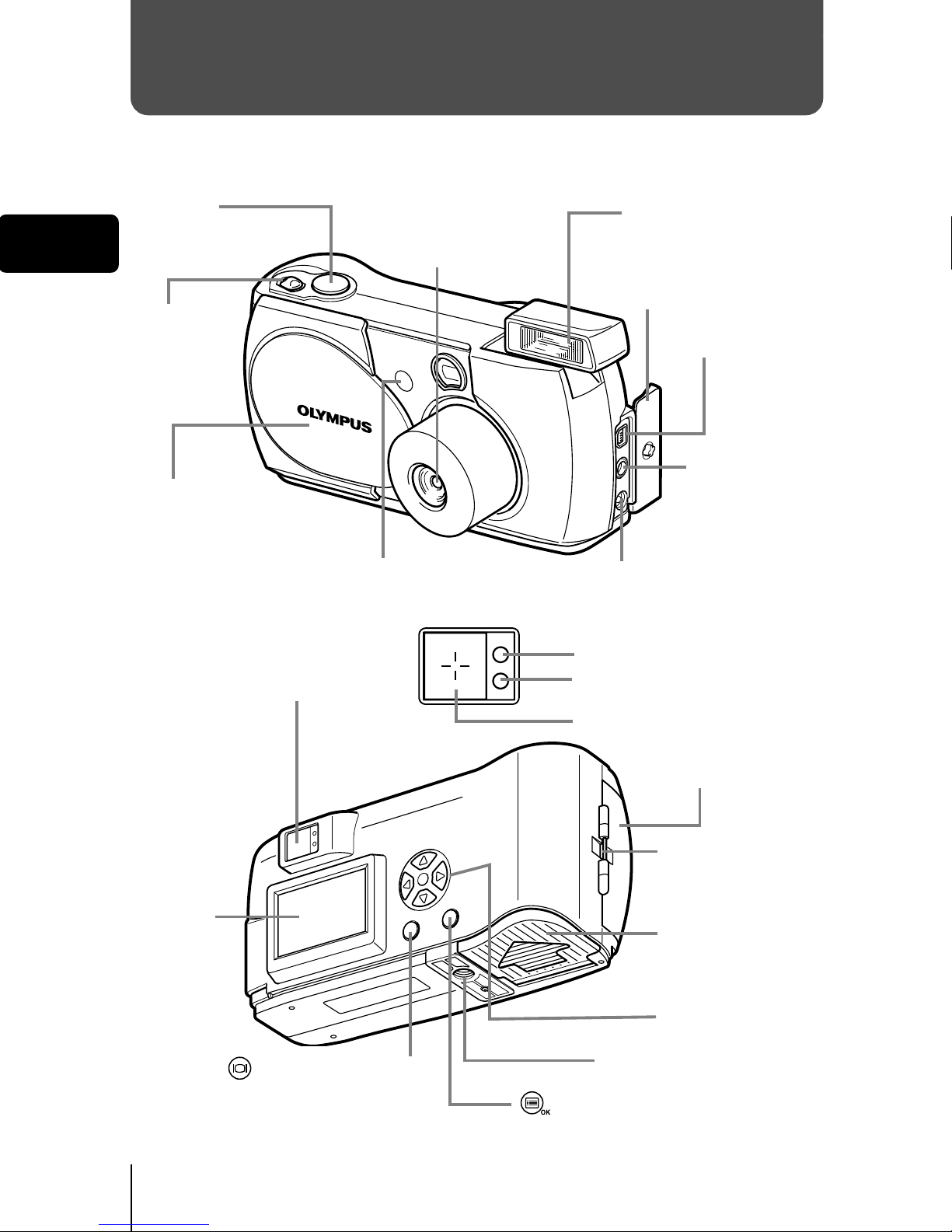

JNAMES OF PARTS

Lens barrier

Turns the camera on and

off in the shooting mode.

Shutter

button

Lens

Extends automatically when

you open the lens barrier.

Self-timer lamp

Connector cover

DC-IN jack

USB connector

Flash

Pops up when you

open the lens barrier.

Zoom

lever

VIDEO

OUT jack

(Monitor) button

Turns the camera on and

off in the playback mode.

Card cover

Strap eyelet

Monitor

Arrow pad

Battery

compartment

cover

Tripod socket

Green lamp

AF target mark

Viewfinder

(OK/Menu) button

Orange lamp

En 5

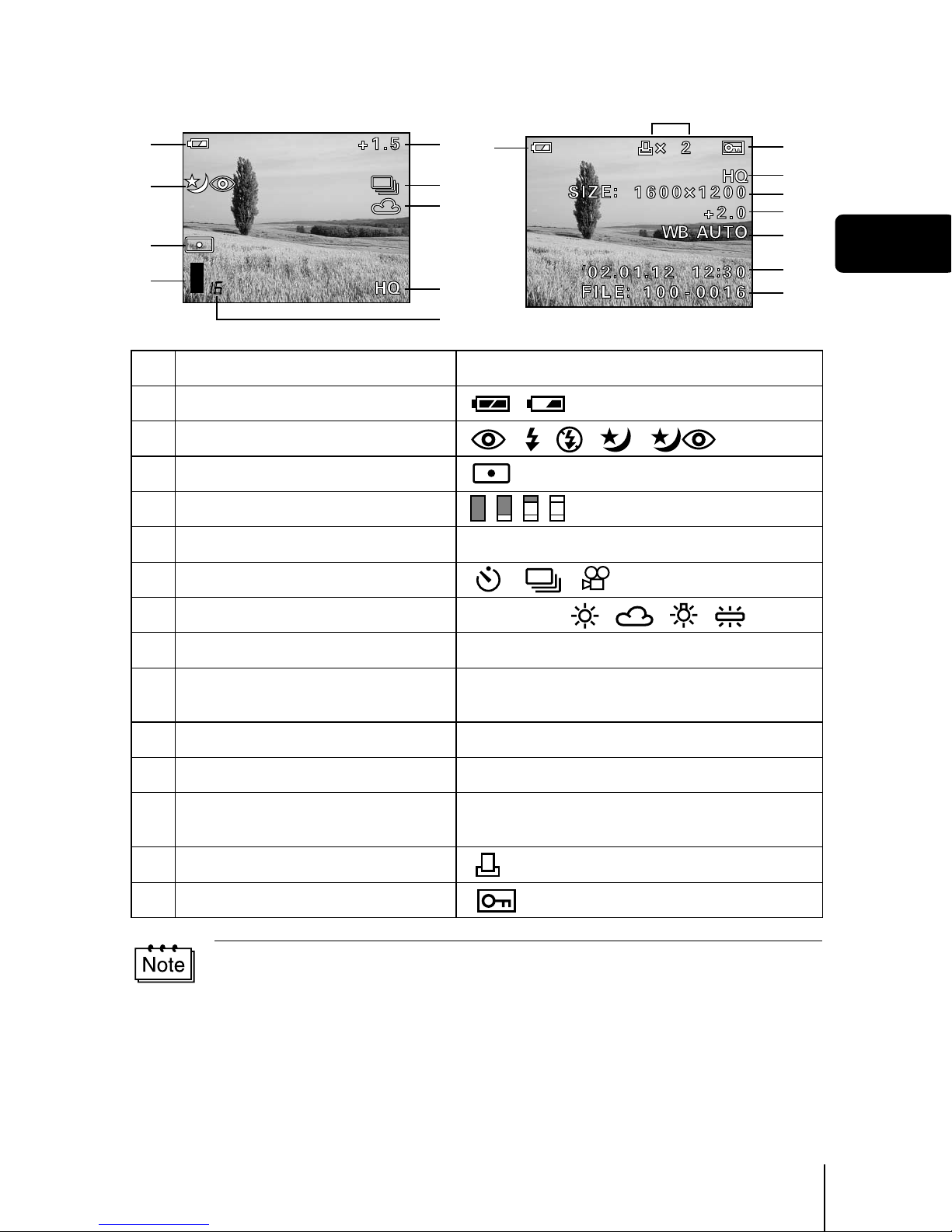

JMONITOR INDICATIONS

Item Indication

1 Battery check ,

2 Flash , , , ,

3 Spot metering

4 Memory gauge

Exposure compensation -2.0, -1.5, -1.0, -0.5, +0.5, +1.0, +1.5, +2.0

6 Self-timer/Drive , ,

7 White balance WB AUTO, , , ,

8 Record mode SHQ, HQ, SQ1, SQ2

9 Number of storable still

pictures/Seconds remaining 16/16"

10 Number of pixels 1600 ×1200, 1024 ×768, 640 ×480

11 Date and time '02.01.12 12:30

12 File number, Frame number/

Playing time 100-0016, 16/16"

Print reservation, Number of prints

×2

14 Protect

You can view shooting information details of the recorded picture in the

playback mode.

Shooting mode Playback mode

6En

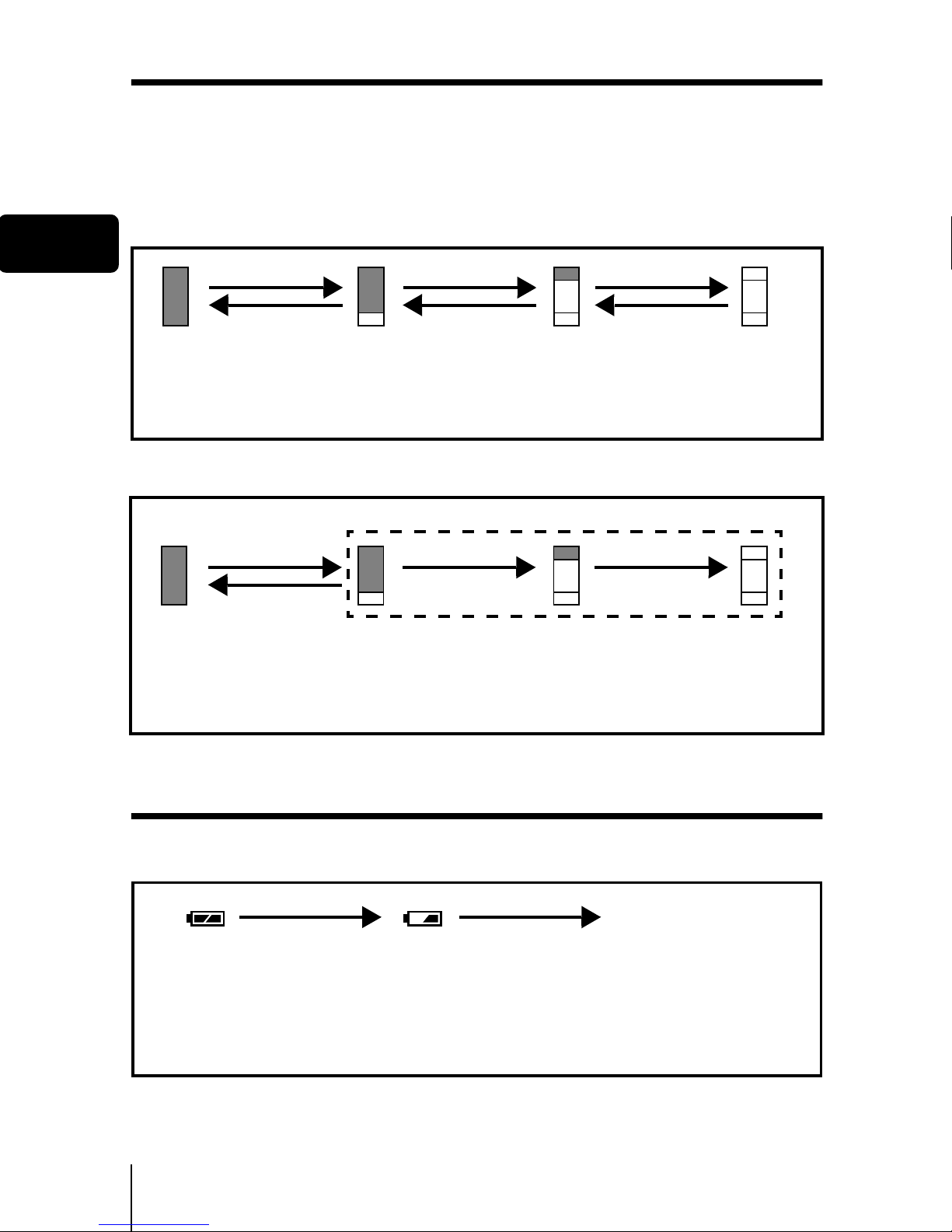

Memory gauge

The memory gauge lights up when you take a picture. While the gauge is lit,

the camera is storing the picture on the card. The memory gauge indication

changes as shown below depending on the shooting status. When the

memory gauge is full, wait a few moments before taking the next shot.

When taking still pictures

When recording movies

Battery check

If the remaining battery power is low, the battery check indication on the

monitor changes as follows while the camera is turned on.

Before

shooting

(Gauge is

off)

No more pictures

can be taken

(Fully Lit)

One picture

taken

(Lit)

More than

two taken

(Lit)

Shoot Shoot Shoot

Wait

Before shooting

(Gauge is off)

During shooting (Lit)

• Shooting is not possible until the lit area goes off completely.

• Movie recording ends automatically when the memory gauge

is full.

Shoot

Wait

If you continue shooting

Lights up (Green) Blinks (Red)

Remaining power

level: high

Remaining power level: low

Replace with a new battery.

Green lamp and Orange

lamp on the right of the

viewfinder blink

Remaining power level:

exhausted

No indication

En 7

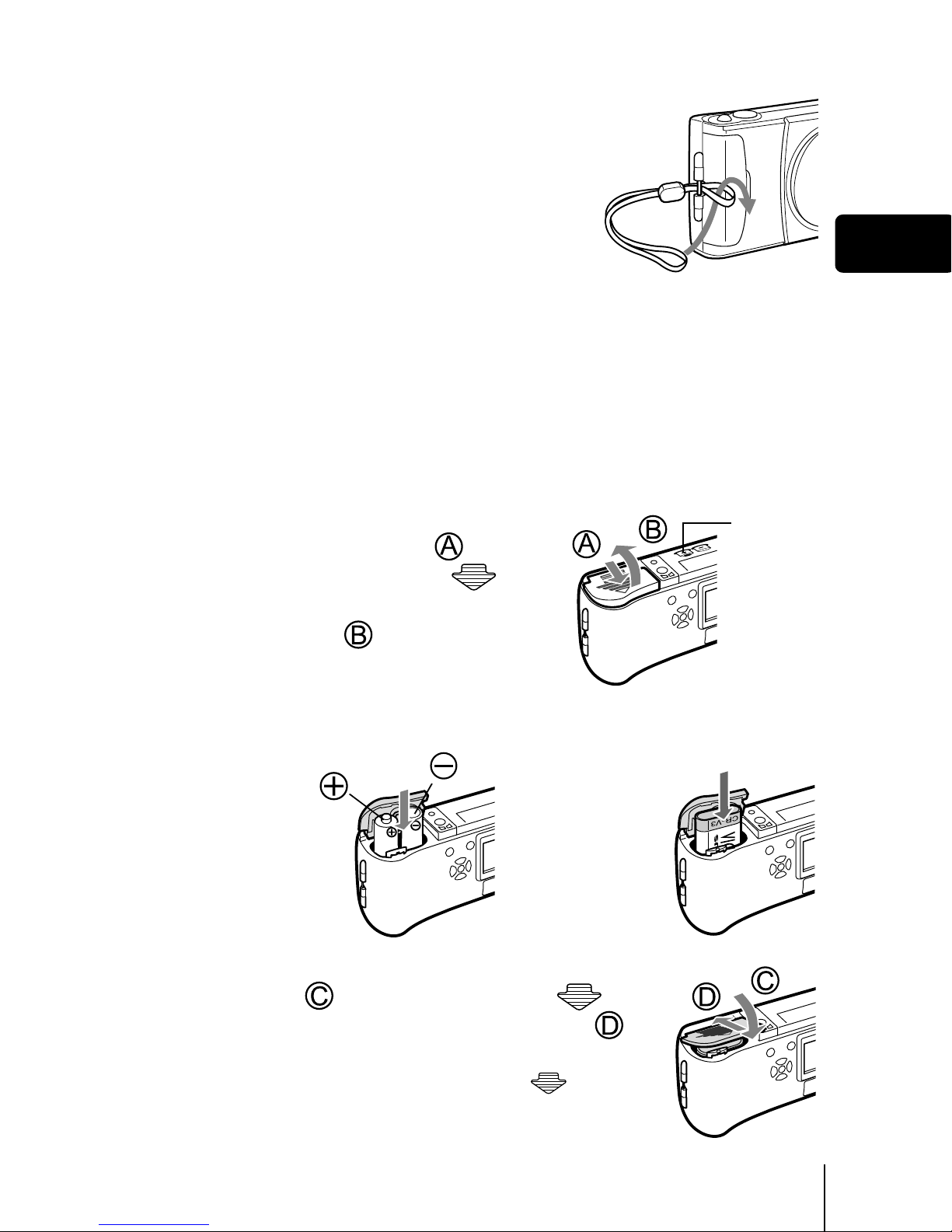

JATTACHING THE STRAP

Thread the short end of the strap

through the strap eyelet.

Thread the long end of the strap

through the loop that has already gone

through the eyelet.

Pull the strap tight, making sure that it

is securely fastened and does not

come loose.

JLOADING THE BATTERIES

Make sure that:

• The monitor is off.

• The lens barrier is closed.

• The lamp on the right of the viewfinder is off.

Slide the battery compartment

cover in the direction of (the

direction indicated by the

mark on the cover), and lift it up in

the direction of .

Insert the batteries, making sure

that they are correctly oriented as shown in the illustration.

Close the battery compartment cover in the

direction of . While pressing the

mark, slide the cover in the direction of .

If the battery compartment cover will not close

easily, do not force it. Try pressing the mark

with both hands.

Battery

insertion

direction

mark

When using

a lithium

battery pack

When using

AA (R6)

batteries

8En

AA (R6) alkaline batteries

The number of pictures that you can store in the camera may vary

considerably with AA batteries, depending on the battery manufacturer,

camera shooting conditions, etc. Use this type of battery only when you have

no other choices available. Turn off the monitor whenever possible to save

power.

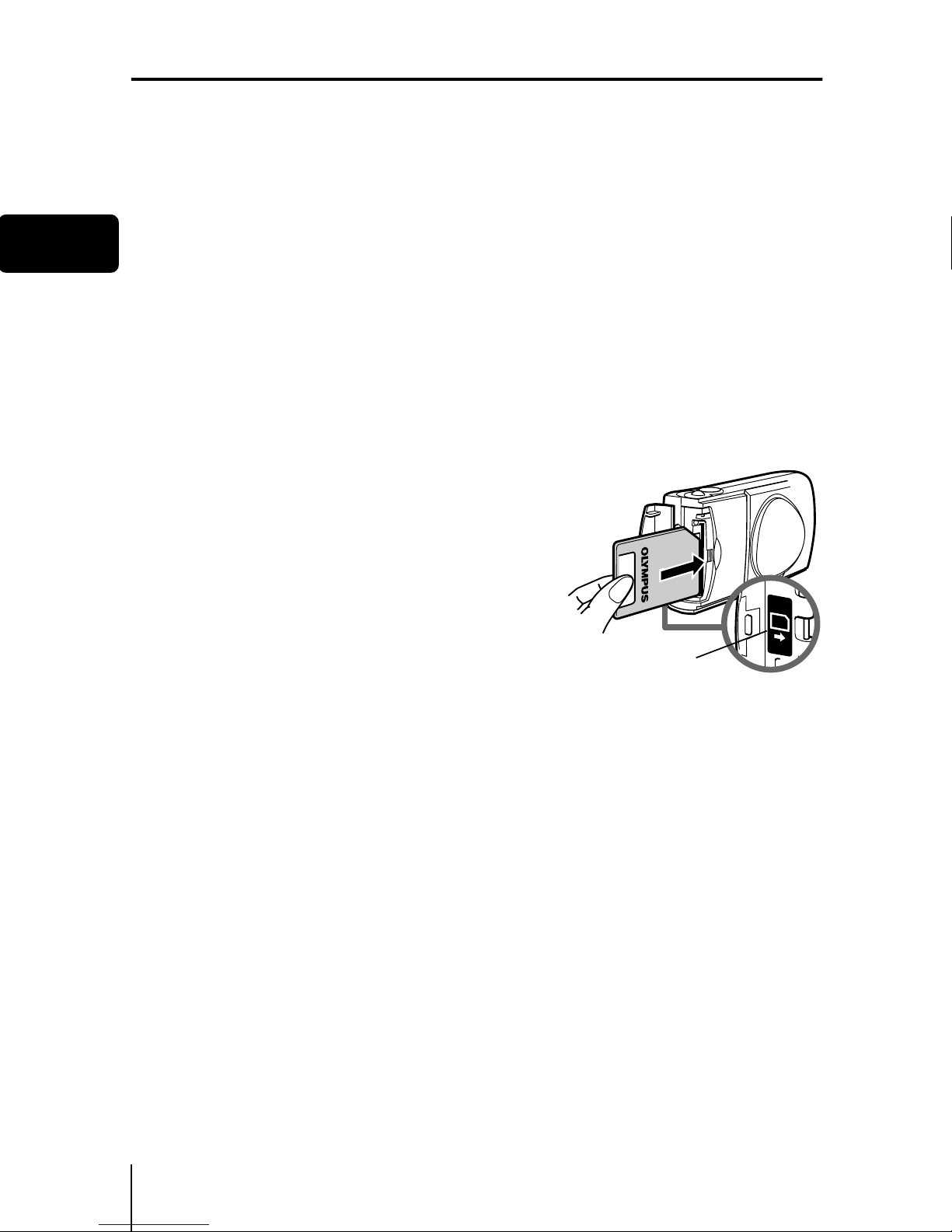

JINSERTING THE CARD (SmartMedia)

The pictures you have taken are stored on the card.

Make sure that:

• The monitor is off.

• The lens barrier is closed.

• The lamp on the right of the viewfinder is off.

Open the card cover.

Insert the card as far as it will go in

the direction shown in the

illustration.

There is an arrow inside the card cover,

indicating the direction in which the card

should be inserted.

Close the card cover securely until

it clicks.

Card insertion

direction mark

En 9

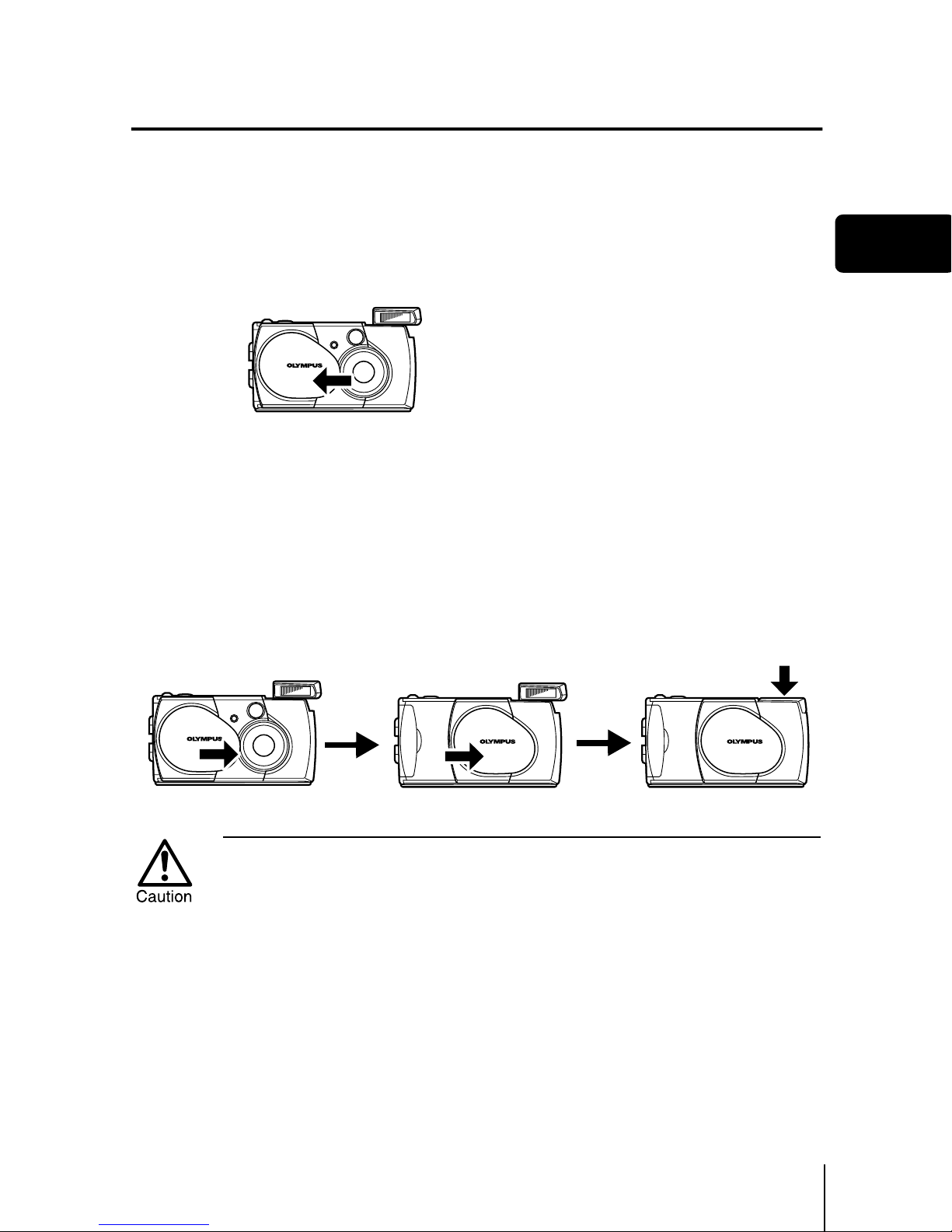

JTURNING THE POWER ON/OFF

When shooting pictures

Power on: Open the lens barrier.

The camera turns on in the shooting mode. The lens extends

and the flash pops up.

If the lens does not extend, the lens barrier is not fully open.

Open the lens barrier until it clicks.

Power off: Close the lens barrier slightly until it just touches the lens

barrier.

The lens barrier stops just before it touches the lens and the lens

retracts. Wait until the lens is fully retracted before closing the

lens barrier completely.

The camera turns off. (The monitor also turns off.)

Press the flash down manually until it locks in place.

Do not push the lens barrier forcefully against the lens as this may damage

the lens or cause it to malfunction.

If the date and time have reverted to the

factory default settings, Y/M/D appears

on the monitor.

10 En

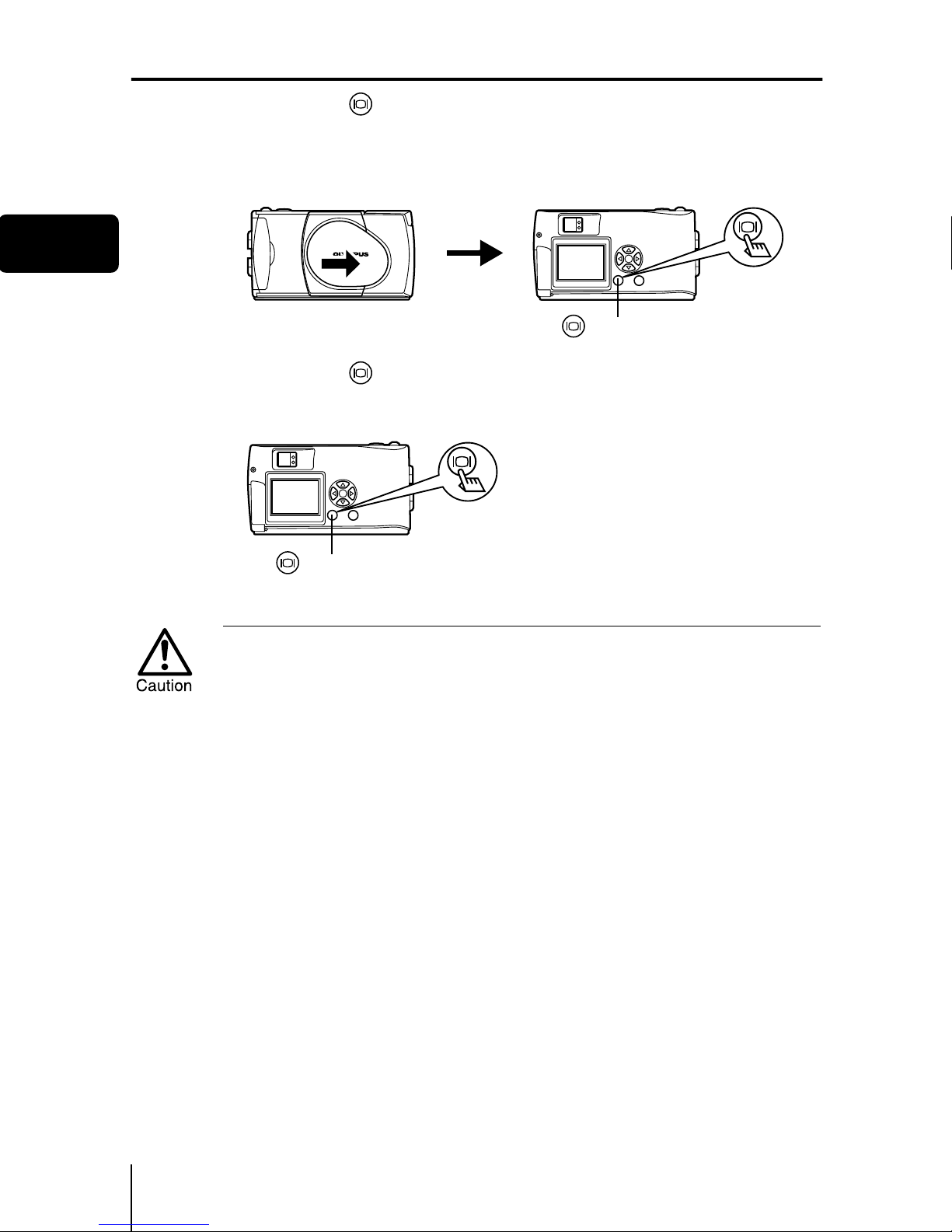

When playing back pictures

Power on: Press the (monitor) button with the lens barrier closed.

The camera turns on in the playback mode. The monitor turns

on and the last picture taken is displayed.

Power off: Press the (monitor).

The monitor and the camera turn off.

Never open the card cover, remove the card or the batteries, or connect or

disconnect the AC adapter while the camera is turned on. Doing so could

destroy all data on the card. Destroyed data cannot be restored. When

changing the card, be sure to turn the camera off before opening the card

cover.

(monitor) button
