Olympus TG-830 Manuale utente

DIGITAL CAMERA

Instruction Manual

TG-830

●Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please

read these instructions carefully to enjoy optimum performance and a longer service life. Keep this

manual in a safe place for future reference.

●We recommend that you take test shots to get accustomed to your camera before taking important

photographs.

●In the interest of continually improving products, Olympus reserves the right to update or modify

information contained in this manual.

Checking the contents of the box

Digital camera Strap Lithium Ion

Battery

(LI-50B)

USB-AC adapter

(F-2AC) USB cable

(CB-USB8) OLYMPUS Setup

CD-ROM

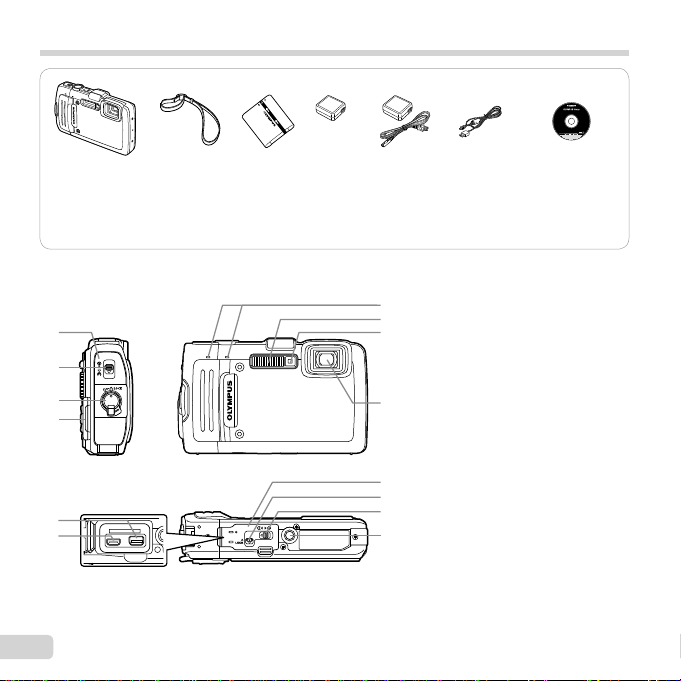

Names of Parts

613

Battery/card cover

Battery/card cover lock

LOCK knob

4Strap eyelet

5Multi-connector

6HDMI micro connector

7Stereo microphone

8Flash

9Self-timer lamp/LED Illuminator/

AF illuminator

Lens

Connector cover

Connector cover lock

Tripod socket

Other accessories not shown: Warranty card

Contents may vary depending on purchase location.

1GPS antenna

2Indicator lamp

3 nbutton

Speaker

5Rbutton (shooting movies)

6 Shutter button

7Monitor

8 Zoom buttons

9 Mode dial

qbutton (switching between

shooting and playback)

Arrow pad

INFO (changing information display)

#(ﬂash)

Y(self-timer)

(erase)

Abutton (OK)

button

Attaching the camera strap

123

Pull the strap tight so that it does not come

loose.

Arrow pad

H(left)

G(down)

F(up)

I(right)

FGHI instruct to press the up/down/left/right

arrow pad.

Inserting and removing the

battery and card (commercially

available)

1 Follow Steps 1, 2and 3to

open the battery/card cover.

2 1

Battery/card cover

Battery/card cover lock

LOCK knob

Turn off the camera before opening the battery/

card cover.

2 Insert the battery while sliding the

battery lock knob in the direction

of the arrow.

Battery lock knob

Insert the battery as illustrated with the Cmark

toward the battery lock knob.

Damage to the battery exterior (scratches, etc.)

may produce heat or an explosion.

Slide the battery lock knob in the direction of the

arrow to unlock, and then remove the battery.

3 Insert the card straight until it

clicks into place.

Write-protect switch

Always use SD/SDHC/SDXC/Eye-Fi/FlashAir

(with Wireless LAN function) card with this

camera. Do not insert other types of memory

cards. “Using the card” (p. 76)

●Do not touch the metallic parts of the card directly.

To remove the card

Press the card in until it clicks and comes out slightly,

then remove the card.

4 Follow Steps 1, 2and 3 to

close the battery/card cover.

2 3

When using the camera, be sure to close and

lock the battery/card cover.

Charging the battery

Connect the USB cable and USB-AC adapter to the

camera and charge the battery.

For charging the battery abroad, see “Using your

charger and USB-AC adapter abroad” (p. 76).

●The battery is not fully charged at shipment. Before

use, be sure to charge the battery until the indicator

lamp turns off (up to 3 hours).

Connecting the camera

AC outlet

USB cable

(supplied)

Connector cover

Multi-connector

LOCK knob Connector cover

lock

Indicator lamp

On: Charging

Off: Charged

When to charge the batteries

Charge the battery when the error message shown

below appears.

Battery Empty

Error message

Flashes in red

Never use any cable other than supplied or

Olympus-designated USB cable. This may cause

smoking or burning.

The included F-2AC USB-AC adapter (hereafter

referred to as USB-AC adapter) differs

depending on the region where you purchased

the camera. If you received a plug-in type USB-

AC adapter, plug it directly into AC outlet.

The included USB-AC adapter has been

designed to be used for charging and playback.

Do not take pictures while the USB-AC adapter

is connected to the camera.

Be sure to unplug the power plug of the USB-AC

adapter from the wall outlet when the charging is

complete or the playback ends.

For details on the battery, see “Battery Handling

Precautions” (p. 92). For details on the USB-AC

adapter, see “USB-AC adapter” (p. 93).

●If the indicator lamp does not light, check the USB

cable and USB-AC adapter connections.

●The battery can be charged while the camera is

connected to the computer via USB. The charging

time varies depending on the performance of the

computer. (There may be cases in which it takes

approx. 10 hours.)

Turning on the camera and

making the initial settings

When you turn on the camera for the ﬁrst time, a

screen appears enabling to set the language for the

menus and messages displayed in the monitor, and

the date and time.

To change the selected date and time, see “Setting

the date and time d[X]” (p. 50).

1 Press the nbutton to turn

on the camera, press FGHI

of the arrow pad to select your

language and press the Abutton.

2 Press FG of the arrow pad to

select the year for [Y].

Back

Y/M/D

YMDTime

-- -- -- --

:..

2013

Date and time setting

screen

3 Press Iof the arrow pad to save

the setting for [Y].

Back

Y/M/D

Y M D Time

-- -- -- --

:..

2013

4 As in Steps 2 and 3, press

FGHI of the arrow pad to

set [M] (month), [D] (day), [Time]

(hours and minutes), and [Y/M/D]

(date order), and then press the

Abutton.

For precise time setting, press the Abutton as

the time signal strikes 00 seconds.

5 Press HI of the arrow pad to

select time zone and then press

the Abutton.

●Use FG to turn daylight saving time

([Summer]) on or off.

’13.02.26 12:30 Back

Summer

Seoul

Tokyo

Before Using GPS

The camera’s GPS (Global Positioning System)

feature determines your position (latitude and

longitude) and stores this information with pictures

taken with the camera.

The camera uses supplementary orbital data

(assisted GPS or A-GPS) for improved signal

acquisition.

A-GPS data must be updated every 14 days.

Before using GPS, you will need to set the camera

clock to the correct date and time. (p. 50)

Updating A-GPS Data

1 Install the update software

(OLYMPUS A-GPS Utility).

●Download the update software from the

following website and install it on your

computer.

http://sdl.olympus-imaging.com/agps/

The update software can also be installed from

the supplied CD-ROM.

2 Connect the camera to the

computer and launch the update

software.

“Connecting with a computer”

(p. 54)

●Once the software has started, follow the

on-screen instructions.

Using GPS

1 Select [On] for [GPS Settings] >

[GPS] in the d(Settings Menu 3)

tab. (p. 53)

●Once the camera has determined the position,

and location coordinates will appear in

the display.

0:340:34

ORM

GPS

16M

0.00.0

AUTO

ISO

AUTO

ISO

4:3

Blink: Searching GPS signal

Light: Receiving GPS signal

●The camera may take a few minutes to determine

position after a period of disuse.

If the icon is still ﬂashing after several minutes,

the camera is probably having difﬁculty detecting

a signal. Move to an unobstructed outdoor area or

otherwise change your location.

2 Press INFO button in the shooting

display.

●The displays change in the order of Normal →

Detailed →No info. →Measurement position

information each time F(INFO) is pressed.

●Nearby landmarks in the GPS database will

be displayed.

Update GPS

---------

Updated 1 min ago

Back

2013/02/26

12:30

Latitude/Longitude

N123°56' 78''

E123°56' 78''

LOG

1Landmark name

2Landmark information

position

3Electronic compass

4Update status

5GPS tracking active

6Latitude

7Longitude

8Current date and

time

HI Select a landmark.

AUpdate GPS data.

●Some countries or regions may regulate the use of

GPS devices. Follow all local regulations.

●Turn GPS off when on board aircraft and in other

locations in which the use of GPS devices is

prohibited.

●The provision of A-GPS data may be terminated

without prior notice.

●Position data may be unavailable or contain errors

in the following locations:

●Locations without a clear view of the sky

(indoors, underground or underwater, or near

trees or tall buildings)

●Locations subject to strong magnetic or radio

interference (near high-voltage power lines,

magnets, electronic devices, or cell phones

operating in the 1.5 GHz band)

●GPS data may take more time acquire or be

unavailable in some locations or at certain times

of day.

●Do not cover the GPS antenna with your hands or

metal objects.

●If the battery is low, the camera cannot acquire

GPS data while the camera turns off.

●The camera is not equipped for GPS navigation.

●While [Track] is [On], the GPS receiver will

continue to draw power from the battery when the

camera is off.

●GPS data are not recorded with movies.

●Press the INFO button while the camera is turned

off. The current time and the shooting location are

displayed for approx. 30 seconds.

Learning how to use the

camera

●Press the nbutton to turn on the camera and

enter the standby mode. (Press the nbutton

again to turn off the camera.)

●Select the shooting mode, and press the shutter

button to shoot a still image.

●To shoot a movie, press the Rbutton.

●Set the shooting functions using the function

menu or the setup menu.

●To view images, press the qbutton to switch to

playback mode.

●To return to standby mode, press the qbutton

again, or press the shutter button halfway down

and then release it.

●Press and hold the qbutton while the camera is

turned off to start up the camera in the playback

mode.

●In this case, pressing the qbutton again sets

the camera to the standby mode.

Altri manuali per TG-830

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Olympus Macchina fotografica digitale

Olympus

Olympus IR-500 Guida all'installazione

Olympus

Olympus CAMEDIA E-20N Manuale utente

Olympus

Olympus X-715 Manuale di formazione

Olympus

Olympus CAMEDIA C-4040 Zoom Guida all'installazione

Olympus

Olympus FE 360 - Digital Camera - Compact Istruzioni per il montaggio

Olympus

Olympus CAMEDIA C-5000 Zoom Manuale utente

Olympus

Olympus FE 170 - Digital Camera - 6.0 Megapixel Manuale utente

Olympus

Olympus VG-120 Istruzioni per il montaggio

Olympus

Olympus FE-20 Guida all'installazione

Olympus

Olympus C-3000 - 3.2MP Digital Camera Manuale d'uso e manutenzione

Olympus

Olympus C-2000 - Zoom 2.1MP Digital Camera Manuale utente

Olympus

Olympus CAMEDIA C-470 Zoom Guida all'installazione

Olympus

Olympus Stylus 830 Manuale utente

Olympus

Olympus 550WP - Stylus Digital Camera Manuale utente

Olympus

Olympus STYLUS-5010 Istruzioni per il montaggio

Olympus

Olympus E300 - 14-54mm f/2.8-3.5 Zuiko ED Digital SLR... Guida alla configurazione

Olympus

Olympus 225690 - Stylus 600 6MP Digital Camera Guida alla configurazione

Olympus

Olympus E620 - Evolt 12.3MP Live MOS Digital SLR... Istruzioni per il montaggio

Olympus

Olympus SZ-20 Manuale utente

Olympus

Olympus C-2000 - Zoom 2.1MP Digital Camera Manuale utente

Olympus

Olympus D540 - 3.2 MP Digital Camera Manuale utente

Olympus

Olympus Stylus 1000 Guida all'installazione

Olympus

Olympus CAMEDIA C-500 Zoom Manuale utente

Olympus

Olympus CAMEDIA D-360L Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
