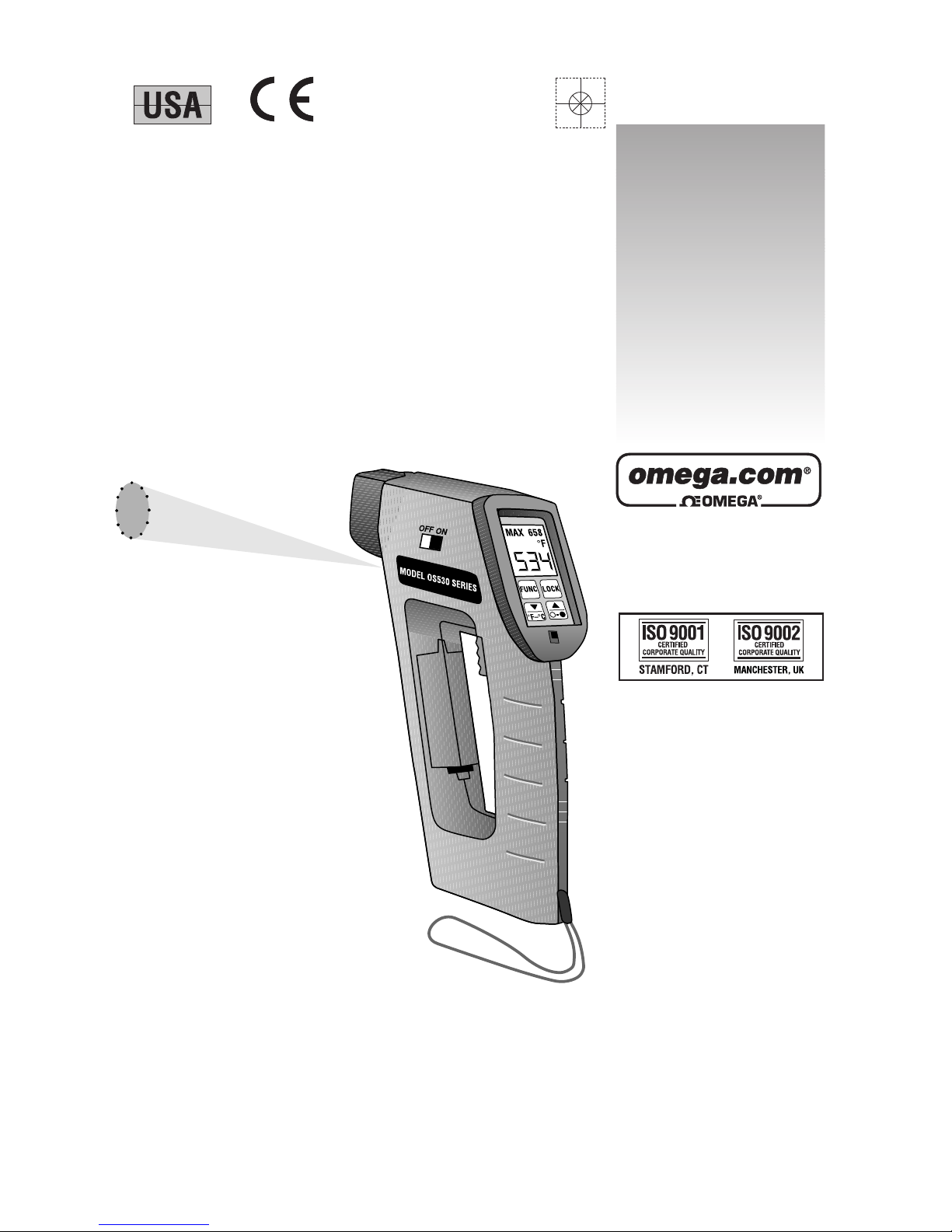

Omega Engineering OMEGASCOPE OS523 Manuale utente

OS531, OS532, OS53x-CF,

OS533, OS534, OS530L, OS530HR

OS523, OS524 OMEGASCOPE

Handheld Infrared Thermometer

Shown with

Built-in Laser Sighting

omega.com

e-mail: [email protected]

For latest product manuals:

omegamanual.info

User’s Guide

Shop online at

MADE IN

Servicing North America:

U.S.A.: One Omega Drive, Box 4047

ISO 9001 Certified Stamford, CT 06907-0047

Tel: (203) 359-1660

FAX: (203) 359-7700

e-mail: [email protected]

Canada: 976 Bergar

Laval (Quebec) H7L 5A1, Canada

Tel: (514) 856-6928

FAX: (514) 856-6886

e-mail: [email protected]

For immediate technical or application assistance:

U.S.A. and Canada: Sales Service: 1-800-826-6342/1-800-TC-OMEGA®

Customer Service: 1-800-622-2378/1-800-622-BEST®

Engineering Service: 1-800-872-9436/1-800-USA-WHEN®

Mexico: En Espan˜ol: (001) 203-359-7803

e-mail: [email protected]

FAX: (001) 203-359-7807

[email protected]

Servicing Europe:

Czech Republic: Frystatska 184, 733 01 Karvina´, Czech Republic

Tel: +420 (0)59 6311899

FAX: +420 (0)59 6311114

Toll Free: 0800-1-66342

e-mail: [email protected]

Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany

Tel: +49 (0)7056 9398-0

FAX: +49 (0)7056 9398-29

Toll Free in Germany: 0800 639 7678

e-mail: [email protected]

United Kingdom: One Omega Drive, River Bend Technology Centre

ISO 9002 Certified Northbank, Irlam, Manchester

M44 5BD United Kingdom

Tel: +44 (0)161 777 6611

FAX: +44 (0)161 777 6622

Toll Free in United Kingdom: 0800-488-488

e-mail: [email protected]

OMEGAnet®Online Service Internet e-mail

omega.com [email protected]

It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI

regulations that apply. OMEGA is constantly pursuing certification of its products to the European New

Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any

errors it contains, and reserves the right to alter specifications without notice.

WARNING: These products are not designed for use in, and should not be used for, human applications.

Unpacking Instructions

Notes

Unpacking Instructions

NOTE

Remove the Packing List and verify that you have received all equipment, including

the following (quantities in parentheses):

• OS530/OS520 Series Handheld Infrared Thermometer (1)

• AA Size Lithium Batteries (4)

• Soft Cover Carrying Case (1)

• Analog Cable (1)

• RS232 Cable (only for OS533, OS534, OS523, OS524)

• CD Software (only for OS533, OS534, OS523, OS524)

• Quick Start Manual (1)

• User’s Guide (1)

Accessories

If you have any questions about the shipment, please call the Customer Service

Department at:

1-800-622-2378 or 203-359-1660. We can also be reached on the Internet at

www.omega.com

e-mail: [email protected]

When you receive the shipment, inspect the container and equipment for signs of

damage. Note any evidence of rough handling in transit. Immediately report any

damage to the shipping agent.

The carrier will not honor damage claims unless all shipping material

is saved for inspection. After examining and removing contents, save

packing material and carton in the event reshipment is necessary.

Model No. Description

OS520-ADAPTER-110V 110 VAC wall Adaptor, 9 VDC @ 200 mA

OS520-ADAPTER-220V 230 VAC wall Adaptor, 9 VDC @ 300 mA

OS520-RCC Hard Carrying Case, Standard

OS520-SC-RCC Hard Carrying Case, Large

88013K Surface Probe, K Type T/C, up to 815°C (1500°F)

88001K Surface Probe, K Type T/C, up to 482°C (900°F)

CAL-3-IR NIST Traceable Calibration

SC-520 Sighting Scope

TABLE OF

CONTENTS

Page

Unpacking Instructions i

Chapter 1 General Description . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.1 Introduction 1-1

1.2 Parts of the Thermometer 1-4

1.2.1 Front of the Thermometer 1-4

1.2.2 Rear of the Thermometer 1-6

Chapter 2 Using the Handheld Infrared Thermometer . . . . . . . . . 2-1

2.1 How to Power the Thermometer 2-1

2.1.1 Battery Operation 2-1

2.1.2 ac Power Operation 2-1

2.2 Operating the Thermometer 2-2

2.2.1 Measurement Techniques 2-6

2.3 Real Time Mode (Active Operation) 2-8

2.3.1 Adjusting Emissivity 2-11

2.3.2 Using the LOCK Function 2-11

2.3.3 Calculating Temperature Values 2-12

2.3.4 Changing the Temperature from °F to °C (or vice versa) 2-12

2.3.5 Turning on the Display Backlighting 2-12

2.3.6 Thermocouple Input 2-13

2.3.7 Using the Alarm Functions 2-14

2.3.8 Using Ambient Target Temperature Compensation 2-16

2.3.9 Sending Temperature Data to a Series Printer 2.17

2.3.10 Sending Temperature Data to a Personal Computer 2.19

2.3.10.1 Software Installation 2.19

2.3.11 Storing the Temperature Data on Command 2-23

2.3.12 Erasing the Temperature Data form Memory 2.24

2.4 Recall Mode (Passive Operation) 2-25

2.4.1 Reviewing the Last Parameters 2-27

2.4.2 Downloading PReviously Stored Temperature Data 2-27

2.4.3 Reviewing Previously Stored Temperature 2-29

Chapter 3 Laser Sighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3.1 Warnings and Cautions 3-1

3.2 Description 3-2

3.3 Operating the Laser Sighting 3-3

Chapter 4 Sighting Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Chapter 5 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

5.1 Replacing the Batteries 5-1

5.2 Cleaning the Lens 5-2

5.3 Calibrating the Thermometer 5-2

5.4 Servicing the Laser Sighting 5-2

Chapter 6 Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Chapter 7 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Chapter 8 Glossary of Key Strokes . . . . . . . . . . . . . . . . . . . . . . . 8-1

OS530/OS520 Series

Handheld Infrared Thermometer

iii

TABLE OF

CONTENTS

Appendix A How Infrared Thermometry Works . . . . . . . . . . . . . A-1

Appendix B Emissivity Values . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Appendix C Determining an Unknown Emissivity . . . . . . . . . . . . C-1

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I-1

TABLE OF

CONTENTS

1-1

General Description 1

1.1 Introduction

The OS530/OS520 series Handheld Infrared (IR) Thermometers

provide non-contact temperature measurements up to 4500°F. They

offer effective solutions for many non-contact temperature

applications, including the following:

•Predictive Maintenance: Tracking temperature shifts

which indicate pending failure in solenoid valves.

•Energy Auditing: Locating wall insulation voids to reduce

building heating costs.

•Food Processing: Taking accurate temperature readings

without direct contact with the food or packaging material.

The IR thermometer provides information at a glance — the custom

backlit dual digital LCD displays both current and minimum,

maximum, average or differential temperatures. This versatile

instrument provides:

• Measurable target distances from 5 inches to approximately

100 feet

• Emissivity adjustable from 0.1 to 1.00 in 0.01 steps provides

ease of use when measuring a variety of surfaces.

• Built-in Laser sighting in Circle & Dot configurations.

• Thermocouple input available.

• An electronic trigger lock feature set via the keypad allows

continuous temperature measurement up to 4 times per

second.

• Audible and visual alarms. The high and low alarm points

are set via the keypad.

• 1 mV per degree (°F or °C) analog output, which allows

interfacing with data acquisition equipment (including

chart recorders, dataloggers and computers). OS524

provides 0.5 mV/Deg.

• Last temperature recall.

• Backlit display useful in low ambient light conditions.

• Powers from 4 AA size batteries or an ac adapter.

• RS232 serial communication to a PC or printer. This allows

downloading data for further analysis.

• Ambient target temperature compensation. This provides

more accuracy for measuring low emissivity targets.

• Record up to 100 temperature data points. Review the

recorded data on the thermometer LCD, as well as

downloading the data to a PC.

General Description

1-2

The thermometer is easy to use:

• Units have standard “V” groove aiming sights.

• Integral tripod mount permits hands-free operation, if

necessary.

• Temperature readings are switchable from °F to °C via the

keypad.

• Parameters, such as target material emissivity and alarm

setpoints, can be set and remain in memory until reset.

This instrument has a rugged and functional design, including:

• Sealed keypad display.

• Convenient trigger operation.

• Soft carrying case and wrist strap, for safety and ease of

carrying.

• Rubber boot around the lens and the display.

Table 1-1. OS530 Series Handheld Infrared Thermometer Features

Features

OS531 OS532 OS533 OS534

Accuracy* ±2% rdg ±1% rdg ±1% rdg ±1% rdg

Range 0 to 750°F 0 to 1000°F 0 to 1000°F 0 to 1600°F

(-18 to 400°C) (-18 to 538°C) (-18 to 538°C) (-18 to 871°C)

Emissivity adjustable adjustable adjustable adjustable

Backlit Dual Display standard standard standard standard

Distance to Spot

Size Ratio 10:1 10:1 20:1 30:1

Differential Temperature standard standard standard standard

Min/Max Temperature standard standard standard standard

Average Temperature standard standard standard standard

High Alarm standard standard standard standard

Thermocouple Input — standard standard standard

Audible Alarm

& Indicator standard standard standard standard

Analog Output 1mV/deg 1mV/deg 1mV/deg 1mV/deg

Built-in Laser Sighting dot/circle dot/circle dot/circle dot/circle

Trigger Lock standard standard standard standard

Last Temperature Recall standard standard standard standard

Low Alarm — — standard standard

Ambient Target

Temperature — — standard standard

Compensation

RS232 Interface — — standard standard

Data Storage — — — standard

1-3

General Description 1

Features

OS530L OS530HR OS530L-CF OS533-CF OS534-CF

Accuracy* ±1% rdg 3°F (1.7 °C) ±1% rdg ±1% rdg ±1% rdg

Range -18 to 538°C -30 to 121°C -18 to 538°C -18 to 538°C -18 to 871°C

0 to 1000°F -22 to 250°F 0 to 1000°F 0 to 1000°F 0 to 1600°F

Emissivity Adjustable Adjustable Adjustable Adjustable Adjustable

Display Resolution 1°F or 1°C 0.1°For 0.1°C 1°F or 1°C 1°F or 1°C 1°F or 1°C

Backlit Dual std std std std std

Display

Field of view 10:1 20:1 .15"@6" .15"@6" .15"@6"

Differential

Temperature std std std std std

Min/Max

Temperature std std std std std

Average

Temperature std std std std std

High Alarm std std std std std

Low Alarm --- --- --- std std

Audible Buzzer

& Indicator

std std std std std

Ambient Target

Temp --- --- --- std std

Compensation

Analog Output 1 mV/Deg 1 mV/Deg 1 mV/Deg 1 mV/Deg 1 mV/Deg

RS232 Output --- --- --- std std

Data Storage --- --- --- --- std

Built-in Laser Dot/Circle Dot/Circle Dot Dot Dot

sighting

Trigger Lock std std std std std

Last Temperature

Recall std std std std std

Thermocouple

Input --- --- --- std std

* The temperature accuracy is 1% or 2% of Rdg or 3ºF (2ºC) whichever is

greater.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Omega Engineering Termometro

Omega Engineering

Omega Engineering OMEGAETTE POCKET PP OS-PP Manuale utente

Omega Engineering

Omega Engineering HH802W Manuale utente

Omega Engineering

Omega Engineering HH501BR Manuale utente

Omega Engineering

Omega Engineering OS550 Series Manuale utente

Omega Engineering

Omega Engineering OSP 100 series Manuale utente

Omega Engineering

Omega Engineering HH804W Manuale utente

Omega Engineering

Omega Engineering 450 Series Manuale utente

Omega Engineering

Omega Engineering HH806AW Manuale utente

Omega Engineering

Omega Engineering OS562 Manuale utente

Omega Engineering

Omega Engineering CYD201 Manuale utente

Omega Engineering

Omega Engineering HH802U Manuale utente

Omega Engineering

Omega Engineering J DIALTEMPTM M0102 Manuale utente

Omega Engineering

Omega Engineering OMEGASCOPE OS523E Manuale utente

Omega Engineering

Omega Engineering OMEGASCOPE OS523E Manuale utente

Omega Engineering

Omega Engineering M4549/0711 Manuale utente

Omega Engineering

Omega Engineering 707 Manuale utente

Omega Engineering

Omega Engineering OSXL650 Manuale utente

Omega Engineering

Omega Engineering HH502 Manuale utente

Omega Engineering

Omega Engineering HH801A Manuale utente

Omega Engineering

Omega Engineering OMEGAETTE HH306 Manuale utente

Omega Engineering

Omega Engineering HH806AW Manuale utente

Omega Engineering

Omega Engineering HH801A Manuale utente

Omega Engineering

Omega Engineering OMEGAMETER HHM57 Manuale utente

Omega Engineering

Omega Engineering HH806U Manuale utente

Manuali Termometro popolari di altre marche

Delton

Delton 981A Manuale utente

Baker

Baker MM2P Manuale utente

Tarmo

Tarmo 320281 Manuale utente

Citizen

Citizen CTD 504 Manuale utente

TFA

TFA 14.1500 Manuale utente

Vive

Vive DMD1010 Manuale utente

Gotemp

Gotemp THB4002 Manuale utente

GREISINGER

GREISINGER G 1202 Manuale utente

Amprobe

Amprobe TMD-53W Manuale utente

Trotec

Trotec BP10 Manuale utente

Radiance instruments

Radiance instruments RT616 Series Manuale utente

Eurolec

Eurolec IR151 Manuale utente

Scaneo

Scaneo TS42B Manuale utente

Sper scientific

Sper scientific 800043 Manuale utente

Microlife

Microlife NC 200 Manuale di istruzioni

Motorola

Motorola MBP69SN Guida alla configurazione

The MeatStick

The MeatStick The MeatStick Manuale utente

Hama

Hama TH35-A Manuale utente
