INTRODUCTION

This instrument is a portable easy use 3½ digit, compact-sized digital

thermometer designed to use infrared or K-type thermocouple as input. Meter

with Backlit LCD, Auto-hold function and auto power off (15 seconds approx.)

feature after releasing MEAS button to extend battery life and with analog signal

outputfunction.TemperatureindicationfollowsReferenceTemperature/Voltage

Tables N.I.S.T. Monograph 175 Revised to ITS-90 for K-type thermocouple.

SAFETY INFORMATION

It is recommended that you read the safety and operation instructions before

using the thermometer.

WARNING

To avoid electrical shock, do not use this instrument when voltages

at the measurement surface exceed 24V AC or DC.

WARNING

To avoid damage or burns, do not make temperature measurement

in microwave ovens.

The symbol on the instrument indicates that the operator must refer to an

explanation in this manual.

CAUTION

• Do not use the unit near any device which generates strong electromag-

neticradiationornearastaticelectricalcharge,asthesemaycauseerrors.

• Do not point the lens at the sun or at any other source of strong light. If you

do, the sensor may be damaged.

• Do not contact the lens against the object whose temperature is to be

measured, or get it dirty, allow it to be scratched, or allow any foreign

material to adhere to it. Doing so may cause errors.

• Donottouchorholdbythefrontcone.Temperaturereadingcanbeaffected

by heat from hand.

• Donotplacethemeteronoraroundhotobjects(70°C/158°F).Itmaycause

damage to the case.

• If the meter is exposed to significant changes in ambient temperature (hot

tocoldorcoldtohot).Allow20minutesfortemperaturestabilization,before

taking measurement.

• Condensation may form on the lens when going from a cold to hot

environment-wait 10 minutes for conden sation to dissipate befor taking

measurements.

• This unit is not constructed to be water proof or dustproof, so do not use it

in a very dusty environment or in one where it will get wet.

SPECIFICATIONS

GENERAL

Display: 3½ digit liquid crystal display (LCD) with maximum reading of 1999.

Overrange: (OL) or (-OL) is displayed.

Low battery indication: the " " is displayed when the battery voltage drops

below the operating level.

Measurement rate: 2.5 times per second, nominal.

Operating Environment: 32°F to 122°F (0°C to 50°C) at < 70% relative

humidity.

StorageTemperature:40°Fto140°F(-20°Cto60°C),0to80%R.H.withbattery

removed from meter.

Auto power off: 15 seconds approx.

Standby consume current: <1µA.

Battery: 4 pcs 1.5V (AAA size).

Battery Life: 100 hours (continuity) typical (Back-Light not illuminated).

Dimensions: 170mm(H) x 44mm(W) x 40mm(D).

Weight: 160g including batteries.

Infrared Radiation ELECTRICAL

Temperature Range: 0°F to 500°F, -20°C to 260°C.

Display Resolution: 1°F / 1°C.

Accuracy: ±3% of reading or ±6°F/3°C, whichever is greater @ 64.4 to 82.4°F

(@ 18 to 28°C) ambient operating temperature.

Temperature Coefficient: ±0.2% of reading or ±0.36°F/0.2°C, whichever is

greater, change in accuracy per °F/°C change in ambient operating tempera-

ture above 82.4°F/28°C or below 64.4°F/18°C.

Response Time: 1 second.

Spectral Response: 6 to 14µm nominal.

Emissivity: Pre-set 0.95.

Analog Output: 1mV/°F(°C).

Detection Element: Thermopile.

Optical Lens: Fresnal Lens.

Field of View: 65mmØ at 1000mm.

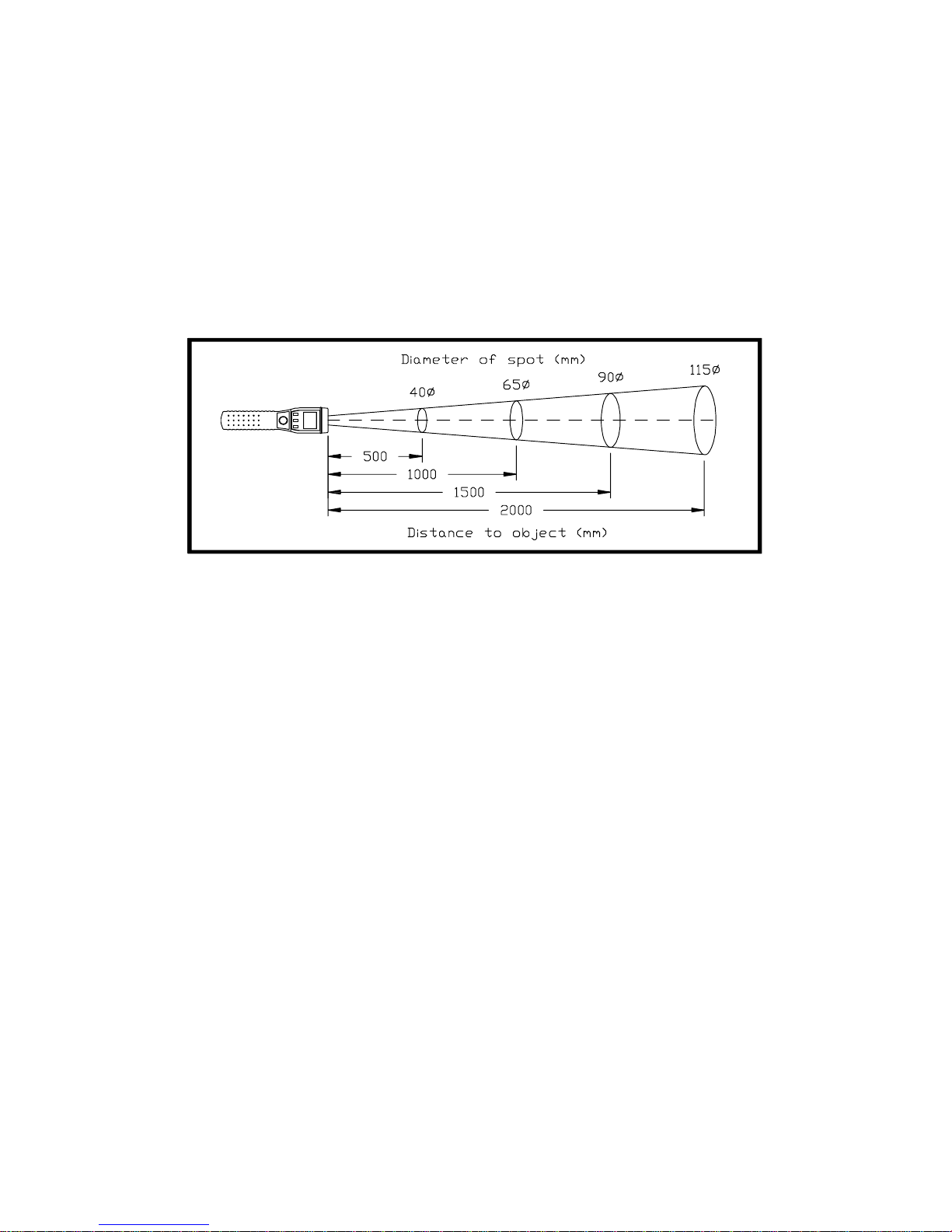

Spot size increases with distance from the probe tip as shown

K-type thermocouple ELECTRICAL

Temperature Range: -58°F to 1999°F, -50°C to 1300°C.

Display Resolution: 1°F / 1°C.

Accuracy: Accuracy is specified for operating temperatures over the range of

64°F to 83°F (18°C to 28°C), for 1 year, not including thermocouple error.

±(0.3% rdg + 2°F) -58°F to 1999°F

±(0.3% rdg + 1°C) -50°C to 1000°C

±(0.5% rdg + 1°C) 1000°C to 1300°C

Temperature Coefficient: 0.1 times the applicable accuracy specification per

°C from 32°F to 64°F and 83°F to 122°F (0°C to 18°C and 28°C to 50°C).

Input Protection: 24V dc or 24V ac rms maximum input voltage on any

combination of input pins.

Input Connector: Accepts standard miniature thermocouple connectors (flat

blades spaced 7.9mm, center to center).

Analog Output: 1mV/°F(°C).

OPERATING INSTRUCTIONS

MEAS (MEASURE) Button

DepressMEASbuttontoturnonthemeterformeasuringtemperature.Releasing

MEAS button to stop measuring temperature and automatically hold the display

reading, the meter turns off automatically after 15 seconds.
