Omron G3RV Manuale utente

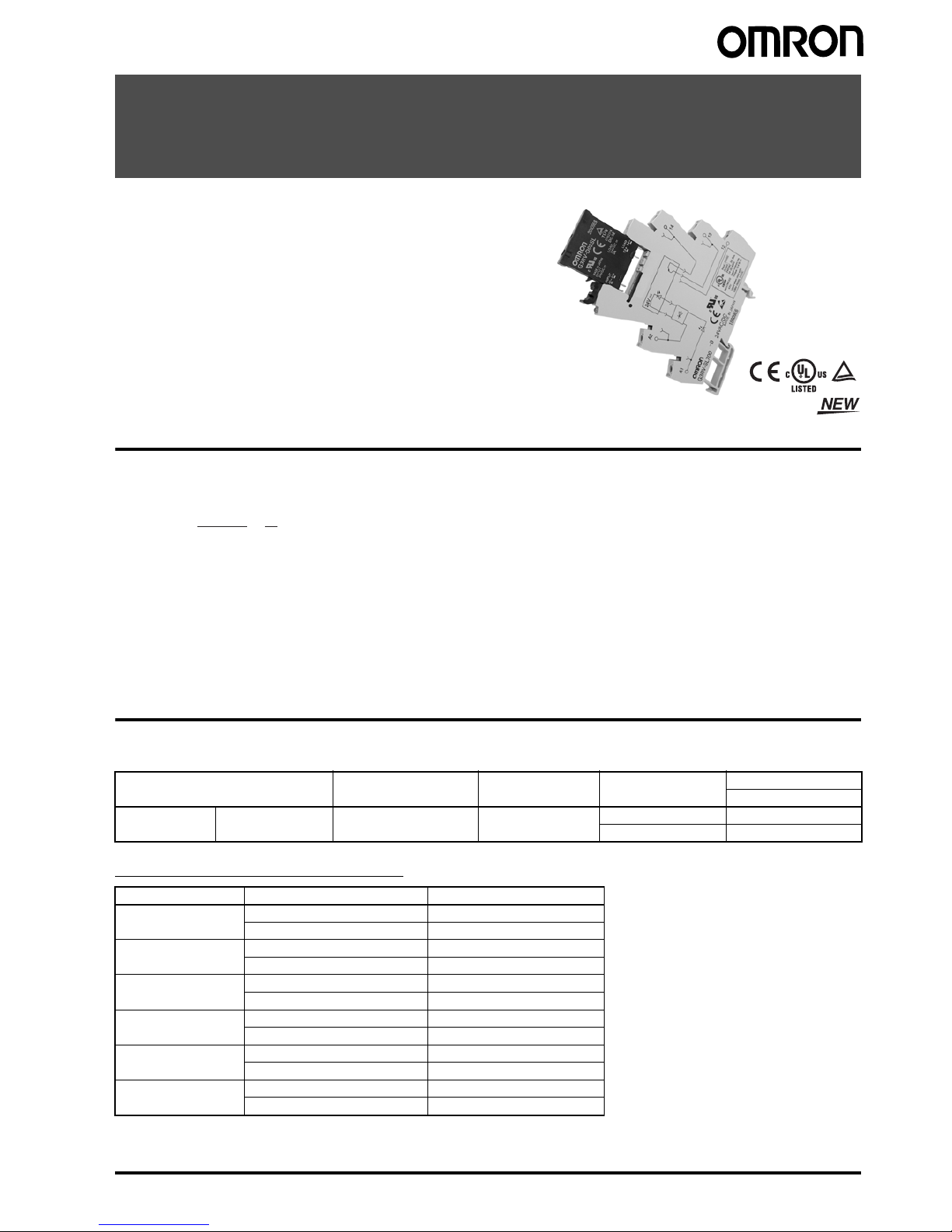

Slim Relay G3RV 1

Slim Relay

G3RV

The World's First Industrial Slim Relay

• G2RV compatible

• LED indicator built in SSR

• Push-in terminals and accessories for easy wiring.

Model Number Structure

■Model Number Legend

1. Basic Model Name

G3RV: MOS-Solid State Relay

2. Auxiliary Type Designation

SL: Slim Solid State Relay and socket combination

3. Wire Connection

700: Screw Terminals

500: Push-in (screwless) terminals

4. Output voltage specifications

A(L): AC Output .. TRIAC

*A: with Zero cross function AL: without Zero cross function

D: DC Output .. MOS FET

Ordering Information

■List of Models

Relay and Socket Combinations

1234

G3RV-SL @ @ @ - @

Classification Enclosure rating Input voltage Type of connection Contact form

SPST

Plug-in terminals General-purpose Unsealed AC/DC Screw terminals G3RV-SL700

Push-in terminals G3RV-SL500

Input voltage Screw terminals Push-in terminals

12 VDC G3RV-SL700-D 12VDC G3RV-SL500-D 12VDC

G3RV-SL700-A(L) 12VDC G3RV-SL500-A(L) 12VDC

24 VDC G3RV-SL700-D 24VDC G3RV-SL500-D 24VDC

G3RV-SL700-A(L) 24VDC G3RV-SL500-A(L) 24VDC

24 VAC/DC G3RV-SL700-D 24VAC/DC G3RV-SL500-D 24VAC/DC

G3RV-SL700-A(L) 24VAC/DC G3RV-SL500-A(L) 24VAC/DC

48 VAC/DC G3RV-SL700-D 48VAC/DC G3RV-SL500-D 48VAC/DC

G3RV-SL700-A(L) 48VAC/DC G3RV-SL500-A(L) 48VAC/DC

110 VAC G3RV-SL700-D 110VAC G3RV-SL500-D 110VAC

G3RV-SL700-A(L) 110VAC G3RV-SL500-A(L) 110VAC

230 VAC G3RV-SL700-D 230VAC G3RV-SL500-D 230VAC

G3RV-SL700-A(L) 230VAC G3RV-SL500-A(L) 230VAC

2Slim Relay G3RV

Specifications

■Ratings (at an Ambient Temperature of 25°C)

Input

G3RV-SL700/500-A Series

G3RV-SL700/500-AL Series

G3RV-SL700/500-D Series

Output

Rated voltage Rated current Must operate

voltage

Must release

voltage

Input voltage

AC DC % of rated voltage

50 Hz 60 Hz

12 VDC --- --- 15 mA 10.8V 1V ±10%

24 VDC --- --- 12 mA 21.6V

24 VAC/DC 20 mA 21 mA 11 mA 21.6V

48 VAC/DC 10 mA 11 mA 6 mA 43.2V

110 VAC 7.5 mA 8.2 mA --- 99V

230 VAC 7.3 mA 8.6 mA --- 207V

Rated voltage Rated current Must operate

voltage

Must release

voltage

Input voltage

AC DC % of rated voltage

50 Hz 60 Hz

12 VDC --- --- 15 mA 10.8V 1V ±10%

24 VDC --- --- 12 mA 21.6V

24 VAC/DC 20 mA 21 mA 11 mA 21.6V

48 VAC/DC 10 mA 11 mA 6 mA 43.2V

110 VAC 7.5 mA 8.2 mA --- 99V

230 VAC 7.3 mA 8.6 mA --- 207V

Rated voltage Rated current Must operate

voltage

Must release

voltage

Input voltage

AC DC % of rated voltage

50 Hz 60 Hz

12 VDC --- --- 8 mA 10.8V 1V ±10%

24 VDC --- --- 4.5 mA 21.6V

24 VAC/DC 10.7 mA 11.1 mA 4.3 mA 21.6V

48 VAC/DC 9.6 mA 10.2 mA 6 mA 43.2V

110 VAC 6.8 mA 7.5 mA --- 99V

230 VAC 6.8 mA 8.1 mA --- 207V

Item G3RV-SL700/500-A(L) G3RV-SL700/500-D

Rated load voltage AC100~240V (50/60Hz) DC5~24V

Load voltage range AC75~264V (50/60Hz) DC3~26.4V

Load current 0.1~2A (Ta=40°C) 100µA~3A (Ta=40°C)

Inrush current 30A (60Hz/1cycle) 30A (60Hz/1cycle)

Permissible I2t ; Joule Integral

(Reference value)

15A2s9A

Application load capacity 400W

(Output voltage: AC200V)

72W

(Output voltage: DC24V)

Slim Relay G3RV 3

■Characteristics

■Approved Standards

UL 508 (File No. E64562)

IEC/TUV (EN 62314)

Item G3RV-SL700/500-A G3RV-SL700/500-AL G3RV-SL700/500-D

Output ON voltage drop 1.6 V rms max. 0.9 V max.

Leakage current 5 mA max. (at 200 VAC 50/60Hz) 10 µA max. (at 24VDC)

Insulation resistance 100 MΩmin. (at 500 VDC)

Dielectric strength AC2500V 50/60 Hz for 1 min between input and output

Vibration resistance Malfunction: 10 to 55 to 10 Hz, 0.7-mm single amplitude

Shock resistance 300m/s2

Ambient temperature Storage: -30~+100°C (with no icing or condensation)

Operating: -30~+55°C (with no icing or condensation)

Ambient humidity 45~85%RH

Weight Approx. 38 g

Pollution degree 2

Degree of protection according

to IEC 60529

IP20

Rated Impulse Withstand

Voltag e

4.0kV / III

Load category LC-A DC-12

Overload Current Profile 1.5Ie 1.1Ue

5s ON, 10s OFF, 10cycles

Rated insulation Voltage 240V

Model Input ratings Contact ratings

G3RV-SL700/500-D Series 12, 24 VDC

24, 48 VAC/DC

110, 230 VAC

24 VDC 3 A (Resistive Load) at 25°C

G3RV-SL700/500-A(L) Series 12, 24 VDC

24, 48 VAC/DC

110, 230 VAC

240 VAC 2 A (Resistive Load) at 25°C

Input ratings Contact ratings

12, 24 VDC

24, 48 VAC/DC

110, 230 VAC

24 VDC 3 A (Resistive Load)

12, 24 VDC

24, 48 VAC/DC

110, 230 VAC

240 VAC 2 A (Resistive Load)

4Slim Relay G3RV

Engineering Data

■Load current derating curves

G3RV-SL700/500-A(L) Series

G3RV-SL700/500-D Series

■One Cycle Surge Current: Non-repetitive

Non-repetitive (Keep the inrush current to half the rated value if it occurs repetitively.)

The values shown by the solid line are for non-repetitive inrush currents.

Mounting Distance 10mm Mounting Distance 0mm

G3RV-SL700/500-A(L) Series G3RV-SL700/500-D Series

㪇

㪌

㪈㪇

㪈㪌

㪉㪇

㪉㪌

㪊㪇

㪊㪌

㪈㪇㪈㪇㪇㪈㪇㪇㪇

㪜㫅㪼㫉㪾㫀㫑㪼㪻㩷㫋㫀㫄㪼㩷㩿㫄㫊㪀

㪠㫅㫉㫌㫊㪿㩷㪺㫌㫉㫉㪼㫅㫋㩷㩿㪘㪅㩷㪧㪼㪸㫂㪀

Slim Relay G3RV 5

Accessories

■PLC Interface (for G2RV-SL700 & G3RV-SL700 series only)

List of Models

Specifications

Electrical schematic P2RVC-O-8-F

Model number Description Connection

P2RVC-8-O-F PLC Output Interface for 8x

G2RV-SL700 & G3RV-SL700 series

PNP - type

Ribbon cable connector

10 Pole, IEC603/1

Input Rated voltage 30 VAC/VDC max.

Current capacity 0.5 A per channel

2.0 A total current, power supply terminal

Characteristics Ambient temperature Operating: 0 to 55°C

Storage: − 20 to 85°C

Overvoltage category III

Pollution degree 2

6Slim Relay G3RV

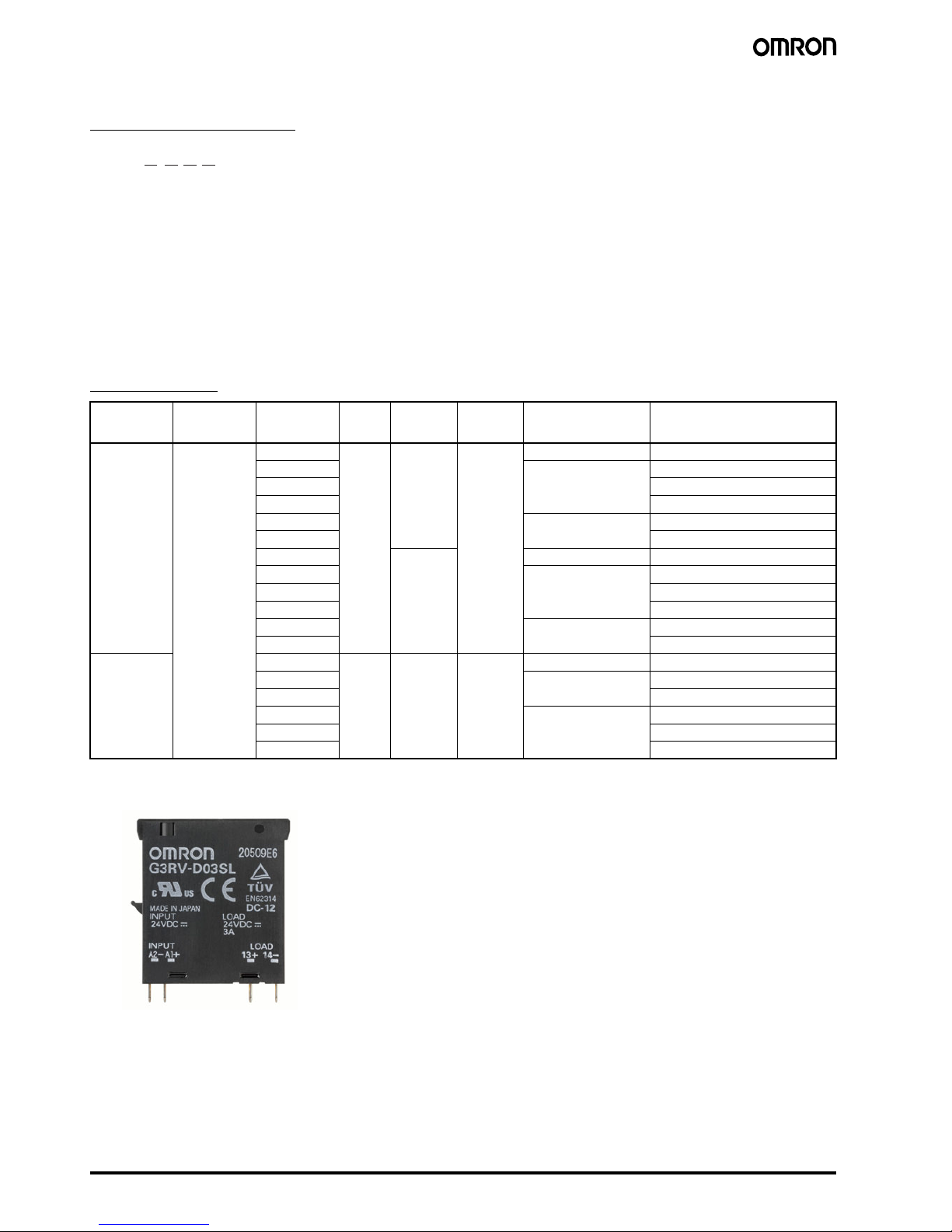

■SSR for Maintenance

Model Number Legend

1. Output voltage specifications

D: DC Output

2: AC Output

2. Rated Current

02: AC Output 2A

03: DC Output 3A

3. Terminals

S: Plug-In

4. Zero cross function

Blank: with Zero cross function

L : without Zero corss function

List of Models

*different by ambient temperature.

Please refer to 4 pages of characteristic data “ ■Load current derating curves” for the details.

1234

G3RV-@@ @ @

Isolation Movement

indication

Rated input

voltage

(Socket)

Output

(SSR)

Zero cross

function

Rated

output

load*

Model Number Replacement for

Phototriac Yes (Green) DC12V AC Yes 2A at 100

to 240VAC

G3RV-202S DC12 G3RV-SL700/500-A DC12

DC24V G3RV-202S DC24 G3RV-SL700/500-A DC24

AC/DC24V G3RV-SL700/500-A AC/DC24

AC/DC48V G3RV-SL700/500-A AC/DC48

AC110V G3RV-202S DC48 G3RV-SL700/500-A AC110

AC230V G3RV-SL700/500-A AC230

DC12V No G3RV-202SL DC12 G3RV-SL700/500-AL DC12

DC24V G3RV-202SL DC24 G3RV-SL700/500-AL DC12

AC/DC24V G3RV-SL700/500-AL AC/DC24

AC/DC48V G3RV-SL700/500-AL AC/DC48

AC110V G3RV-202SL DC48 G3RV-SL700/500-AL AC110

AC230V G3RV-SL700/500-AL AC230

Photocoupler DC12V DC --- 3A at 5 to

24 VDC

G3RV-D03SL DC12 G3RV-SL700/500-D DC12

DC24V G3RV-D03SL DC24 G3RV-SL700/500-D DC24

AC/DC24V G3RV-SL700/500-D AC/DC24

AC/DC48V G3RV-D03SL DC48 G3RV-SL700/500-D AC/DC48

AC110V G3RV-SL700/500-D AC110

AC230V G3RV-SL700/500-D AC230

Slim Relay G3RV 7

■Cross bars

Model Number Legend

1. Number of Poles 2. Color

020: 2 poles R: Red

030: 3 poles S: Blue

040: 4 poles B: Black

100: 10 poles

200: 20 poles

List of Models

@select color: R = Red, S=Blue, B=Black

Specification

■Plastic Labels for G2RV/G3RV Sockets

■Labels (Stickers) for G2RV/G3RV Sockets

Model number Poles Quantity Color

P2RVM-020@2 60 pcs / box (minimum order)

Red (R)

Blue (S)

Black (B)

P2RVM-030@3 60 pcs / box (minimum order)

P2RVM-040@4 60 pcs / box (minimum order)

P2RVM-100@10 20 pcs / box (minimum order)

P2RVM-200@20 20 pcs / box (minimum order)

Max current

(EN60947-7-1 section 8.3.3 / 1991)

32A

Max. Voltage 400 VAC

Max. Voltage

when cutting Cross-bar without using separation

plate or end-bracket

250 VAC

P2RVM -@@

Model number Box quantity Color

R99-15 for G2RV 5 sheets ×120 labels =

600 labels (minimum order)

White

Model number Box quantity Color

R99-16 for G2RV 10 sheets ×484 labels =

4,840 labels (minimum order)

White

8Slim Relay G3RV

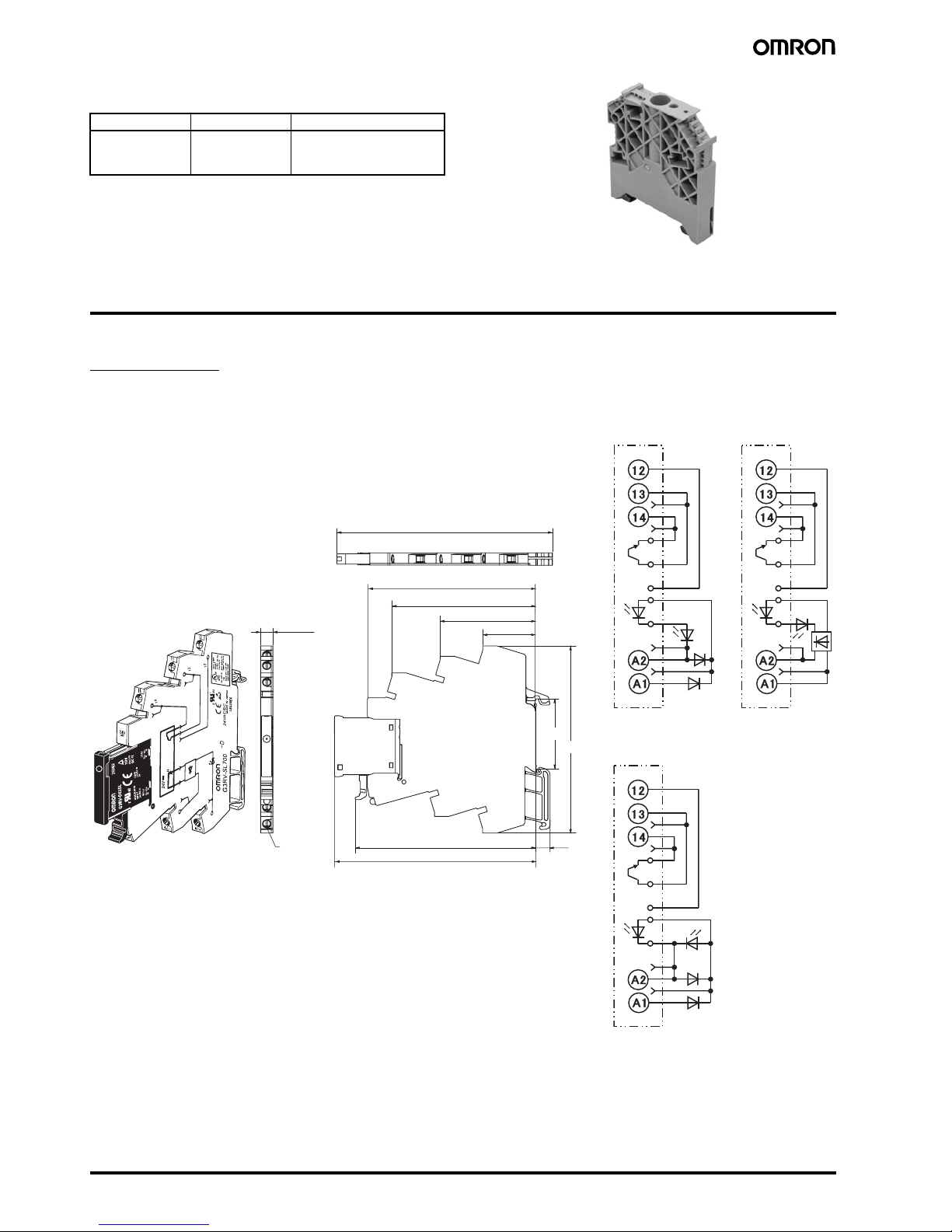

■Separating Plates

Dimensions

Note: All units are in millimeters unless otherwise indicated.

Complete Unit

G3RV-SL700

Model number Quantity Description

P2RV-S 50 plates Provides isolation between

adjacent relays to achieve

400 V isolation.

Five,

M2.5 ×6

6.2 max.

99.2

7.1

88.9

26.1

47.2

70.9

106.7 max.

92.7 max.

Input circuit

24 V DC

Terminal Arrangement/

Internal Connections

(Top View)

Other Input Voltage

Terminal Arrangement/

Internal Connections

(Top View)

12 V DC

Terminal Arrangement/

Internal Connections

(Top View)

Slim Relay G3RV 9

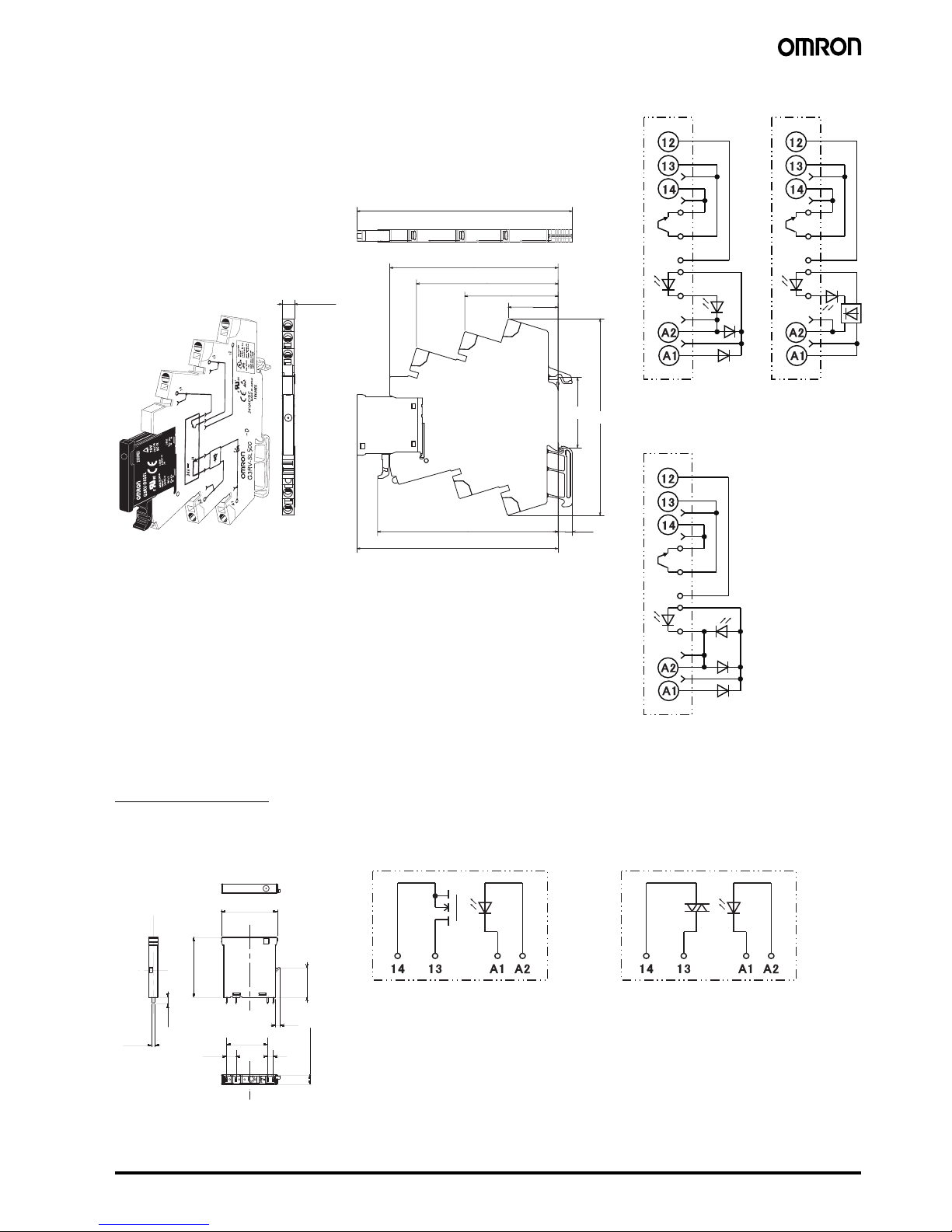

G3RV-SL500

Solid State Relay

Input circuit

24 V DC

Terminal Arrangement/

Internal Connections

(Top View)

Other Input Voltage

Terminal Arrangement/

Internal Connections

(Top View)

12 V DC

Terminal Arrangement/

Internal Connections

(Top View)

6.2 max.

99.2

88.9 7.1

24.6

69.8

82.9

106.7 max.

97.4 max.

G3RV-D03SL

G3RV-202S(L)

Input circuit

G3RV-D03SL G3RV-202S(L)

PD[

PD[





PD[





 



Terminal Arrangement/

Internal Connections

(Bottom View)

10 Slim Relay G3RV

Installation

■Tools

G3RV-SL700 series: Flat-Blade screwdriver should be used for mounting and / or releasing cables.

G3RV-SL500 series: Flat-Blade screwdriver should be used for mounting stranded wires without ferrules and / or releasing cables.

Applicable Screwdriver

●Flat-blade, Parallel-tip, 2.5 mm diameter (3.0 mm max.)

Examples: FACOM AEF.2.5 × 75E (AEF. 3 × 75E)

VESSEL No. 9900-(-)2.5 × 75 (No. 9900-(-)3 × 100)

WAGO 210-119

WIHA 260/2.5 × 40 (260/3 × 50)

*Chamfering the tip of the driver improves insertion when used as an exclusive tool.

■Applicable Wires

Applicable Wire Sizes

G3RV-SL700 Series

Box clamp technology

G3RV-SL500 Series

Push-in technology

Tightening torque

G3RV-SL700 Series: 0.4Nm

2.5 dia. (3.0 mm max.)

Cannot be used.

●Flat-blade, Flared-tip

●Flat-blade, Parallel-tip

Wire type Applicable wire size Stripping length

Stranded without ferrules 0.5 - 1.5 mm27mm

Stranded with ferrules and plastic collar 0.5 - 1.5 mm27mm

Stranded with ferrules without plastic collar 0.5 - 1.5 mm27mm

Solid 0.5 - 1.5 mm27mm

Wire type Applicable wire size Stripping length

Stranded without ferrules 0.5 - 1.5 mm212 mm

Stranded with ferrules and plastic collar 0.5 - 1.5 mm212 mm

Stranded with ferrules without plastic collar 0.5 - 1.5 mm212 mm

Solid 0.5 - 1.5 mm212 mm

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Omron Hardware per computer

Omron

Omron 3G8F5-DRM21 Manuale utente

Omron

Omron CP1L - 12-2007 Manuale utente

Omron

Omron CJ - REFERENCE 07-2009 Manuale utente

Omron

Omron ACCURAX G5 - Manuale utente

Omron

Omron G2RS Manuale utente

Omron

Omron SYSMAC C200HW-PCU01 Manuale utente

Omron

Omron G3R-I-O Manuale utente

Omron

Omron Junma ML-II SJDE-02ANA-OY Guida rapida

Omron

Omron CP1H-CPU - 05-2006 Manuale utente

Omron

Omron SYSMAC CJ2H-CPU6@-EIP Manuale di istruzioni

Omron

Omron 3G3IV-PSIG Manuale utente

Omron

Omron CP1L CPU UNIT - 03-2009 Manuale utente

Omron

Omron XTRADRIVE - Manuale utente

Omron

Omron CJ Series Manuale di istruzioni

Omron

Omron G3PB Manuale utente

Omron

Omron R88A-MCW151-DRT-E Manuale utente

Omron

Omron G3PE-SINGLE-PHASE Manuale utente

Omron

Omron E5ZN-DRT Guida alla configurazione

Omron

Omron SYSMAC C20P Manuale utente

Omron

Omron NJ501-1400 Manuale utente

Omron

Omron G3NE Manuale utente

Omron

Omron SYSMAC CV500-BSC11 Manuale utente

Omron

Omron CJ2M-CPU Series Manuale di istruzioni

Omron

Omron G3PE Series Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
