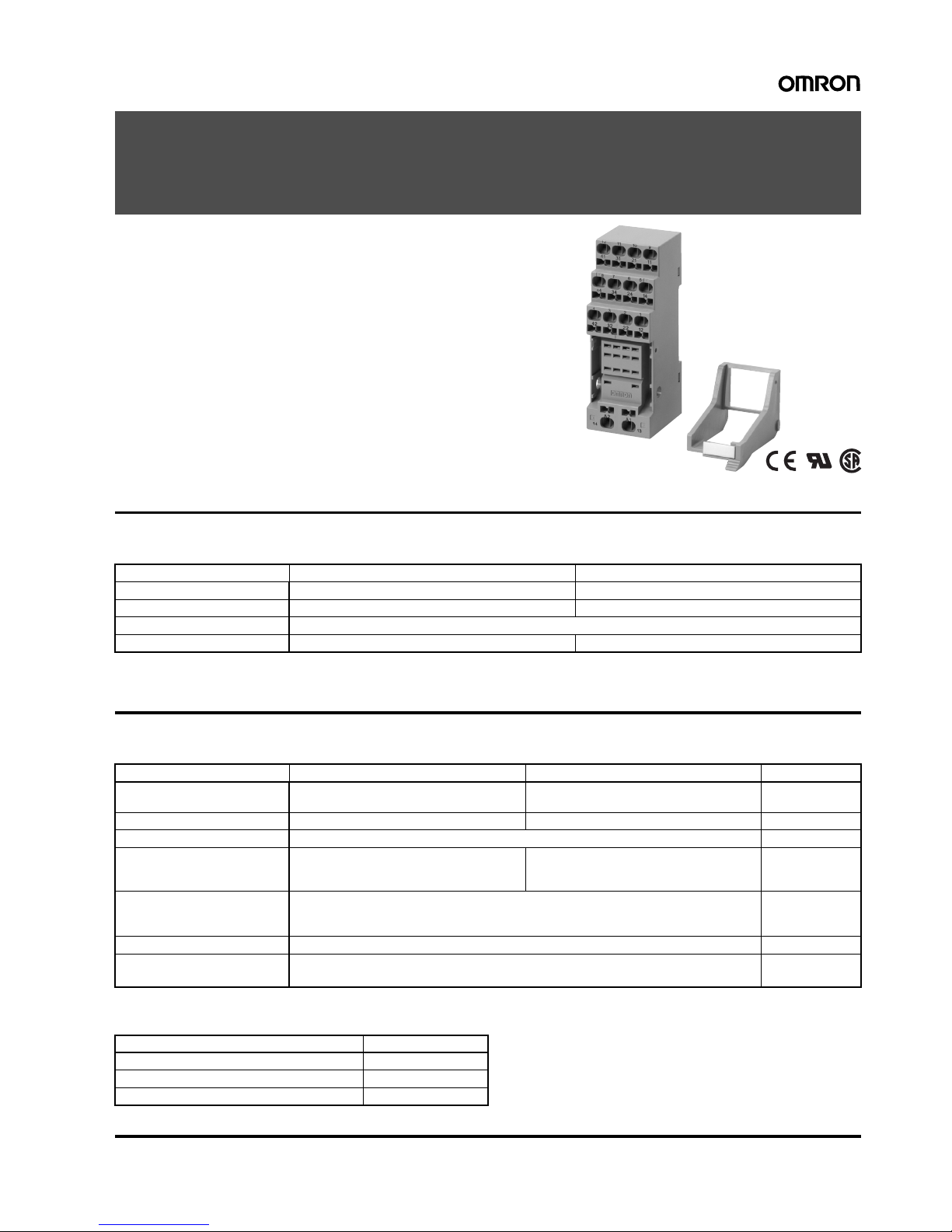

Screwless Clamp Terminal Socket PYF@@S 1

Screwless Clamp Terminal Socket

PYF@@S

• Screwless clamping greatly contributes to reducing wiring time.

• No over or under tightening of cable connection so better con-

tact reliability is achieved.

• Double wiring possible on all the terminals, and easy bridge and

branch connections.

• Use either solid or stranded wires from 0.2 to 1.5 mm2(AWG24

to AWG16).

• Safe terminal arrangement: Coil terminals separated from con-

tact terminals.

• Unique ejector enables easy relay replacement.

• Nameplate available

• Finger-protection

Ordering Information

■List of Models

Specifications

■Ratings/Characteristics

■Approved Standards

4-pole for MY4/MY2 2-pole for MY2

Socket PYF14S PYF08S

Clip & Release Lever PYCM-14S PYCM-08S

Nameplate R99-11

Socket Bridge PYDM-14SR, PYDM-14SB PYDM-08SR, PYDM-08SB

Item PYF14S PYF08S Remarks

Relay MY2 Series

MY4 Series

MY2 Series ---

Dimensions 31 ×85 ×36.5 mm max. (W ×H ×D) 23.2 ×85 ×36.5 mm max. (W ×H ×D) ---

Rated voltage 250 VAC ---

Rated carry current 10 A at 55°C with MY2 (S)

7 A at 70°C with MY2 (S)

5 A at 70°C with MY4 (S)

10 A at 55°C with MY2 (S)

7 A at 70°C with MY2 (S)

VDE0627

Applicable wires 0.2 to 1.5 mm2(AWG24 to AWG16)

Solid wire

Stranded wire

---

Number of wire connections 2 wires per terminal (1 wire per hole) ---

Clamping force 10 N min. (0.2 mm2)

40 N min. (1.5 mm2)

EN60999

Standard File No.

VDE0627 (IEC664, EN60999) 112467UG

UL508 (UL1059) E87929 Vol. 3

CSA C22.2 No. 14 (CSA C22.2 No. 158) LR31928

2Screwless Clamp Terminal Socket PYF@@S

Dimensions

Note: All units are in millimeters unless otherwise indicated.

Terminal Arrangement

Mounting Height (With Lever)

PYF14S PYF08S

(5.3)

85 max.

38.2 max.

36.5 max.

23.2 max.

36.5 max.

31 max.

85 max.

PYF14S PYF08S

Make contacts

Break contacts

Coil

Common contacts

Note: In case MY2 relay will be used in combination with

PYF14S terminals 21, 22, 24 and 31, 32, 34 are not

connected.

PYF14S PYF08S

28.6 28.6

72.6 typ. 73.6 typ.

Screwless Clamp Terminal Socket PYF@@S 3

■Accessories (Option)

Socket Bridge for PYF-S

List of models Specification

Levers for PYF-S

Installation

■Tools

A flat-blade screwdriver should be used to mount the cables.

Applicable Screwdriver

●Flat-blade, Parallel-tip, 2.5 mm diameter (3.0 mm max.)

Examples: FACOM AEF.2.5 ×75E (AEF. 3 ×75E)

VESSEL No. 9900-(-)2.5 ×75 (No. 9900-(-)3 ×100)

WAGO 210-119

WIHA 260/2.5 ×40 (260/3 ×50)

*Chamfering the tip of the driver improves insertion when used as an exclusive tool.

914

Insulating coating

Diameter conductor is 1.2 mm

Socket Model

number

Length L

(mm)

Color of insulating

coating

PYF14S PYDM-14SR 27.5 Red

PYDM-14SB Blue

PYF08S PYDM-08SR 19.7 Red

PYDM-08SB Blue

Item Characteristic

Rated ON current 10 A

Rated insulation voltage 250 VAC

Temperature rise 35°C max.

Dielectric strength 1,500 VAC for 1 minute

Ambient operating temperature –55 to 70°C

PYCM-14S for PYF14S PYCM-08S for PYF08S

26.5 typ. 28 typ.

52.5 typ.

3 typ.

29.6 typ.

21.5 typ.

16 typ.

6 typ.

4.1 typ.

5.4 typ.

54.4 typ.

32.7 typ. 6.41 typ.

●Flat-blade, Parallel-tip

●Flat-blade, Flared-tip

2.5 dia. (3.0 mm max.)

Cannot be used.

4Screwless Clamp Terminal Socket PYF@@S

■Applicable Wires

Applicable Wire Sizes

0.2 to 1.5 mm2, AWG24 to AWG16

Applicable Wire Type

Solid wires, stranded wires, flexible wires, or wires with ferules can

be used.

(See note 1.) < 2.2 ≤Diameter D (mm) ≤3.2 (3.5: see note 2.)

Conductor diameter d (mm) or length of sides a and b (mm) ≤1.9

Note: 1. If the outer diameter D of the wire is less than 2.2 mm and

the exposed conductor length is less than 8 mm potentially

bad connection might occur in case wire is pushed to far in-

side. Please see following drawing.

2. If the outer diameter D of the wire exceeds 3.2 mm, it might

be difficult to use double wiring.

Examples of Applicable Wires (Confirmed Using Catalog Information)

■Wiring

Use wires of the applicable sizes specified above. The length of the

exposed conductor should be 8 to 9 mm.

Use the following wiring procedure.

1. Insert the specified screwdriver into the release hole located

beside the wire connection hole where the wire is to be inserted.

2. Insert the exposed conductor into the wire connection hole.

3. Pull out the screwdriver.

Wires with Ferules

Type of wire Conductor type See note 1, above. Recommended wire sizes See note 2, above.

Equipment wire 2491X Flexible 0.5, 0.75, 1.0 mm21.5 mm2

BS6004 Solid 0.5 mm2

Switchgear BS6231 Solid 1.0 mm21.5 mm2

Switchgear BS6231 Flexible 0.5, 0.75 mm21.0 mm2

Tri-rated control and switchgear Flexible 0.5, 0.75, 1.0, 1.5 mm2

Conduit Stranded 1.5 mm2

UL1007 Flexible 18AWG 16AWG

UL1015 Flexible 18AWG, 16AWG

UL1061 Flexible 18AWG

UL1430 Flexible 18AWG 16AWG

Fig. 1 Exposed Conductor Length

8.5 ±0.5 mm

Wire connection holes

Fig. 2 Wire Connection Holes and Release Holes

Release holes

Wire connection hole

Fig. 3 Section A-A of Fig. 2

Release hole

Screwdriver

Insert

Pull out

In the interest of product improvement, specifications are subject to change without notice.

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.

To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.

Cat. No. J122-E2-04-X

Screwless Clamp Terminal Socket PYF@@S 5

Precautions

Precautions for Connection

•Do not move the screwdriver up, down, or from side to side while it

is inserted in the hole. Doing so may cause damage to internal

components (e.g., deformation of the coil spring or cracks in the

housing) or cause deterioration of insulation.

•Do not insert the screwdriver at an angle. Doing so may break the

side of socket and result in a short-circuit.

•Do not insert two or more wires in the hole. Wires may come in

contact with the spring causing a temperature rise or be subject to

sparks. (There are two wiring holes for each terminal.)

•Insert the screwdriver along the hole wall as shown below.

•If lubricating liquid, such as oil, is present on the tip of screwdriver,

the screwdriver may fall out resulting in injury to the operator.

•Insert the screwdriver into the bottom of the hole. It may not be

possible to connect cables properly if the screwdriver is inserted

incorrectly.

General Precautions

•Use the clip to prevent relays floating or falling out of the socket.

•Do not use the product if it has been dropped on the ground. Drop-

ping the product may adversely affect performance.

•Confirm that the socket is securely attached to the mounting track

before wiring. If the socket is mounted insecurely it may fall and

injure the operator.

•Ensure that the socket is not charged during wiring and mainte-

nance. Not doing so may result in electric shock.

•Do not pour water or cleansing agents on the product. Doing so

may result in electric shock.

•Do not use the socket in locations subject to solvents or alkaline

chemicals.

•Do not use the socket in locations subject to ultraviolet light (e.g.,

direct sunlight). Doing so may result in markings fading, rust, corro-

sion, or resin deterioration.

•Do not dispose of the product in fire.

Removing from Mounting Rail

To remove the socket from the mounting rail, insert the tip of screw-

driver in the fixture rail, and move it in the direction shown below.

Screwdriver

Fixture rail
