Onkyo TX-SR703 Manuale utente
TX-SR803/TX-SR703
Quick Guide
This guide shows how to get your AV receiver up and running quickly and smoothly. It shows you how to
connect your speakers, DVD player, and TV, and how to use Automatic Speaker Setup. For full details on
using the AV receiver, refer to the main instruction manual.
Home Theater Basics
Front speakers
Center speaker
Subwoofer
Surround
back
speakers
Surround speakers
❍Where to Put Your Speakers
Connections 1through 5are explained on the following pages.
: Signal Flow
Video Video
Audio
Speakers
DVD player TV
Audio
Audio
1
2
3
4
5
❍Audio & Video Signal Flow
En
1
TX-SR803DIG.fm Page 1 Thursday, August 25, 2005 11:48 AM

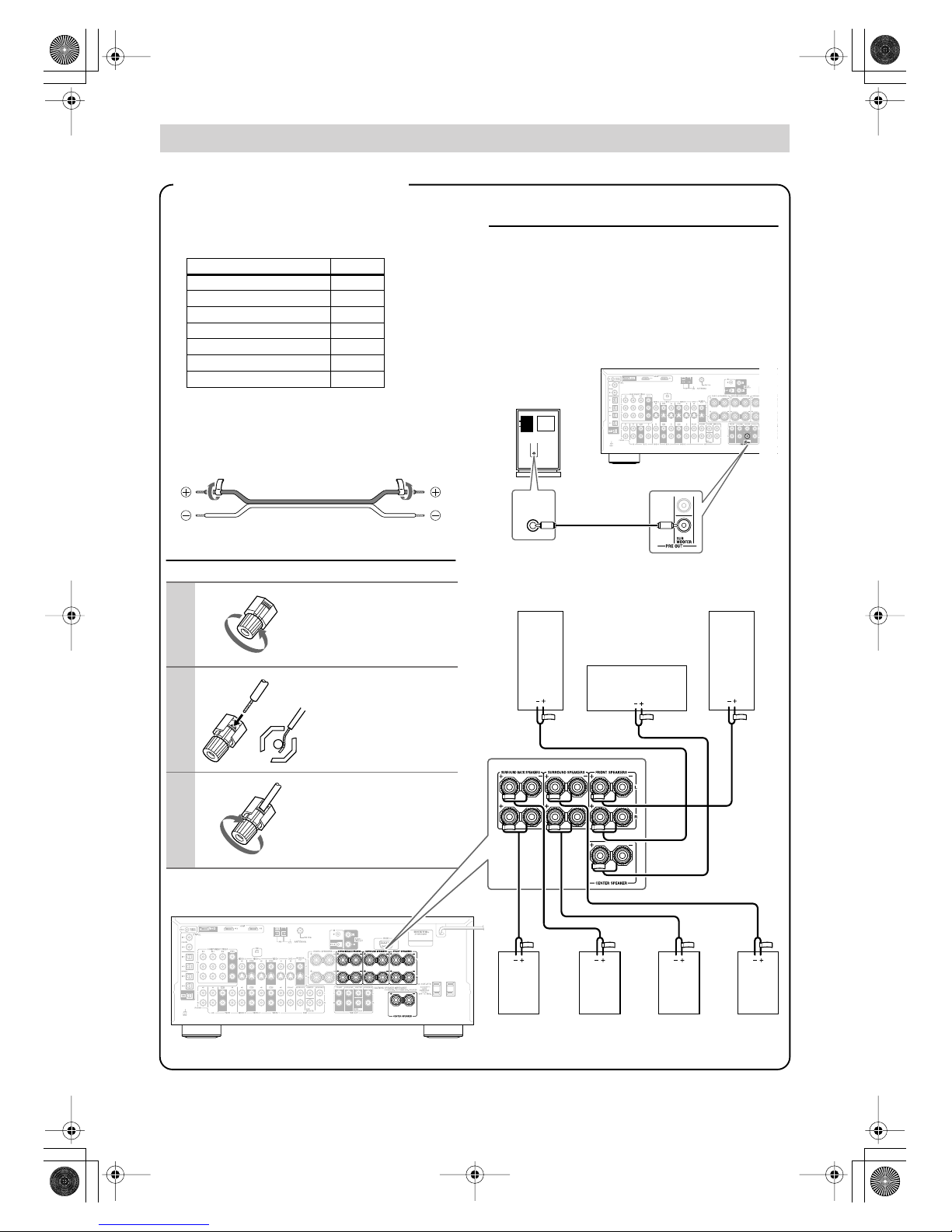

System Hookup
The AV receiver’s positive (+) speaker terminals are
color-coded for easy identification. (The negative (–)
speaker terminals are all black.)
The supplied speaker labels are also color-coded and
you should attach them to the positive (+) side of each
speaker cable in accordance with the above table. All
you need to do then is to match the color of each label
to the corresponding speaker terminal.
Connecting Speaker Set A
Connecting a Powered Subwoofer
Using a suitable cable, connect the AV receiver’s SUB-
WOOFER PRE OUT to an input on your powered sub-
woofer, as shown. If your subwoofer is unpowered and
you’re using an external amplifier, connect the SUB-
WOOFER PRE OUT to an input on the amp.
Note:
Make sure the plug is pushed in all the way.
Speaker terminal Color
Front left White
Front right Red
Center Green
Surround left Blue
Surround right Gray
Surround back left Brown
Surround back right Tan
1
Unscrew the terminal.
2Fully insert the bare
wire, making sure
that it’s touching the
center of the terminal.
3
Screw the terminal
tight.
LINEINPUT
LINE INPUT
Powered
subwoofer
1Connecting Your Speakers
Surround
back left
speaker
Surround
back right
speaker
Front left
speaker
Front right
speaker
Center
speaker
Surround
right
speaker
Surround
left
speaker
2
TX-SR803DIG.fm Page 2 Thursday, August 25, 2005 11:48 AM

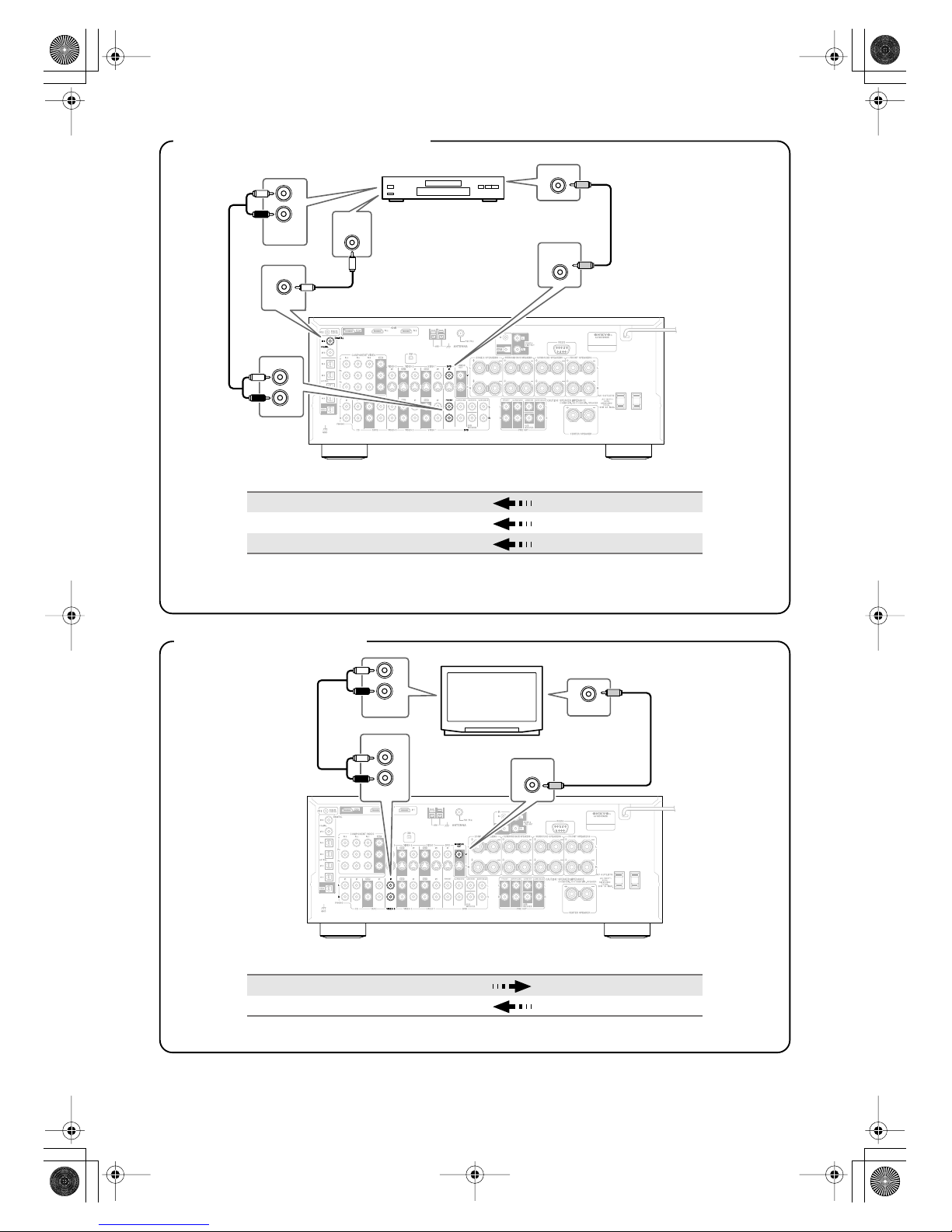

Connect the Power cord and start the Automatic Speaker Setup.
➔
See page 4.
Note: The digital connection 3offers Dolby & DTS listening modes, the analog connection 3allows you to
record.
Note: Connection 5is only necessary if you want to listen to TV programs through the AV receiver.
Connection AV receiver Signal flow DVD player
2DVD IN V Composite video output
3DVD IN FRONT Analog audio L/R output
3DIGITAL COAXIAL IN 1 Digital coaxial output
Connection AV receiver Signal flow TV
4MONITOR OUT V Component video input
5VIDEO 3 IN L/R Analog audio L/R output
VIDEO OUT
IN V
DVD
DIGITAL
COAXIAL
IN1
COAXIAL
OUT
L
R
FRONT
DVD
L
R
AUDIO
OUT
DVD player 2
33
VIDEO IN
MONITOR
OUT
V
L
R
L
R
IN
VIDEO 3
AUDIO
OUT
TV
4
5
2+3Basic DVD Player Hookup
4+5Basic TV Hookup
3
TX-SR803DIG.fm Page 3 Thursday, August 25, 2005 11:48 AM
SN 29344079
I0508-1
(C) Copyright 2005 ONKYO CORPORATION Japan. All rights reserved. * 2 9 3 4 4 0 7 9 *
With the supplied speaker setup microphone, use the Automatic Speaker Setup function.
Before using this function, connect and position all your speakers.
Turning on & Using Automatic Speaker Setup
1Press the [STANDBY/ON] button on the AV receiver or press the remote
controller’s [RECEIVER] button followed by the [ON] button to turn on
the AV receiver.
Turn on the TV and select the input to which the AV receiver is connected.
2Put the speaker setup microphone
in the listening position, and con-
nect it to the SETUP MIC jack on the
front panel.
And press [ENTER].
The automatic speaker setup starts.
The whole process takes about 2 minutes.
3When you’ve finished the setup,
press the Up and Down [ ]/[ ] but-
tons to select “Apply the Results,”
and then press [ENTER].
Disconnect the speaker setup
microphone.
RECEIVER
STANDBY/ON
ON
Remote
controller
AV receiver
or
SETUP MIC
ENTER
MIC
position
Auto Speaker Setup
------------------------
Push Enter:Start
Caution! Loud sound.
ENTER ENTER
Auto Speaker Setup
------------------------
Apply the Results
Check the Results
Retry
Retry with
Test noise Level up
Cancel
1. Use the AV receiver’s input selector buttons
to select the input source.
To select the input source with the remote controller,
press the [RECEIVER] button, and then use the
INPUT SELECTOR buttons.
2. Start playback.
3. To adjust the volume, use the MASTER VOL-
UME control, or the remote controller’s [VOL]
button.
Selecting the Input Source
PUSH TO OPEN
STANDBY/ON
STANDBY
MASTER VOLUME
PHONO
ZONE 2
DISPLAY
PURE AUDIO TUNERTAPE
VIDEO 4VIDEO 3VIDEO 2VIDEO 1
DVDMULTI CH CD
3
1
TX-SR803DIG.fm Page 4 Thursday, August 25, 2005 11:48 AM
