Onlyfire FP034 Manuale dell'operatore
#FP034
PROPANE GAS FIRE PIT
MANUAL & SAFETY DOCUMENT
Email: [email protected]
Website: www.onlyfire.com
Facebook: @OnlyfireOutdoorCooking
Instagram: @onlyfireoutdoor
Outdoor Fire Pit
1
DANGER:
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odour continues, keep away from the appliance and immediately call your gas supplier or
fire department.
WARNING:
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
WARNING:
For outdoor use only.
WARNING: CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odour.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such
as a camper, tent, car or home.
Outdoor Fire Pit
2
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Read the installation, operating and maintenance instructions thoroughly
before installing or servicing this equipment.
WARNING
If the information in this manual is not followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odour.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent, car or home.
WARNING
The LP-gas supply cylinder must be constructed and marked in accordance with the U.S. D.O.T.
Specifications for LP-Gas Cylinders or the Standard for Cylinders, Spheres and Tubes for
Transportation of Dangerous Goods and Commission, CAN/CSA-B339, as applicable.
WARNING
Only cylinders marked with “PROPANE FUEL”are approved for this appliance.
WARNING
This appliance shall be used only outdoors in a well-ventilated space and shall not be used in a
building, garage, or any other enclosed space.
WARNING
Apartment dwellers: Check with management to learn the requirements and fire codes for using
a liquid propane (LP) gas outdoor fireplace in your apartment complex. If allowed, use outside on
the ground floor with a 10 ft. (3.05m) clearance from any structure. Do NOT use on or under
balconies.
WARNING
LP GAS WARNING: Do not use any volcanic stone/glass stone with a depth of more than 1/4
above the burner hole. Otherwise, the flame will go out.
WARNING
Leave the device 20 minutes after igniting the device for the first time, as the
volcano/pumice/glass stone may pop up and cause injury.
WARNING
Before use, make sure that the volcano/pumice/glass stone is completely dry. Failure to do so will
cause them to rupture or burst.
WARNING
Do not operate the device until all parts are fully assembled.
WARNING
Do not paint or stain any part of this heating device.
WARNING
The device may be very hot when in use, do not try to move it while in use.
Outdoor Fire Pit
3
WARNING
When in use, do not leave this heating device unattended.
WARNING
This device cannot be used for cooking.
WARNING
Keep away from any flammable objects, and do not use any other fireplace covers of this device.
WARNING
Keep a safe distance to avoid burning your skin or clothes.
WARNING
Do not sit or place your feet on this heating device.
WARNING
When in use, do not put your hands or fingers on the upper part of the device.
WARNING
Keep all wires and fuel supply hoses away from heated surfaces.
WARNING
Do not store spare LP gas tanks under or near this appliance.
WARNING
Keep the equipment area clean and free of flammable materials, gasoline, and other flammable
vapors and liquids.
WARNING
If the flame goes out during combustion, close the gas valve. Wait 5 minutes before repeating the
initial lighting procedure.
WARNING
When the flame starts, press and hold the control knob for 1 minute.
WARNING
Do not add water to the device.
WARNING
Do not operate the device if any parts seep water. Call a qualified maintenance technician
immediately to check the equipment and replace any part of the control system and any parts
that have been leaking.
WARNING
When the device is in use, do not disconnect any parts.
WARNING
Do not operate on a boat or vehicle. The device must only be used on flat surfaces and outdoors.
WARNING
Storage tanks must be stored outdoors, out of the reach of children, and cannot be stored in
buildings, garages or any other enclosed areas.
WARNING
Your LP fuel tank must not be stored where the temperature can exceed 125°F.
WARNING
After not using the device for a long time, check for leaks
Outdoor Fire Pit
4
WARNING
The test pressure of the gas supply piping system must be equal to or less than 1/2 psi (3.5kPa).
All installation and maintenance should be done by qualified professionals. Check once a year
and clean regularly.
WARNING
Before each use, check all parts of the heating device. If it is damaged, the burner must be
replaced.
WARNING
When using an outdoor fireplace, do not try to disconnect the gas regulator from the fuel tank or
any gas accessories.
WARNING
When the appliance is not in use, the cylinder must be disconnected.
WARNING
Pay attention to the danger of high temperature, stay away from the device, and avoid any burns
or injuries.
WARNING
This heating appliance should not be used on plastic or artificial wood decks.
WARNING
Children and adults should be alerted to the hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition.
WARNING
Any guard or other protective device removed for servicing the appliance shall be replaced prior
to operating the appliance.
WARNING
Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a qualified service person. More frequent cleaning
may be required as necessary. It is imperative that the control compartment, burners and
circulating airways of the appliance are kept clean.
NOTE: You must follow all steps to properly assemble this heating item. Make sure the gas
valve is turned “OFF”before assembling. Do NOT attempt to assemble without proper tools.
NOTE TO USER:
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any parts are missing or damaged, do not
attempt to assemble the product.
Tools Required for Assembly ( not included): screwdriver
Outdoor Fire Pit
5
Part List
Outdoor Fire Pit
6
INSTALLATION GUIDE:
Step 1: Align the two holes on counterweight block (F) with the two holes on the fire pit (E), and
then insert M5 nut (AA) into the holes and lock them with a cross screwdriver.
Step 2: Align M6 support feet (EE) and wheels (FF) with the holes on the fire pit (E), and screw
them up by hand to the end.
Outdoor Fire Pit
7
Step 3: Place the gas tank into the fire pit (E).
Step 4: Place the burner component (C) and round cover panel (D) on the fire pit (E)
Pay attention that the pressure reducing valve should enter the fire pit first. Screw the pressure
reducing valve to the cylinder joint and lock it. Install the burner component first and then put
the cover panel on the fire pit.
Outdoor Fire Pit
8
Step 5: Place the glass wind guard (B) on the burner component (C).
Pay attention to the direction of the holes on the wind guards when placing them. And when
placing every two pieces of wind guards on the burner component, place them on the fixed
device.
Step 6: Place 3 corner brackets (DD) between each two pieces of wind guards (B) and align them
with the holes.
Insert M5*16 blots (BB) into the holes and lock them with M5 nuts (AA). Finally tighten them
with a cross screwdriver.
Outdoor Fire Pit
9

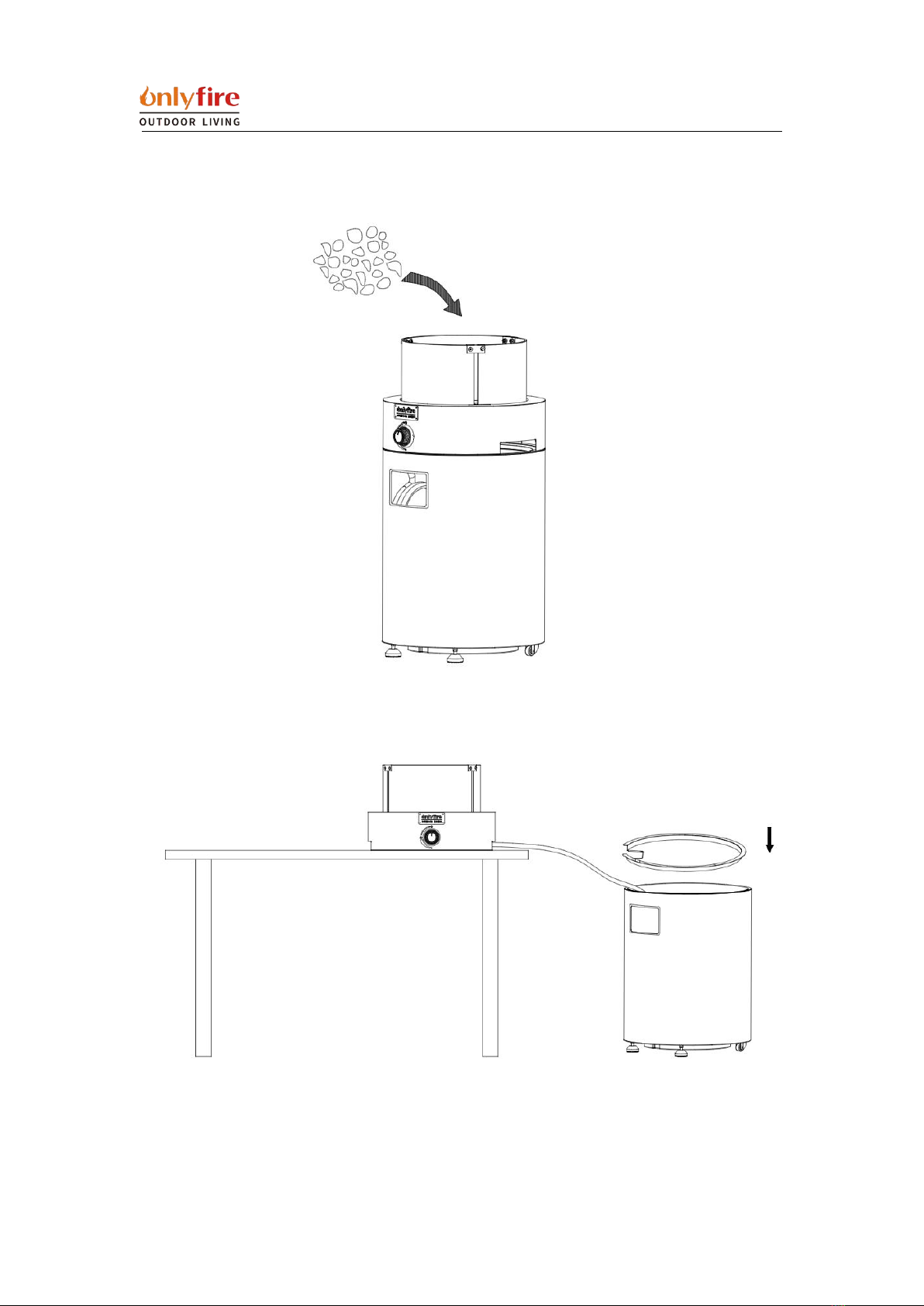

Step 7: Pour the lava rocks (A) into the fire pit.
PLEASE NOTE: The tabletop fire pit and tank holder can be used separately.
