HOW TO PUT YOUR PPT MINI TOGETHER
NOTE: When you are assembling remember to keep the knobs facing towards you.
Fig. 1
Complete frame without Theatre
and Wing Drapes. (Side View)
(1) (2)
Slide the Front Legs into each end of
the front Crossbar (A) up to stop rings,
tighten knobs. Make sure end caps are
on same side of the crossbar.
With the knobs facing you attach one
of the rear legs at the single-knob end
of Crossbar (B) and tighten knob.
Repeat for Crossbar (C).
(3) (4)
Knobs facing you place double-knob
end of Crossbar (B - Stage Left)
over right front leg (now inserted in
Crossbar (A)) and push down until
it seats. Tighten knob. Repeat for
Crossbar (C - Stage Right).
(See Fig. 1)
Slide Front Verticals through ends
of the Stage Crossbar (D). Make
sure the knobs point towards you and
stage platform is on top. Slide a Wing
Drape Support onto the top of each
Front Vertical with the loops on the
Rod Support Brackets pointing away
from the center of the theatre and
tighten knobs at the required height.
For more details see (5) and (6)
1234
5
6
9
8
8
10
11
12
7
13

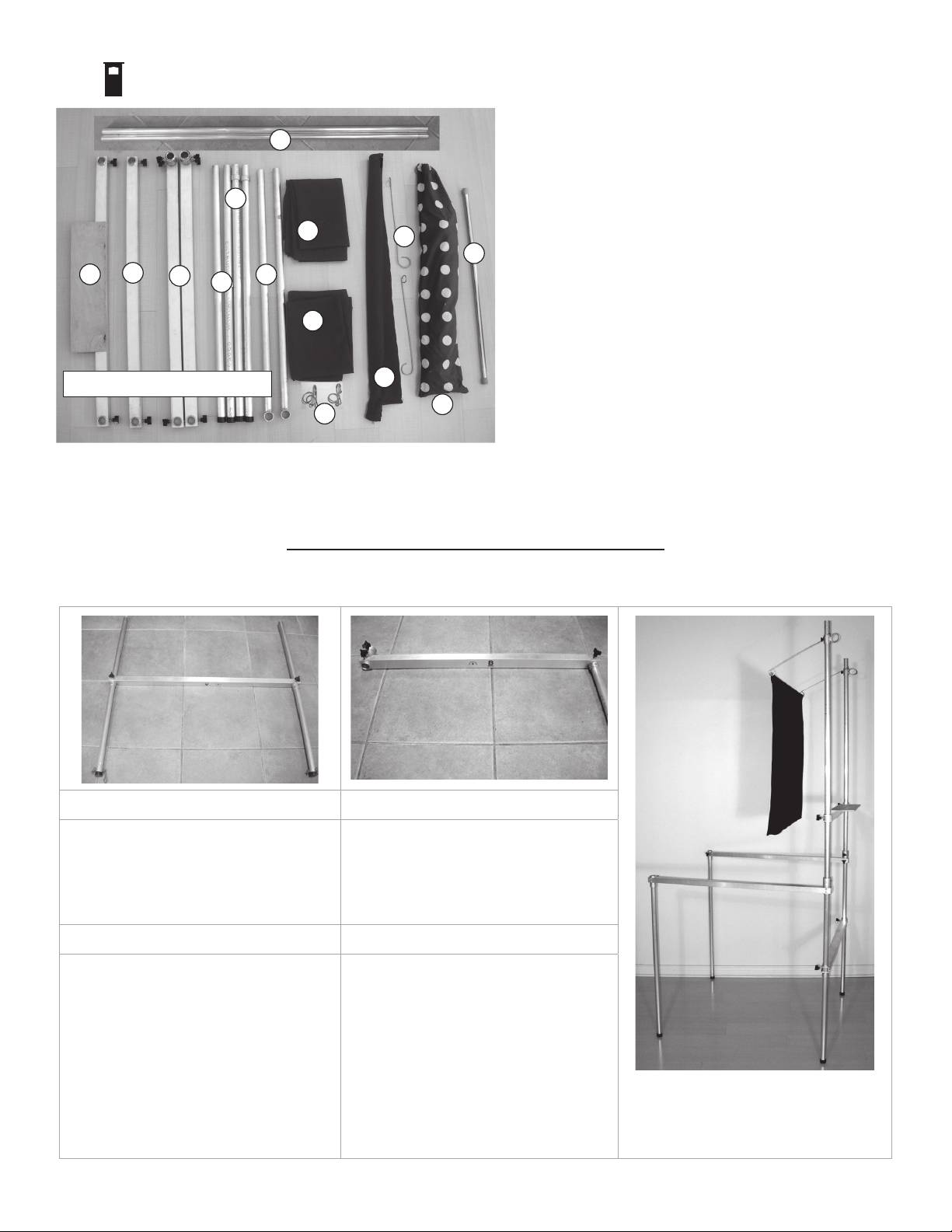

PPT MINI : Components
Specifications
2 00 x 91.4 cm [ 80” x 36” ] (front);
Doorway Puppet Theatre: 2 00 x 109 cm [ 80” x 43” ]
(Stage opening): 53 x 48 cm [21” h x 19”w];
Wings: 200 x 74 cm [80” x 29” ] each;
Stage Platform: 15cm deep x 48 wide [6” deep x 19” wide];
Weight: ~ 11 kgs [~25lbs]
PPT MINI - Components
1. Stage (D)
2. Front Crossbar (A)
3. Side Crossbars (wings) (B & C)
4. Legs (front)
5. Legs (back)
6. Wing Drape Supports
7. Front Verticals (with rod support brackets)
8. Wing Drapes
9. Rod Support Clips
10. Scrim
11. Scrim hangers
12. Doorway Theatre
13. Tension Rod
o
p
e
n
d
o
o
r
d
e
s
i
g
n
s
PPT MINI - ASSEMBLY INSTRUCTIONS
.../ 2
Rod Support Clips
(5) - Installing Wing Drape Supports
& Scrim Hangers (6) - Installing Rod Supports
Wing Drape Supports: Slide tubing end over Front
Vertical with knob facing in. Repeat for other side.
(Install Wing Drapes on Wing Supports by sliding
onto supports through channels provided on Drapes).
With stability in mind you can adjust both the Wing
Supports and Crossbars to accommodate other
performers.
Scrim Hangers: Slide The double looped end of
Scrim Hanger over Front Vertical as shown above
in Fig. 2 with the loop at the other end facing down.
Repeat for other side. Insert Scrim rod ends through
loops in Scrim Hangers.
Slide one of the Rod Support Clips (a - red tape) onto the
Stage Right Front Vertical by compressing clip handles as
shown in fig. (b) above. Repeat for the other side. With the
Doorway Theatre on the Tension Rod, insert the ends of the
rod into the Rod Support loops and adjust clips to correct height
by compressing clip.
(6) - Installing Stage Dressing NOTES
Install Stage Dressing (not shown below) with trim
to the front and attach with the Velcro.
Your PPT-MINI is now ready to use. For added stability gallon
jugs of water can be tied to the backlegs and in outdoor venues
you can anchor the legs with the tent pegs provided.
PPT MINI - Front PPT MINI - Back
o
p
e
n
d
o
o
r
d
e
s
i
g
n
s
OPEN DOOR DESIGNS
1597 Dupont Street
Toronto, ON M6P 3S8
INFORMATION
contact: Joanne Bigham
email: info@opendoordesigns.ca
telephone: (416) 531-1290
web: www.opendoordesigns.ca
page 2
(b)
(a)
rod goes here
clip
handles
slide over
verticals
scrim
scrim hanger
wing drape support
rod support
Rear View
