OpenVox VS-GW1202-8S Manuale utente

Elastix Server

172.16.1.194

SIP Phone

Soft SIP Phone

Internet

Analog Phone

Analog Cards

®Server

QuickStart Guide

VS-GW1202-8S Connect with

Elastix

This document applies to OpenVox VS-GW1202-8S series analog

gateway. This is an example with 8 FXS ports. The Default IP is

172.16.99.1, Username is admin and Password is admin too.

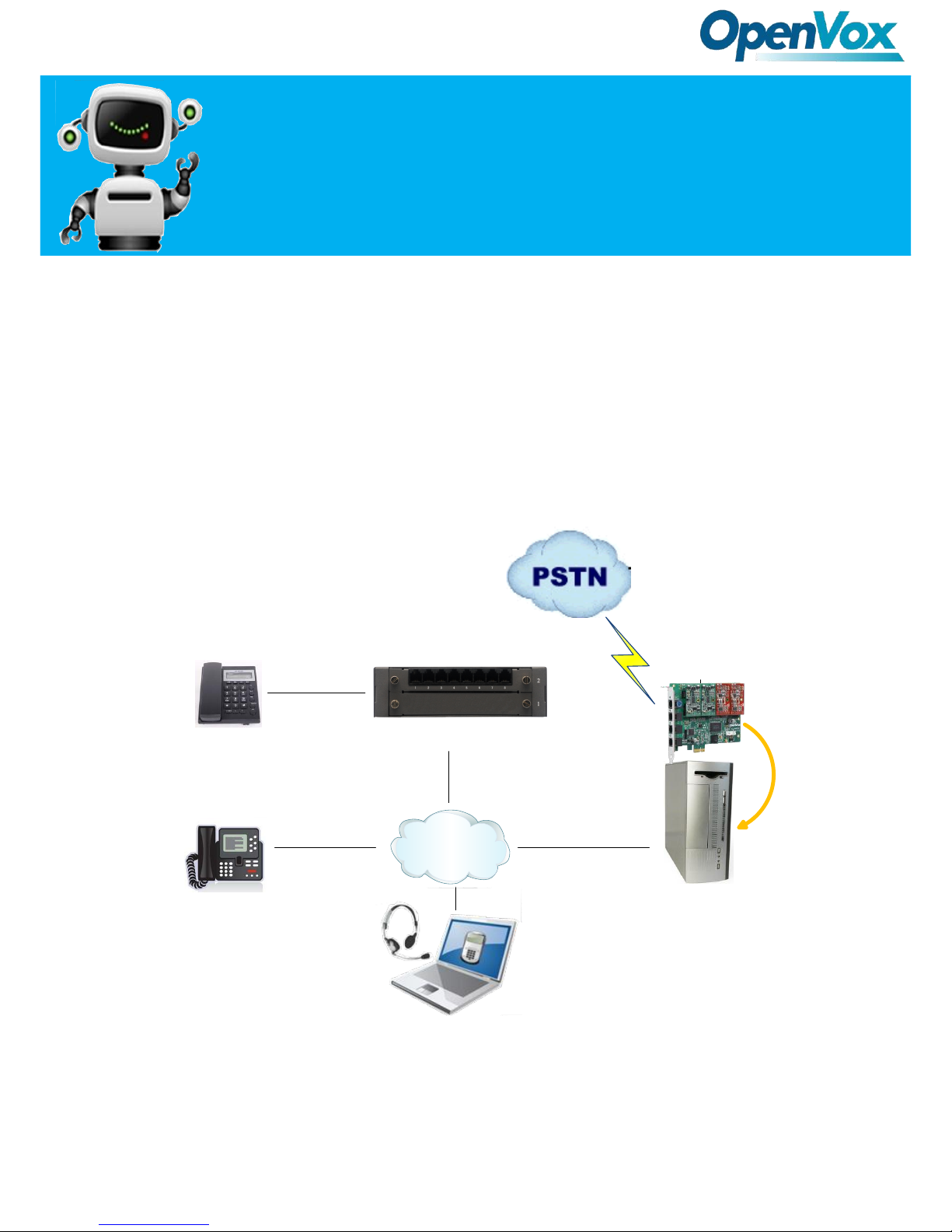

There are two LAN ports, you can connect gateway to Internet

through either of them and you can see the connectivity by LED

status.

VS-GW1202-8S

QuickStart Guide

www.openvox.cn

You can quickly configure your gateway as follow steps.

Step1. Log in your gateway Web GUI.

Step2. Network Settings

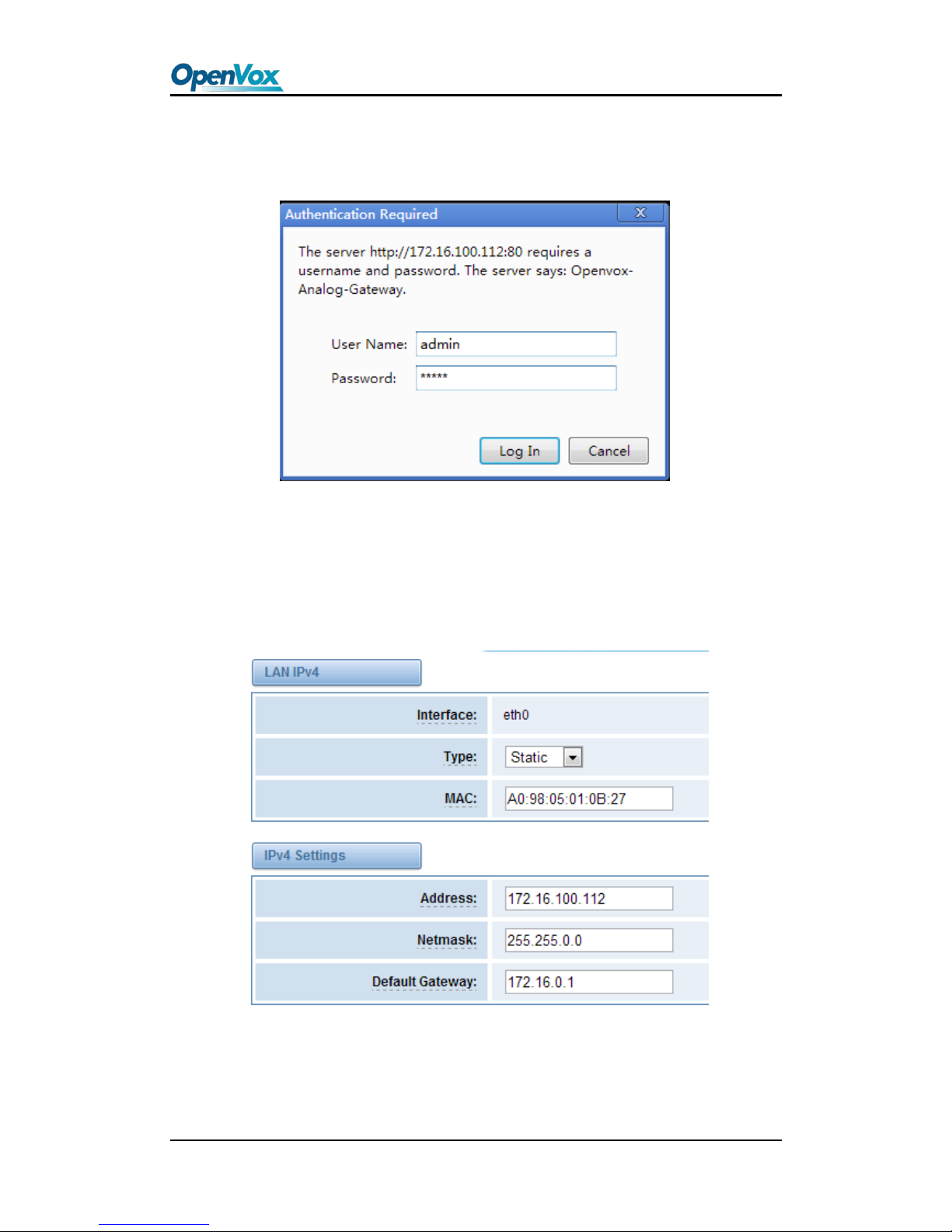

If your system topology like the figure described, please enter the gateway default IP

address to login web, and click “NETWORK—>LAN Settings” to set network parameters

such as IP.

QuickStart Guide

www.openvox.cn

Step3. Create a SIP Endpoint in Web

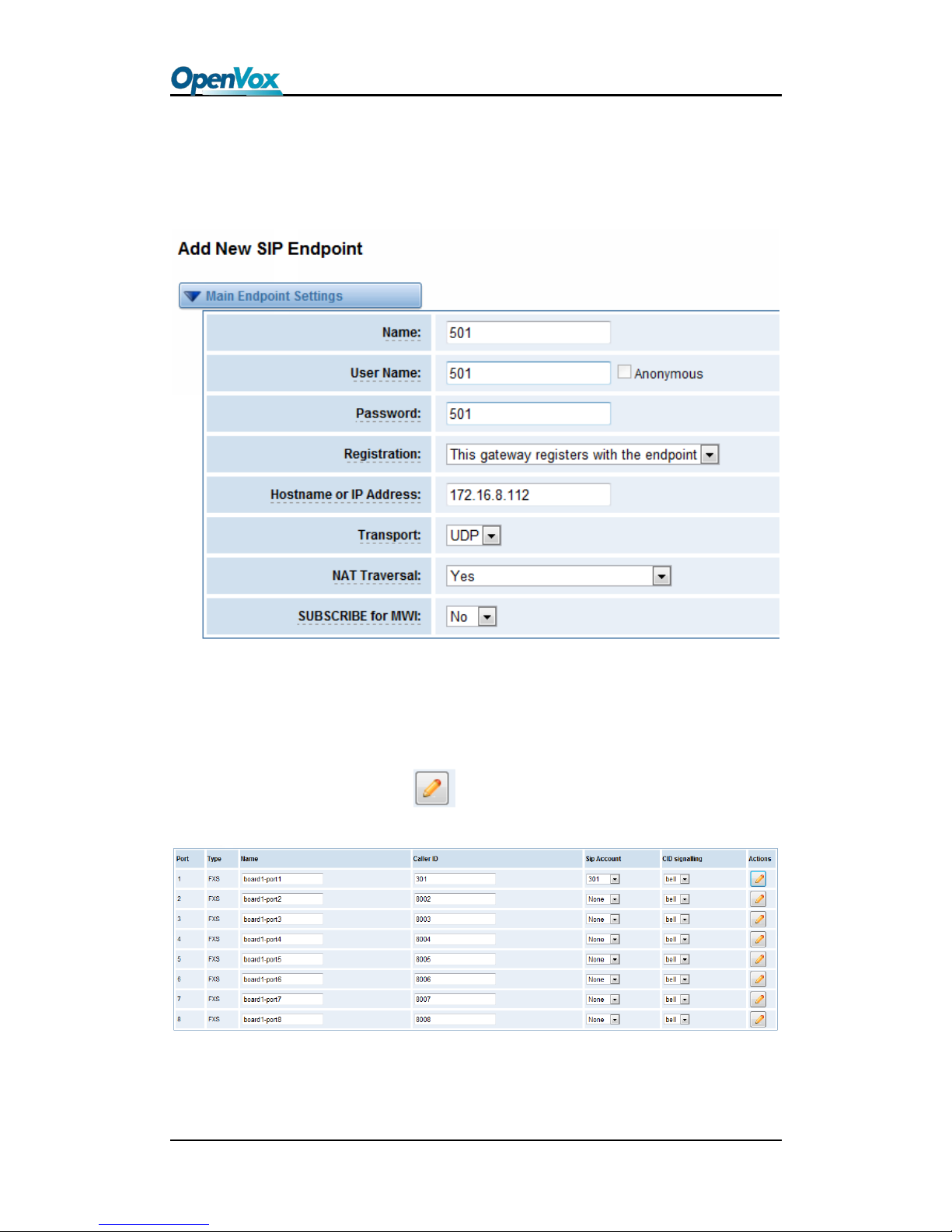

Please select “SIP—>SIP Endpoints—>Add New SIP Endpoint” to set a new SIP endpoint.

The following figure shows detail information about how to set it.

About other parameters in SIP, please set by your requirements for there is no need to set

them in simple calls.

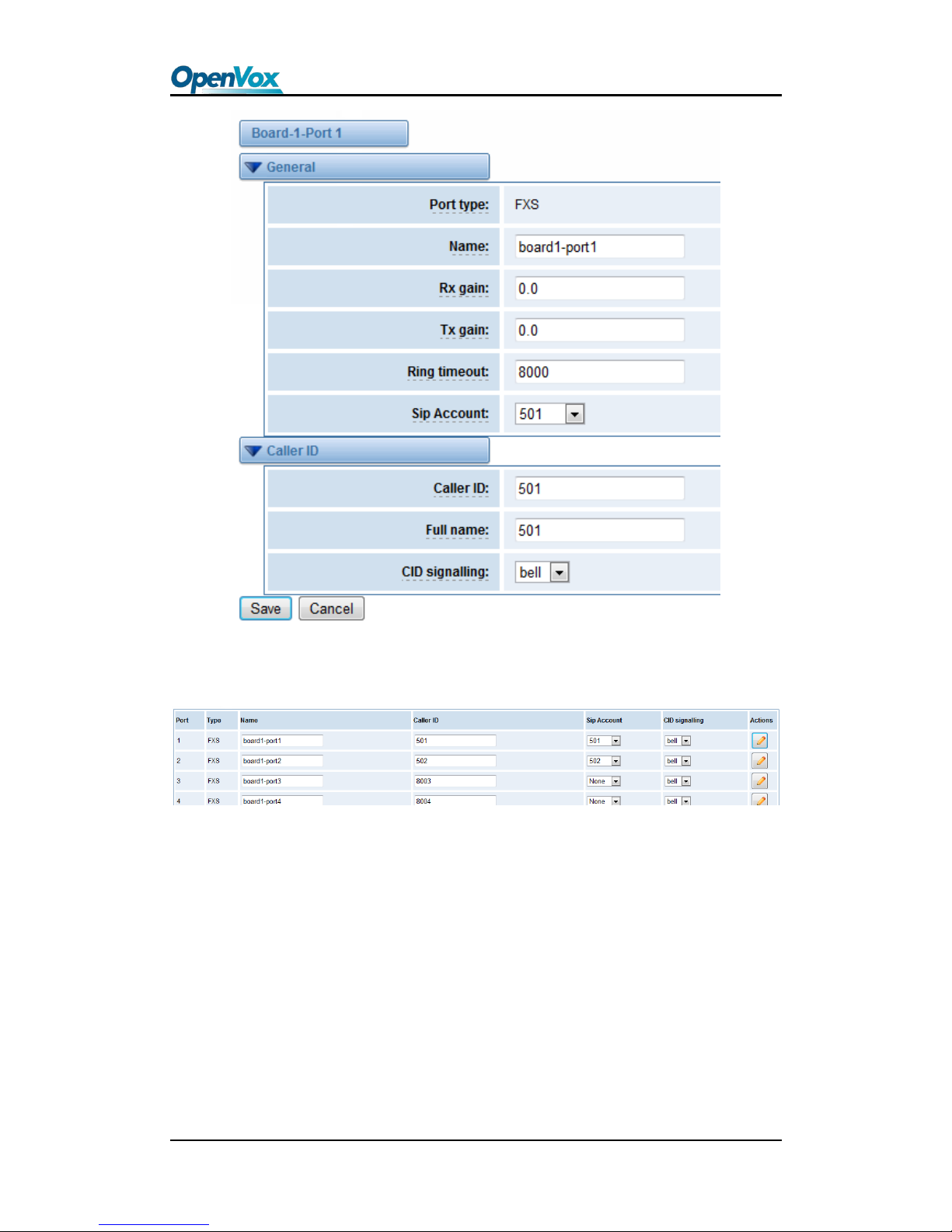

Then you should modify your Channel Settings, “ANALOG -> Channel Settings”to set Sip

Account. You can press the button .

QuickStart Guide

www.openvox.cn

You can choose the Sip Account that you have set up for every port.

That’s all. Now the board 1-port 1 phone num is 501, and the board 1-port 2 phone num is

502, you can make calls between 501 and 502.

Step4. Create Extensions in Elastix®Server

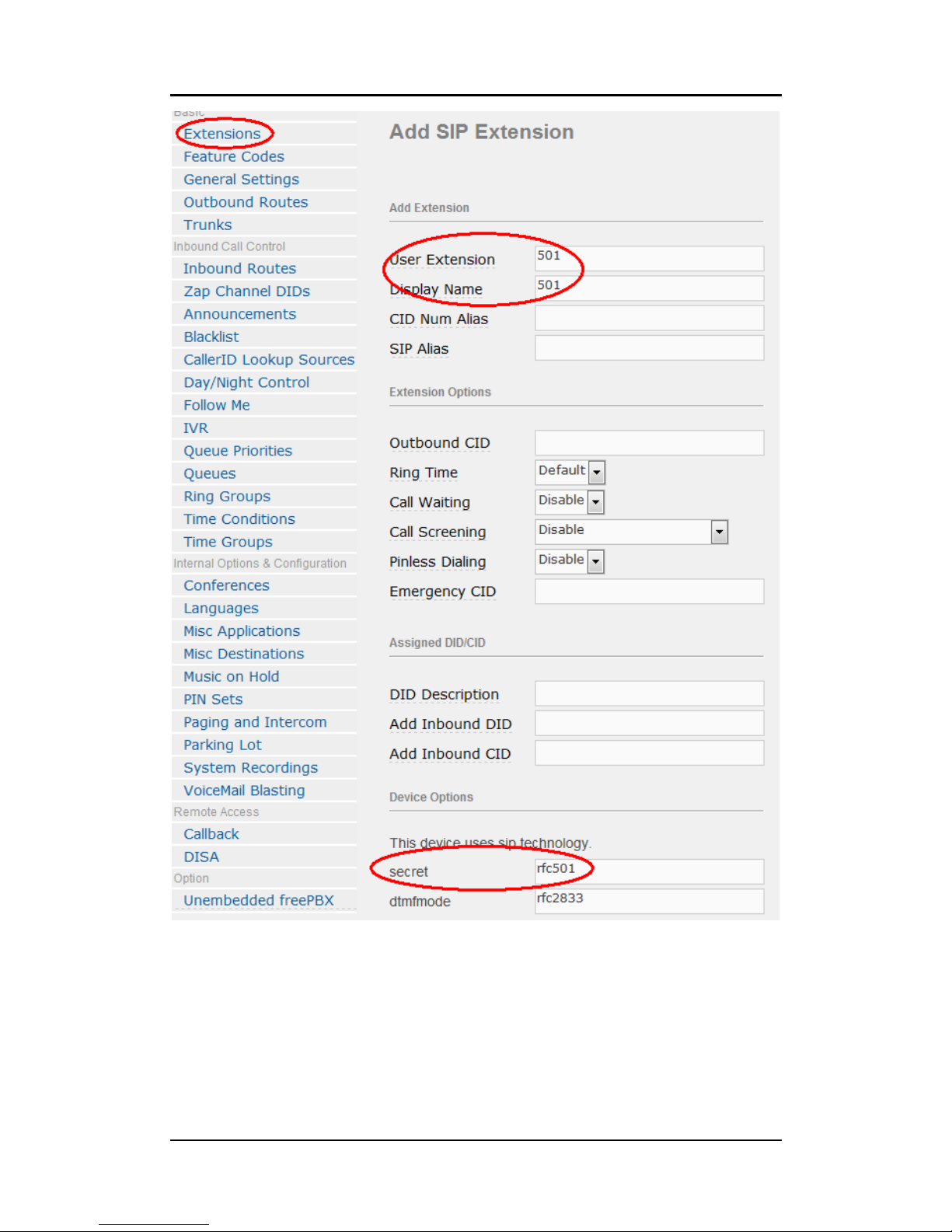

Don’t forget to create Extensions 501 and 502 on your Elastix server.

QuickStart Guide

www.openvox.cn

After that, you can register a soft sip phone with the name “1001”on the Elastix Server ,

the same method as above. Then you can make calls to 501 or 502 from SIP 1001.
