OPTI-UPS DS-C33 Series Manuale utente

Table of contents

1.0 Preface ---------------------------------------------------------------------------------------- 1-1

1-1 Introduction ---------------------------------------------------------------------------- 1-1

1-2 Safety Note and Precaution ---------------------------------------------------------- 1-2

2.0 System structure ----------------------------------------------------------------------------- 2-1

2-1 System Diagram of DS-C33 --------------------------------------------------------- 2-1

2-2 System assembly and parts layout--------------------------------------------------- 2-2

2-3 Introduction on function of main module ------------------------------------------ 2-3

2-4 System operation mode--------------------------------------------------------------- 2-4

3.0 Panel function-------------------------------------------------------------------------------- 3-1

3-1 Status indication on LED panel------------------------------------------------------ 3-1

3-2 Function Key--------------------------------------------------------------------------- 3-2

3-3 LCD Panel description----------------------------------------------------------------3-3

4.0 Placement and installation------------------------------------------------------------------ 4-1

4-1 Placement------------------------------------------------------------------------------- 4-1

4-2 Installation------------------------------------------------------------------------------ 4-2

5.0 Operation procedure------------------------------------------------------------------------- 5-1

5-1 Start up procedure --------------------------------------------------------------------- 5-1

5-2 Shut down procedure------------------------------------------------------------------ 5-2

5-3 Maintenance procedure--------------------------------------------------------------- 5-3

5-4 System recovery from maintenance procedure------------------------------------ 5-4

5-5 Introduction to LCD front panel and illustration of each function-------------- 5-5

5-6 Emergency shut down procedure---------------------------------------------------- 5-6

6.0 Maintenance---------------------------------------------------------------------------------- 6-1

7.0 Specifications -------------------------------------------------------------------------------- 7-1

8.0 DS-C33 Series troubleshooting------------------------------------------------------------ 8-1

8-1 Simple troubleshooting for rectifier/charger--------------------------------------- 8-1

8-2 Simple troubleshooting for Inverter------------------------------------------------- 8-2

8-3 Simple troubleshooting for system function --------------------------------------- 8-3

1Preface

1-1 Introduction

DS-C33 series UPS is one of the industry’s most reliable and stable power protection equipment. It is

fully controlled by DSP (Digital Signal Processor) to ensure high performance and worry free operation

in protecting your valuable equipment from power disturbances. This makes the DS-C33 series UPS

fully compatible for use in computer, precision instrument, banking, manufacturing, and other mission

critical applications.

1-2 Safety Note and Precaution

Please note and refer to warning marks which you will find in the unit.

Don’ttouch Riskofelectricalshock

Areas with the “Risk of electrical shock” mark indicate 410VDC high voltage. Do not touch the

parts with this mark.

2System structure

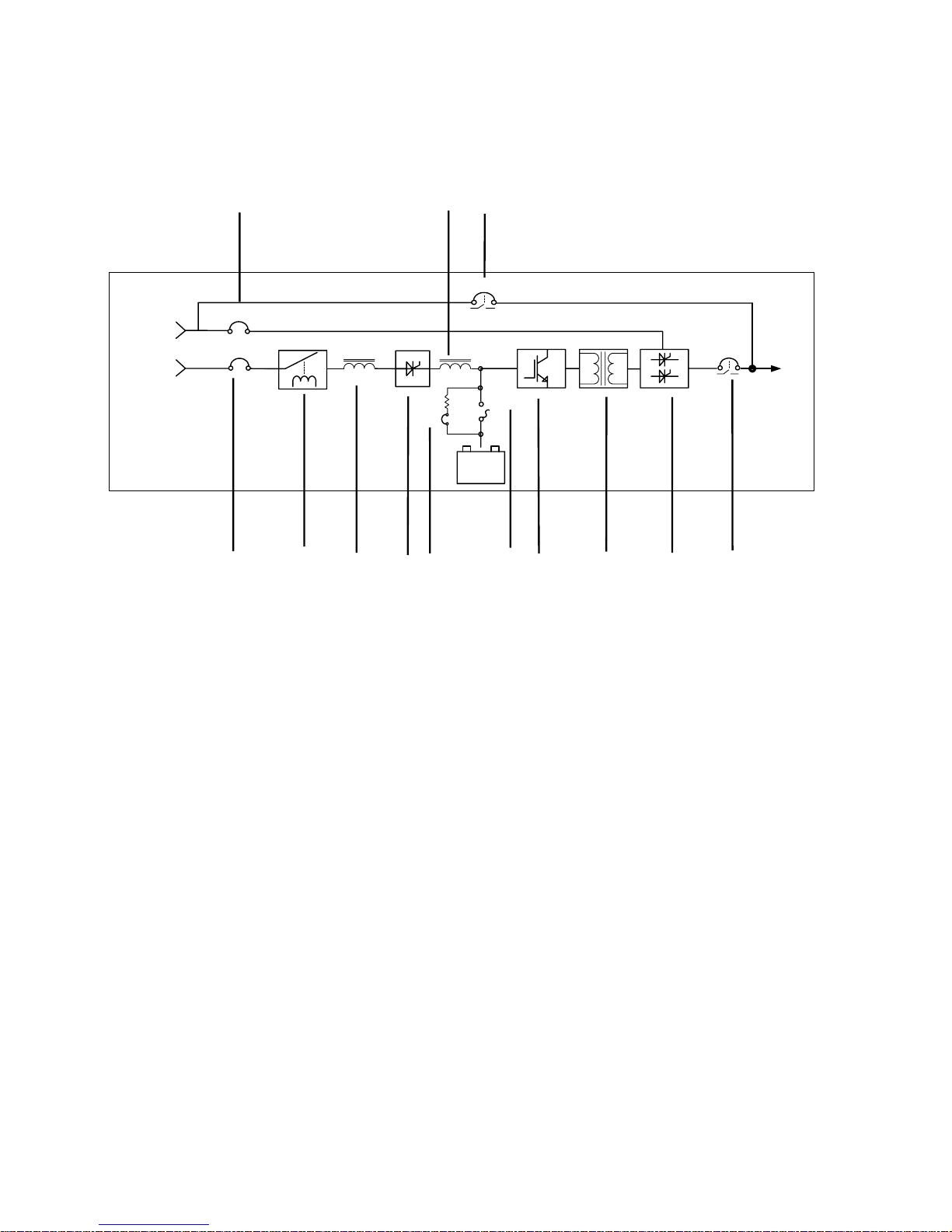

2-1 System Diagram of DS-C33

(12) (5) (7)

Load

Battery

Pack

Utility 1

Utility 2

(1) (2) (3) (4)(13) (6)(8) (9) (10) (11)

fig. 2-1

(1) Main power switch (S3)

(2) Input protection

(3) Three phase alternating current power inductor

(4) Rectifier / battery charger module

(5) Direct current power inductor

(6) Battery fuse switch (S4)

(7) Manual bypass switch (S6)

(8) Inverter module

(9) Isolation transformer

(10) Static switch module

(11) Output switch (S5)

(12) Bypass power switch (S2)

(13) Start up auxiliary switch (S1)

Note :

(1)The UPS input can be powered from a single utility source or by dual utility sources.

(2)Dual utility input is optional.

2-2 System assembly and parts layout

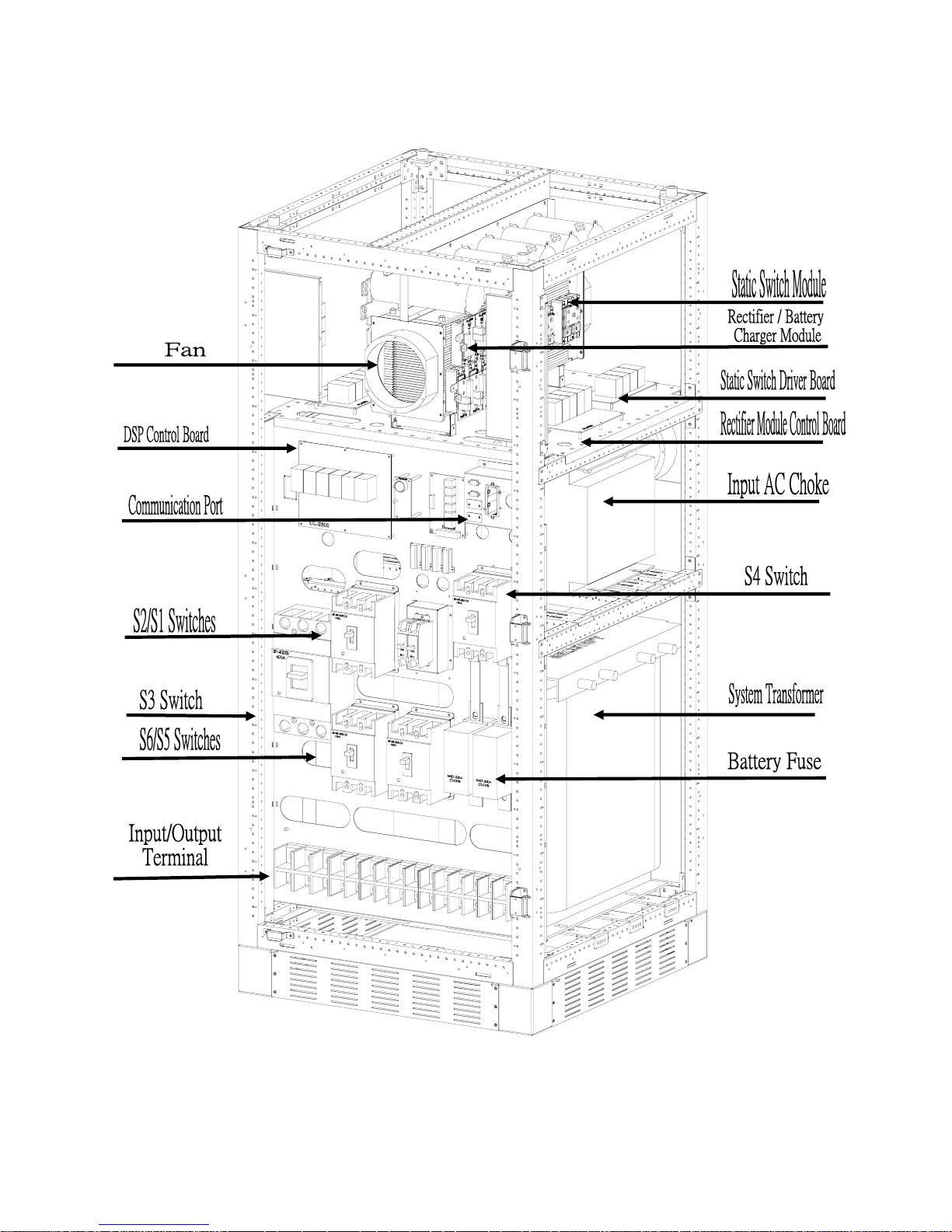

Drawings 2-2A and 2-2B are the assembly diagrams of DS-C33 series 100K, 120K

Fig. 2-2A

Fan

INV/Driver Board

DSP Control Board

Communication Port

S2/S1 Switch

S3 Switch

S6/S5 Switch

Input/Output

Terminal

INV Module

Input AC Choke

AC Power Sensor Board

AS-400 Interface Card

System Power Board

S4 Switc

System Transformer

S4 Battery Fuse

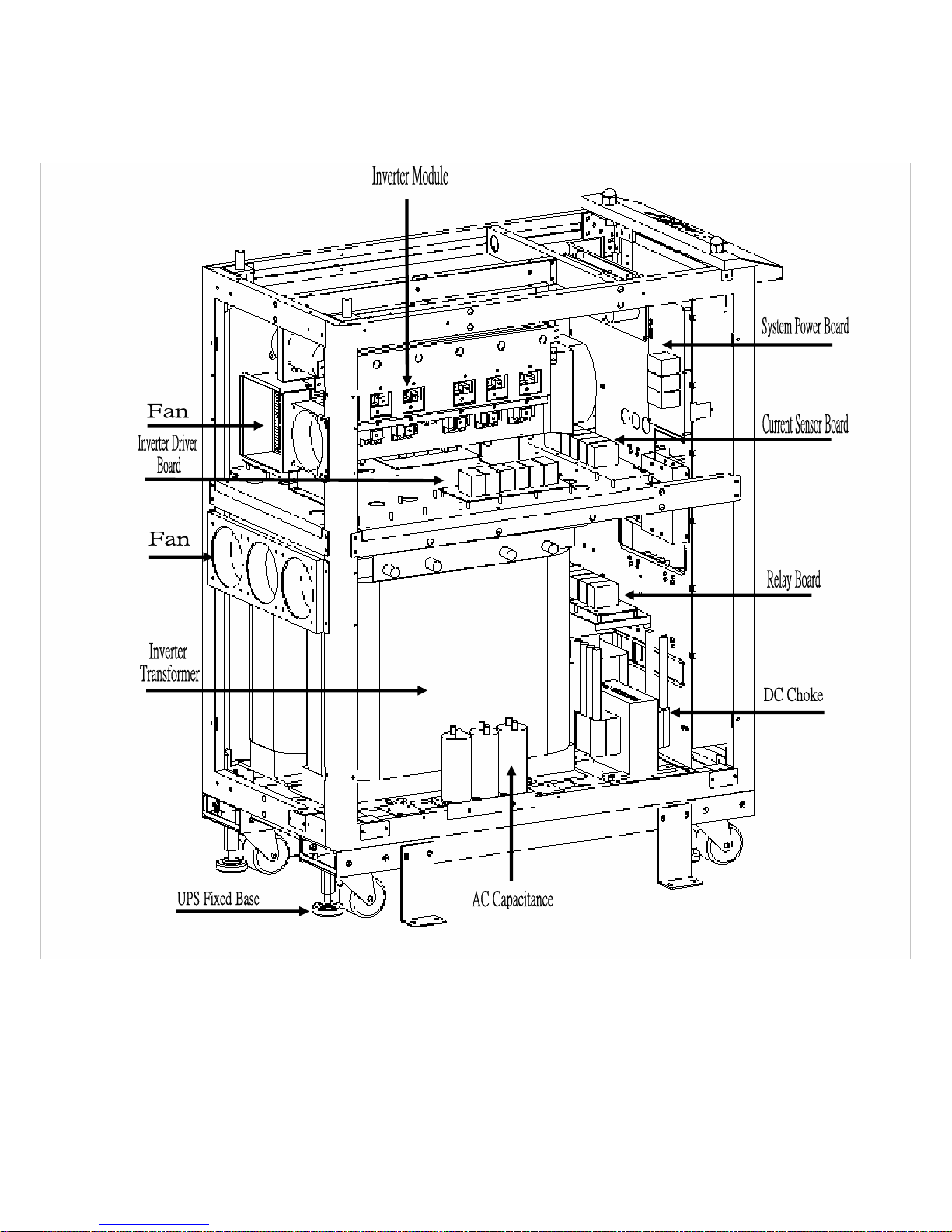

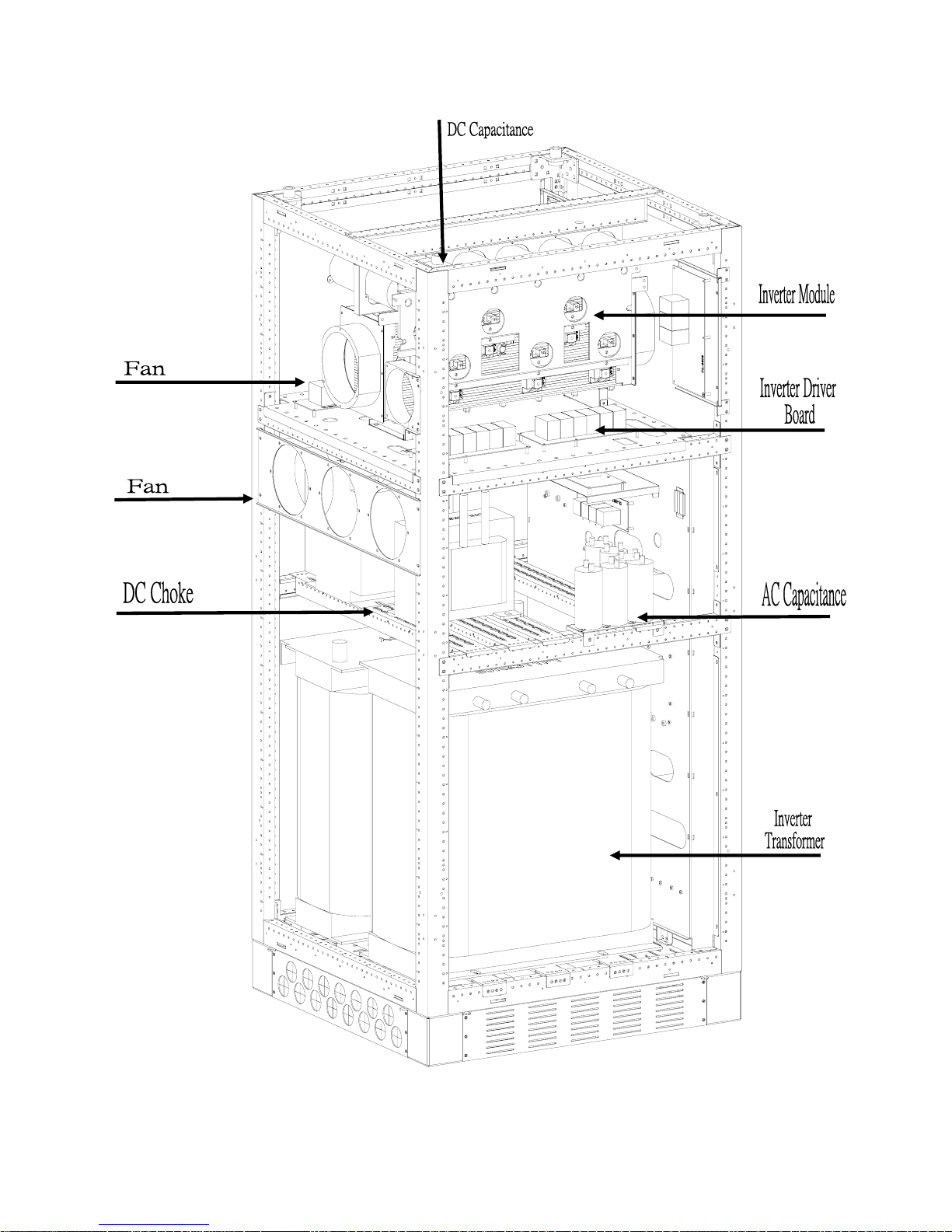

Fig. 2-2B

Rectifier/Charger Module

12 Pluse Power Sensor Board

Rectifier/Charger

Control Board

Fan

DC Capacitance

INV Transformer

DC Choke

Input Relay Module

Static Switch Module

Input Relay Power Board

Static Switch Control Board

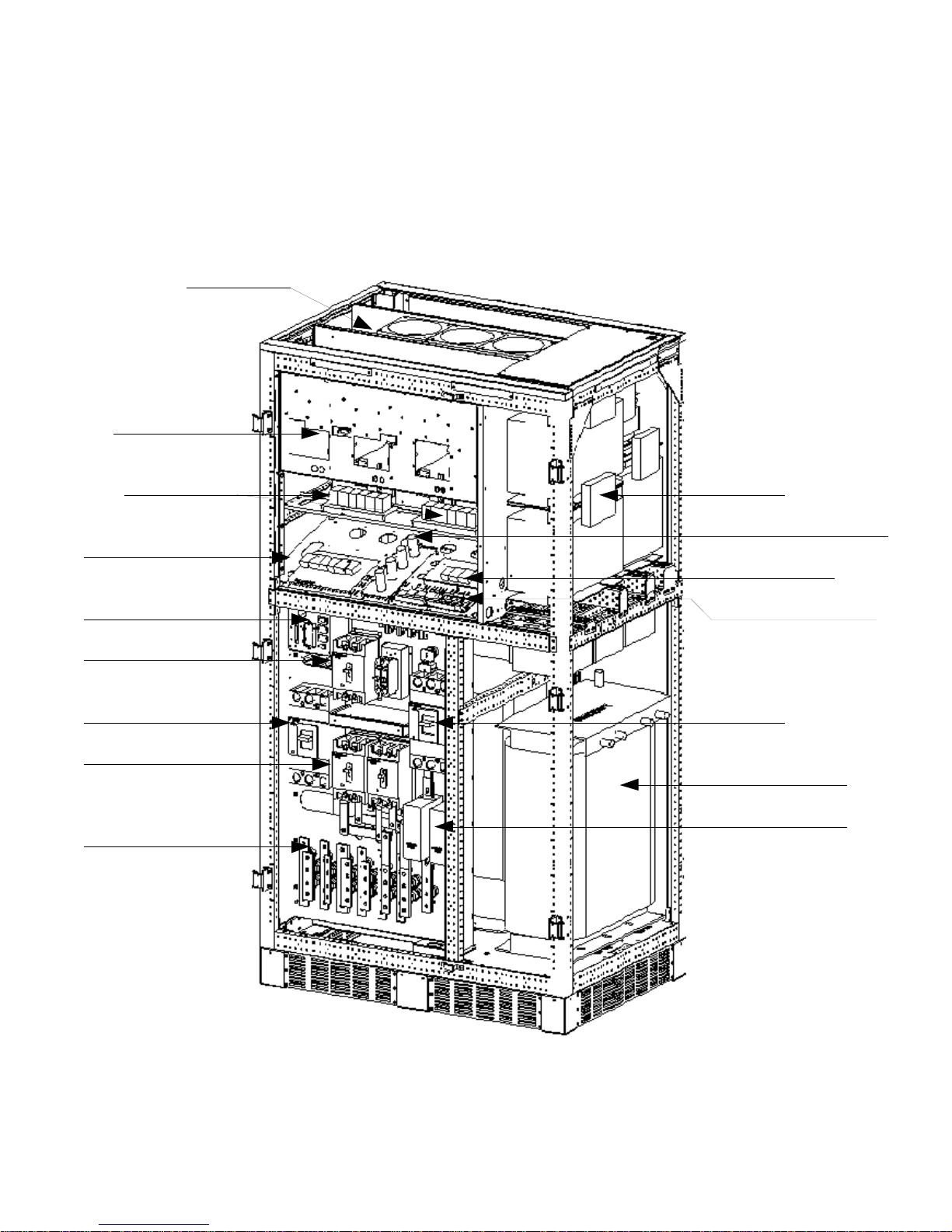

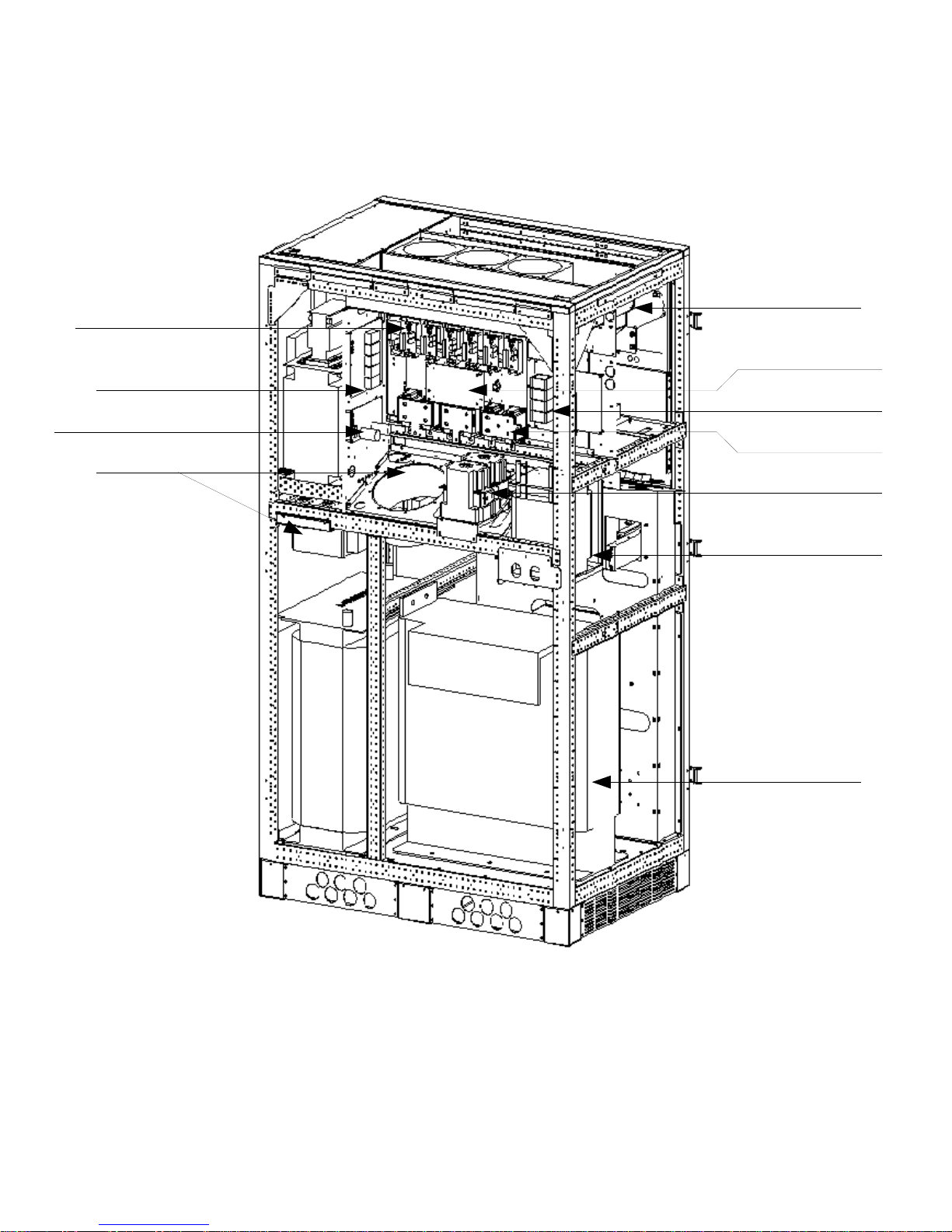

Drawings 2-2C and 2-2D are the assembly diagrams of DS-C33 series 45K, 60K, 80K

Fig. 2-2C

Fig. 2-2D

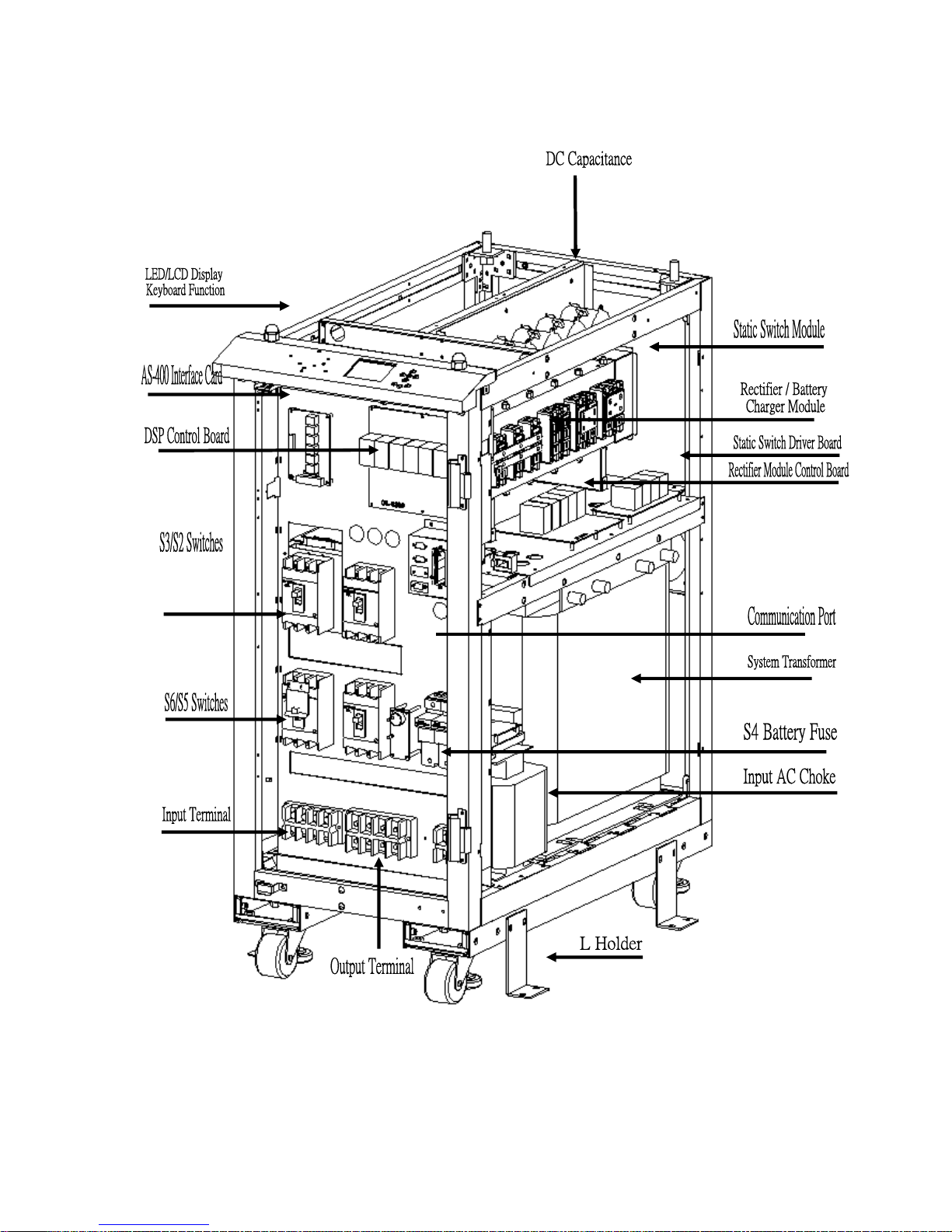

Drawings 2-2E and 2-2F are the assembly diagrams of DS-C33 series 22.5K, 30K.

Fig.2-2E

Fig. 2-2F
