Solar Battery Pack
INSTRUCTION MANUAL
Page 2
Table of contents
1. Warning 3
2. Safety Information 3
3. Package content 4
4. Unpacking 5
5. Intended use 5
6. Symbols and conventions 5
7. Instrument description 6
8. Connection guide 8
9. Recharging the battery 8
10. Use of the solar panel 9
10.1 Powering the microscope 9
10.2 Using the LED torch light 9
11. Troubleshooting 10
Equipment disposal 11
Page 3
1. Warning
This microscope is a scientic precision instrument designed to last for many years with a minimum of maintenance. It
is built to high optical and mechanical standards and to withstand daily use. We remind you that this manual contains
important information on safety and maintenance, and that it must therefore be made accessible to the instrument users.
We decline any responsibility deriving from incorrect instrument use uses that does not comply with this manual.
2. Safety Information
Avoiding Electrical Shock
Before plugging in the power supply, make sure that the supplying voltage of your region matches with the operation voltage
of the equipment and that the lamp switch is in o position. Users should observe all safety regulations of the region. The
equipment has acquired the CE safety label. However, users have full responsibility to use this equipment safely. Please
follow the guidelines below, and read this manual in its entirety to ensure safe operation of the unit.
Page 4

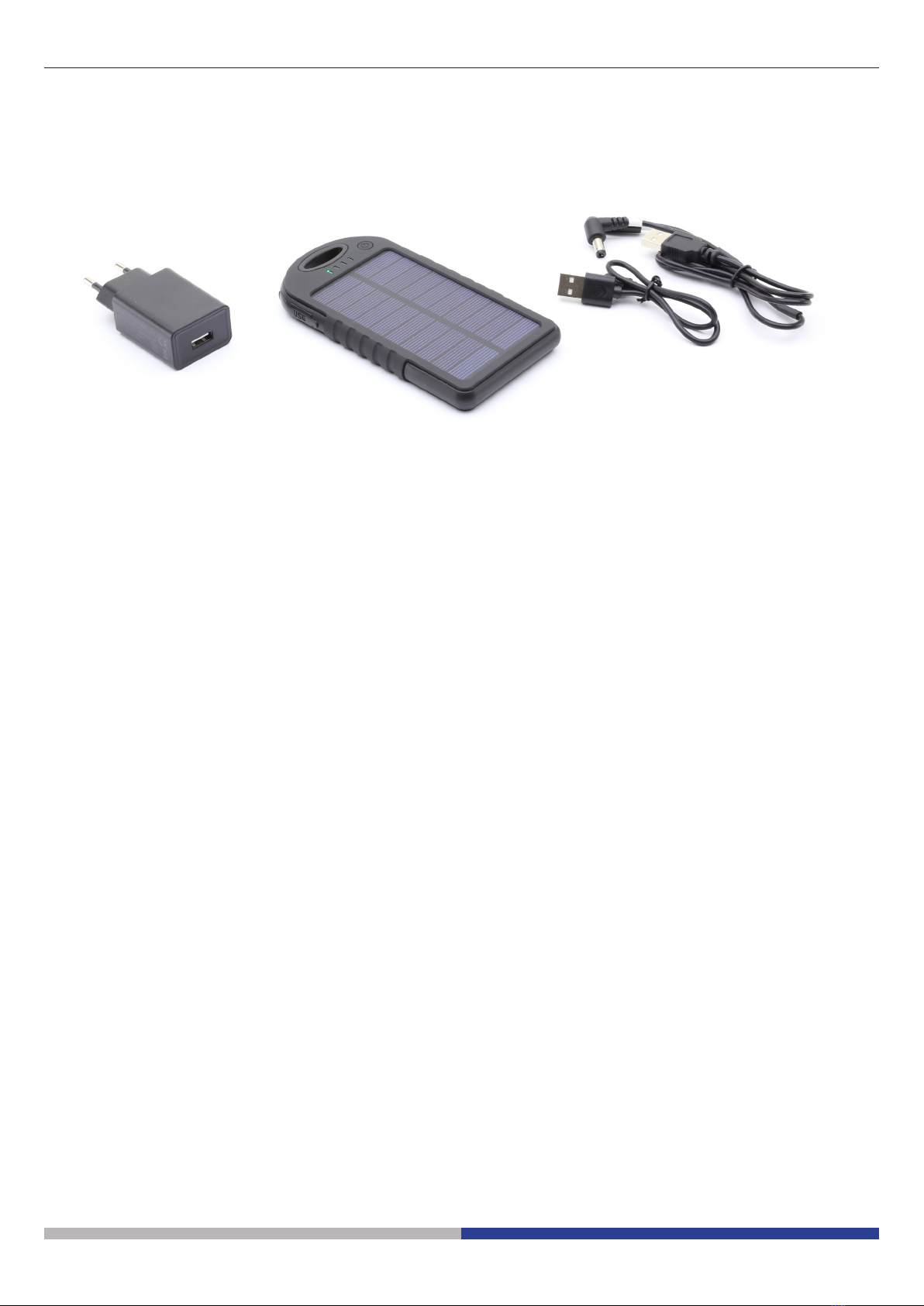

3. Package content
① Solarpanel
② USB-Jack2.1mmcable
③ USB-miniUSBcable
④ Powersupply
③
④
①②
Page 5
4. Unpacking
The microscope is housed in a moulded Styrofoam container. Remove the tape from the edge of the container and lift the
top half of the container. Take some care to avoid that the optical items (objectives and eyepieces) fall out and get dam-
aged. Using both hands (one around the arm and one around the base), lift the microscope from the container and put it
on a stable desk.
Do not touch with bare hands optical surfaces such as lenses, lters or glasses. Traces of grease or other
residuals may deteriorate the nal image quality and corrode the optics surface in a short time.
5. Intended use
Standard models
For research and teaching use only. Not intended for any animal or human therapeutic or diagnostic use.
IVD Models
Also for diagnostic use, aimed at obtaining information on the physiological or pathological situation of the subject.
6. Symbols and conventions
The following chart is an illustrated glossary of the symbols that are used in this manual.
CAUTION
This symbol indicates a potential risk and alerts you to proceed with caution.
ELECTRICAL SHOCK
This symbol indicates a risk of electrical shock.
Page 6
SOLAR CELLS
7. Instrument description
USB
OUTPUT PORT
MINI USB
INPUT PORT
OPERATING
LED
SWITCHING
BUTTON
USB
OUTPUT PORT
LED TORCH
LIGHT
Page 7
8. Connection guide

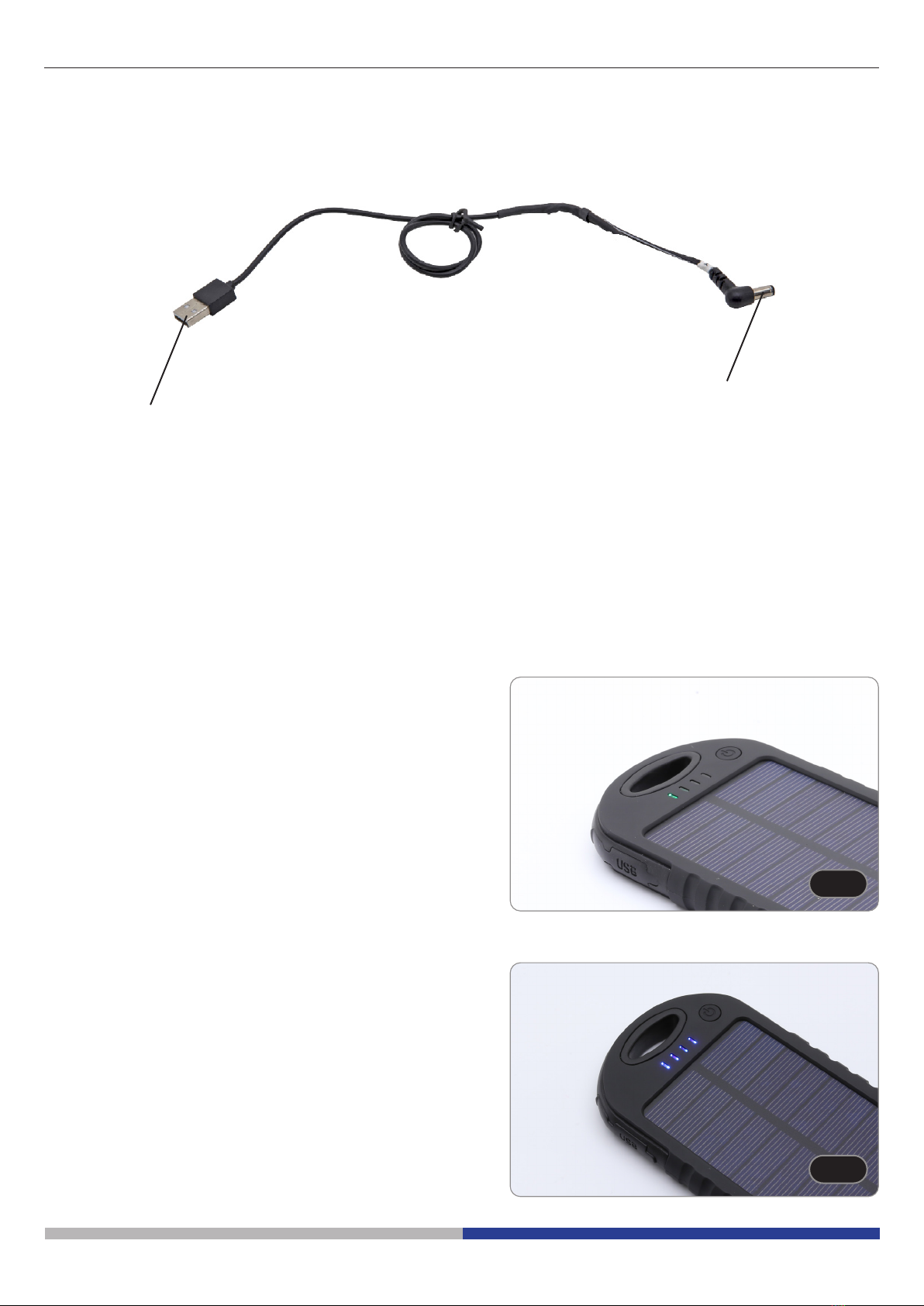

Plug your microscope to the solar panel using the provided USB/Jack cable:
FFig. 1ig. 1
FFig. 2ig. 2
TO SOLAR BATTERY
TO MICROSCOPE
• PLEASE NOTE: Although the solar panel has two USB outputs, you can only connect one microscope. Opti-
mum operation of the microscope is not guaranteed if two devices are connected to the solar panel at the same
time.
9. Recharging the battery
• Fully recharge the battery via USB cable and power sup-
ply when using it for the rst time.
Solar panel can be recharged in three ways:
1. Expose the front solar panel to direct light (sunlight or ambi-
ent light).
2. The green LED indicator will turn on. (Fig. 1)
3. Connect via USB/micro-USB cable to the external USB pow-
er supply.
4. Connect via USB/micro-USB cable to a PC USB port.
• The blue LED indicators will turn on (according to current the
battery charge status of the solar panel). (Fig. 2)
• If the battery is not fully charged one of the blue light will blink
indicating the recharging.
• When the battery is fully charged all the four blue LED will
be lit.
Page 8
FFig. 3ig. 3
FFig. 4ig. 4
FFig. 5ig. 5
10. Use of the solar panel
10.1 Powering the microscope

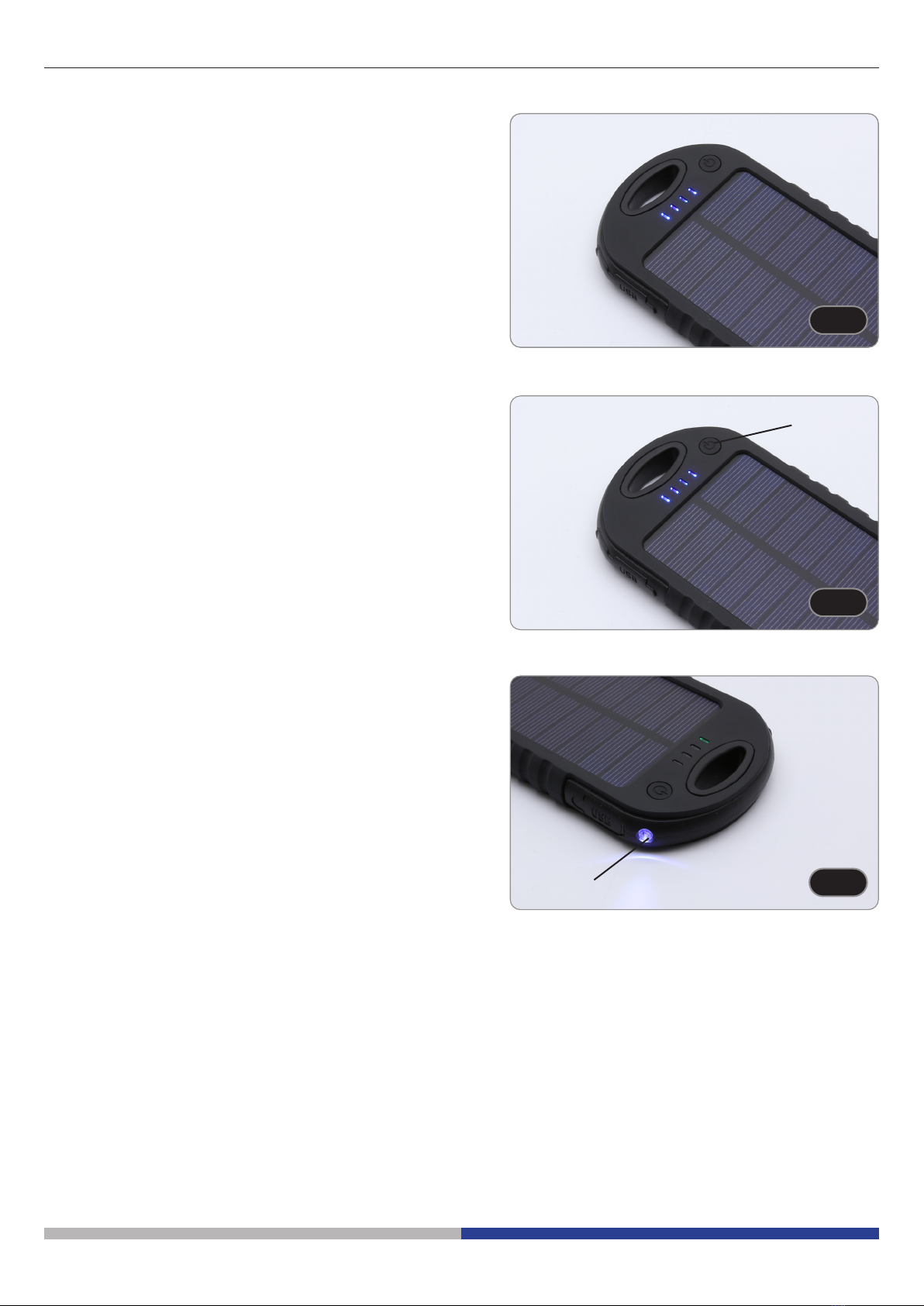

1. Connect the USB/micro-USB cable from the solar panel to
the microscope.
2. The blue LED will immediately turn on. (Fig. 3)
• This means that the solar battery is giving power to the mi-
croscope.
3. The battery charge level decreases when the microscope is
used. Blue LED will turn o as the charge level decreases.
①
②
10.2 Using the LED torch light
1. Press twice the switching button ①. (Fig. 4)
2. The LED torch light ② will turn on. (Fig. 5)
3. Press the button ① to turn o the torch light.
Page 9
11. Troubleshooting
Review the information in the table below to solve operating problems.
PROBLEM CAUSE SOLUTION
After charging for long time, indicators
don’t show full capacity Charging time is not enough Charge it 8 hours continuously
Power supply or battery pack is faulty Refer to technical assistance
Microscope light is not working No power left Recharge the battery
Something wrong with cables and con-
nections
Check that USB is well inserted into
the output connector of the battery.
Check that the jack connector is well
inserted into the input of the micro-
scope
Wrong settings of microscope switches Check that the main power switch of
the microscope is in ON position.
Check that the brightness adjustment
knob of the microscope is set to the
desired value
Page 10
Art.13 Dlsg 25 July 2005 N°151. “According to directives 2002/95/EC, 2002/96/EC and 2003/108/EC relating to the reduc-
tion in the use of hazardous substances in electrical and electronic equipment and waste disposal.”
The basket symbol on equipment or on its box indicates that the product at the end of its useful life should be collected sep-
arately from other waste. The separate collection of this equipment at the end of its lifetime is organized and managed by
the producer. The user will have to contact the manufacturer and follow the rules that he adopted for end-of-life equipment
collection. The collection of the equipment for recycling, treatment and environmentally compatible disposal, helps to pre-
vent possible adverse eects on the environment and health and promotes reuse and/or recycling of materials of the equip-
ment. Improper disposal of the product involves the application of administrative penalties as provided by the laws in force.
Equipment disposal
