Optika IM-3MET Manuale utente

Version: 3

Issued: 08, 08, 2017

Model

IM-3MET

IM Series

INSTRUCTION MANUAL

Page 2

Table of Contents

Warning

Symbols and conventions

Safety Information

Intended use

List of accessories and spare parts

Overview

Unpacking

Assembling

Using the microscope

Maintenance

Troubleshooting

Equipment disposal

Page 3

Warning

This microscope is a scientic precision instrument designed to last for many years with a minimum of mainte-

nance. It is built to high optical and mechanical standards and to withstand daily use. We remind you that this

manual contains important information on safety and maintenance, and that it must therefore be made acces-

sible to the instrument users. We decline any responsibility deriving from incorrect instrument use uses that does

not comply with this manual.

Symbols and conventions

The following chart is an illustrated glossary of the symbols that are used in this manual.

CAUTION

This symbol indicates a potential risk and alerts you to proceed with caution.

ELECTRICAL SHOCK

This symbol indicates a risk of electrical shock.

Safety Information

Avoiding Electrical Shock

Before plugging in the power supply, make sure that the supplying voltage of your region matches with the

operation voltage of the equipment and that the lamp switch is in off position. Users should observe all safety

regulations of the region. The equipment has acquired the CE safety label. However, users have full responsibil-

ity to use this equipment safely. Please follow the guidelines below, and read this manual in its entirety to ensure

safe operation of the unit.

Intended use

For research and teaching use only. Not intended for any animal or human therapeutic or diagnostic use.

Page 4

List of accessories and spare parts

CAT. NO. DESCRIPTION

M-625 Eyepiece EWF10x/22mm.

M-601 Eyepiece WF15x/16mm.

M-602 Eyepiece micrometer EWF10x/22mm.

M-005 26x76 mm micrometric slide. Range 1 mm, div. 0,01 mm.

M-735 Objective IOS LWD MET PLAN 5x/0,15.

M-736 Objective IOS LWD MET PLAN 10x/0,3.

M-737 Objective IOS LWD MET PLAN 20x/0,45.

M-738 Objective IOS LWD MET PLAN 50x/0,55.

M-746 Objective IOS LWD MET PLAN 100x/0.80.

M-699 Universal adapter for M-114, M-116, M-173 and eyepiece cameras.

M-789 Focusable C-Mount adapter for 1/3” sensor.

M-789.1 Focusable C-Mount adapter for 1/2” sensor.

M-789.2 Focusable C-Mount adapter for 2/3” sensor.

M-622 Halogen bulb 12V/50W (only for IM-3M).

DC-004 TNT dust cover, large, 700(l)x550(h) mm.

M-792 Mechanical stage for IM-3 series.

M-793.1 Holder for Petri diameter 38mm (M-793.2 needed).

M-793.2 Holder for Terasaki and Petri diameter 65mm.

M-793.3 Holder for slide and Petri diameter 54mm.

M-793.4 Holder for 2+2 slides.

M-793.5 Holder for metallurgical samples.

M-793.7 Load-bearing side extension for IM-3 series.

M-114 C-Mount adapter for 1/2” sensor.

M-116 C-Mount adapter for 2/3” sensor.

M-173 Photo adapter for APS-C and Full Frame Reflex cameras.

M-788 Photo adapter for REFLEX camera with FULL FRAME sensor.

VP-IM IQ/OQ/PQ Validation Protocols.

Page 5

Overview

TRINOCULAR

VIEWING

TUBE

(FIXED)

DIOPTRIC

ADJUSTMENT

RING

EYEPIECE

LIGHT PATH

SELECTOR

LEVEL

COARSE

FOCUS KNOB

LIGHT

ADJUSTEMENT

FINE FOCUS KNOB

APERTURE

DIAPHRAGM

FIELD

DIAPHRAGM

TENSION

ADJUSTMENT

COLLAR

OBJECTIVE

LAMP HOUSE

MICROSCOPE

BODY

METAL STAGE

INSERT

Page 6

Unpacking

The microscope is housed in a moulded Styrofoam container. Remove the tape from the edge of the container

and lift the top half of the container. Take some care to avoid that the optical items (objectives and eyepieces)

fall out and get damaged. Using both hands (one around the arm and one around the base), lift the microscope

from the container and put it on a stable desk.

Assembling

Once you open the box, these are the microscope’s components:

① Microscope body

② Eyepieces

③ Objectives

④ Metal insert for stage

⑤ Lamp house

⑥ Brighteld lters (LBD and IF550)

⑦ Analyzer lter

⑧ Polarizer lter

⑨ Filter holder

⑩ Power cable

⑪ Power cable

⑪

⑩

③

④

⑤

⑥

⑦

⑧

⑨

①

②

Page 7

③

Fig.2

Fig.3

Fig.4

Fig.5

Fig.1

1. Turning the coarse focusing knob ① till the

nosepiece reaches its lowest position.

► For a safe transport, the nosepiece is

placed in the lowest position and the

tension adjustment collar ②is adjust-

ed to the appropriate tension when the

microscope leaves the factory. (Fig.1)

2. Screw the lowest magnication objective

on to the turret from the right side, then

turn the turret clockwise. Mount the other

objectives in the same way, following the

sequence from low to high.

► Note: the objectives can also be in-

stalled through the stage opening.

(Fig.2)

► Clean the objectives regularly. In inverted

microscopes, the objectives are very sen-

sitive to dust.

► To prevent dust and contamination from

entering the microscope, cover all the un-

used holes with dust caps ③. (Fig.3)

► When operating, use the low magnication

objective (10X) to search and focus the

specimen, then switch to higher magnica-

tions.

► When switching between objectives, slowly

turn the nosepiece until it clicks. The click

means that the objective is in the right posi-

tion, in the center of the light path.

①

②

Installing the objectives

The stage extension can be installed on either

side of the stage to enlarge the working sur-

face. The mechanical stage must be installed

on the side opposite the extension.

For right-handed operators, the mechanical

stage is normally installed on the right side.

1. Installing the stage extension: Screw the

bolts on to the extension, then mount the

extension from below the stage. (Fig.4)

2. Installing the mechanical stage: As for the

extension, the mechanical stage is xed

with two bolts under the stage. (Fig.5)

Installing the stage extension and

the mechanical stage (OPTIONAL)

Page 8

1. When using the metal stage, make sure

that the insert is horizontal.

2. Install the stage insert in the stage open-

ing. (Fig.6)

Installing the stage insert

Installing the eyepieces

Installing the lamp house

Insert both eyepieces into the tubes of the

optical head. (Fig.7)

Insert the lamp house and tighten the provi-

ded allen screws (Fig. 8)

Slide the lter holder into the tube in front of

the lamp. (Fig. 9).

Open the lamp door. (Fig. 10)

Fig.6

Fig.7

Fig.10

Fig.8

Fig.9

Page 9

1. Turn the main switch ① to “O”(off) before

connecting the power cord. (Fig.13)

2. Insert the cable into the power socket of

the microscope. (Fig.14)

3. Plug the power cord into the mains sock-

et. Check for a safe connection.

► Please use the supplied power cord.

If lost or damaged, please refer to

qualied service.

► Connect the power cord to a grounded

(earthed) power supply only.

Before replacing the fuse, turn the main switch

to “O” (off) and unplug the power cord.

Rotate the fuse support out of the holder using

a straight screwdriver. Insert a new fuse in the

support, then rotate the support back into the

holder. (Fig.15)

► Fuse rating:

see back of the microscope.

Connecting the power cord

Replacing the fuse

Insert the halogen lamp into its holder. Do

NOT touch the lamp bulb with the bare hands,

this could reduce the lamp efciency and

lifetime. (Fig. 11)

Plug the power cable to the lamp house.

(Fig. 12)

Fig.12

Fig.13

Fig.14

Fig.15

①

Fig.11

Page 10

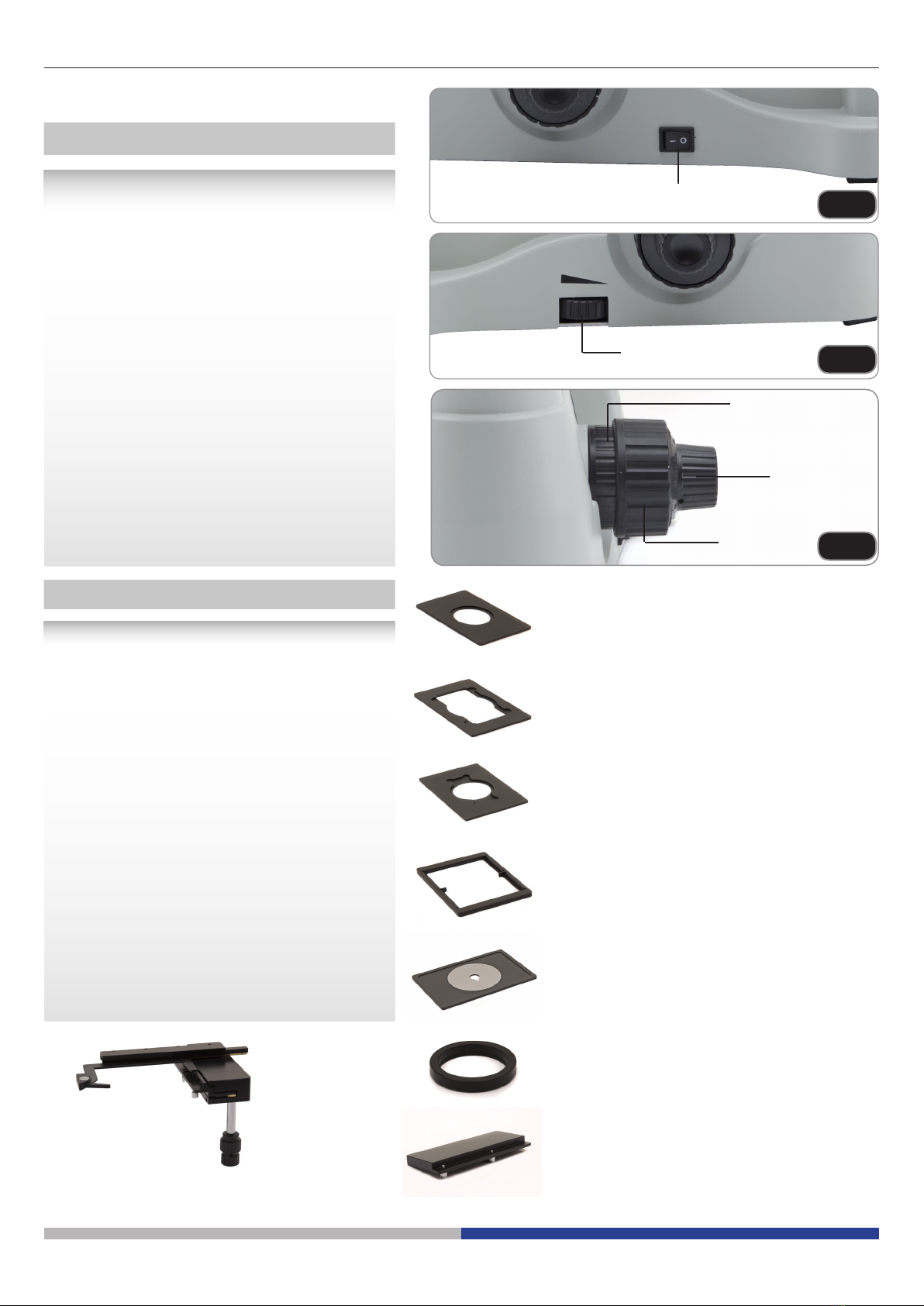

Turning on the LED

Connect the power, turn on the main switch ①.

(Fig.16)

Adjusting the brightness

Turn the brightness adjustment knob ②to in-

crease and decrease the brightness. (Fig.17)

Adjusting the tension

► The coarse focusing knob (1) is pre

adjusted to a tight tension upon leav-

ing the factory.

If the nosepiece drops down by itself, or the

specimen defocuses while adjusting the ne

focus knob ③, the coarse focus knob is too

loose. Turning the tension adjustment collar ②

in clockwise direction tightens the coarse fo-

cus tension ①. Rotate in the opposite direction

to decrease the tension.

Setting the specimen

► For the best image quality, use asks,

Petri dishes and slides with a 1.2 mm

thickness.

1. Place the proper insert for your specimen

(according to the table on the right) on the

stage, and x it with the stage clip.

2. Turning the X and Y knobs, move the

specimen to the required position. (Move-

ment Range: 120 (width) × 78 (length)

mm).

Moving the specimen

Move the specimen to the desired position by

freehand or by turning the knobs of the me-

chanical stage.

► When switching objectives, take care

not to touch the adaptor plates with

the objectives, as their weight may

damage the front lens.

M-793.1

Holder for Petri diameter 38mm (M-793.2 needed)

M-793.2

Holder for Terasaki and Petri diameter 65mm.

M-793.3

Holder for slide and Petri diameter 54mm.

M-793.4

Holder for 2+2 slides.

M-793.5

Holder for metallurgical samples.

M-793.6

Holder for Utermöhl-Chamber (M-793.3 needed).

M-792

Mechanical stage for IM-3 series.

INITIEL SETUP

STAGE (OPTIONAL)

Using the microscope

Fig.16

Fig.17

①

②

①

②

③

Fig.18

M-793.8

Load-bearing side extension for IM-3 series.
