Optoma EzPro710 Manuale utente

English

Usage Notice

Precautions .......................................................................................... 2

Introduction

Product Features.................................................................................. 3

Package Overview ............................................................................... 4

Product Overview ................................................................................. 5

Installation

Connecting the Projector to Desktop Computer................................... 8

Connecting the Projector to Portable Computer................................... 9

Connecting the Projector to Other Video Sources ............................... 10

Powering On/Off the Projection Display ............................................... 12

Adjusting the Projected image.............................................................. 14

User Controls

Panel Control & Remote Control .......................................................... 16

On-Screen Display Menus................................................................... 18

Appendices

Troubleshooting .................................................................................... 22

Changing the Lamp .............................................................................. 24

Specifications ....................................................................................... 25

Compatibility Modes............................................................................. 26

Table of Contents

English

Precautions

Follow all warnings, precautions and maintenance as recommended in this

user’s manual to maximize the life of your unit.

Do:

qTurn off the product before cleaning.

qUse a soft cloth moistened with mild detergent to clean the display housing.

qDisconnect the power plug from AC outlet if the product is not being used for a

long period of time.

Don’t:

qBlock the slots and openings on the unit provided for ventilation.

qUse abrasive cleaners, waxes or solvents for your cleaning.

qUse under the following conditions:

- Extremely hot, cold or humid environment.

- In areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- Place in direct sunlight.

Usage Notice

Warning- Do not look into the lens. The bright light may hurt your eyes.

Warning- To reduce the risk of fire or electric shock, do not expose this

product to rain or moisture.

Warning- Please do not open or disassemble the product as this may cause

electric shock.

Warning- When changing the lamp, please allow unit to cool down, and follow

all changing instructions.

Warning- This product will detect the life of the lamp itself. Please be sure to

change the lamp when it shows warning messages.

Warning- After changing a new lamp, please reset the lamp life from OSD

menu.

Warning- Before switching off the product, please keep the cooling fan

running for a few minutes.

English

Product Features

This product, is an XGA single chip DMDäProjector. The outstanding

features of it are listed as follows:

qTrue XGA, 1024 x 768 addressable pixels

q5 lbs (2.3 kgs) lightweight compact design

qSingle chip DMDätechnology

qSXGA compression and VGA, SVGA resizing

q120 Watts user replaceable UHP lamp

qMac/ NEC PC-98/ FM Towns compatible

qNTSC/ PAL/ SECAM compatible

qFull function remote control

qReal plug & play with auto image function

qUser friendly Multilingual on-screen display menu

qAdvanced electronic keystone correction and picture in picture function

qLuxurious carrying case included

Introduction

English

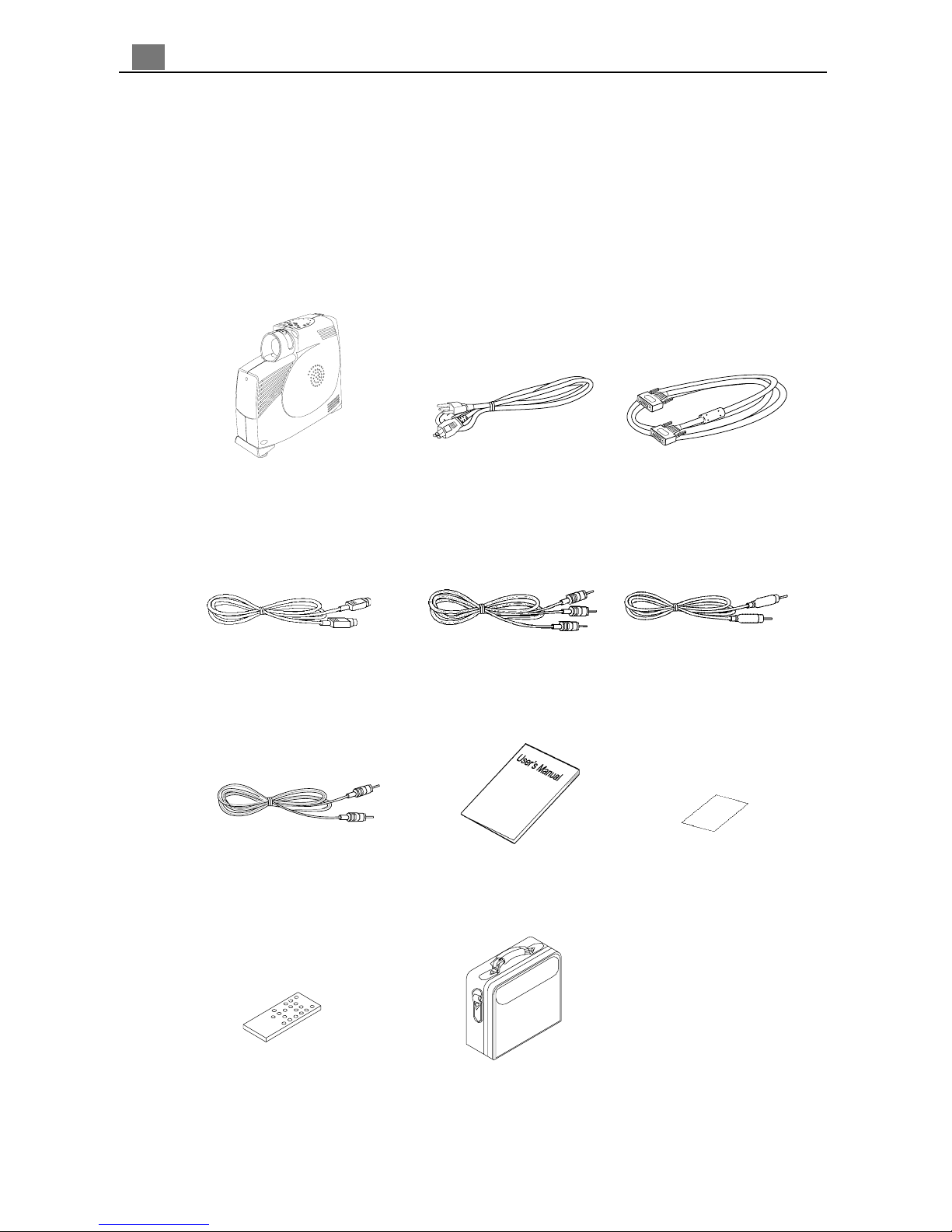

Package Overview

This projection display comes with all the items shown below. Check to make

sure your unit is complete. Contact your dealer immediately if anything is

missing.

Projection Display Power Cord

S-Video Cable Audio-In Cable for Computer

VGA Cable

Remote Control Carrying Case

User’s Manual Warranty Card

Composite Video Cable

Audio Cable

English

Product Overview

MainUnit

Speaker

Panel Control

Focus Ring

Remote Control

Receiver

Lens

Elevator Button

Security Lock Slot

Connection Ports

Carrying Handle

Power Connector

Power Switch Elevator Foot

English

ConnectionPorts

PanelControl

ComputerInput

Connector

Power Switch

S-video

Connector Audio Output

Connector

Audio Iuput

Connector

Composite Video

Connector

PowerConnector

Power /

Standby

Lamp

Temperature

Enter

Reset

Source

Four Directional

Select Keys

English

RemoteControl

Source

Resync

Reset

Freeze/CLR

Keystone Correction

Power / Standby

Volume ( + / - )

Mute

Four Directional

Select Keys

Enter

Picture in Picture

Zoom In / Zoom Out

English

Connecting the Projector to Desktop Computer

Installation

1. Make sure the projector and your computer are turned off.

2. Connect one end of the projector signal cable to the projector; connect the other

end to the VGA connector on the computer and tignten the screws.

3. Connect one end of the power cord into the back of projector; connect the other

end to an electrical outlet.

vTo ensure the projection display works well with your computer, please configure

the display mode of your graphic card to make it less than or equal to 1024 X 768

resolution. Make sure timimg of the display mode is compatible with the projection

display. Refer to the“Compatibility Modes”section on page 26.

Power Cord

VGA Cable

Computer Output

English

Connecting the Projector to Portable Computer

1. Make sure the projector and your notebook are turned off.

2. Connect one end of the projector signal cable to the projector; connect the other

end to the VGA connector on the notebook and tignten the screws.

3. Connect one end of the power cord into the back of projector; connect the other

end to an electrical outlet.

Power Cord

VGA Cable

Notebook Output

English

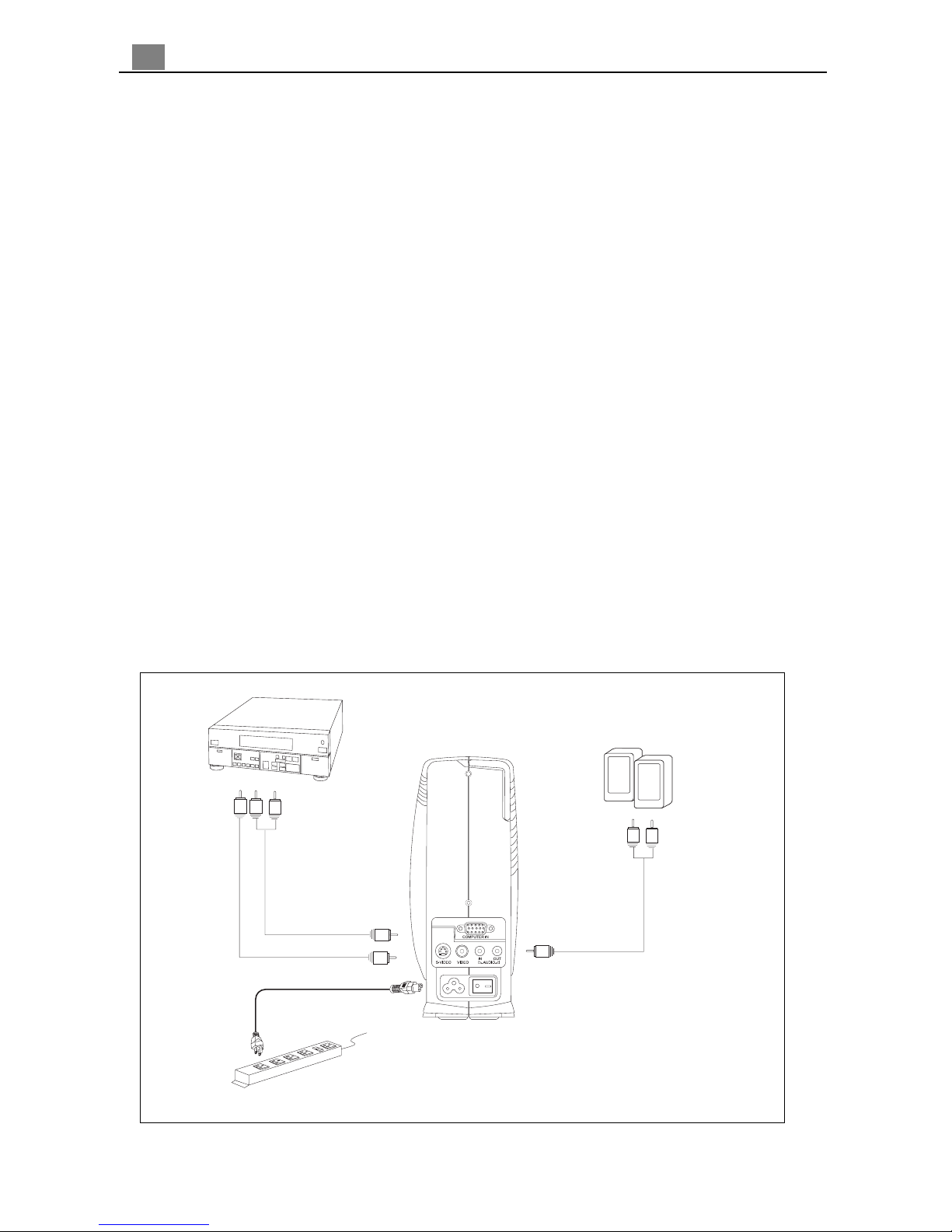

Connecting the Projector to OtherVideo Sources

vIf your video player uses a round, one-prong composite video connector, you’ll

need the video cable. If your video player uses a round, four-prong s-video

connector, you’ll need the s-video cable ( See page 11 for detail information).

Both cables are shipped with the projector.

If you use the video cable:

1. Plug the video cable connector into the “Video out”port on your video player; plug

the other end into the “Video”port on your projector.

2. Plug the audio cable white connector into the left “Audio out” port on your video

player; plug the cable’s red connector into the right “Audio out” port on the video

player; plug the other end into the “Audio in” port on your projector.

3. If you need to use an external speaker (built in amplifier), plug the audio cable white

connector into the “Audio in” port on your speaker; plug the cable’s red connector into

the red “Audio in” port on the speaker; plug the other end into the “Audio out”

port on the projector.

4. Connect one end of the power cord into the back of projector; connect the other

end to an electrical outlet.

VideoOutput AudioOutput

VideoCable

AudioCable

PowerCord

AudioCable

AudioInPort

AudioOutPort

Video Port
