Oregon Scientific RM328PA Manuale utente

RADIO CONTROLLED

PROJECTION CLOCK

WITH DIGITAL THERMOMETER

MODEL:RM328PA

Instruction Manual

INTRODUCTION

Congratulations on your purchase of the RF Projection Clock with

Temperature Display RM328PA.

The RM328PA is a multifunction (RF) controlled clock. It can

automatically synchronize its current time and date when brought

within the radio signal WWVB generated from the US.

To facilitate nighttime reading, the unit comes with a projector that

can cast large, clear clock-time figures onto flat surfaces in dark. It

also has a back light for easy reading of the display.

Other features of the RM328PA include: displaying the current

indoor temperature, a current date display, daily crescendo alarm

with eight-minute snooze function and extra-large display.

DESCRIPTION OF PARTS

A Two-line LCD

Displays the time, date, alarm status and temperature

B [ ] Battery-Low icon

Lights up when batteries are running dry

C[ ] Radio-Reception Signal

Indicates the condition of radio reception

D[ ] Alarm-on icon

Appears when the alarm is activated

E[ ] Alarm icon

Appears when the alarm time is displayed

F CLOCK button

Toggles the calendar clock display modes or activates the

calendar clock setting mode

G UP[ ]andDOWN[ ]buttons

Increases or decreases the value of a setting

H ALARM button

Displays the alarm time or sets the alarm status

I ZONE button

Toggles among the 4 US time-zones: Pacific, Mountain,

Central or Eastern

J[ ] button

Activates the snooze function when an alarm activates or

turn on the back light for five seconds

K Projection Lens

Lens from which image light emits

L Adjustable Projector

For projecting the current time on the wall or ceiling

M[ ] IMAGE ROTATION knob

90° (left or right) image rotation

N FOCUS Knob

Adjusts the focus of the projection

O 180° ROTATION button

Horizontal flip rotation of image

P PROJECTION LIGHT ON- switch

Used with the power adapter to enable continuous projection

Q Battery compartment

Accommodates two UM-3 or “AA” size alkaline batteries

R RESET button

Resets the unit by returning all settings to their default

values

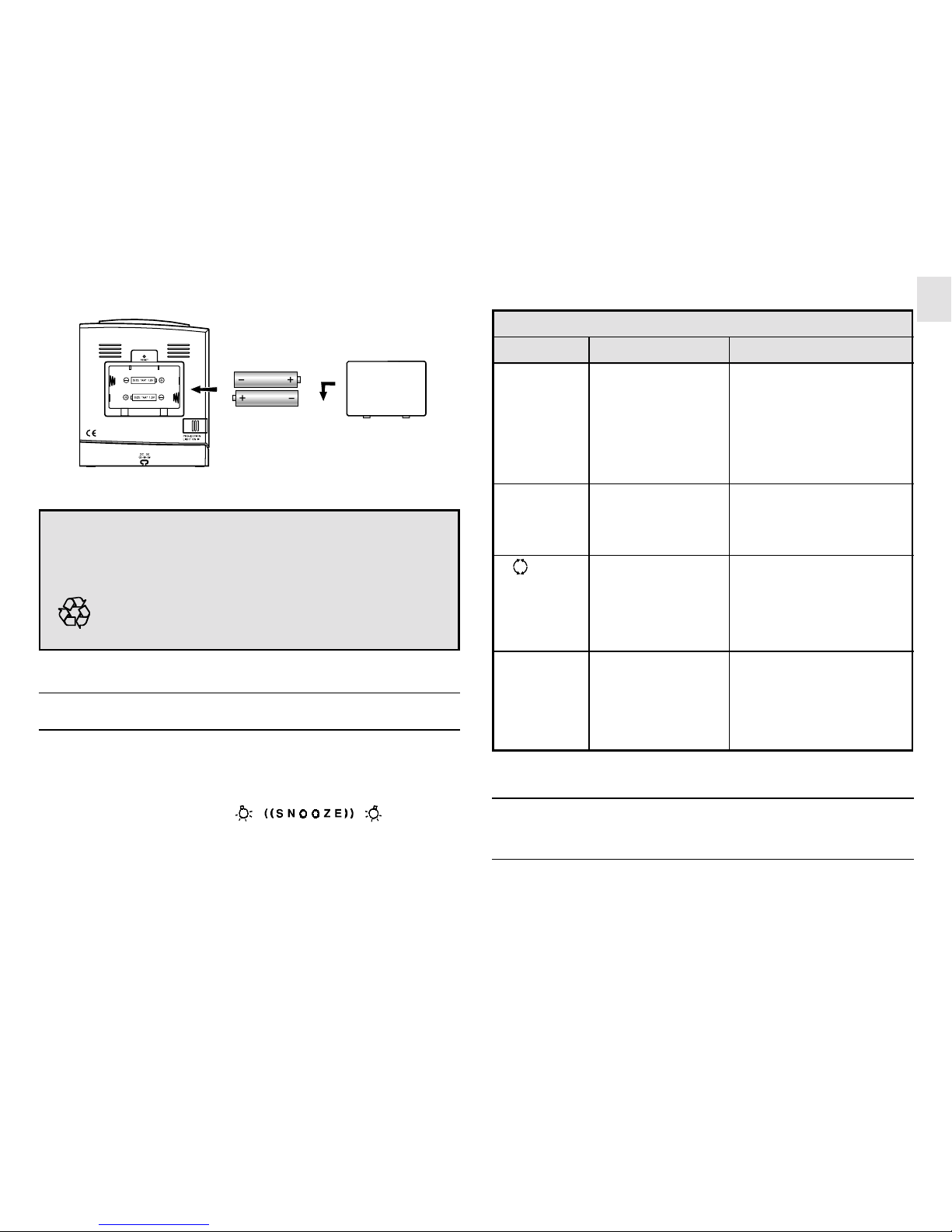

BATTERY INSTALLATION

The unit uses two (2) UM-3 or “AA” size 1.5V alkaline batteries.

To insert batteries:

1. Press the door tab and click open the door.

2. Insert the batteries strictly according to the polarities shown

therein.

3. Replace the battery compartment door.

Replace the unit with new batteries when the low battery indicator

[ ] light up.

Note: Under normal circumstances, the batteries are good

for 1 year. However, the battery life can be reduced vastly by

frequent use of the back light, projector or snooze function.

If not disposed of properly batteries can be harmful.

Protect the environment by taking exhausted batteries

to authorized disposal stations.

HOW TO USE THE PROJECTOR

The projector projects the current time onto a wall or ceiling.

To project the time onto a flat surface:

In a darkened room, press [ ], the wall

projection will activate for approximately 5-seconds.

This unit has several features to enhance the clarity of the projected

image.

ProjectorFeatures

Feature Effect Instructions

Adjustable Rotates 180° to cast Adjust by turning forwards

Projector image onto any wall or backwards, the projector

so that the projection lens

is pointed in the appropriate

direction

FOCUS Focuses image Rotate knob forwards or

Knob backwards until the image

clarity is optimized

[ ] Rotates image on a Turns an image to maintain

IMAGE given surface to an upright position

ROTATION maintain an upright

knob position

180° Horizontally flips Flips an image to maintain

ROTATION an image on a given an upright position

button surface to maintain

an upright position

HOW TO USE THE PROJECTOR

POWER ADAPTER

Your unit comes with a power adapter so you can use the projector

for extended periods of time.

Unit has received radio signal.

Clock is searching for radio signal but not yet

received. It is recommended that you reposition or

rotate the antenna.

The display time has been manually set and is not

synchronized to the RF signal.

When the antenna symbol blinks, a reception is going

on. A full reception takes approx. 2 to 10 minutes,

depending on the quality of the signal received.

The hourly scanning may take a few seconds only.

To install the adapter:

1. Insert adapter into jack at the bottom of the unit.

2. Plug the adapter into the adapter socket.

Note: Making sure the voltage is correct, plug the other end

of the power adapter into a free wall socket.

Once the power adapter is in place, you can select to turn on the

projector for longer periods of time (such as throughout the night)

by slidingout the PROJECTIONLIGHTON - switch on the back

of the unit. To turn off the projector, slide the switch back.

Note that this switch can only be used with the power

adapter installed. For momentary projection, use the

[ ].

HOW TO USE THE BACKLIGHT

Press [ ] once. The back light will activate

for five seconds. The projection will also be on for five seconds.

ABOUT RADIO RECEPTION

The RM328PA is a radio frequency (RF) controlled clock. The

clock time will automatically synchronize with WWVB-60 time-

signal transmission from the US when put within range. The benefit

of a RF controlled clock is that highly-accurate time is maintained

and manual adjustments to the time and date are not be required.

When the batteries are first installed, the RM328PA will

automatically search for a radio signal.

When in search mode, the antenna icon [ ] will blink. This

process takes between two (2) and ten (10) minutes. After initial

search,shortperiodicreception-signalscanswillcommenceseveral

times a day.

The antenna icon indicates the quality of reception.

When the reception is complete, the radio-reception signal will

stop blinking.

Interference

Receptioncanbeaffectedbyanumberoffactors.Forbestreception,

place the device away from metal objects and electrical appliances.

Note: Interference from sources such as TV sets can affect

the signal. If, after batteries have been inserted for ten

minutes, the signal is not received, then set the time manually

(see section: How To Set The Calendar Clock Manually).

“SECONDS” AND “WEEKDAY” DISPLAY

The “seconds” and the “weekday” share the same section of the

display.

“weekday” display

“second” display

The weekday is displayed as an abbreviation in 3 languages.

Day-of-the-week

Language Monday Tuesday Wed. Thursday Friday Saturday Sunday

English

Spanish

French

To change the “seconds” display to the “weekday” display:

• When the “seconds” are displayed, press CLOCK once.

To change the “weekday” display to the “seconds” display:

• When the weekday is displayed, press CLOCK once.

CALENDAR AND ALARM TIME DISPLAY

The calendar and the alarm-time share the same section of the

display.

The calendar is displayed in a month-day format.

calendar mode

alarm mode

To change the calendar display to the alarm-time display:

• When the calendar is displayed, press ALARM once.

To change the alarm-time display to the calendar display:

• When the alarm time is displayed, press CLOCK once.

HOW TO SET THE CALENDAR

CLOCK MANUALLY

If the RM328PA is taken outside of the range of US WWVB radio

signal it will need to be manually set.

To manually set the clock:

1. Whenthecalendarisdisplayed,pressCLOCKfortwoseconds.

The hour value will start to blink.

2. Enter the month using the [ ] and [ ] buttons. Hold down

either button to rapidly increase or decrease the value.

3. Press CLOCK to confirm and proceed to set the minute, year,

month, day and display language.

4. For the display language, you can choose between (E) for

English, (F) for French and (S) for Spanish (see language chart

above).

5. When finished, press CLOCK to return to normal display. If

changes are made during the process, the seconds will reset and

start from zero.

HOW TO SET AND ACTIVATE

THE ALARM

Toset thealarm time:

1. Press and hold ALARMfor two seconds when the alarm time is

displayed.

2. Enterthevalueforthehourdigits.Press ALARMtoconfirmand

go to the minute digits. Enter the value and press ALARM to

confirm.

3. The alarm is automatically activated. To deactivate it, press

ALARMonce.

ALARM AND SNOOZE FUNCTION

When the alarm is set, it will activate at the set time. The back light

will go on for five seconds with the alarm-on icon [ ] flashing.

The crescendo function allows the alarm to start gently and step up

its intensity in three steps. Without interruption, the alarm will

activate for a minute.

To stop the alarm, press any key. If the [ ]

button is pressed, the snooze function will be triggered. The alarm

will stop for eight minutes before activating again.

INDOOR TEMPERATURE

The temperature is shown in Fahrenheit (°F). The RM328PA is

capable of measuring temperatures within the 23°F and 122°F

range. If the temperature goes above or below that, the display will

show“HHH”or“LLL”.

HOW TO RESET THE UNIT

The RESET button allows you to return all settings to its factory

values.

The button is required only when the unit is not operating in a

favorable way, such as in the rare case of a malfunction.

MAINTENANCE

When handled properly, this unit is engineered to give you years

of satisfactory service. Here are a few product care instructions:

1. Do not immerse the unit in water. If the unit comes in contact

with water, dry it immediately with a soft lint-free cloth.

2. Do not clean the unit with abrasive or corrosive materials.

Abrasive cleaning agents may scratch the plastic parts and

corrode the electronic circuit.

3. Do not subject the unit to excessive: force, shock, dust,

temperature, or humidity. Such treatment may result in

malfunction, a shorter electronic life span, damaged batteries, or

distorted parts.

4. Do not tamper with the unit’s internal components. Doing so

will terminate the unit’s warranty and may cause damage. The

unit contains no user-serviceable parts.

5. Only use new batteries as specified in this instruction manual.

Do not mix new and old batteries as the old batteries may leak.

6. Read this instruction manual thoroughly before operating the

unit.

SPECIFICATIONS

Operating Temperature : 41°F to 122°F

Clock Functions

Radio Control : Auto synchronize current time and

date by Radio signal generated from

WWVBforUS

Calendar : Weekday in English / French /

Spanish

Current month / date format

Clock Time : 12-hour format

Alarm Duration : 1 minute crescendo

Snooze : 8 minutes

Accuracy : +/-0.5 second/day

(when RF is disabled)

Temperature Measurement

Indoor Measurement : 23°F to 122°F

Temperature Resolution : 0.1°F

General Specification

Battery Type : Two(2)UM-3or“AA”size

Alkaline 1.5V battery

Unit Dimension : 116 x 150 x 42 mm (H x W x D)

Unit Weight : 240g (without battery)

CAUTION

— The content of this manual is subject to change without

further notice.

— Due to printing limitation, the displays shown in this

manual may differ from the actual display.

— The contents of this manual may not be reproduced

without the permission of the manufacturer.

Indice

Altri manuali Oregon Scientific Orologio

Oregon Scientific

Oregon Scientific RMR682 Manuale utente

Oregon Scientific

Oregon Scientific RRM326P Manuale utente

Oregon Scientific

Oregon Scientific RM818P Manuale utente

Oregon Scientific

Oregon Scientific TimeSphere RM382P Manuale utente

Oregon Scientific

Oregon Scientific RMR613HGA Manuale utente

Oregon Scientific

Oregon Scientific WS902 Manuale utente

Oregon Scientific

Oregon Scientific RM368P Manuale utente

Oregon Scientific

Oregon Scientific SENSES Aroma Clock with Brainwave Music... Manuale utente

Oregon Scientific

Oregon Scientific NR868A-01 Manuale utente

Oregon Scientific

Oregon Scientific RRA320PN Manuale utente

Oregon Scientific

Oregon Scientific RM888PA Manuale utente

Oregon Scientific

Oregon Scientific RRM320P Manuale utente

Oregon Scientific

Oregon Scientific SKT338N Manuale utente

Oregon Scientific

Oregon Scientific RM313PNFA Manuale utente

Oregon Scientific

Oregon Scientific RMB899P Manuale utente

Oregon Scientific

Oregon Scientific RM622PA Manuale utente

Oregon Scientific

Oregon Scientific IWA-80055 Manuale utente

Oregon Scientific

Oregon Scientific RM313P Manuale utente

Oregon Scientific

Oregon Scientific RM968 Manuale utente

Oregon Scientific

Oregon Scientific PRYSMA G RRM222PA Manuale utente

Oregon Scientific

Oregon Scientific RM826A Manuale utente

Oregon Scientific

Oregon Scientific BAR223P Manuale utente

Oregon Scientific

Oregon Scientific JM889N Manuale utente

Oregon Scientific

Oregon Scientific RM308PX Manuale utente

Manuali Orologio popolari di altre marche

Silicon Laboratories

Silicon Laboratories SI5324 Manuale utente

Heathkit

Heathkit GC-1005 Manuale utente

Andrew O'Malley

Andrew O'Malley DOTKLOK Manuale utente

ALGE-Timing

ALGE-Timing ASC3 Manuale utente

Bodet

Bodet Profil 960 Manuale utente

Nixie Clock

Nixie Clock Divergence Meter Manuale utente

La Crosse Technology

La Crosse Technology WS-8256-AL Manuale utente

Mini Gadgets

Mini Gadgets MCPro Manuale utente

Casio

Casio TMR-200 Manuale utente

Progetti

Progetti ILTEMPOSTRINGE Manuale

BVItech

BVItech BV-101 Manuale utente

Progetti

Progetti KALIMERO Manuale

La Crosse Technology

La Crosse Technology WT-3141b Manuale

La Crosse Technology

La Crosse Technology W86531 Manuale utente

Sharp

Sharp SPC900 Manuale utente

La Crosse Technology

La Crosse Technology 404-50447 Manuale utente

Datexx

Datexx DF0063 Manuale utente

LG LEC-005 Manuale utente
